SWANY,
ELLIPTICAL TRAINER
ITEM NO: 93460
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to change without notice.
2012, May

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE PACKING LIST --------------------------------------------------------- 6
TOOLS -------------------------------------------------------------------------------------- 7
OVERVIEW DRAWING ----------------------------------------------------------------- 8
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9
OPERATING THE COMPUTER ------------------------------------------------------ 16
ADJUSTMENTS -------------------------------------------------------------------------- 18
MAINTENANCE -------------------------------------------------------------------------- 19
TROUBLESHOOTING ------------------------------------------------------------------ 19
WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 20

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment: Read all instructions before using this
equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercise is necessary.
Refer to the Warm Up and Cool Down Routine pages. After exercise, relaxation of the
body is suggested for cool-down.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that might catch any part of the equipment.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Be careful when step on or leave the pedal always hold the handlebars first. Make the
pedal at your side at the lowest position, step on the pedal, and stride over the main
frame then step on the other pedal. When using, please hold the handlebar by hands,
make the pedals running smoothly by push or pull handlebars, then run the equipment
regularly by cooperation of hands and feet. After exercise, please also make one
pedal at the lowest position and leave your foot on the higher pedal first and then
another.
7. Do not use the equipment outdoors.
8. This equipment is for household use only.
9. Only one person at a time should use this equipment.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
11. Care should be taken in mounting or dismounting the equipment.
12. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
13. The maximum weight capacity for this product is 110 kgs.
WARNING:Before beginning any exercise program consult your physician.
This is especially important for the persons who are over 35 years old or who have
pre-existing health problems. Read all instructions before using any fitness
equipment.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

4
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 025 Washer Ø16xØ8x1.5 3
002L Left Foot Bar 1 026 Hexagon Head Bolt M8x50 2
002R Right Foot Bar 1 027 Nylon Nut M6 6
003L Left Handrail Arm 1 028 Washer Ø6 6
003R Right Handrail Arm 1 029 Hexagon Head Bolt M6x40 6
004L Left Handrail Ø32x1.5 1 030 Tension Cable L=1800 1
004R Right Handrail Ø32x1.5 1 031 Bolt Cap S13 2
005 Front Post 1 032 Screw ST4.2x25 8
006 Handlebar Ø28.6x1.5 1 033L Foot Bar Cover-A 2
007 Bolt M8x10 1 033R Foot Bar Cover-B 2
008 Screw ST3.5x18 1 034 Big Washer Ø8 2
009 Cover Cap Ø50xØ26x10 2 035 Bolt Ø15.8x62.5 2
010 Front Stabilizer 1 036L Left Foot Pedal 395x150x65 1
011 Rear Stabilizer Ø50x1.5x480 1 036R Right Foot Pedal 395x150x65 1
012 Carriage Bolt M8x70 4 037L Left Decorative Cover Ø50 1
013L Rear Left Stabilizer End Cap Ø60 1 037R Right Decorative Cover Ø50 1
013R Rear Right Stabilizer End Cap
Ø60 1 038L Front Left Stabilizer End Cap Ø60 1
014 Big Curve Washer Ø8 10 038R Front Right Stabilizer End Cap
Ø60 1
015 Cap Nut M8 4 039 Washer Ø16xØ6x1.5t 1
016L Bolt for left U Shape Bracket 1 040 Adjustable Leveler M10 2
016R Bolt for right U Shape Bracket 1 041 Bolt M8x15 6
017L Left Nylon Nut 1/2” 1 042 Bolt M6x10 1
017R Right Nylon Nut 1/2” 1 043 Hexagon Head Bolt M10x18 2
018 Wave Washer Ø28xØ17x0.3 2 044 Spring Washer Ø18xØ10.5x3 2
019 Powder Metal Bushing
Ø28xØ24.5xØ16x10 8 045 Washer Ø28x5 2
020 Spring Washer 1/2“ 2 046 Powder Metal Bushing
Ø33xØ29xØ16x14x4 4
021 Bearing 6000Z 2 047 Bolt M6x35 4
022 Washer 7/8" 1 048 Curve Washer Ø6 4
023 U Shape Bracket 2 049 Bolt Cap S16 2
024 Nylon Nut M8 2 050 Cap Nut M6 1

5
PARTS LIST
No. Description Qty No. Description Qty
051 Plastic Bushing Ø32xØ16x5xØ50 2 070R Right Cover 1
052A Handrail Arm Cover-A 2 071 Washer Ø30xØ10xδ2.5 2
052B Handrail Arm Cover-B 2 072 Bearing Cup 2
053 Cap Nut M6 4 073 Bearing 2
054 Tension Control Knob 1 074 Bearing Nut I 15/16” 1
055 Screw ST2.9x12 8 075 Bearing Nut II 7/8” 1
056 Computer (JVT-29121) 1 076 Washer Ø15/16" 1
057 Bolt M5x12 4 077 Hexagon Nut 7/8” 1
058 Hand Pulse Sensor with Wire 2 078 Belt Pulley with Crank 6.5” 1
059 Handrail Foam Grip
Ø31xØ37x480 2 079 Screw ST4.2x20 12
060 Handlebar Foam Grip
Ø21xØ27x360 2 080 M10x1 Nut for Flywheel 2
061 Handrail End Cap Ø32x1.5 2 081 Flywheel Ø230x40x32 1
062 Handlebar End Cap Ø28.6x1.5 2 082 Belt PJ380 J6 1
063 Phillips Self Tapping Screw
ST4.2x20 2 083 Idler Arm 1
064 Curve Washer Ø20xØ5.2 1 084 Bolt M8x20 2
065 Bolt M5x45 1 085 Eyebolt M6x45 2
066 Powder Metal Bushing
Ø18xØ8x10 4 086 Tension Bracket 2
067 Extension Sensor Wire L=1100 1 087 Spring Washer Ø6 2
068 Sensor with Wire L=1200 1 088 Nut M6 2
069 Nut M10 2 089 Spring Washer Ø8 4
070L Left Cover 1

6
HARDWARE PACKING LIST
(12) Carriage Bolt
M8x70
4 PCS
(14) Big Curve Washer Ø8
4 PCS
(15) Cap Nut M8
4 PCS
(16L) Bolt for left U
Shape Bracket
1 PC
(16R) Bolt for right U
Shape Bracket
1 PC
(17L) Left Nylon Nut 1/2”
1 PC
(17R) Right Nylon Nut 1/2”
1 PC
(18) Wave Washer
Ø28xØ17x0.3
2 PCS
(20) Spring Washer 1/2“
2 PCS
(27) Nylon Nut M6
6 PCS
(28) Washer Ø6
6 PCS
(29) Hexagon Head Bolt
M6x40
6 PCS
(31) Bolt Cap S13
2 PCS
(79) Screw ST4.2x20
4 PCS
(47) Bolt M6x35
4 PCS
(48) Curve Washer Ø6
4 PCS
(49) Bolt Cap S16
2 PCS
(55) Screw ST2.9x12
8 PCS
(53) Cap Nut M6
4 PCS

7

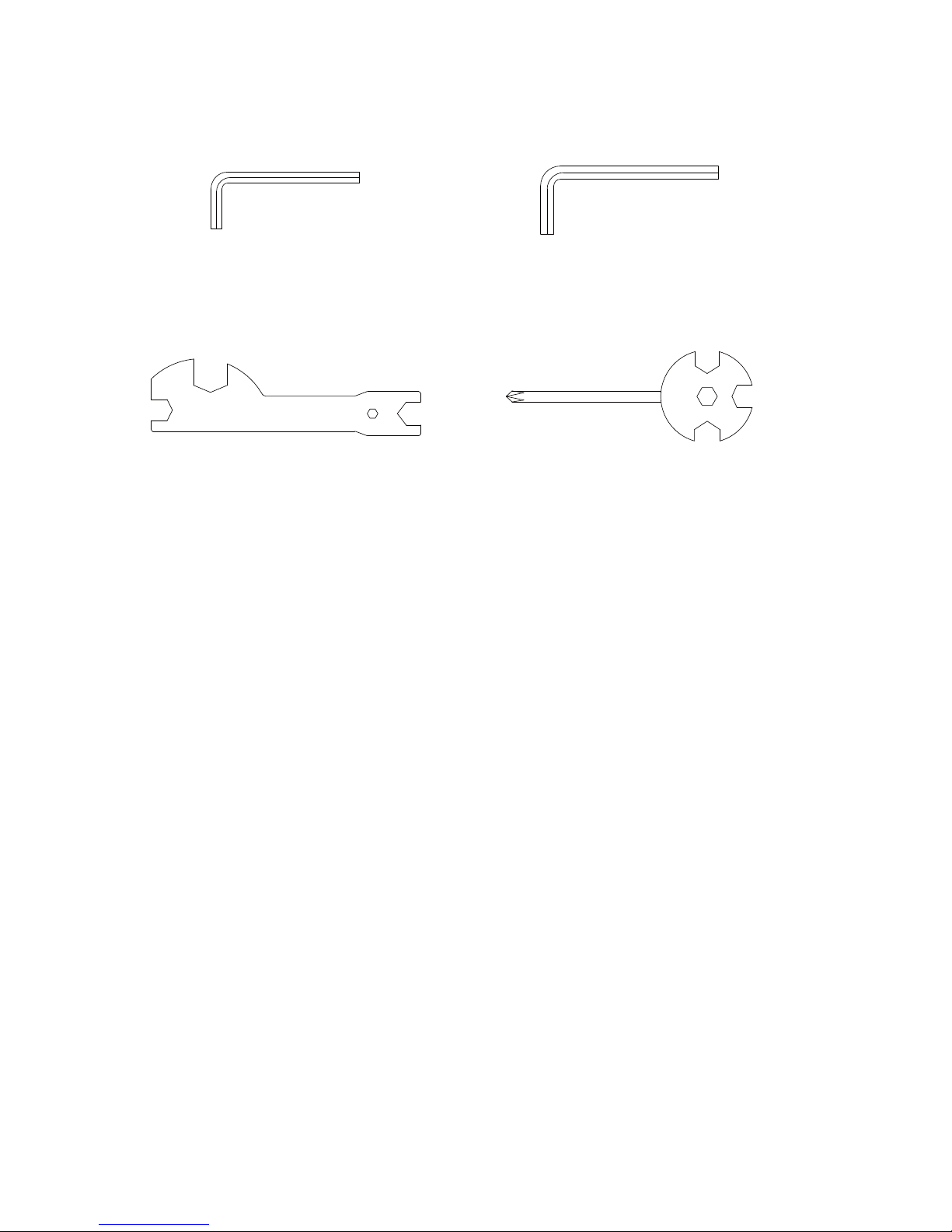

TOOLS
Allen Wrench 5mm
1 PC
Allen Wrench 8mm
1 PC
Multi Hex Tool
1 PC
Multi Hex Tool with Phillips Screwdriver
S8, S13, S14, S15
1 PC

8

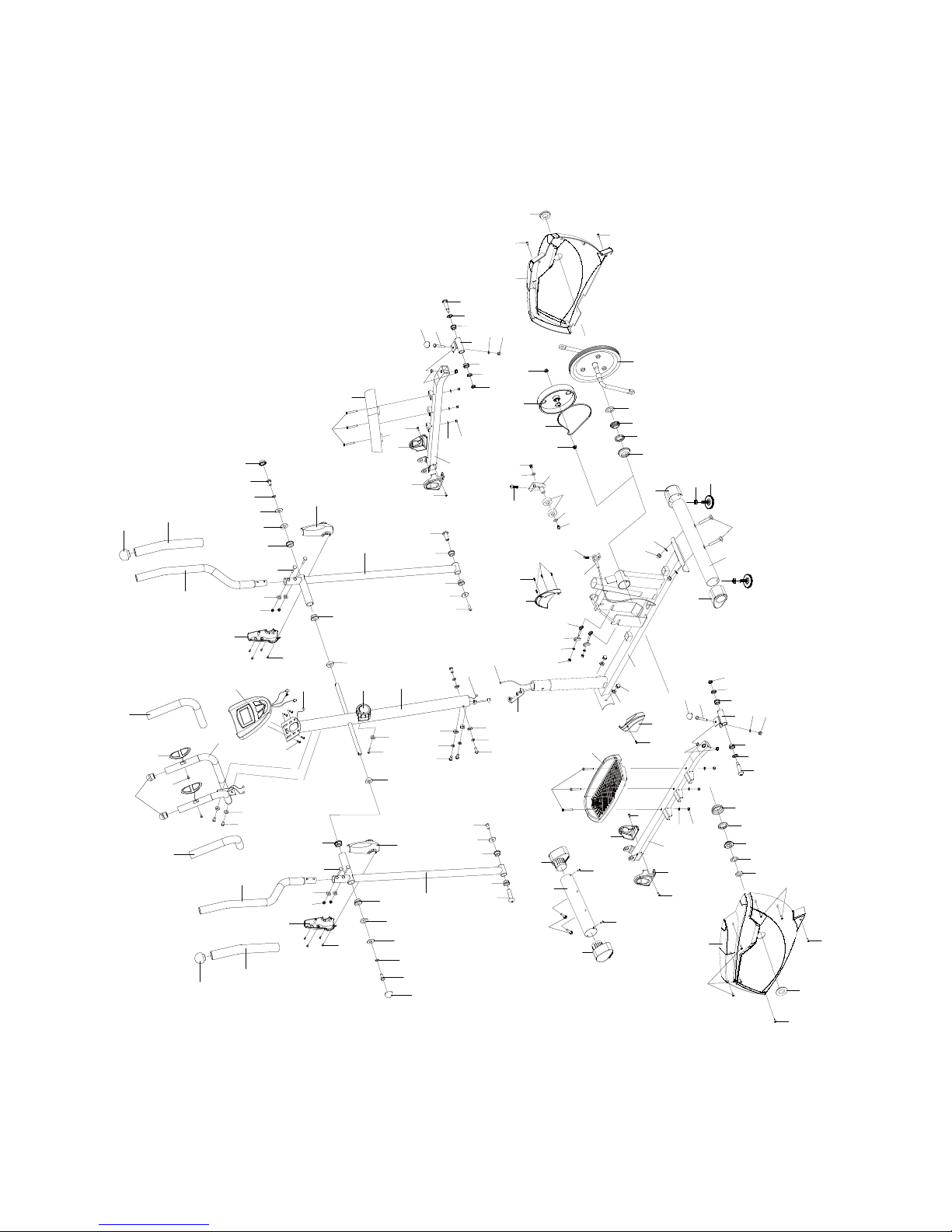

OVERVIEW DRAWING
68
66
66
55
76
35
34
84
84
74
72
73
72
22
73
77
75
8
48
53
28
27
41
14
60 63
6
58
62
60
85
87 86
88
78
82
80
80
81
33R
33L
19
48
53
47
79
28
27
17R
20
23
18
19
16R
36R
29
19
2R
19 20 17L
31
26
24
25
23
19
18
16L
15
14
12
13R
11
70L
2L
34
19
35
33R
33L
79
10
12
38L
68
14
67
79
29
36L
79
41
1
57
56
46
65
64
30
67
51
46
46
47
43 49
44
45
59
61
4R
52B
52A
54 3R
5
3L
51
46
45
44
43
49
52A
52B
4L
59
61
9
14
15
70R
25
83
21
7
50
42 39
9
79
79
79
19
55
38R
14
41
31
26
24
25
19
71
71
79
79
13L
40
69
79 37L
37R 79
32
32
32
79
89
89

9
ASSEMBLY INSTRUCTIONS
1. Front and Rear Stabilizers Installation
Position the Front Stabilizer (10) in front of Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (10) onto the front curve of the Main Frame (1) with two M10x57
Carriage Bolts (12), two Ø8 Big Curve Washers (14), and two M8 Cap Nuts (15). Tighten
cap nuts with the Multi Hex Tool provided.
Position the Rear Stabilizer (11) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (11) onto the rear curve of the Main Frame (1) with two M10x57
Carriage Bolts (12), two Ø8 Big Curve Washers (14), and two M8 Cap Nuts (15). Tighten
cap nuts with the Multi Hex Tool provided.
Hardware:
Tool:
Multi Hex Tool
15
14
12
11
10
12
15
14
1
(12) Carriage Bolt
M8x70
4 PCS
(14) Big Curve Washer Ø8
4 PCS
(15) Cap Nut M8
4 PCS

10

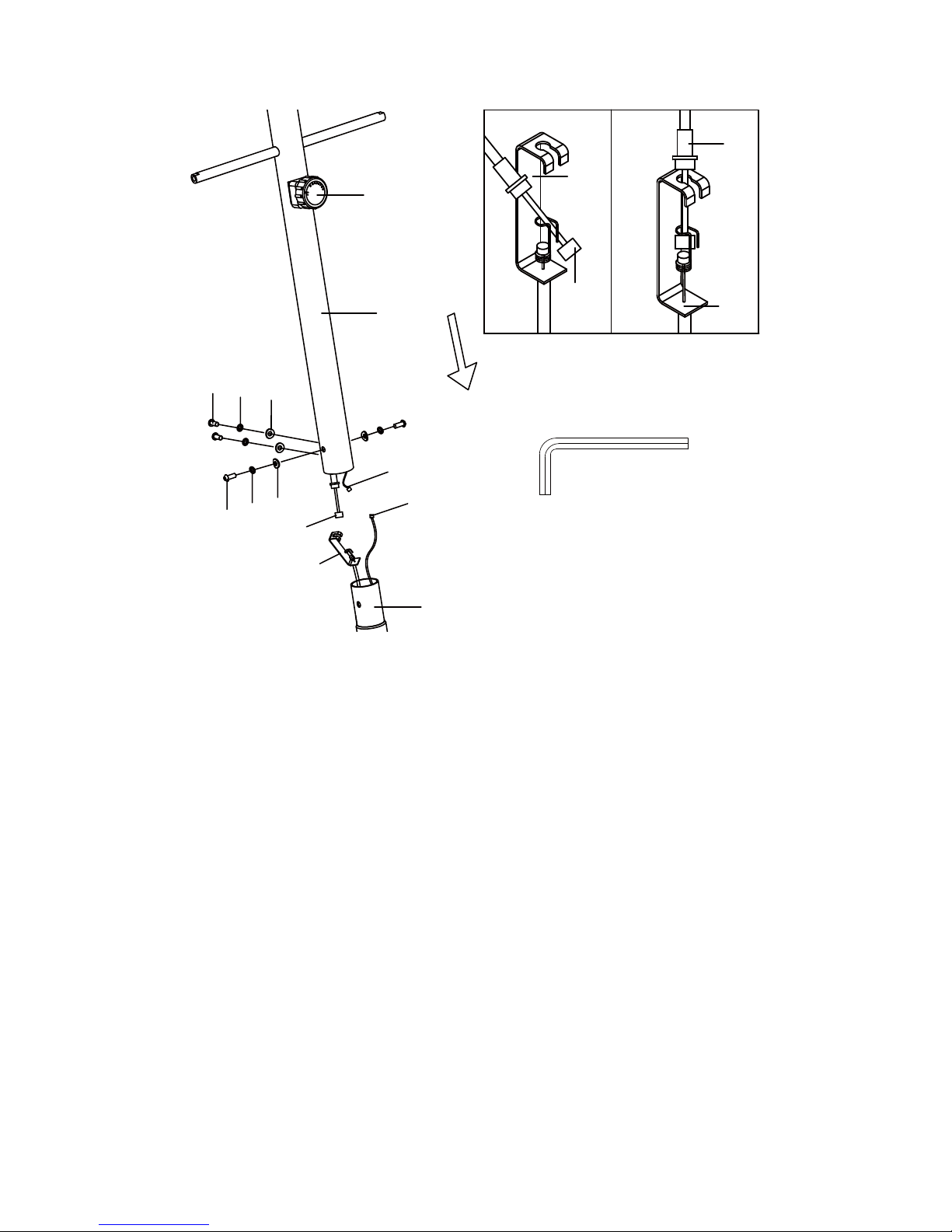

2. Front Post Installation
Remove four M8x15 Bolts (41), four Ø8 Spring Washers (89), and four Ø8 Big Curve
Washers (14) from the Main Frame (1). Remove bolts with the 5mm Allen Wrench
provided.
Put the cable end of resistance cable of Tension Control Knob (54) into the spring hook of
Tension Cable (30), see Figure A. Pull the resistance cable of Tension Control Knob (54)
up and force it into the gap of metal bracket of Tension Cable (30), see Figure B.
Connect the Sensor Wire (68) from the Main Frame (1) to the Extension Sensor Wire (67)
from the Front Post (5).
Insert the Front Post (5) onto the tube of the Main Frame (1) and secure with four M8x15
Bolts (41), four Ø8 Spring Washers (89), and four Ø8 Big Curve Washers (14)that were
removed. Tighten bolts with the 5mm Allen Wrench provided.
30
30
54
54
AB
Tool:
Allen Wrench 5mm
68
67
30
5
54
1
54
14
41
14
41 89
89

11

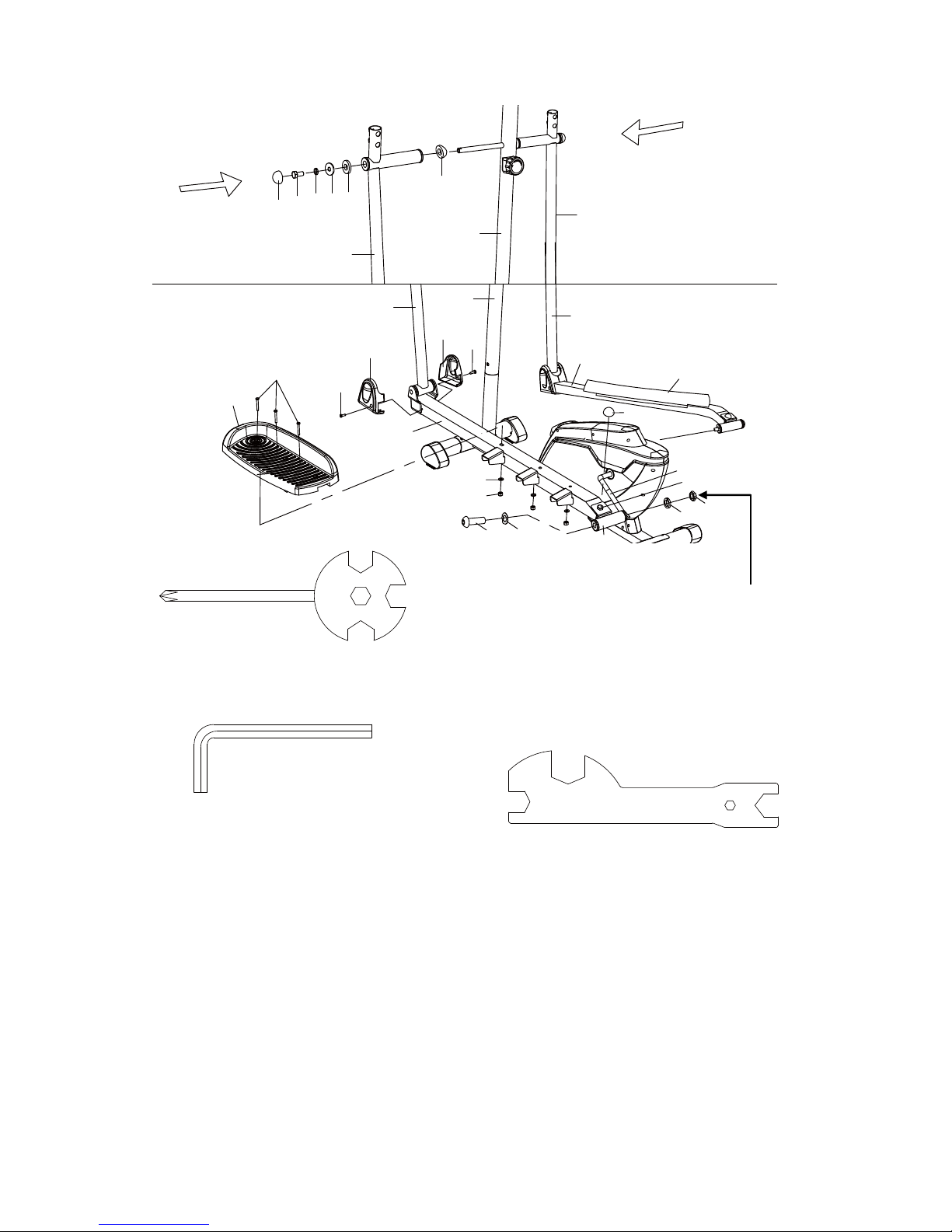

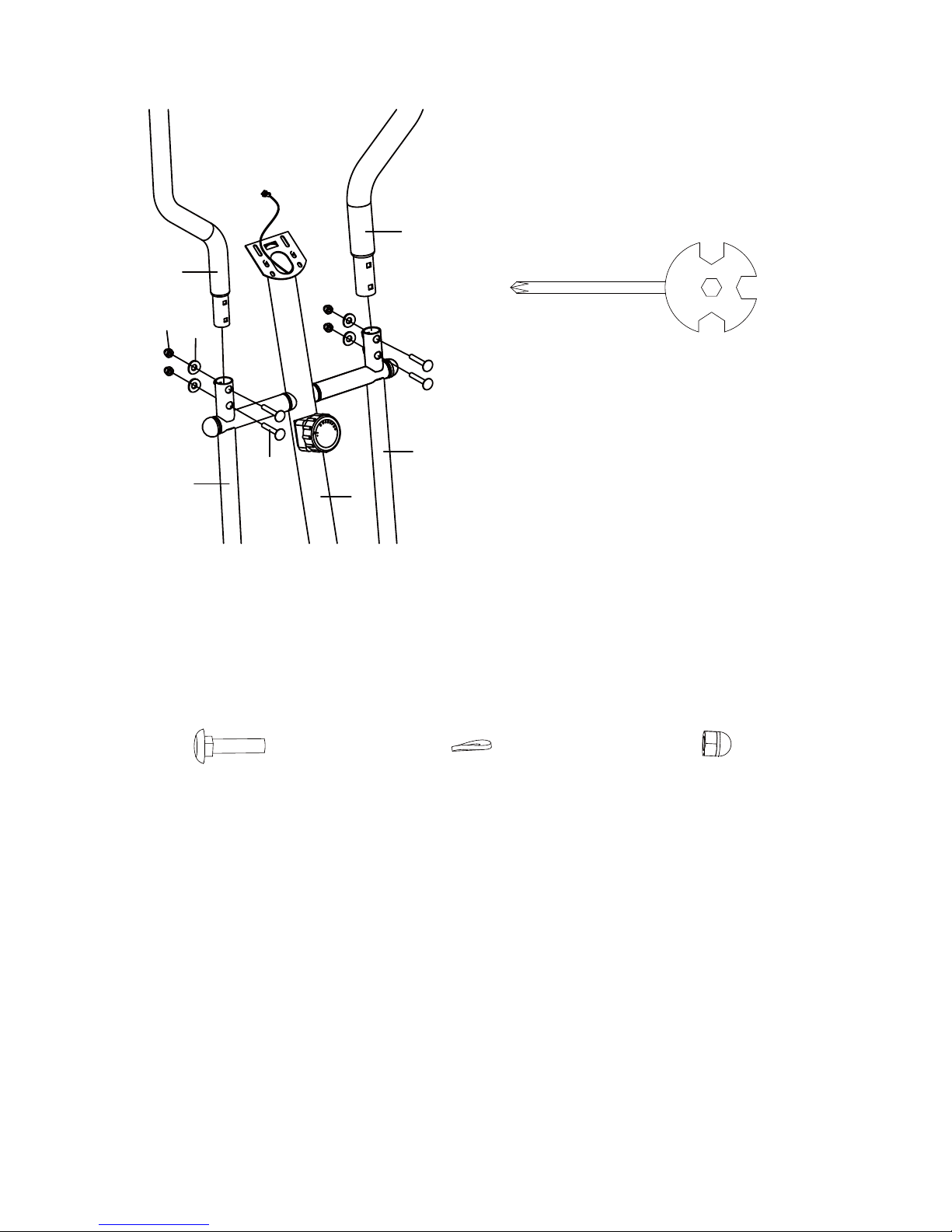

3. Left/Right Handrail Arms, Left/Right Foot Bars, Left/Right Foot Pedals, and Foot
Bar Covers-A/B Installation
Remove two M10x18 Hexagon Head Bolts (43), two Ø18xØ10.5x3 Spring Washers (44),
two Ø30xØ10xδ2.5 Washers (71), and two Ø28x5 Washers (45) from the left and right
horizontal axes of the Front Post (5). Remove bolts with the Multi Hex Tool provided.
Attach the Left Handrail Arm (3L) onto the left horizontal axis of the Front Post (5) with one
M10x18 Hexagon Head Bolt (43), one Ø18xØ10.5x3 Spring Washer (44), one
Ø30xØ10xδ2.5 Washer (71), and one Ø28x5 Washer (45) that were removed. Tighten
bolt with the Multi Hex Tool provided. Install a S16 Bolt Cap (49) onto the M10x18
Hexagon Head Bolt (43).
Multi Hex Tool
Allen Wrench 8mm
IMPORTANT:
Please make sure the 1/2” Left Nylon Nut
(17L) matches up with the Bolt for left U
Shape Bracket (16L) and the1/2” Right
Nylon Nut (17R) matches up with the Bolt
for right U Shape Bracket (16R).
If reversed the Nylon Nuts may become
damaged.
Multi Hex Tool with Phillips Screwdriver
S8, S13, S14, S15
Tool:
3L
79
2L
28
27
36L
29
31
26
79
33L
33R
3R
5
2R
3L
3R
5
16L 18
23
20
17L
36R
45
44
43
49
71
51
78

12
Attach the left U Shape Bracket (23) to the left Crank (78) with one Bolt for left U Shape
Bracket (16L), one Ø28xØ17x0.3 Wave Washer (18), one 1/2” Spring Washer (20), and one
1/2” Left Nylon Nut (17L). Tighten bolt and nylon nut with the 8mm Allen Wrench and Multi
Hex Tool provided. Install a S13 Bolt Cap (31) onto the M8x50 Hexagon Head Bolt (26).
NOTE: Bolt for left U Shape Bracket (16L) and Bolt for right U Shape Bracket (16R) are
marked “R” for Right and “L” for Left.
Attach the Left Foot Pedal (36L) onto the Left Foot Bar (2L) with three M6 Nylon Nuts (27),
three Ø6 Washers (28), and three M6x40 Hexagon Head Bolts (29). Tighten nylon nuts
with the Multi Hex Tool with Phillips Screwdriver provided.
Attach the Foot Bar Covers-A/B (33L, 33R) onto the Left Foot Bar (2L) with two ST4.2x20
Screws (79). Tighten screws with the Multi Hex Tool with Phillips Screwdriver provided.
Repeat above step to attach the Right Handrail Arm (3R) onto the right horizontal axis of the
Front Post (5) and right U Shape Bracket (23) to the right Crank (78).
Hardware:
(16L) Bolt for left U
Shape Bracket
1 PC
(16R) Bolt for right U
Shape Bracket
1 PC
(17L) Left Nylon Nut 1/2”
1 PC
(17R) Right Nylon Nut 1/2”
1 PC
(18) Wave Washer
Ø28xØ17x0.3
2 PCS
(20) Spring Washer 1/2“
2 PCS
(31) Bolt Cap S13
2 PCS
(49) Bolt Cap S16
2 PCS
(27) Nylon Nut M6
6 PCS
(28) Washer Ø6
6 PCS
(29) Hexagon Head Bolt
M6x40
6 PCS
(79) Screw ST4.2x20
4 PCS

13
4. Left and Right Handrails Installation
Attach the Left/Right Handrails (4L, 4R) onto the Left/Right Handrail Arms (3L, 3R) with four
M6x35 Bolts (47), four Ø6 Curve Washers (48), and four M6 Cap Nuts (53). Tighten cap
nuts with the Multi Hex Tool with Phillips Screwdriver provided.
Hardware:
(47) Bolt M6x35
4 PCS
(48) Curve Washer Ø6
4 PCS
(53) Cap Nut M6
4 PCS
Multi Hex Tool with Phillips Screwdriver
S8, S13, S14, S15
Tool:
4R
3R
5
3L
4L
48
53
47

14
5. Left and Right Handrail Arm Covers-A and B Installation
Attach the Handrail Arm Cover-A (52A) and Handrail Arm Cover-B (52B) onto the Left
Handrail Arm (3L) with four ST2.9x12 Screws (55). Tighten screws with the Multi Hex Tool
with Phillips Screwdriver provided.
Attach the Handrail Arm Cover-A (52A) and Handrail Arm Cover-B (52B) onto the Right
Handrail Arm (3R) with four ST2.9x12 Screws (55). Tighten screws with the Multi Hex Tool
with Phillips Screwdriver provided.
Hardware:
Multi Hex Tool with Phillips Screwdriver
S8, S13, S14, S15
Tool:
3R
4R
4L
5
3L
52A
52B
55
52
A
55
52B
(55) Screw ST2.9x12
8 PCS

15
6. Handlebar and Computer Installation
Remove four M5x12 Bolts (57) from the back of the Computer (56). Remove bolts with the
Multi Hex Tool with Phillips Screwdriver provided.
Remove two M8x15 Bolts (41) and two Ø8 Big Curve Washers (14) from the Front Post (5).
Remove bolts with the 5mm Allen Wrench provided.
Insert the Hand Pulse Sensor Wires (58) from the Handlebar (6) into the hole on the Front
Post (5) and then pull them out from the top end of the Front Post (5).
Attach the Handlebar (6) onto the Front Post (5) with two M8x15 Bolts (41) and two Ø8 Big
Curve Washers (14) that were removed. Tighten bolts with the 5mm Allen Wrench
provided.
Connect the Extension Sensor Wire (67) and Hand Pulse Sensor Wires (58) to the wires that
come from the Computer (56) and then attach the Computer (56) onto the top end of the
Front Post (5) with four M5x12 Bolts (57) that were removed. Tighten bolts with the Multi
Hex Tool with Phillips Screwdriver provided.
Multi Hex Tool with
Phillips Screwdriver
S8, S13, S14, S15
Tool:
Allen Wrench 5mm
41
14
6
58
57
56
67
5

16
OPERATING THE COMPUTER
SPECIFICATIONS:
TIME---------------------------------------------------- 0:00-99:59 MIN: SEC
SPEED ------------------------------------------------ 0.0-999.9 KM/H
DIST (DISTANCE) ---------------------------------- 0.0-999.9 KM
CAL (CALORIES) ----------------------------------- 0.0-999.9 KCAL
ODO (ODOMETER) --------------------------------0.0-999.9 KM
(PULSE) ------------------------------------------ 40-240 BEATS/MIN
USING YOUR COMPUTER
The computer can be activated by pressing the buttons or by pedaling. If you leave the
equipment for 4 minutes, the power will turn off automatically.
BUTTON FUNCTIONS:
MODE: Press the MODE button to select each function of computer.
Press and hold the MODE button for 3 seconds, all data values will clear to zero except the
ODO (ODOMETER) data values.
SET: Press the SET button to set data values of TIME, DISTANCE, CALORIES, or PULSE
for target pre-setting.
RESET: Press the RESET button to clear data values of TIME, DISTANCE, or CALORIES to
zero.
Press the RESET button to clear data values of TIME, DISTANCE, CALORIES, or PULSE to
zero for target pre-setting.
Press and hold the RESET button for 3 seconds, all data values will clear to zero except the
ODO (ODOMETER) data values.
COMPUTER FUNTIONS:
SCAN: Press the MODE button until the screen displays SCAN; the computer will
automatically scan the function of TIME, SPEED, DIST (DISTANCE), CAL (CALORIES),
ODO (ODOMETER), and (PULSE) every 6 seconds.
TIME: Displays your elapsed workout time in minutes and seconds. You may also pre-set
target time in STOP mode before training. To set TIME press the MODE button until you
see the TIME begin blinking. Press the SET button to change the time, each time you
press the SET button TIME should change by 1 minute. Press the RESET button to clear
the target time to zero. The pre-set target time range is from 0:00 to 99:00 minutes. Once
you pre-set target time and then start to exercise, time starts counting down from pre-set
target time to 0:00 per 1 second backward. When the pre-set target time counts down to
0:00, time will start to count up immediately and the computer will begin beeping to remind
you.
SPEED: Display the current training speed.

17
DIST (DISTANCE): Displays the accumulative distance traveled during workout. You may
also pre-set target distance in STOP mode before training. To set DISTANCE press the
MODE button until you see the DIST begin blinking. Press the SET button to change the
distance. Press the RESET button to clear the target distance to zero. The pre-set target
distance range is from 0.0 to 999.0 km. Once you pre-set target distance and then start to
exercise, distance starts counting down from pre-set target distance to 0.0. When the
pre-set target distance counts down to 0.0, distance will start to count up immediately and
the computer will begin beeping to remind you.
CAL (CALORIES): Displays the total accumulated calories burned during workout. You
may also pre-set target calories in STOP mode before training. To set CALORIES press
the MODE button until you see the CAL begin blinking. Press the SET button to change the
calories. Press the RESET button to clear the target calories to zero. The pre-set target
calories range is from 0.0 to 999.0 calories. Once you pre-set target calories and then start
to exercise, calories start counting down from pre-set target calories to 0.0. When the
pre-set target calories count down to 0.0, calories will start to count up immediately and the
computer will begin beeping to remind you. (This data is a rough guide for comparison of
different exercise sessions and should not be used in medical treatment).
ODO (ODOMETER): Displays the total accumulative distance traveled. The data values of
ODO can not be clear to zero by pressing and holding the MODE or RESET button for 3
seconds. If you take out the batteries from the computer, the ODO data values will clear to
zero.
(PULSE): Displays your current heart rate figures after you grip the handlebar sensors
with both your hands during exercise. To ensure the pulse readout is more precise, please
always hold on to the handlebar grip sensors with two hands instead of just with one hand
only when you try to test your heart rate figures. You may also pre-set target heart rate in
STOP mode before training. To set PULSE press the MODE button until you see the
PULSE begin blinking. Press the SET button to pre-set target heart rate. Press the
RESET button to clear the target heart rate to zero. Once you pre-set target heart rate and
then start to exercise, please grip the handlebar sensors with both your hands during
exercise. If the heart rate detected greater than the target heart rate, the computer will
begin beeping to remind you.
HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover on the back of the computer.
2. Place two "SIZE-AA" batteries into the battery housing.
3. Insure batteries are correctly positioned and battery springs are proper contact with
batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appear, remove batteries and wait 15
seconds before reinstalling.

18
ADJUSTMENTS
Adjusting the Tension Control Knob
To increase the load, turn the tension control knob in a
clockwise direction.
To decrease the load, turn the tension control knob in a
counterclockwise direction.
Adjusting the Adjustable Leveler
Turn the adjustable leveler on the rear stabilizer as needed to
level the elliptical trainer.
Tension Control Knob
Adjustable Leveler

19
MAINTENANCE
Cleaning
The elliptical trainer can be cleaned with a soft cloth and mild detergent. Do not use
abrasives or solvents on plastic parts. Please wipe your perspiration off the elliptical trainer
after each use. Be careful not get excessive moisture on the computer display panel as this
might cause an electrical hazard or electronics to fail.
Please keep the elliptical trainer, specially, the computer console, out of direct sunlight to
prevent screen damage.
Please inspect all assembly bolts and pedals on the machine for proper tightness every
week.
Storage
Store the elliptical trainer in a clean and dry environment away from children.
TROUBLESHOOTING
PROBLEM SOLUTION
The elliptical trainer wobbles when in use. Turn the adjustable leveler on the rear
stabilizer as needed to level the elliptical
trainer.
There is no display on the computer
console.
1. Remove the computer console and verify
the wires that come from the computer
console are properly connected to the
wires that come from the front post.
2. Check if the batteries are correctly
positioned and battery springs are in
proper contact with batteries.
3. The batteries in the computer console may
be dead. Change to new batteries.
There is no heart rate reading or heart rate
reading or is erratic / inconsistent.
1. Make sure that the wire connections for
the hand pulse sensors are secure.
2. To ensure the pulse readout is more
precise, please always hold on to the
handlebar grip sensors with two hands
instead of just with one hand only when
you try to test your heart rate figures.
3. Gripping the hand pulse sensors too tight.
Try to maintain moderate pressure while
holding onto the hand pulse sensors.
The elliptical trainer makes a squeaking
noise when in use.
The bolts may be loose on the elliptical trainer,
please inspect the bolts and tighten the loose
bolts.
