LifeSmart’s Video Smart Door Lock defines a new generation of door
locks, by innovatively featuring a HD camera built in a bezel-less
design with a stylish finish and an emphasis on ergonomics.
This Video Smart Door Lock is your home guardian, a real time
surveillance device. It is not only built as a standard door lock, but
also a real-time surveillance device. Through the camera on the door
lock, you can monitor a live vision outside your door on your mobile
device anywhere and anytime. It reads your fingerprint, password,
NFC card, key to verify your ID home. The fingerprint scanner is
equipped with leading RF fingerprinting technology to ensure a
higher accuracy and a faster response speed. Connect the smart
door lock with the LifeSmart Smart Home system, it creates more
possibilities to make your home safer and smarter.
1 . Video Call
LifeSmart’s Video Smart Door Lock defines a new generation of door
locks, by innovatively featuring a HD camera built in a bezel-less
design with a stylish finish and an emphasis on ergonomics.
2 . Multiple Ways for Access
You can open your door with fingerprint, password, NFC card, a
traditional key or through LifeSmart App.
3 . Safe Mode
It requires a combination of TWO door open methods (fingerprint,
password or NFC card) to grant the access.
4 . Anti Password Leak Lock Down
If password is entered wrong 10 times, the door lock locks down for
10 minutes automatically.
5 . Brute Force Attack Protection
An alarm will be triggered if the door is broken in by force.
6 . Scramble Pin Code
You can input your correct password in order in any place in the
sequence as long as it’s within 24 characters.
7 . Hostage Alarm
You can pre-set your hostage password. When an abduction
happens, just input your hostage password to inform your family for
help.
8 . Bezel-less Tempered Glass Panel
Touch panel is made of tempered glass and embed within the the
body for durable protection.
01 02
PRODUCT INTRODUCTION
1.1 Features

1.2 Specifications
385 * 75 *33 mm (Handle excluded)
Gold
Zinc Alloy
F.2.5
Fill Flash
≤1%
≤0.001%
6068 Lock Body,
Compatible with TDG Anti-theft Spindles
Fingerprint/Password/NFC card
Emergency Key/LifeSmart App
Size
Color
Material
Lens
Night Vision
False Reject Rate
False Accept Rate
Compatible Lock Body
Ways of Access
255 Fingerprints, 30 Combinations,
255 NFC Cards
RF Fingerprinting Scanner
6~12 Characters
AA Batteries * 8
USB Ported Power
CoSS/Wi-Fi
400m (Open Field)
-30~60℃
20~90%
Storage
Fingerprint Recognition
Password Length
Power
Emergency Power
Radio Type
Radio Range
Operating Temperature
Operating Humidity
03 04

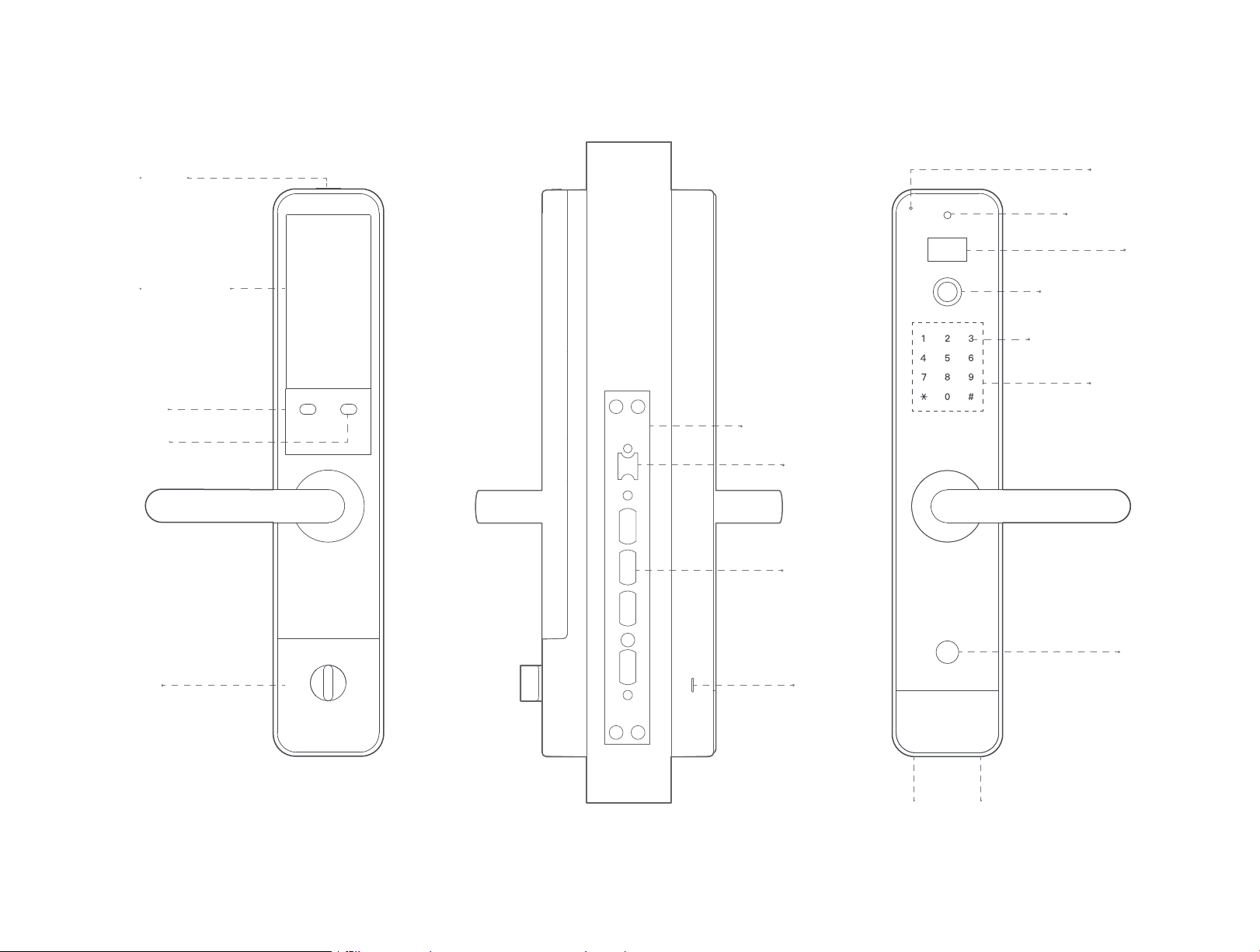

1.3 Components
Release Button
Battery Compartment
Bolt Component
Microphone
Built-in Camera
Fingerprint Scanner
Touchscreen Keypad
NFC Reader
Doorbell
Screen
Latch Bolt
Dead Bolt
Speaker
Keyhole USB Emergency
Power Supply Port
Reset Button
Stop Button
Code Button
05 06

24 * 240 Lock Body (Standard)
30 * 240 Lock Body (Optional)
388 Lock Body (Optional)
Latch Bolt
Square Shaft Port
Dead Bolt
Latch Bolt
Secure Bolt
Secure Bolt
Front Plate
Front Plate
Dead Bolt
Hook Bolt
Hook Bolt
Front Plate
Latch Bolt
Dead Bolt
Secure Bolt
TDG Anti-theft Spindle
TDG Anti-theft Spindle
TDG Anti-theft Spindle
Latch Bolt Reversal Button
Latch Bolt Reversal Button
Latch Bolt Reversal Button
Square Shaft Port
Square Shaft Port
Emergency Key Pin Hole
Emergency Key Pin Hole
Secure Bolt Pin Hole
Emergency Key Pin Hole
Securer Bolt Pin Hole
Securer Bolt Pin Hole
TDG Anti-theft Spindle
TDG Anti-theft Spindle
TDG Anti-theft Spindle
1.4 Lock Body Description
07 08

Oriental Screw
Pull outside to right
1
Outside Outside
Push inside to right
2

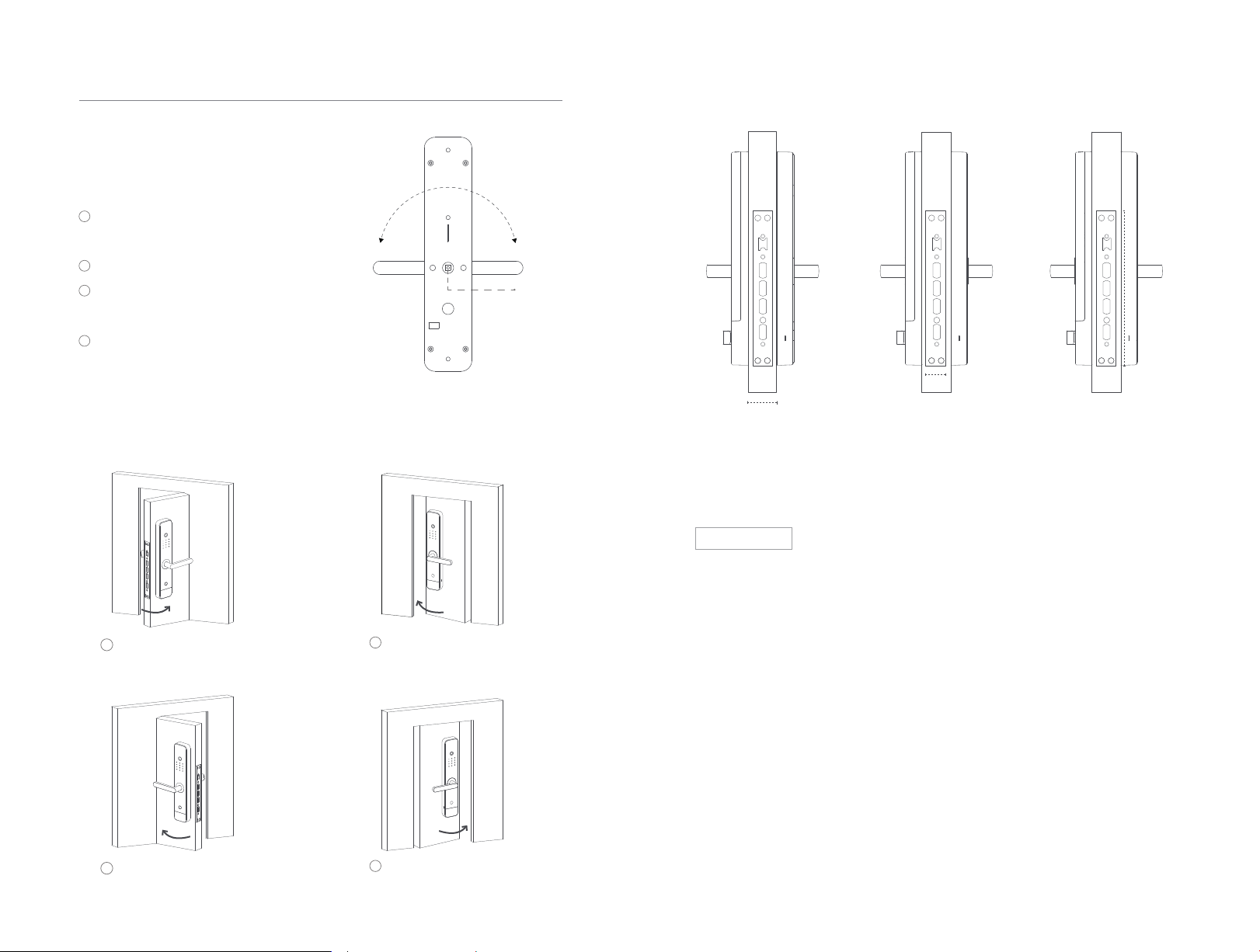

2.1 Installation Notice

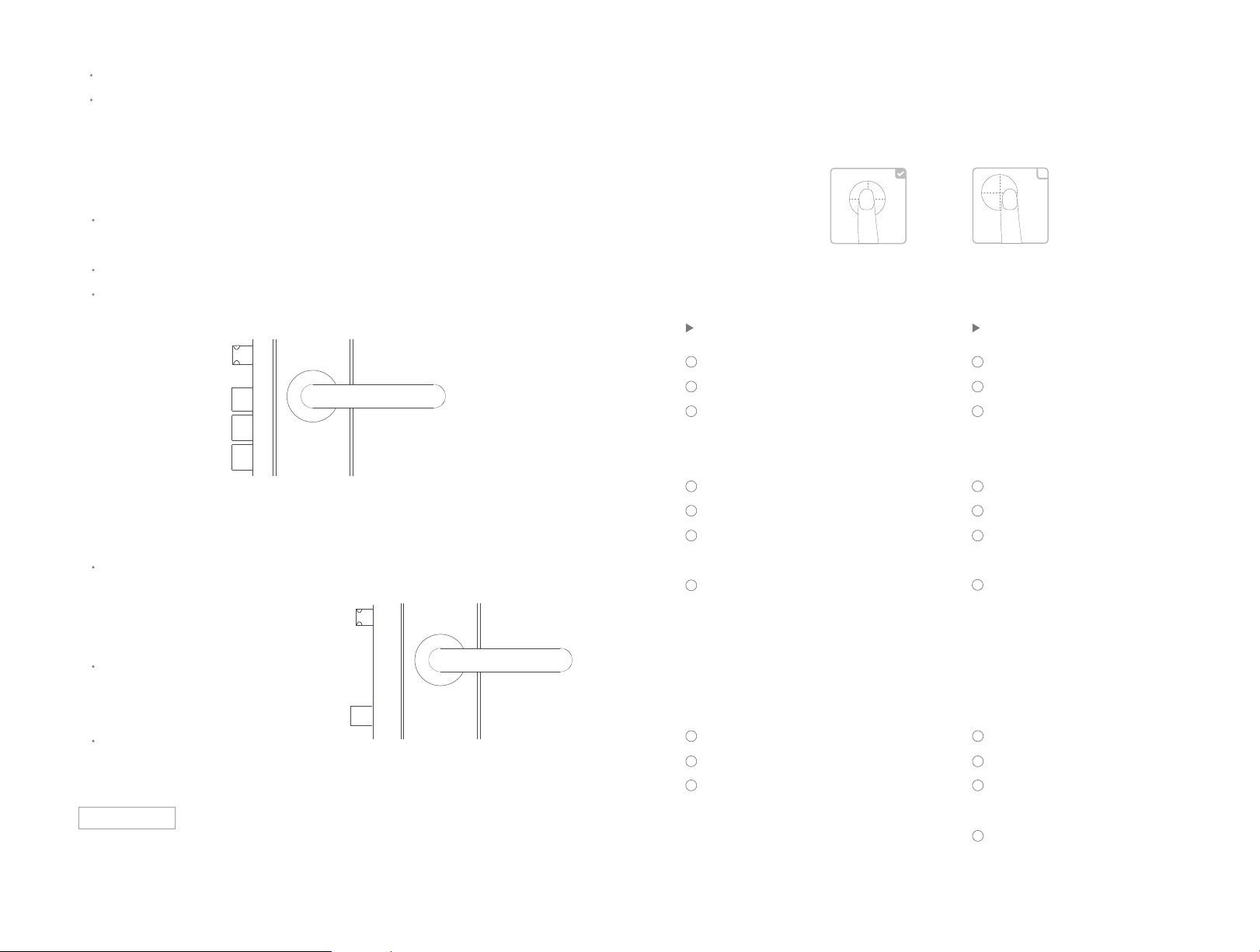

1 . Change Direction of the Handle
2 . Direction of Opening
3 . Door Thickness and Front Plate Length /Thickness Measurement
Adjust the handle to the position as
the dashed line shows (see right).
Fix the orientation screw.
Twist square hole towards handle
direction until it is fixed.
Same steps are applied to both front
and back panels.
The lock body is compatible for doors with thickness ranged
45mm-55mm. If your door is thicker than 55cm, components will have
to be customized. Please check before installation, and contact your
retailer if the lock body does not fit in.
INSTALLATION
2
3
4
1
Outside Outside
Pull outside to left
3Push inside to left
4
Measuring the
thickness of
the door
ATTENTION
Measuring the
thickness of the
front plate
Measuring the
length of the
front plate
09 10

2.2 Installation Instructions
1 . Drill openings according to the
template, and then place the lock
body into door jamb.
5 . Insert a square strip into the lock body from inside the door
to outside (the longer side of the square strip facing the
front plate and springs inserted both sides of the strip).
6 . Place the cable of the front panel
through the opening and seal the panel.
7 . Separate the back panel and its
cover case (silicone pad and
stainless steel cover).Place cables
from front panel through the matched
openings, then fix the cylinder crews.
8 . Connect cables from front panel to
the right sockets on back panel.
Remove the cover of the battery
compartment, adjust it and tighten fix
4 screws on the panel.
2 . Connect the TDG anti-theft
spindles with the lock body.
(Skip this step if it is a wooden door)
4 . Connect the threaded rod according
to the thickness of your door. Install the
handle in line with the direction of
openings. Use a cross tip screwdriver to
tighten the oriental screw and fasten the
square hole towards handle.
3. Fix 4 screws on the lock body.
The oriental screw is on loose in the lever handle when it is shipped.
Please pull it out from the right handle direction and tighten it accord-
ing to your opening direction.
ATTENTION
11 12
Outside Indoor
Cable
Square Shaft Spring
Lock body

INSTRUCTION
3.1 Initial Use
3.2 Keyboard Operation
3.3 Unlock/Lock Operation
1 . Make sure that the door lock is installed properly and batteries are
already placed in compartment. (AA Battery * 8)
2 . Add two admin accounts to activate at least one unlocking method
(from fingerprint, password and NCF card).
3 . Now the door lock is good to use. You can now authorize more
fingerprints, passwords or NFC card to grant access.
1 . How to Unlock in Semi-Locked State
1 . Slide to activate keyboard, input your password and press # to finish.
2 . Only 2, 8, * and # are lit under Admin Mode. Press 2 to scroll up, 8 to
scroll down, * to go back, # to confirm.
9 . nstall batteries. Close battery
compartment.
10 . Please check the handle from
both sides of the door, stop
button, emergency key and other
components after installation to
confirm the door lock working
properly.
Back
Scroll Up
Scroll Down
Confirm
Semi-Locked State : Only latch bolt is
locked; the lock goes semi-locked
automatically after released in 5
seconds.
13 14

X
3.4 Fingerprint Operation
Please use the traditional metal key only if you’re having an emergency.
ATTENTION
2 . How to Unlock in Full-Locked State
1 . Fingerprint to Unlock
2 . Add a New Fingerprint
3 . Delete User’s Fingerprint
Full-Locked State : latch bolt and dead bolt both locked at the same
time; pull up the handle from outside the door to go full-locked.
Unlock from Inside : Push down the handle to unlock.
Unlock from Outside : It requires fingerprint, password, NFC card or
emergency key to unlock.
3 . How to Unlock in Counter Locked State
Counter Locked State : latch bolt,
dead bolt and stop button all
secured; launch counter lock by
switching the stop button.
Unlock from Inside : switch the
stop button back and push down
the handle to unlock.
Unlock from Outside : you can’t
unlock in any way.
Unlock from Inside : Push down the handle to unlock .
Unlock from Outside : It requires fingerprint, password, NFC card
or emergency key to unlock.
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation
of an Admin’s fingerprint, password
or NFC card
Select “Fingerprint Management”
Select “Add a User”
Select “Empty” (no “*” after a
user’s name)
Follow the voice instructions to
complete the process
2
3
4
5
6
7
1
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisa-
tion of an Admin’s fingerprint,
password or NFC card
1
2
3
Select “Fingerprint Management”
Select “Delete a User”
Select the name of the user you
want to delete
Deletion completed
4
5
6
7
Add a User’s Fingerprint
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisa-
tion of an Admin’s fingerprint,
password or NFC card
Select “Fingerprint Management”
Select “Add an Admin”
Select “Empty” (no “*” after a
user’s name)
Follow the voice instructions to
complete the process
2
3
4
5
6
7
1
Add an Admin’s Fingerprint
15 16

Slide to active keyboard, input your password and finish with “#”,
wait for a voice feedback and it’s unlocked.
0001 “*” indicates an authorised user, 0001 “**” indicates an autho-
rised admin.Only user 0001-0010 has the authority to register as an
admin.
ATTENTION
3.5 Password Operation
1 . Password to Unlock
2 . Add a New Password
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Fingerprint Management”
Select “Add a User”
Select “Empty” (no “*” after a user’s name)
Follow the voice instructions to add a combination
(6~12 characters)
2
3
4
5
6
7
1
Add a User’s Fingerprint
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s
fingerprint, password or NFC card
Select “Fingerprint Management”
Select “Add an Admin”
Select “Empty” (no “*” after a user’s name)
Follow the voice instructions to add a combination
(6~12 characters)
2
3
4
5
6
7
1
Add an Admin’s Password
3 . Delete User’s Password
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authori-
sation of an Admin’s finger-
print, password or NFC card
1
2
3
Select “Fingerprint Management”
Select “Delete a User”
Select the name of the user you
want to delete
Deletion completed
4
5
6
7
17 18

Place your NFC card at the NFC
Reader area, wait for a voice feedback
to unlock. You need to purchase your
NFC card first, please contact your
retailer for information.
3.6 NFC Card Operation
1 . NFC Card to Unlock
2 . Add a NFC Card
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Fingerprint Management”
Select “Add a User”
Select “Empty” (no “*” after a user’s name)
Follow the voice instructions to add a NFC card
2
3
4
5
6
7
1
Add a User’s NFC Card
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s
fingerprint, password or NFC card
Select “NFC Management”
Select “Add an Admin”
Select “Empty” (no “*” after a user’s name)
Follow the voice instructions to add a NFC card
2
3
4
5
6
7
1
Add an Admin’s NFC Card
3 . Delete User’s NFC Card
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authori-
sation of an Admin’s finger-
print, password or NFC card
1
2
3
Select “NFC Management”
Select “Delete a User”
Select the name of the user you
want to delete
Deletion completed
4
5
6
7
19 20

3.7 Settings
1 . Safe Mode
When Safe Mode is on, you can get access only if you use any TWO of the
ways for access (fingerprint, password or NFC card) at the same time.
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Settings”
Select “Unlock Moder”
Select “Safe Mode”
New settings applied successfully
2
3
4
5
6
7
1
3 . Language Setting
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Settings”
Select “Language”
Select a language
New settings applied successfully
2
3
4
5
6
7
1
2 . Auto Lock
Set a duration between a release and an auto lock.
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Settings”
Select “Auto Lock Settings”
Select a duration (second)
New settings applied successfully
2
3
4
5
6
7
1
4 . Voice Feedback
Voice feedback on/off.
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Settings”
Select “Voice Feedback”
Select from feedback on/off or mute
New settings applied successfully
2
3
4
5
6
7
1
21 22

Reset button
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Settings”
Select “Reset”
Enter password as the system instructs
Reset to factory default completed
2
3
4
5
6
7
1
Method 1
Slide to active keyboard
Press “*” 2 twice
Enter Admin Mode by authorisation of an Admin’s fingerprint,
password or NFC card
Select “Settings”
Select “Wireless Module”
Select “Report Only” or “Remote Control”
New settings applied successfully
2
3
4
5
6
7
1
Enable Wireless Module
Disabled: Door lock is disconnected from your Smart Home
network, you can not operate it on your LifeSmart App.
Report Only: When enabled, you can engage all the features the
LifeSmart App provides for door lock except for “Temporary Pass-
word”.
Remote Control: When enabled, you can engage all the features the
LifeSmart App provides for door lock.
Wireless Module Setting Options
Open the battery compartment and remove all batteries
Touch on screen until no power left
Press and hold Reset Button, and then restore batteries again
Wait for instructions on screen to finish reset
2
3
4
1
Method 2
When Wireless Module is on, your door lock can be paired with LifeSmart
App. You can check your door lock’s states, access records, remote
control and more. Please connect your door lock to your local Smart
Station and make sure you download LifeSmart App on your mobile
device(s).
5 . Reset to Factory 6 . Wireless Module
23 24

LifeSmart App
To experience all the features LifeSmart App provides for the door
lock, it requires a LifeSmart Smart Station. If the door lock doesn’t
work with a Smart Station, you can only access “video call”
feature on your app.
To remote control your door lock via your mobile devices, ensure
“Wireless Module” is on.
ATTENTION
Scan the QR code below to download LifeSmart App
Register and log in
Add a Smart Station first
Click “+” on the top right, then select “add new
device”, choose “Video Smart Door Lock” to enter
pairing procedure
Follow the instructions on the app to finish pairing. (If
pairing fails, try again until it works)
2
3
4
5
1
2
1
Get notifications on your app when your door is opened.
LifeSmart App
1 . Setting Up
Enter Video Smart Door Lock page on your app
Click info button on the top right
Enable “Push Notification”, and select the members you want to
inform in your network
Click “√” to finish setting
2
3
4
1
2 . Push Notifications
Enter Video Smart Door Lock page on your app
Click “Temporary User”
Click “+” on the top right
Enter a name and a password, select if it’s a one-time password
Click “√” to finish setting
2
3
4
1
3 . Temporary User
Set up a temporary password to grant access for a visitor in a certain
time period.
4 . Video Call
Video Call feature engages a real time two-way communication with
image and sound, to help you identify your guests. Guest shall press
Doorbell Button to initiate.
25 26

ATTENTION
Wrong placement of the finger when adding a new fingerprint
Wrong placement of the finger when unlocking
Neither the finger nor the scanner is clean enough
Finger is too dry or too wet
2
3
4
1
FAQ & Answers
1 . Why the low fingerprint recognition rate?
It is already added
It is unrecognisable due to biological reasons. Please try with
another finger.
2
1
2 . Why a new fingerprint can not be added?
It requires 8 AA batteries to function.
If you open the door 10 times a day, the batteries last 1 year.
(please use quality batteries)
If there’s a notice saying “Low battery, please replace with new
batteries”, please renew the batteries as soon as possible.
2
3
1
3 . Battery problems
When the battery is out, you need an emergency power to
supply from the emergency USB port.
Wait for response after an emergency power has been
supplied via USB port. Use fingerprint, password or NFC card
to unlock.
Please replace the batteries as soon as possible.
2
3
1
4 . How to use emergency power?
Product failure or damage caused by installation, use, and
maintenance that is not in accordance with the product
instructions;
Products beyond the warranty period;
Products that have the barcode tampered with or removed;
Devices that have been tampered with or customised outside
of LifeSmart Terms of Service as on the LifeSmart APP and
website;
User-Caused damage. such as inappropriate voltage input,
high temperature, accidental spillage, physical damage, etc;
Product failure or damage caused by force majeure such as
earthquakes, fires or floods;
Product failure or damage caused by other problems except
the product itself.
The following conditions are not covered by the warranty:
Please contact our customer service team before you send
over for replacement through 400-886-1911.
Thank you for purchasing this LifeSmart product. In order to
protect your right, please read the following content carefully: The
warranty period of our company’s products is one year from the
date of purchase or longer if local laws impose a longer minimum
term, in which case the minimum term is the warranty period.
During the warranty period. any faults caused by the product itself
for quality problems that arise under normal usage, LifeSmart will
provide a free replacement.
WARRANTY DESCRIPTION
27 28

合格证
检验员：QC
PASS
Email
[email protected]
TECH SUPPORT
LifeSmart is a trademark of Hangzhou LifeSmart Technology Co.,
Ltd. As for the trademarks, product logos and product names from
other companies presented within this manual, they are possessed
by their own right holders. Without our written permission, no entity
or individual shall extract, copy or disseminate in part or the whole
of the manual contents in any form. Due to product version
upgrades or other reasons, content of this manual may change.
Our company reserves the right to change the contents of this
manual without any notice. This manual is used only for instructional
purposes. We strive to provide accurate information in this manual,
but we are not able to ensure that the content of this manual is
current. Statements, information and advice in this manual do not
constitute any expressed or implied assurance. Updated manuals
are available on our website at www.ilifesmart.com or by
contacting our Team.
DECLARATION
Telephone
400-886-1911
QQ
4008861911
Website
www.ilifesmart.com
29
