Life Smart LS-1000X-4M User manual

1

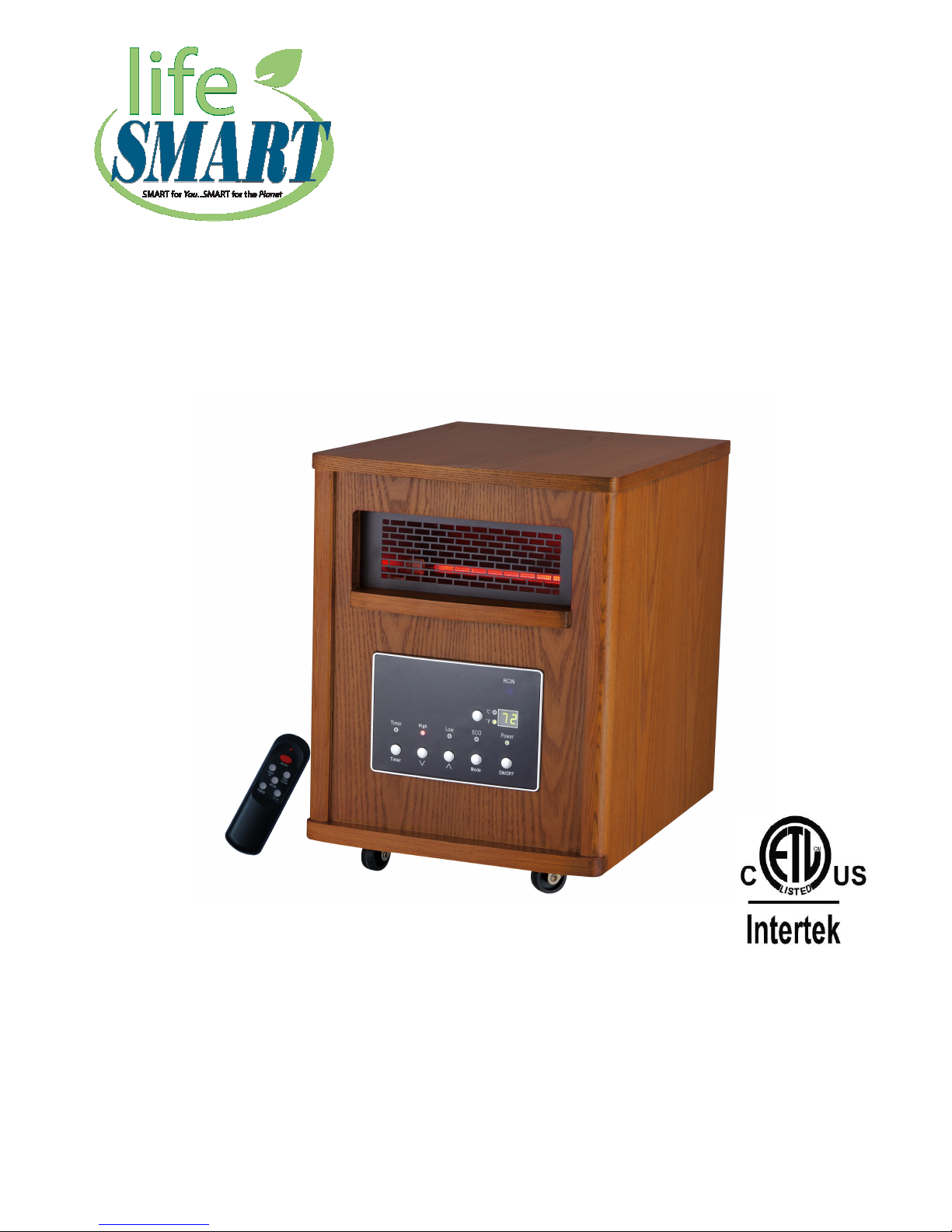

INFRARED ZONE HEATING SYSTEM
OWNER’S MANUAL
Model No. LS-1000X-4M
WARNING: READ THIS ENTIRE OWNER’S MANUAL CAREFULLY BEFORE USE.

2
Thank you for choosing a LIFESMART Infrared Zone Heating System. This owner’s manual will
provide you with valuable information necessary for the proper care and maintenance of your
new product. Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new heater.
PLEASE SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS

3
READ AND UNDERSTAND ALL INSTRUCTIONS, SAFETY
WARNINGS, AND FAQ’s BEFORE USING THE HEATER
WARNING!
! POTENTIAL FOR ELECTRICAL HAZARD IF NOT
ADHERED TO!
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
1. This heater must be plugged into a 120V, 15 amp (or more) circuit of its own. Nothing
else can be plugged into the same circuit. If unsure if your home meets this
specification, consult a certified electrician prior to use. Risk of fire, overheat,
malfunction, property damage, injury, or even death may result if not adhered
to!
2. Connect to a properly grounded, 3-prong outlet only. Do not connect the heater to
extension cords, surge protectors, timers, direct breakers, or an outlet with other
appliances connected to the same outlet. Risk of fire, overheat, malfunction,
property damage, injury, or even death may result if not adhered to!
3. This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Use handles (certain models) or wheels to move this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and
curtains at least 3 feet (0.9m) from the front of the heater and keep them away from
the sides and rear of the heater.
5. Extreme caution is necessary when any heater is used by or near children, invalids,
pets, or when the heater is left operating unattended.
6. Always unplug the heater when not in use.
7. Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped, or damaged in any manner. Contact the
manufacturer for resolution options.
8. Do not use outdoors. Exposure to outdoor elements such as rain, snow, sun, wind or
extreme temperatures may cause the heater to become a safety hazard.
9. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations, nor any locations that use GFCI outlets.

4
10.Never place heater where it may fall into a bathtub or other water receptacles.
11.Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar
coverings. Arrange cord away from traffic area and where it will not be tripped over.
12.The heater must be plugged into a wall outlet that is a DEDICATED CIRCUIT, with a
minimum 15 amp rating on that individual circuit.
13.To disconnect the heater: FIRST, turn the power button to the “off” position, then
remove plug from the wall outlet.
14.Do not allow foreign objects to enter or block any ventilation or exhaust opening as
this may cause an electric shock or fire, or damage the heater.
15.Allow at least 3 feet of unobstructed space to the front and rear of the heater to allow
for maximum heat, air, and ventilation flow.
16.A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are used or stored, nor use flammable solvents
to clean the heater. Also, make sure to keep heater dry at all times.
17.Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
18.Do not use abrasive solvents to clean the heater as it may cause damage to the finish
or casing.
PLEASE REVIEW FREQUENTLY ASKED QUESTIONS ON THE NEXT
FEW PAGES PRIOR TO USING YOUR HEATER.

5
FREQUENTLY ASKED QUESTIONS (FAQ’S)
My heater emits a “strange” odor when I first open the box/when I turn the heater on for the first time.
Why?
These are both normal. This heater is treated with a special heat safe/resistant coating. This
odor will sometimes be present when the box is opened, and may be compared to a heaters
version of “new car smell.” Also, similar to all hearth appliances (woodstoves, etc.), the coating,
exposed to heat, will produce this particular odor during the first few hours of operation. This will
dissipate after the break-in period. If you are sensitive to odors, you may want to pre-burn the
unit in a garage with the door open until the initial odor dissipates.
If my heater runs on approximately 1500 watts, how many BTU’s is that? Is that a lot of heat?
At 1500 Watts, your heater will use approximately 5100 BTUs. 5100 BTUs, compared to your
home furnace, is a very small amount of heat. It may take several minutes, to several hours to heat
your area, depending on various factors (see Heater Placement).
Can my heater really operate on less money per day? What are my operating costs?
Yes. If the heater is used as it is intended (as supplement/assist heat), in a well-insulated room, it
should cycle on and off, allowing for it to heat in increments. Please note that the costs will
increase if it is used as the single source of heat, in a poorly insulated room, or in an area where
heat can escape, since the “on” cycle will run longer.
The Formula: To determine the cost of this or ANY 1500 watt appliance, multiply 1.5 X your cost
per Kilowatt Hour. You can find the cost per KWH for your state at:
http://www.eia.doe.gov/fuelelectric.html
What is the life expectancy for the Heating Elements? Can the heating elements be replaced?
The life expectancy of the heating elements is typically 25,000 hours. Heating elements may be
replaced by obtaining parts from LIFESMART Products, although it is not recommended (unless
you are a certified heater technician or authorized directly by LIFESMART). All parts may be
purchased through LIFESMART PRODUCTS if your product is out of warranty. Note: If you feel
that the elements are definitely faulty right out of the box, contact LIFESMART Products Tech
Support first (for troubleshooting). They can then direct you on the next step.
Once I plug the unit in and turn it on, how long will it take to heat my room?
The heating process in the heater begins immediately. A change in the the actual room
temperature will vary. Please remember that with any type of heating process, there are many
variables: Location of heater (in the home), floor plan and size of the room, how well the room is
insulated, how many doors/windows, how much bare concrete (acts as a heat sink with any type of
heating), the opening and closing of an exterior door, long hallways, high ceilings, etc. Customers
with smaller rooms experience quick heat changes. Others with larger and open floor plans can
expect up to 24 hours to heat up.
I don’t have a grounded outlet; can I use adapters, a 2-prong power strip, or remove the ground
prong from the cord?
Definitely NOT! If you don’t have a grounded outlet, contact a certified electrician for advice.
Removing or altering any part of the heater’s original design or intent (including the power cord) will
not only void the warranty, but will make you liable for any unexpected or hazardous results.

6
Why doesn’t the temperature on my heater match the temperature display on my wall, or external
thermostat?
This is completely normal. The temperature display on your heater may vary from the
temperature display on another thermostat (like the one mounted to your wall or a purchased
external thermostat). The temperature sensor on your heater reads the temperature in, and
around, the heater. The unit is near the cold floor (and heat rises), which in turn, will display a
cooler temperature than elevated or external thermostats. The best way to operate your heater is
just to set the unit on “High” and dial up to a temperature that feels comfortable to you. Then, leave
it at that temperature, regardless of the mismatch. The heater will cycle off when the set
temperature is met or exceeded slightly.
My home is not insulated very well, will this heater help me? Can I use the heater if I have vaulted or
cathedral ceilings? I live in a structure that is more than 1500 square feet. Will this heater help me? Can I
use the heater to heat multiple rooms at the same time? Will I be able to use the heater in a basement or
garage?
The answer to these is the same. Yes. You will be able to use it, but keep in mind that
rooms/structures with open floor plans, minimal insulation, adjacent rooms, or high ceilings will not
retain the heat as efficiently, and may not feel pronounced heat changes. Also, the heater will stay
on longer (delays the “off” cycle), and may increase your electric costs. Note that if you do use it in
a garage or basement, the moisture levels must be very low and they must have dedicated circuits
(15 amps minimum) with no GFCI outlets. If unsure what a GFCI outlet is, contact a certified
electrician.
Can I use more than one heater at a time? Can I use the heater and another appliance at the same time?
Yes. But make sure they are not plugged into the same circuit. Each heater (heaters are
considered appliances) requires its own minimum15 amp circuit (with no other items plugged
into that circuit). If unsure your circuit meets these requirements, verify with a certified electrician.
Risk of fire, damage to property, or injury may result if requirements are not met.
Why does my heater’s fan continue to run even after the set temperature is reached or the power is turned
off?
This is normal. The heater’s fan will continue to run, even after the heater automatically cycles
down. The fan continues to run so that every last bit of heat is blown out of the heat chamber, while
allowing the unit to continue filtering your air. Once the internal box/components cool completely,
the fan should then shut off on its own. In this case, allow a few minutes after the heat cycles off
(with power on). The fan will shut off faster when the power is turned off.
Why doesn’t the fan speed increase when I change the setting from LOW to HIGH?
This is normal. The heater’s fan’s speed is not affected by the HI/LO settings. The fan is designed
to vent the heat at one soft, comfortable, and energy efficient speed. What is affected by the HI
setting is the heat output. In essence, in the HI mode, the heater produces “more” heat, rather than
“faster” heat.

7
I want to make sure my warranty is registered. What do I send to make sure it is registered?
Where do I send it?
The heater comes with an automatic 2 year limited manufacturer’s warranty at the time of
purchase. Your receipt is considered your proof of purchase and registration. Keep it in a safe
place. As long as it is legible, a copy may be used for any future warranty claims (if requested). If
you have access to e-mail, and would like peace of mind, e-mail us to:
[email protected]. In the body of the e-mail, include your full name, address,
phone number, model, serial number, and scanned copy of your legible receipt. You can also
register your product on the registration tab at www.lifesmartproducts.com.
My heater does not perform as well as another brand heater that I purchased. Why Not?
There are many brands of heaters on the market. Each brand is designed with different heat
specifications, fan speeds, colors, material types, displays, and electrical components. They are
manufactured this way for you, as the consumer to have choices, selection, and preferences. As
long as the unit functions as specifications indicate, comparison to other brands will ultimately
depend on individual consumer perception.
I purchased my heater so that it could cut my heating costs, but my electric bill has gone up. Why?
The compact LIFESMART heater can definitely save you on heating costs, when compared to the
existing central heating system in place in your home, and when used as directed. Your heater is
designed to give your main heat source a supplement “boost,” or allow for you to have extra heat
(in the form of soft infrared waves) in locations where you would otherwise be short. It is meant to
cycle on and off, and not specifically designed to be used as a single heat source, especially in
larger homes. If you intend on using it as a single heat source (which you may), expect the heater
to 1) take as much as 24 hours to heat the area, 2) stay on for longer periods of time (without
cycling off) due to heat loss, and 3) increased use time, and electric costs.
My heater’s display shows my ambient temperature to be in the 20’s, when I know it is warmer than that.
Why?
The heater’s display is defaulted to read the temperature as Fahrenheit. If your heater is definitely
heating, but shows it is in the 20’s, you probably have the setting to read your temperature in
Celsius, rather than Fahrenheit. See Users Guide to change.
My heater has a temperature setting indicating ECO. It is supposed to be efficient, but it seems to not heat
as much. Why?
The ECO mode on your heater is a program that attempts to keep the temperature strictly at a
“warm” 68° F. This also helps with efficiency, as it is programmed to 1) Increase the wattage used
to 1500W if the temperature drops below 64.4°F 2) Gradually reduce the wattage used as it
approaches 66.2° F and 3) Stop heating when 68° F is achieved. This is considered an Economical
function, since in the ECO setting, the heater is almost never running on the full 1500 Watts. If this
“warm” heat is not plentiful or is on constantly, and you fear it will increase your electric bills, we
recommend you set it to the high or low setting and have it cycle off when your set temperature is
achieved. You may also set the timer to allow your heater to shut off at the set hour increments you
desire.

8
SPECIFICATIONS
Voltage Rating
120 V (60Hz)
Power Consumption
1500W
Unit Size
13.1 in. (W) x 16.5 in. (D) x 17.7 in. (H)
Unit Weight
26.9 lbs
SAFETY FEATURES
Tip-Over Safety Feature
This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch
will automatically shut the heater off. Once the heater is restored an upright position, the heater will reset.
To continue operation, turn on the heater using the supplied remote control or the control panel on the
heater.
Overheat Safety Feature
This heater is equipped with a overheat safety feature. When the heaters internal components reach a
certain temperature that could cause overheat and possible fire, the heater will automatically shut off.
WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the
outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different
outlet. Contact a qualified electrician to inspect the original outlet for damage.

9
IN THE BOX
•INFRARED ZONE HEATING SYSTEM
•REMOTE CONTROL (2 AAA batteries not
Included)
•INSTRUCTION BOOKLET
Air Outlet
Main Power
Toggle Switch
Control Panel
Wheels
Remote Control
Air Intake
and Filter
Power Cord Clamp
Temp
Sensor
PRODUCT DIAGRAM

10
1. Remote control signal sensor
2. Digital display: Indicates set desired room temperature
3. Power indicator light: Indicates that the heater is receiving power from outlet. Will flash when
powered “ON’
4. ON/OFF button: Powers the display on and off
5. Energy-saving mode indicator: Will be lit when energy-saving mode is engaged
6. Mode button: To select between High, Low, and Eco modes
7. Low Mode indicator light: Will be lit when Low Heat mode is engaged
8. Temp up button: To increase desired temperature
9. High Mode indicator light: Will be lit when High Heat mode is engaged
10. Temp down button: To decrease desired temperature
11. Timer indicator light: Will be lit when the Timer mode is engaged
12. Timer button: Used to engage timer mode and to set hour value for the timer
13. Fahrenheit indicator light: Will be lit when temperature displayed is in Fahrenheit
14. _/_Button: Alternates the display readings between Fahrenheit and Celsius
15. Celsius indicator light: Will be lit when temperature displayed is in Celsius

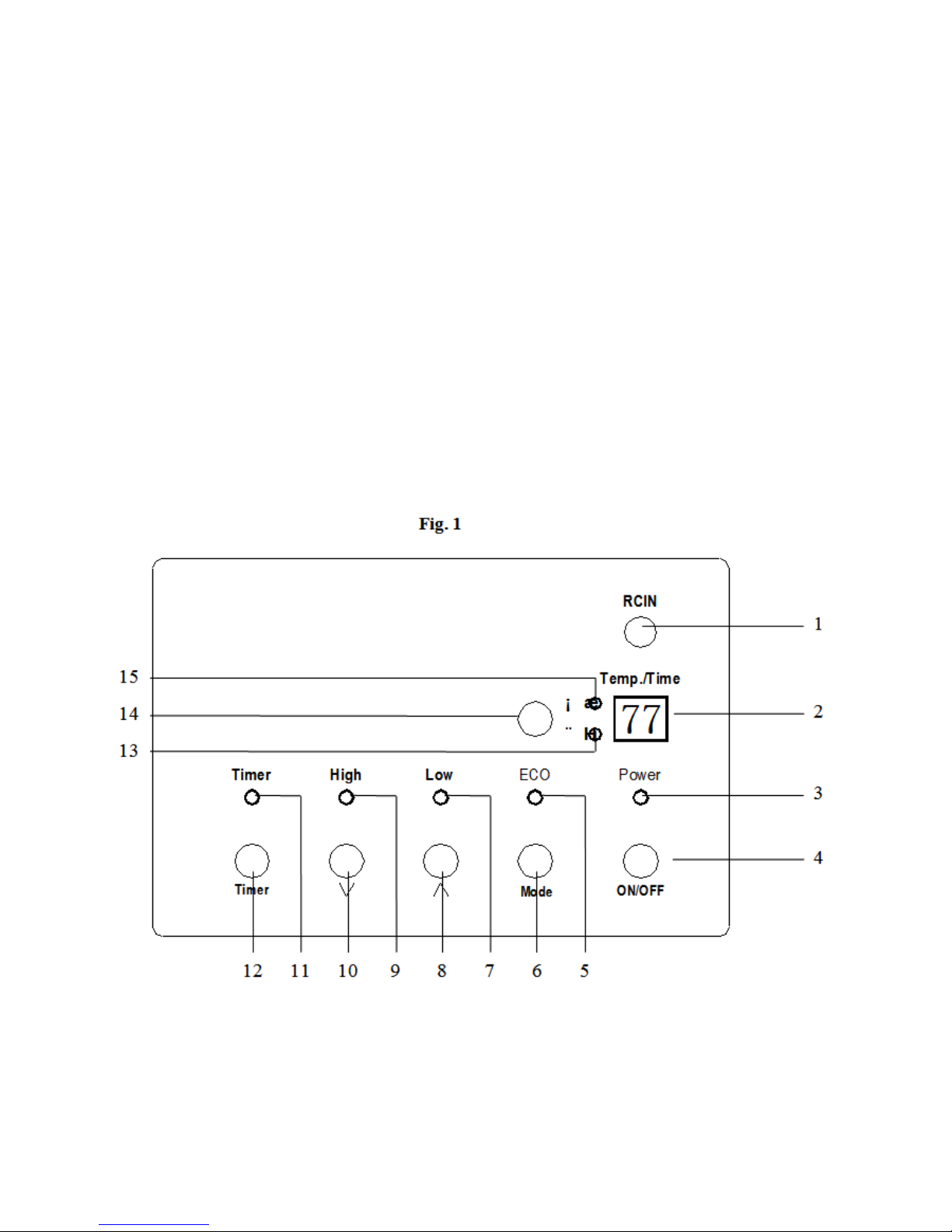

Control Panel (Ref Fig. 1)

11
PREPARATION
Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet, and turn on
the power switch in the rear of the unit.
Only operate heater in upright position with caster wheels attached.
Insert 2 AAA batteries into the remote control before using (Batteries Sold Separately).
Remote Control
Mode button: Used to select between the available heat modes
ON/OFF button: Used to power the digital display on or off
Temp up button: To increase set temperature
Temp down button: To decrease set temperature
Timer button: Used for setting timer and adjusting hour increments of the timer
_/_button : Button for alternating between Fahrenheit and Celsius.
Rear of
Remote
Push and Slide Cover
Install Batteries
Reinstall Cover

12
OPERATING INSTRUCTIONS
1. Power the Display On/Off and Select Desired Mode
Turn the heater on by pressing the ON/OFF button on the control
panel or by pressing the Power button on the supplied remote
control.
Or
Turn the heater off by pressing the ON/OFF button on the control
panel or by pressing the Power button on the supplied remote
control.
Note: Powering off the heater will stop the heating process only.
The fan will continue to blow for approximately 1 more minute
to allow for the interior components to cool. The fan will then
turn off automatically.
Or
Select a heat Mode.
Press the MODE button to toggle between the three heat modes.
High Mode uses 1500W; Low Mode uses 750W. ECO mode is
an Economic Energy Saving Function. When ECO mode is
chosen, the heater will manage itself from less to more heating
power (watts) in an attempt to maintain a constant warm 68°F
(20°C).
2. Setting Desired Temperature
Or Or
Or
Adjust the desired temperature by pressing the Up or Down
arrows on the control panel or remote control.
Or
Desired temperature options vary from 59_to 86_, or from 15_
to 30_. Once you have chosen the desired temperature, the
heater will remain on until the room temperature increases to the
temperature on the digital display. The heater will cycle on and
off to maintain that desired room temperature.
Or
Press _/_button to change the display temperature between
Fahrenheit and Celsius.
The Fahrenheit indicator LED will light, when the temperature is
displayed in Fahrenheit.
The Celsius LED will light, when the temperature is displayed in
Celsius.

13
3. Setting the POWER OFF TIMER Function
Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and can
only be set while the heater’s display is in the “On” position.
Or
Turn the heater to the “On” position. Press the Timer
button on the heater’s control panel or the remote.
The digital display changes from the “temperature” to the
“hours” option for the timer. Continue to press the timer
button to change the number of hours you would like the
heater to run before powering itself off. The hour options
for the timer are from 0 to 12 hrs. (in 1 hr increments).
The selected hour increments will flash for a few seconds,
then revert back to the set desired temperature. The Timer
indicator light will remain lit as long as the Timer is set.
The heater will power OFF when the internal heater clock
counts down the hour increments you set.
4. Setting the POWER-ON-TIMER Function
Note: The Power-ON-Timer Function will allow for the heater to power ON after a certain set time, and
can only be set while the heater’s display is in the “Off” position.
Or
Turn the heater to the “OFF” position. Press the Timer
button on the heater’s control panel or the remote.
The digital display shows the “hours” option for the timer.
Continue to press the timer button to change the number of
hours you would like the heater’s internal clock to count
down before powering itself on. The hour options for the
timer are from 0 to 12 hrs (in 1 hr increments).
The Timer indicator light will remain lit as long as the
Timer is set. The heater will power itself ON when the
internal heater clock counts down the hour increments you
set.

14
5. Setting Electro Lock
The Electro Lock can help avoid the heater from being accidentally engaged by children. The locking
mechanism can be set in both the ON and OFF modes.
And
Press Temp Up and Temp Down buttons at the same time
for 3 seconds. Locking is complete when you hear a beep.
When locked, the functions of the control panel and remote
will be locked for use.
And
When you need to unlock it, press Temp Up and Temp
Down buttons at the same time for 3 seconds. You will hear
a beep. The control panel and remote control will become
functional again.

15
MAINTENANCE
1. Unplug the unit and let it cool completely.
2. To keep the heater clean, the outer case may be cleaned with a soft, damp cloth. You may use a
mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT
let liquid enter the heater.
3. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
4. DO NOT immerse the heater in water.
5. Wait until the unit is completely dry before use.
6. Air filter needs cleaning after 3 months of use. Please take off the filter with the 3 steps in the
drawing below. Flush and clean the filter with water. Then, dry it out and re-assemble.
7. If you do not use the heater for a long time, please take out the remote batteries (to prevent
corrosion) as shown below. Store the remote in a safe place.
Rear of the Unit
3) Remove Air Filter
2) Remove Filter
Bracket
1) Remove bracket screws (2X)
PUSH
lid
Battery

16
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original
packaging to repack the unit.
BASIC TROUBLESHOOTING
If the heater will not operate, please check the following before seeking repair advice:
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if power to the main power switch (in the back) is working. If not, contact Technical
Support.
3. Check to see if the batteries on the remote are installed, fresh, and oriented correctly.
NOTE: For the heater to function properly, the desired temperature on the heater must be set a few
degrees higher than the temperature in the room. If it seems to not be heating, increase the desired
temperature on the heater to engage the heat elements.

17
Limited Manufacturer Warranty
2 Year Limited Warranty: LIFESMART warrants this heater against defects in materials and
workmanship on functional parts, for a period of two years from the original date of purchase. Your sales
receipt showing the date of purchase of the product is your proof of purchase. Keep it in a safe place
for future reference.
Manufacturer Warranty
All LIFESMART products are manufactured with the highest quality materials and are warranted to be
free from defects in material and workmanship at the time of purchase. This limited warranty applies to
products manufactured or distributed by the LIFESMART brand name, are delivered in the continental
United States, and extends to the original purchaser, or gift recipient. This warranty becomes valid at the
time of purchase and terminates either by the specified time frame listed above and/or owner transfer (unless
otherwise authorized by LIFESMART, as the manufacturer). Any extended warranties (warranties that cover
above and beyond this manufacturer warranty) that are sold through a retailer or third party, are not directly
correlated with this LIFESMART limited warranty, and may be redirected to said retailer or third party for
coverage.
Extent of Warranty
This warranty extends through the manufacturer of the product, and covers functional parts only.
Cosmetics are not covered, unless unequivocally determined it is a manufacturer/workmanship defect. Note
that surface cracks are not considered defects in material or workmanship, as they are normal characteristics
of all wood. Unless LIFESMART was the direct shipper, shipping damage should be addressed with the
shipping company, retailer, or place of purchase, prior to making a claim to LIFESMART, as the
manufacturer.
The manufacturer's sole obligation under this warranty shall be limited to furnishing the original purchaser
replacement parts for units deemed repairable by the LIFESMART warranty department. The purchaser
may also opt to ship the product to LIFESMART to have it repaired. The purchaser will be responsible to
prepay any shipping charges (both ways), export taxes, custom duties and taxes, or any other charges
associated with the transportation of the unit. In addition, the purchaser is responsible for insuring any parts
shipped or returned, if desired. For products the warranty department deems un-repairable, or discontinued,
LIFESMART reserves the right to issue a refurbished product, or product similar in size and functionality
as a replacement for the defective unit, if available. All exchanged parts and products replaced under this
warranty will become the property of LIFESMART.LIFESMART reserves the right to change
manufacturers of replacement parts or products for use, in order to cover any existing warranty. Any parts
determined defective may asked to be returned to LIFESMART or its representatives to validate a claim.
Non-Warranty replacement parts will be warranted 30 days from the time the purchaser receives them.
The purchaser must present LIFESMART with proof of purchase documents (including the date of
purchase) if requested. Any evidence of alteration, erasing, or forgery of proof of purchase documents will
be just cause to VOID this limited warranty. Products, in which the serial number has been defaced or
removed, are not eligible for warranty coverage. Continued…

18
Warranty Limitations
This warranty does not apply if the unit has been subject to negligence, fabrication, misuse, abuse, or repairs
(unless authorized verbally, or in writing, by an Authorized LIFESMART Representative) alteration by non
LIFESMART authorized personnel, inappropriate installations, or any case beyond the control of
LIFESMART. Examples of warranty invalidation may also include, but are not limited to:
•Use of lacquer or paints in (and around) the
heaters
•Heater placed on non-approved surfaces
•Electrical requirement deficiencies (15-20
amp dedicated outlet)
•Use on Extension Cords/Timers/Surge
Protectors/GFCI
•Outdoor applications
•Normal wear/tear/weathering
•Pet/Consumer accidents
•Purchases from dealers unauthorized by
LIFESMART (Authorization in writing)
Disclaimers
LIFESMART shall not be liable for any loss due to use (or misuse) of the heater or other LIFESMART
products or other incidental or consequential costs, expense or damages without irrefutable foundations.
Under no circumstances shall LIFESMART or any of its representatives be held liable for injury to any
person or damage to any property, however arising. Any implied warranty shall have duration equal of
the applicable warranty stated above. Specifications are subject to change without notice or obligation.
Legal Remedies
This limited warranty gives the original purchaser specific legal rights. Other rights may vary from
state to state.

19
Customer Service and Support
To Obtain Warranty Support or Advice, Please Complete These Two Easy Steps:
Contact LIFESMART PRODUCTS Technical Support
E-mail:[email protected]
Phone:[phone] or 1-214-614-2509
Visit us: www.lifesmartproducts.com
You will need to provide the unit's model number, serial number (located on the
heater’s front panel, rear panel, or on the box), date of purchase, retailer of
purchase, a daytime phone number, and possibly a copy of your receipt.
Be Patient, Clear, and Concise.
Describe the issue and symptoms you have for, and about the product. A certified
LIFESMART Technical Support agent will give you an evaluation of your issue and
your resolution options. If the answer is not available at that time, you will be
referred to the appropriate channels, or given a call/e-mail back within 72 hours
with an answer or resolution.
*E-Mail is the Preferred Method of Communication

20
