Life Span TURBO PLUS User manual

LIFESPANTURBOPLUS Page0
Productmayvaryslightlyfro
mtheitempicturedduetomodelupgrades
TURBO PLUS
USER S
MANUAL

LIFESPANTURBOPLUS Page1
CONTENTS
1 IMPORTANTSAFETY INSTRUCTIONS ..
2
1.1 IMPORTANTELECTRICALINFORMATION ..
3
1.2 IMPORTANTOPERATIONALINSTRUCTIONS ..
4
1.3 KEYCOMPONENTSOFTHETREADMILL ..
5
2 ASSEMBLY INSTRUCTIONS ..
6
2.1 FOLDING INSTRUCTIONS ..
8
3 DISPLAYPANEL OPERATIONS ..
9
3.1 SAFETYKEY ..
9
3.2 GETTING STARTED ..
9
3.3 QUICKSTARTOPERATING ..
10
3.4 INCLINEFEATURE ..
10
3.5 PULSEGRIPFEATURE ..
10
3.6 CALORIEDISPLAY ..
10
3.7 TOSELECT APROGRAM ..
10
3.8 USERPROGRAM ..
11
3.9 PRESETPROGRAM ..
11
3.10 PROGRAMGRAPHS ..
13
4 MAINTENANCE ..
16
4.1 GENERALCLEANING ..
16
4.2 GENERALCARE ..
16
4.3 BELT/DECK/ROLLERLUBRICATION ..
17
4.4 HOWTOCHECKTHERUNNINGMATFORPROPER
LUBRICATION ..
17
4.5 BELTADJUSTMENT ..
18
4.6 BELTTRACKINGADJUSTMENT ..
18
5 TROUBLESHOOTING ..
19
5.1 ALARMSIGNALS ..
19
6 EXERCISEGUIDE ..
21
6.1 WORKOUTGUIDELINES ..
22
7 WARRANTYREGISTRATION ..
23

LIFESPANTURBOPLUS Page2
1.IMPORTANTSAFETY INSTRUCTIONS
Danger–Toreduce theriskof electricshockdisconnectyour treadmillfromtheelectrical
outlet priortocleaningand/orservicework.
DONOTUSEANEXTENSIONCORD:DONOTATTEMPT TODISABLETHEGROUNDEDPLUG
BYUSINGIMPORPER ADAPTERSORINANYWAYMODIFYTHECORDSET.
lInstall thetreadmillonaflatlevelsurfacewithaccesstoa220-240volt
(50/60Hz),
groundedoutlet.
l
Do notoperatetreadmill ondeeplypadded,plushorshagcarpet.Damagetoboth
carpet andtreadmillmayresult.
l
Do notblocktherearofthetreadmill.Provideaminimumof1metreclearance
betweenthe rearofthetreadmill andanyfixedobject.
lPlace yourunitonasolid,levelsurfacewheninuse.
lNeverallowchildrenonornearthetreadmill.
lWhenrunnin
g,makesuretheplasticclipisfastenedonyourclothing.Itisforyour
safety,shouldyoufall ormovetoofarbackonthetreadmill.
lKeephands awayfromall movingparts.
lNeveroperate the treadmill ifit hasadamagedcordorplug.
lKeepthecordawayfrom heatedsurfaces.
l
Do notoperatewhereaerosolsprayproductsarebeingusedorwhere oxygenisbeing
administered.Sparksfromthe motormayignite ahighlyflammableenvironment.
lNeverdroporinsert any objectintoany openings.
lThe treadmill isintendedforin-homeuseonlyandnot suitable forlongtime running.
l
Todisconnect,turnallcontrolstotheoffposition,removethesafetykey,andthen
removetheplugfrom theoutlet.
WARNING -Readallinstructionsbeforeusingthistreadmill.
Itisimportantyourtreadmillreceivesregularmaintenancetoprolongits
usefullife.Failingtoregularlymaintainyourtreadmillmayvoidyourwarranty.

LIFESPANTURBOPLUS Page3
lThepulsesensorsarenotmedical devices.Variousfactors,includin
gtheuser’s
movement,mayaffecttheaccuracyofheartratereadings.Thepulsesensorsare
intendedonlyasexerciseaidsindeterminingheart rate trends ingeneral.
lUse handrailsprovided;theyareforyoursafety.
lWearpropershoes.Highheels,dress
shoes,sandalsorbarefeetarenotsuitablefor
use onyourtreadmill.Qualityathleticshoesarerecommendedtoavoidlegfatigue.
lAllowedtemperature: 5 to 40 degrees.
Removethesafetykeyafteruse topreventunauthorizedtreadmilloperation.
1.1IMPORTANTELECTRICALINFORMATION
WARNING!
l
NEVER useagroundfaultcircuitinterrupt(GFCI)wall outletwiththistreadmill.Route
thepowercordawayfrom anymovingpartofthetreadmillincludingtheelevation
mechanismandtransport wheels.
lNEVER removeany coverwithout first disconnectingAC power.
l
NEVER exposethistreadmill torainormoisture.Thistreadmill isnotdesignedforuse
outdoors,nearapool,orinany otherhighhumidityenvironment.
Technical Standard:
lInput voltage:240v ±10%(50Hzor60Hz).
lEnvironment temperature forworking:0~+40 .
lContinuousOutput MotorPower:3.5HP.
lElectriccurrent islessthan11A.
lSpeed:1.0-22.0kilometers/hour( ±5%)
lTime limits:00:00-99:59(minute: second)
lDistance:000-9.99 kilometers.
lSlope:0-20°%
lValidareaforrunningbelt: 135×51cm.

LIFESPANTURBOPLUS Page4
SystemDiagram
1.2IMPORTANTOPERATIONINSTRUCTIONS
lBe sure toreadthe entiremanualbeforeoperatingyour machine.
l
Understandthatchangesinspeedandinclinedonotoccurimmediately.Setyour
desiredspeedonthe c
omputerconsoleandreleasethe adjustmentkey.The computer
willobeythecommandgradually.
l
Usecautionwhile participatinginotheractivitieswhile walkingonyour treadmill;such
aswatchingtelevision,reading,etc.Thesedistractionsmaycauseyou
tolosebalance
orstrayfromwalkinginthe centreofthe belt;whichmayresultinseriousinjury.
lInordertopreventlosingbalanceandsufferingunexpectedinjury, NEVER
mountor
dismountthetreadmillwhile thebeltismoving.Thisunitstartswitha
very lowspeed.
Simplystandingonthebeltduringslowaccelerationisproperafteryouhavelearned
tooperate thismachine.
lAlwaysholdontohandrailwhilemakingcontrolchanges.
lAsafetykeyisprovidedwiththismachine.Removethesafetykeywill
stopthe
walkingbeltimmediately;thetreadmillwillshut
offautomatically.Insertthesafety
keywill reset thedisplay.
l
Donotuseexcessivepressureonconsolecontrolkeys.Theyareprecisionsetto
functionproperlywithlittlefingerpressure.

LIFESPANTURBOPLUS Page5
1.3KEY COMPONENTSOFTREADMILL
RUNNINGDECKSITUATEDBELOWTHERUNNINGMAT.
THEMAT/DECKFRICTION MAYPLAYAMAJORROLEIN
THEFUNCTIONANDLIFEOFYOURTREADMILL ANDTHAT
IS WHYWERECOMMENDYOUCONSTANTLY LUBRICATE
THISFRICTIONPOINT TO PROLONGTHEUSEFULLIFEOF
YOURTREADMILL.FAILINGTODOTHISMAYVOIDYOUR
WARRANTY.
DISPLAYPANEL
4
TRANSPORTATION
WHEELS.ALLOWSYOUTO
MOVETHETREADMILL
EASILYWHENFOLDED.
NONSLIPFOOTPAD.
LOCATEDONBOTHSIDEOF
YOURTREADMILL.
MAINFRAME
HANDPULSESENSOR
HANDLEBAR
UPRIGHT
COLUMN
SAFETY KEY
RUNNINGMAT
SUSPENSION
POINT
PULSE
METER
MAT ADJUSTING
BOLTS—ADJUST
MAT TENSION&TO
CENTRALISE

LIFESPANTURBOPLUS Page6
2ASSEMBLY INSTRUCTIONS
Step1
Removeall partsfromthe carton,andplace thetreadmillontothe floor.
Step2
Beforeplacingtheright uprightinitsposition,be
sure toconnectthecable aspicturedright.Thisisa
very delicateprocedure andifnot completed
correctlywillcause thetreadmillnottorun
correctlyandinsomecasesnotrun at all.Make
sure the pinsinsidethe eachpluglineupwhen
connectingthe twoplugs(viewright)
Step3
Installtheleftandright uprightsintothe bottom
connectors.Youwill need1bracket and(7x)8mm
bolts.The boltsandbracket arepictured(right)
exactlyhowtheyare tobe attachedtothe upright
(viewright).
Step4
Screwintheboltsas picturedright.DONOT
tightentheboltsfullytillthe displaypaneland
sensormetertubeareconnected(viewright)
WERECOMMENDYOUHAVESOMEONETOASSIS
T YOUINLIFTINGAND
ASSEMBLINGYOURLIFESPANTREADMILL.FOLLOWTHESEINSTRUCTIONS
CAREFULLYANDIT WILL MAKE IT EASIER TOASSEMBLEYOURLIFESPAN
TREADMILL

LIFESPANTURBOPLUS Page7
Step5
Connectthecable tothedisplaypanel.Againthis
isavery delicateproceduresotake care when
undertakingthisstep.ThenSlidethedisplay
paneldown gentlytoconnect ittothe upright
columnposts.Whencompletingthisstep,be
mindfulofthecableandmakesure itdoesn’tget
squashed(viewright)
.
Step6
Fixthe displaypanelonbothsidesusing(4x)
8mm bolts
Step7
Installthe pulse metertube tothetwoupright
columnsandfixit with(2x) 8mm bolts(view
right).Please notethat theheartratemeteris
operatedviaindependentAAbatterieswhichneed
tobeinstalled.
Step8
Gooverthe entiretreadmill andensure all fixingsaretightlysecuredandthe treadmill is
soundlyconstructed.Besure totightentheboltsmentionedinStep4.

LIFESPANTURBOPLUS Page8
2.1FoldingInstructions
Do notattempttomovethe unit unlessitisinthefoldedandlockedposition.Besure the
powercordissecuredtoavoidpossibledamage.
lTofoldthe treadmill:
Lift the treadmillrunningdeckuntil thesupportingmechanismis
overthesafetylatch.
lToUnfoldthe treadmill:
Applyslightforwardpressureonthe treadmillrunningdeck.Pulltheblacksafety
latchoutwards,andslowlylowertherunningdecktothe floor(See below).
Transport
Carefullyliftthe treadmillatthe rearrollerarea,graspingthe twoside endcaps,androll
thetreadmill away.
3DISPLAY PANELOPERATIONS
SafetyLatch

LIFESPANTURBOPLUS Page9
3.1SafetyKey
IMPORTANT: The treadmill willnotoperate ifthe safetykeyisnotinplace.

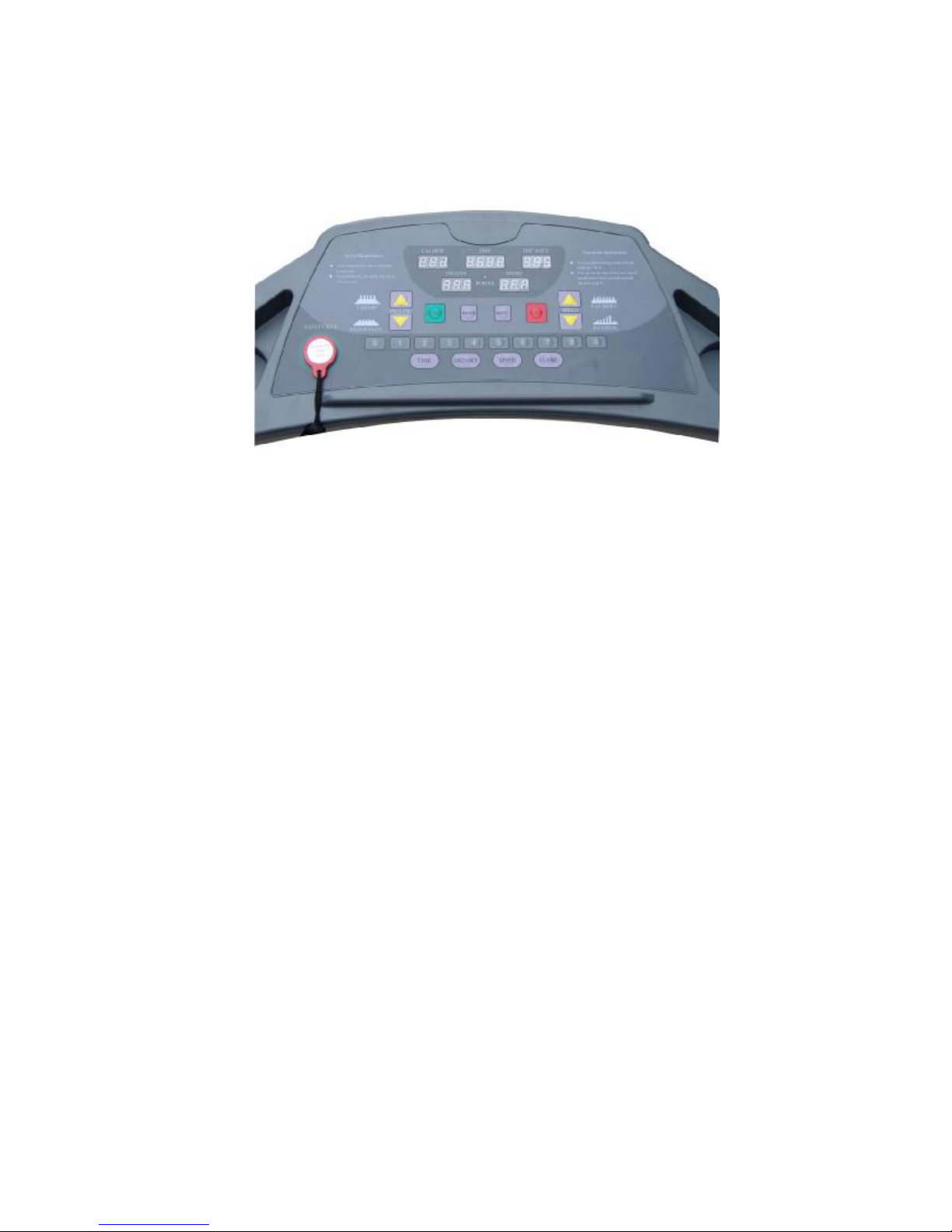

Beforestartingthe treadmill,attachthemagnetickeytothedisplaypanel,andthen
attach
theclipontheotherendtoyourclothing(above thewaist).Ifthesafetykeyisremoved
whilst youareoperationthe treadmill,themachinewillturnitselfoff.
Whenthetreadmillisnot inuse,youshouldremovethesafetykey.
Store thesafetykeyinasafe place OUTOFREACHOF CHILDREN.
3.2GettingStarted
Powerthe treadmill onbypluggingitintoanappropriatewall outlet,thenturn onthe
powerswitchlocatedat thefrontofthetreadmillbelowthe motorshield.Ensure thatthe
safetykey isinstalled,asthetreadmill will notpoweronwithoutit.
Whenthepoweristurnedon,allthe lightsonthedisplaywilllight forashorttime.
3.3Quick-StartOperation:
