Life Span BOOM User manual

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference.
BOOM OWNER’S MANUAL

2
BOOM
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. IMPORTANT ELECTRICAL INFORMATION 4
3. IMPORTANT OPERATING INSTRUCTIONS 5
4. ASSEMBLY INSTRUCTIONS 6
5. FOLDING INSTRUCTIONS 10
6. OPERATION GUIDE WITH PROGRAM CHART 11
7. EXERCISE GUIDE 14
8. MAINTENANCE INSTRUCTIONS 16
9. EXPLODED DIAGRAM 21
10.PARTS LIST 22
11.WARRANTY 33

3
BOOM
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this treadmill.
It is important your treadmill receives regular maintenance to prolong its useful life. Failing to
regularly maintain your treadmill may void your warranty.
Danger –To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to
cleaning and/or service work.
DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY
USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.
Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.
Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and
treadmill may result.
Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of
the treadmill and any fixed object.
Place your unit on a solid, level surface when in use
Never allow children on or near the treadmill.
When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should
you fall or move too far back on the treadmill.
Keep hands away from all moving parts.
Never operate the treadmill if it has a damaged cord or plug.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous environment.
Never drop or insert any object into any openings.
The treadmill is intended for in-home use only and not suitable for long time running.

4
BOOM
To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug
from the outlet.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
Use the handrails provided; they are for your safety.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
Allowed temperature: 5 to 40 degrees.
Remove the safety key after use to prevent unauthorized treadmill operation.
2. IMPORTANT ELECTRICAL INFORMATION
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
NEVER remove any cover without first disconnecting AC power.
NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near a pool, or in any other high humidity environment.
This is high-power item; please do not share the same outlet with other high power machines such
as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure
the fuse is 10A.

5
BOOM
3. IMPORTANT OPERATING INSTRUCTIONS
Be sure to read the entire manual before operating your machine.
Understand that changes in speed and incline do not occur immediately. Set your desired speed on
the computer console and release the adjustment key. The computer will obey the command
gradually.
Use caution while participating in other activities while walking on your treadmill, such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in
the centre of the belt; which may result in serious injury.
In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the
treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the
belt during slow acceleration is proper after you have learned to operate this machine.
Always hold on to handrail while making control changes.
A safety key is provided with this machine. Remove the safety key will stop the walking belt
immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.
Do not use excessive pressure on console control keys. They are precision set to function properly
with little finger pressure.

6
BOOM
4. ASSEMBLY INSTRUCTIONS
PART LIST
No.
Item
Specification
Qty
No.
Item
Specification
No.
1
Main Frame
1
7
Wrench w/screw Driver
S=13、14、15
1
30
Computer Console
34
Safety Lock
1
12
Fixed Bolt
1
8
5# Socket head wrench
1
46
Cross-shaped Bolt
ST4.2*15
3
48
Arc gasket
6
2

7
BOOM
STEP 1:
STEP 2:
1. Open the carton
2. Extract the parts listed above
3. Place the Main Frame (1) onto level
ground
1. Erect the uprights according to the
diagram
2. Note: Please ensure that the wires in
both uprights connected well before
folding.
3. Be sure to hold the frame to prevent it
from falling down

8
BOOM
STEP 3:
1. Connecting the computer up wire (26)
with the outgoing line (A).
2. Insert the now connected write into the
pipe.
3. Use the wrench (7), cross-shaped bolt
ST4.2*15 (46) and Arc gasket (48) to
attach the computer assembly (30) onto
the handlebar assembly (3).
Note: Ensure the connection wire is
connected well.

9
BOOM

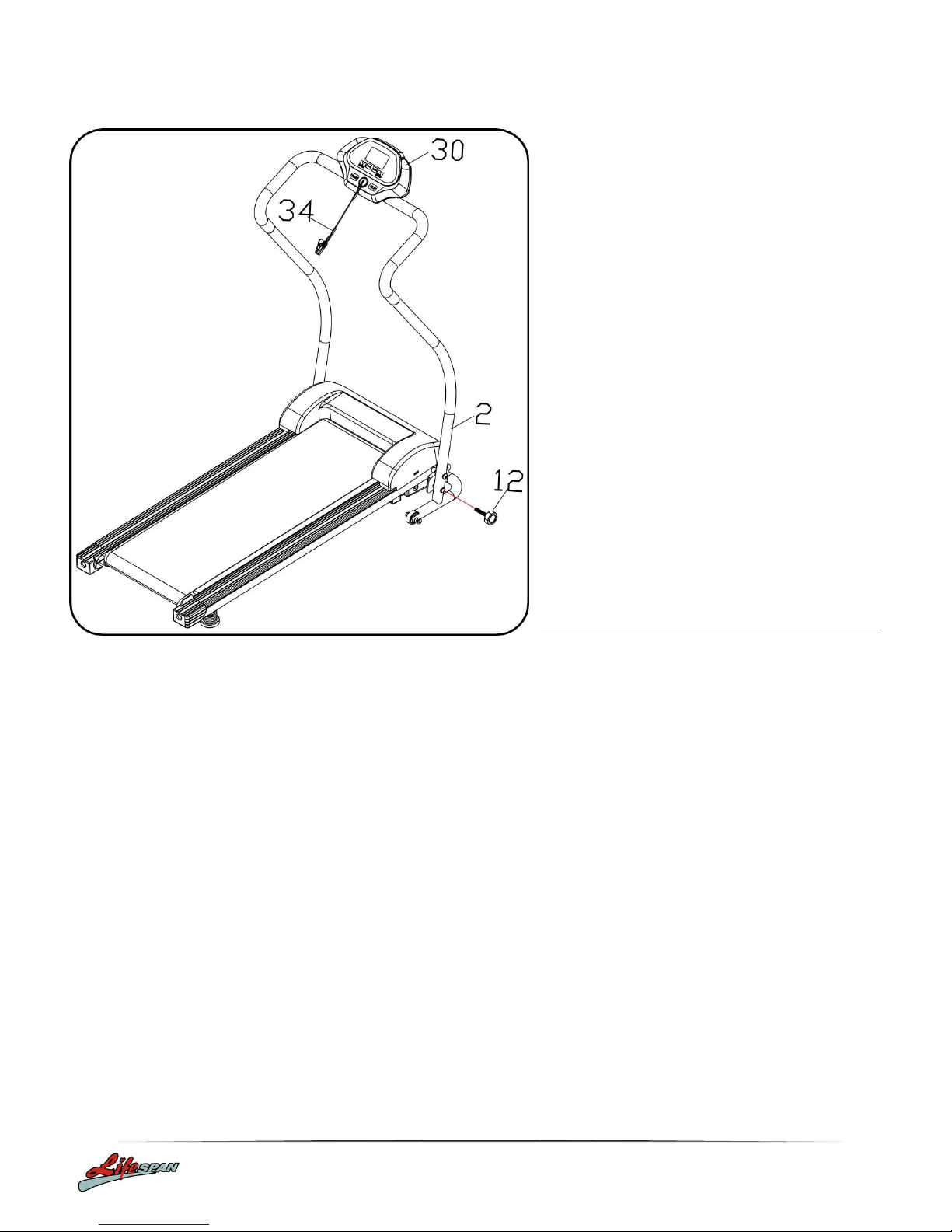

STEP 4:
1. Insert fixed bolt (12) through the base
frame and screw onto the main frame.
2. Place the safety key (34) on the
computer assembly (30).
3. Ensure all bolts are screwed in
correctly and tightened

10
BOOM
5. FOLDING INSTRUCTIONS
Unfolding:
Folding:
Whilst supporting the main frame with
one hand, insert the fixed bolt (12)
through the upright and screw it in.
Please ensure the machine is standing
on stable ground and the back of
machine is supported to prevent it from
toppling over.
Remove the fixed bolt (12). Hold A with
your hands and lift up the main frame
until there is approximately an 80
degree angle between the frame and
the floor

11
BOOM
6. OPERATION GUIDE
1. OVERVIEW
2. LCD WINDOW DISPLAY
1. SPEED: Shows speed and program.
2. TIME window: displays running time
3. DIST window: shows the running distance.
4. CALO window: shows calories burnt.
3. BUTTON FUNCTIONS
1. “PROG”: choose the program, cycle between manual mode, P01 - P99, U01 –U3, FAT
2. “MODE”: mode selection button. Press this button to cycle the mode: mode-time count down, mode-
distance count down, mode-calories count down.
3. “START”: begins workout. When the power is on and safety key correctly placed on the computer,
press this button to start the treadmill after a 3 second countdown.
4. “STOP”: press button to stop the motor running and to sop the machine
5. SPEED+\SPEED-: Increase or decrease speed when excising. Sets parameter when stopped.

12
BOOM
4. MAIN FUNCTIONS
4.1. Quick Start-up (Manual):
Attach the safety key. After a 3 second countdown, the treadmill will starting and running from the lowest
speed, add and subtract to the speed using the SPEED +/- button.
4.2. Countdown mode:
Press the MODE button to cycle options: timer countdown, distance countdown, calories countdown. The
default value corresponds to the window and flashing display. At this point the SPEED buttons serve as a
plus and minus functions to adjust to the desired value. Press the START, add and subtract speed by using
SPEED buttons once again. When the countdown reaches 0, the machine will stop. You can also directly
press the STOP button or disconnect safety lock to stop.
4.3. Preset programs:
Press the program button; programs from P1 to P12 are built-in programs. The time window displays the
default value of TIME. When flashing, press the SPEED buttons to adjust to your desired time. Built-in
program are divided into 20 equal segments. After pressing the START button, the treadmill will
automatically cycle through the time segments. Speed will automatically adjust to the preset value for the
segment. Upon completion of the segments, the program will end, slowing the treadmill down to a stop.
During the operation speed can be adjusted but the next segment will be automatically adjusted to the
program defaults. Built-in program data is listed on the table.
Time
Program
Each program is divided into 20 equal time segments that are listed below
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P1
SPEED
2
3
3
4
5
3
4
5
5
3
4
5
4
4
4
2
3
3
5
3
P2
SPEED
2
4
4
5
6
4
6
6
6
4
5
6
4
4
4
2
2
5
4
2
P3
SPEED
2
4
4
6
6
4
7
7
7
4
7
7
4
4
4
2
4
5
3
2
P4
SPEED
3
5
5
6
7
7
5
7
7
8
8
5
9
5
5
6
6
4
4
3
P5
SPEED
2
4
4
5
6
7
7
5
6
7
8
8
5
4
3
3
6
5
4
2
P6
SPEED
2
4
4
4
5
6
8
8
6
7
8
8
6
4
4
2
5
4
3
2
P7
SPEED
2
3
3
3
4
5
3
4
5
3
4
5
3
3
3
6
6
5
3
3
P8
SPEED
2
3
3
6
7
7
4
6
7
4
6
7
4
4
4
2
3
4
4
2
P9
SPEED
2
4
4
7
7
4
7
8
4
8
9
9
4
4
4
5
6
3
3
2
P10
SPEED
2
4
5
6
7
5
4
6
8
8
6
6
5
4
4
2
4
4
3
3
P11
SPEED
2
5
8
10
7
7
10
10
7
7
10
10
6
6
9
9
5
5
4
3
P12
SPEED
3
4
9
9
5
9
5
8
5
9
7
5
5
7
9
9
5
7
6
3

13
BOOM
4.4. Sleep function:
The treadmill automatically enters sleep mode after 10 minutes of inactivity. Press any key on the display to
wake the treadmill.
4.5. Data display and set range:
Displayed range
Mode default
Program default
Setting Range
Speed
0.8km/h—12km/h
--------
--------
--------
Time
0:00—99:59
30:00
30:00
5:00---99:00
Distance
0.00km—99.9km
1.0km
--------
0.5km—99.5km
Calories
0kcal—999kcal
50kcal
--------
10kcal—995kcal

14
BOOM
7. EXERCISE GUIDE
PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important
especially if you are over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your
muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for
daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will
pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.
Warm-up
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases
your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

15
BOOM
Training Zone Exercise
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity
for maximum performance. Breathe regularly and deeply as you exercise-never hold your breath.
Cool Down
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise
problems.
Workout Guidelines
TARGET ZONE
THIS IS HOW YOUR PULSE SHOULD BEHAVE DURING GENERAL FITNESS EXERCISE.
REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES.
The most important factor here is the amount of effort you put in. The harder and longer you work, the more
calories you will burn. Effectively this is the same as if you were training to improve your fitness, the
difference is the goal.

16
BOOM
8. MAINTENANCE INSTRUCTIONS
Reasonable cleaning/lubricating should be made to extend the life time of this unit. Performance is
maximized when the belt and mat are kept as clean as possible.
WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE FUNCTION AND LIFE OF
YOUR TREADMILL AND THAT IS WHY WE RECOMMEND YOU CONSTANTLY LUBRICATE THIS
FRICTION POINT TO PROLONG THE USEFUL LIFE OF YOUR TREADMILL. FAILING TO DO THIS
MAY VOID YOUR WARRANTY.
WARNING: UNPLUG POWER CORD BEFORE MAINTENANCE
WARNING: STOP TREADMILL BEFORE FOLDING
1. General Cleaning
Use a soft, damp cloth to wipe the edge of the belt and the area between the belt edge and frame. A
mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt.
This task should be done once a month. Allow to dry before using.
On a monthly basis, vacuum underneath your treadmill to prevent dust build up. Once a year, you
should remove the black motor shield and vacuum out dirt that may accumulate.
2. General Care
Check parts for wear before use.
Pay particular attention to the fixing knobs and make sure they are tight.
Always replace the mat if worn and any other defective parts.

17
BOOM
If in doubt do not use the treadmill and contact us.
TAKE CARE TO PROTECT CARPETS AND FLOOR in case of leakages. This product is a machine that
contains moving parts which have been greased / lubricated and could leak.
3. Belt/Deck/Roller Lubrication
The mat/deck friction may play a major role in the function and life of your treadmill and that is why we
recommend you constantly lubricate this friction point to prolong the useful life of your treadmill. You should
apply lubrication after approximately the first 30 hours of operation. We recommend lubrication of the deck
according to the following timetable:
oLight use (less than 3 hours per week) every 6 months
oMedium use (3-5 hours a week) every 3 months
oHeavy use (more than 5 hours per week) every 6-8 weeks
See below procedures for lubricating:
1. Use a soft, dry cloth to wipe the area between the belt and deck.
2. Spread lubricant onto the inside surface of belt and deck evenly (make sure the machine is turned
off and power is disconnected).
3. Periodically lubricate the front and rear rollers to keep them at their peak performance. If the
treadmill belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours before
relubricating is necessary.

18
BOOM
4. How to check the running mat for proper lubrication:
1. Disconnect the main power supply.
2. Fold the treadmill up into the storage position.
3. Feel the underside surface of the running mat.
If the surface is slick when touched, then no further lubrication is needed.
If the surface is dry to the touch, apply a suitable silicone lubricant.
We recommend that you use a silicone based spray to lubricate your Lifespan treadmill. This can be
purchased directly from us or any hardware store.

19
BOOM
5. Adjusting the Running Belt
A
B
C
Place treadmill on a level surface. Run
treadmill at approximately 4km/h, checking the
running condition.
If the belt has drifted to the right:
Whilst the treadmill is running at 4km/h,
carefully turn the right adjusting bolt 1/4 turn
clockwise. Then monitor treadmill until the belt
centers. Repeat until the belt correctly centers.
See Picture A
If you have over adjusted the belt and it drifts
to the right, carefully turn the right adjusting
bolt anticlockwise until the belt centers.
If the belt has drifted to the left:
Whilst the treadmill is running at 4km/h,
carefully turn the left adjusting bolt 1/4 turn
clockwise. Then monitor treadmill until the belt
centers. Repeat until the belt correctly centers.
See Picture B
If you have over adjusted it, carefully turn the
left adjusting bolt anticlockwise and until the
belt centers.
To adjust the tightness of the belt:
Turn the treadmill off. Turn both the left and
right adjusting bolts 1/4 turn clockwise. Repeat
until the belt correctly tightens.
See Picture C
If the belt is over tightened, simply do the
opposite to loosen.

20
BOOM
NOTE: When properly tightened, you should be able to peel the very edge of the side of the belt up
approximately 2 inches. However this is a rough reference and not all treadmills are the same. Some treadmills
that have longer belts may give different measurements for correct belt tightness.
Simply, if the belt begins to slip during use, this is an indication that the belt still needs tightening.
