Lightolier Calculite HID Glasslite Downlight C4MRGD User manual

Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0708
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:

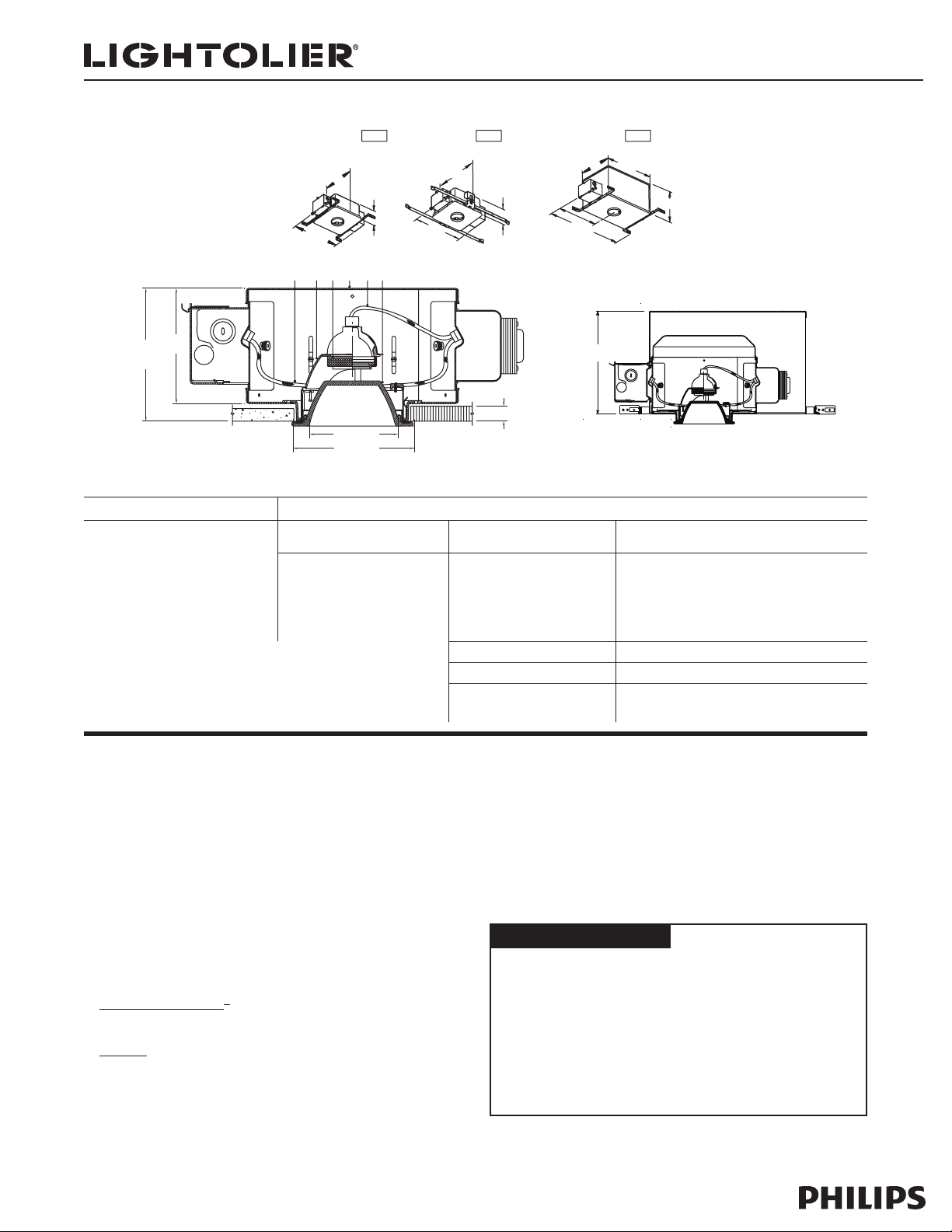

Calculite® Evolution Glasslite C4MRGD
Page 1 of 2 4 1/2" Aperture MR16 Glasslite Downlight
346215
* 6" min. is for up to 3/4" thick ceiling. 3 7/8" Dia.
5 1/2" Dia.
5 1/4"
6" min.*
6 1/2" max.
1 1/8" Max. Ceiling Thk.
C4MRGD / C4ALV
C4MRGD / C4LV or
C4MRGD / C4AICLV
9 1/4"
9 5/8"
(245mm)
5" (127mm)
14 3/8"
(365mm)
5" (127mm)
12 5/8"
(321mm)
14 3/8"
(365mm)
10 1/8"
(257mm)
9" (229mm)
11 3/16"
(284mm)
22 3/8"
(568mm)
14 5/8"
(372mm)
C4AICLV
C4ALV C4LV
Ceiling Cutout: 5 1/16" (129 mm) Dia.
Reflector Trim Frame-In Kit
C4MRP WH Etched White
Interior and Flange
Non-IC 120V/277V Non-IC AirSeal® 120V/277V IC AirSeal® 120V
C4LVMU Magnetic 120/277V C4ALVMU Magnetic 120/277V C4AICLVM1 Magnetic 120V
C4LVE1 Electronic 120V C4ALVE1 Electronic 120V C4AICLVE1 Electronic 120V
C4LVE2
42-75W
MR16(12V)
Electronic 277V 42-75W
MR16(12V)
Lensed, Horizontal
Lamping
20-50W
MR16(12V)
Note: Magnetic transformers may produce audible sound when used with
dimmers, which may be objectionable in acoustically critical areas.
Remodel Frame-In Kit
Non-IC 120V
C4LVE1RM 50W Max.
MR16 (12V)
See separate specification sheet for more
information.
Features
1. Glasslite: One piece borosilicate glass with integral flange, etched interior
and white ceramic coated exterior. Etched white cone finish emits a subtle
glow. Hinged, and snaps onto lampholder assembly for easy tool-less
installation. Inter-changeable with other Evolution 4 1/2" low voltage trims.
Suitable for spas, hot tubs and other wet environments.
2 Lampholder Assembly: Die-cast aluminum. Built-in aperture shield. Matte
black finish. Lamp shield keeps interior of fixture dark.
3. Lamp Support: Die-formed aluminum with knurled surface for easy gripping
during relamping. Spring tension clips hold lamp and lens and allow fast
snap-in, snap-out relamping. Matte black finish.
4. Socket Harness: Porcelain bi-pin socket. Pre-wired with No. 18
Teflon®leads.
5. Power Harness: Provides power to transformer.
6. Frame-In Kit: Compatible frame-In kits are listed above. See separate
frame-in kit specification sheets for details.
Non-IC and Non-IC AirSeal®- Insulation must be kept 3" away from fixture
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal®- Fixture may be in direct contact with insulation.
10. Maximum Ceiling Thickness: .875", 1.75" with C4TCA2 accessory
(see C4TCA2 specification sheet for details.)
Options & Accessories
Evolution 4” Trims with Non-IC Frames
C4MRGD 1 Secondary Color Lens or 1 Mixing Color Lens and 1
Specialty Filter
Labels
CULUS Listed (suitable for wet locations), I.B.E.W.
Teflon® is a registered trademark of E.I. DuPont.
US Patent No. 5,957,573. Other US and Foreign Patents Pending.

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0708
Calculite® Evolution Glasslite C4MRGD
Page 2 of 2 4 1/2" Aperture MR16 Glasslite Downlight
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50 30 10 0
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
1 .77 .76 .75 .76 .75 .74 .73 .72 .71 .70 .70 .69 .68 .68 .67 .66
2 .74 .72 .71 .73 .71 .70 .71 .69 .68 .69 .68 .67 .67 .66 .66 .65
3 .71 .69 .67 .70 .69 .67 .69 .67 .66 .67 .66 .65 .66 .65 .64 .63
4 .36 .67 .65 .68 .66 .64 .67 .65 .64 .66 .64 .63 .65 .63 .62 .62
5 .67 .64 .62 .66 .64 .62 .65 .63 .62 .64 .62 .61 .63 .62 .61 .60
6 .65 .62 .61 .64 .62 .60 .64 .62 .60 .63 .61 .60 .62 .60 .59 .59
7 .63 .60 .59 .63 .60 .58 .62 .60 .58 .61 .59 .58 .60 .59 .58 .57
8 .61 .59 .57 .60 .58 .57 .60 .58 .57 .60 .58 .56 .59 .57 .56 .55
9 .59 .57 .55 .59 .57 .55 .59 .56 .55 .58 .56 .55 .58 .56 .55 .54
10 .58 .55 .54 .58. 55. 54 .57 .55 .54 .57 .55 .53 .56 .55 .53 .53
20% FLOOR CAVITY REFLECTANCE
Use quick calculator chart to determine spacing of luminaires for desired level of illumination.
Conversion Factors:
20W MR16 FL: F.C. X 0.2
35W MR16 FL: F.C. X 0.5
37W and 50W MR16 FL: F.C. X 0.7
(6' x 6' x 8.5' room)
(12' x 12' x 8.5' room)
(60' x 60' x 8.5' room)
80% Ceiling; 50% Wall; 20% Floor
Room Surface Reflectances:
1100 Lumens Per Lamp
RCR = 5
RCR = 1
Glass Lens with 65W MR16 FL
CENTER TO CENTER DISTANCE OF FIXTURES IN FEET
AREA PER FIXTURE IN SQUARE FEET
INITIAL FOOTCANDLES
109876543
908070605040302010
60
50
40
30
20
10
RCR = 10
Use quick calculator chart to determine spacing of luminaires for desired level of illumination.
Conversion Factors:
20W MR16 FL: F.C. X 0.2
35W MR16 FL: F.C. X 0.5
37W and 50W MR16 FL: F.C. X 0.7
(6' x 6' x 8.5' room)
(12' x 12' x 8.5' room)
(60' x 60' x 8.5' room)
80% Ceiling; 50% Wall; 20% Floor
Room Surface Reflectances:
1100 Lumens Per Lamp
RCR = 5
RCR = 1
Glass Lens with 65W MR16 FL
CENTER TO CENTER DISTANCE OF FIXTURES IN FEET
AREA PER FIXTURE IN SQUARE FEET
INITIAL FOOTCANDLES
109876543
908070605040302010
60
50
40
30
20
10
RCR = 10
SPACING RATIO = 0.7
ACROSS
45
ALONG
180 150
1000
2000
3000
50
60
30
0
DATE: DEC. 20, 1999
PREPARED FOR
LIGHTOLIER, FALL RIVER, MA
TESTED ACCORDING TO TEST PROCEDURES. TEST DISTANCE EXCEEDS FIVE TIMES
THE GREATEST LUMINOUS OPENING OF LUMINAIRE.
ROOM CAVITY RATIO
CANDLEPOWER SUMMARY
ANGLE MEAN CP LUMENS
0 1774
5 1666 156
10 1421
15 1199 334
20 893
25 420 213
30 108
35 30 29
40 14
45 7 7
50 6
55 5 4
60 4
65 3 3
70 2
75 1 1
80 0
85 0 0
90 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP % LUMINAIRE
0-30 702 63.89 94.20
0-40 731 66.49 98.02
0-60 702 67.49 99.50
0-90 746 67.83 100.00
40-90 14 1.34 1.98
60-90 .3 .34 .50
90-180 0 .00 .00
0-180 746 67.83 100.00
**EFFICIENCY =67.8% **
CERTIFIED TEST REPORT NC. 0993FR
COMPUTED BY LSI PROGRAM **TEST-LITE**
CALCULITE 4 1/2” DIA. APERTURE MR16 GLASS DOWNLIGHT GLASS REFLECTOR
65W MR16 SYLVANIA 40 DEG. FL. LAMP LUMEN RATING - 1100 LMS.
