Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C1106
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:

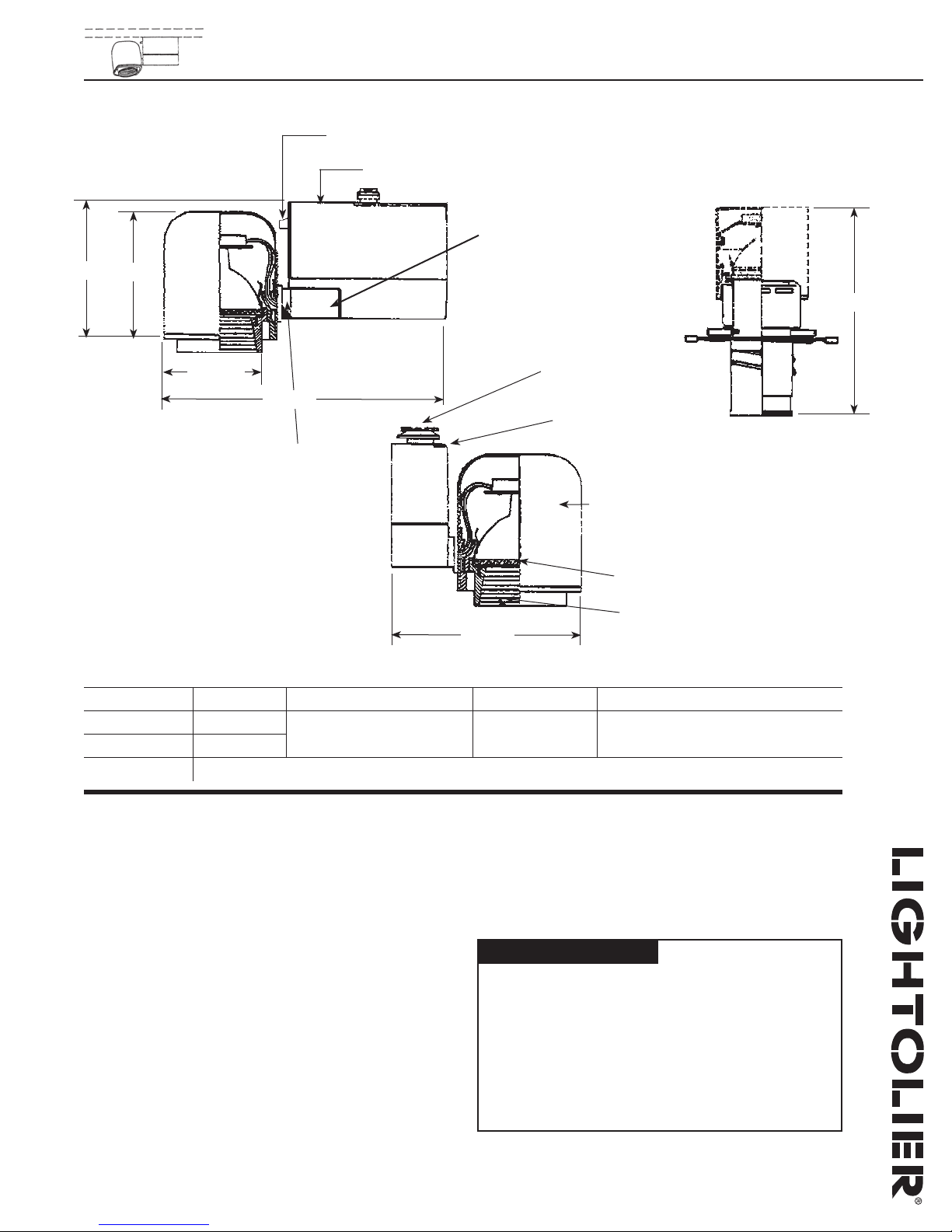

Lytespan®Track Lighting 6298
Page 1 of 2 GeoStar™ Electronic
Features
Compact Lytespot®with unique rounded back fits close to ceiling, integrates
easily with most decor. Uses to wide range of MR-16 lamps to provide precisely
controlled beam spreads from narrow to wide. Lamp is deeply regressed to
eliminate glare. Die-cast matte black step bafe supports lamp and protective
glass lamp guard. Complete bafe/lamp assembly pulls out; spring-tension clips
allow fast snap-out, snap-in relamping. Unit adjusts horizontally and vertically
up to 90° for each side. May be used with color lter, spread lens and framing
projector accessories.
Finish
All painted finished baked enamel.
Electrical
Light-weight, electronic, low voltage transformer with integral radio frequency
interference lter; soft-start feature for longer lamp life. Constant output lamp
voltage to maintain rated lamp life and light output. Two-pin base socket, pre-
wired with No. 18 braided SF-1 leads with berglass braided outer sleeve.
Dimming
For Dimming control, use only those dimmers specifically designed for use with
electronic transformers like Lightolier’s Sunrise and Neptune Momentum QE
series. Call (800) 526-2731 for further information.
PUSH TAB: Molded
Polycarbonate detaches unit.
LYTESPAN ATTACHMENT FITTING: Die-Cast aluminum.
Fitter twists onto track and locks on.
PIVOT MOUNTING:
Tensioned; 90° horizontal
stop for each side.
HOUSING: .040"
Aluminum.
LAMP GUARD
TRUNION MOUNTING:
Tensioned, provides 90°
vertical adjustment for
lighting unit.
STEP BAFFLE:
Die-Cast aluminum with stepped conical
surface for low brightness. Matte black finish.
6 13/16"
2 5/8"Sq.
4" Max 3 1/4"
FRAMING PROJECTOR
ACCESSORY
(Order Separately)
6 1/2"
4 3/16"
MOVABLE BRASS
CONTACT: Extends
for connection to 2nd circuit
in Advent Lytespan Track.
POLARITY KEYWAY
Catalog No. Finishes Track Mounting Lamps Accessories (order separately)
6298 Matte White
All Lytespan Track Systems 35W or 37W Max IR
MR-16 12V
2" Series Color Filters, Louver, Spread Lens
(See Lightolier Specication Sheet 7472.
6299 Matte Black
6297 Matte Black Framing Projector (For performance data see Lightolier Specication Sheet 6497)
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C1106
Job Information Type:
Lytespan®Track Lighting 6298
Page 2 of 2 GeoStar™ Electronic
3,750 5,000
20W MR16 NSP
15ϒ
6’ 104 1.6’ 1.6’
8’ 59 2.1’ 2.1’
10’ 38 2.6’ 2.6’
12’ 26 3.2’ 3.2’
5.’ 2.9’ 97 1.8’ 1.5’
7’ 4.0’ 50 2.5’ 2.1’
9’ 5.2’ 30 3.2’ 2.7’
11’ 6.4’ 20 3.9’ 3.3’
3’ 3.0’ 147 1.6’ 1.1’
5’ 5.0’ 53 2.7’ 1.9’
7’ 7.0’ 27 3.8’ 2.6’
9’ 9.0’ 16 4.8’ 3.4’
2’ 3.5’ 117 2.2’ 1.1’
3’ 5.2’ 52 3.3’ 1.6’
4’ 6.9’ 29 4.4’ 2.1’
5’ 8.7’ 19 5.6’ 2.6’
7’ 151 0.9’ 0.9’
10’ 74 1.2’ 1.2’
13’ 44 1.6’ 1.6’
16’ 29 2.0’ 2.0’
6’ 3.5’ 134 1.0’ 0.8’
9’ 5.2’ 59 1.5’ 1.3’
12’ 6.9’ 33 2.0’ 1.7’
15’ 9.7’ 21 2.4’ 2.1’
4’ 4.0’ 164 1.0’ 0.7’
6’ 6.0’ 73 1.5’ 1.0’
8’ 8.0’ 41 2.0’ 1.4’
10’ 10.0’ 26 2.5’ 1.7’
2’ 3.5’ 231 1.0’ 0.5’
3’ 5.2’ 103 1.5’ 0.7’
4’ 6.9’ 58 2.0’ 1.0’
5’ 8.7’ 37 2.5’ 1.2’
7,400 3,000
20W MR16 VNSP
7ϒ
2’ 131 1.5’ 1.5’
3’ 58 2.2’ 2.2’
4’ 33 2.8’ 2.8’
5’ 21 3.6’ 3.6’
2’ 1.2’ 85 2.0’ 1.7’
3’ 1.7’ 38 3.0’ 2.5’
4’ 2.3’ 21 4.1’ 3.4’
5’ 2.9’ 14 5.1’ 4.2’
2’ 2.0’ 46 3.4’ 2.1’
3’ 3.0’ 21 5.0’ 3.1’
4’ 4.0’ 12 6.7’ 4.1’
5’ 5.0’ 7 8.4’ 5.1’
1’ 1.7’ 66 4.8’ 1.5’
2’ 3.5’ 16 9.7’ 2.9’
3’ 5.2’ 7 14.5’ 4.4’
4’ 6.9’ 4 19.3’ 5.8’
525 5,000
20W MR16 FL
40ϒ
DFCLWDC FC LW DC FC LW DC FC LW
2,800 4,000
35W MR16 SP
20ϒ
6’ 78 2.1’ 2.1’
8’ 44 2.8’ 2.8’
10’ 28 3.5’ 2.3’
12’ 19 4.2 4.2’
5’ 2.9’ 73 2.4’ 2.0’
7’ 4.0’ 37 3.3’ 2.9’
9’ 5.2’ 22 4.3’ 3.7’
11’ 6.4’ 15 5.2’ 4.5’
3’ 3.0’ 110 2.2’ 1.5’
5’ 5.0’ 40 3.6’ 2.5’
7’ 7.0’ 20 5.1’ 3.5’
9’ 9.0’ 12 6.6’ 4.5’
2’ 3.5’ 88 3.1’ 1.4’
3’ 5.2’ 39 4.7’ 2.1’
4’ 6.9’ 22 6.2’ 2.8’
5’ 8.7’ 14 7.8’ 3.5’
7’ 224 1.0’ 1.0’
10’ 110 1.4’ 1.4’
13’ 65 1.8’ 1.8’
16’ 43 2.2’ 2.2’
6’ 3.5’ 198 1.1’ 1.0’
9’ 5.2’ 88 1.7’ 1.5’
12’ 6.9’ 50 2.2’ 1.9’
15’ 8.7’ 32 2.8’ 2.4’
4’ 4.0’ 243 1.1’ 0.8’
6’ 6.0’ 108 1.7’ 1.2’
8’ 8.0’ 61 2.2’ 1.6’
10’ 10.0’ 48 2.5’ 1.8’
2’ 3.5’ 344 1.1’ 0.6’
3’ 5.2’ 153 1.7’ 0.8’
4’ 6.9’ 86 2.3’ 1.1’
5’ 8.7’ 55 2.8’ 1.4’
11,000 4,000
35W MR16 NSP
8°
4’ 88 2.9’ 2.9’
6’ 39 4.4’ 4.4’
8’ 22 5.8’ 5.8’
10’ 14 7.3’ 7.3’
3’ 1.7’ 101 3.0’ 2.5’
5’ 2.9’ 36 5.1’ 4.2’
7’ 4.0’ 19 7.1’ 5.9’
9’ 5.2’ 11 9.1’ 7.6’
3’ 3.0’ 55 5.0’ 3.1’
4’ 4.0’ 31 6.7’ 4.1’
5’ 5.0’ 20 8.4’ 5.1’
6’ 6.0’ 14 10.1’ 6.2’
1’ 1.7 175 4.8’ 1.5’
2’ 3.5’ 44 9.7’ 2.9’
3’ 5.2’ 19 14.5’ 4.4’
4’ 6.9’ 11 19.3’ 5.8’
1,400 4,000
35W MR16 FL
40ϒ
4,400 4,000
4’ 275 1.9’ 1.9’
6’ 122 2.9’ 2.9’
8’ 69 3.8’ 3.8’
10’ 44 4.8’ 4.8’
3’ 1.7’ 318 2.0’ 1.7’
5’ 2.9’ 114 3.3’ 2.8’
7’ 4.0’ 58 4.6’ 3.9’
9’ 5.2’ 35 5.9’ 5.0’
3’ 3.0’ 173 3.1’ 2.0’
4’ 4.0’ 97 4.1’ 2.7’
5’ 5.0’ 62 5.1’ 3.4’
6 ’ 6.0’ 43 6.1’ 4.1’
1’ 1.7’ 550 2.3’ 1.0’
2’ 3.5’ 138 4.8’ 1.9’
3’ 5.2’ 61 7.0’ 2.9’
4’ 6.9’ 34 9.3’ 3.8’
8’ 195 1.3’ 1.3’
12’ 87 1.9’ 1.9’
16’ 49 2.5’ 2.5’
20’ 31 3.1’ 3.1’
7’ 4.0’ 166 1.5’ 1.3’
10’ 5.8’ 81 2.1’ 1.8’
13’ 7.5’ 48 2.7’ 2.4’
16’ 9.2’ 32 3.4’ 2.9’
5’ 5.0’ 177 1.6’ 1.1’
7’ 7.0’ 90 2.2’ 1.6’
9’ 9.0’ 55 2.9’ 2.0’
11’ 11.0’ 37 3.5’ 2.4’
3’ 5.2’ 174 1.9’ 0.9’
4’ 6.9’ 98 2.6’ 1.3’
5’ 8.7’ 63 3.2’ 1.6’
6’ 10.4’ 43 3.8’ 1.9’
12,500 4,000
9°
25°
2,250 4,000
40ϒ
60ϒ
4’ 138 2.9’ 2.9’
6’ 61 4.4’ 4.4’
8’ 34 5.8’ 5.8’
10’ 22 7.3’ 7.3’
3’ 1.7’ 159 3.0’ 2.5’
5’ 2.9’ 57 5.1’ 4.2’
7’ 4.0’ 29 7.1’ 5.9’
9’ 5.2’ 18 9.1’ 7.8’
3’ 3.0’ 86 5.0’ 3.1’
4’ 4.0’ 49 6.7’ 4.1’
5’ 5.0’ 31 8.4’ 5.1’
6’ 6.0’ 22 10.1’ 6.2’
1’ 1.7’ 275 4.8’ 1.5’
2’ 3.5’ 69 9.7’ 2.9’
3’ 5.2’ 31 14.5’ 4.4’
4’ 8.9’ 17 19.3’ 5.8’
3’ 128 3.1’ 3.1’
5’ 48 5.2’ 5.2’
7’ 23 7.3’ 7.3’
9’ 14 9.4’ 9.4’
3’ 1.7’ 83 4.6’ 3.6’
5’ 2.9’ 30 7.6’ 6.0’
7’ 4.0’ 15 10.7’ 8.4’
9’ 5.2’ 9 13.7’ 10.8’
2’ 2.0’ 102 5.7’ 2.9’
3’ 3.0’ 45 8.6’ 4.4’
4’ 4.0’ 25 11.4’ 5.9’
5’ 5.0’ 16 14.3’ 7.4’
1’ 1.7’ 144 22.3’ 2.1’
2’ 3.5’ 36 44.5’ 4.2’
3’ 5.2’ 16 66.8’ 6.2’
4’ 6.9’ 9 89.1’ 8.3’
1,100 4,000
37W MR16 VNSP
(I.R.)
37W MR16 NFL
(I.R.)
37W MR16 FL
(I.R.)
37W MR16 WLF
(I.R.)
Rated
Life-Hrs
Beam Center
C.P. Candelas
Beam Spread
50% Max. CP
Lighting Data
FC
D
LC
A
W
L
W
FC
DFC L
C
D
A
Lamp 0° Aiming Angle A=30° Aiming Angle A=45° Aiming Angle A=60° Aiming Angle
Aiming Angle 0° 30°, 45° or 60° Horizontal 30°, 45° or 60° Vertical
L Beam Length
W Beam Width
CDistance to center beam
D Distance
A Aiming Angle
FC Footcandles
Land Ware the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
