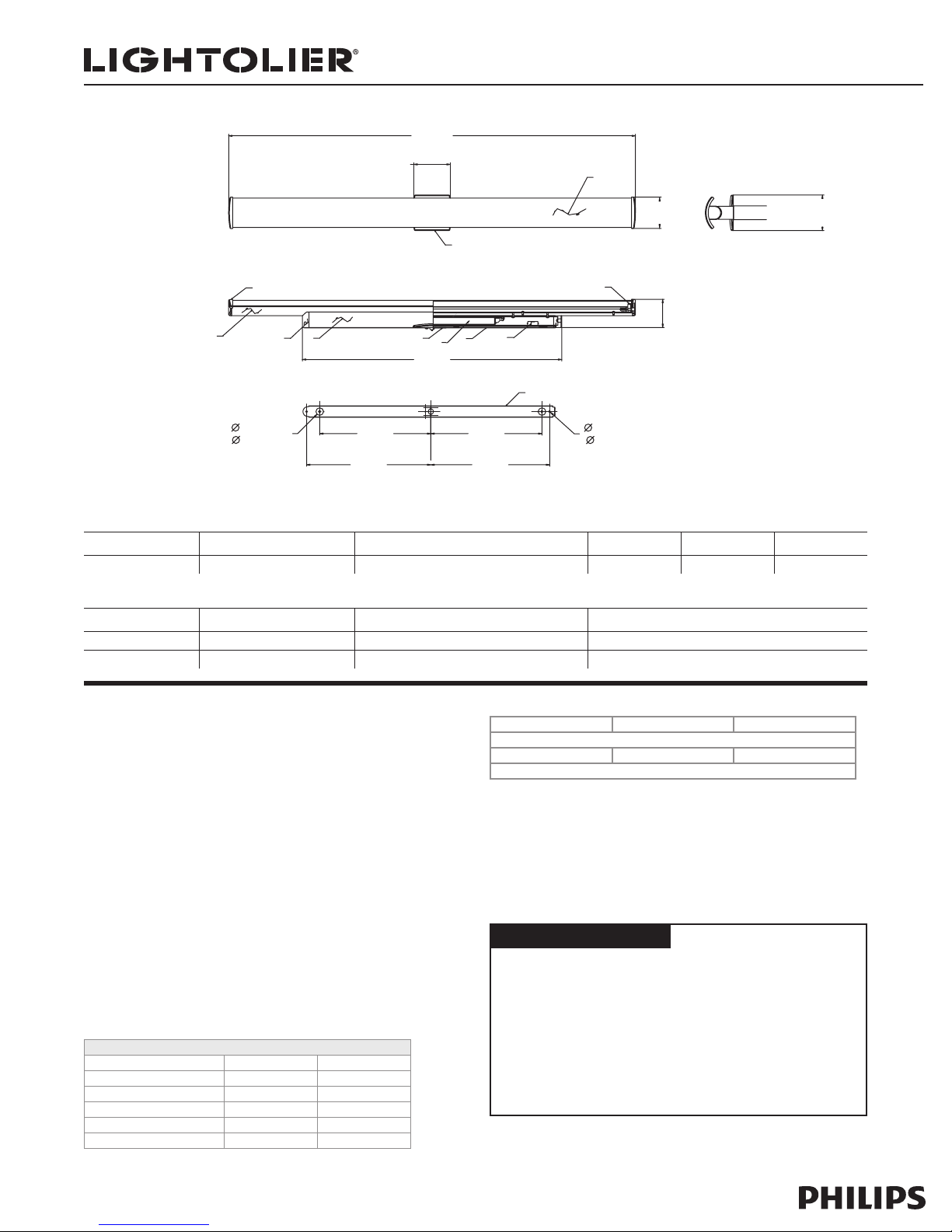

Brisa™ Linear Curve Surface Mount FC28U
Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
3/16"
[ 6mm] AUXILIARY
7/8"
[ 22mm]
KNOCKOUT (x2) MOUNTING HOLE (x2)
10
9
23457
8
6
6
1
4 3/16"
[107mm]
47 1/16"
[1196mm]
3 5/8"
[92mm]
3 1/4"
[83mm]
30"
[762mm]
12 7/8"
[327mm]
13 3/4"
[349mm]
12 7/8"
[327mm]
14 3/8"
[365mm]
4 1/8"
[104mm]
1 1/2" [38mm]
11
Backplate Detail
Features
1. Diffuser Holder: (2) Die-cast aluminum. One stationary and one spring
loaded for ease of diffuser removal and lamping.
2. Lamp Housing: Extruded aluminum.
3. Ballast Housing: (2) Die-cast aluminum.
5. Junction Box Mounting Plate: 18ga. C.R.S zinc plated. For mounting
to standard 4" octagonal junction box. Not required for conduit mounted
installations.
6. Backplate: 18ga. C.R.S. zinc plated. Provided with (2) 7/8" diameter
conduit knockouts (for non junction box installation) and (2) 3/16" diameter
mounting holes for direct mounting to wall or ceiling surface (hardware not
provided).
7. Luminaire Ballast Disconnect: Meets NEC 410.130 (G) and CEC
disconnect requirements
8. Lampholder: Fluorescent- Mini Bi-Pin, G5 Base
9. Junction Box Cover: (2) Die-cast aluminum with integral spring clip
for easy snap-on installation (provided with luminaire). Not required for
conduit mounted installation.
10.Diffuser: Either 3mm curved opal acrylic or opal glass.
Electrical
11. Ballast
A. Ballast (Electronic 120-277V)
Voltage 120V 277V
Total Input Watts 33W 33W
Max. Line Current (Amps) 0.28A 0.12A
Power Factor 0.98 0.98
THD <10% <10%
Min. Starting Temp 0ºF, -18ºC 0ºF, -18ºC
Lamping (by others)
General Electric Osram/Sylvania Philips
(1) 28W T5 Linear Fluorescent
F28W/T5/*/ECO FP28/* F28T5/*/ALTO
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Damp Locations.
Fixture Ordering Information
Catalog No. Description Finish Wattage Volts Lamp
FC28U Linear Curve Surface Mount Satin aluminum 28W 120-277V (1) T5
Diffuser Ordering Information
Catalog No. Description Finish Dimensions (Nominal)
FCA3 Acrylic Curve Diffuser Opal 4" X 48"
FCG3 Glass Curve Diffuser Cased Opal (Sandblasted Outside Surface) 4" X 48"

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0309
Brisa™ Linear Curve Surface Mount FC28U
Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
Candlepower Summary
Angle Along 22.5. 45 67.5 Across. Output
Lumens
0 340 340 340 340 340
5 341 340 338 338 336 32
15 330 329 327 328 326 93
25 309 308 308 308 305 142
35 277 277 276 277 275 173
45 236 236 236 238 236 183
55 186 186 189 193 193 169
65 129 130 138 146 148 137
75 69 74 89 103 108 96
85 18 35 73 110 126 80
90 7 28 80 123 142
95 21 26 74 116 133 77
105 45 30 46 66 76 56
115 60 45 57 64 68 57
125 61 59 67 75 78 61
135 69 67 76 82 85 58
145 78 69 80 87 88 50
155 70 65 69 86 89 35
165 76 71 64 72 89 21
175 104 99 90 66 54 8
180 84 84 84 84 84
100
200
300
400
0°30°
60°
90°
Certied Test Report no. 3649FR
Computed by LSI Program **TEST-LITE**
SC= 1.3
Prepared For:
Lightolier
Fall River, MA
TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE
TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.
Coefficients of Utilization
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 .66 . 66 .66 .66 .62 .62 .62 .62 .56 .56 .56 .50 .50 .50 .45 .45 .45 .42
1 .59 .57 .54 .52 .56 .54 .51 .49 .48 .46 .45 .43 .42 .40 .39 .37 .37 .34
2 .54 .49 .45 .42 .51 .47 .43 .40 .42 .39 .37 .38 .35 .33 .34 .32 .30 .28
3 .49 .43 .39 .35 .46 .41 .37 .34 .37 .34 .31 .33 .31 .28 .30 .28 .26 .24
4 .45 .38 .33 .29 .43 .36 .32 .28 .33 .29 .26 .30 .27 .24 .27 .24 .22 .20
5 .41 .34 .29 .25 .39 .32 .27 .24 .29 .25 .22 .26 .23 .21 .24 .21 .19 .17
6 .38 .30 .25 .21 .36 .29 .24 .21 .26 .22 .19 .24 .20 .18 .21 .18 .16 .15
7 .35 .27 .22 .19 .33 .26 .21 .18 .23 .19 .17 .21 .18 .15 .19 .16 .14 .13
8 .32 .24 .19 .16 .30 .23 .19 .15 .21 .17 .14 .19 .16 .13 .17 .14 .12 .11
9 .30 .22 .17 .14 .28 .21 .16 .13 .19 .15 .12 .17 .14 .12 .16 .13 .11 .09
10 .27 .20 .15 .12 .26 .19 .15 .12 .17 .14 .11 .16 . 12 .10 .14 .11 .09 .08
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 34.0
FC28U/FCA3
Zonal Lumens and Percentages
Zone Lumens % Lamp %Luminaire
0-30 267 10.24 17.50
440 16.88 28.86
792 30.37 51.92
1105 42.34 72.38
664 25.46 43.52
312 11.97 20.46
421 16.16 27.62
1527 58.51 100.00
0-40
0-60
0-90
40-90
60-90
90-180
0-180
** Efciency = 58.5%**
DECORATIVE LUMINAIRE CAT. # FC28U/FCA3 28W
SYLVANIA T-5 LAMPS. LUMEN RATING = 2610 LMS.
BALLAST/ ADVANCE ICN-2S28
