Calculite® Matrix®Lensed Downlight 4X4PL
Page 1 of 2 4 1/2" X 4 1/2" Square Aperture (1) 26/32W Triple Tube Prismatic Lens
9 5/8"
10"
5 7/8"
7 1/8"
5"
Top View
Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish.
Overlap flange accommodates different ceiling types. Precision mitered
flange corners. Prismatic spread lens, 5/32" thick tempered glass.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 22 Ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accommodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 Ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-box door is hinged for easy access.
7. Mounting Brackets: 16 Ga. steel. Adjustable from inside fixture. Utilize
3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
Options & Accessories
Chicago Plenum with Fuse (slow blow): add LCF suffix to frame-in kit,
consult factory for specifications.
Mounting Bars / T-Bar Anchor Clips: See specification sheet “MBA".
Electrical
UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply
conductors.
Note: For complete ballast data and lamp / ballast compatibility refer to “Ballast"
specification sheet.
General
UL Listed for wet locations, I.B.E.W. Union Made.
5
5 1/2"
4 1/2"
5 3/4"
71
2
4 3 6
1 1/4" Max.
Ceiling Thickness
4 1/2"
5 3/4"
Ceiling Cutout: 5 1/8" L X 5 1/8" W
Trim Kits Frame-In Kits
Reflector
Trims Finish / Flange Frame-In Kits Type Ballast Input Voltage
Triple Tube
Wattage Length Width Height
4X4PLCLW Specular Clear / White 4X4132HU Non-IC Electronic 120/277V 26/32W 10" 9 1/2" 5 3/4"
4X4PLCLP Specular Clear / Polished 4X4132HUEM4E Non-IC Electronic - Emergency 120/277V 26/32W 10" 11" 5 3/4"
4X4PLCCLW Comfort Clear / White 4X4132HCU3 Non-IC PowerSpec®HDF Dimming 120/277V 26/32W 10" 9" 5 3/4"
4X4PLCCLP Comfort Clear / Polished 4X4132HJUM7 Non-IC Mark 7®Dimming 120/277V 26/32W 10" 9 1/4" 5 3/4"
4X4PLCCDW Comfort Clear Diff. / White 4X4132HJ1MX Non-IC Mark 10®Dimming 120V 26/32W 10" 9 1/4" 5 3/4"
4X4PLCCDP Comfort Clear Diff. / Polished 4X4132HJ2MX Non-IC Mark 10®Dimming 277V 26/32W 10" 9 1/4" 5 3/4"
4X4PLCCGP Clear Corrugated / Self Flange
4X4PLWHW White / White

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
Calculite® Matrix®Lensed Downlight 4X4PL
Page 2 of 2 4 1/2" X 4 1/2" Square Aperture (1) 26/32W Triple Tube Prismatic Lens
Job Information Type:
1 .49 .48 .47 .48 .47 .46 .46 .45 .44 .44 .44 .43 .43 .42 .42 .41
2 .45 .44 .42 .45 .43 .42 .43 .42 .41 .42 .41 .40 .41 .40 .39 .38
3 .42 .40 .39 .42 .40 .38 .41 .39 .38 .40 .38 .37 .39 .37 .36 .36
4 .40 .37 .35 .39 .37 .35 .38 .36 .35 .37 .36 .34 .36 .35 .34 .33
5 .37 .34 .32 .36 .34 .32 .36 .34 .32 .35 .33 .32 .34 .33 .31 .31
6 .34 .32 .30 .34 .32 .30 .33 .31 .30 .33 .31 .29 .32 .31 .29 .29
7 .32 .29 .28 .32 .29 .27 .31 .29 .27 .31 .28 .27 .30 .28 .27 .26
8 .30 .27 .25 .29 .27 .25 .29 .27 .25 .29 .26 .25 .28 .26 .25 .24
9 .28 .25 .23 .27 .25 .23 .27 .25 .23 .27 .24 .23 .26 .24 .23 .22
10 .26 .23 .21 .25 .23 .21 .25 .23 .21 .25 .22 .21 .24 .22 .21 .20
32W Triple Tube, Specular Clear Reflector Trim
One Sylvania lamp, 2400 lumens
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 575 23.97 54.78
0-40 840 35.02 80.02
0-60 1049 43.73 99.91
0-90 1050 43.77 100.00
0 781 781 781 781 781
5 777 778 781 784 785 74
10 755 760 776 789 794
15 706 720 757 786 792 212
20 635 657 716 757 760
25 550 575 642 684 688 289
30 459 485 544 578 591
35 363 386 421 460 489 265
40 267 280 291 344 375
45 190 191 185 231 258 165
50 127 119 109 140 163
55 16 28 42 40 19 44
60 2 2 7 2 2
65 0 0 0 0 0 1
70 0 0 0 0 0
75 0 0 0 0 0 0
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
Test Report 1711FR Mar. 24, 2002
Angle Along 22.5 45 67.5 Across Lumens

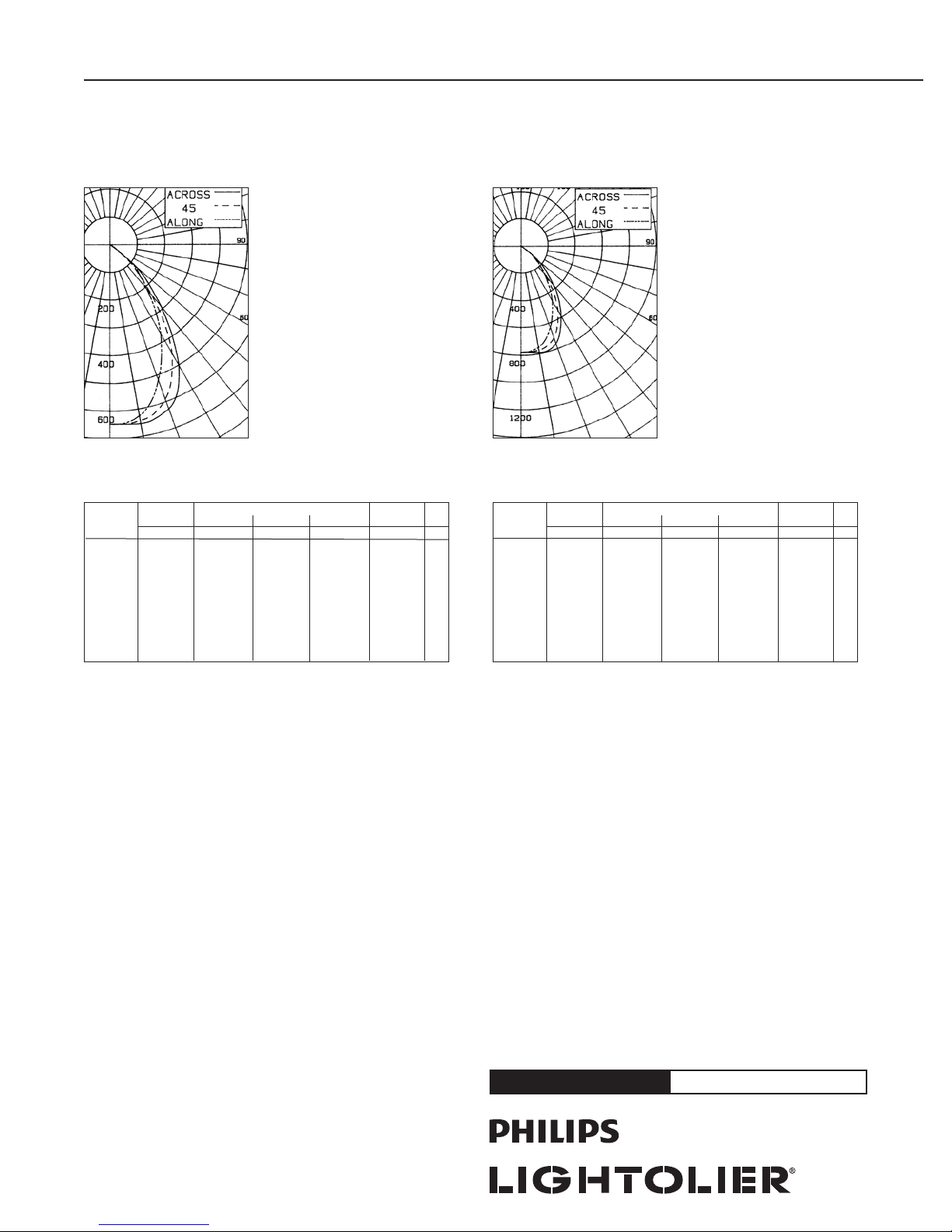

CANDLEPOWER SUMMARY
EFFICIENCY = 43.8% Spacing Criterion: Along = 1.0 Across = 1.1
% Effective Ceiling Cavity Reectance
1 .53 .52 .51 .52 .51 .50 .50 .49 .48 .48 .47 .47 .46 .46 .45 .45
2 .49 .48 .46 .48 .47 .45 .47 .46 .44 .46 .44 .43 .44 .43 .43 .42
3 .46 .44 .42 .45 .43 .42 .44 .42 .41 .43 .42 .40 .42 .41 .40 .39
4 .43 .41 .39 .43 .40 .38 .41 .39 .38 .41 .39 .37 .40 .38 .37 .36
5 .40 .37 .35 .40 .37 .35 .39 .37 .35 .38 .36 .35 .37 .36 .34 .34
6 .38 .35 .33 .37 .34 .33 .36 .34 .32 .36 .34 .32 .35 .33 .32 .31
7 .35 .32 .30 .35 .32 .30 .34 .31 .30 .33 .31 .29 .33 .31 .29 .29
8 .32 .30 .28 .32 .29 .27 .32 .29 .27 .31 .29 .27 .31 .29 .27 .26
9 .30 .27 .25 .30 .27 .25 .29 .27 .25 .29 .27 .25 .29 .26 .25 .24
10 .28 .25 .23 .28 .25 .23 .27 .25 .23 .27 .25 .23 .27 .25 .23 .22
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
26W Triple Tube, Specular Clear Reflector Trim
One Philips lamp, 1800 lumens
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 475 26.42 55.71
0-40 689 38.32 80.79
0-60 852 47.38 99.90
0-90 853 47.43 100.00
0 646 646 646 646 646
5 644 645 647 648 649 62
10 625 631 642 651 653
15 583 596 628 646 647 175
20 517 543 591 624 628
25 445 470 531 575 583 239
30 368 392 450 492 500
35 287 303 344 375 389 214
40 209 217 232 267 287
45 152 148 145 178 199 129
50 104 94 87 106 125
55 12 26 33 29 16 35
60 1 1 5 1 2
65 1 0 0 1 1 1
70 0 0 0 0 0
75 0 0 0 0 0 0
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
Test Report 1764FR Apr. 5, 2002
Angle Along 22.5 45 67.5 Across Lumens
CANDLEPOWER SUMMARY
EFFICIENCY = 47.4% Spacing Criterion: Along = 1.0 Across = 1.2
% Effective Ceiling Cavity Reectance
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
20% Floor Cavity Reectance 20% Floor Cavity Reectance
Based on specular clear (CL) finish. To estimate other finishes, multiply candelas
and CU values by 0.95 for CCL, by 0.90 for CCD.
