Calculite® Matrix®Lensed Downlight 4X9PL
Page 1 of 2 4 1/2" X 9" Rectangular Aperture (1) 26W Quad/32/42 Triple Tube Prismatic Lens
1
2
4 3 6
1 1/4" Max.
Ceiling Thickness
4 1/2"
5 3/4"
5
7
5 1/2"
9"
10 1/4"
9 5/8"
5 5/8"
12 3/8"
9 9/16"
5"
Top View
Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish.
Overlap flange accommodates different ceiling types. Precision mitered
flange corners. Prismatic spread lens, 5/32" thick tempered glass.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 22 Ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accommodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 Ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-box door is hinged for easy access.
7. Mounting Brackets: 16 Ga. steel. Adjustable from inside fixture. Utilize
3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
Options & Accessories
Chicago Plenum with Fuse (slow blow): add LCF suffix to frame-in kit, con-
sult factory for specifications.
Emergency: add EM suffix to frame-in kit, consult factory for specifications.
Option not available in the 57W version.
Mounting Bars / T-Bar Anchor Clips: See specification sheet “MBA".
Electrical
UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply
conductors.
Note: For complete ballast data and lamp / ballast compatibility refer to
“Ballast" specification sheet.
General
UL listed for wet locations, I.B.E.W. Union Made.
Ceiling Cutout: 5 1/8" L X 9 5/8" W
Trim Kits Frame-In Kits
Reflector
Trims Finish / Flange Frame-In Kits Type Ballast Input Voltage
Quad Tube
Wattage
Triple Tube
Wattage Length Width Height
4X9PLCLW Specular Clear / White 4X9142HU Non-IC Electronic 120/277V 26W 32/42W 12 1/2" 9 1/2" 5 3/4"
4X9PLCLP Specular Clear / Polished 4X9142HUEM Non-IC Electronic - Emergency 120/277V 26W 32/42W 12 1/2" 11" 5 3/4"
4X9PLCCLW Comfort Clear / White 4X9142HJUM7 Non-IC Mark 7®Dimming 120/277V 26W 32/42W 12 1/2" 9 1/4" 5 3/4"
4X9PLCCLP Comfort Clear / Polished 4X9142HJ1MX Non-IC Mark 10®Dimming 120V 26W 32/42W 12 1/2" 9 1/4" 5 3/4"
4X9PLCCDW Comfort Clear Diff. / White 4X9142HJ2MX Non-IC Mark 10®Dimming 277V 26W 32/42W 12 1/2" 9 1/4" 5 3/4"
4X9PLCCDP Comfort Clear Diff. / Polished
4X9PLCCGP Clear Corrugated / Self Flange
4X9PLWHW White / White

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • C0209
Calculite® Matrix®Lensed Downlight 4X9PL
Page 2 of 2 4 1/2" X 9" Rectangular Aperture (1) 26W Quad/32/42 Triple Tube Prismatic Lens
% Effective Ceiling Cavity Reectance
1 .48 .47 .46 .47 .46 .45 .45 .45 .44 .44 .43 .42 .42 .42 .41 .41
2 .45 .43 .41 .44 .42 .41 .42 .41 .40 .41 .40 .39 .40 .39 .38 .38
3 .41 .39 .37 .41 .39 .37 .40 .38 .36 .39 .37 .36 .38 .36 .35 .35
4 .38 .36 .34 .38 .36 .34 .37 .35 .33 .36 .34 .33 .35 .34 .33 .32
5 .36 .33 .31 .35 .33 .31 .34 .32 .31 .34 .32 .30 .33 .31 .30 .29
6 .33 .30 .28 .33 .30 .28 .32 .30 .28 .31 .29 .28 .31 .29 .28 .27
7 .30 .28 .26 .30 .27 .25 .30 .27 .25 .29 .27 .25 .28 .27 .25 .24
8 .28 .25 .23 .28 .25 .23 .27 .25 .23 .27 .25 .23 .26 .24 .23 .22
9 .26 .23 .21 .26 .23 .21 .25 .23 .21 .25 .23 .21 .24 .22 .21 .20
10 .24 .21 .19 .24 .21 .19 .23 .21 .19 .23 .21 .19 .23 .21 .19 .19
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
26W Triple Tube, Specular clear Reflector Trim
One Sylvania lamp, 1800 lumens

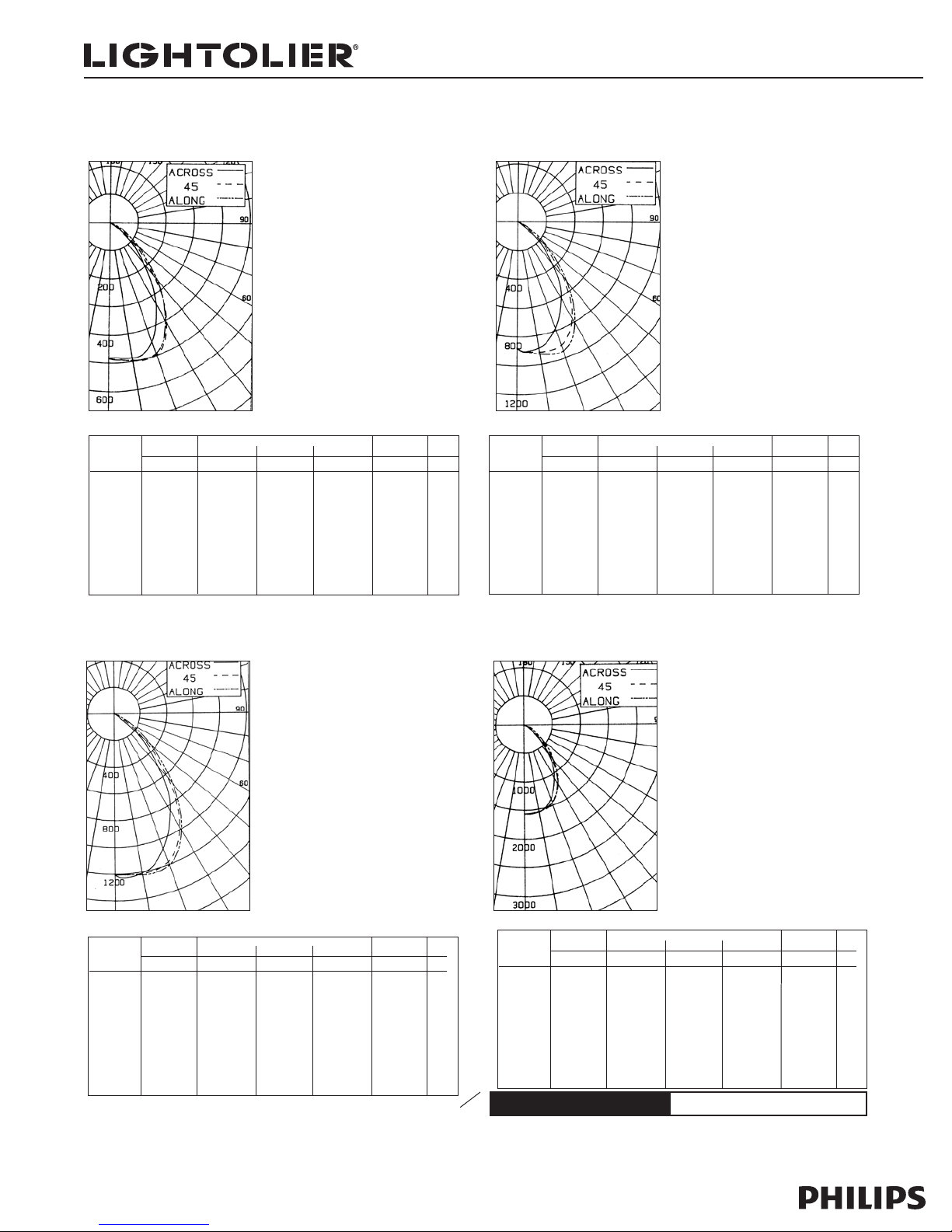

ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 391 21.76 50.13
0-40 589 32.74 75.41
0-60 771 42.84 98.68
0-90 781 43.41 100.00
0 484 484 484 484 484
5 491 490 490 490 485 47
10 497 497 499 496 488
15 501 504 504 493 481 140
20 493 499 498 471 449
25 460 471 468 426 395 205
30 403 419 411 361 331
35 333 347 334 289 262 198
40 259 266 242 210 187
45 188 189 162 142 128 129
50 131 126 101 88 71
55 85 79 56 33 16 53
60 51 41 23 3 1
65 19 17 3 0 0 10
70 5 4 0 0 0
75 0 0 0 0 0 0
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
Test Report 1624FR Feb. 26, 2002
Angle Along 22.5 45 67.5 Across Lumens
CANDLEPOWER SUMMARY
EFFICIENCY = 43.4% Spacing Criterion: Along = 1.2Across = 1.1
20% Floor Cavity Reectance
1 .69 .68 .66 .68 .66 .65 .65 .64 .63 .63 .62 .61 .61 .60 .59 .58
2 .64 .62 .59 .63 .61 .59 .61 .59 .57 .59 .58 .56 .57 .56 .55 .54
3 .59 .56 .53 .58 .55 .53 .57 .54 .52 .55 .53 .51 .54 .52 .51 .50
4 .55 .51 .49 .54 .51 .48 .53 .50 .48 .52 .49 .47 .50 .48 .47 .46
5 .51 .47 .44 .50 .47 .44 .49 .46 .43 .48 .45 .43 .47 .45 .43 .42
6 .47 .43 .40 .47 .43 .40 .46 .42 .40 .45 .42 .39 .44 .41 .39 .38
7 .43 .39 .36 .43 .39 .36 .42 .38 .36 .41 .38 .36 .40 .38 .35 .34
8 .40 .36 .33 .39 .36 .33 .39 .35 .33 .38 .35 .32 .37 .35 .32 .31
9 .37 .33 .30 .36 .33 .30 .36 .32 .30 .35 .32 .29 .35 .32 .29 .28
10 .34 .30 .27 .34 .30 .27 .33 .29 .27 .33 .29 .27 .32 .29 .27 .26
32W Triple Tube, Specular clear Reflector Trim
One Sylvania lamp, 2400 lumens
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 724 30.19 48.14
0-40 1112 46.36 73.95
0-60 1484 61.86 98.67
0-90 1504 62.70 100.00
Test Report 1617FR Feb. 8, 2002
Angle Along 22.5 45 67.5 Across Lumens
CANDLEPOWER SUMMARY
EFFICIENCY = 62.7% Spacing Criterion: Along = 1.3Across = 1.1
% Effective Ceiling Cavity Reectance
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
% Effective Ceiling Cavity Reectance
1 .68 .66 .65 .67 .65 .64 .64 .63 .62 .62 .61 .60 .60 .59 .58 .57
2 .63 .60 .58 .62 .59 .58 .60 .58 .56 .58 .56 .55 .56 .55 .54 .53
3 .58 .55 .52 .57 .54 .52 .56 .53 .51 .54 .52 .50 .53 .51 .50 .49
4 .54 .50 .48 .53 .50 .47 .52 .49 .47 .51 .48 .46 .49 .47 .46 .45
5 .50 .46 .43 .49 .46 .43 .48 .45 .43 .47 .44 .42 .46 .44 .42 .41
6 .46 .42 .39 .46 .42 .39 .45 .41 .39 .44 .41 .39 .43 .40 .38 .37
7 .42 .38 .36 .42 .38 .35 .41 .38 .35 .40 .37 .35 .40 .37 .35 .34
8 .39 .35 .32 .39 .35 .32 .38 .34 .32 .37 .34 .32 .37 .34 .32 .31
9 .36 .32 .29 .36 .32 .29 .35 .32 .29 .35 .31 .29 .34 .31 .29 .28
10 .33 .29 .27 .33 .29 .26 .32 .29 .26 .32 .29 .26 .31 .28 .26 .25
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
42W Triple Tube, Specular clear Reflector Trim
One Sylvania lamp, 3200 lumens
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 948 29.63 48.13
0-40 1447 45.24 73.50
0-60 1940 60.64 98.51
0-90 1969 61.55 100.00
0 1208 1208 1208 1208 1208
5 1210 1211 1208 1206 1228 116
10 1224 1226 1214 1197 1208
15 1227 1231 1209 1167 1164 338
20 1204 1213 1179 1097 1073
25 1134 1157 1105 1002 965 494
30 1012 1045 987 879 842
35 855 880 821 734 699 500
40 681 687 623 555 516
45 504 498 436 383 359 345
50 354 339 286 252 212
55 235 217 159 91 501 448
60 143 117 65 8 4
65 56 48 9 1 1 28
70 16 10 1 0 0
75 0 0 0 0 0 1
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
Test Report 1610FR Feb. 7, 2002
Angle Along 22.5 45 67.5 Across Lumens
CANDLEPOWER SUMMARY
EFFICIENCY = 61.6% Spacing Criterion: Along = 1.2Across = 1.1
20% Floor Cavity Reectance
% Effective Ceiling Cavity Reectance
1 .63 .61 .60 .61 .60 .59 .59 .58 .57 .57 .56 .55 .55 .54 .54 .53
2 .58 .56 .54 .57 .55 .53 .55 .53 .52 .54 .52 .51 .52 .51 .50 .49
3 .54 .51 .48 .53 .50 .48 .51 .49 .47 .50 .48 .46 .49 .47 .46 .45
4 .50 .47 .44 .49 .46 .44 .48 .45 .43 .47 .45 .43 .46 .44 .42 .41
5 .46 .43 .40 .46 .42 .40 .44 .42 .39 .44 .41 .39 .43 .41 .39 .38
6 .43 .39 .36 .42 .39 .36 .41 .38 .36 .40 .38 .36 .40 .37 .35 .35
7 .39 .36 .33 .39 .35 .33 .38 .35 .33 .37 .34 .32 .37 .34 .32 .31
8 .36 .33 .30 .36 .32 .30 .35 .32 .30 .35 .32 .30 .34 .31 .29 .29
9 .33 .30 .27 .33 .30 .27 .33 .29 .27 .32 .29 .27 .31 .29 .27 .26
10 .31 .27 .25 .31 .27 .25 .30 .27 .25 .30 .27 .24 .29 .26 .24 .24
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
57W Triple Tube, Specular clear Reflector Trim
One Sylvania lamp, 4300 lumens
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 1184 27.56 48.55
0-40 1799 41.86 73.75
0-60 2408 56.02 98.70
0-90 2440 56.76 100.00
0 1562 1562 1562 1562 1562
5 1555 1559 1562 1565 1566 149
10 1543 1550 1551 1548 1546
15 1509 1521 1523 1506 1491 426
20 1449 1467 1463 1412 1382
25 1350 1382 1352 1282 1243 610
30 1210 1250 1196 1114 1084
35 1029 1065 996 927 901 615
40 824 840 765 701 662
45 618 614 537 480 456 427
50 444 423 351 304 269
55 303 273 191 105 57 182
60 181 143 75 2 0
65 62 53 4 0 0 31
70 12 5 0 0 0
75 0 0 0 0 0 1
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
Test Report 1631FR Mar. 11, 2002
Angle Along 22.5 45 67.5 Across Lumens
CANDLEPOWER SUMMARY
EFFICIENCY = 56.8% Spacing Criterion: Along = 1.2Across = 1.1
20% Floor Cavity Reectance
0 877 877 877 877 877
5 910 908 906 902 900 86
10 931 929 915 896 886
15 950 948 920 876 849 257
20 949 951 907 826 783
25 905 917 857 758 702 382
30 807 831 771 666 614
35 679 699 644 562 510 388
40 537 542 488 425 376
45 390 389 336 293 264 264
50 267 258 213 185 143
55 171 161 115 62 28 108
60 103 84 44 2 1
65 39 34 5 0 0 19
70 10 7 0 0 0
75 0 0 0 0 0 1
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
20% Floor Cavity Reectance
Based on specular clear (CL) finish. To estimate other finishes, multiply can-
delas and CU values by 0.95 for CCL, by 0.90 for CCD.
