Lightolier Lighting Systems Baselyte-BSL2 User manual

Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1

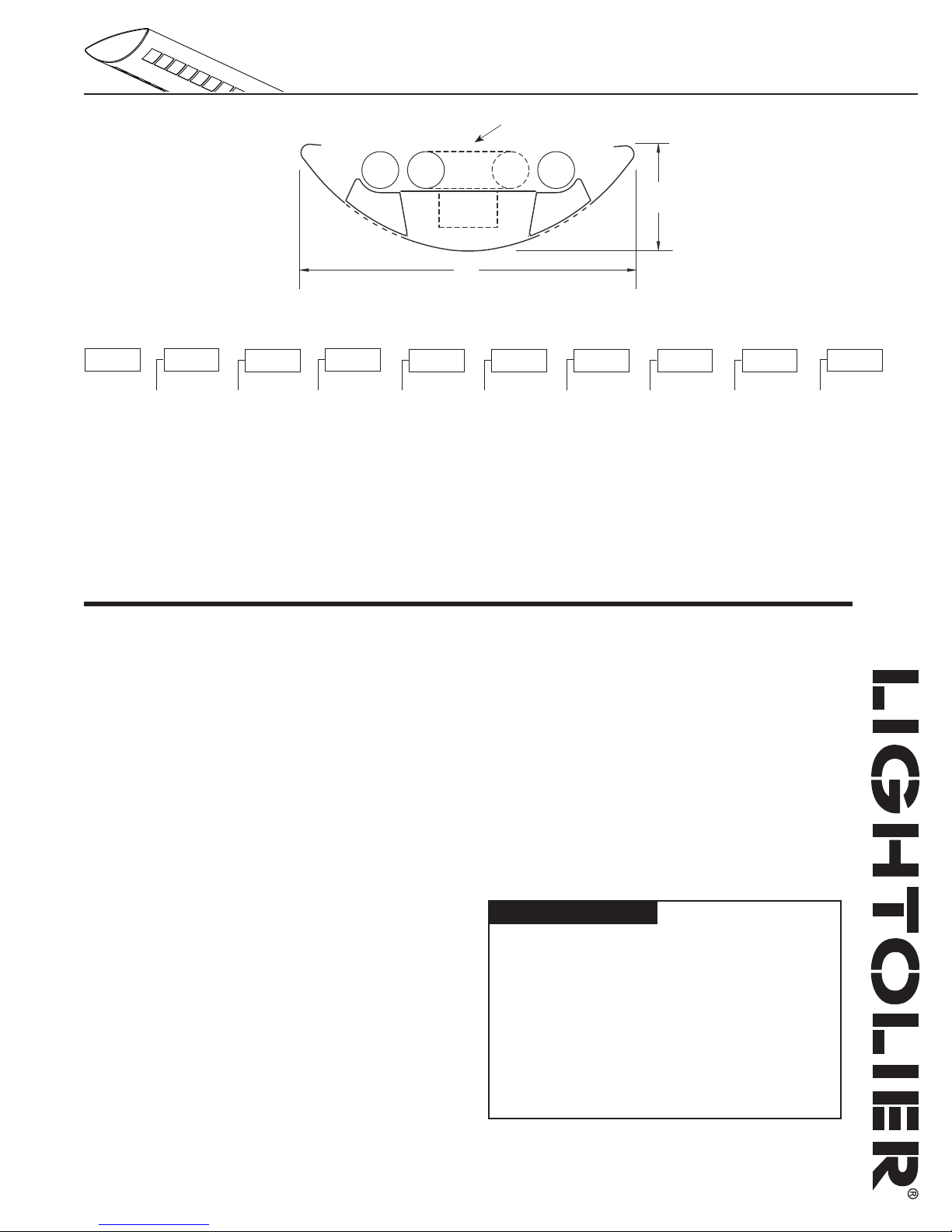

Ordering Information
Family
T= T8
6= Direct/
Indirect
03 CN
T
6
BSL
03 = 3 Light CN = Cutout
w/baffles
04 = 4’
08 = 8’
12 = 12’
C= Custom Color
W= Standard
White
Distribution Lamp Type No. of Lamps Housing Module Length Wiring Voltage Ballast Finish
Weight = 3.0 lb/ft
angled lamp
Lighting Systems Baselyte-BSL2
Page 1 of 8 3 Light T8 Direct/Indirect
Specifications
Features
1. Housing: die-formed 20ga. cold rolled steel
2. End Set: die-cast metal with baked powder coat finish
3. Lamping: three T8 lamps
4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows
5. Ballasts: electronic 120V or 277V
Finish
High-quality white powder coat with textured matte finish.
Custom colors available. Consult factory.
Mounting
Aircraft cable gripper is tamper-resistant and provides infinite vertical
adjustment capability. Aircraft cable, crimp and cable gripper independently
tested to meet stringent safety requirements.
Electrical
All luminaires are factory pre-wired to module ends with quick-wire
connectors.
Joints & Intersections
Self-aligning joining system with hands-free pre-joining wire access.
Labels
UL, CSA standards.
Individual Fixtures
1. Determine the number of individual modules required
2. Order one end set per module
3. Order one non-power mount per module
4. Order one power mount per module
Continuous Rows*
1. Determine run length
2. Order the appropriate number and length of modules for complete run
3. Order one end set for each run
4. Order one non-power mount for each module
5. Order one power mount per run
6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)
*Note: Some runs may require additional power mounts. Please see the ‘Run
Configuration’ table on next page for more details.
1= 120V
2= 277V E = Standard
<20% THD
F = Standard
<20% THD
w/fusing
G = <10% THD,
Instant Start
H = <10% THD,
Instant Start
w/fusing
J = <10% THD,
Program Start
K = <10% THD,
Program Start
w/fusing
1= 1cct.
2= 2cct.
3 = 1cct. w/EC/NL
4 = 2cct. w/EC/NL
5= 1cct. w/EM Battery
6= 2cct. w/EM Battery
7= 1cct. w/Dimming
8 = 1cct. w/1cct.
Thru wire
9= 2cct. w/1cct.
Thru wire
Note: Please consult
wiring section of spec
sheets for more
wiring options.
Ordering Instructions



Lighting Systems Baselyte-BSL2
Page 2 of 8 3 Light T8 Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:

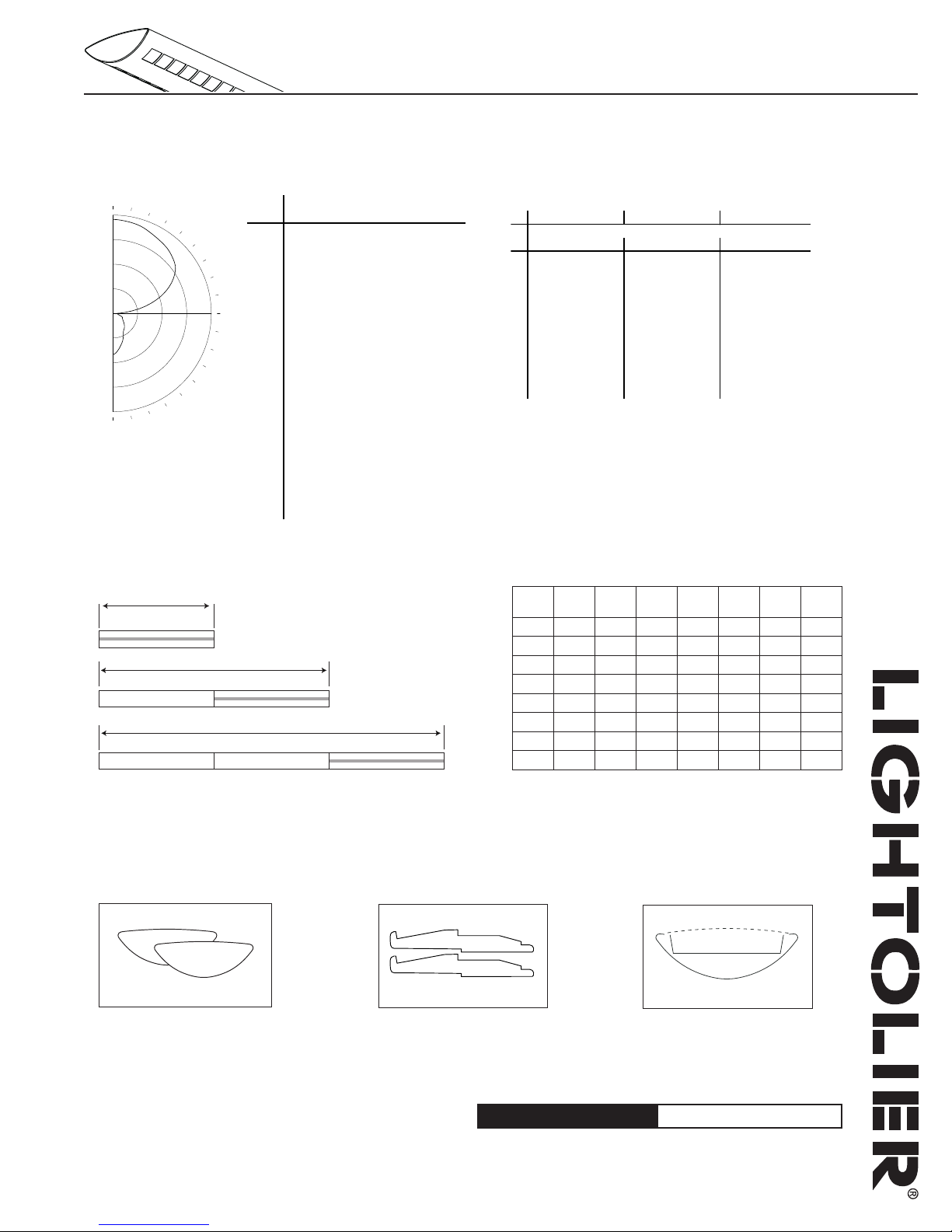

Performance
Candlepower Curve Candlepower Summary Coefficients of Utilization
-ODULE,ENGTH
-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
@
@
@
Module Lengths & Mounting Distances
Note: Shaded area indicates locations of emergency sections (emergency wiring
controls all lamps or optional battery pack controls one or two lamps).
Joiner
BSLESW = suspended standard white
Dust CoverEnd Set
BSLJS = suspended joiner BSLDCS = 4’ suspended dust cover
System Components & Accessories
Run Configuration
*Note: Additional power mounts may be required for some runs with T5 HO
lamping options, longer runs, and runs with wiring options that are more complex.
Please consult factory for assistance.























Report No: 2101590
Lamps: F32T8
Lumens per Lamp: 2950
Efficiency: 84.1%
Up: 82.2% Down: 17.8%
CANDLEPOWER SUMMARY
ZONE CANDLEPOWER
DEG. 0 22.5 45 67.5 90
180 1740 1740 1740 1740 1740
175 1730 1730 1733 1729 1730
165 1668 1665 1681 1689 1696
155 1554 1555 1597 1616 1631
145 1389 1402 1479 1551 1582
135 1179 1208 1357 1469 1511
125 927 998 1208 1339 1377
115 647 777 1002 1058 1096
105 353 525 655 647 676
95 91 147 213 186 212
90 7 29 45 53 51
85 23 35 53 58 62
75 52 62 98 96 102
65 98 117 128 152 169
55 201 191 194 186 195
45 329 282 260 256 262
35 452 391 339 316 322
25 568 508 472 418 412
15 663 626 592 558 562
5 720 712 701 681 685
0 727 727 727 727 727
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 83 83 83 73 73 73 55 55 55
1 72 69 66 64 61 59 48 46 44
2 63 58 54 56 52 48 42 39 37
3 55 50 45 49 44 40 37 34 31
4 49 43 38 43 38 34 33 29 26
5 43 37 32 38 33 29 29 25 22
6 39 32 28 34 29 25 26 22 19
7 35 29 24 31 26 22 24 20 17
8 31 25 21 28 23 19 21 18 15
9 29 23 19 25 20 17 19 16 13
10 26 20 17 23 18 15 18 14 12
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARE LAMP %LUMINAIRE
0-90
90-180
0-180 7447
6118.5
1328.5 17.8
82.2
100.0
15.0
69.1
84.1
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 83 83 83 73 73 73 55 55 55
1 72 69 66 64 61 59 48 46 44
2 63 58 54 56 52 48 42 39 37
3 55 50 45 49 44 40 37 34 31
4 49 43 38 43 38 34 33 29 26
5 43 37 32 38 33 29 29 25 22
6 39 32 28 34 29 25 26 22 19
7 35 29 24 31 26 22 24 20 17
8 31 25 21 28 23 19 21 18 15
9 29 23 19 25 20 17 19 16 13
10 26 20 17 23 18 15 18 14 12
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARE LAMP %LUMINAIRE
0-90
90-180
0-180 7447
6118.5
1328.5 17.8
82.2
100.0
15.0
69.1
84.1
Run
Length
4’
Module
8’
Module
12’
Module Joiner End Set Mount Power Mount*
4’ run 1 1 1 1
8’ run 1 1 1 1
12’ run 1 1 1 1
16’ run 2 1 1 2 1
20’ run 1 1 1 1 2 1
24’ run 2 1 1 2 1
28’ run 2 1 2 1 3 1
32’ run 1 2 2 1 3 1
Zonal Lumen Summary
ZONE LUMENS %BARE LAMP %LUMINAIRE

Lighting Systems Baselyte-BSL2
Page 3 of 8 3 Light T8 Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:

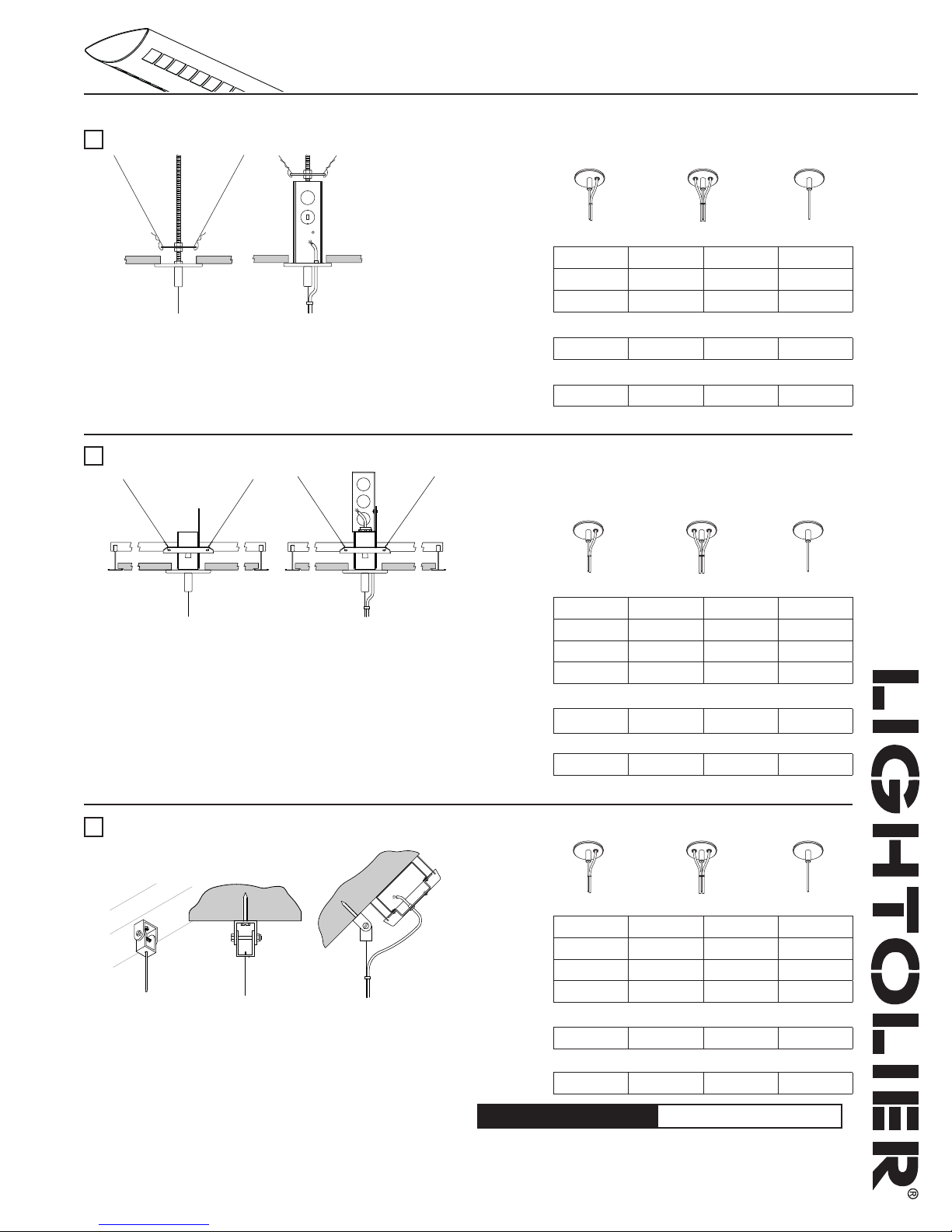

• 65 lbs maximum load
• Canopy: Diameter of 3 3/4“x 7/32”
• Cable: 7x7 stranded aircraft cable
• Supported by T-bar and secured to structure
• J-Box: 4” square (supplied by others)
• Fully adjustable vertically at fixture
Mount Type: T-Bar 15/16” (On-Grid)*
Mount Type: T-Bar 9/16” (On-Grid)*
Mount Type: T-Bar 9/16” by 5/16” Slot Grid (On-Grid)*
Supension Length
Non-Power Mount1-Power Mount
1-Power Mount 2’ 4’ 8’ 12’
3 Conductor BSLM6102P13 BSLM6104P13 BSLM6108P13 BSLM6112P13
4 Conductor BSLM6102P14 BSLM6104P14 BSLM6108P14 BSLM6112P14
7 Conductor BSLM6102P17 BSLM6104P17 BSLM6108P17 BSLM6112P17
Non-Power Mount
BSLM6102N BSLM6104N BSLM6108N BSLM6112N
• 65 lbs maximum load
• Canopy: Diameter of 3 3/4“x 7/32”
• Cable: 7x7 stranded aircraft cable
• Supported by T-bar and secured to structure
• J-Box: 4” square (supplied by others)
• Fully adjustable vertically at fixture
• 65 lbs maximum load
• Canopy: Diameter of 3 3/4“x 7/32”
• Cable: 7x7 stranded aircraft cable
• Supported by T-bar and secured to structure
• J-Box: 4” square (supplied by others)
• Fully adjustable vertically at fixture
*Note: Standard T-bar mounts are currently not available for tegular tile ceilings,
however certain tegular tile / T-bar combinations may be supported by the use of the
slot-grid mount. For more information, please consult factory.
Supension Length
Non-Power Mount1-Power Mount
1-Power Mount 2’ 4’ 8’ 12’
3 Conductor BSLM6202P13 BSLM6204P13 BSLM6208P13 BSLM6212P13
4 Conductor BSLM6202P14 BSLM6204P14 BSLM6208P14 BSLM6212P14
7 Conductor BSLM6202P17 BSLM6204P17 BSLM6208P17 BSLM6212P17
Non-Power Mount
BSLM6202N BSLM6204N BSLM6208N BSLM6212N
Supension Length
Non-Power Mount1-Power Mount
1-Power Mount 2’ 4’ 8’ 12’
3 Conductor BSLM6302P13 BSLM6304P13 BSLM6308P13 BSLM6312P13
4 Conductor BSLM6302P14 BSLM6304P14 BSLM6308P14 BSLM6312P14
7 Conductor BSLM6302P17 BSLM6304P17 BSLM6308P17 BSLM6312P17
Non-Power Mount
BSLM6302N BSLM6304N BSLM6308N BSLM6312N

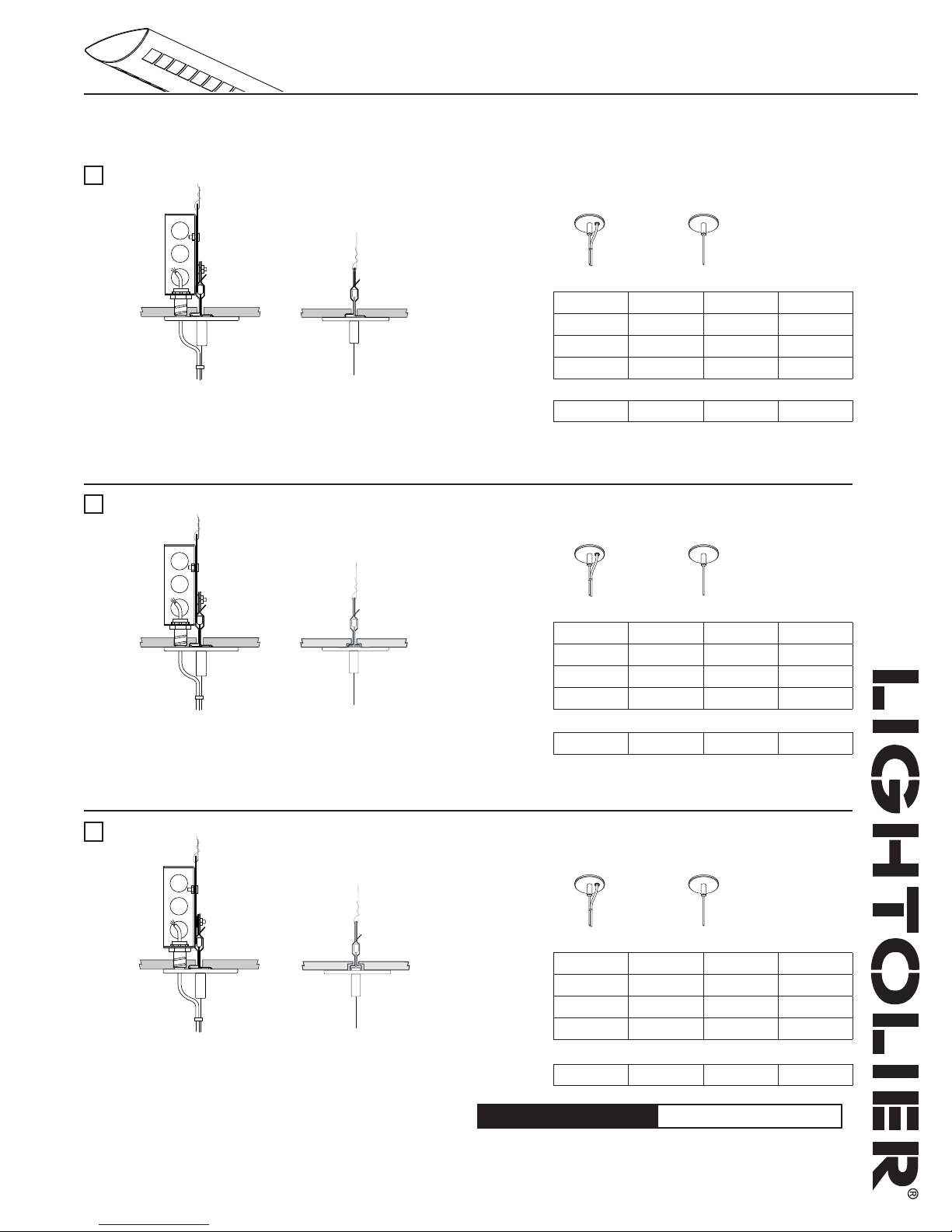

Mounting Options

Lighting Systems Baselyte-BSL2
Page 4 of 8 3 Light T8 Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:

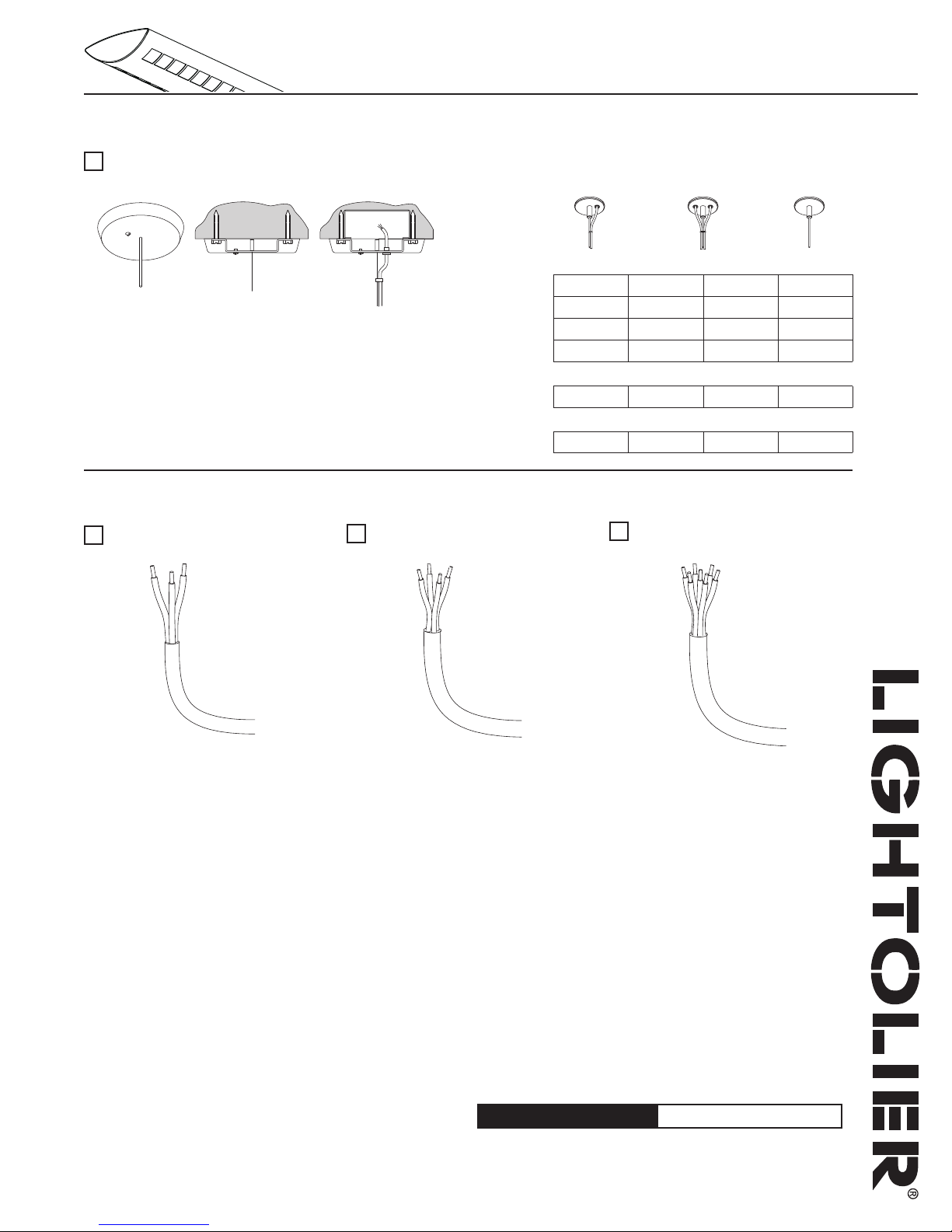

Mount Type: T-Bar Fixed Position (1/4-20 Threaded Rod)
Mount Type: T-Bar Variable Position
Mount Type: Support or Open-Joist Ceiling
Supension Length
Non-Power Mount1-Power Mount 2-Power Mount
1-Power Mount 2’ 4’ 8’ 12’
3 Conductor BSLM2102P13 BSLM2104P13 BSLM2108P13 BSLM2112P13
4 Conductor BSLM2102P14 BSLM2104P14 BSLM2108P14 BSLM2112P14
2-Power Mount
3 Conductor BSLM2102P23 BSLM2104P23 BSLM2108P23 BSLM2112P23
Non-Power Mount
BSLM2102N BSLM2104N BSLM2108N BSLM2112N
Supension Length
1-Power Mount 2’ 4’ 8’ 12’
3 Conductor BSLM5102P13 BSLM5104P13 BSLM5108P13 BSLM5112P13
4 Conductor BSLM5102P14 BSLM5104P14 BSLM5108P14 BSLM5112P14
7 Conductor BSLM5102P17 BSLM5104P17 BSLM5108P17 BSLM5112P17
2-Power Mount
3 Conductor BSLM5102P23 BSLM5104P23 BSLM5108P23 BSLM5112P23
Non-Power Mount
BSLM5102N BSLM5104N BSLM5108N BSLM5112N
Supension Length
1-Power Mount 2’ 4’ 8’ 12’
3 Conductor BSLM3102P13 BSLM3104P13 BSLM3108P13 BSLM3112P13
4 Conductor BSLM3102P14 BSLM3104P14 BSLM3108P14 BSLM3112P14
7 Conductor BSLM3102P17 BSLM3104P17 BSLM3108P17 BSLM3112P17
2-Power Mount
3 Conductor BSLM3102P23 BSLM3104P23 BSLM3108P23 BSLM3112P23
Non-Power Mount
BSLM3102N BSLM3104N BSLM3108N BSLM3112N
Non-Power Mount1-Power Mount 2-Power Mount
Non-Power Mount1-Power Mount 2-Power Mount
• Meets UBC, OSHPD and DSA seismic requirements
• Canopy: Diameter of 5 1/4“x 3/4” (power)
• Cable: 7x7 stranded aircraft cable
• Tile cut-out hole: Diameter of 2 1/2” (power) or 3/4” (non-power)
• J-Box: Integral J-Box supplied
• 1/4 - 20 all thread rod (supplied by others)
• Fully vertically adjustable at fixture
• Meets UBC, OSHPD and DSA seismic requirements
• Canopy: Diameter of 5 1/4“x 3/4”(power)
• Cable: 7x7 stranded aircraft cable
• Versatile mount, fully adjustable to accomodate open sloped ceilings
• J-Box: 4” octogonal box (supplied by others)
• Fully vertically adjustable at fixture
• Meets UBC, OSHPD and DSA seismic requirements
• Canopy: Diameter of 3“x 7/32”
• Cable: 7x7 stranded aircraft cable
• Tile cut-out hole: Diameter of 2 1/4”
• Aligned by T-bar and secured to structure
• J-Box 4” square (supplied by others)
• Fully vertically adjustable at fixture
• Adjusts to both 1” and 1 1/2” high T-bar systems
*Note: Supports 15/16”, 9/16” and slot grid ceiling types.

Lighting Systems Baselyte-BSL2
Page 5 of 8 3 Light T8 Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Mount Type: Non-Accessible Ceilings (concrete, gypsum etc.)
Supension Length
Non-Power Mount1-Power Mount 2-Power Mount
1-Power Mount 2’ 4’ 8’ 12’
3 Conductor BSLM1102P13 BSLM1104P13 BSLM1108P13 BSLM1112P13
4 Conductor BSLM1102P14 BSLM1104P14 BSLM1108P14 BSLM1112P14
7 Conductor BSLM1102P17 BSLM1104P17 BSLM1108P17 BSLM1112P17
2-Power Mount
3 Conductor BSLM1102P23 BSLM1104P23 BSLM1108P23 BSLM1112P23
Non-Power Mount
BSLM1102N BSLM1104N BSLM1108N BSLM1112N
• Meets UBC, OSHPD and DSA seismic requirements
• Canopy: Diameter of 5 1/4“x 3/4” (power)
• Cable: 7x7 stranded aircraft cable
• Mountable on 0º - 15º sloped ceiling
• Optional Chicago Plenum approved version available (A4)
• J-Box: 4” octogonal box (supplied by others)
• Fully vertically adjustable at fixture
• Max. 10 amps
• Max. 300V
• Max. 10 amps in a 1 circuit application
• Max. 5 amps per circuit in a 2 circuit application
• Max. 300V
• Good for 2 circuit feeds or a 1 circuit feed with
a battery pack hot lead
• 120V or 277V applications
• Max. 10 amps in a 1 circuit application
• Max. 5 amps per circuit in a multi-circuit
application
• Good for 3 circuit feeds or 2 circuit feeds with a
battery pack hot lead
• 120V or 277V applications
3 Conductor 4 Conductor 7 Conductor
Cord Types

Lighting Systems Baselyte-BSL2
Page 6 of 8 3 Light T8 Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 1 Circuit
1 Circuit with Emergency Circuit/Night Light (EC/NL)
One 4’ section in a one circuit fixture to be wired on a separate thru circuit. Leads for both normal
circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be wired together.
Type 3: 1cct. w/EC/NL
  %#.,
  %#.,
  %#.,
All lamps wired on one circuit.
1 Circuit
Type 1: 1cct.
Type 8: 1cct. w/1cct. thru wire
Type H: 1cct. w/2cct. thru wire
Type 7: 1cct. w/dimming
Type 5: Chloride standard
C700A
Type M: Bodine standard
B70A
Type E: Chloride high performance
C1400
Type P: Bodine high performance
B50
All lamps wired on one circuit, plus a battery pack is wired to one lamp. A hot lead is connected
to the battery pack and would function as a ‘trigger’ wire when connected to a constant hot by
installer. Leads for both normal circuit and battery pack are wired to fixture ends.
1 Circuit with Emergency Battery Pack (EM)
*Note: Multi-lamp battery packs are also available.
One 4’ section in a one circuit fixture to be wired on a separate thru circuit, in addition, a battery
pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if controlled together
or wire separately if controlled independently. Leads for normal circuit, EC/NL and EM wired to
fixture ends. All lamps in EC/NL section to be wired together.
1 Circuit with Emergency Circuit/Night Light and Emergency Battery Pack
Type J: Chloride standard
C700A




%#.,
  %#.,%-
%#.,









*Note: Multi-lamp battery packs are also available.




 


%-

Lighting Systems Baselyte-BSL2
Page 7 of 8 3 Light T8 Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 2 Circuit Center/Outer Switching
Type 6: Chloride standard
C700A
Type N: Bodine standard
B70A
Type F: Chloride high performance
C1400
Type Q: Bodine high performance
B50
Fixture wired for two circuits (center/outer switching), plus a battery pack is wired to one lamp. A
hot lead is connected to the battery pack and would act as a ‘trigger’ wire when connected to a
constant hot by installer. Leads for both normal circuit and battery pack are wired to fixture ends.
2 Circuit Center/Outer Switching with Emergency Battery Pack (EM)
2 Circuit Center/Outer Switching with Emergency Circuit/Night Light (EC/NL)
One 4’ section in two circuit fixture (center/outer switching) to be wired on a separate thru circuit.
Leads for both normal circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to
be wired together.
Type 4: 2cct. w/EC/NL






%#.,
%#.,
%#.,
Fixture wired for two circuit. Lamps wired for center/outer switching.
2 Circuit Center/Outer Switching
Type 2: 2cct.
Type 9: 2cct. w/1cct. thru wire
Type I: 2cct. w/2cct. thru wire









One 4’ section in a two circuit fixture (center/outer switching) to be wired on a separate thru
circuit, in addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC
hot lead if controlled together or wired separately if controlled independently. Leads for normal
circuit, EC/NL and battery pack are wired to fixture ends. All lamps in EC/NL section to be wired
together.
2 Circuit Center/Outer Switching with Emergency Circuit/Night Light and Emergency Battery Pack
Type K: Chloride standard
C700A






%#.,
%#.,
%#.,%-





%-


*Note: Multi-lamp battery packs are also available.
*Note: Multi-lamp battery packs are also available.

Lighting Systems Baselyte-BSL2
Page 8 of 8 3 Light T8 Direct/Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 2 Circuit A/B Switching (alternate 4’ sections)
Type D: Chloride standard
C700A
Type O: Bodine standard
B70A
Type G: Chloride high performance
C1400
Type R: Bodine high performance
B50
Fixture wired for two circuits (A/B switching), plus a battery pack is wired to one lamp. A hot lead
is connected to the battery pack and would act as a ‘trigger’ wire when connected to a constant hot
by installer. Leads for both normal circuit and battery pack are wired to fixture ends.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Battery Pack (EM)


 




%-
Fixture wired for two circuit. Lamps wired for A/B switching in alternate 4’ sections.
2 Circuit A/B Switching (alternate 4’ sections)
Type B: 2cct.
Type A: 2cct. w/1cct. thru wire
Type S: 2cct. w/2cct. thru wire









2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light (EC/NL)
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit. Leads
for both normal circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be
wired together.
Type C: 2cct. w/EC/NL





%#.,
%#.,
%#.,
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit, in
addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if
controlled together or wired separately if controlled independently. Leads for normal circuit, EC/NL
circuit and battery pack are wired to fixture ends. All lamps in EC/NL section to be wired together.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light and Emergency Battery Pack
Type L: Chloride standard
C700A





%#.,
%#.,
%#.,%-
*Note: Multi-lamp battery packs are also available.
*Note: Multi-lamp battery packs are also available.
