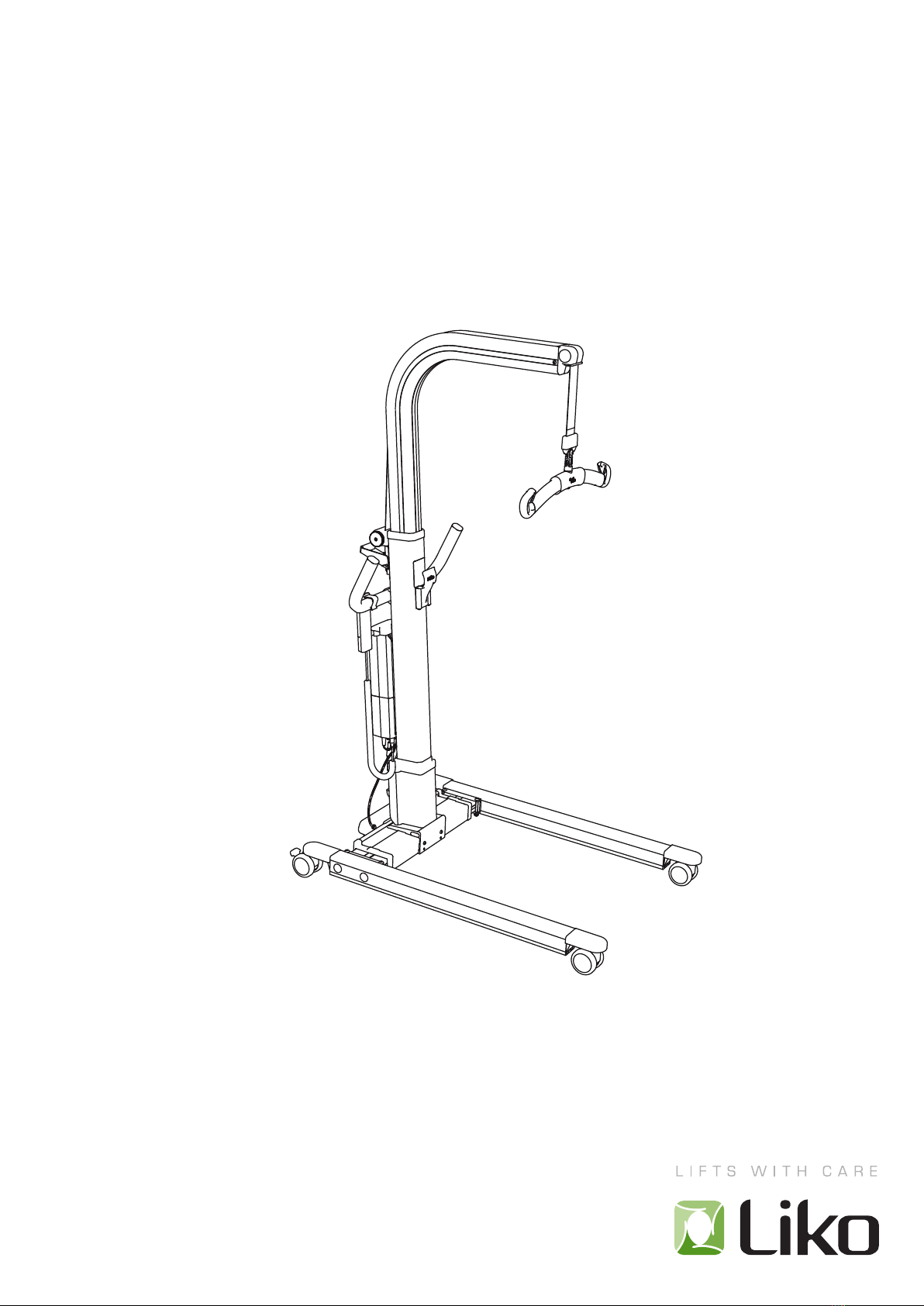

Liko Golvo 7000 ES Classic User manual

© Copyright Liko AB
Golvo 7000/7007 ES, Classic
Service Manual
English
3EN400403-01
2007-02-27
Art.no: 2000051 / 2000051
S/N: 120001 / 140001
Proj: 547

Liko AB • Nedre vägen 100 • SE-975 92 Luleå • Sweden
tel [phone] • fax [phone]
[email protected] • www.liko.com
Table of contents
Position Ref.no. Page
1.0
Table of contents ............................................................................ 1.0........................2
Care and maintenance ................................................................... 2.0........................3
Technical Specications ................................................................. 3.0........................4
Sparepart positions......................................................................... 4.0........................5
Spareparts with positions. .............................................................. 5.0........................6
Actuator G7/G77................................................... 11 ................... 5.11........................9
Control box G7/G77 ES........................................18 ................... 5.18...................... 11
Attachment for control box ...................................19 ................... 5.19......................13
Hand Control ES 6-button ....................................20 ................... 5.20......................15
Battery 2,9Ah/12V ................................................21 ................... 5.21......................17
Cable for charging EU ........................................22 ................... 5.22......................19
Cable for charging UK ..........................................23 ................... 5.23......................20
Cable for charging US .........................................24 ................... 5.24......................21
Gear rack set G7/G77 ..........................................33 ................... 5.33......................22
Spring magazine ..................................................36 ................... 5.36......................24
Extra Battery box, incl. Batteries ........................139 ................. 5.139......................26
Front Cover.........................................................159 ................. 5.159......................28
Extension cable .................................................. 160 ................. 5.160......................30
Cable for charging AU/NZ...................................248 ................. 5.248...................... 32
Reinforcment Plate G7/G77 ...............................250 ................. 5.250...................... 33
Limit Switch G7/G77...........................................251 ................. 5.251......................35
Extension Cable US ...........................................263 ................. 5.263......................37
Safety Latch Universal Slingbar .........................264 ................. 5.264...................... 39
Motor for base width adj. ....................................274 ................. 5.274...................... 41
Plastic housing ..................................................275 ................. 5.275......................43
Lift strap G7, grey...............................................277 ................. 5.277...................... 45
Lift strap G77, grey.............................................278 ................. 5.278...................... 47
Roll frame attachment G7/G77, grey..................279 ................. 5.279......................49
Base Motor Cover...............................................280 ................. 5.280......................51
Front wheel 75 mm Standard ............................284 ................. 5.284......................53
Rear wheel 75 mm Standard..............................285 ................. 5.285......................55
Hook för handcontrol 2,4,6 button ......................292 ................. 5.292...................... 57
End cover handle/arm support ..........................293 ................. 5.293......................59
Body/Handle set for Emerg. low.device G7/G77 295 ................. 5.295......................61
Leg Protector G7, grey .......................................298 ................. 5.298...................... 63
Leg Protector G77, grey .....................................299 ................. 5.299...................... 65
Safety Latch, composite ..................................... 311 ................. 5.311......................66
Troubleshooting.............................................................................. 6.0......................68
Exploded views............................................................................... 7.0......................69
Components Golvo 7000 ES, Classic ............................................ 8.0...................... 76
Components Golvo 7007 ES, Classic ............................................ 8.0...................... 81
Decal instructions ........................................................................... 9.0...................... 86
Periodic inspection ....................................................................... 10.0......................87
Golvo 7000/7007 ES, Classic

www.liko.com
3
2.0
© Copyright Liko AB 2007-02
Care and Maintenance
For safe and trouble-free operation, a few routine procedures should be performed every day the lift is used:
• Visually inspect the lift and check for external damage or wear
• Check the slingbar connector
• Check the lift strap for wear and make sure it is not twisted
• Check that the safety latches work properly
• Test the operation of raising and lowering and the base width function
• Check that the correct lifting range has been set and that the emergency lowering functions
• Charge the battery every day the lift is being used, and check the charger function
If needed, clean the patient lift with common water-based surface disinfectants.Warning! Do not routinely use
chemicals containing phenol or chlorine, since these may damage aluminium and polyamide materials.
Transportation and storage
During transportation, or when the patient lift is not to be used for some time, the emergency button should be
pushed in. Also, when storing, keep the patient lift at a temperature exceeding freezing point and at a relative
humidity no more than 60%.
Inspection
Golvo must be inspected at least once per year. Pay particular attention to parts that are subject to wear.
Inspection must be performed according to the Liko service manual and by authorized personnel.
IMPORTANT!
Repairs and maintenance may only be carried out by personnel authorized by Liko using original Liko spare parts.
Service agreements
Liko invites you to sign a service agreement for regular maintenance and testing of your Golvo mobile lift.
Contact your local Liko representative for more information.
Liko’s products are constantly being updated and rened. Liko reserves the right to change aspects of the
products without prior notice. Contact your local Liko representative for updated information and advice.
Recycling
For instructions on how the Golvo mobile lift should be recycled, please visit our website www.liko.com.
Made in Sweden
Liko is quality certied according to ISO 9001 and its equivalence for the medical device industry, ISO 13485.
Liko is also certied according to environmental standard ISO 14001.
www.liko.com
Manufacturer
Liko AB
Nedre Vägen 100
SE-975 92 Luleå
Sweden
[email protected]
National Distributor in USA and Canada: Liko Distributor in UK:
Liko (UK) Ltd.
Brunel Centre,
Stroudwater Business Park
Stonehouse, Gloucester
GL10 3RU, United Kingdom
Phone: [phone]
Fax: [phone]
[email protected]
Liko Inc
122 Grove Street
Franklin, Ma 02038, USA
Phone: [phone]
Fax: [phone]
[email protected]

www.liko.com
4
Material: Anodized aluminium.
Em. lowering: Mechanical and electrical.
Intermittent Int. Op 10/90, active operation max
operation: 2 min. Out of a time of 100, active
must be less than 10, however not
more than 2 min.
IP class: IP 43
This device is built for indoor operation.
Type B according to the degree of protection
against electric shock.
Class ll equipment.
Technical Data
Lifting speed: Two speeds: 4.8 cm/s (1.9 inch./s)
and 3.2 cm/s (1.3 inch./s).
Both speeds without load.
Batteries: Two 2.9 Ah - 12 V valve regulated
rechargable leadacid batteries.
New batteries are provided by the
supplier.
Battery Built-in charger for 100-240 VAC,
charger: 50-60 Hz, max 400 mA.
Motor (mast): 24 V, 6.5 A. Manufactured by Liko
with planetary gearing and safety
nut (prevents excessive wear).
Motor (base): 24 V, 3.5 A. Geared motor.
Wheels: Standard front: 75 mm twin wheels.
Standard rear: 75 mm lockable
twin wheels.
Patented

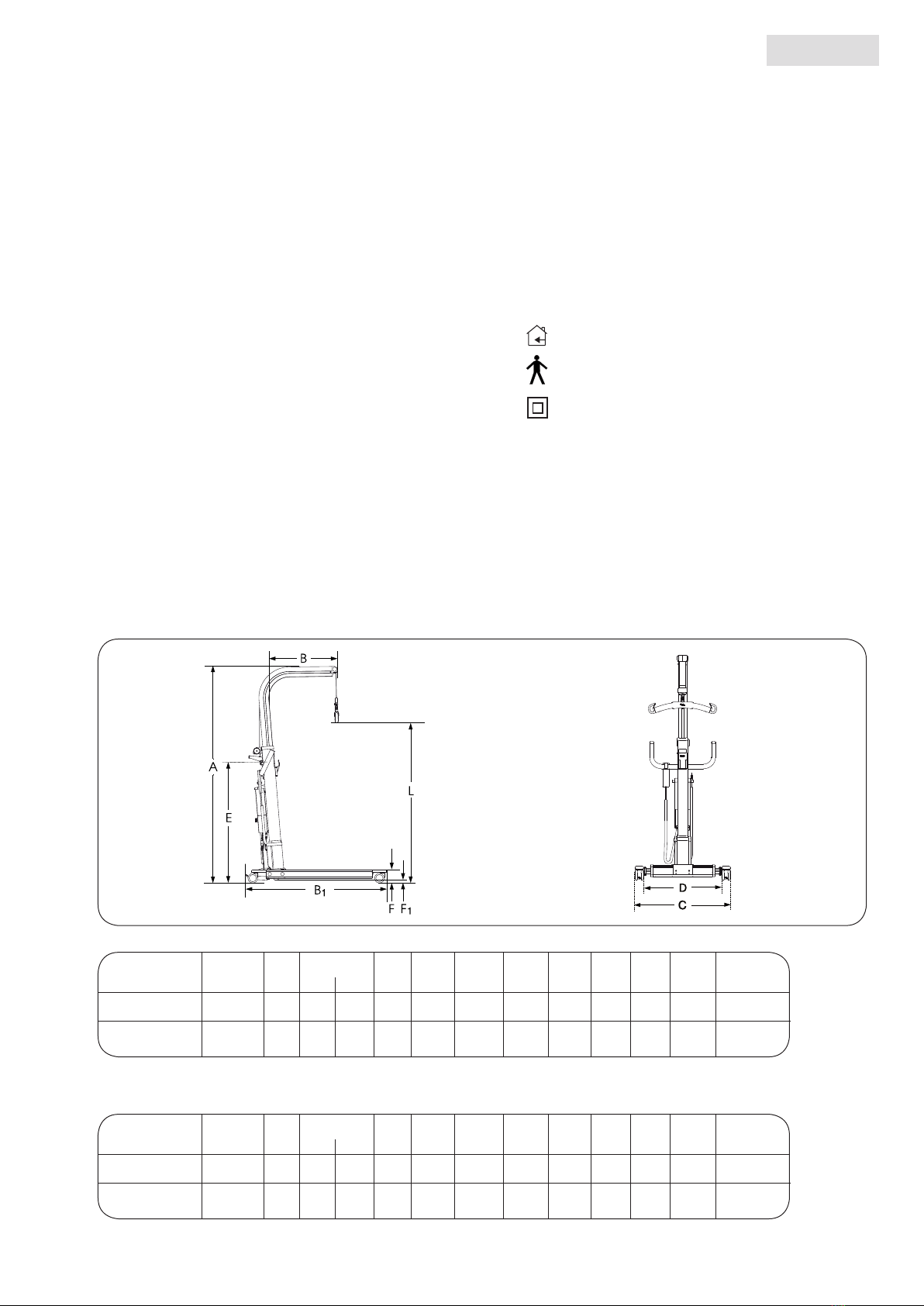

Measurements
Maximum load and weight in kg. Measurement in cm. Lifting range 126 cm, adjustable.
Maximum load and weight in lbs. Measurement in inches. Lifting range 49.6 inches, adjustable.
Model Max. load L A B B1C D E F F1Weight Turning-
Max Max Min
Golvo 7000 ES 200 175 199 134 54 112 67-95 53-81 96 11 2,3 39 124
Golvo 7007 ES 200 185 208 144 58 119 75-102 62-90 106 11 2,3 41 133
diameter
Model Max. load L A B B1C D E F F1Weight Turning-
Max Max Min
Golvo 7000 ES 440 69 78 53 21 44 26-38 21-32 38 4 1 86 49
Golvo 7007 ES 440 73 82 57 23 47 30-40 24-35 42 4 1 90 52
diameter
3.0

www.liko.com
5
4.0
2

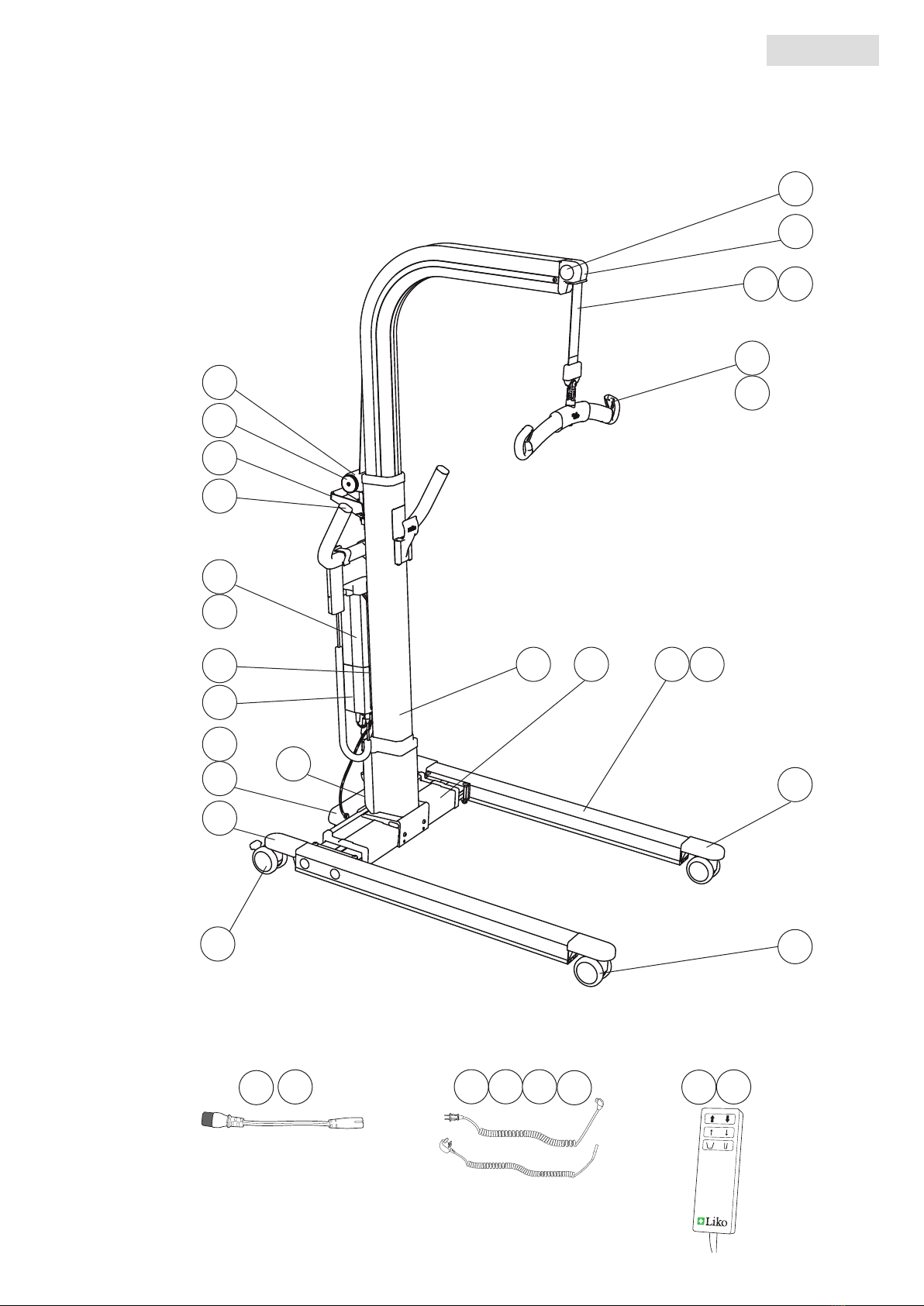

Sparepartpositions
Golvo 7000 ES , 7007 ES Classic
18
21
139
20
36
275
11
284
159
264
277
285
299
33
293
279
278
22 23 24 248
250
251
160 263
159
19
274
280
292
298
311
295

www.liko.com
6
5.0

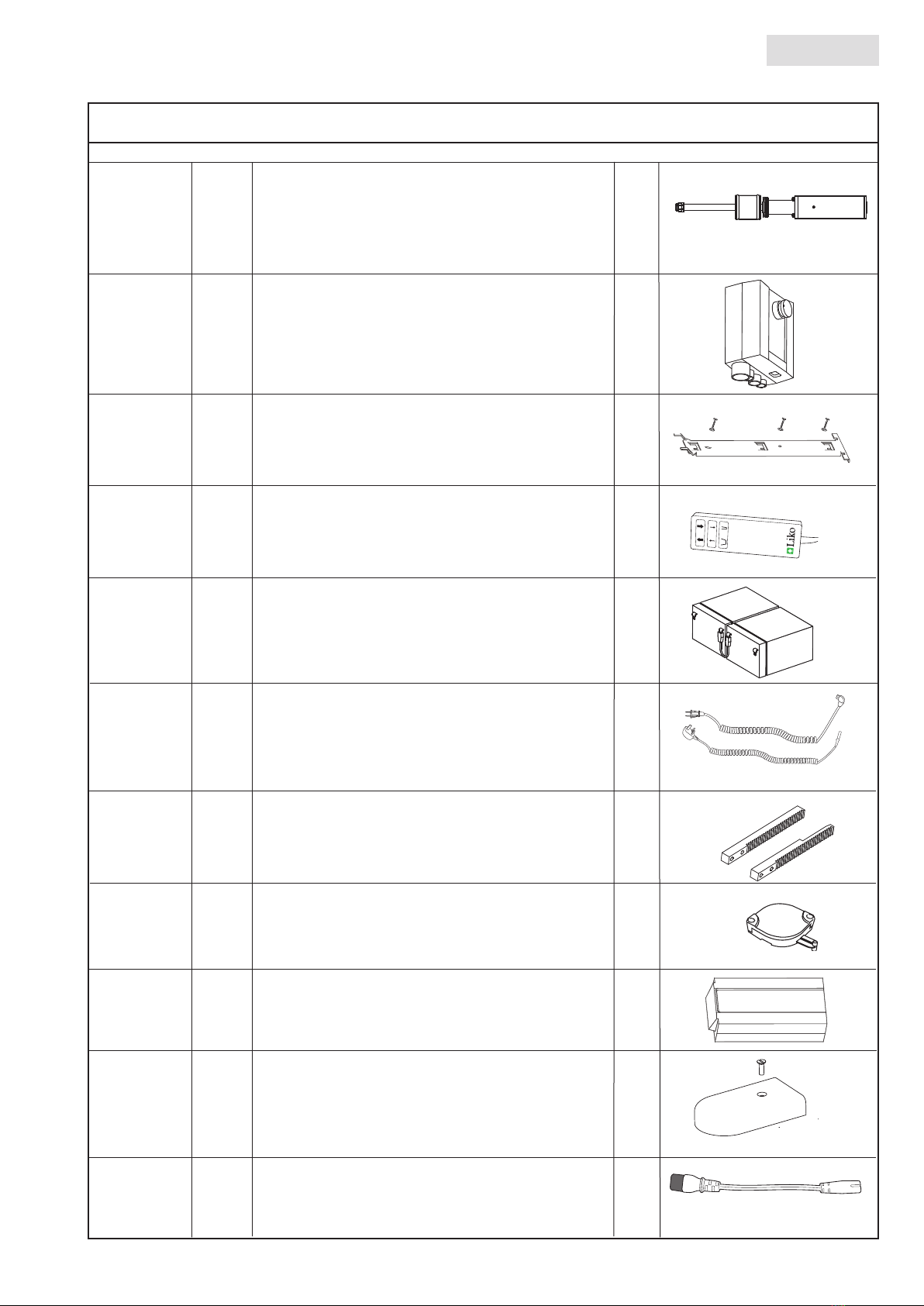

PART.NO POS.NO ARTICLE UNIT
3www.liko.com
Golvo 7000 ES, 7007 ES Classic
20090014 11 Actuator G7-G77 pce
20090022 18 Controlbox G7-77 ES pce
20090023 19 Attachment for Controlbox pce
20090024 20 Handcontrol ES 6-Button pce
20090025 21 Battery 2.9 Ah/12V pair
20090026 22 Cable for Charging EU pce
20090027 23 Cable for Charging UK pce
20090028 24 Cable for Charging US pce
20090038 33 Gear Rack set G7-G77 pair
20090041 36 Spring Magazine pce
2006106 139 Extra Battery box, incl. Batteries pce
20390006 159 Front Fork Cover LL,Vi,Golvo pair
21090001 160 Extension Cable pce
X 2

www.liko.com
7
5.0

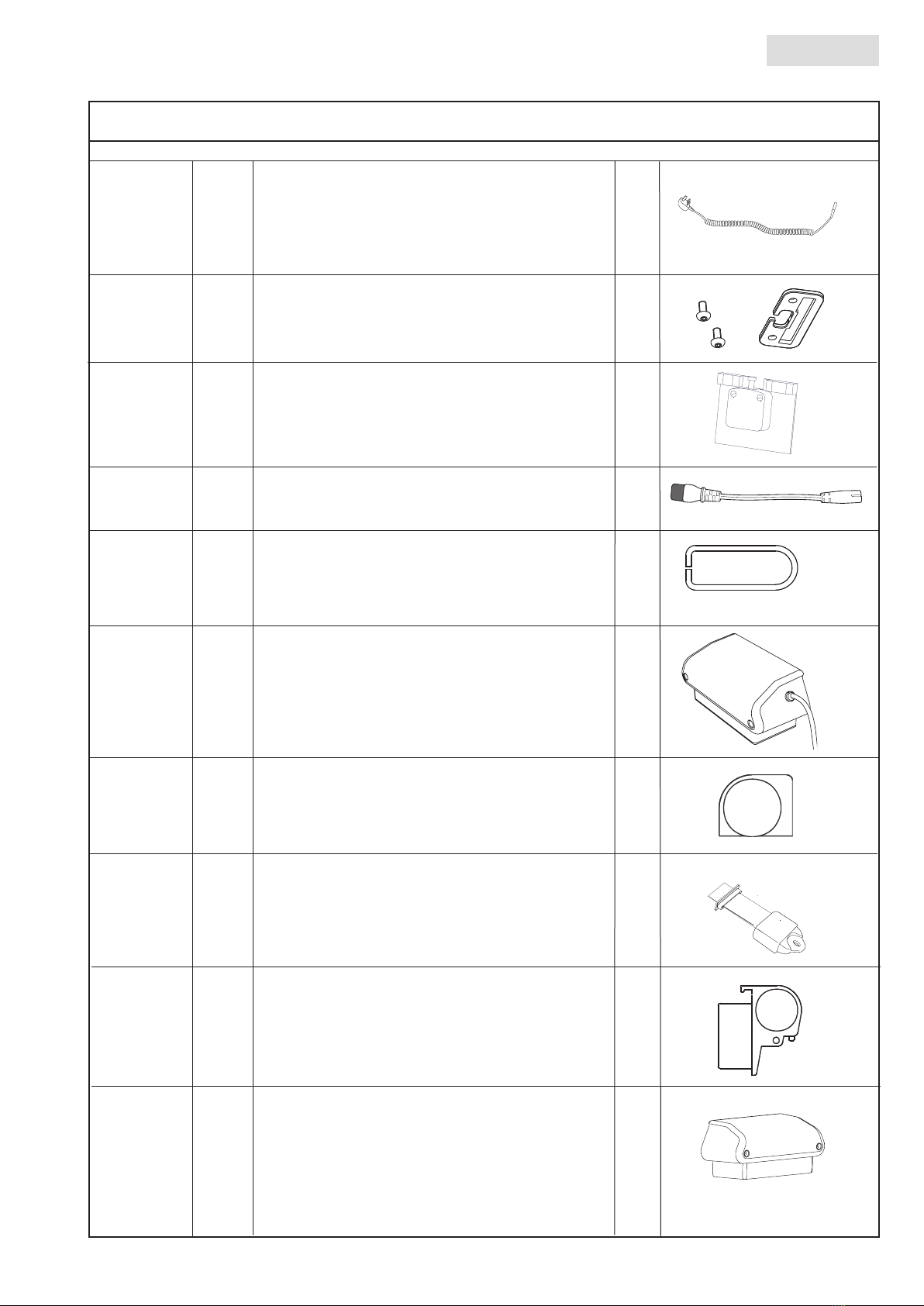

PART.NO POS.NO ARTICLE UNIT
4www.liko.com
Golvo 7000 ES, 7007 ES Classic
20090050 248 Cable for Charging AU/NZ pce
20090051 250 Reinforcement Plate G7-G77 pce
20090052 251 Limit Switch G7-G77 pceLimit Switch G7-G77 pce
21090011 263 Extension Cable US pce
31590011 264 Safety Latch Universal Slingbar pair
20090059 274 Motor Base Width Adj. G7-G77 grey pce
20090060 275 Plastic Housing grey pce
20090062 277 Lift Strap G7 grey pce
20090063 278 Lift Strap G77 grey pce
20090064 279 Roll Frame Attachment G7-G77 grey pce
20090065 280 Base Motor Cover grey pce
X 2

www.liko.com
8
5.0

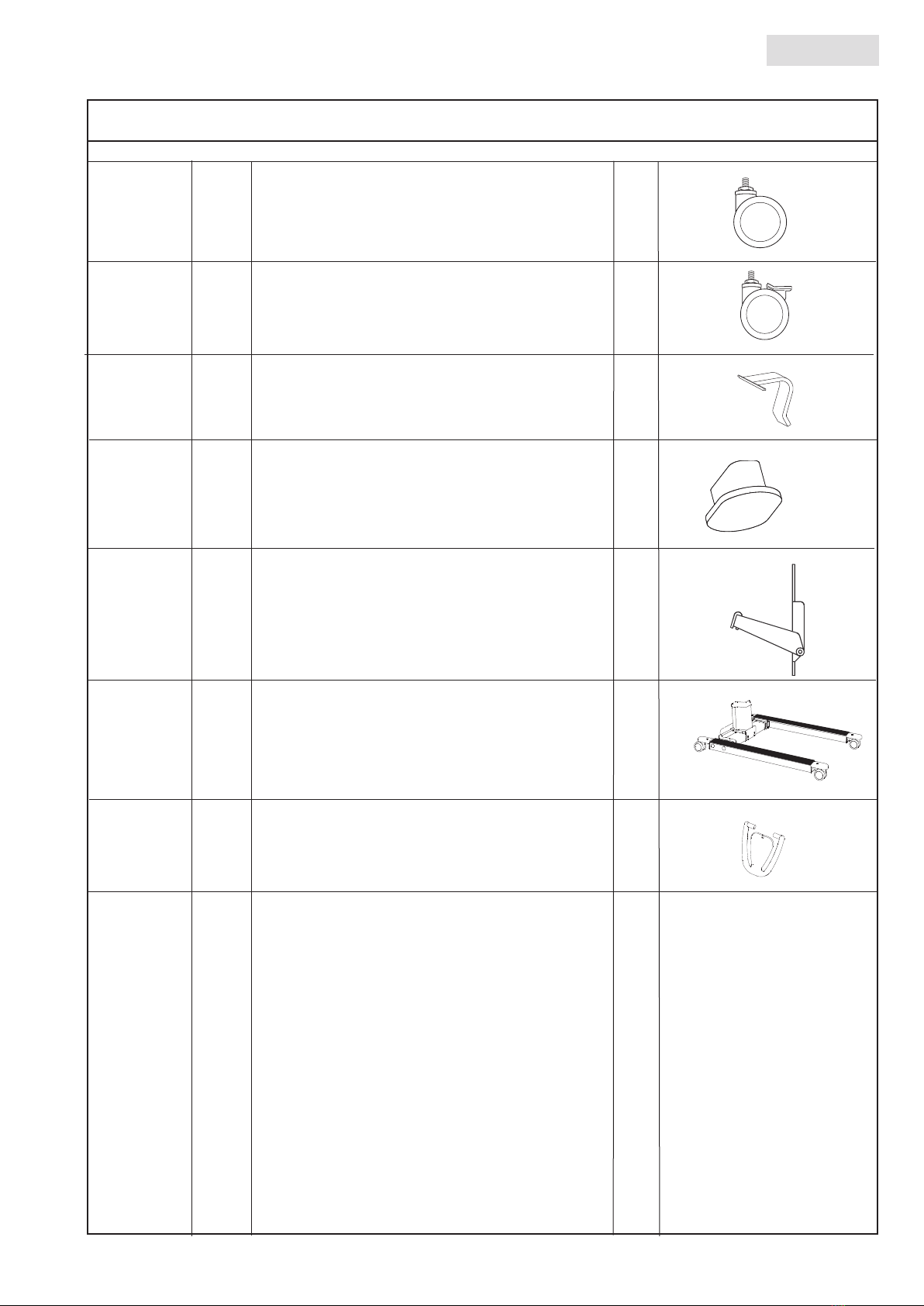

PART.NO POS.NO ARTICLE UNIT
5www.liko.com
Golvo 7000 ES, 7007 ES Classic
20490014 284 Front Wheel 75 mm Standard pce
20490015 285 Rear Wheel 75 mm Standard pce
20090058 292 Hook for Handcontrol 2,4,6 pce
20090066 293 End Cover Handle/Arm Support grey set
20090068 295 Body/Handle set for Emerg. Low. Device pce
G7-G77
2006011G 298 Leg Protector G7 grey pair
2006012G 299 Leg Protector G77 grey pair
31590014 311 Safety Latch, composite pair
X 4

www.liko.com
9
Spareparts specication
From S/N................................. Version...............................
Detail no. Details: Unit:
Details included in sparepart:
5.11

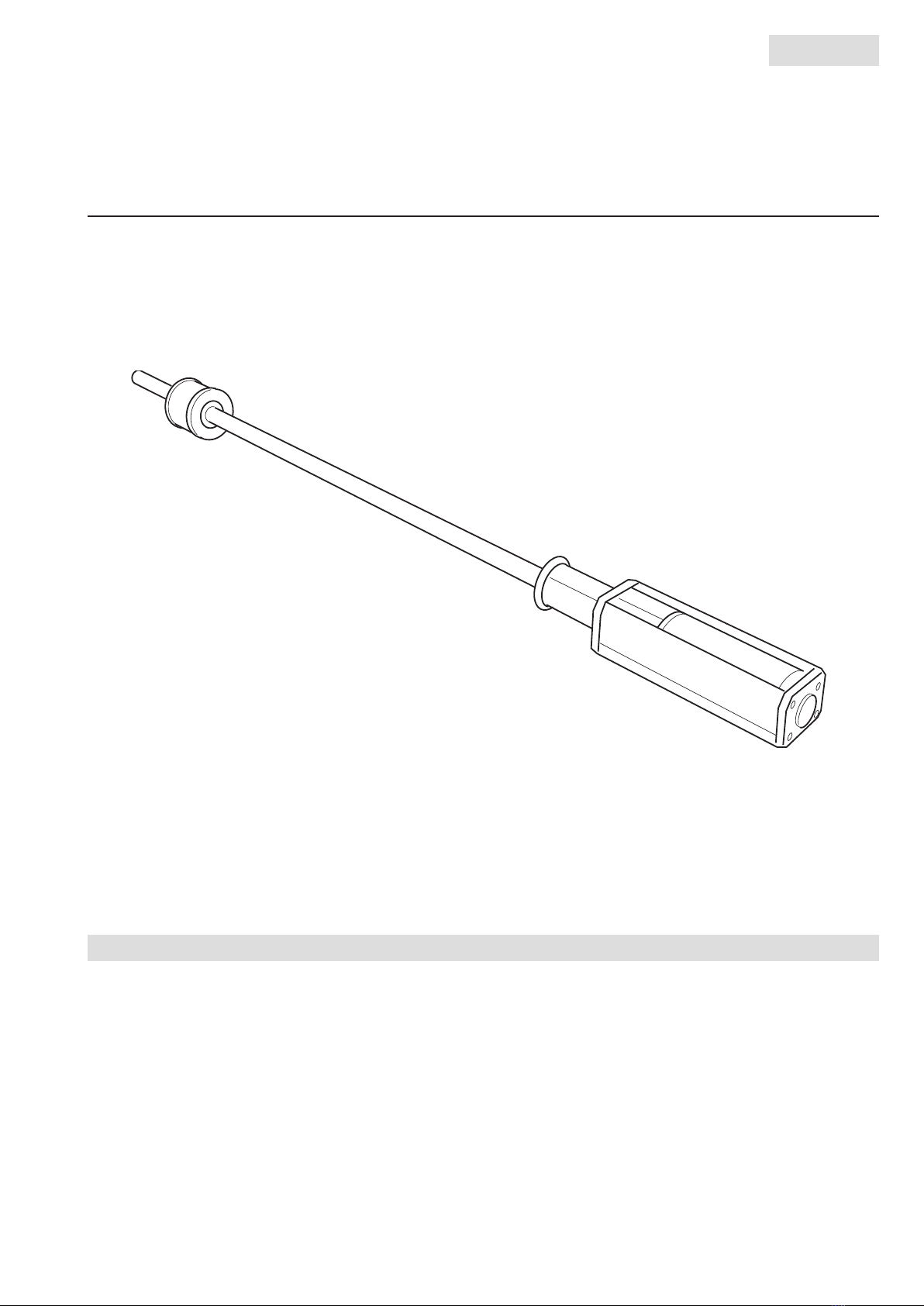

Actuator G7-77 Prod.no: 20090014
2003-09-09

www.liko.com
Assembly Instruction
10
5.
11.1
Assembly Instruction
Monteringsanvisning
Actuator G7-77
Ställdon G7-77
5.11.1
Prod.no: 20090014
Doc. no: 3SE630249-01
2006-03-24
17 mm
3 and 6 mm
13 and 17 mm
1. Remove the EB cover. 2. Remove the screws and the locking nut from the mast attachment.
3. Remove the mast attachment.5. Unx the screw and the plastic
cover.
6. Unx the aluminium holder 7. Unx the spring and the slipper. 8. Push the innermast through the
mast.
9. Remove the screws from the
motorplate.
10. Remove the screws and the plastic casing. Pull out the actuator.
4. Remove the Emergency lowering
device.

www.liko.com
11
Spareparts specication
From S/N................................. Version...............................
Detail no. Details: Unit:
Details included in sparepart:

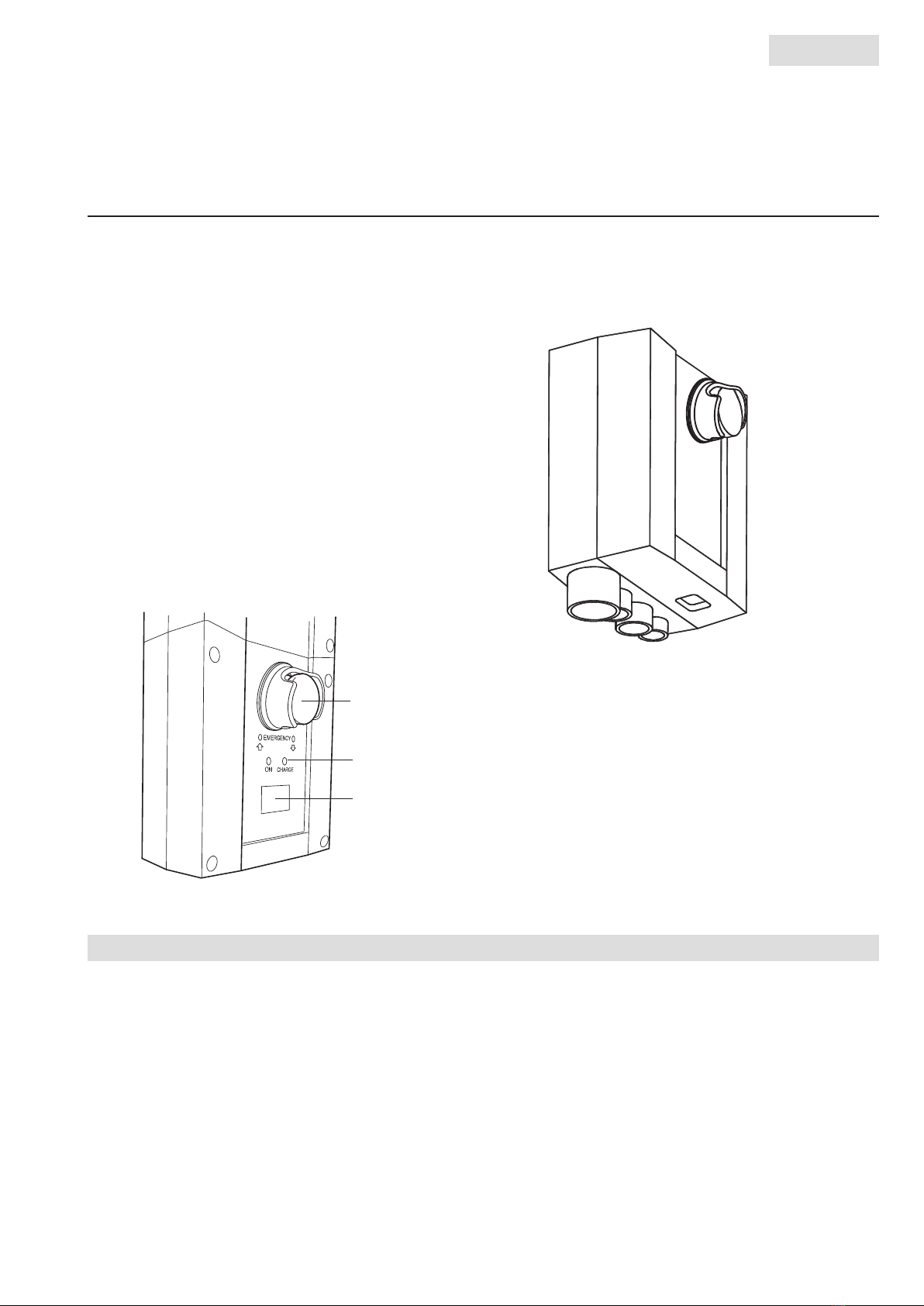

5.18
950000027 Controlbox Golvo 1
900000292 Plastic cover IKPT 12 15 G 1
901535091 Emergency guard 1
Electrical Emergency Lowering
Indication lights
LCD-display showing battery capacity
Control Box G7-77 ES Prod.no: 20090022
2003-09-09

www.liko.com

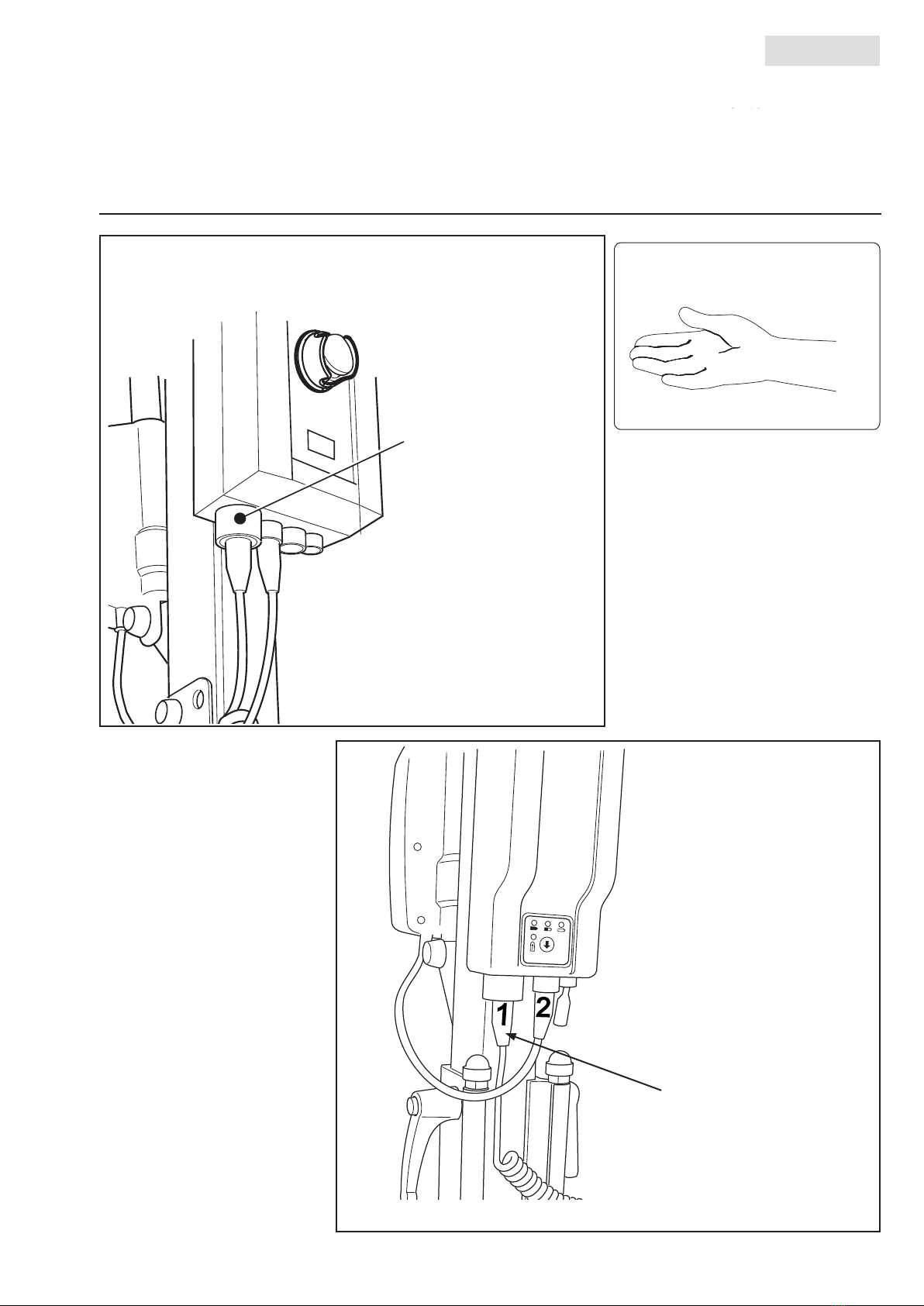

Assembly Instruction
12
5.
18.1
Tools required:
3 mm
Control Box
Kontrollbox
Prod.no: 20090022, 20190013
20190014, 20290011
20290024, 20390007
20490009, 20490013
Doc. no: 3SE630223-02
2005-12-08
www.liko.com
Assembly Instruction
Monteringsanvisning
1. 2.
20090022 Golvo 7000/7007
20190013 Uno 100/102 EE, EM
20190014 Uno 100/102 ES
20290011 Sabina
20290024 Sabina ll
20390007 Liko Light
20490009 Viking L, Viking XL
20490013 Viking M
2000050, 2000051

www.liko.com
13
Spareparts specication
From S/N................................. Version...............................
Detail no. Details: Unit:
Details included in sparepart:
5.19
900000001 Attachment for controlbox MBJ2 1
930000390 Screw MRT GF M5x16 3
x3
Attachment for Control Box Prod.no: 20090023
Doc. no: TI 20090023
2003-09-09

www.liko.com
Assembly Instruction
14
5.
Assembly Instruction
Monteringsanvisning
Attachment for Control Box
Monteringsbeslag kontrollbox
5.19.1
Prod.no: 20090023
Doc. no: 3SE630238-01
2006-02-10
2. 3.1.
4. 5.
Tools required:
3 mm
T25
x 3 (Viking M, L, XL)
x 3 (Sabina, Uno)
x 1
19.1

www.liko.com
15
Spareparts specication
From S/N................................. Version...............................
Detail no. Details: Unit:
Details included in sparepart:
5. 20
950000047 Handcontrol ES 1
Hand Control ES 6-button
Handkontroll ES 6-knapp
Prod.no: 20090024
Doc. no: TI 20090024
2003-09-09

www.liko.com
Assembly Instruction
16
5.
20.1
Assembly Instruction
Monteringsanvisning
Hand Control 2, 4, 6-button
Handkontroll 2, 4, 6-knapp
5.54.1
Prod.no: 20090024
20190016
20190017
Doc. no:3SE630204-05
2005-11-29
Tools required:
Connect cable 1 as indicated
Viking S, Caroli, Capella
Connect cable as indicated

www.liko.com
17
Spareparts specication
From S/N................................. Version...............................
Detail no. Details: Unit:
Details included in sparepart:
5.21
950000053 Battery 1 pair with cable 1
Two 2,9Ah - 12V valve regulated rechargable leadacid batteries.
New batteries are supplied by the manufacturer.
Battery 2,9 Ah/12V Prod.no: 20090025
2003-09-09

www.liko.com
Assembly Instruction
18
5.
21.1
Assembly Instruction
Monteringsanvisning
Battery 2,9Ah/12V
Batteri 2,9Ah/12V
4.21
Prod.no: 20090025
Doc. no: 3SE380201-01
2005-09-02
Old batteries are to be left to personnel
authoriserad by Liko, or at the nearest
station for environmental recycling.
Tools required:
T20
Tools required:
T20

www.liko.com
19
Spareparts specication
From S/N................................. Version...............................
Detail no. Details: Unit:
Details included in sparepart:
5.22
Assembly Instruction
Monteringsanvisning
Details Detail no. Unit.
Cable for charging EU 9500000EU 1
5.22
Tools required:

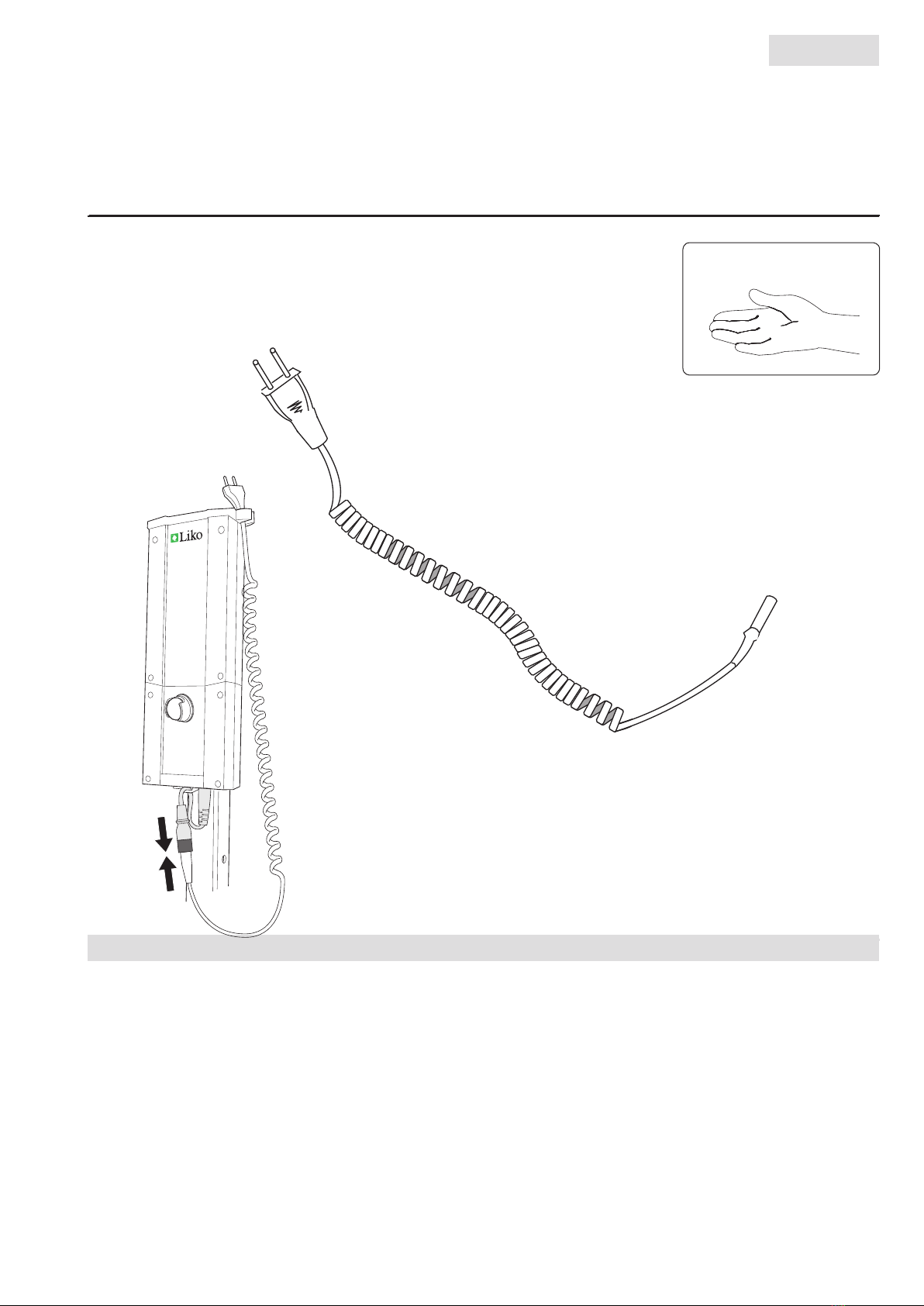

Cable for Charging, EU
Laddningskabel EU Prod.no: 20090026
Doc. no: 3SE630237-01
2006-03-01
Detail no. Details Unit
9500000EU Cable for charging EU 1

www.liko.com
20
Spareparts specication
From S/N................................. Version...............................
Detail no. Details: Unit:
Details included in sparepart:
5. 23
Assembly Instruction
Monteringsanvisning
Tools required:
5.23
Details Detail no. Unit.
Cable for charging UK 9500000UK 1
Cable for Charging, UK
Laddningskabel UK Prod.no: 20090027
Doc. no: 3SE630241-01
2006-03-21
Detail no. Details Unit
9500000UK Cable for charging UK 1
