Liko Golvo 7000 Series User manual

2001-11-16
Golvo 7000, 7000 S/ES,
7007, 7007 S/ES
Service Manual
Doc.no. 7SE40401

www.liko.com
Position Ref.no.
Table of contents ............................................................................................. 1.0
Care and maintenance .................................................................................... 2.0
Technical Specications .................................................................................. 3.0
Positions .......................................................................................................... 4.0

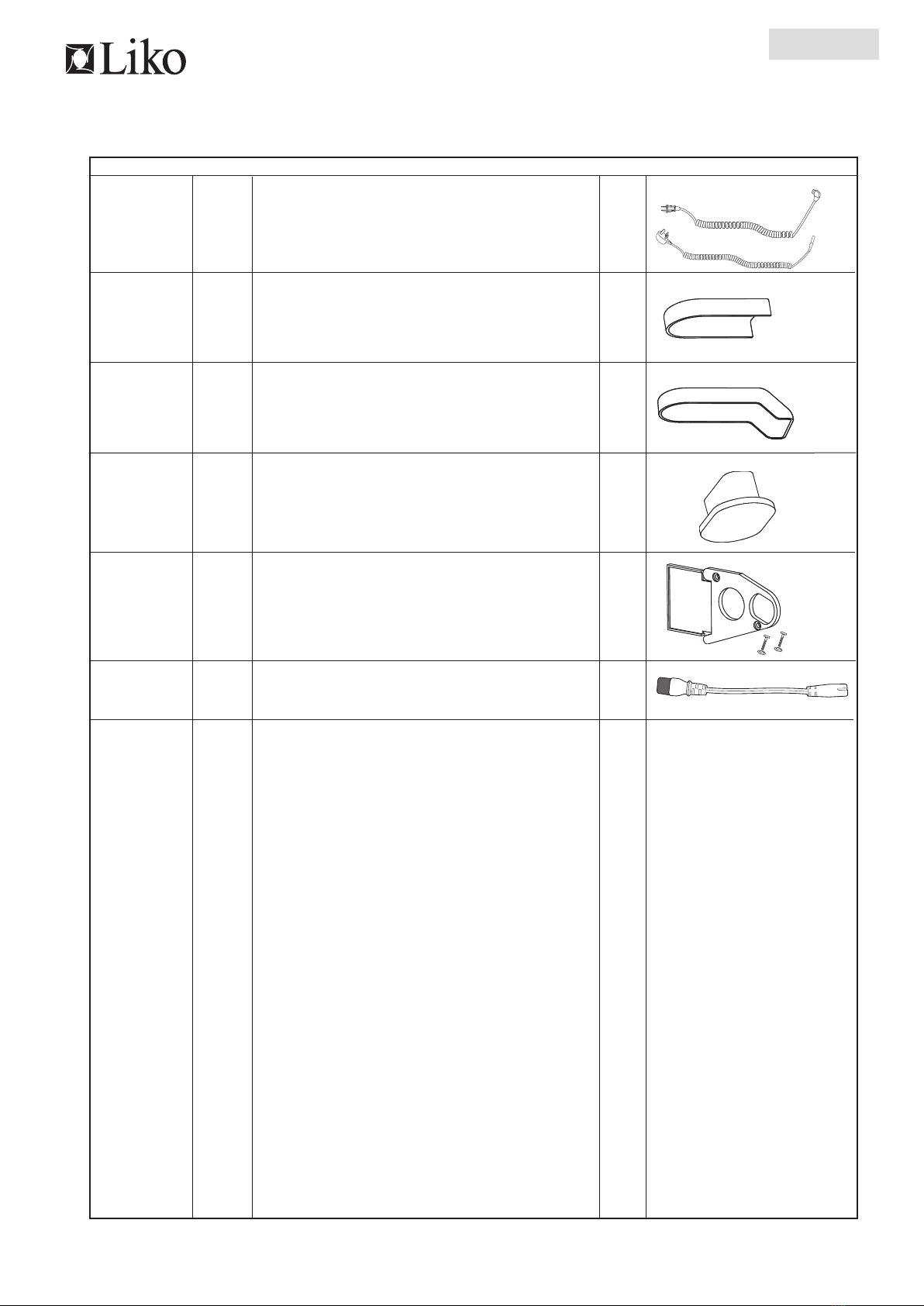

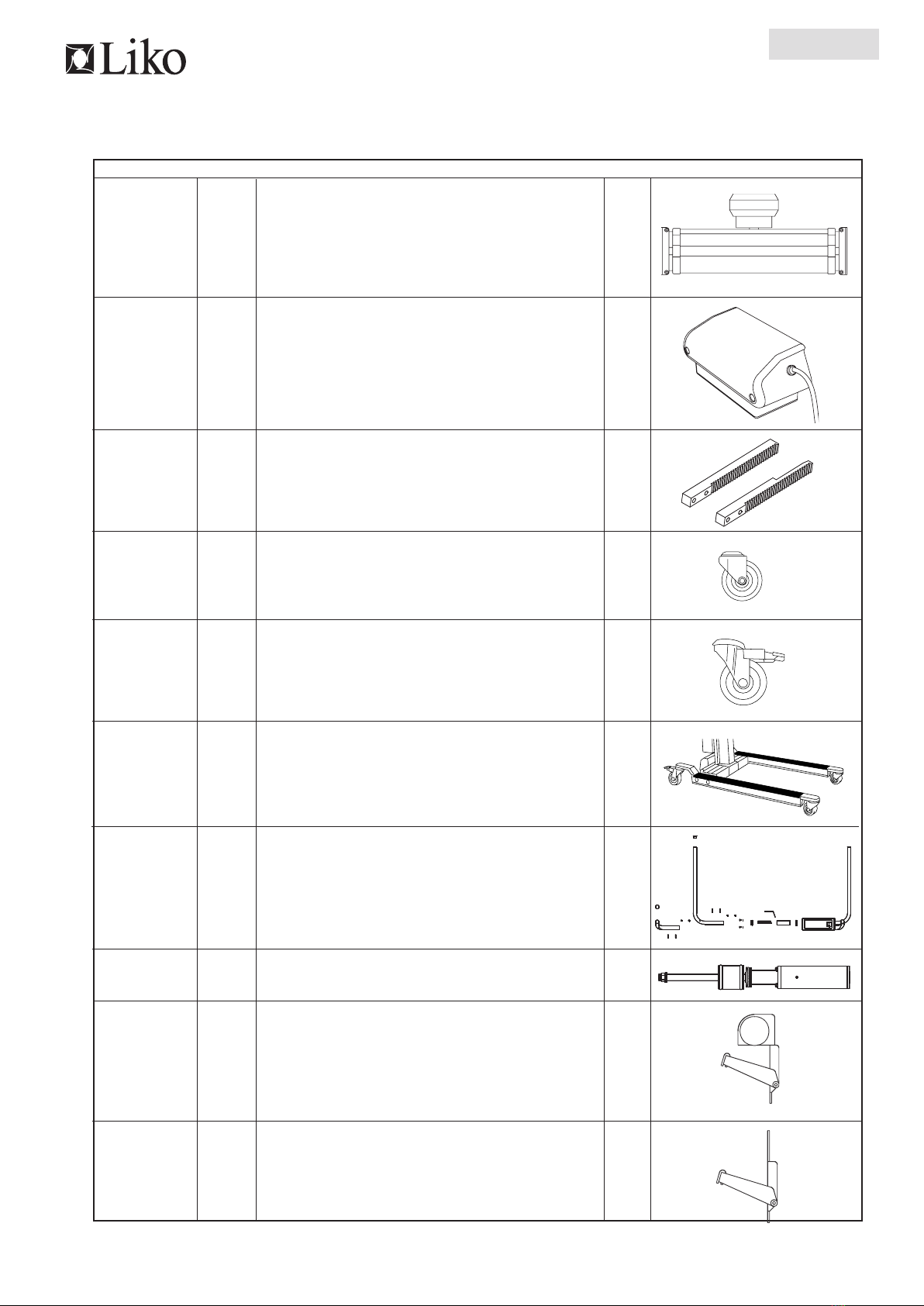

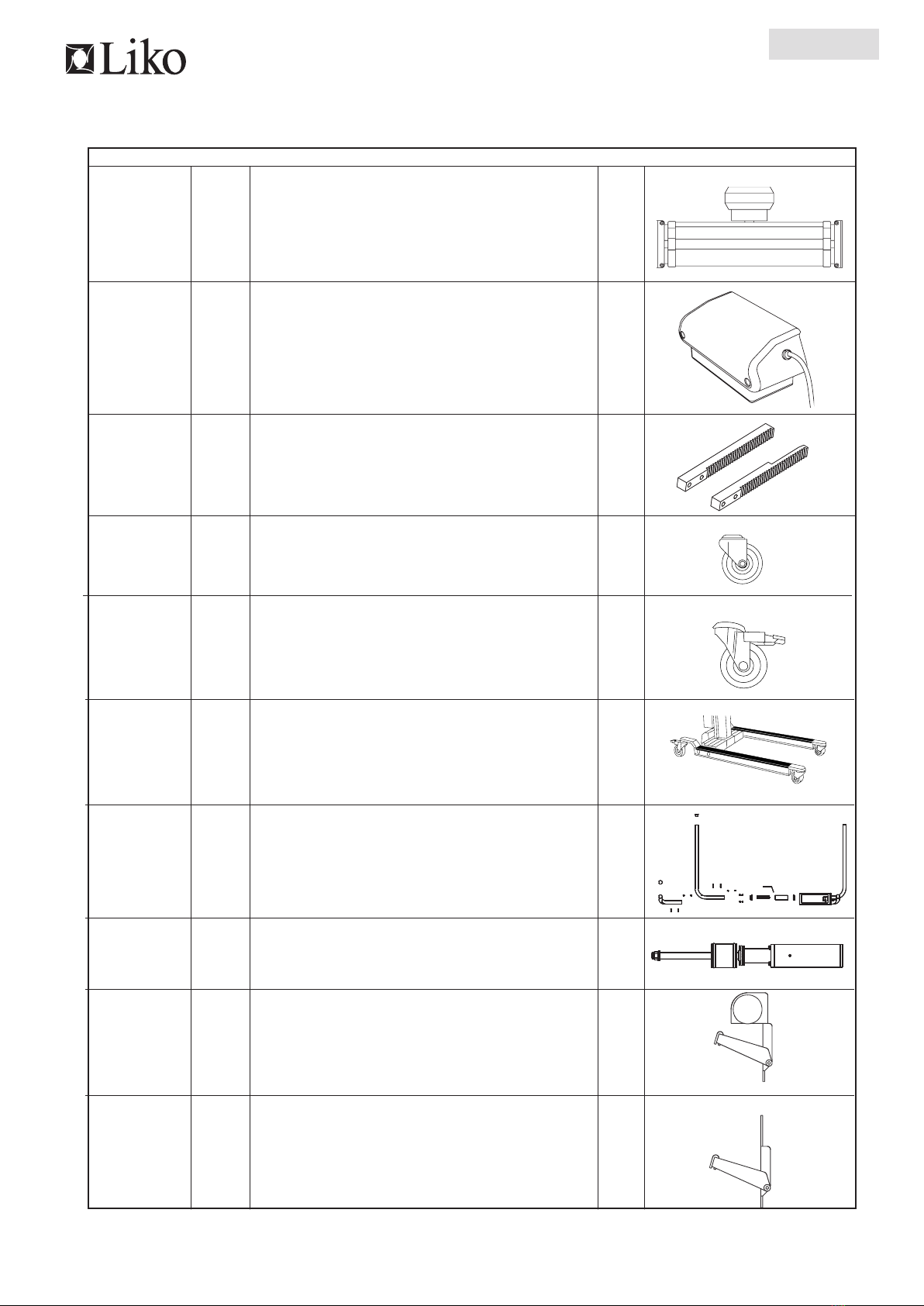

Spareparts with pos.ition................................................................................. 5.0
Base ................................................................................. 1............................ 4.1
Mast.................................................................................. 2............................ 4.2
Middle Beam..................................................................... 3............................ 4.3
Motorbase......................................................................... 4............................ 4.4
Leg Protector.................................................................... 6............................ 4.6
Leg Protector.................................................................... 7............................ 4.7
Armrest........................................................................... 10.......................... 4.10
Actuator .......................................................................... 11.......................... 4.11
Emergency lowering device............................................ 12.......................... 4.12
Body/Handle................................................................... 13.......................... 4.13
Lift strap ......................................................................... 14.......................... 4.14
Lift strap ......................................................................... 15.......................... 4.15
Roll frame attachment .................................................... 16.......................... 4.16
Controlbox ...................................................................... 18.......................... 4.18
Attachment incl. screw ................................................... 19.......................... 4.19
Handcontrol ................................................................... 20.......................... 4.20
Battery ........................................................................... 21.......................... 4.21
Cable for charging EU .................................................. 22.......................... 4.22
Cable for charging UK .................................................... 23.......................... 4.23
Cable for charging US ................................................... 24.......................... 4.24
Frontwheel 75 mm ......................................................... 29.......................... 4.29
Rearwheel 100 mm ....................................................... 30.......................... 4.30
Front wheel cover .......................................................... 31.......................... 4.31
Rear wheel cover............................................................ 32.......................... 4.32
Gear rack set ................................................................. 33.......................... 4.33
End cover handle/armsupport ....................................... 34.......................... 4.34
End cover armrest ......................................................... 35.......................... 4.35
Spring magazine ........................................................... 36.......................... 4.36
Frontwheel 50 mm ......................................................... 37.......................... 4.37
Frontwheel 100 mm........................................................ 38.......................... 4.38
Rearwheel 75 mm .......................................................... 39.......................... 4.39
Rearwheel 125 mm ....................................................... 40.......................... 4.40
Plastic housing .............................................................. 79.......................... 4.79
Slingbar Universal 450 ................................................... 86.......................... 4.86
Safety latch..................................................................... 87.......................... 4.87
Electronic card tyristor ................................................. 116........................ 4.116
Handcontrol 4-button ................................................... 117........................ 4.117
Battery charger, EU ..................................................... 118........................ 4.118
Battery charger, UK ..................................................... 119........................ 4.119
Battery charger, US ..................................................... 120........................ 4.120
Battery 6,5Ah/12V ....................................................... 121........................ 4.121
Motor for base width adj. .............................................. 124........................ 4.124
Batterybox .................................................................... 139........................ 4.139
Actuator G7-77 ............................................................. 140........................ 4.140
Electronic card processor............................................. 150........................ 4.150
Extension cable ............................................................ 160........................ 4.160
Troubleshooting ............................................................................................... 6.0

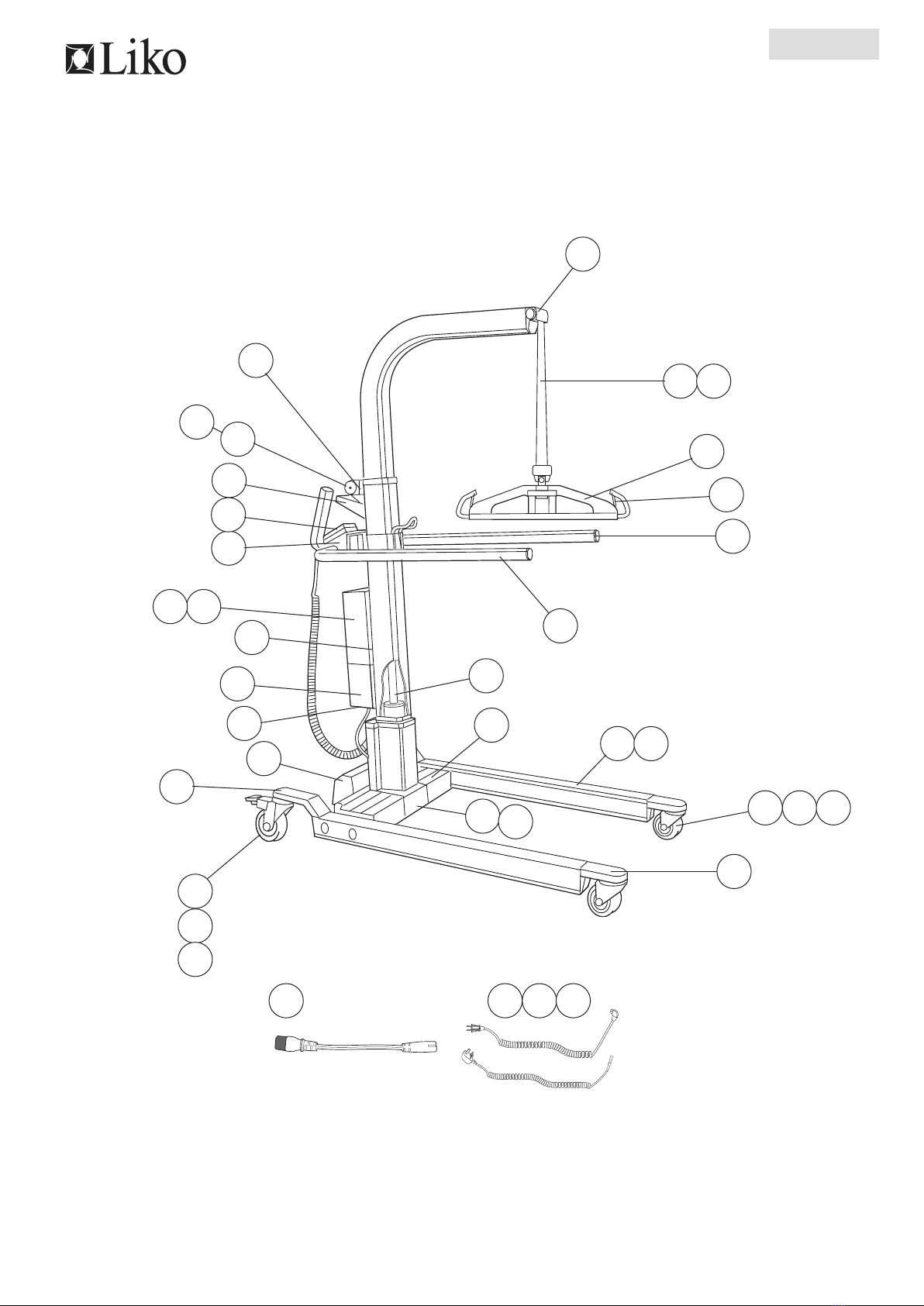

Drawings.......................................................................................................... 7.0
Checklist.......................................................................................................... 8.0
1.0
Table of contents
Golvo 7000, 7000 S/ES, 7007, 7007 S/ES

www.liko.com
Innehållsförteckning
Golvo 7000, 7000 S/ES, 7007, 7007 S/ES
Position Bladnr.
Innehållsförteckning......................................................................................... 1.0
Tillsyn och underhåll........................................................................................ 2.0
Teknisk data..................................................................................................... 3.0
Positioner......................................................................................................... 4.0
Reservdelslista med pos.itioner ...................................................................... 5.0
Chassi............................................................................... 1............................ 4.1
Pelare ............................................................................... 2............................ 4.2
Mellanbit ........................................................................... 3............................ 4.3
Motorpaket ....................................................................... 4............................ 4.4
Benskydd.......................................................................... 6............................ 4.6
Benskydd.......................................................................... 7............................ 4.7
Armhållare ...................................................................... 10.......................... 4.10
Ställdon........................................................................... 11.......................... 4.11
Nödsänkning................................................................... 12.......................... 4.12
Stomme/Handtag............................................................ 13.......................... 4.13
Lyftband ......................................................................... 14.......................... 4.14
Lyftband ......................................................................... 15.......................... 4.15
Rulländsfäste.................................................................. 16.......................... 4.16
Kontrollbox...................................................................... 18.......................... 4.18
Monteringsbeslag kontrollbox ........................................ 19.......................... 4.19
Handkontroll .................................................................. 20.......................... 4.20
Batteri ............................................................................ 21.......................... 4.21
Laddningskabel, EU ...................................................... 22.......................... 4.22
Laddningskabel, UK ....................................................... 23.......................... 4.23
Laddningskabel, US ...................................................... 24.......................... 4.24
Framhjul 75 mm ............................................................. 29.......................... 4.29
Bakhjul 100 mm ............................................................. 30.......................... 4.30
Framhjulskåpa ............................................................... 31.......................... 4.31
Bakgaffelkåpa................................................................. 32.......................... 4.32
Kuggstångsats ............................................................... 33.......................... 4.33
Ändplugg handtag/armstöd ........................................... 34.......................... 4.34
Gavel armhållare ........................................................... 35.......................... 4.35
Fjäderkassett ................................................................. 36.......................... 4.36
Framhjul 50 mm ............................................................. 37.......................... 4.37
Framhjul 100 mm............................................................ 38.......................... 4.38
Bakhjul 75 mm................................................................ 39.......................... 4.39
Bakhjul 125 mm ............................................................. 40.......................... 4.40
Bandmagasin ................................................................. 79.......................... 4.79
Lyftbygel ........................................................................ 86.......................... 4.86
Urkrokningsskydd .......................................................... 87.......................... 4.87
Kretskort tyristor .......................................................... 116........................ 4.116
Handkontroll 4-knapp .................................................. 117........................ 4.117
Laddare väggmonterad, EU ........................................ 118........................ 4.118
Laddare väggmonterad, UK ........................................ 119........................ 4.119
Laddare väggmonterad, US ........................................ 120........................ 4.120
Batteri 6,5Ah/12V ........................................................ 121........................ 4.121
Motorpaket för benbreddning ....................................... 124........................ 4.124
Batteribox ..................................................................... 139........................ 4.139
Ställdon G7-77.............................................................. 140........................ 4.140
Kretskort processor ...................................................... 150........................ 4.150
Skarvkabel till laddning................................................. 160........................ 4.160
Enkel felsökning .............................................................................................. 6.0
Ritningar .......................................................................................................... 7.0
Checklista........................................................................................................ 8.0
1.0

www.liko.com
2.0
Care and Maintenance
For safe and troublefree operation, there are a few routine measures which should be performed
every day the lift is used.
• Visually inspect the patient lift and check for external damage or wear.
• Check that all screws are tight.
• Check that the safety latches on the sling bar work properly.
• Check the hand control and the lift and width movements.
• Check the emergency lowering function.
• Charge the battery every night after use, or with the frequency needed.
If needed, clean the patient lift with warm water or ethanol. Warning! Do not use chemicals
containing phenol or chlorine, since the aluminium parts may be damaged.
Golvo should be thoroughly serviced at least once per year. Pay particular attention to parts that
show wear, for example, joints, bolts, etc. Service must be carried out according to Liko service
manual and by authorised staff.
WARNING!
Use only authorised Liko service personnel and Liko spare parts.
Transportation and storage
During transportation, or when the patient lift is not to be used for some time, the emergency
button should be pushed in. When storing, keep the patient lift at a temperature exceeding
freezing point and at a relative humidity no more than 60%.
We always try to improve our products. Naturally, this means changes from time to time.
Please contact our local representative or visit www.liko.com to receive the latest updates.

www.liko.com
2.0
Tillsyn och underhåll
För problemfri användning bör vissa detaljer kontrolleras varje dag lyften används:
• Inspektera lyften och kontrollera att inga yttre skador har skett
• Kontrollera skruv och låsmutter som fäster lyftbygeln
• Kontrollera lyftbandets slitage, samt att bandet inte är vridet
• Kontrollera urkrokningsskyddets funktion
• Kontrollera manövreringen av lyftrörelsen
• Kontrollera att lyftområdet är korrekt inställt och att nödsänkningen fungerar
• Ladda batterierna efter varje dag lyften använts och kontrollera då att laddaren fungerar
Rengör lyften med varmt vatten eller tvättsprit vid behov, och se till att hjulen är fria från smuts
och hår.
OBS! Använd inte rengöringsmedel som innehåller fenol eller klor, eftersom detta kan skada
aluminium och polyamidmaterialen.
VIKTIGT!
Reparation och underhåll skall endast utföras av Liko auktoriserad personal och med
originalreservdelar.
Transport och lagring
Under transport, eller då lyften inte ska användas under en längre tid, bör lyften förvaras
frostfritt och ej över normal luftfuktighet (ca 60%)
Tillsyn och kontroll
Minst en gång per år ska Golvos förslitningsdetaljer, tex leder, bultförband, bandinfästningar m
m, kontrolleras i enlighet med Likos serviceinstruktioner och av auktoriserad personal.
Serviceavtal
Liko erbjuder möjlighet att teckna serviceavtal för underhåll och återkommande provning av er
Golvo lyft.
Made in Sweden

www.liko.com
3.0

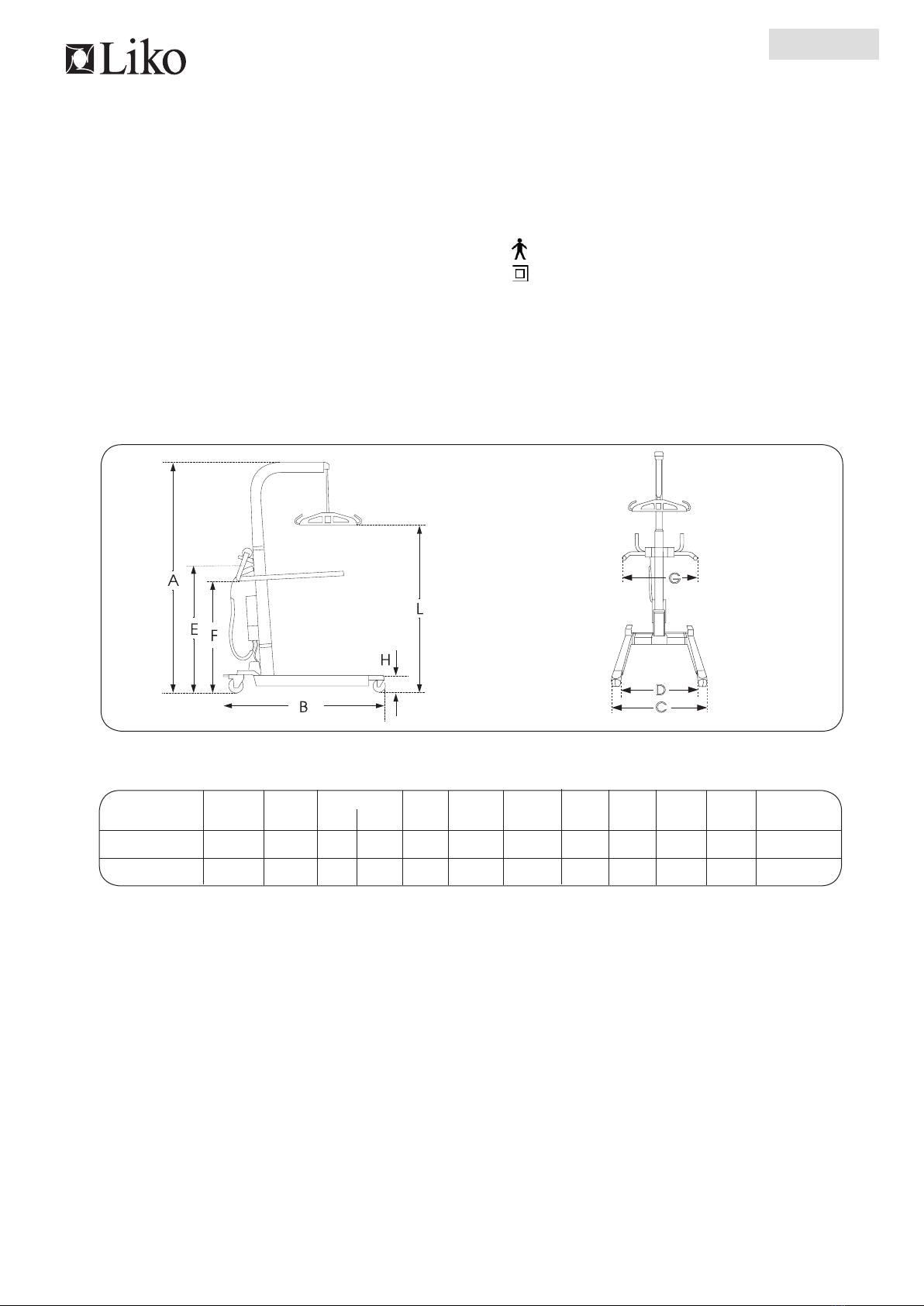

Technical Specications Golvo 7000/7007
Capacity and weight in kg. Measurement in cm. Lifting range 130 cm. Adjustable in height
* Other sizes of wheels (wheels) are available on request.
G
D
C
Capacity L A B C D E F G H* Weight
Model Max Max Min
GOLVO 7000 150 176 202 137 110 67-95 52 - 80 100 90 60 11,5 45
GOLVO 7007 200 186 212 147 116 75-103 60-88 110 100 60 11,5 48
Fuses: Battery charger T400mA
Electronic card F1 T12.5A/F2 T2A
Type B according to the degree of
protection against electric shock.
Class ll equipment.
Lifting speed: 2,7 cm/s
Motor (mast): 24 V = 10A/12 A. Electrical linear
actuator with planetary gearing
(Crown gear) and safety nut.
Type GMN 3175-001.
Motor (base): 24 V = 5 A. Geared motor.
Material: Aluminium and stainless steel
Batteries: Two rechargeable, valve regulated
lead-acid batteries,6,5Ah - 12V
Battery Fully automatic shutdown/restart.
charger: Type HPL 40L, 230V~, 50Hz.
N.A: Net voltage 120V~, 60Hz.
Japan: Net voltage 100V~, 50/60Hz.
Maximum Load: Golvo 7000 150 kg (330 Ibs)
Golvo 7007 200 kg (440 Ibs)
Standards: DIN 32979
EN 60601-1
IEC 601-1 1988
SS2430
Capacity and weight in Ibs. Measurement in inches. Lifting range 130 cm (4’ 4”). Adjustable in height
* Other sizes of wheels (wheels) are available on request.
Capacity L A B C D E F G H* Weight
Model Max Max Min
GOLVO 7000 330 70 79 54 43 27-38 21-32 39 35 24 4,5 99
GOLVO 7007 440 74 83 58 46 30-41 24-35 43 39 24 4,5 106

www.liko.com
3.0
Tekniska data Golvo 7000/7007
Kapacitet och vikt i kg. Mått i cm. Lyftområde 130 cm yttbart i höjdled.
* Mindre alternativt större hjul nns som extra tillbehör.
G
D
C
Laddning: Varje natt efter användning
Material: Eloxerad aluminium
Nödsänkning: Mekanisk
Type B enligt skyddsgrad mot elektrisk chock
Klass ll utrustning
Lyfthastighet: 2,7 cm/s
El: 24 V 10A/12 A.
Säkringar: F1 T12,5A, F2 T2A
Batteri: 2 st 12 V, 6.5Ah
Slutna blyack, sk. gelbatterier
Ställdon/motor: 24 V 10 A. Fabr. Magnetic med ljuslös
planetväxel, ”Crowngear” och
säkerhetsmutter
Breddn. motor: 24 V 3.5 A. Vinkelväxel
Batteriladdare: Type HPL 40L, 230V~, automatisk
laddningsfunktion. Säkring: T400mA.
Maxlast: Golvo 7000 150 kg (330 Ibs)
Golvo 7007 200 kg (440 Ibs)
Standard: DIN 32979
EN 60601-1
IEC 601-1 1988
SS2430
Kapacitet L A B C D E F G H* Vikt
Model Max Max Min
GOLVO 7000 150 176 202 137 110 67-95 52 - 80 100 90 60 11,5 45
GOLVO 7007 200 186 212 147 116 75-103 60-88 110 100 60 11,5 48

www.liko.com
3.0
Technical Specications Golvo 7000 S/7007 S
G
D
C
Battery Fully automatic shutdown/restart.
charger: Noratel type HPL 40L.
Output 27,6V= 1.25ADC.
Fuse F1: T400mA/230V T800mA/115V
Specialfuses F2:pfuse F2A, F3:pfuse F2A
N.A: Type HPL 40L/115, 115 V~,60 Hz
Japan: Type HPL 40L/100, 100 V~,50/60 Hz
Other: Type HPL 40L/230, 230 V~,50 Hz
Type B according to the degree of protection
against electric shock.
Class ll equipment.
Lifting speed: 4,8 cm/sek, 2,7 cm/sek at max. load
Motor (mast): 24 V = 6.5A. Electrical linear actuator
with planetary gearing (Crown gear)
and safety nut.
Manufacture by Liko.
Motor (base): 24 V = 3.5 A. Geared motor
Material: Aluminium and stainless steel.
Batteries: Two rechargeable, valve regulated
lead-acid batteries, 3,2 Ah - 12V
Maximum Load: Golvo 7000S 200 kg (440 Ibs)
Golvo 7007S 200 kg (440 Ibs)
Standards: DIN 32979
EN 60601-1
IEC 601-1 1988
SS2430
Capacity and weight in kg. Measurement in cm. Lifting range 130 cm. Adjustable in height
* Other sizes of wheels (wheels) are available on request.
Capacity L A B C D E F G H* Weight
Model Max Max Min
GOLVO 7000S 200 176 202 137 112 67-95 52 - 80 100 90 60 11,5 43
GOLVO 7007S 200 186 212 147 116 75-103 60-88 110 100 60 11,5 48
Capacity and weight in Ibs. Measurement in inches. Lifting range 130 cm (4’ 4”). Adjustable in height
* Other sizes of wheels (wheels) are available on request.
Capacity L A B C D E F G H* Weight
Model Max Max Min
GOLVO 7000S 440 70 79 54 44 27-38 21-32 39 35 24 4,5 96
GOLVO 7007S 440 74 83 58 46 30-41 24-35 43 39 24 4,5 106

www.liko.com
3.0
Tekniska data 7000 S/7007 S
G
D
C
Max last: Golvo 7000S 200 kg (440 Ibs)
Golvo 7007S 200 kg (440 Ibs)
Standard: DIN 32979
EN 60601-1
IEC 601-1 1988
SS2430
Kapacitet och vikt i kg. Mått i cm. Lyftområde 130 cm. Flyttbart i höjdled.
* Mindre alternativt större hjul nns som extra tillbehör.
Laddning: Varje natt efter användning
Material: Eloxerad aluminium
Nödsänkning: Mekansik
Type B enligt skyddsgrad mot elektrisk chock
Klass ll utrustning
Lyfthastighet: 4,8 cm/sobel. 2,7 cm/s vid max last
El: 24 V = 6,5 A.
Säkringar: F1 T12.5A, F2 T2A
Batteri: 2 st 12 V, 3.2 Ah
Slutna blyack, sk. gelbatterier
Ställdon/motor: 24 V=6,5 A. Fabr. Liko med
planetväxel, och säkerhetsmutter
(förslitn.sk)
Breddn. motor: 24 V 3.5 A. Snäckväxel
Batterildaddare: Type HPL 40L, 230V~, automatisk
laddningsfunktion. Säkring: T400mA.
Kapacitet L A B C D E F G H* Vikt
Modell Max Max Min
GOLVO 7000 S 200 176 202 137 112 67-95 52 - 80 100 90 60 11,5 43
GOLVO 7007 S 200 186 212 147 116 75-103 60-88 110 100 60 11,5 48

www.liko.com
3.0
Technical Specications 7000 ES/7007 ES
Capacity and weight in kg. Measurement in cm. Lifting range 130 cm, adjustable.
* Measure with standard wheels (75 mm front, 100 mm rear). Smaller and larger wheels are available as accessories.
G
D
C
diameter
Capacity and weight in lbs. Measurement in inches. Lifting range 51 inches, adjustable.
* Measure with standard wheels (75 mm front, 100 mm rear). Smaller and larger wheels are available as accessories.
diameter
are available as accessories.
Material: Anodized aluminium
Em. lowering: Mechanical and electrical.
Intermittent Int. Op 15/85, active operation max 6 min.
operation: Out of a time of 100, active must be less
than 15, however not more than 6 min.
IP class 43
This device is built for indoor operation.
Type B according to the degree of
protection against electric shock.
Class ll equipment.
Lifting speed: Two speeds 4.8 cm/s (with load)
and 3.2 cm/s (no load)
Batteries: Two 2,9Ah - 12V valve regulated
rechargable leadacid batteries.
New batteries are supplied by the
manufacturer.
Battery Built-in charger for 100-230V,
charger: 50-60 Hz, max 400 mA
Motor (mast): 24 V = 6.5 A. Manufactured by Liko
with planetary gearing and safety
nut (prevents damage caused due
to wear)
Motor (base): 24 V = 3.5 A. Geared motor
Charging: Every night after use
Wheels: Standard front: 75 mm twin wheels
Standard rear: 100 mm lockable
single wheels. Standard wheels
have a base clearance of 4 cm (1.6
inch.) Smaller and larger wheels
Capacity L A B1 B2 C D E F G H* Weight Turning-
Model Max Max Min
GOLVO 7000 ES 200 170 199 136 53 122 67 - 95 53-81 100 90 60 11,5 43 129
GOLVO 7007 ES 200 187 209 146 56 128 75-102 62-90 110 100 60 11,5 48 138
Capacity L A B1 B2 C D E F G H* Weight Turning-
Model Max Max Min
GOLVO 7000 ES 440 70 78 53.5 21 48 25 - 37 21-32 39 35.5 23.5 4.5 94.5 51
GOLVO 7007 ES 440 73.5 82 57.5 22 50 30 - 40 24-35 43 39 23.5 4.5 105.5 54

www.liko.com
3.0
Tekniska data 7000 ES/7007 ES
Lyfthastighet: Två hastigheter; 4,8 cm/s resp
3,2 cm/s obelastat
Batteri: 2 st 12V 2.9 Ah ventilreglerade
slutna blyack, s.k gelbatterier.
Nya batterier tillhandahålles av
leverantören.
Batteriladdare: Inbyggd laddare för 100 - 230 V,
50-60 Hz, max 400 mA
Ställdon/motor: 24 V 6.5 A. Fabr. Liko med
planetväxel, och säkerhetsmutter
(motverkar förslitningsskador)
Breddn. motor: 24 V 3.5 A. Snäckväxel.
Laddning: Varje natt efter användning.
Hjul: Standard fram: 75 mm tvillinghjul
Standard bak: 100 mm bromsade
enkelhjul. Standardhjulen ger en
markfrigång på 4 cm.
Mindre alternativt större hjul nns
som tillbehör.
Material: Eloxerad aluminium
Nödsänkning: Mekanisk och elektrisk
Intermittent drift: Int. Op 15/85, aktiv drift max 6 min.
Av en tid på 100 får aktiv tid vara 15,
dock max 6 min.
IP klass 43
Apparaten är avsedd förinhomhusbruk.
Typ B, enligt skyddsgrad mot elektrisk chock.
Klass ll utrustning.
Kapacitet och Vikt i kg. Mått i cm. Lyftområde 130 cm. Flyttbart i höjdled. Golvo är typgodkänd av SA och patentskyddad.
* Mått med standardhjul (75 mm fram, 100 mm bak). Mindre alternativt större hjul nns som extra tillbehör.
G
D
C
H
diameter
Kapacitet L A B1 B2 C D E F G H1* H2* Vikt Vänd
Modell Max Max Min
GOLVO 7000ES 200 177 199 136 53 122 67 - 95 53-81 100 90 60 11,5 4 43 129
GOLVO 7007ES 200 187 209 146 54 131 75-102 62-90 110 100 60 11,5 4 48 138

www.liko.com
Positions Golvo 7000/7007, 7000 S/7007 S
4.0
124
32
13
35
36 79
12
6
29
31
87
86
30
39
40
37 38
7
33
10
34
16
116150
3 4
11 140
14 15
118 120119
117
121149

www.liko.com
Positions Golvo 7000 ES/7007 ES
4.0
124
18
32
21 139
19
13
20
35
36 79
12
3
6
11
29
31
87
86
14
30
39
40
37 38
7
33
10
34
16
160
4
15
160 22 23 24

www.liko.com
5.0
Spareparts Golvo 7000/7007, 7000 S/7007 S
PART. NO POS. NO PRODUCT UNIT
20090003 3 Middle Beam G7 pce
20090004 4 Middle Beam G77 pce
20090046 124 Motor base with adj. G7-77 pce
(replacement 20090005)
20090038 33 Gear rack set set
20090042 37 Frontwheel 50 mm pce
20090034 29 Frontwheel 75 mm pce
20090043 38 Frontwheel 100 mm pce
20090044 39 Rearwheel 75 mm pce
20090035 30 Rearwheel 100 mm pce
20090045 40 Rearwheel 125 mm pce
20090009 6 Leg Protector G7 pair
20090010 7 Leg Protector G77 pair
20090013 10 Armrest complete set
20090014 11 Actuator G7-77 pce
970000026 140 Actuator G7-77 only pce
20090015 12 Emergency lowering device pce
20090016 13 Body/Handle set for emerg. low device pce

www.liko.com
5.0
Spareparts Golvo 7000/7007, 7000 S/7007 S
PART. NO POS. NO PRODUCT UNIT
X 4
X 2
X 2
X 2
31190008 79 Plastic housing pce
20090041 36 Spring magazine pce
20090018 14 Lift strap G7 pce
20090019 15 Lift strap G77 pce
20090020 16 Roll frame attachment G7/G77 pce
20090036 31 Front fork cover G7/G77 pair
20090037 32 Rear fork cover G7/G77 pair
20090039 34 End cover handle/armsupport set
20090040 35 End cover armrest pair
950000129 150 Electronic card processor pce
950000130 116 Electronic card tyristor pce
3692112 117 Handcontrol 4-button pce

www.liko.com
5.0
Spareparts Golvo 7000/7007, 7000 S/7007 S
PART. NO POS. NO PRODUCT UNIT
X 2
3126101 118 Battery charger, EU pce
3126102 119 Battery charger, UK pce
3126103 120 Battery charger, US pce
950000146 149 Battery 3,0Ah/12V G7-S pce
950000134 121 Battery 6,5Ah/12V G7-S/G7 pce
3156001 86 Sling bar Universal 450, stainless pce
31190018 87 Safety latch pair

www.liko.com
5.0
Spareparts Golvo 7000 ES/7007 ES
PART. NO POS. NO PRODUCT UNIT
20090003 3 Middle Beam G7 pce
20090004 4 Middle Beam G77 pce
20090046 124 Motor for base width adj. G7-77 pce
(replacement 20090005)
20090038 33 Gear rack set pair
20090042 37 Frontwheel 50 mm pce
20090034 29 Frontwheel 75 mm pce
20090043 38 Frontwheel 100 mm pce
20090044 39 Rearwheel 75 mm pce
20090035 30 Rearwheel 100 mm pce
20090045 40 Rearwheel 125 mm pce
20090009 6 Leg Protector G7 pair
20090010 7 Leg Protector G77 pair
20090013 10 Armrest complete pair
20090014 11 Actuator pce
20090015 12 Emergency lowering device pce
20090016 13 Body/Handle set for emerg low device pce

www.liko.com
5.0
Spareparts Golvo 7000 ES/7007 ES
PART. NO POS. NO PRODUCT UNIT
X 2
31190008 79 Plastic housing pce
20090041 36 Spring magazine pce
20090018 14 Lift strap G7 pce
20090019 15 Lift strap G77 pce
20090048 185 Lift strap G77 fr o m serial no:7723630 pce
20090020 16 Roll frame attachment G7-77 pce
2006106 139 Battery box, incl. batteries pce
20090022 18 Control box G7-77 pce
20090023 19 Attachment for control box pce
20090024 20 Handcontrol ES 6-button pce
20090025 21 Battery 2.9 Ah 12V pair
3156001 86 Slingbar Universal 450, stainless pce
31190018 87 Safety latch pair

www.liko.com
5.0
Spareparts Golvo 7000 ES/7007 ES
PART. NO POS. NO PRODUCT UNIT
X 4
X 2
X 2
X 2
20090026 22 Cable for charging, EU pce
20090027 23 Cable for charging, UK pce
20090028 24 Cable for charging, US pce
20090036 31 Front fork cover G7-77 pair
20090037 32 Rear fork cover G7-77 pair
20090039 34 End cover handle/armsupport set
20090040 35 End cover armrest pair
21090001 160 Extension cable pce

www.liko.com
5.0
Reservdelslista Golvo 7000/7007, 7000 S/7007 S
PRODUKT NR POS. NR PRODUKT BESKRIVNING ENHET
20090003 3 Mellanbit G7 st
20090004 4 Mellanbit G77 st
20090046 124 Motorpaket komplett G7/G77 st
(ersätter 20090005)
20090038 33 Kuggstångssats sats
20090042 37 Framhjul 50 mm st
20090034 29 Framhjul 75 mm st
20090043 38 Framhjul 100 mm st
20090044 39 Bakhjul 75 mm st
20090035 30 Bakhjul 100 mm st
20090045 40 Bakhjul 125 mm st
20090009 6 Benskydd G7 par
20090010 7 Benskydd G77 par
20090013 10 Armhållare, komplett sats
20090014 11 Ställdon G7-77/S/ES st
970000026 140 Ställdon G7-77 endast st
20090015 12 Nödsänkning st
20090016 13 Stomme handtag st
