Lilliput PC-1041 User manual

10.4”
Panel Computer
User Manual

1
To users of this product
Thank you for purchasing our panel PC. This product adopts high-performance embedded computer
hardware components and a combination of the X86 architecture. It is designed for operations under
relatively severe environments of Multimedia advertising / industrial automation equipment /
instrumentation / security / intelligence products and other fields and featuring such as
anti-vibration, anti-jamming, wide power supply input, etc. The delicately optimized design meets
the requirements of all users in its applications to various conditions and occasions. This product is
small in shape, easily installed. Moreover, the mini Panel PC is easily adaptable to a professional
electronic equipment of industry personal controlling as well as its ease of extensive use such as
multimedia ad/instruments/military affairs/intelligent product field. With its excellent quality and
exquisite manufacturing technology, yourproduct will bring limitless entertainment and enjoyment
to you.
In order to ensure the correct installation and the most efficient service, please read this user manual
carefully.
Notice: Electric Safety
In order to prevent electric shock and possible severe damage to the unit, please temporarily
remove the PC power adapter from the power socket before moving the Car PC.
In order to prevent voltage fluctuations from damaging your purchase and the possibly to the
vehicle’s battery, please switch the computer’s power switch to the “off” position or use wide
voltage box while starting the vehicle.
Once the computer’s power has been put into the “on” position do not switch the computer’s
power to the “off” position until the computer is fully booted. When shutting down the
computer follow the guidelines in this user guide.
Please make sure that the power voltage setting has been adjusted to the standard voltage value
of the location where the product is being used.
No owner/user-serviceable components exist in this unit. Allow only qualified technical service
personnel to service or open this unit. Contact our factory service department. Unauthorized
tampering may void the product warranty.
Operational Security
Before using this product, please first make sure that all external wires and power adapters have
been correctly connected. If you suspect any defects, please contact your sales agent or factory
personnel immediately.
To prevent electric short-circuiting, it is forbidden to leave any metal stuffs in the PC
mainframe.
Dust, humidity and dramatic temperature changes will affect the usage life of this computer.
Please keep the machine away from these hazards.
Although an anti-vibration mechanism is adopted inside the computer, please avoid traumatic
movement, jolting or dropping of the unit.
Please do not use chemical detergents to clean the device. Remove dust with a soft cloth to
ensure brightness. If any technical problems occur while using this unit, please refer to our sales
agents or related technicians. We will correct any problem as rapidly as possible. Please refer to
your warranty.
YP-01141204

2
Content
Ⅰ. PRODUCT DESCRIPTION .................................................................. 3
1. APPLICATION ........................................................................................... 3
2. FEATURE................................................................................................. 3
3. FUNCTION DESCRIPTION ............................................................................ 4
4. SPECIFICATION ......................................................................................... 4
Ⅱ. SKETCH MAP OF MAINFRAME PANEL .............................................. 4
1. SKETCH MAP OF MAINFRAME FRONT PANEL ................................................. 5
2. SKETCH MAP OF MAINFRAME INTERFACE ..................................................... 6
Ⅲ.CONNECTION EXPLANATION ............................................................ 7
Ⅳ. PRODUCT INSTALLATION INSTRUCTION ........................................... 7
Ⅴ. ACCESSORIES .................................................................................. 8
Ⅵ.TROUBLE SHOOTING ........................................................................ 9

3
Ⅰ. Product description
1. Application
1.1 Computer: It is embedded human-machine interface of high capability with INTEL core.
10.4 inch 800×600 resolution TFT LCD with 4-wire resistive touch screen. It is compact and firm,
good anti-vibration and electromagnetism shielded capability, and is optimal choice with using
telecom, electric power, multimedia, security & defense, industry robotize control equipment and
manufacturing field. It uses for human-machine interface, client terminal, PLC and POS
communication and control terminal. Moreover, it used advanced structure design, convenient
system installation. Multiple mount methods such as panel type, hanging, embedded mount and
VESA standard, etc.
1.2 Extension functions: USB, LAN, VGA out, SIM slot, HDMI out, DC, COM interfaces,
through which user can accessorize this machine with multiple video outputs, main board
encryption, support PXE and WOL, various extend functions, etc.
1.3 OS for optional: Windows 10 or Linux, user can install the relative OS.
2. Feature
Stable performance——Industrial design，reliable quality.
Elegant and firm——Heat-reduced sheet with thick armor plate. The whole device is elegant
and firm.
High configuration——CPU can supply as request. Compare the unit’s smaller dimension and
upper performance features.
Low power consumption——Energy savings and efficient heat emissions make the unit
compatible with the vehicle.
Professional design——The device is specifically designed with industry environment.
Designed using optimal mechanical and electrical specifications, product features focusing on
anti-vibration, power separation and heat emissions satisfy the most demanding user. The pc will
function superbly in severe operating conditions including, but not limited to, temperature extremes,
electromagnetic disturbances caused by inferior road conditions.

4
3. Function description
Applications
Functions
Industrial Control
Multi-media ads
Choose touch screen
integrative unit
Wi-Fi WLAN (extension)
Wired network control
Software control equipment
Touch screen control
Special software installation
Wi-Fi WLAN (extension)
Wired network control
Special multi-media
software control
One to more screens
display output control
4. Specification
Item
Description
Display screen
10.4 inch TFT LCD 1,440,000 pixels 800×600
Contrast
500:1
Brightness
250cd/m2
View angle
140°/120°(H/V)
Touch screen
4-wire resistive
CPU
Intel J1900 (2.0 GHz) Quad-core
Memory
Standard configure: 4GB, optional: 8GB
Storage (Optional)
PCIe mSATA SSD 120G, support up to 1TB
SATA2.5inch Hard Disk
Video card
Integrated on board Intel GMA3650 (128/224MB of share
memory)
Video output
VGA, HDMI
Panel interface
3 ×USB 2.0, 2 ×USB 3.0
2 ×LAN
1 ×VGA output
1 ×HDMI output
1 ×DC 12V
4 ×RS232(COM2/3 Support RS232/RS485)
1 ×LINE output
OS
Windows 10 or Linux
Working temperature
0°C -50°C
Storage temperature
-10°C -65°C
Power supply
DC 12V
Current
1.0 A-2.0 A
Power consumption
≤ 16W
Dimension
280mm × 210mm ×58.8mm
Weight
2190g
Ⅱ. Sketch map of mainframe panel

5

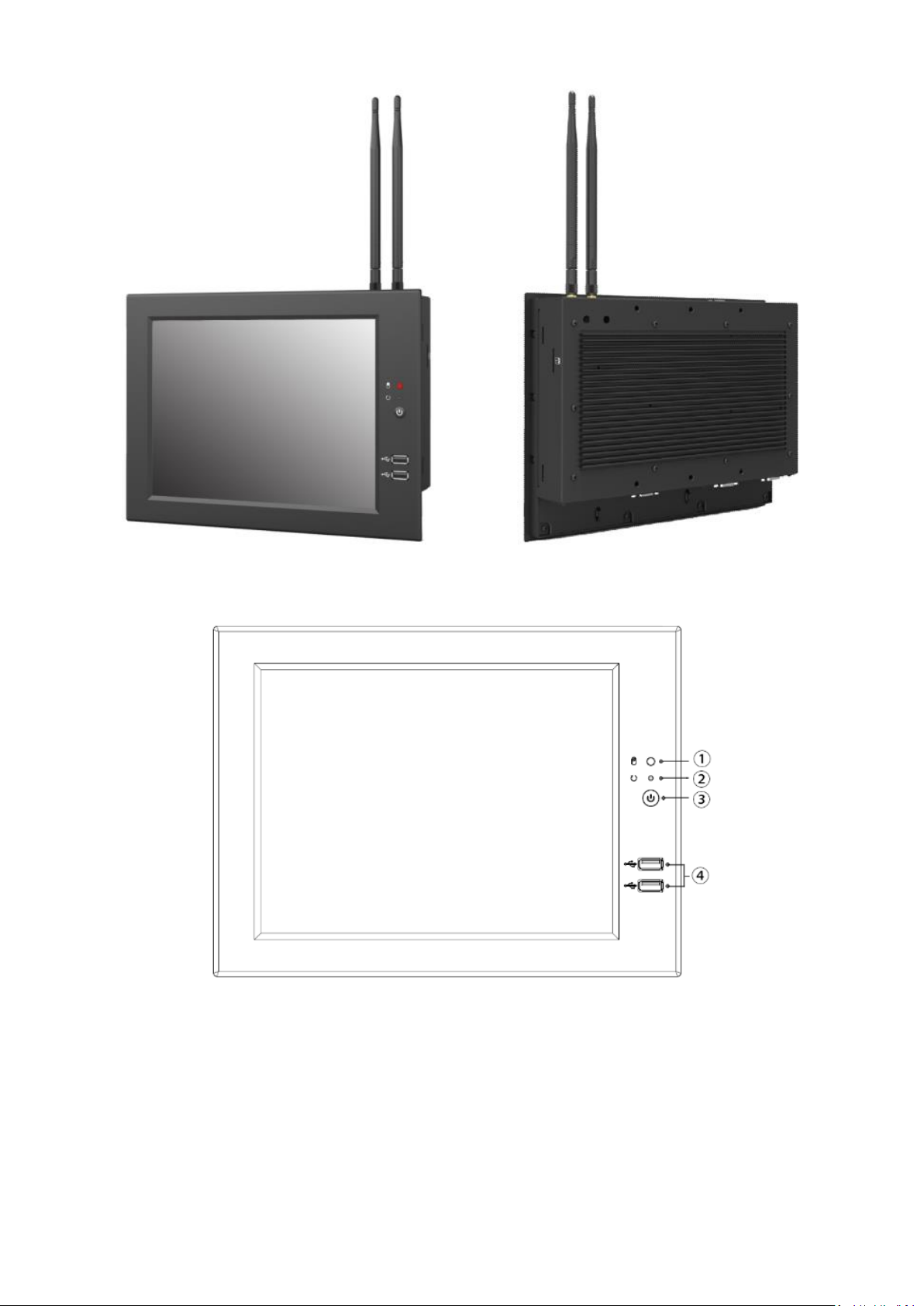

1.Sketch map of mainframe front panel
1. Hard Disk indicator light (Green light).
2. Restart Button
3. Power switch + Power indicator.
4. USB ×2: Connect with external USB equipment.

6
2.Sketch map of mainframe interface
In order from top to bottom, left to right:
1. 2.5inch hard disk interface.
2. 5.8G antenna port ×4 (optional).
3. SIM slot, external SIM card.
4. Audio output.
5. USB×1: Connect with external USB2.0 equipment.
6. RJ-45 Ethernet interface, connected with 1000M network cable.
7. USB×2: Connect with external USB3.0 equipment.
8. VGA output.
9. HDMI output.
10. Power input.
11. COM1~ COM4 serial port, for external serial port equipment.
(COM 2/3 can be switched to RS485/ RS232)

7

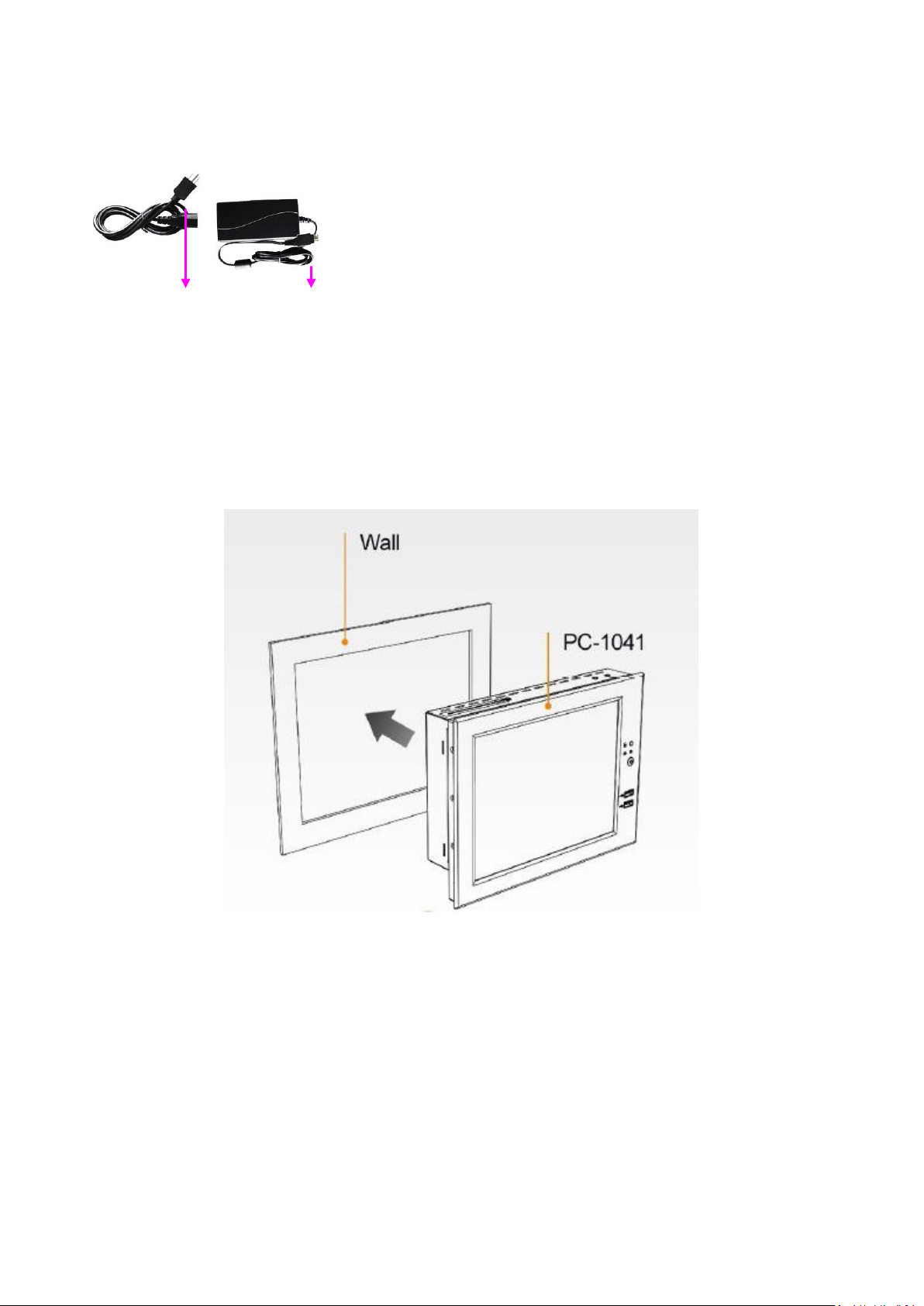

Ⅲ.Connection explanation
1. Connect to power supply.
2. Connect with power input port on the back of device, in order to provide power for device.
Ⅳ. Product installation instruction
STANDARD MOUNT
OPEN FRAME MOUNT (optional)
1 2

8
FIXED BRACKET MOUNT (optional)
Fixed screw (PM5×6mm)

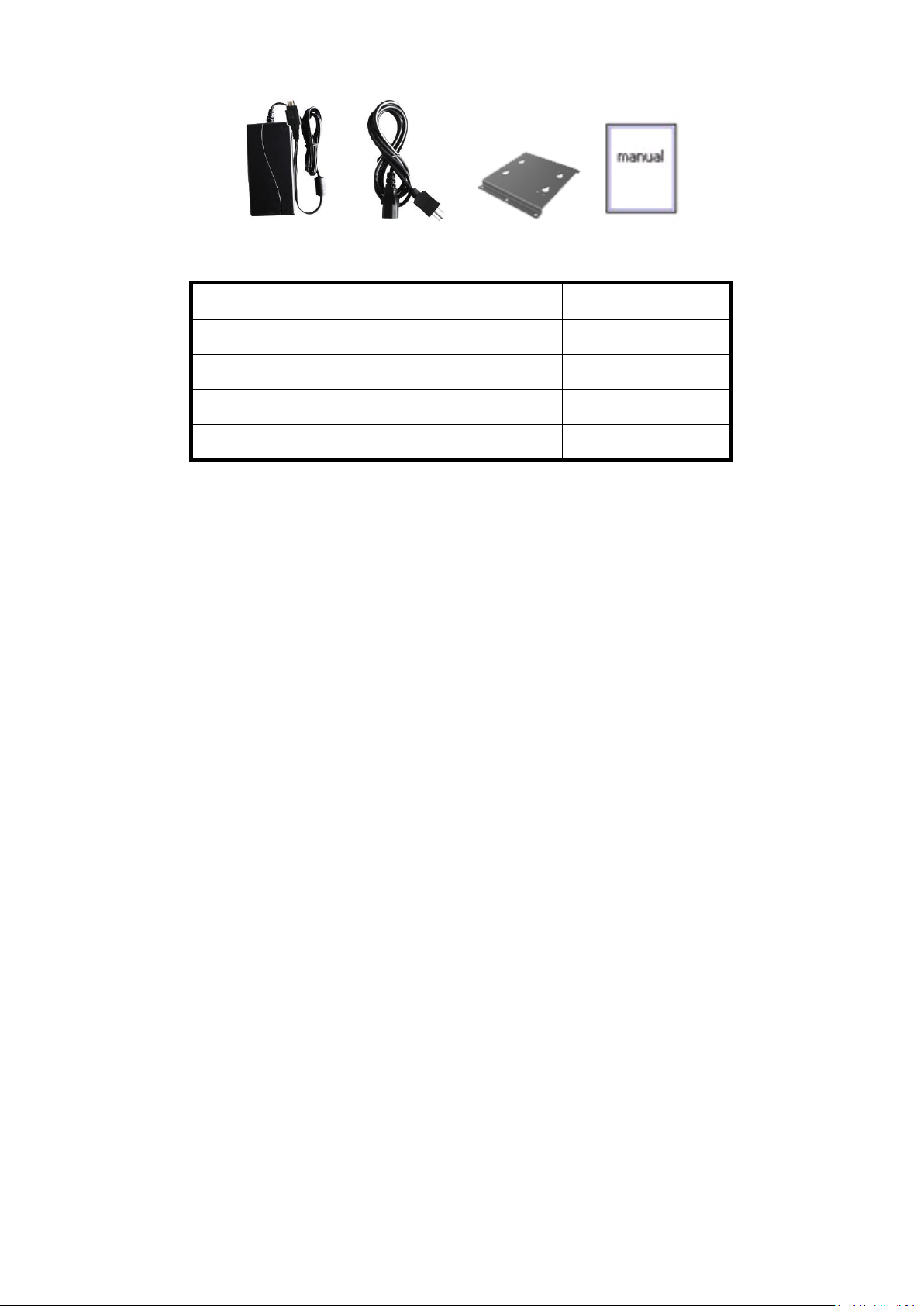

Ⅴ. Accessories

9
Description
Amount
Power supply adapter
1 pair
Fixed bracket
1 pair
Manual
1 copy
Extend 2.5” Hard disk (HDD) (optional)
1 piece
Ⅵ.Trouble shooting
1. The power indicator doesn’t light after you press the power button.
-Please check and make sure the power connection is correct and the power supply proper.
2. No sound
-Please check and make sure the audio lint is connected properly.
-Please check is the system is in MUTE mode or the volume is down to the minimum level.
-Check whether the driver of audio card is installed correctly.
3. No display
-Check whether the display work properly.
-Check and make sure the connection is correctly.
4. USB device can’t be identified.
-Re-insert the USB device, so that the system will recognize it again.
-Insert to another USB ports..
-Check whether the driver program is installed properly or not.

10
5. How to start the USB2.0 function?
-Because of ICH4 this unit can read four USB2.0 port.
We suggest that install WINXP SP2 so that it needn’t a driver for USB2.0 and could read the
USB2.0, then work normally as transmission rate of 480Mbit.
Note: due to constant effort to improve products and product features, specifications
may change without notice.
