Lilliput PC-7145 User manual

Industrial
Computer
User Manual

Safety defended:
Properly maintain your system to guarantee its service life and reduce the damage
risk.
●It should avoid the humidity and extreme temperature when using.
●Avoid being revealed making equipment for a long time under shoot straight at
sunlight or intense ultraviolet ray lamp light.
●Avoid heavy impact or drop onto the ground.
●The LCD screen is very easy to scratch, avoid crashing please. Be sure not to use
other sharp article to bump against touch screen.
●The fuselage is external, close a power source, allocate away mains lead if should
be clean, quality cloth cleans with tiny wet soft when clean screen, in order to not
lose trifling soft of cotton please.
●Strictly forbid the machine presumptuously dismantling or keeping the machine,
otherwise, possibility damage in repair.
●Do not place your equipment or accessory together with other inflammable liquid,
the gas or other explosive articles, to avoid dangerous.
Content
Safety defended:..............................................................................................................................2
Product description.........................................................................................................................3
Parameter........................................................................................................................................4
Micro SIM Card & Memory Card Instructions...........................................................................6
Basic Operation...............................................................................................................................2
Menu ................................................................................................................................................3
Accessories.....................................................................................................................................10
Trouble shooting............................................................................................................................10
YP-01170513

Product description

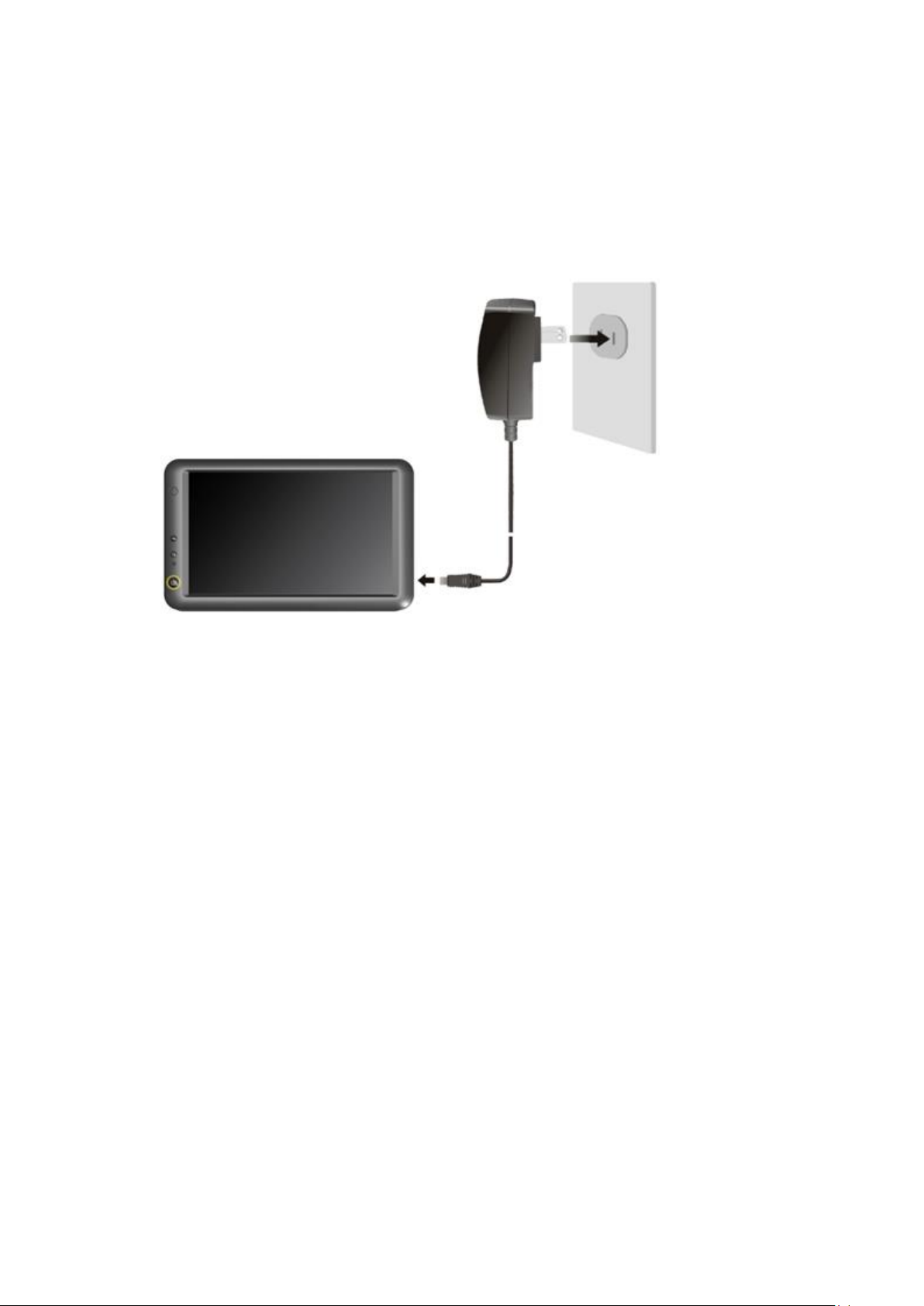

Power Connection
Features
◆7" 16:9, 800×480 high resolution;
◆OS: Android 5.1.1;
◆Touch screen control;
◆450cd/㎡high brightness;
◆Micro SD card storage makes the data reliable, convenient and
easy for expansion;

Parameter
Configuration
Parameter
System configuration
CPU Qualcomm Quad core 1.1GHz
Flash 8GB
RAM 1GB DDR3
Interface
Micro SD card , SIM card
USB OTG
Earphone jack
DC power input
2×RS232 interface
Function
Wi-Fi version: Wi-Fi + Bluetooth
Optional: ACC/GPIO
4G version: wi-fi+Bluetooth+3G+4G+GPS
Optional: ACC/GPIO
Touch Panel
Capacitive
Display
7″
Screen Resolution
800×480
Brightness
450cd/㎡
Contrast
500:1
Viewing Angle
140°/ 120° (H/V)
Power supply
DC 9-36V
Power Consumption
(Normal mode)
≤8W
Working Temperature
-20℃-60℃
Storage Temperature
-30℃-70℃
Dimension (LWD)
188 ×144 ×35 (mm)
Weight
442g

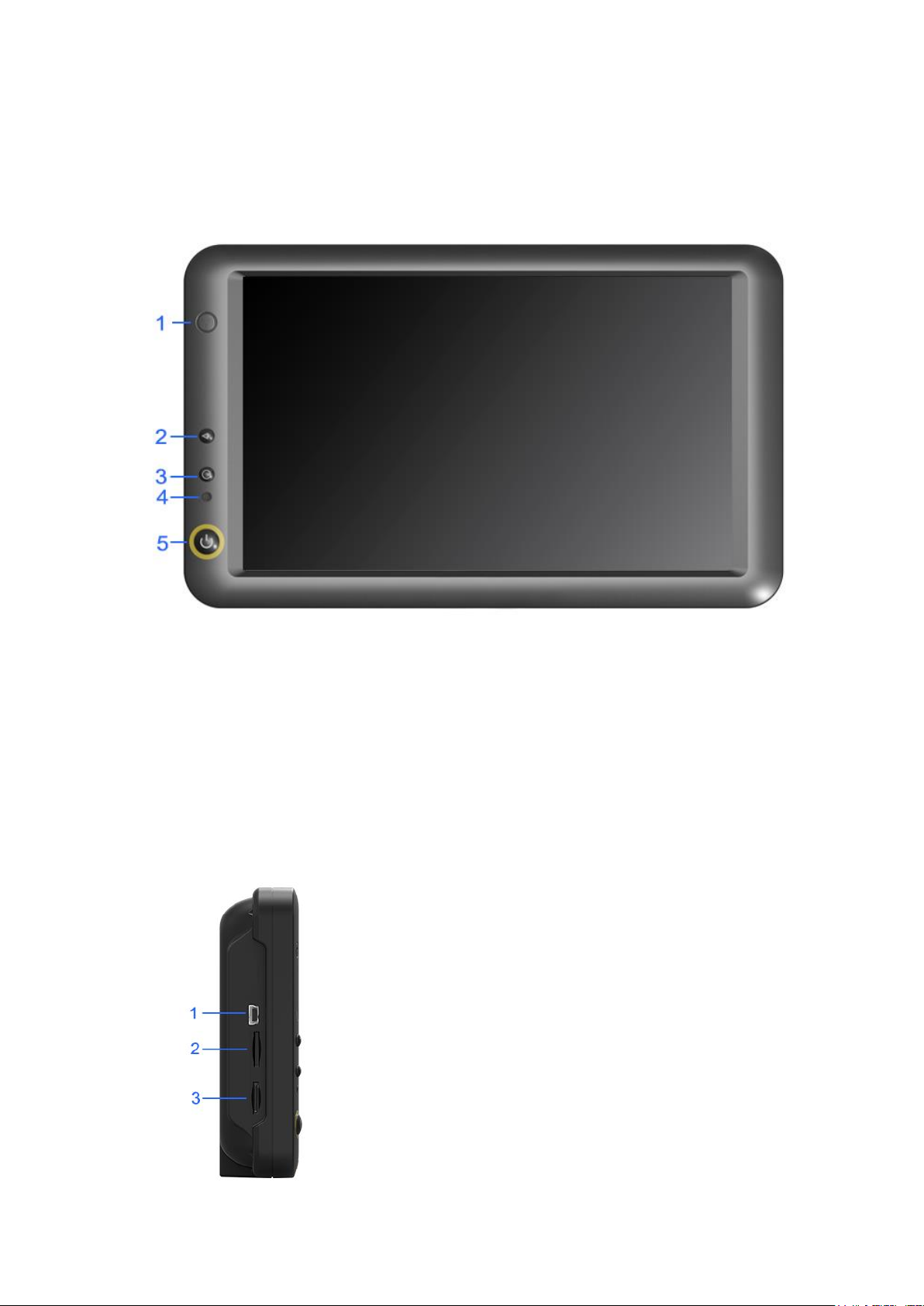

Description of each part
Front
1. Microphone.
2. Back: return to the previous menu.
3. Home: return to the home screen; Long-press and double-click functions
can be customized.
4. Reset: to restart system.
5. Power: power on / off.
Side
1. Mini USB port: to connect with USB
cable.
2. Micro SIM card slot: insert Micro SIM
card to connect with 3G/4G network.
3. Micro SD card slot: insert micro SD
card to store the map or other data.

4. Earphone jack.
5. G-mouse: serial signal input port.
6. DC power jack
13-Pin to RS232 line
1. Signal input interfaces
2. RS232 interfaces×2
Micro SIM Card & Memory Card Instructions
♦In order to avoid damaging of the 3G/4G card & memory card, please insert
the card smoothly and push slightly before you draw it out.
♦The memory card will be heat after long time working.
♦If you don’t correctly use the memory card or cut the power when it being read,
maybe some data will be damaged.
♦If you don’t correctly use 3G/4G card or cut the power when it being read, the
network will be interrupted.
♦If you do not use Micro SD card for a long time, please put it into packing box.

Insert the memory card as shown as follows,
◆Find the location of the 3G/4G card or memory card slot, part of the metal
contacts facing down forward until it snaps into place.
◆Insert the 3G/4G card or memory card smoothly to avoid of damaging.
◆Please do NOT insert micro SD card into 3G/4G card slot, otherwise, micro
SD will be hard to be taken out, and may be damaged.
◆32G micro SD supported.
Basic Operation
Click and Slide
Long-press and Drag

Delete
Long-press the application icon, and drag to the Home screen, then drop to the recycle bin on
the right to delete this app.
Menu
Icon Bar
Icon bar shows on the top of screen.
Icon
Name
Description
Wi-Fi
Wi-Fi signal connection and status of signal
weakness or strength.
No SIM
card
Icon displayed when no SIM card.
Mobile
Network
Network available but not surf the Internet via
2G/3G/4G.

Signal connection and status.
Time
Current time
Wi-Fi
Hotspot
Wi-Fi Hotspot available
Bluetooth
Bluetooth available
Position
GPS positioning
Flight
Mode
Flight mode status
Menu Setting
2. Press menu on screen to pop-up options, click
“Manage apps” to manage applications.
2-1. Click “ALL” applications: to view and manage
all applications.
2-2. Left slide to “DOWNLOADED”: to view and
manage downloaded applications.

2-3. Slide to “RUNNING”: to view and manage
running applications.
3. Click “Wallpaper” to launch wallpaper.
3-1. Choose favorite wallpaper.
4. Click to enter application list.

4-1. Apps will be displayed in the application list
after installed. Click related icon to enter application.
5. Drop down from the top of the screen to enter
notification bar.
5-1. The notification bar shows system, running and
error notice.

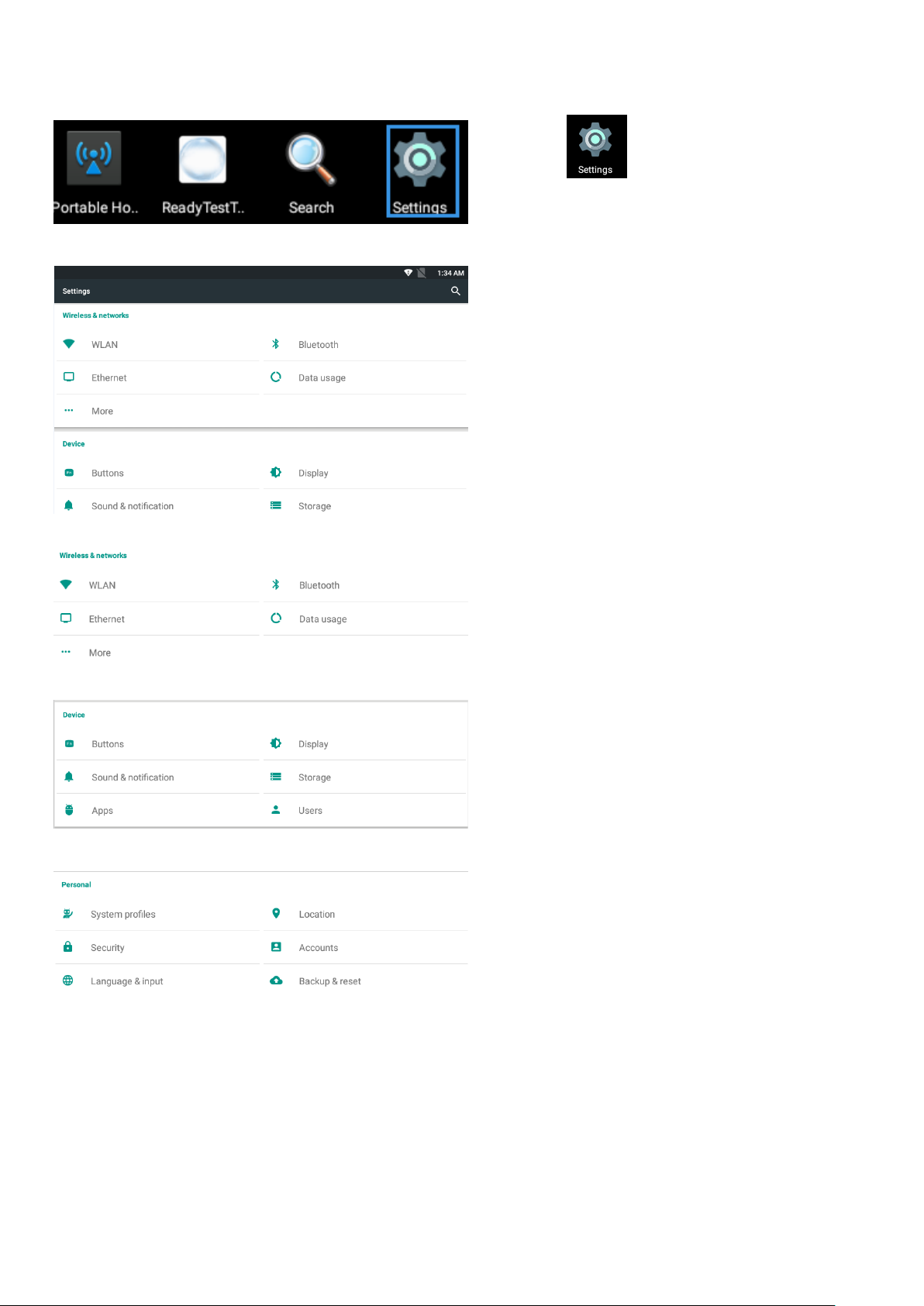

6. Click to launch setting in the
application list.
6-1. Setting according to users’ needs. Click search
icon to search function options on the upper right
corner of screen.
6-1-1. To set Wi-Fi, Bluetooth, mobile network and
other functions in “Wireless & networks”
option.
6-1-2. To view and set brightness, sleep time, font,
rotation, notification, TF card, USB flash disk and
other functions in “Device” option.
6-1-3. To manage position, screen lock, password,
account, language, input and other functions
in ”Personal” option.

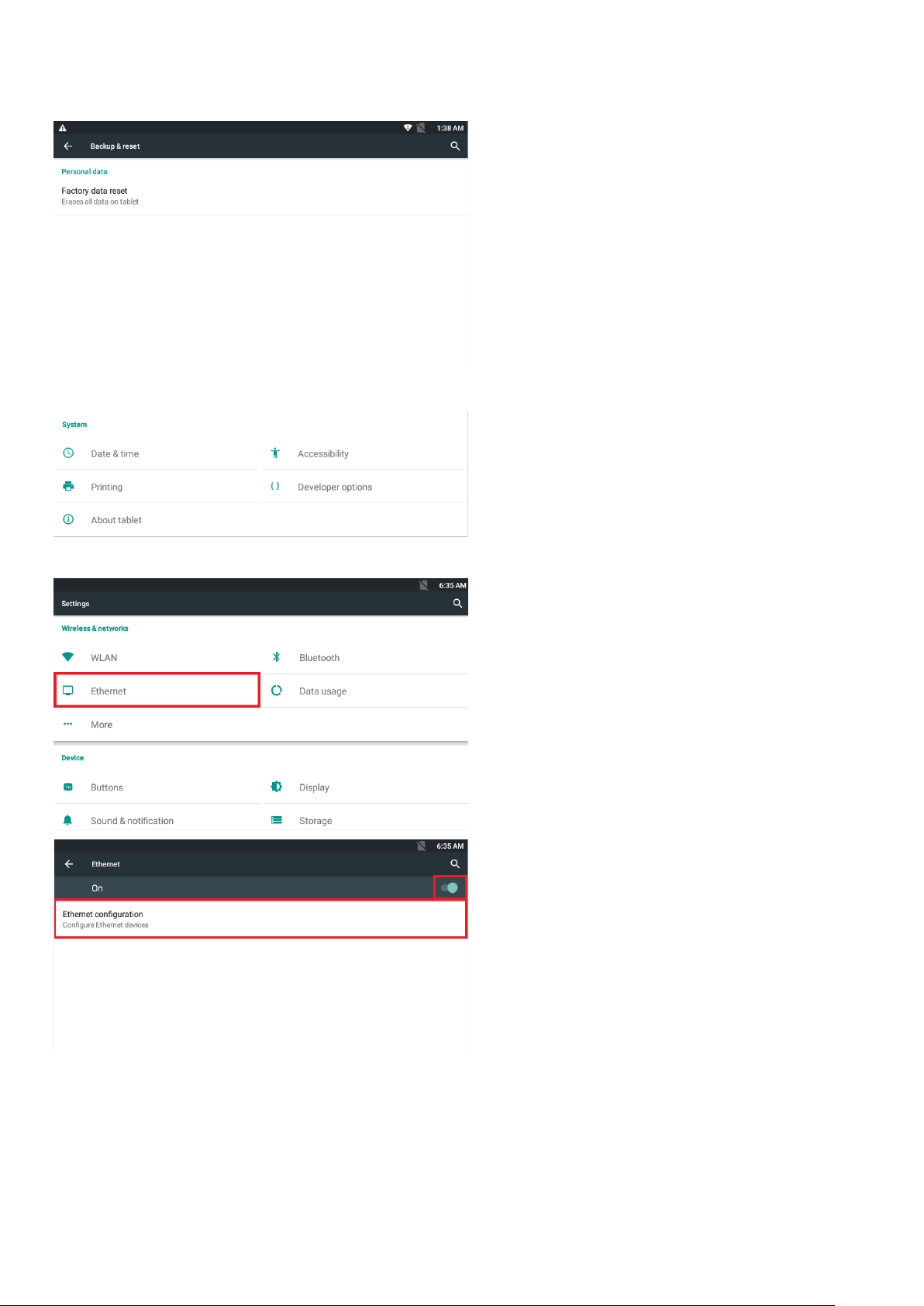

6-1-4. When unrecovered problems occurred, try to
click “Backup & reset” and “Factory data
reset” then follow the instructions. Device will
delete settings and applications after restart,
and restore to factory defaults.
(Please backup all important files before
reset. Otherwise files will be deleted
automatically and restore to factory defaults.)
6-1-5. To set date & time and accessibility
in ”System” option; Do NOT operate if
unfamiliar with “Developer options”!
7. To manage, modify DHCP or static IP and proxy
settings in “Ethernet” option.

7-1. Network IP default for dynamic IP access or
DHCP.
7-2. Optional static IP access to the static IP.

Accessories
DC adapter
P/S 2 to RS232 cable
Mini USB cable
OTG to USB
CD drive
Manual
GPS (4G version only)
1 piece
1 piece
1 piece
1 piece
1 piece
1 copy
1 piece
Trouble shooting
* System problem
·Power source problem
Unable to boot
1. Check whether the power connection is correct or not.
One end of AC to DC adapter connects to DC power input, the other end
connects to power source socket.
2. Bad connection
Check every connection and socket of power source
·Screen problem

1. The screen has no picture
2. Click function, the implementation time is too long but unable to activate.
3. In the switching process the image appears defer and standstill, and unable
to switch image smoothly.
If the unit has any above-mentioned problem, please
restart your system.
4. Incorrect responding to the touch click on screen.
Please carry out calibration to touch screen. (see about [Touch screen
calibration] explanation.)
5. The display screen is misty
Check that if the display screen surface has dust filth. Please simply wipe
with clean and soft cloth to keep the brightness of surface.
Note: due to constant effort to improve products and product
features, specifications may change without notice.
