Lincoln Electric DX7 User manual

8695 5235 / G
DX7 -1
WIRE FEED UNIT
DX7
N° W000315118 - W000315119
9109 6982 - 9109 6983
EDITION: EN Instructions for use REF. :8695 5235
REVISION: G
DATE: 11-2018 Original instructions

WIRE FEED UNIT DX7 8695 5235 / G
-2 DX7
Thank you very much for the trust you have shown by choosing this piece of
equipment. It will give you trouble-enee service if it is used and maintained as
recommended.
Its design, component specifications and manufacturing are in accordance
with applicable European directives.
Please refer to the CE declaration enclosed to identify the directives
applicable to it.
The manufacturer shall not be liable for any combination of parts not
recommended by it.
For your safety, please follow the non-limitative list of recommendations and
obligations, a large part of which are included in the Labour Code.
Please inform your supplier if you find any error in this instruction manual.

8695 5235 / GWIRE FEED UNIT DX7
DX7 -3
CONTENTS
SAFETY INSTRUCTIONS .......................................................................................................5
AIRBORNE NOISE...................................................................................................................5
DESCRIPTION.........................................................................................................................6
HEAD ORIENTATION..............................................................................................................10
USE ..........................................................................................................................................11
SPARE PARTS ........................................................................................................................12
PERSONAL NOTES ..........................................................................................................................16

WIRE FEED UNIT DX7 8695 5235 / G
-4 DX7
REVISIONS
REVISION B 08/05
DESIGNATION
PAGE
Complete update
REVISION C 05/06
DESIGNATION
PAGE
To change logos
-
REVISION D 06/07
DESIGNATION
PAGE
Reference change
11
REVISION E 10/08
DESIGNATION
PAGE
Complete update + spareparts newoffer
-
REVISION F 10/09
DESIGNATION
PAGE
Update 3A
REVISION G 11/18
DESIGNATION
PAGE
To change logos

8695 5235 / GWIRE FEED UNIT DX7
DX7 -5
SAFETY INSTRUCTIONS
For general safety instructions, please refer to the specific manual supplied with
the equipment.
AIRBORNE NOISE
Please refer to the specific manual supplied with the equipment.
Because the motor, reducing gear and plate all
have the same potential (welding +), the metal parts must not
touch the feed assembly.

WIRE FEED UNIT DX7 8695 5235 / G
-6 DX7

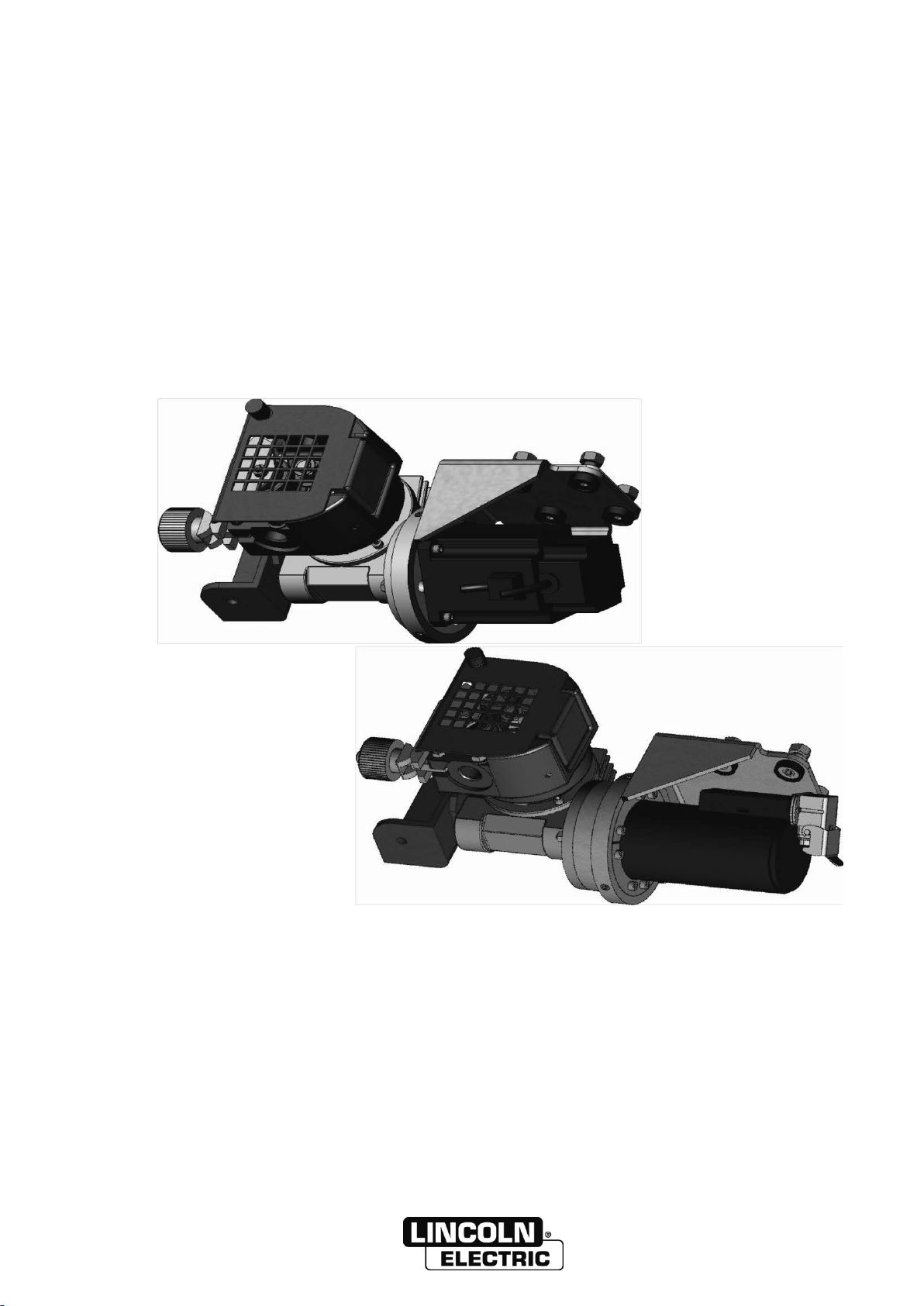

DESCRIPTION
VERSION DX7 3A
VERSION DX7

8695 5235 / GWIRE FEED UNIT DX7
DX7 -7
1 - FUNCTION OF DX7
The DX7 plate gear motor unit feeds electrode wire for automatic flux welding
equipment.
2 - VERSIONS
DX7
DX7 3A
4,2 m/mn
SUBMERGED
ARC
W000315118
9109 6982
15 m/mn
MIG or MAG
W000315119
9109 6983
3 - DESCRIPTION
Grease-lubricated gear motor M12 is made up of a wheel and a worm.
The gear motor unit assembly has a fixing plate (M22) with four insulated screws to
prevent arcing with the welding current.
The assembly also has two flange systems to orient the wire output in two planes in
relation to the fastening for optimised locating on the machines.
The plate has a shaft for two rollers that feed the electrode wire; the shaft may have
three rollers for two-wire applications.
The lock roller can be locked with the help of knob M6. Inlet E1 and the outlet from
the plate are symmetrical, with a ø of 18 mm. The fixing of the wire feed (A.S) or the
torch (MIG/MAG) is achieved by a tangent buffer.
Cover M17 guards the operator and can be opened with button M5.
Support tab M16 is provided to fix the powder container in the submerged arc
version.

WIRE FEED UNIT DX7 8695 5235 / G
-8 DX7
4 - SPECIFICATIONS
VERSION DX7
- Power supply voltage 42 VDC
- I average current consumption under charge 5 Amperes
- Max. current consumption max. admissible 5.5 Amperes
- Power supply cable section 2 x 2.5 mm2.
Tacho-generator 7 V/1000 rpm motor.
The motor must be powered by a MOTOVAR MV 20 variable
speed unit,
part no. 9109 6220
The feed speed range with a MOTOVAR MV 20 unit is from
0.17 to 4.20 m/mm with the W000315118 model and
0.6 to 15 m/mm with the W000315119 model.
The wire feed rollers are not part of unit DX7

8695 5235 / GWIRE FEED UNIT DX7
DX7 -9
VERSION DX7 3A
Motor Brushless 500W 48V DC
The motor must be powered by a MOTORPACK variable speed
unit,
part no. 9530 7802
The feed speed range with a MOTOVAR MV 20 unit is from
0.17 to 4.20 m/mm with the 9109 6982 model and
0.6 to 15 m/mm with the 9109 6983 model.
The wire feed rollers are not part of unit DX7

WIRE FEED UNIT DX7 8695 5235 / G
-10 DX7
HEAD ORIENTATION
The assembly can be turned along Y by unfastening the eight screws (M1)
The head can be turned along Z by unfastening the three screws (M2)

8695 5235 / GWIRE FEED UNIT DX7
DX7 -11
USE
STARTING UP
Fix the gear motor assembly on the machine with four M10 screws with
a centre distance of 60mm (do not forget the insulating plate).
- Open the guard cover.
- Assemble the wire guide on the plate entry side and the torch (MIG-
MAG) or wire feed (A.S) on the plate exit side.
- Fit the rollers onto the shaft and lock with the nut and washer.
- Feed the wire in the plate and fasten it with the lock roller plate using
the knob.
- Close the guard cover.
ELECTRICAL CONNECTIONS
Sanyo Motor connections:
Connect the power supply cable to the male connector.
Tacho-generator connections:
Connect the cable to the female connector.
Check the motor rotation direction. If needed, reverse the two motor power
supply conductors and the two tacho conductors.
3A Motor connections:
See plan 9530 9202.
Because the motor, gear motor and plate all have the same
potential (welding +), the metal parts must not touch the feed
unit.

WIRE FEED UNIT DX7 8695 5235 / G
-12 DX7

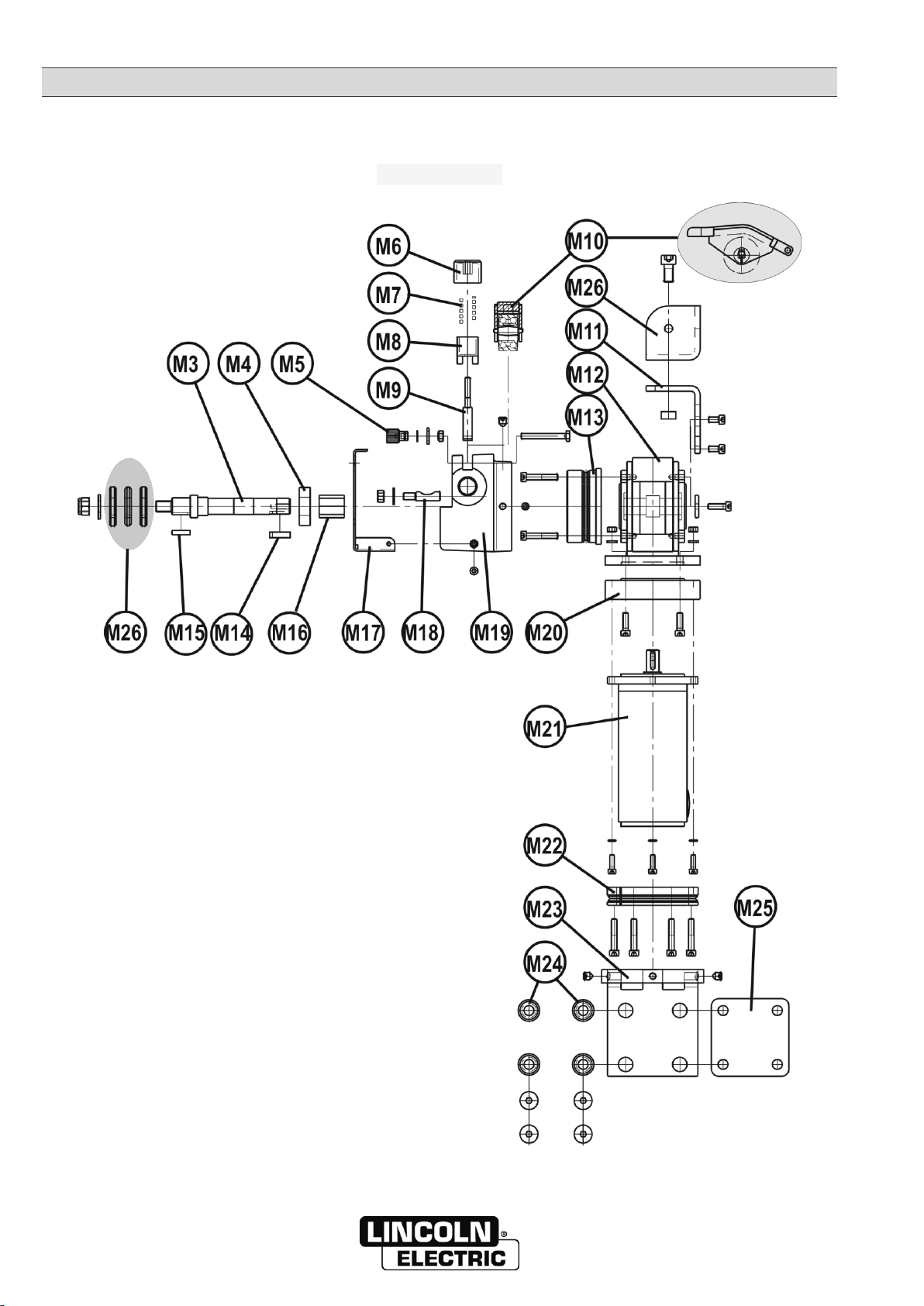

SPARE PARTS
In order to avoid errors when supplying spare parts, we recommend that you send us a copy of the page with
the list of parts duly completed. Please specify in the Order column the number of parts desired and indicate the
type and the serial number of your equipment. VERSION DX7

8695 5235 / GWIRE FEED UNIT DX7
DX7 -13

normally in stock

not in stock
on request
Item
Ref.
Stock
Order
Designation
3
9109 6166

Feed plate shaft
4
.620 0429

20/40/12 6004 2RS bearing
5
9109 6146

Knob
6
9109 6149

Adjusting ring
7
.620 0371

Pressure spring
8
9109 6148

Adjusting end piece
9
9109 6147

Adjusting rod
10
W000269309

Plate with pressure roller
11
9109 6296

Flux container support
26
9109 6297

Flux container support
12

Reducing gear
W000269311

VF44 P71 B14 R1/35 for 4.2 m/min version
W000269312

VF44 P71 B14 R1/10 for 15 m/min version
13
9109 6153

Plate hub
14
.620 1649

6/6/23 key
15
9109 4326

3/16 key
16
9109 6167

Spacer ring
17
9109 6154

Cover
18
9109 6156

Tangent buffer
19
9109 6152

DX7 plate
20
9109 6157

Motor spacer flange
21
W000269310

GMP DX7 motor with tacho-generator
22
9109 6159

Rotation flange
23
9109 6158

Turning support
24
9109 4327

Insulation for M10 screw
25
9109 4324

Fixing support insulation

NOT INCLUDED IN THE UNIT
W000237608

Set of 2 rollers for one Ø 1,6 à Ø 2,4
W000237609

Set of 2 rollers for one Ø 3,2 à Ø 5
9109 6175

Set of 2 rollers for one Ø 1,6 à Ø 2,4
9109 6176

Set of 2 rollers for one Ø 3,2 à Ø 5
W000234765

Set of 3 rollers for two 1,2 / 2,4 mm
For parts order, give the quantity required and put the number of your machine in the box below.
TYPE:
Number:

WIRE FEED UNIT DX7 8695 5235 / G
-14 DX7

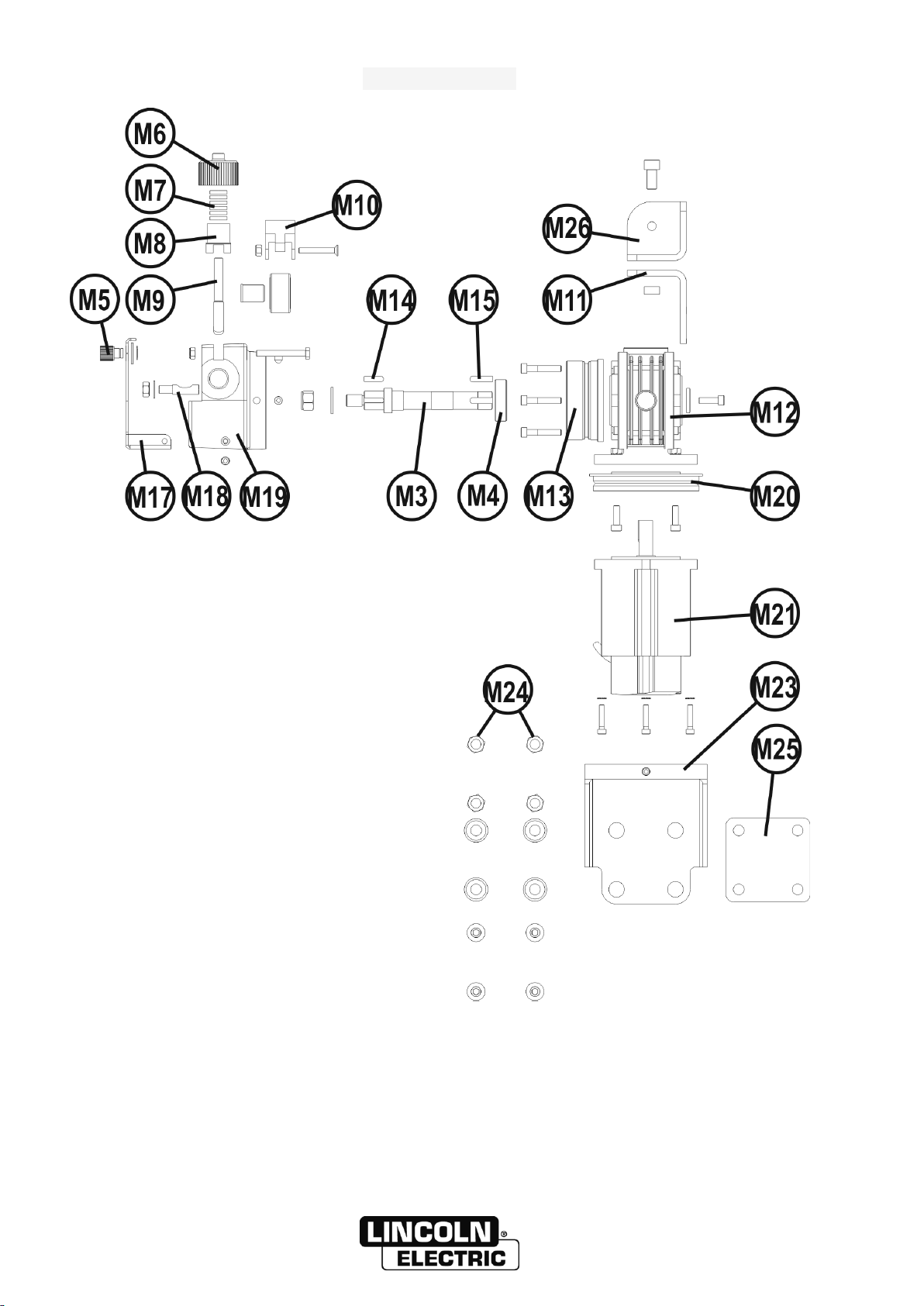

VERSION DX7 3A

8695 5235 / GWIRE FEED UNIT DX7
DX7 -15

normally in stock

not in stock
on request
Item
Ref.
Stock
Order
Designation
3
9109 6166

Feed plate shaft
4
.620 0429

20/40/12 6004 2RS bearing
5
9109 6146

Knob
6
9109 6149

Adjusting ring
7
.620 0371

Pressure spring
8
9109 6148

Adjusting end piece
9
9109 6147

Adjusting rod
10
W000269309

Plate with pressure roller
11
9109 6296

Flux container support
26
9109 6297

Flux container support
12

Reducing gear
W000269311

VF44 P71 B14 R1/35 for 4.2 m/min version
W000269312

VF44 P71 B14 R1/10 for 15 m/min version
13
9109 6153

Plate hub
14
.620 1649

6/6/23 key
15
9109 4326

3/16 key
16
9109 6167

Spacer ring
17
9109 6154

Cover
18
9109 6156

Tangent buffer
19
9109 6152

DX7 plate
20
9109 6157

Motor spacer flange
21
9530 0070

3A motor 500W
23
9109 6158

Turning support
24
9109 4327

Insulation for M10 screw
25
9109 4324

Fixing support insulation

NOT INCLUDED IN THE UNIT
W000237608

Set of 2 rollers for one Ø 1,6 à Ø 2,4
W000237609

Set of 2 rollers for one Ø 3,2 à Ø 5
9109 6175

Set of 2 rollers for one Ø 1,6 à Ø 2,4
9109 6176

Set of 2 rollers for one Ø 3,2 à Ø 5
W000234765

Set of 3 rollers for two 1,2 / 2,4 mm
For parts order, give the quantity required and put the number of your machine in the box below.
TYPE:
Number:

WIRE FEED UNIT DX7 8695 5235 / G
-16 DX7

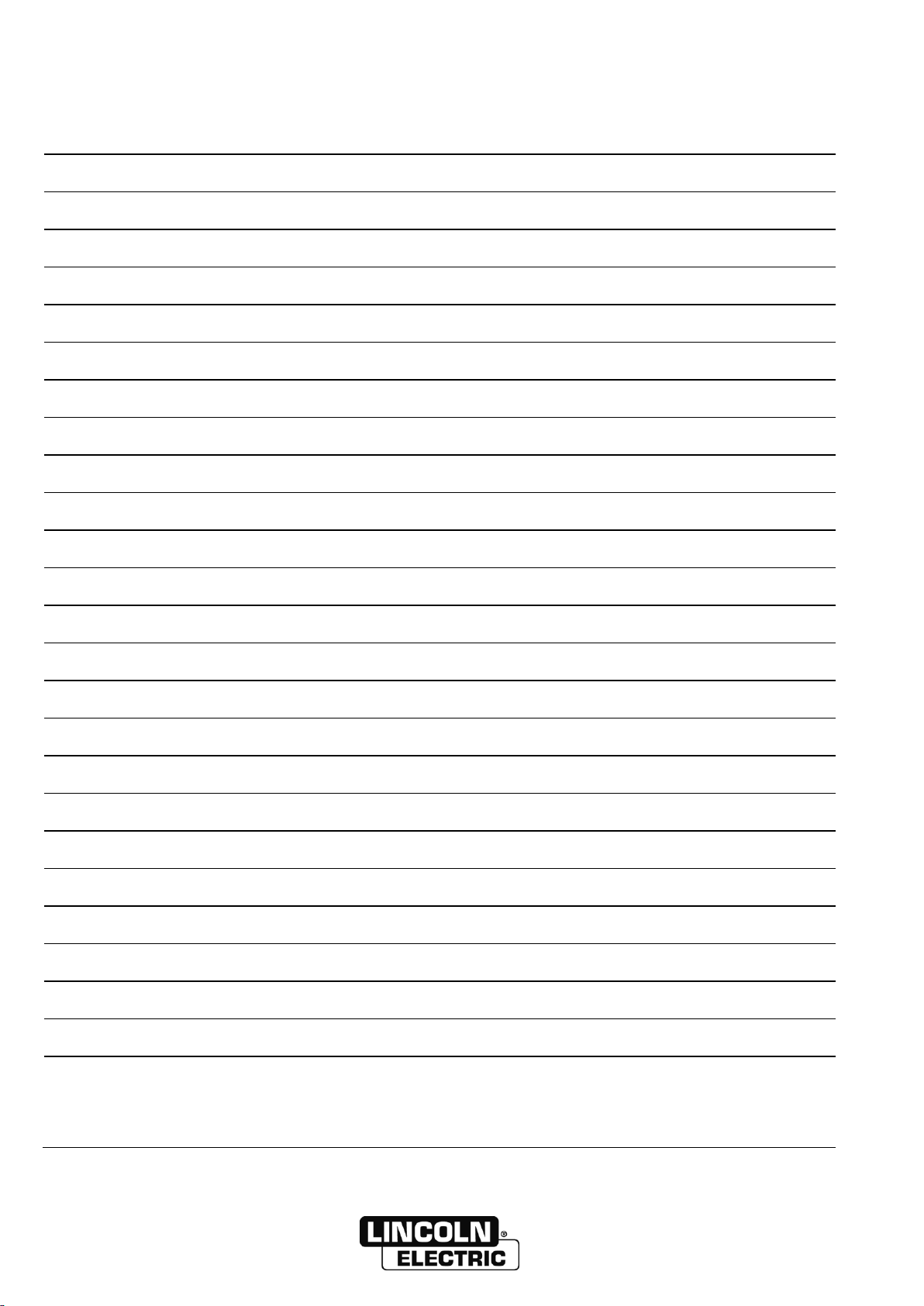

PERSONAL NOTES
