Lincoln 1410 User manual

Page Number - 1
Model 1410, 1410E
PowerLuber Battery Charger
Series “A”
CHARGER OPERATION
CHARGING THE BATTERY PACK
Before using your PowerLuber for the first time, the battery
pack should be charged for 12 hours. If the battery pack is
installed in the PowerLuber, remove it by following instructions
under.
CHARGING PROCEDURE
Make sure power circuit voltage is the same as that shown
on the charger specification plate, Connect charger to
power source.
1. Plug the charger into an appropriate outlet before inserting
battery pack.
2. Insert the battery pack into the charger. The red (charg-
ing) light will blink continuously indicating that the charging
process has started.
3. The completion of charge will be indicated by the red light
remaining ON continuously. The pack is fully charged and
may be used at this time.
4. The battery pack may be left on the trickle charge until you
are ready to use.
5. Disconnect charger from power source when not in use.
LEAVING THE BATTERY PACK IN THE
CHARGER
The charger and battery pack can be left connected with the red
light glowing indefinitely. The charger will keep the battery pack
fresh and fully charged.
NOTE: A battery pack will slowly lose its charge when kept out
of the charger. If the battery pack has not been kept on main-
tenance charge, it may need to be recharged before use. A
battery pack may also slowly lose its charge if left in a charger
that is not plugged into an appropriate AC source.
As a battery pack approaches the discharged state, you will no-
tice a sharp drop in tool performance. When the tool is unable to
perform the task at hand, it is time to recharge the battery pack.
Recharging the battery pack before this condition is reached
will reduce the total work life of the pack. Discharging the pack
beyond this point can damage the pack.
NOTE: Battery temperature will increase during and shortly after
use. Batteries may not accept a full charge if they are charged
immediately after use. Allow the battery pack to cool to room
temperature before charging for best results.
CAUTION: Vent slots in top and bottom of charger must not be
obstructed. Do not charge battery when temperature is BELOW
32°F (0° C) or ABOVE 104°F (40° C).
120 volts present at charging terminals. Do not probe with
conductive objects. Danger of electric shock or electrocution.
Form 402021
OCT - 2005

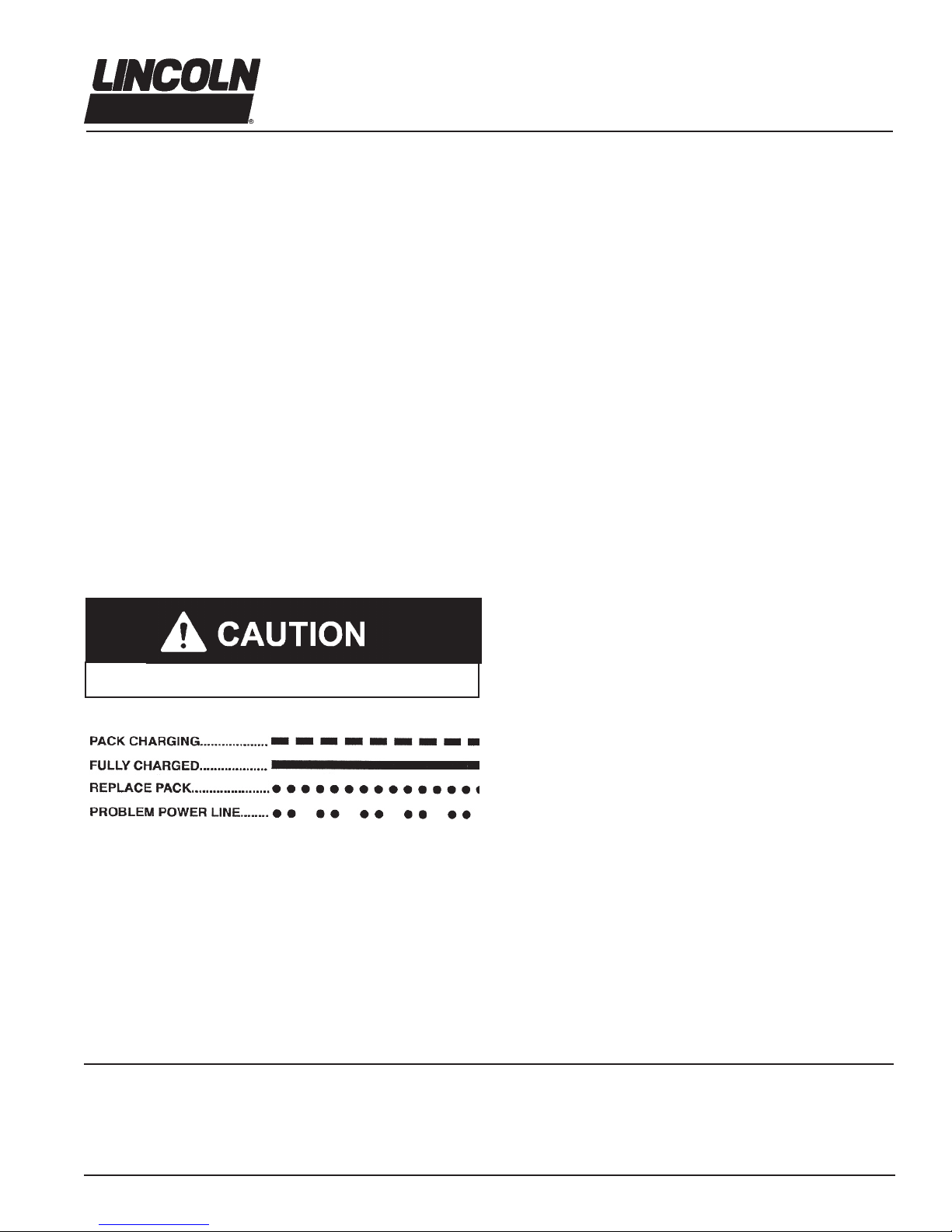

INDICATOR LIGHT OPERATION
CHARGE INDICATORS
The charger is designed to detect certain problems that can
arise with battery packs. Problems are indicated by the red
light flashing at a fast rate. If this occurs, re-insert battery pack
into the charger. If the problem persists, try a different bat-
tery pack to determine if the charger is O.K. If the new pack
charges correctly, then the original pack is defective and should
be returned to a service center or other collection site for recy-
cling. If the new battery pack elicits the same trouble indication
as the original, have the charger tested at an authorized service
center.
Owner’s Manual for Charger and Batteries
Europe/Africa:
Heinrich-Hertz-Str 2-8
D-69183 Walldorf
Germany
Phone [phone]
Fax [phone]
© Copyright 2005
Printed in USA
Web site:
lincolnindustrial.com
Americas:
One Lincoln Way
St. Louis, MO 63120-1578
USA
Phone [phone]
Fax [phone]
Asia/Pacific:
51 Changi Business Park
Central 2
#09-06 The Signature
Singapore 486066
Phone [phone]
Fax [phone]

Page Number - 2
Model 1410, 1410E,
Battery Charger
Form 402021
Important Charging Notes
1. Longest life and best performance can be obtained if the
battery pack is charged when the air temperature is between
65°F and 75°F (18° - 24°C). DO NOT charge the battery
pack in an air temperature below +40°F (+4.5°C) or above
105°F (+40.5°C). This is important and will prevent serious
damage to the battery pack.
2. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and does
not indicate a problem.
3. If the battery pack does not charge properly:
a. Check current at receptacle by plugging in a lamp or other
appliance.
b. Check to see if the receptacle is connected to a light switch
which turns power off when you turn out the lights.
c. Move charger and battery pack to a location where the sur-
rounding air temperature is approximately 65°F - 75°F
(18 - 24°C).
d. If charging problems persist, take the tool, battery pack and
charger to your local service center.
4. The battery pack should be recharged when it fails to
produce sufficient power on jobs which were easily done
previously. DO NOT CONTINUE to use under these condi-
tions. Follow the charging procedure. You may also charge
a partially used pack whenever you desire with no adverse
affect on the battery pack.
5. Under certain conditions, with the charger plugged into the
power supply, the exposed charging contacts inside the char-
ger can be shorted by foreign material. Foreign materials of
a conductive nature such as, but not limited to, steel wool,
aluminum foil, or any buildup of metallic particles should be
kept away form charger cavities. Always unplug the charger
from the power supply when there is no battery pack in the
cavity. Unplug charger before attempting to clean.
6. Do not freeze or immerse charger in water or any other liquid.
Don’t allow any liquid to get inside charger. Electric shock
may result. To facilitate the cooling of the battery pack after
use, avoid placing the charger or battery pack in a warm
environment such as a metal shed or an uninsulated trailer.
Never attempt to open the battery pack for any reason. If the
plastic housing of the battery pack breaks or cracks, return to
a service center for recycling.

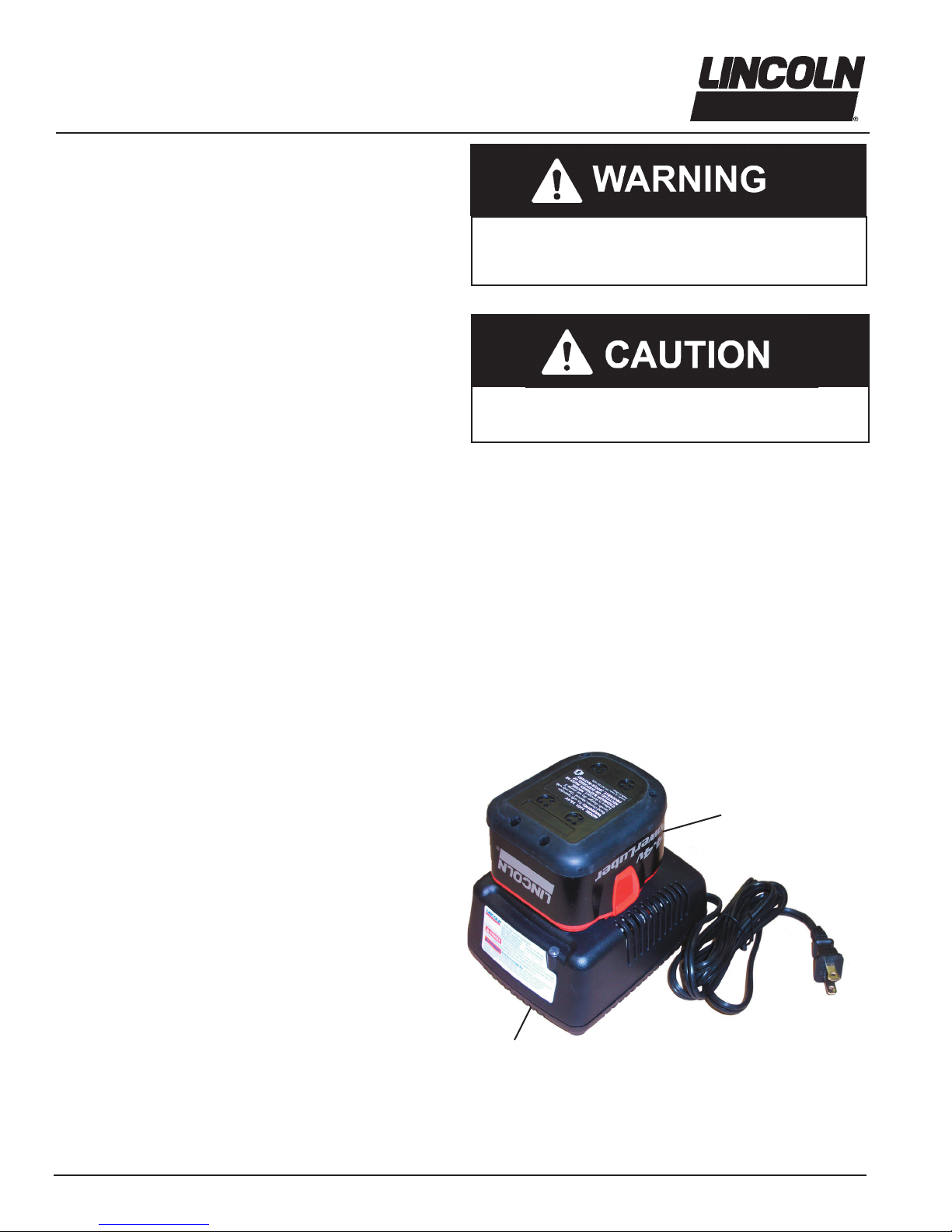

1410 or 1410E
Battery Charger
1401 Battery
Product Specifications
Model 1410 Model 1410E
Input Voltage 120 VAC/60 Hz 220 VAC/50 HZ
@ 2 amps @ 2 amps
Output 14.5 Volts 14.5 Volts
@ 2.8 Amps @ 2.8 Amps
Time to Charge
1401 Battery: 1 Hour Approx. 1 Hour Approx.
Cord Length 6 ft (2 m) 6 ft (2 m)
Indicator Lights Red Red
Weight 2.2 lb. (1.01 Kg) 2.2 lb. (1.01 Kg)

Page Number - 3
Form 402021
Model 1410, 1410E,
Battery Charger
This manual contains important safety and operating instruction
for Lincoln Model 1410 or 1410E Battery Charger.
SAFETY INSTRUCTIONS FOR CHARGER AND BATTERIES
SAVE THESE INSTRUCTIONS
LENGTH OF CORD IN FEET (M) 25 (7.5) 50 (15) 100 (30) 150 (45)
AWG SIZE OF CORD (mm²)18 (1) 18 (1) 18 (1) 16 (1.5)
as a metal tool shed, or a car in the summer) where the
temperature may reach or exceed 122°F (50°C) , which
can lead to deterioration of the storage battery.
13. Do not charge battery pack when the temperature is
BELOW 32°F (0°C)or ABOVE 104°F (40°C). This is very
important for proper operation.
14. Do not incinerate battery pack It can explode in a fire.
15. Do not charge battery in damp or wet locations.
16. Do not attempt to charge any other cordless tool or battery
pack with the Lincoln Model 1410 or 1410E charger.
17. Do not short across the terminals of the battery pack.
EXTREMELY HIGH TEMPERATURES COULD CAUSE
PERSONAL INJURY OR FIRE.
18. Dispose of expended batteries properly. The Lincoln Model
1401 Battery Pack contains rechargeable, nickel-cadmium
batteries. These batteries must be recycled or disposed
of properly. Drop off expended battery packs at your local
replacement battery retailer, or your recycling center.
Users in the United States NOTE:
Applicable fees for the collection and recycling of these bat-
teries have been paid to the RBRCTM. For further informa-
tion, call 1-800-8BATTERY.
1. Before using a battery charger, read all instructions and
cautionary markings on Battery Charger, Battery Pack, and
product using battery.
2. CAUTION: To reduce the risk of injury, Lincoln Model 1410
or 1410E Chargers should only be used to charge Lincoln
battery pack Model 1401. Other types of batteries may burst
causing personal injury and damage. Do not charge Lincoln
Model 1401 Battery Packs with any other charger.
3. Do not expose charger to rain, snow or frost.
4. Do not abuse cord. Never carry charger by cord or yank it
to disconnect from receptacle. Pull by plug rather than cord
when disconnecting charger. Have damaged or worn power
cord and strain reliever replaced immediately. DO NOT AT-
TEMPT TO REPAIR POWER CORD.
5. Make sure cord is located so that it will not be stepped on,
tripped over, or otherwise subjected to damage or stress.
6. Do not use an extension cord unless absolutely necessary.
Use of improper extension cord could result in a risk of fire
and electric shock. If an extension cord must be used, make
sure:
A That the extension cord is properly wired and in good electri-
cal condition.
B Wire Size of cord is at least as specified in following chart:
Risk of Electric Shock 120 VAC or 240 VAC present at char-
ger terminals. Do not probe with conductive objects. Do not
charge damaged battery. Replace immediately.
C If an extension cord is to be used outdoors it must be
marked with the suffix W-A following the cord type designa-
tions. For example -SJTW-A to indicate it is acceptable for
outdoor use.
7. Do not operate charger with damaged cord or plug. Have
them replaced immediately, to avoid a hazard DO NOT AT-
TEMPT TO REPAIR POWER CORD.
8. Do not operate charger if it has received a sharp blow, been
dropped, or otherwise damaged in any way, take it to a
qualified serviceman.
9. Do not disassemble charger or battery pack. Take it to a
qualified serviceman when service or repair is required.
Incorrect reassembly may result in risk of electrical shock or
fire.
10. Unplug charger from outlet before attempting any mainte-
nance or cleaning to reduce risk of electric shock.
11. Charge the battery pack in a well ventilated place, do
not cover the charger and battery with a cloth, etc., while
charging.
12. Do not store the charger or battery packs in locations (such

Page Number - 4
Model 1410, 1410E,
Battery Charger
Form 402021
Declaration of conformity according to EMV directive 89/336/EEG as last amended by EC Directive
93/68/EEC Electromagnetic Compatibility.
We declare that the model of the
Battery Charger
in the version supplied by us, complies with the provisions of the above mentioned directive.
Applied harmonized standards in particular:
EN61000-3-3 Electromagnetic Compatibility (EMC) - Part 3: Limits - Section 3: Limitations of Voltage Fluctuations and Flicker
in Low
Voltage Supply Systems for Equipment with Rated Current = 16A - SAME AS IEC 61000-3-3
EN 55014-2 Electromagnetic Compatibility - Requirements for Household Appliances, Electric Tools, & Similar Apparatus -
Part 2: Immunity - Product Family Standard
EN55014-1 Electromagnetic Compatibility - Requirements for Household Appliances, Electric Tools and Similar Apparatus -
Part 1: Emission - Product Family Standard
EN 61000-3-2 + Amendment 1, + Amendment 2, + Amendment 14
Electromagnetic Compatibility (EMC) Part 3: Limits - Section 2: Limits for Harmonic Current Emissions (Equipment Input
Current <= 16A per Phase)
St. Louis, MO 10/14/05, Paul Conley, Chief Engineer
Lincoln Industrial Standard Warranty
LIMITED WARRANTY
Lincoln warrants the equipment manufactured and supplied by Lincoln to be free from defects in material and workmanship for a period of one (1)
year following the date of purchase, excluding there from any special, extended, or limited warranty published by Lincoln. If equipment is deter-
mined to be defective during this warranty period, it will be repaired or replaced, within Lincoln’s sole discretion, without charge.
This warranty is conditioned upon the determination of a Lincoln authorized representative that the equipment is defective. To obtain repair or
replacement, you must ship the equipment, transportation charges prepaid, with proof of purchase to a Lincoln Authorized Warranty and Service
Center within the warranty period.
This warranty is extended to the original retail purchaser only. This warranty does not apply to equipment damaged from accident, overload,
abuse, misuse, negligence, faulty installation or abrasive or corrosive material, equipment that has been altered, or equipment repaired by anyone
not authorized by Lincoln. This warranty applies only to equipment installed, operated and maintained in strict accordance with the written specifi-
cations and recommendations provided by Lincoln or its authorized field personnel.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE WARRANTY OF MERCHANTIBILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
In no event shall Lincoln be liable for incidental or consequential damages. Lincoln’s liability for any claim for loss or damages arising out of the
sale, resale or use of any Lincoln equipment shall in no event exceed the purchase price. Some jurisdictions do not allow the exclusion or limitation
of incidental or consequential damages, therefore the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary by jurisdiction.
Customers not located in the Western Hemisphere or East Asia: Please contact Lincoln GmbH & Co. KG, Walldorf, Germany, for your warranty
rights.
Lincoln Industrial Contact Information
To find Lincoln Industrial’s Nearest Service Center call the following numbers, or you may also use our website
Customer Service 314-679-4200
Website lincolnindustrial.com
