Lindy 32577 User manual

© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (June 2008)
VGA & Audio Matrix 2x2, 4x4
Manual English
Benutzerhandbuch Deutsch
Manuel Français
Manuale Uso Italiano
LINDY No. 32577 & 32578
www.lindy.com

Manual English
2
Introduction
Thank you for purchasing the LINDY 2 or 4 port VGA Matrix with Audio. The VGA Matrix offers
maximum convenience when you need to connect multiple VGA sources and displays together. It
features 2 or 4 VGA & Audio input source ports and 2 or 4 VGA & Audio output ports. Each of the
sources can be directed to any of the displays using the supplied remote control. It's an ideal solution
for multiple VGA & Audio distribution use in retail product demonstration, training and public display
applications.
With the ability to daisy-chain more than one Matrix you can expand the number of computers you
can connect, up to 3 layers. And with the built-in video signal enhancement, you can place the
display up to 65m away while still maintaining your video quality
Features
•Display up to four video inputs from two or four computers on two or four displays
•PC selection via push buttons or IR remote control
•IR remote control allows you to switch outputs from up to 6 feet away
•Supports daisy-chain to expand the number of computer connections up to 3 layers
•Video signal enhancement allows monitors to be placed up to 65m away
•Supports video resolutions of up to QXGA 2048x1536@85Hz
Package Contents
•VGA Matrix (2 or 4 port)
•Power Adapter 5V DC 1A
•IR Remote controller
•This user manual
Specifications
•PC connector ports:
•Video – 2 or 4, 15 Way HD Female
•Audio – 2 or 4, 3.5mm Stereo Jack
•Console ports:
•Video – 2 or 4, 15 Way HD Female
•Audio – 2 or 4, 3.5mm Stereo Jack
•DDC, DDC2 monitor support
•450Mhz Bandwidth
•Maximum resolution up to 2048x1536@85Hz
•5VDC 1A PSU
Operation: Note: Please make sure all devices are powered off before connecting any cables.
1 Connect your PC’s to the VGA Matrix with audio using 15 Way HD VGA cables and 3.5mm
jack cables
2 Then connect the VGA Matrix with audio to your displays and speakers using 15 way HD
VGA Cables and 3.5mm jack cables
3 Plug in the supplied power supply
4 Power on all devices starting with the VGA Matrix then the monitors and finally the PC’s
5 Pressing the button on the front of the unit will change change the PC input for the selected
monitor
6 You can also use the supplied remote control to change inputs

Manual English
3

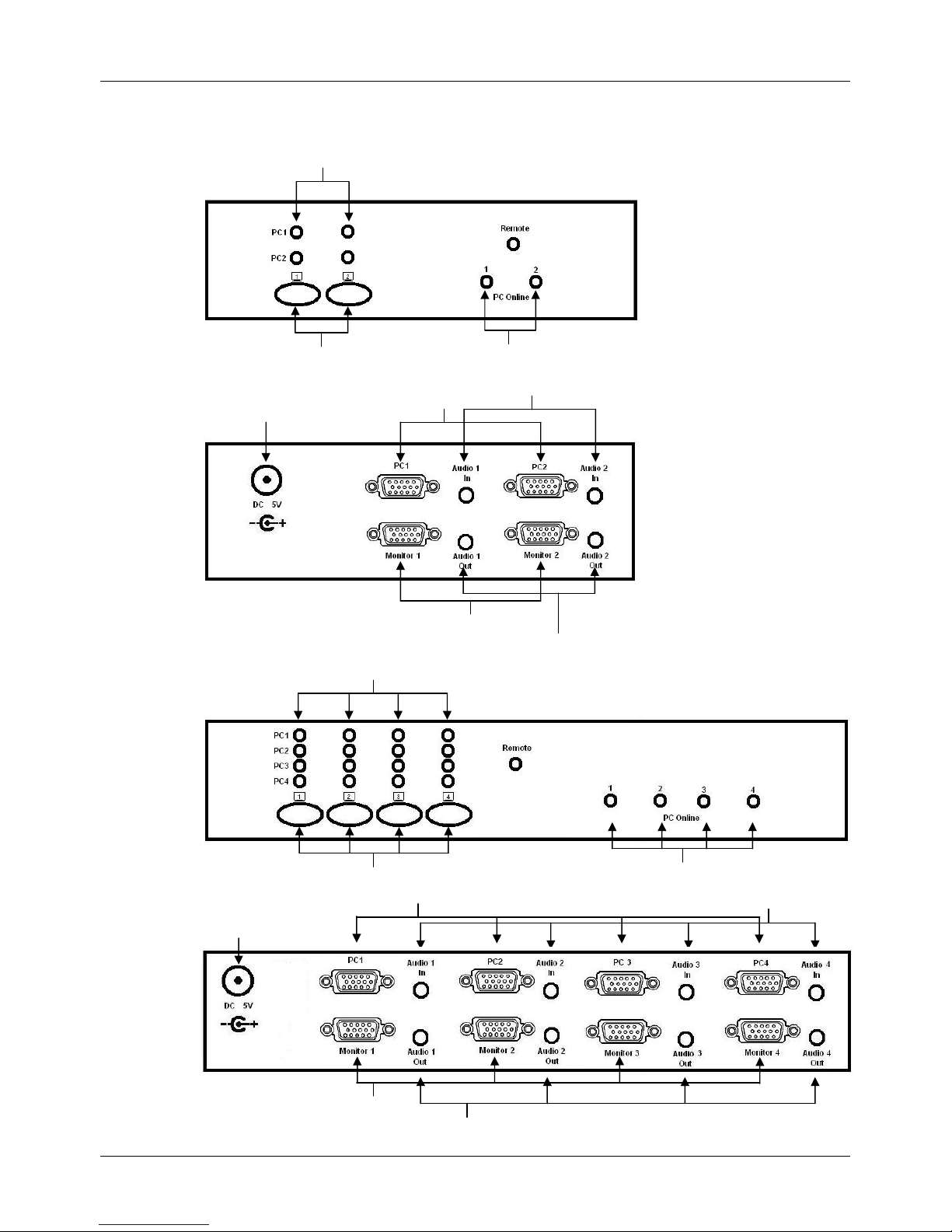

2 Port Version
Front
Rear
4 Port Version
Front
Rear
LED Indicator: Green for selected Input
Input Select LED Indicator: Green
for PC Online
5VDC 1A VGA Signal In Audio In
P
orts
VGA Signal Out
Audio Out
LED Indicator: Green for selected Input
Input Select
LED Indicator: Green for PC Online
VGA Signal In
Audio In
Audio Out
5VDC 1A
VGA Signal Out

Benutzerhandbuch Deutsch
4
EINFÜHRUNG
Wir gratulieren Ihnen zum Kauf des LINDY VGA & Audio Matrix-Umschalters.
Dieses Handbuch beschreibt sowohl den 2x2 Umschalter als auch das 4x4 Modell. Die Umschalter
bieten alle Möglichkeiten des flexiblen und Über-Kreuz Audio-Video-Switching. Jede Signalquelle
kann unabhängig auf jeden Ausgangsport geschaltet werden, sowohl per Fernbedienung wie auch
über die Tasten am Gerät.
Für umfangreichere Verschaltung sind mehrere Geräte miteinander in bis zu 3 Ebenen verschaltbar.
Integrierte Videoverstärker ermöglichen Anschlusskabellängen bis 65m bei hoher Signalqualität. Ver-
wenden Sie in solchen Fällen hochwertige VGA Kabel wie z.B. die LINDY Premium Gold VGA Kabel!
EIGENSCHAFTEN
•VGA Auflösungen bis 2048 x 1536
•Matrix-Umschalter, jeder Eingang kann auf jeden Ausgang geschaltet werden
•Umschalten per Fernbedienung oder Tasten am Gerät
•Kaskadierbar bis zu 3 Ebenen
•Anschlusskabellängen bis 65m
LIEFERUMFANG
•VGA & Audio Matrix Umschalter (2 oder 4 Port Modell)
•Netzteil 5V DC 1A
•IR Fernbedienung
•Dies Handbuch
ANSCHLÜSSE UND SIGNALE
•EINGANGSPORTS:
•VGA – 2 oder 4 Port, HD-15 Buchse
•Audio – 2 oder 4 Port, 3.5mm Stereo Klinkenbuchse
•AUSGANGSPORTS:
•VGA – 2 oder 4 Port, HD-15 Buchse
•Audio – 2 oder 4 Port, 3.5mm Stereo Klinkenbuchse
•DDC, DDC2 Monitorsignal Unterstützung
•450MHz Video-Bandbreite
•Maximalauflösung bis 2048x1536@85Hz
•Weitbereichs-Stecker-Netzteil 100…240VAC, 5VDC ~1A
BETRIEB
HINWEIS: Schalten Sie bitte alle anzuschließenden Geräte bei der Installation dieser Umschalter aus!
1 Stellen Sie die VGA- und Audioverbindungen zwischen den Eingangsports und Ihren
Signalquellen her. Passende Kabel, auch Adapterkabel, in verschiedensten Längen und
Qualitäten finden Sie auf der LINDY Website
2 Stellen Sie die entsprechenden Verbindungen zu Ihren Ausgabegeräten her
3 Schließen Sie das Netzteil an
4 Schalten Sie alle Geräte beginnend mit dem Matrix-Umschalter ein
5 Sie können die Ports auch von der Fernbedieung her umschalten.

Manuel Français
5
Introduction
Merci d’avoir choisi le switch Matrix LINDY 2 ou 4 ports VGA avec audio. Il offre un maximum de
confort si vous avez besoin de connecter ensemble plusieurs sources et écrans VGA. Il offre 2 ou 4
ports d’entrée VGA & audio et 2 ou 4 ports de sortie VGA & audio. Chaque source peut être dirigée
vers n’importe quel écran en utilisant la télécommande fournie. C’est une solution idéale pour la
distribution multiple VGA & audio, pour une démonstration, et autres applications.
Avec le port daisy-chain, vous pouvez augmenter le nombre d’ordinateurs à connecter, jusqu’à 3
niveaux. Avec l’amélioration intégrée du signal vidéo, vous pouvez placer un écran jusqu’à 65m tout
en conservant une qualité vidéo.
Caractéristiques
•Affiche sur jusqu’à deux ou quatre écrans, à partir de deux ou quatre ordinateurs
•Sélection du PC via bouton sur le boîtier ou télécommande infrarouge
•Télécommande infrarouge vous permet de commuter les sorties les sorties jusqu’à 2 mètres
•Supporte le daisy-chain pour augmenter le nombre d’ordinateurs, sur 3 niveaux maximum
•Amélioration du signal vidéo permet aux écrans d’être placé à 65m
•Supporte des résolutions vidéo jusqu’à 2048x1536
•Convient pour les écrans VGA, SVGA, XGA, SXGA, UXGA, et multisync
Contenu du package
•Switch matrix VGA (2 ou 4 ports)
•Alimentation 5V DC 1A
•Télécomande infrarouge
•Ce manuel
Spécifications
•Ports PC:
•Vidéo – 2 ou 4, 15 pins femelles
•Audio – 2 ou 4, 3.5mm Jack stéréo
•Ports console:
•Vidéo – 2 ou 4, 15 pins femelle
•Audio – 2 ou 4, 3.5mm Jack stéréo
•Support des écrans DDC, DDC2
•Bande passante: 450Mhz
•Résolution maximale: 2048x1536@85Hz
•Alimentation 5VDC 1 A
Utilisation: note: merci de vérifier que tous les appareils sont éteints avant de connecter les câbles.
1 Connectez votre PC au switch Matrix VGA avec le son, en tulisant des cpabkes vidéo 15 pins
et des câbles Jack 3,5m
2 Connectez ensuite la Matrix VGA avec audio à vos écrans et haut-parleurs, en utilisant des
câbles VGA et 3.5mm Jack
3 Connectez l’alimentation fournie
4 Eteignez tous les périphériques en démarrant par le switch VGA Matrix, puis les écrans et
enfin les PCs
5 Pressez le bouton en face de l’unité changera l’entrée du PC pour l’écran sélectionné
6 Vous pouvez utiliser la télécommande fournie pour commuter les entrées

Manuale Uso Italiano
6
Introduzione
Grazie per aver scelto il LINDY VGA & Audio Matrix 2 o 4 porte. Questo prodotto è l’ideale per
gestire più sorgenti VGA ed inviare questi segnali a più monitor. Abbiamo le versioni da 2 o 4 ingressi
VGA & Audio e da 2 o 4 uscite VGA & Audio. Ogni sorgente può essere indirizzata ad uno dei
monitor connessi tramite il telecomando incluso nella fornitura. E’ la soluzione ideale per applicazioni
VGA & Audio come presentazioni, dimostrazioni, training, ecc...
Grazie al supporto daisy-chain è possibile collegare in cascata più Matrix per aumentare il numero
dei computer connessi fino ad un massimo di 3 livelli. Inoltre è possibile effettuare collegamenti ad
una distanza massima di 65m mantenendo inalterata la qualità del segnale video.
Caratteristiche
•Visualizzazione libera di due o quattro segnali video a due o quattro monitor
•Selezione PC tramite tasti sul dispositivo o con telecomando
•Telecomando IR incluso
•Supporta collegamenti in cascata fino a 3 livelli
•Ripartizione del segnale video per inviare segnali a monitor distanti fino a 65m
•Supporta risoluzioni video fino a 2048x1536
•Compatibile con monitor VGA, SVGA, XGA, SXGA, UXGA e Multisync
Contenuto della scatola
•VGA & Audio Matrix (2 o 4 porte)
•Alimentatore da 5V DC 1A
•Telecomando IR
•Questo manuale
Specifiche
•Porte connessione PC:
•Video – 2 o 4, 15 Pin HD Femmina
•Audio – 2 o 4, 3.5mm Stereo Jack
•Porte Console:
•Video – 2 o 4, 15 Pin HD Femmina
•Audio – 2 o 4, 3.5mm Stereo Jack
•Supporto monitor DDC, DDC2
•Larghezza di banda 450Mhz
•Supporta risoluzioni video fino a 2048x1536@85Hz
•Alimentazione 5VDC 1A
Utilizzo: N.B.: Prima di effettuare qualsiasi collegamento assicurarsi che tutti i dispositivi siano spenti.
1 Collegare i PC al VGA & Audio Matrix con dei cavi VGA 15 Pin HD e audio 3.5mm jack
2 Collegare il VGA & Audio Matrix ai monitor e casse con dei cavi VGA 15 Pin HD e audio
3.5mm jack
3 Collegare l’alimentatore incluso nella fornitura
4 Accendere tutti i dispositivi partendo dal VGA & Audio Matrix, quindi i monitor e in fine i PC
5 Premere il tasto sul pannello frontale dell’unità per cambiare il segnale in ingresso del PC per
il monitor selezionato
6 E’ possibile anche utilizzare il telecomando per selezionare i segnali

CE/FCC & Recycling Information
7
CE Certification
This equipment complies with the requirements relating to electromagnetic compatibility, EN55022/EN55024 class B for
IEC/EN61000-4-2/3 the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of
the Member States relating to electromagnetic compatibility.
FCC Certification
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and receiver
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
•Consult the dealer or an experienced technician for help
You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
WEEE (Waste of Electrical and Electronic Equipment),
Recycling of Electronic Products
United Kingdom
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic
equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must
enter the recycling process.
Each individual EU member state has implemented the WEEE regulations into national law in slightly different ways. Please
follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from
your national WEEE recycling agency.
Germany
Die Europäische Union hat mit der WEEE Direktive umfassende Regelungen für die Verschrottung und das Recycling von
Elektro- und Elektronikprodukten geschaffen. Diese wurden von der Bundesregierung im Elektro- und Elektronikgerätegesetz –
ElektroG in deutsches Recht umgesetzt. Dieses Gesetz verbietet vom 24.März 2006 an das Entsorgen von entsprechenden,
auch alten, Elektro- und Elektronikgeräten über die Hausmülltonne! Diese Geräte müssen den lokalen Sammelsystemen bzw.
örtlichen Sammelstellen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren
Recyclingprozess übernimmt die Gesamtheit der Gerätehersteller.
France
En 2006, l'union Européenne a introduit la nouvelle réglementation (DEEE) pour le recyclage de tout équipement électrique et
électronique.
Chaque Etat membre de l’ Union Européenne a mis en application la nouvelle réglementation DEEE de manières légèrement
différentes. Veuillez suivre le décret d’application correspondant à l’élimination des déchets électriques ou électroniques de
votre pays.
Italy
Nel 2006 l’unione europea ha introdotto regolamentazioni (WEEE) per la raccolta e il riciclo di apparecchi elettrici ed elettronici.
Non è più consentito semplicemente gettare queste apparecchiature, devono essere riciclate. Ogni stato membro dell’ EU ha
tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un
apparecchio elettrico o elettronico.
Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato.
LINDY No. 32577 & 32578
