Description
With LINDY IPower Control 4x DIN electrical devices can be switched via a TCP/IPwork.
There are only two steps necessary for installation: The connection to an electric circuit and a
TCP/IPwork and the configuration of the IP settings. Afterwards LINDY IPower Control 4x DIN
can be controlled by all PCs of thework.

English Manual English 4
Hardware

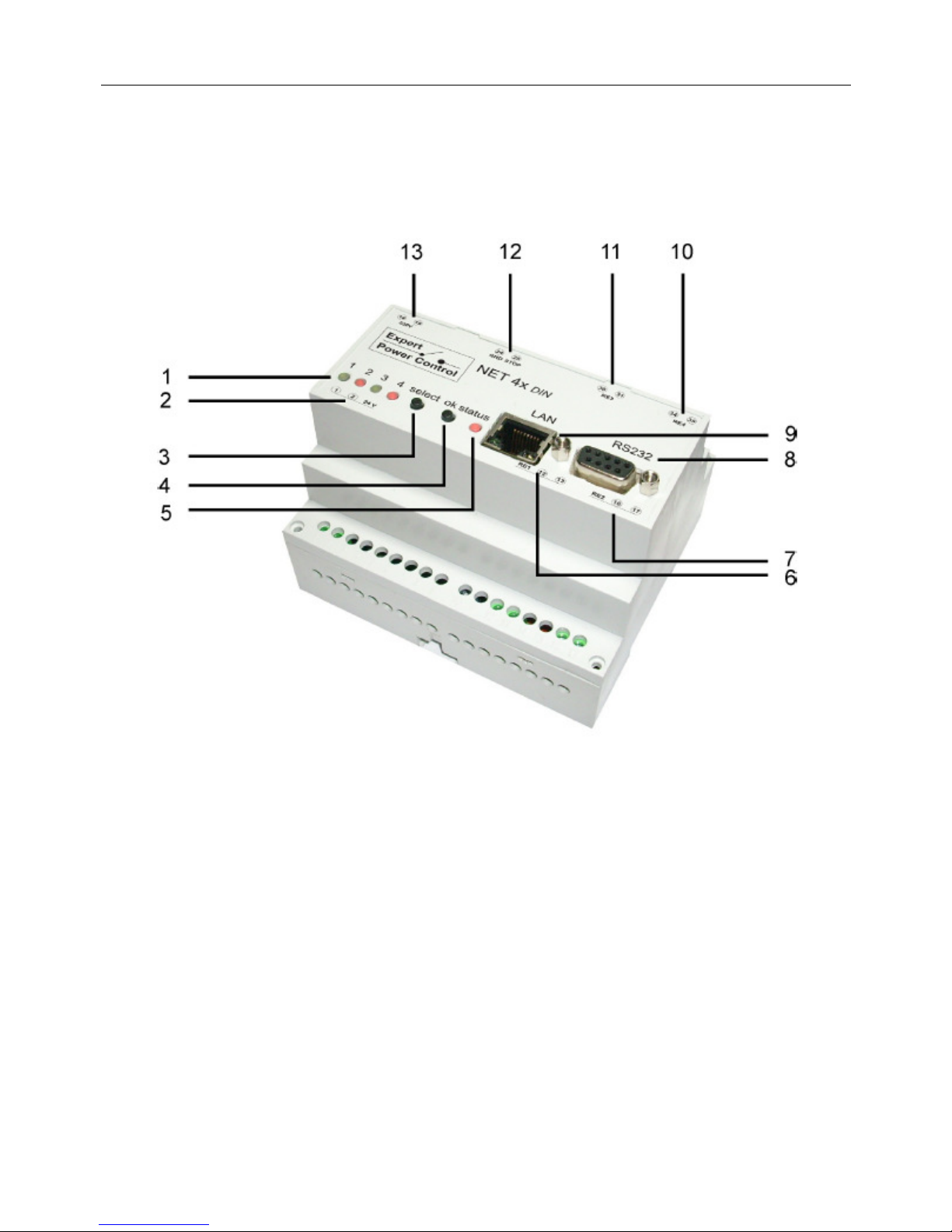

Connections
1) Power Port LEDs
2) Power supply 24 V DC (Pins 1 and 2)
3) Button "select"
4) Button "ok"
5) status LED
6) Relais 1 (Pins 12 and 13)
7) Relais 2 (Pins 16 and 17)
8) Connector serial Interface (RS232)
9) Connector Ethernet (RJ45)
10)Relais 4 (Pins 34 and 35)
11)Relais 3 (Pins 30 and 31)
12)Emergency stop (Pins 24 and 25)
13)Power supply 230V AC (Pins 18 and 19)

English Manual English 5
Package Content
Included in delivery are:
•LINDY IPower Control 4xDIN
•Short manual
Installation
1.) Connect the power supply cable to the power supply pins of
LINDY IPower Control and a socket. LINDY IPower Control
now is booting and shortly after ready for usage.
2.) Plug the Ethernet cable into the connector on the front side of
LINDY IPower Control 4x DIN and connect it to your
Ethernet.
3.) Connect the clients to the Power Ports of LINDY IPower Control.

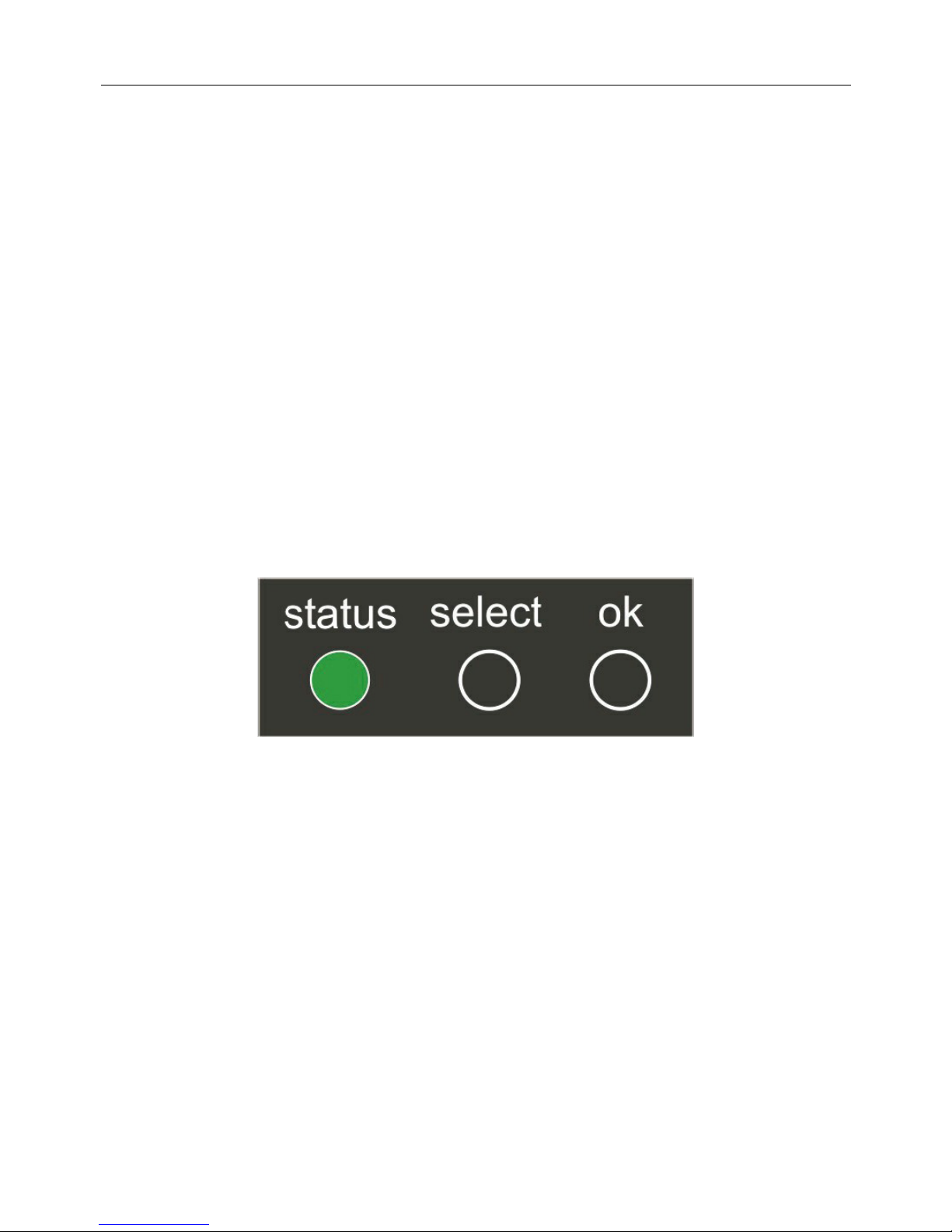

Status LED
The Status LED shows different states of the device:
•Status LED red: Device is not connected to the ethernet
•Status LED orange: Device is connected to the ethernet, TCP/IP settings are not
allocated
•Status LED green: Device is connected to the ethernet, TCP/IP settings allocated, device
is ready to use
•Status LED blinks alternately red and green: Device is in Bootloader mode.

English Manual English 6
Configuration
DHCP
After switch-on LINDY IPower Control looks for a DHCP server and requests an available IP
address (for deactivation of that feature see 2.2). Please check the IP adress allocated to
LINDY IPower Control in the DHCP server settings to make sure that the same address is
used at every reboot.

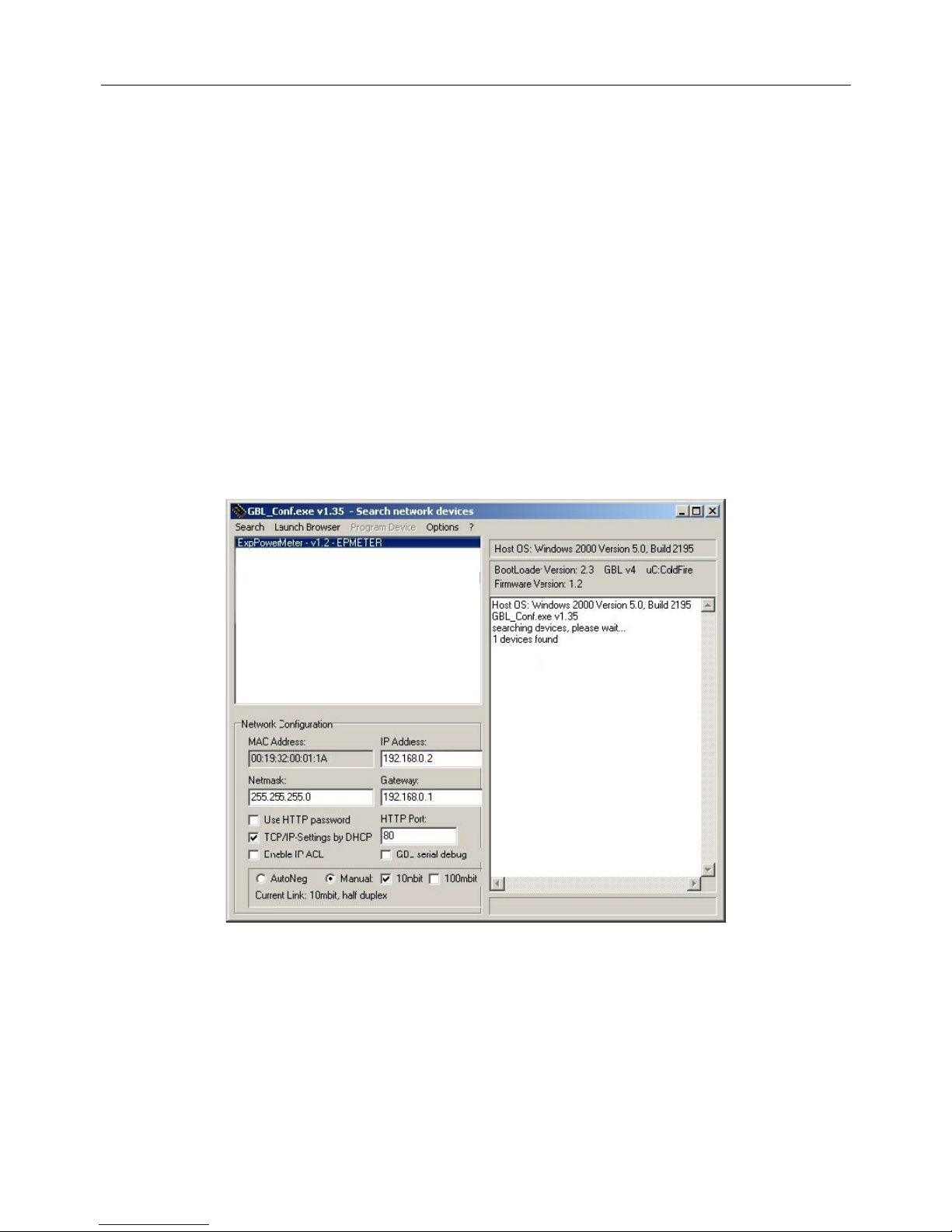

Network settings with GBL_Conf
For changing thework properties manually, the program GBL_Conf.exe is required. This tool is
available for free on our website www.lindy.com. Furthermore GBL_Conf.exe enables you to
install firmware updates and to reset LINDY IPower Control to its factory settings. Activate
bootloader mode of LINDY IPower Control and run GBL_Conf.exe. The program will look
automatically for connected devices and will display theirwork configuration.
If the displayed IP address accords with the factory settings (192.168.0.2), there is either no
DHCP server available in thework or no free IP address could be allocated. Enter a free IP
address and the accordingmask in the entry mask, then save these changes by clicking on
Program - Device - SaveConfig.
Restart the firmware of LINDY IPower Control, so that the changes will take effect. Now click
on Search in order to have thenewwork configuration displayed.

English Manual English 7
Configuration via webinterface
Login
Go to the website of LINDY IPower Control.
Enter the IP address of LINDY IPower Control
into the address line of your internet browser:
http://”IP address of LINDY IPower Control”/
and press LOGIN. To enter the configuration
menu, click on „Configuration“ on the
upper left side of the screen.

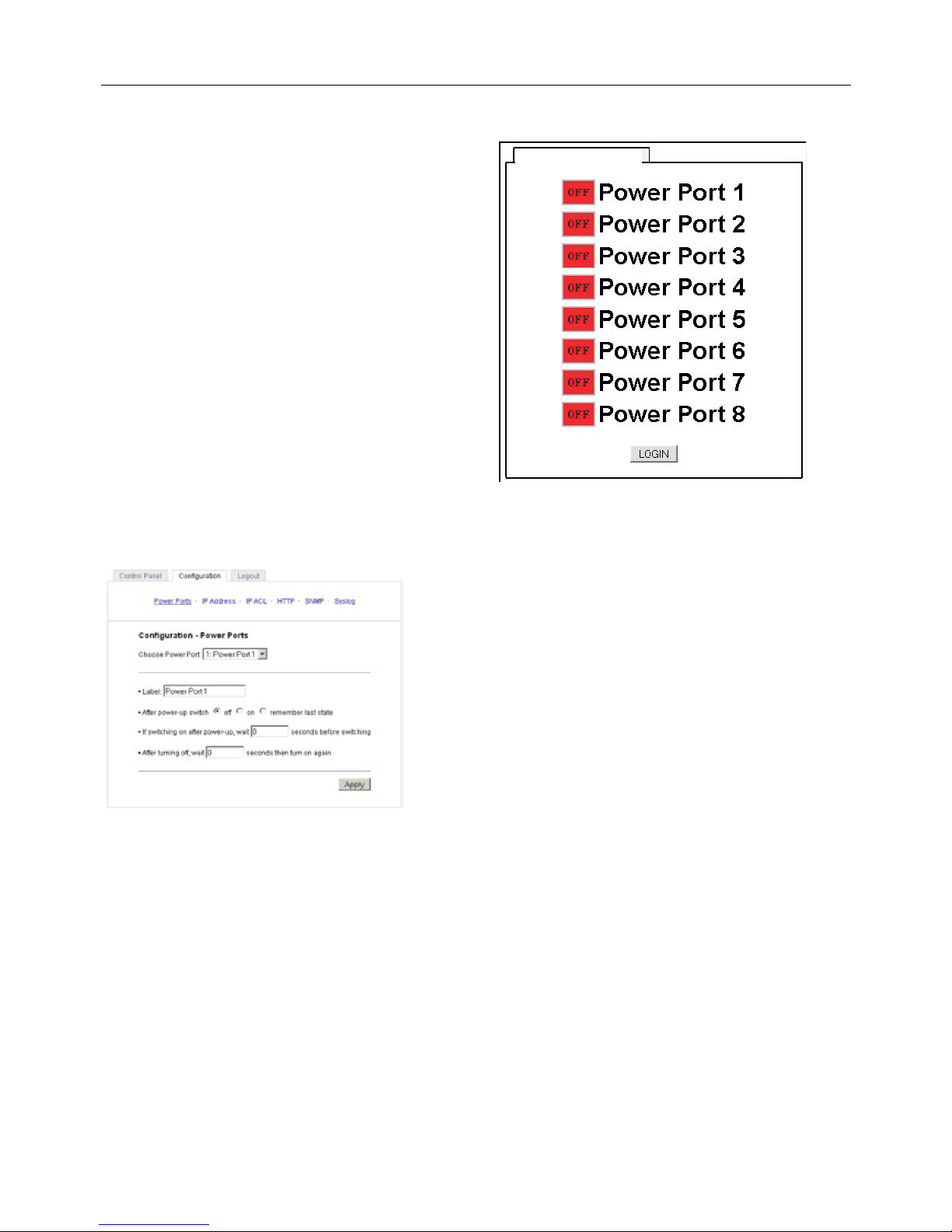

Configuration - Power Ports
Label
A name with a maximum of 15 characters can be
entered here for each Power Port.
After power-up switch
The Power Port’s switching state after a power-on of
the device can be defined here (on, off, remember last
state).
If switching on after power-up, wait ...
A switching delay of a Power Port can be defined here that is applied after switch on of the
device. The delay can last up to 8191 seconds.
After turning off, wait ...
While this function is enabled, the Power Port will reactive after the stated time, when it got
switched off.

English Manual English 8
Configuration – IP Address
All changes made here require a restart of the firmware to get valid.
Hostname
Enter the host name of LINDY IPower Control. LINDY
IPower Control uses this name to connect with a
DHCP server.
Special characters may result inwork malfunction.
IP Address
Here the IP address of LINDY IPower Control can be
changed.
Netmask
The subnet mask of the LINDY IPower Control may be changed here .
Gateway
Here, the standard gateway of LINDY IPower Control can be set.
Use DHCP
Adjusts, whether LINDY IPower Control gets its TCP/ IP settings directly from your DHCP
server. If DHCP is activated, LINDY IPower Control proves, whether a DHCP server is active
within your LAN. Then LINDY IPower Control requests TCP/IP settings from this server. If
there is no DHCP server present inwork, we recommend to deactivate this option.
Configuration - IP ACL
Reply ICMP-Ping requests
Sets whether or not, the LINDY IPower Control shall
react on ping requests.
Enable IP Filter
The IP Access Control List (IP ACL) of LINDY IPower
Control can be activated here.
If IP ACL is active, DHCP and SNMP only work, if all
relevant servers and clients are registered in this list.
IPower Control 4

English Manual English 9

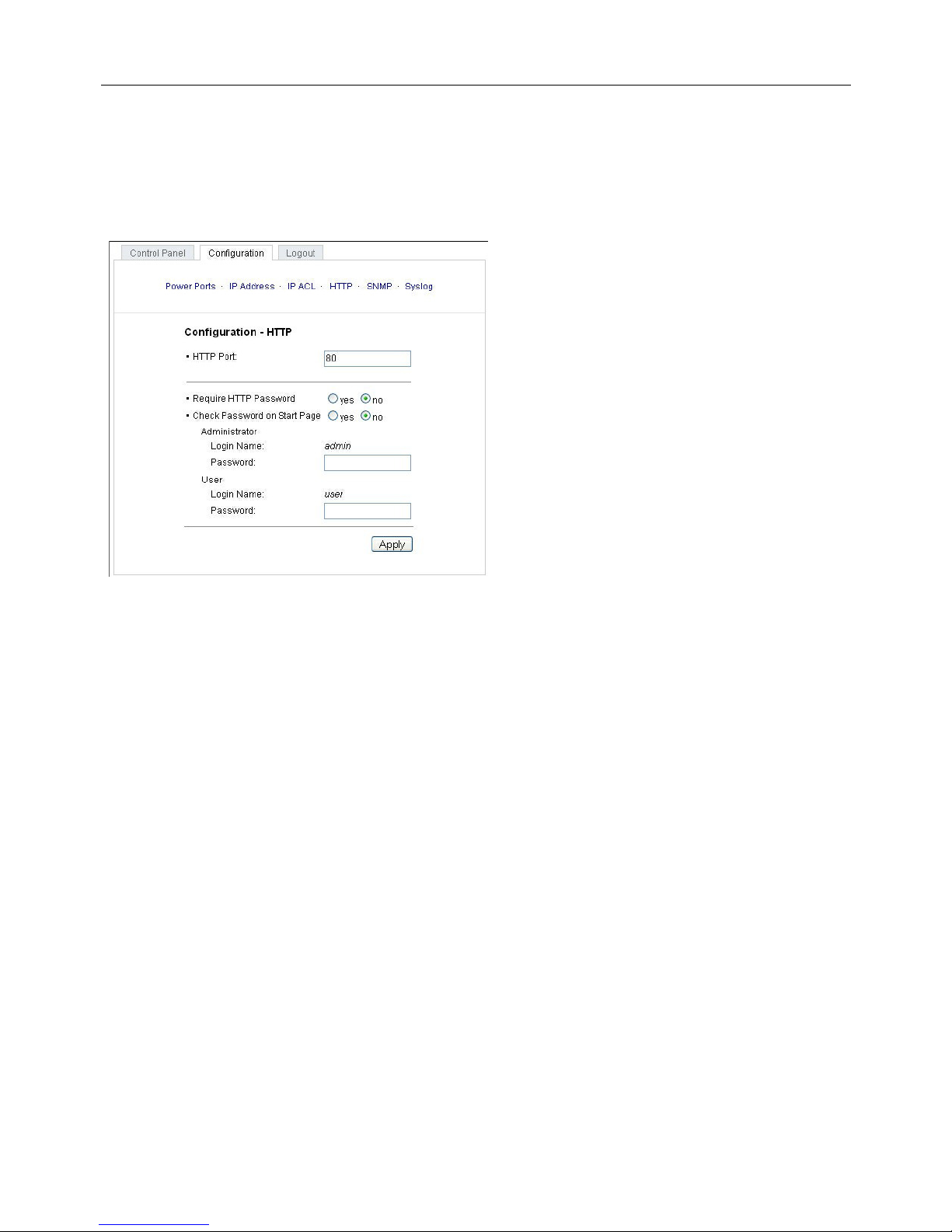

Configuration - HTTP
All changes made here require a restart of the firmware to get valid.
HTTP Port
Enter the HTTP port number, if necessary.
Possible numbers are 1 ... 65534
(standard: 80). To get access to LINDY
IPower Control, you have to enter the port
number behind the IP address of LINDY
IPower Control, e.g.:
http://192.168.0.2:1720
Require HTTP Password
Password protected access can be
activated here. In this case, a user and an
administrator password have to be defined.
Passwords may have a maximum lengths
of 15 characters. Administrators are
authorized to switch all ports and to modify
the settings of LINDY IPower Control and
of all ports. The username of the administrator is “admin”.
Users are authorized to switch all ports but are not allowed to modify the settings of neither
LINDY IPower Control nor the ports. The username of the user is “user”. If you have forgotten
your password, activate the bootloader mode of LINDY IPower Control, start GBL-Conf.exe
and deactivate the password request.
Check Password on start page
If this option is activated, the user has to enter his password, before logging in to the web
interface.

English Manual English 10

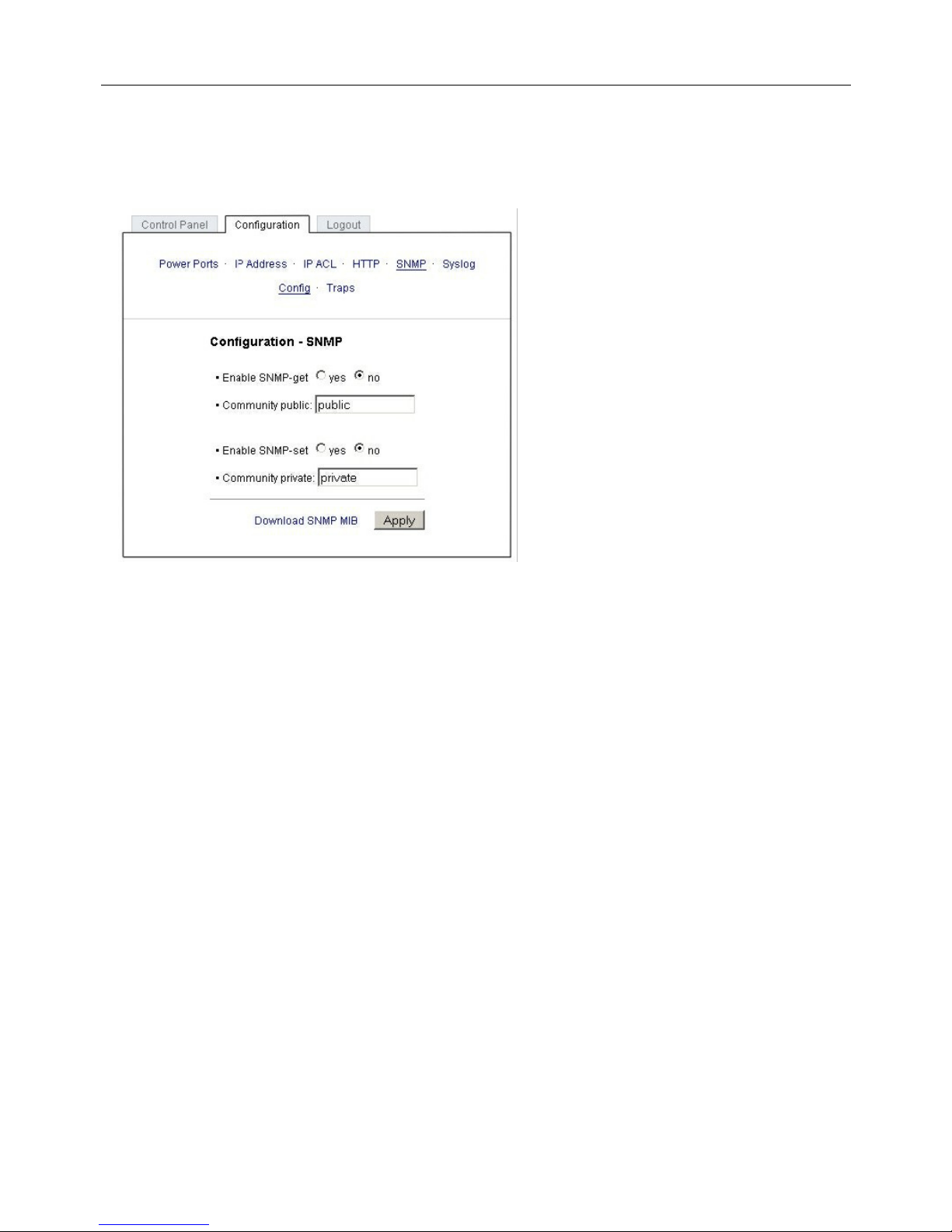

Configuration - SNMP
Please use these options only if yourwork is configured for SNMP!
Enable SNMP-get
SNMP-get protocol of LINDY IPower
Control can be activated here.
Community public
Determine the SNMP public
community here.
Enable SNMP-set
Activate SNMP-set protocol of LINDY
IPower Controlwith this option.
Community private
Determine the SNMP private
community here.
Download SNMP MIB
The MIBs of LINDY IPower Control may be downloaded here.
