Lindy 25020 User manual

16-Port 10/100Mbps Fast Ethernet Switch
16-Port 10/100Mbps Fast Ethernet Switch with 1 Fiber port
USER'S GUIDE
LINDY Part No. 25020

2
TABLE OF CONTENTS
1 UNPACKING INFORMATION.................................................3
2 PRODUCT INTRODUCTION..................................................4
2.1 Models.....................................................................................4
2.2 KEY FEATURES...................................................................... 4
2.3 The Front Panel .......................................................................4
2.3.1 Port Speeds.....................................................................4
2.3.2 Cabling............................................................................4
2.3.3 Status LEDs.....................................................................5
2.4 The Rear Panel........................................................................5
2.4.1 Power Socket................................................................... 5
2.4.2 DIP-Switch....................................................................... 6
2.5 Broadcast Storm Control........................................................... 6
3 INSTALLATION......................................................................7
3.1 LOCATE THE SWITCH............................................................ 7
3.2 RACKMOUNT PLACEMENT.................................................... 7
4 HELPFUL SUGGESTIONS ....................................................8
4.1 Prior to Installation.................................................................... 8
4.2 Half- and Full-Duplex................................................................8
4.3 Auto-Negotiation....................................................................... 8
4.4 MAC Address Table.................................................................. 8
5 SAMPLE APPLICATION ........................................................9
6 PRODUCT SPECIFICATIONS..............................................10

3
1 UNPACKING INFORMATION
Thank you for purchasing this Switch. Before continuing, please check the contents of the product package. This product
package should contain the following items:
ƍ One (1) 16-Port Switch
ƍ One (1) Power Cord
ƍ Four (4) Rubber Feet (for desktop placement)
ƍ One (1) Rackmount Kit (optional)
ƍ This User’s Guide
If anything is missing, please contact your place of purchase.
16-Port Switch
Power Cord Rubber Feet
Rackmount Kit (optional) User’s Guide

4
2 PRODUCT INTRODUCTION
2.1 Models
This Switch is a multi-speed, versatile network device combining both Copper and Fiber ports under the same hood.
The number and types of ports for this Switch are listed below.
Model 100BASE-TX / 10BASE-T port 100BASE-FX port
16-Port switch Sixteen (16) N/A
2.2 KEY FEATURES
ƍ Independent bandwidth for each port.
ƍ 10/100Mbps TP ports with Auto-Negotiation supported.
ƍ Bridging capability for 100Mbps and 10Mbps segments.
ƍ Provides Store-and-Forward forwarding scheme.
ƍ Auto MDI/MDIX function supported.
ƍ IEEE 802.3x Flow-Control supported for Full-Duplex operation.
ƍ Back-Pressure Flow-Control supported for Half-Duplex operation.
ƍ 4M bits Buffer Memory.
ƍ 8K MAC Address Table.
ƍ Supports QoS function on each port, based on 802.1p/802.1q VLAN Tag priority and TCP/IP Header’s TOS/DS.
ƍ Four (4)Trunk groups supported.
ƍ Aging function supported, the aging time is about 300 sec.
ƍ Broadcast Storm control supported.
ƍ Supports Port-Based Home VLAN Ƒ Allow home networks to share a common server or router.
ƍ Desktop size with rack mounting capability.
2.3 The Front Panel
16-Port Switch
2.3.1 Port Speeds
10/100Mbps TP ports
Each 10/100MbpsTP port provides anAuto-Negotiation function and an Auto-Crossover (Auto-MDI/MDIX) function that senses
for the attached device's maximum operating speed and automatically sets the Switch to operate at that speed. Each TP port
uses RJ-45 connector that allows network TP cables to be easily attached or removed. Users only need to connect a network
device into any TP port and the Switch will do the rest.
2.3.2 Cabling
10Mbps – Category 3, 4, or 5 TP cabling can be used for transmitting data at 10Mbps or 20Mbps bandwidth on 10BASE-T
networks.
100Mbps – Only Category 5 TP cabling can be used for transmitting data at 100Mbps or 200Mbps bandwidth on 100BASE-TX
networks.
Port Type CableType Connector
10BASE-T Category 3, 4 or 5 TP RJ-45
100BASE-TX Category 5 TP RJ-45
Note: Category 5 TP cable should be used whenever installing newTP cabling.

5
2.3.3 Status LEDs
This Switch comes with a complete range of LEDs. The table below lists each LED’s name, color and a brief description of its
function.
ƍ One (1) for power On/Off.
ƍ One(1) per port for Link/Activity.
ƍ One(1) per port for Full-Duplex/Collision.
ƍ Four (4) for TRUNK Groups status.
ƍ Two (2) for Home VLAN status.
Name Color Function
Pwr Green Lit: Power "On"
LINK/ACT Green Lit: When the port has a valid physical connection (Link) with another
device.
Blinks: When the port is sending or receiving data (Activity).
FD/COL Amber Lit: When the port is set to Full-Duplex mode.
Blinks:When a collision is detected, in Half-Duplexmode.
A Green Lit:TRUNKAGroup Enable (Port#1, #2, #9, #10 are a TRUNK Port)
Blink:When theTRUNK Group has a port link Failure with another device.
B Green Lit:TRUNK B Group Enable (Port#3, #4, #11, #12 are a TRUNK Port)
Blinks:When theTRUNK Group has a port link Failure with another device.
C Green Lit:TRUNK C Group Enable(Port #5, #6, #13, #14 are a TRUNK Port)
Blinks:When theTRUNK Group has a port link Failure with another device.
TRUNK
D Green Lit:TRUNK D Group Enable(Port #7, #8, #15, #16 are a TRUNK Port)
Blinks:When theTRUNK Group has a port link Failure with another device.
A Amber Lit: Support 14 VLANs (Port#1 Ƒ #7, #9-#15) with 2 overlapping ports
(Port#8, #16) topology
Home
VLAN B Amber Lit: Support 15 VLANs (Port#1
Ƒ #15) with 1 overlapping port (Port#16)
topology
We provide Four (4) LEDs to indicate the TRUNK status.
TheTRUNK LED will be lit on when the trunk is enable,it will blink when any physical port link failures occur within the enabled
trunk port.
If the TRUNK LED blinks during the normal operation, please check the trunk group ports link status.
2.4 The Rear Panel
16-Port Switch
2.4.1 Power Socket
The Power Socket is designed to be used with the power cord included in the product package.
ƍ Attach the female end of the cord to the power connector on the back panel.
ƍ Attach the male end of the cord to a grounded power outlet.
Note: To reset the switch, Remove the power cord and re-attach it .
ƍ The switch must be reset when the MAC Address table needs to be rebuilt.
ƍ The switch must be reset when the configurations (on real panel) are changed.

6
2.4.2 DIP-Switch
This Switch provides DIP-Switches setting to configuration, the configuration setting as below:
a. Home VLAN
We have provided two DIP-Switches for the Home VLAN setting.
Left side DIP-Switch Right side DIP-Switch
SW up Home VLAN Disable Home VLAN TYPE A
SW down Home VLAN Enable Home VLAN TYPE B
Home VLAN TYPE A: Select 14 VLANs (port#1 Ƒ #7, #9 Ƒ #15) with two overlapping ports (port#8, #16) topology. (VLAN1:
port#1, #8, #16; VLAN2: port#2, #8, #16; VLAN3: port#3, #8, #16, …; VLAN14: port#15, #8, #16)
Home VLAN TYPE B: Select 15 VLANs(port#1
Ƒ #15) with one overlapping port (port#16) topology. (VLAN1: port#1, #16; VLAN2:
port#2, #16; …; VLAN15: port#15, #16)
This function for network topology security configuration. When the Port-Based security function is enabled, the 16-Ports Switch
can be configured as 14 (or 15) individual VLANs that share the same two (or one) overlapping port(s). This 14 VLANs or 15
VLANs topology is useful to allow home networks to share common servers or routers, this function can be used on Fiber To The
Home (FTTH) or Ethernet To The Home (ETTH) application.
Note: Only when the left sideDIP-Switch move to “ON”, the function of the right side DIP-Switch would be active.
b. TRUNK
We have support Four DIP-Switches for the TRUNK Port setting.
ABCD
SW up TRUNKADisable TRUNK B Disable TRUNK C Disable TRUNK D Disable
SW down TRUNKAEnable TRUNK B Enable TRUNK C Enable TRUNK D Enable
ƍ TRUNKA: Port#1, #2, #9, #10
ƍ TRUNK B: Port#3, #4, #11, #12
ƍ TRUNK C: Port#5, #6, #13, #14
ƍ TRUNK D: Port#7, #8, #15, #16
If the trunk function enable, it can be provided 800Mbps bandwidth between two devices, it is useful to allowhigh bandwidth in
Backbone or server connection.
Note: If the Home VLAN function is enabled, it will disable the TRUNK function setting.
c. 100FX (100BASE-FX operation mode setting) (only for Switch w/ Fiber port)
This DIP-Switch is setting to configuration 100Mbps Half-/Full-Duplex on the Fiber port.
Operation mode
SW up 100Mbps Half-Duplex
SW down 100Mbps Full-Duplex
Note: When the DIP-Switches configuration changes, the Switch had to be “Power Reset”. Please reboot after
configuration change.
2.5 Broadcast Storm Control
The Broadcast Storm Control discards broadcast frames when the number of cumulated non-unicast frames is over the
threshold, in order to prevent Network Traffic congestion bringing the Network to a halt. In this Switch, each port will drop
broadcast packets (Destination MAC ID is ff ff ff ff ff ff) after receiving continuous 64 broadcast packets. The counter will be reset
to0 every 800ms or when receiving any non-broadcast packets. (Destination MAC ID is not ff ff ff ff ff ff)

7
3 INSTALLATION
This 16-Port Switch is "Plug-&-Play". They do not require software configuration. Users can immediately use any of the features
of this product simply by attaching the cables and turning on the power.
3.1 LOCATE THE SWITCH
ƍ Attach the Four (4) rubber feet included in theproduct package to thebottom of the Switch, one in each corner.
ƍ Place the Switch on a clean, flat desk or table top close to a power outlet.
ƍ Plug in all network connections and the power cord.

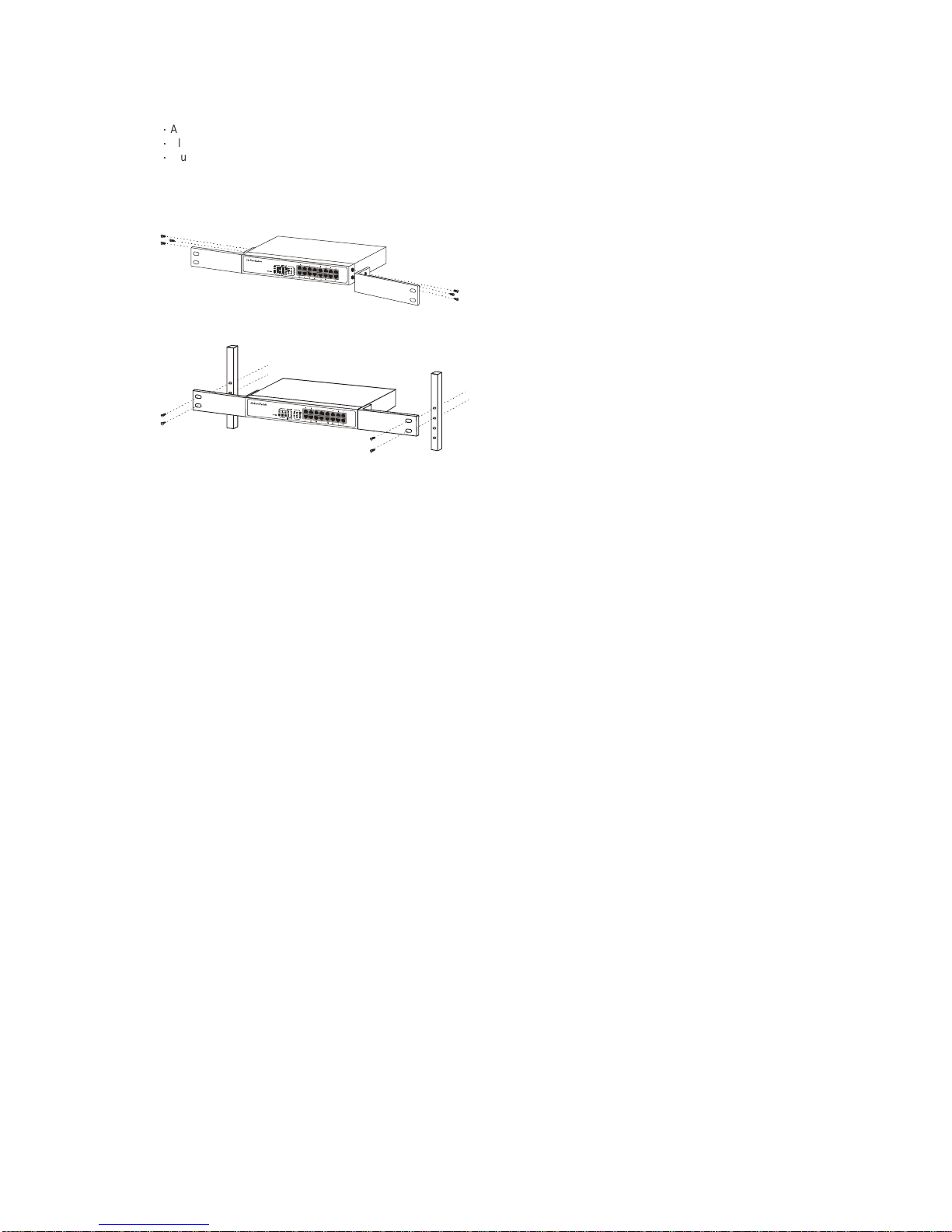

3.2 RACKMOUNT PLACEMENT
This Switch can bemounted in an EIAstandard-sized 19-inch rack.
Attach One (1) rackmounting bracket on each side of the Switch’s front panel with the provided screws.
Use the other provided screws to secure the Switch to therack.
*An “Long-Ear” rackmount kit (description “Rack-02”) is available as an option.

8
4 HELPFUL SUGGESTIONS
4.1 Prior to Installation
Before installing this Switch and connecting it to network devices, it is important to plan the network's layout. Things you should
consider include:
Dedicated Bandwidth: File servers and other high-traffic hardware improve their performance if they have their own dedicated
10Mbps or 100Mbps bandwidth.
Full-Duplex: Determine which devices support Full-Duplex connections.
Fast Ethernet: Make sure rules for cable lengths and categories are followed. 100BASE-TX and 100BASE-FX have different
rules for cable and distance.
Auto-Negotiation: Devices with different speeds may be easily swapped when the other end of the cableis fixed to a port with
Auto-Negotiation.
Crossover Uplink: This Switch can beUplinked to another Switch using any of the TP port.
4.2 Half- and Full-Duplex
This Switch supports both Half- and Full-Duplex modes for 10BASE-Tand 100BASE-TX.
ƍ In Half-Duplexmode data cannot betransmitted and received at the same time. Attached devices must finish transmitting data
before they can receive data.
ƍ In Full-Duplex mode data can be transmitted and received at the same time.
4.3 Auto-Negotiation
Every 10/100Mbps dual speed port on this Switch has a built-in "Auto-Negotiation" function. This technology automatically sets
thebest possiblebandwidth assoon as a connection is established with anothernetwork device (usually at Power “On” or Reset).
This capability is achieved via the Switch’s Auto-Negotiation function that automatically detects the modes and speeds the
second (attached) device is capable of.
Evaluating Auto-Negotiation Capability:
If the attached device is: This Switch Will Automatically Set Its TP Ports to Operate At:
100Mbps
noAuto-Negotiation 100Mbps Bandwidth (100BASE-TX, Half-Duplex)
100Mbps
with Auto-Negotiation 200Mbps Bandwidth (100BASE-TX, Full-Duplex)
10Mbps
noAuto-Negotiation 10Mbps Bandwidth (10BASE-T, Half-Duplex)
10Mbps
with Auto-Negotiation 20Mbps Bandwidth (10BASE-T, Full-Duplex)
Note: If the attached device is set to a fixed Forced Full-Duplex mode, it will not operate as an Auto-Negotiation device.
4.4 MAC Address Table
Every Ethernet data packet includes both source and destination addresses. This 6-byte ID is called the MAC (MediaAccess
Control) Address.
The Switch can automatically learn and store MAC addresses. However, the MAC address table is volatile: it disappears when
the Switch is powered “Off” or reset.
Note: When the network needs reconfiguration, we recommend turning off the power first.After all nodes have been moved,
Remove the power cord and re-attach it on the back panel to rebuild the internal MAC address table.

9
5 Sample Application
The optimal application for this Switch is to interconnect file servers with other bandwidth-hungry workgroups, departments, and
offices all with dedicated bandwidths.
16-Port Switch
16-Port Switch
with 1 Fiber port
Workstation with 10/100Mbps
Fast EthernetAdapter
24-Port Switch
100BASE-FX
100BASE-TX
W
orkstation with 10/100Mbps
Fast EthernetAdapter
Workstation with 10/100Mbps
Fast EthernetAdapter

10
6 PRODUCT SPECIFICATIONS
Models 16-Port Switch Other model not available
Standards !IEEE 802.3u: 100BASE-TX
!IEEE 802.3: 10BASE-T
!
Ports !Sixteen (16) 100BASE-TX/10BASE-T !
Media Support !100BASE-TX: Category 5 TP
!10BASE-T: Category 3, 4 or 5 TP
!
Bandwidth !100BASE-TX: 200/100Mbps via Auto-Negotiation
!10BASE-T: 20/10Mbps via Auto-Negotiation
!
Forwarding/
Filtering Rate !148810 packets/second per port @ 100Mbps, maximum
!14881 packets/second per port @ 10Mbps, maximum
Latency !8.5 µsec @100Mbps, minimum
!67 µsec @ 10Mbps, minimum
MAC Addresses !8K Six (6)-byte entries maximum, Self-Learning
Buffer Memory !4M bits
Duplex Modes !Auto-Negotiation !
Auto-MDIX !All TP ports support Auto-MDI/MDIX function
DIP Switches !Two (2) forHome VLAN setting
!Four (4) for TRUNK setting
!
LED Indicators !One (1) for Power
!One (1) per port for Link/ACT
!One (1) per port for Full-Duplex or Collision
!Two (2) forHome VLAN status
!Four (4) for TRUNK Group status
Power Supply !Internal full range switching power supply
!Input voltage: 100 ~ 240V AC +/-10%, 50/60 Hz
Power
Consumption !9.9W maximum
Environment !Operating Temperature: 0°~ 45°C(32°~113°F)
!Storage Temperature: -20°~ 70°C(-4°~158°F)
!Humidity: 10% ~ 90% Non-Condensing
Certifications !FCC Class A, CE Mark and TUV approved
Dimensions !250 x150 x 43 mm (9.8 x 5.9 x 1.7 inches) !
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class Acomputing device pursuant to
Part 15 of FCC Rules, which are designed to provide reasonable protection against electromagnetic interference
in a commercial environment.
Changes or modifications to the equipment not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
CE MARK WARNING
This is a Class Aproduct. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
