QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
1
LTC3725/LTC3706
DESCRIPTION
Demonstration circuit 888A-B is a high power iso-
lated synchronous forward converter featuring the
LTC3725 and LTC3706. When powered from a 36-
72V input, a single DC888A-B provides an isolated
5V at 40A in a quarter-brick footprint. If higher out-
put current is required, multiple DC888A boards may
be stacked together using on-board connectors for a
complete PolyPhase current sharing solution. The
converter operates at 250kHz and achieves efficiency
up to 93.5% with synchronous output rectifiers.
Secondary-side control eliminates complex optocou-
pler feedback, providing fast transient response with
a minimum amount of output capacitance. Additional
DC888A versions include DC888A-A (3.3V at 50A)
and DC888A-C (12V at 20A). The simple architecture
can be easily modified to meet different input and
output voltage requirements.
Design files for this circuit board are available.
Call the LTC factory.
,LTC and LT are registered trademarks of Linear Technology Corporation.
Table 1. Performance Summary (TA= 25°C)
PARAMETER CONDITION VALUE
Minimum Input Voltage 36V
Maximum Input Voltage 72V
Output Voltage V
OUT
V
IN
= 36V to 72V, I
OUT
= 0A to 40A 5V
Maximum Output Current 200LFM 40A
Typical Output Ripple V
OUT
V
IN
= 48V, I
OUT
= 40A, 250kHz < 60mV
P–P
Output Regulation Over All Input Voltages and Output Currents ±1% (Reference)
Peak Deviation with 20A to 40A Load Step (10A/us) ±250mV
Load Transient Response
Settling Time •50us
Nominal Switching Frequency 250kHz
Efficiency V
IN
= 36V, I
OUT
= 28A 93.5% Typical
Isolation BASIC 1500VDC
Size Component Area x Top x Bottom Component Height 2.3” x 1.45” x 0.4” x 0.075”
OPERATING PRINCIPLES – SINGLE PHASE
The LTC3706 secondary side controller is used on the
secondary and the LTC3725 smart driver with self-
starting capability is used on the primary. When an
input voltage is applied, the LTC3725 (U1 in Figure
15), which is powered through R29 and Q28, begins
a controlled soft-start of the output voltage by switch-
ing MOSFETs Q9 and Q11. As the output voltage be-
gins to rise, the LTC3706 secondary controller is
quickly powered up via D24, Q29, C67, and Q27. The
LTC3706 then assumes control of the output voltage
by sending encoded PWM gate pulses to the
LTC3725 primary driver via signal transformer, T2.
The LTC3725 then operates as a simple driver receiv-
ing both input signals and bias power through T2.
The transition from primary to secondary control oc-
curs seamlessly at a fraction of the output voltage.
From that point on, operation and design simplifies to
that of a simple buck converter. The LTC3706 regu-

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
2
lates by observing the output voltage directly result-
ing in superior output voltage regulation and transient
response.
OPERATING PRINCIPLES – POLYPHASE
The LTC3725 and LTC3706 allow the user to develop
modular power supply “building blocks” that can be
added as power/current requirements increase. Con-
necting two DC888A power supplies in a PolyPhase
configuration has several advantages. By distributing
power across multiple high power/current supplies,
heat is also distributed, reducing individual compo-
nent temperatures. Each parallel module develops
equal output currents so that electrical and thermal
stresses are shared, increasing reliability. Multi-phase
operation and Shared input and output filtering result
in fewer/smaller input/output capacitors and induc-
tors for a given voltage/current ripple or transient re-
sponse.
In PolyPhase systems, one power supply is config-
ured as a “master” and one as a “slave”. The master
communicates switching frequency via the PT+ pin to
FS/SYNC pin of the slave (Figures 19 and 20). The
relative clock phase of each stage is determined by
the slave. The master’s voltage error amplifier’s out-
put (ITH pin) controls the output current of all the
phases via the ITH pin voltage which is distributed to
each slave’s unity-gain differential amplifier.
Several of the signals that are shared between the
master and the slave are of a bidirectional nature. A
fault on either phase can be communicated to the op-
posite phase via the primary side SS/FLT pin inter-
connection or the secondary side RUN/SS intercon-
nection. Sharing Vcc on the secondary side ensures
the master, which initially develops this bias voltage,
and slave power up simultaneously. Each phase then
contributes to the shared Vcc bus. Finally, the input
voltage (Vin) and output voltage (Vout) busses are
interconnected to allow for load sharing.
OPTIONAL POLYPHASE SETUP
Only minor modifications and minimal interconnec-
tions are needed to implement PolyPhase with the
DC888. See component changes list (Figure 18) and
schematics (Figures 21 and 22) for the required elec-
trical changes to master and slave units. After the
modifications are done, the boards are then stacked
one on top of another (Figure 23). J1 and P1 headers
interconnect small signals and E1, E2, E3, and E4
stand offs provide interconnection for the power sig-
nals.
The DC888 was designed primarily to demonstrate
the chipset’s single phase operation and therefore be
further optimized for PolyPhase applications. A small
resistor can be placed between the R76/D27 junction
and C70/U2-16 junction to reduce already small PWM
jitter associated with separate master and slave
ground planes. Another optimization can result from
combining each individual phase’s input/output filter
components into one shared input/output filter.
QUICK START PROCEDURE
Demonstration Circuit 888A-B is easy to set up to
evaluate the performance of the LTC3725 and
LTC3706. Refer to Figure 1 for proper equipment
setup. Follow the procedure below:
NOTE: When measuring the input or output voltage
ripple, care must be taken to avoid a long ground lead
on the scope probe. Measure the output (or input)
voltage ripple by touching the probe tip and probe

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
3
ground directly across the +Vout and –Vout (or +Vin
and –Vin) terminals. See 0 for proper scope probe
technique.
1. The optional input LC filter stage (C2/L5) lowers ac
input rms current. A power supply’s complete in-
put filter must have output impedance that is less
than the converter input impedance to assure sta-
bility. This may require a damping impedance. (See
Linear Technology Application Note AN19 for a
discussion of input filter stability.) A source with a
50mOhm or higher ESR at the filter resonant fre-
quency is one way of providing damping for the fil-
ter elements provided on the DC888A. For bench
testing, adding an 82uF electrolytic capacitor such
as a Sanyo 100MV82AX to the input terminals will
provide suitable damping and ripple current capa-
bility. The values selected have a filter resonant
frequency that is below the converter switching
frequency, thus avoiding high circulating currents
in the filter.
2. Set an input power supply to a voltage of 36V.
Make sure that it is capable of 36V to 72V at a cur-
rent supplying capability of at least 8A per number
of phases being tested. Then, turn off the supply.
3. With power off, connect the supply to the input
terminals +Vin and –Vin.
a. Input voltages lower than 36V can keep the con-
verter from turning on due to the undervoltage
lockout feature of the LTC3725.
b. If efficiency measurements are desired, an am-
meter capable of measuring at least 8Adc per
phase can be put in series with the input supply
in order to measure the DC888A-B’s input cur-
rent.
c. A voltmeter with a capability of measuring • 72V
can be placed across the input to get an accurate
input voltage measurement.
4. Turn on the power at the input.
NOTE: Make sure that the input voltage •72V.
5. Check for the proper output voltage of 5V.
6. Turn off the power at the input.
7. Once the proper output voltages are established,
connect a variable load capable of sinking 40A per
phase at 5V to the output terminals +Vout and –
Vout. Set current to 0A.
a. If efficiency measurements are desired, an am-
meter or a resistor current shunt that is capable
of handling at least 40Adc per phase can be put
in series with the output load in order to meas-
ure the DC888A-B’s output current.
b. A voltmeter with a capability of measuring at
least 5V can be placed across the output termi-
nals in order to get an accurate output voltage
measurement.
8. Turn on the power at the input.
NOTE: If there is no output, disconnect the load to
verify that the load is not set too high.
9. Once the proper output voltage is established, ad-
just the load within the operating range and ob-
serve the output voltage regulation, ripple voltage,
efficiency and other desired parameters.

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
4

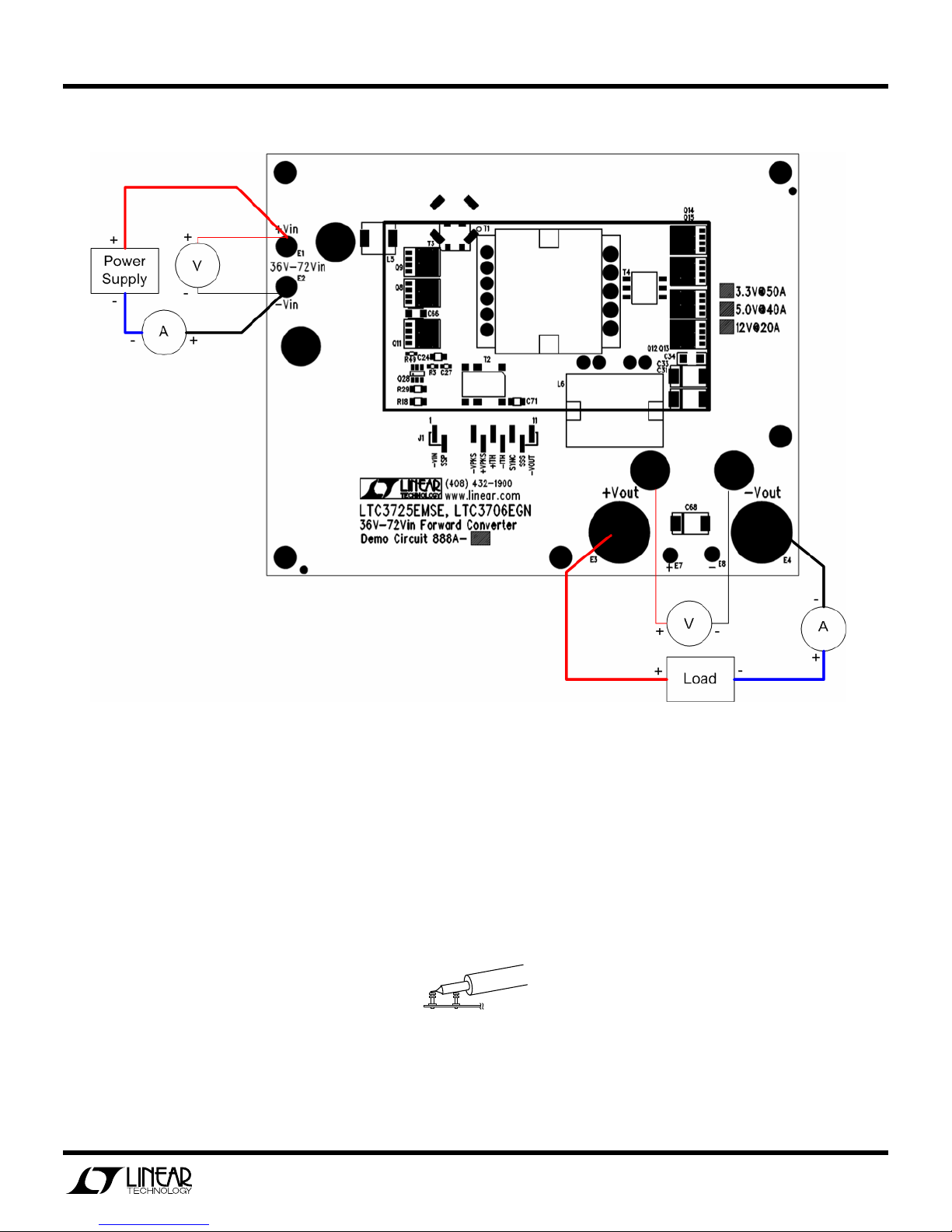

Figure 1. Proper Measurement Equipment Setup
VIN
GND
Figure 2. Measuring Input or Output Ripple

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
5
MEASURED DATA
Figures 3 through 14 are measured data for a typical DC888A-B. Figures 15 through 23 consist of schematics, bill of
materials, and a picture.

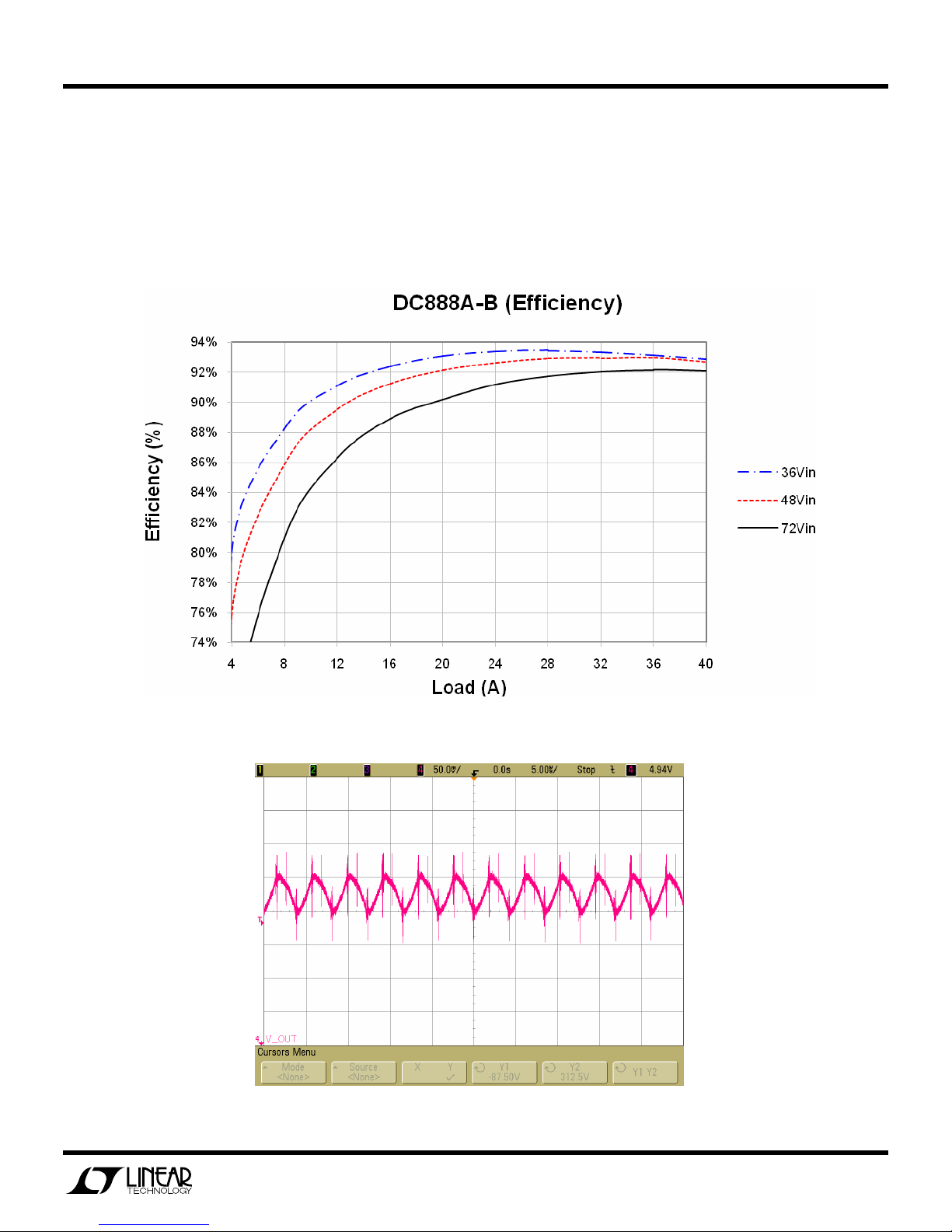

Figure 3. Efficiency
Figure 4. Output Voltage Ripple (48Vin, 40A, Single Phase)

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
6

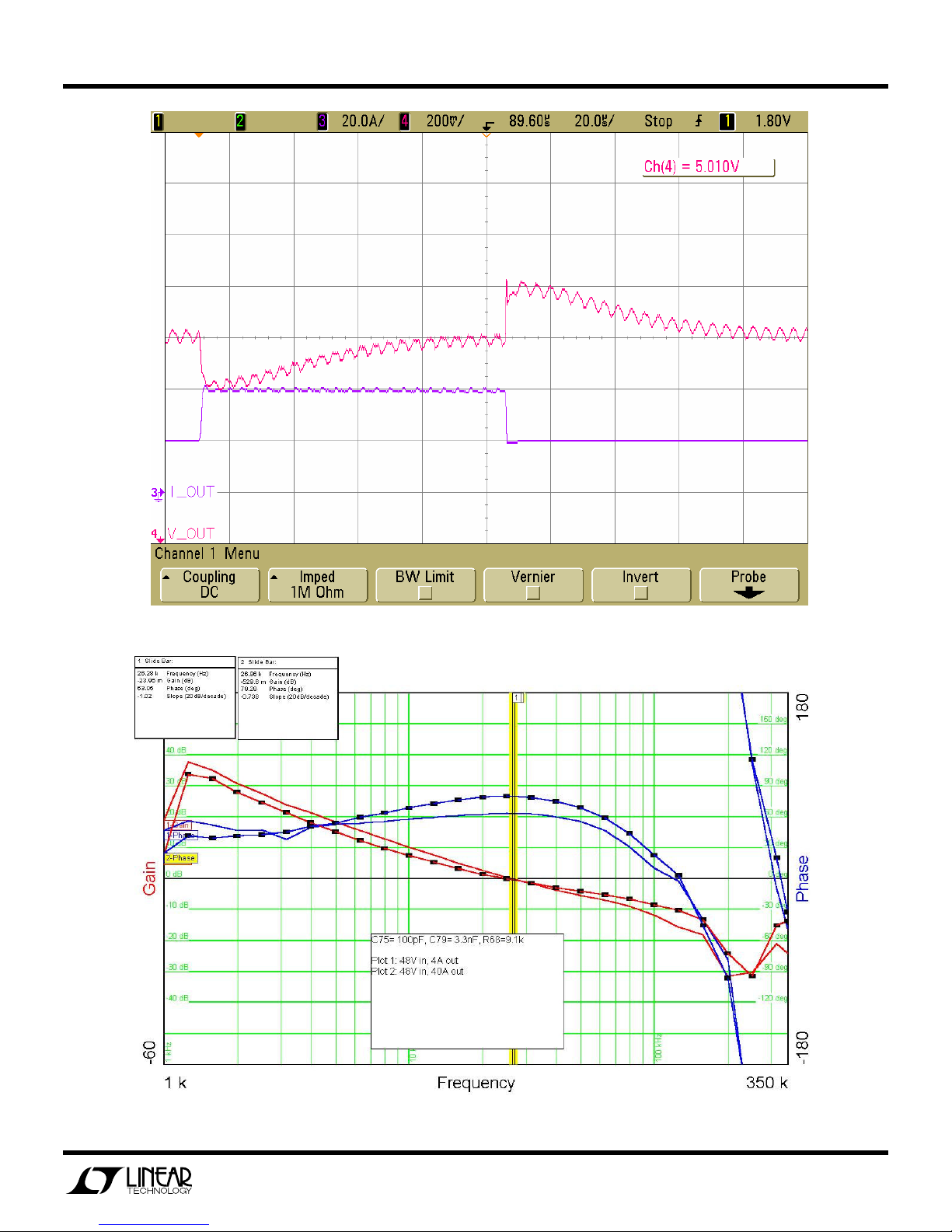

Figure 5. Load Transient Response (48Vin, 20A to 40A to 20A at 10A/us, Single Phase)
Figure 6. Loop Response (48Vin, 4A & 40A, Single Phase)

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
7
Figure 7. Turn-on (48Vin, 40A, Single Phase)
Figure 8. Turn-on (48Vin, 80A, PolyPhase)

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
8

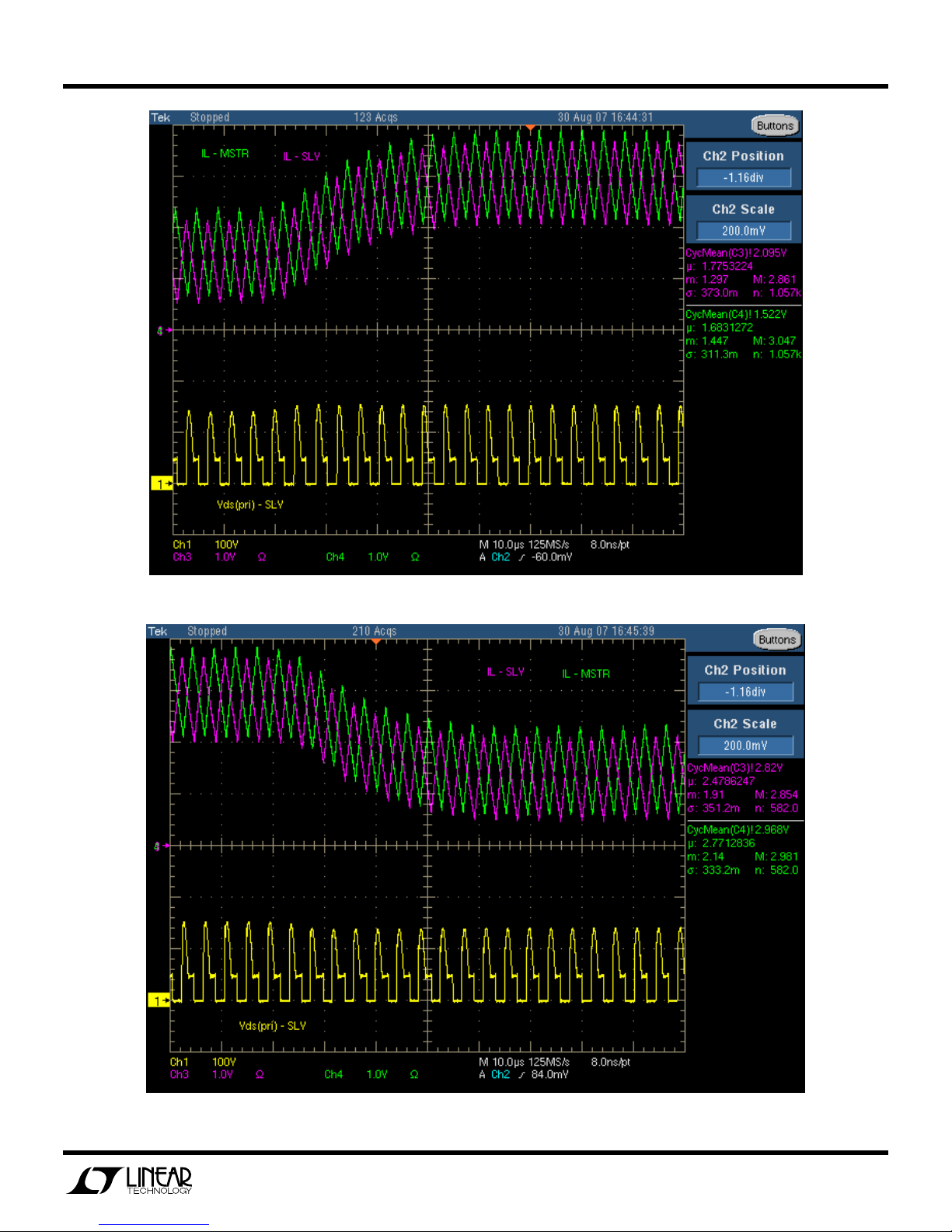

Figure 9. Transient Sharing of Inductor Current (48Vin, 30A to 60A, PolyPhase)
Figure 10. Transient Sharing of Inductor Current (48Vin, 60A to 30A, PolyPhase)

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
9

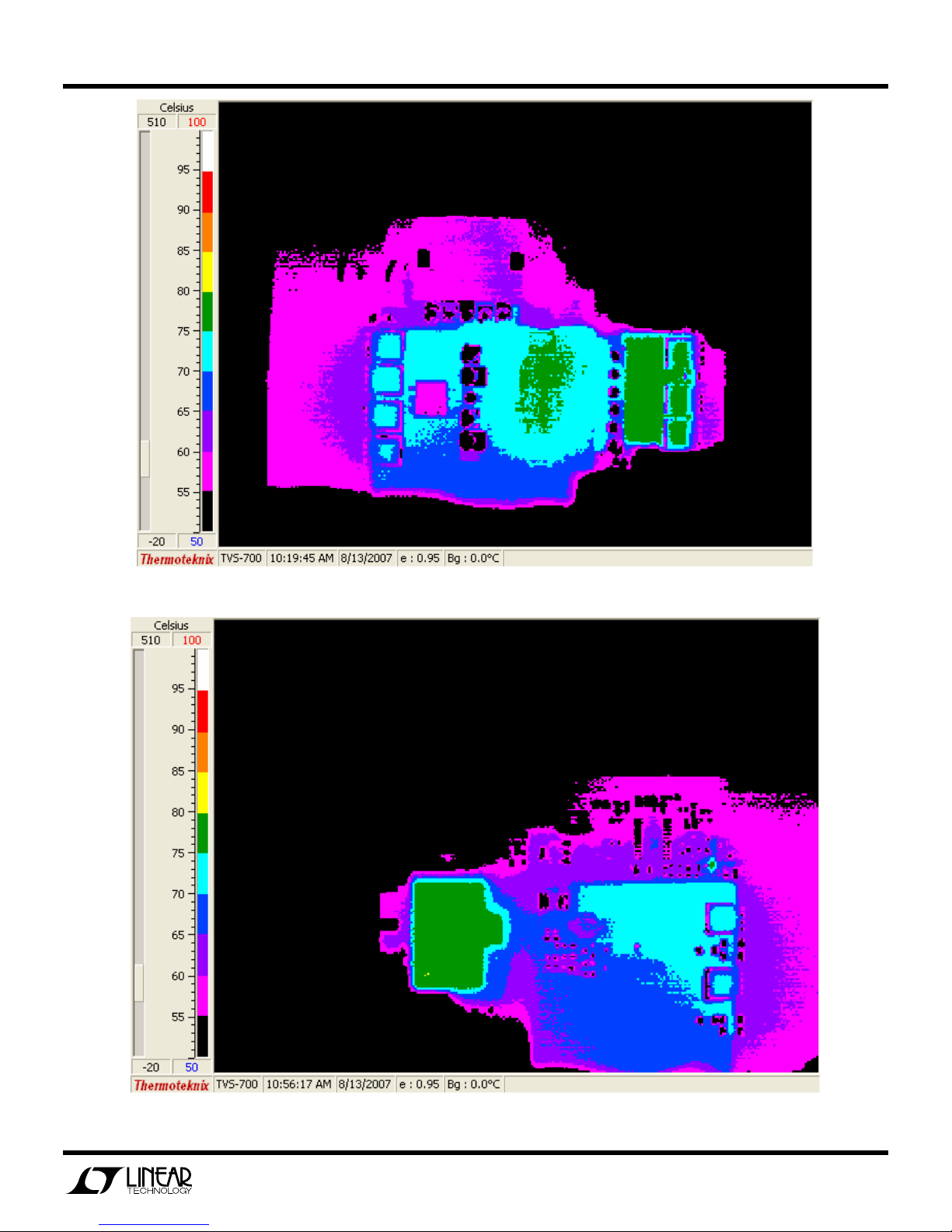

Figure 11. Temp Data (48Vin, 40A, 200LFM airflow – top)
Figure 12. Temp Data (48Vin, 40A, 200LFM airflow – bottom)

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
10
Figure 13. Temp Data (48Vin, 36A, 0LFM airflow – top)
Figure 14. Temp Data (48Vin, 36A, 0LFM airflow – bottom)

QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD
11

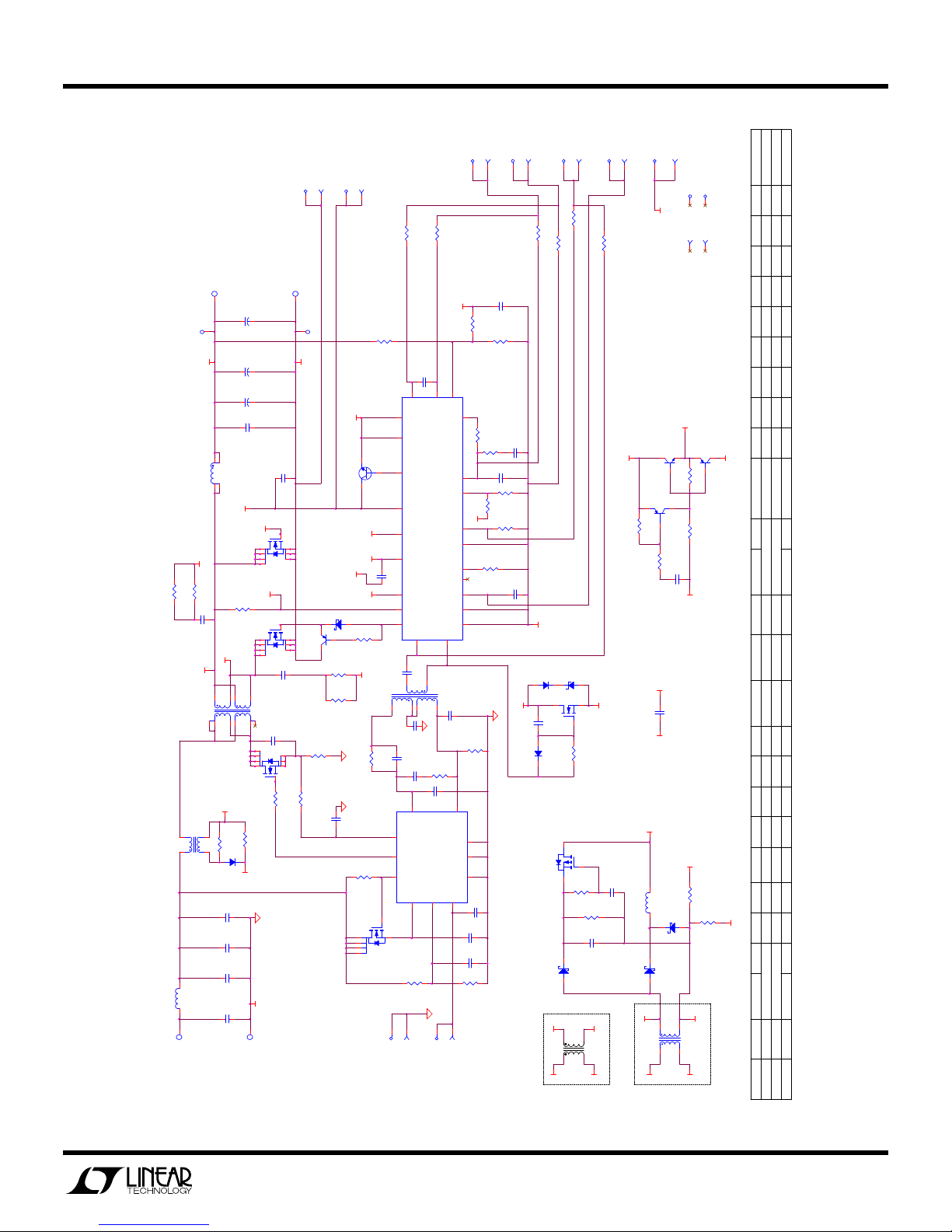

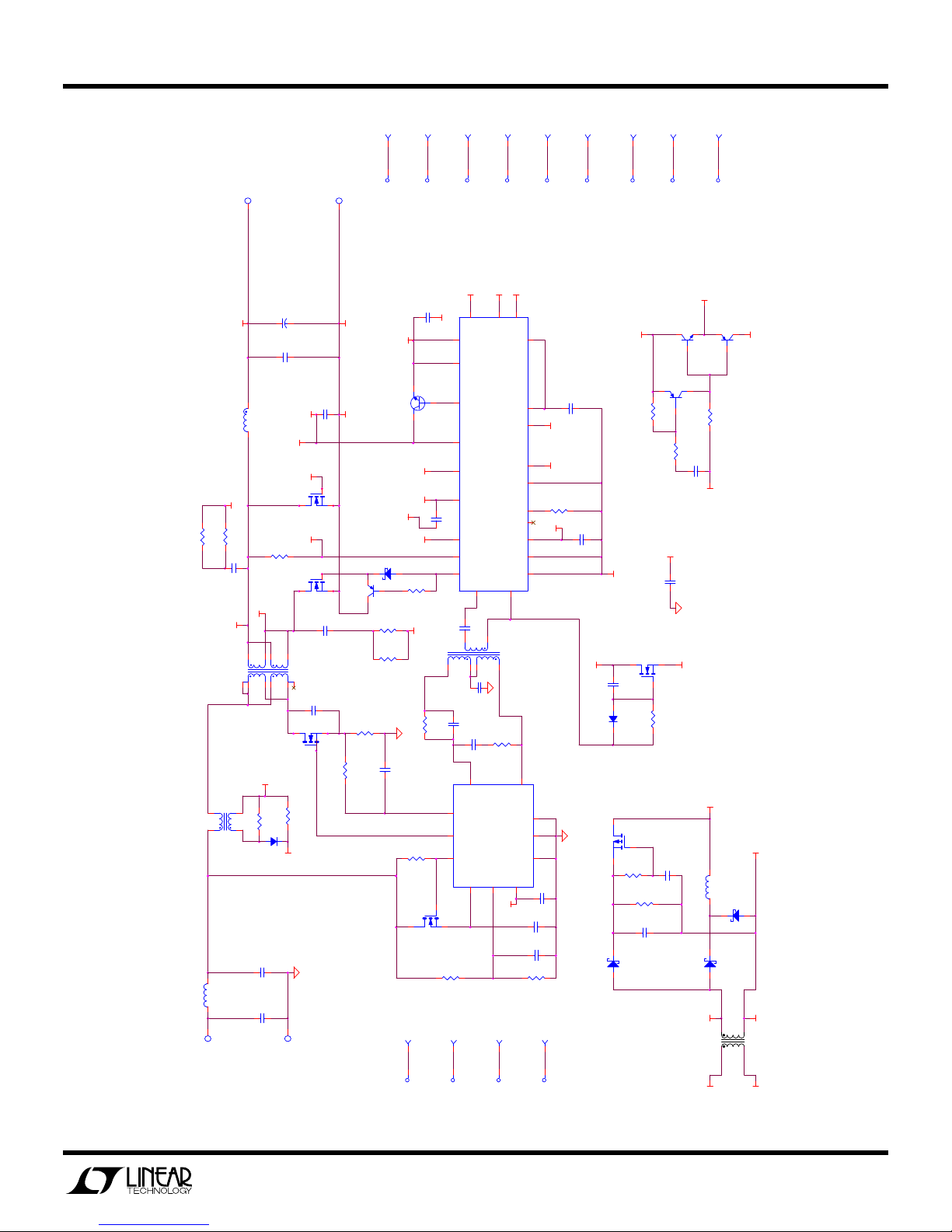

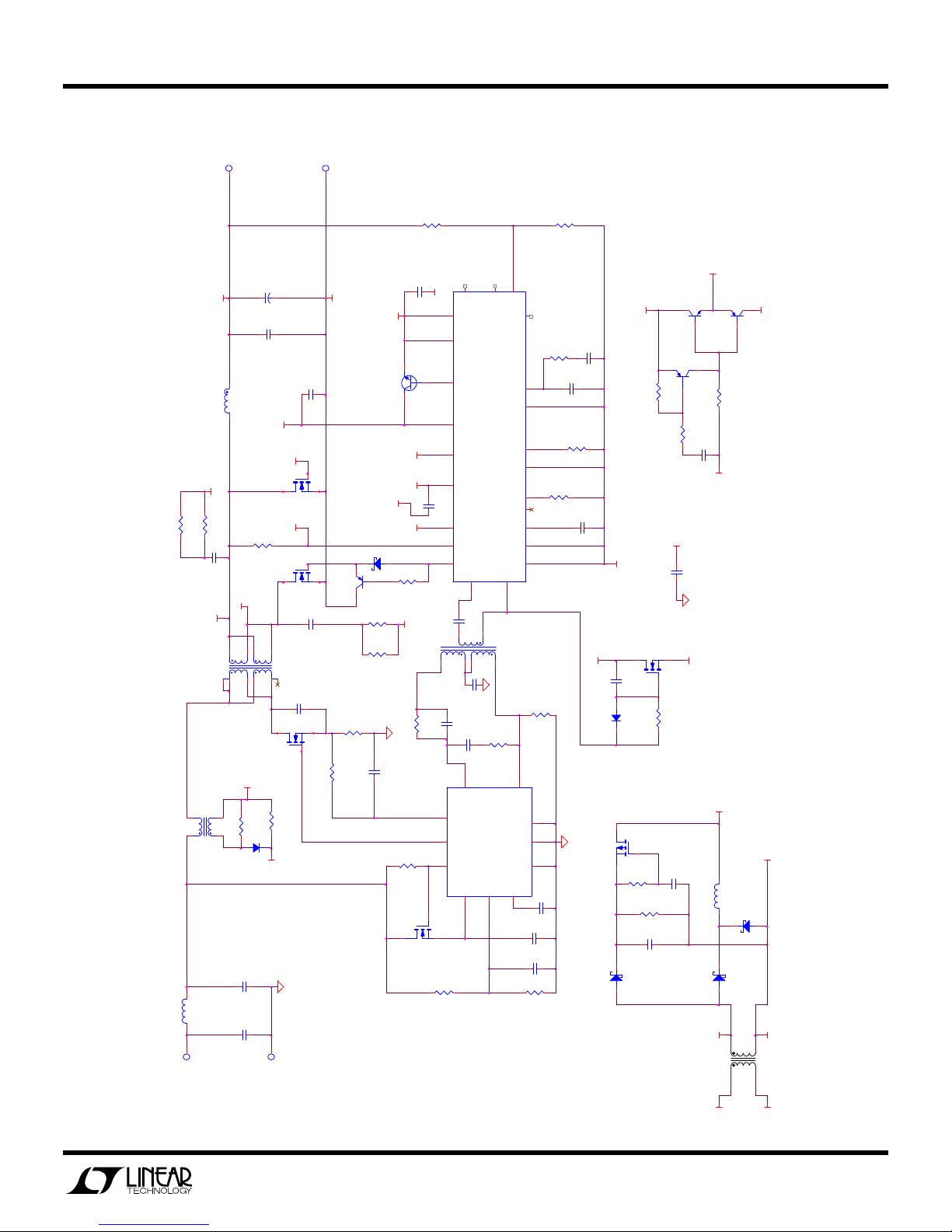

Figure 15. Single Phase Schematic
