LineEye LE-8600X User manual

MULTI PROTOCOL ANALYZER
Thank you for your purchase of LE-series.
This booklet tells you only the basic operation. For more detailed information, please refer
to the instruction manual (PDF) in the utility CD attached to the product.
2022 by LINEEYE CO., LTD. All rights reserved.
When you unpack the product, make sure you have all following items
□Protocol Analyzer 1
□Interface Sub-board [SB-10GE] (attached to the analyzer) 1
□Hand strap ( Already mounted) 1
□Wide input AC adapter (Input :AC100 ～240V/ Output :DC9V ) 1
□LAN cable 1
□USB cable (Type A - Type-C) 1
□External signal I/O cable [LE-4TG] 1
□Utility CD 1
□Quick Start Guide ( this booklet ) 1
□Carrying bag [LEB-01] 1
□Registration card, Warranty 1
Please let us know if you nd any damage to the product or accessories lacking.
Quick Start Guide

Outline
The LE-8600X/LE-8600XR are equipped with two measurement ports compatible with
SFP/SFP+ modules and are handy type Ethernet LAN analyzer that supports high-speed
LAN measurement tests that use single-mode or multi-mode optical ber cables as a single
unit. You can log the data automatically to the built-in 500GB SSD. As it has the online
monitor function, packet generate (PG) function, statistical analysis function etc. you can
use the analyzer according to the test situation. It can be widely used for communication
systems, communication device development, inspection, and failure diagnosis.
USER LIMITATION
This product has not been developed for the use that needs exclusively high reliability and
safety: aerospace apparatus, trunk communication apparatus, nuclear control apparatus,
medical apparatus related with life maintenance etc. Therefore, do no use for those
purposes.
LE-series models with Wi-Fi function (IEEE 802.11b/g/n) emit radio wave. Please do not
use it near a medical device, microwave, high-level electronics, TV, radio, wireless station
for mobile communication, or specied low power radio station. To use LE-series in the
place where an administrator limits the use of radio devices, follow the instruction of the
administrator.
The Wi-Fi module used for the LE-series conforms to SRRC(China), FCC (USA), CE (EU),
TELEC (Japan), KCC (Korea), ISED (Canada), NCC (Republic of China), however, as its
product (LE-series) the Wi-Fi function is available only in Japan, USA, Canada, and EU
nations in compliance with RE directive (2014/53/EU).
To use the product other than above countries, order LE-series without Wi-Fi function.
Please contact the sales department for more details.
Representation of the Operating Procedure
・Key operation is described in [ ].
・Continuous key operation is described as follows.
ex) Press [MENU] and then [0] → [MENU],[0].
・Screen display is described in “ ”.
・Reference page is displayed in (Pxxx).
It is prohibited to reprint or duplicate any part of this manual without prior permission of LINEEYE.
The content of this manual and specication of the product is subject to change without any notice

1
Safety Information
Please do not use the line monitor in the following conditions.
〔Description of the symbol and mark〕
Warning: There is a possibility of getting hurt, such as a death or a serious injury.
Caution: There is a possibility of getting injured or damaging the product.
● Do not disassemble, modify or repair the line monitor
This may result in an injury, electric shock, and ignition.
● Turn off the power of analyzer and unplug the cables immediately when emanating
smoke, odor or sound.
Continuous use may result in an electric shock, injure or ignition.
● Do not use the line monitor if there is inammable gas.
This may result in ignition and explosion.
● Turn off the power and unplug the line monitor immediately when liquid or foreign
substance gets into the line monitor.
Continuous use may result in ignition, electric shock and malfunction.
● Do not touch the line monitor with wet hand.
This may result in an electric shock and malfunction.
● Do not use the battery other than attached Lithium ion battery.
Do not short the electrode of the battery. Do not modify, decompose or heat the
battery.
It may cause the ignition and explosion.
● Do not give a strong impact to the line monitor.
● Do not place the line monitor in following conditions.
・ Not at or vibrated place.
・ Temperature or humidity is above the specication.
・Change the temperature rapidly. ・ Have a direct sun or near the re.
・ Magnetic eld. Have static electricity.
● Do not use the line monitor near the following devices.
・ Medical device, such as a heat pacemaker.
・ Automatic control devices easily aected by radio waves.
・Devices controlled by the radio waves.
War ning
Caution

2
Nomenclature
Name Function
1) AC adapter plug Connects the AC adapter, which serves as a battery charger.
2) Power Switch Press it for more than 1 sec to turn on/o the analyzer.
3) SD Card Slot The inlet for a SD/SDHC card.
4) USB Host Port USB Type-A connector
Connect the USB ash drive or SSD for USB port.
5) USB Device Port USB Type-C connector connected to a PC or battery charger.
6) LAN port
RJ-45 connector. A LED for linking (right) and a LED for 1000BASE
(left).
Use it for connecting the LAN cable from the PC.
7) Interface Sub -Board
The interface sub-board (SB-10GE) for measuring of 10GbE is
inserted.
Able to exchange to the optional interface sub-boards.
8) PORT A, B Insert SFP/SFP+ modules for various measurement.
9) External Input Terminal Input/output port for trigger signal at TTL level.
Connect the attached external signal input/output cable.
10) Connector for GPS
antenna
SMA (female) connector.
Connect the optional GPS antenna to have the time synchronous by
GPS.
11) Connector for PPS signal SMA (female) connector
Input/output the PPS time synchronous signal at TTL level.
12) 7 Inch Color Display Touch panel of electrostatic capacity.
13) Line State LED Display the status of measuring interface.
14) Power LED Lighting in green when using. Blinking in red when charging battery.
15) Keypad Entering commands and other operation.
16) Battery Cover Open/close when replacing the battery.
17) Hand strap Use to hold the product.
1)
2)
3)
4)
7)
8)9)10)11)
5)
6)
12)
16)
17)
13)
14)
15)

3
Power Supply and Battery
This analyzer runs by attached AC adapter, or built-in rechargeable battery.
ڦPower Source
This analyzer runs by attached AC adapter, or built-in Lithium Ion battery.
The battery running time is approx. 2 hours. (The running time is different by the usage of
analyzer.)
It does not run by the bus power from the USB device port.
AC adapter
ڦCharge the Battery
Built-in Lithium Ion battery is charged while the power is supplied by the AC adapter. It
is also chargeable by the bus power from the USB device port.
Power supply Analyzer Status Charge Time Power LED blinking
AC adapter OFF －About 3.5 hours Approx.1sec cycle
ON Stop measuring Max. 6 hours *1 Approx.4sec cycle
Measuring No charge No charge
USB bus power OFF Use attached USB cable Max. 6 hours *1 Approx. 4 sec cycle
Use Type-C battery charger
etc. *2
About 4.5 hours Approx.1.5 sec
cycle
ON －No charge No blinking
*1 ：This will not be full charging because of the small amount of current (approx. 160mA).
*2 ：It will be the same when it connects to the PC with a USB port in Type-C connector.
This analyzer is not charged in full before shipping. To use the analyzer at the rst time, charge
it full.
Charge the analyzer under the temperature of 5 to 40 ℃. It will not start charging below 5 ℃.
If you are not going to use it for a long term, charge the battery in full. After that, try to charge
the battery every 6 months.
ڦReplacement of battery
If the analyzer can no longer drive by the battery, or the service time after charging
becomes extremely short, replace the battery.
Refer to the instruction manual for more details of replacement of battery.
Old battery has to be handled in an appropriate manner.
＜Notice for battery ＞
● Do not short the terminal of the battery.
● Use the battery and battery charger specied by LINEEYE.
● Do not disassemble or modify the battery.
● Do not use the analyzer near the heater or leave it in the place with high temperature.
It can cause heat, re, explosion, electric shock, liquid spill and malfunction.
Warning

4
ڦKeys
Operations Function
[ ] Turn ON/OFF the power.
Press it for more than 1sec.
[RUN] Start monitoring, measuring or testing operation.
[STOP] Stop monitoring, measuring or testing operation.
[MENU] Return to the top menu.
[ESC] Return to the previous display.
Return to the data display from conguration.
[ ▲ ] , [ ▼ ] Scroll one data line.
Move the cursor on the condition setting.
[
▲
] , [
▲
] Scroll one character of data.
Change the setting on the condition setting.
[ENTER] Apply selected settings.
[0] ～[F] Enter numerical values.
[TOP/DEL] Delete the entry indicated by the cursor.
[END/X] Enter the data of “Don't Care”.
[SHIFT] Press to use the expanded alternate function of each key.
[SHIFT]+[TOP/DEL] Jump to the top of data.
[SHIFT]+[END/X] Jump to the end of the screen.
[SHIFT]+[ESC] Save the screen image to the storage device.
[SHIFT]+[MENU] Display/hide the description of LEDs.
[SHIFT]+[RUN] Brighter the LCD back light.
[SHIFT]+[STOP] Darker the LCD back light.
* [X]+[Y] indicates the operation of pressing [X] and [Y] together at the same time.
Shortcut keys are available from [MENU] and [0] ～[F].
To go back the factory setting, press “ System Settings” -> “ Version”-> “ Factory reset”
→ 「Version」(P7)
Key operation
There is a keyboard to input data and operate commands.

5
Initial Settings
To turn on the power, press [ ] for a
second. After displaying the opening
screen for about 15 seconds, it will start
running.
Select the language at the first time
using the analyzer. If it is selected
already, it displays the top menu.
Both LE-8600XR and LE-8600X
models are displayed as “LE-8600X”.
To set each configuration, touch
the configuration menu or select by
[▲],[▼],[
▲
],[
▲
] keys and then press
[ ENTER ].
You can select the measurement
function by touching “Mode”. Also,
set the measurement settings for each
function with “- Opt.”.
To set each items, touch the item or
select by arrow keys or [0] ～[F] keys.
To set the current time, touch the
current time on the right bottom of the
screen.
Shortcut key ［MENU］, [D]
The current time is displayed in the
order of Year/Month/Day, Hour:
Minute: Second (24hour).
If using the GPS antenna, received time
from GPS is displayed.
Information of time and date is used for time stamp and Auto start/stop. Make sure to input the
current time and date precisely.

6
System Setting and Version
Touch “System Settings” from top menu.
Touch each tab or press [SHIFT]+[
▲
] , [SHIFT]+[
▲
]
ڧDisplay / Power
Set each setting of backlight
brightness, backlight setting for
power saving mode, auto power
o, and saving location for screen
shot.
Press [SHIFT]+[ESC] to save the
screen images.
Auto Power O function does not
work during measurement.
Record Control
Touch “Record Control” from top menu and set the record conditions of measured data.
Shortcut key ［MENU］, [B]
Touch “Capt. Buer” on the left upper or press [SHIFT] + [
▲
] or [SHIFT] + [
▲
]
ڧCapture Buer
Recording area :
Select the recording area of buer
memory from full size (BUF0) or
half size (BUF1/BUF2).
Protected ：
Select whether or not protect data
in the capture buffer to prohibit
overwriting.
Write Control ：
Select Ring buer (endless recording) or Full stop when the capture buer is full.
ڧAuto save
Auto save function saves monitored data in the memory card automatically. Set “Auto
backup” function which saves data when it ends the measurement.
→ 「 Auto Save」(P20)
→ 「 Auto back-up function」(P21)
ڧAuto run
Start measuring automatically at the specic period of time.
→ 「 Auto Run Function」(P21)
Shortcut key ［MENU］, [C]

7
ڧNetwork
Set each setting for wired LAN
and wireless LAN. As a factory
setting, wireless LAN is turned
off. To change the setting of
wireless LAN, touch “Setting
change” and select “station mode”
or “access point mode”.
LE-8600X does not have
thewireless function.
ڧLanguage
Select language from Japanese or
English.
ڧVersion
Serial number and firmware
version are displayed.
It is able to update the firmware
and reset the rmware.

8
SFP module
SFP modules (sold separately) must be installed in order to perform measurements with this
unit. We have the following as optional items.
Ty p e Model
1000BASE-SX SFP module LE-1G-SX-85 Wave length: 850nm, maximum transfer distance:
550m (LC)
1000BASE-LX/LH SFP module LE-1G-LX-31 Wave length: 1310nm, maximum transfer
distance: 20km (LC)
1000BASE-T SFP module LE-1G-BT-45 Maximum transfer distance: 100m (RJ45)
10GBASE-SR SFP+ module LE-10G-SR-85 Wave length: 850nm, maximum transfer distance:
300m (LC)
10GBASE-LR SFP+ module LE-10G-LR-31 Wave length: 1310nm, maximum transfer
distance: 10km (LC)
10GBASE-T SFP+ module LE-10G-BT-45 Maximum transfer distance: 30m (RJ45)
ڦInstalling an SFP module
Firmly insert the SFP module as far as it will go.
* Detailed information on the SFP module can be displayed by selecting “SFP Info”
from “Mode” on the top menu screen and pressing [RUN].
ڦRemove the SFP module
Keep in mind that the lever is down when you remove the SFP module.
・Some SFP modules may become hot during use. Be careful not to burn yourself when
removing.
・Use the SFP module of the same speed set on the Interface screen.
・Do not connect or disconnect the SFP module during measurement. It cannot capture data
correctly.
・Please note that correct operation using SFP modules other than our optional products is
not supported.
Lever SFP
Lever SFP

9
Functions
ڦOnline Monitor Function
Touch “Mode” from top menu and select “Online”.
ڧConnection
Connect the cables (in which the communication data between the target devices run)
with each port as follows. When you need additional cables for branch connection,
use the attached LAN cable or a straight cable of the category 5e or later.
Delay is occurred when it passes through the TAP circuit in the analyzer.
Time stamp information can be synchronized with PPS signal from GPS or external
PPS device.
PORT APORT B
GPS
GPS antenna
PPS
PPS device Cable for PPS synchronization

10
To use one GPS active antenna and synchronize 2 sets of LE-8600X/LE-8500X,
connect devices as following.
ڧInterface setting
Touch “Interface”. Set each setting of port A/B individually.
ڧFilter setting
Touch “Filter”. It is able to set “Tx” and “Rx” individually.
→ 「Filter function」( P17)
ڧTrigger setting
Touch “Trigger”. It is able to generate triggers by external signal, frame condition and
so on.
→ 「Trigger Setup」(P19)
ڧOnline Monitor setting
Touch “Online Opt.”. Set the resolution and time stamp.
ڧStart and Stop measurement
Press [RUN] to start monitoring. Measured data is displayed at real time and recorded
in the capture memory.
Press [STOP] to nish measuring.
［MENU］,[1]
Shortcut key
［MENU］,[0]
Shortcut key
［MENU］,[3]
Shortcut key
Coaxial cable for PPS synchronization
GPS
GPS antenna
PPS PPS
［MENU］,[2]
Shortcut key

11
ڧFrame display
It displays the LAN frames with the time stamp information on the screen.
Scroll data by [▲] [▼] keys or swipe the screen.
Press [ENTER] to display more details.
“Time Resolution”
ss.nsec or mm:ss.μsec*1
↓
hh : mm : ss. msec
↓
MM / DD hh : mm : ss
↓
YY / MM / DD hh : mm
↓
Δtime(sec) *2
*1: Displayed resolution of time stamp is set in
the conguration.
*2: Elapsed time from previous frame.
Time stamp
Source address
Destination address
Protocol
ڧDetailed display
Display the details of the frame,
which is displayed on the top of
the Frame Display.
Press [ENTER] to change the
display to frame display.
Refer to specication of each protocol for more details.
Press [SHIFT] + “Relative Time” to start the time stamp from zero when it starts
measuring.
“OVERRUN” is displayed at locations where the unit could not capture packets, such as
when a large number of short packets were sent continuously or when packets were sent in
both directions at a high load at the same time.
Data packet is missing.
“OVERRU N” is displayed.

12
The target frame for dump view.
It is able to scroll data by swiping the
screen.
・HEX dump view
Touch “Dump” in the detailed display.
ڧSplit Display
Display saved data of BUF1 and
BUF2 at the same time. It is useful
to compare two data for finding
problems by press [SHIFT]+
“ Split Display”. To scroll two data
synchronously, enable “SYNC”
ڧPosition Jump
Touch “Position Jump” to display specied frame number.
ڧMark & Jump
Mark and name the frame where the cursor is pointing by [SHIFT]+[1]-[9].
Marked frames are named as M1 to M9.
To rename the frame, use dierent number.
To delete the marking, type the same number again.
To display (jump) the marked frame, touch [1]-[9].
Press [0] to display previous frames
ڧSearch
Touch “Search” to nd the specic
errors and frames which matched
with the specied conditions.
Display matched data or count the
number of frames.
Dump display of Ethernet frame.
Scroll frames by ［ ▲
］［
▼
］keys.

13
ڦSFP module information display function
Displays detailed information of the SFP module inserted in the unit.
Tap “Mode” on the top menu screen and select “SFP Info.”
ڧInformation display
Press [RUN] to obtain and display the information. Tap “Transceiver” and
“Diagnostic” to display its screens.
End the information acquisition by [STOP].
ڦStatistic Function
Touch “Mode” at top menu and select “Trend”.
ڧConnection
Connect the target network to the port A/B of analyzer.
Refer to the manual of “Connection” for On-line monitor function
→ 「Online Monitor Function」 (P9)
ڧStatistic setting
Touch “ Trend Opt.”. Set the target
signal lines and measurement
cycle.
ڧStart and Stop Measurement
Press [RUN] to start measuring
and [STOP] to end measuring.
ڧResult
Display the results in bar graph or
counts the numbers.
・Bar graph
Display the results in bar graph.
Each bar is made when it passes
the specied time range.
・Counter display
Display the total number of items
for each port.

14
ڦPacket Generator Function
Touch “Mode” at top menu and select “PG”

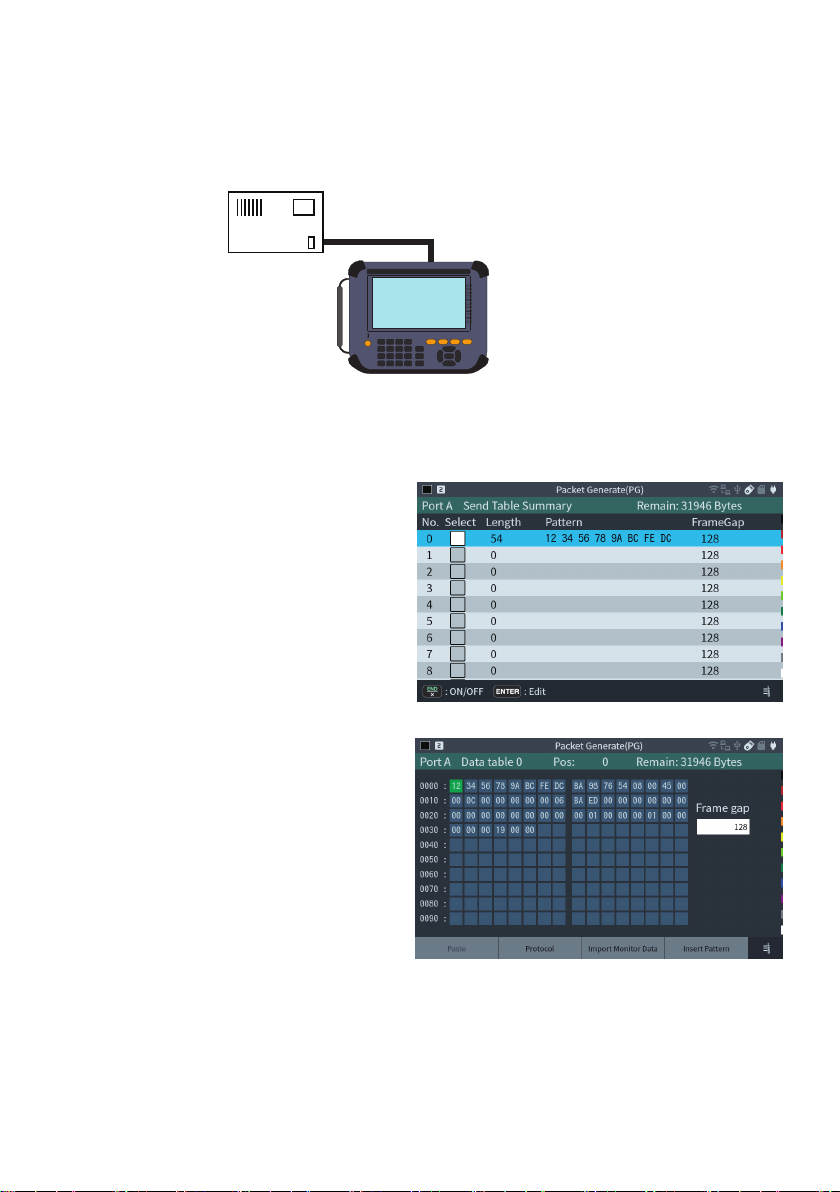

ڧConnection
Connect the target device and analyzer using the LAN cable.
ڧPG setting
Touch “ PG Opt.” and set the transmission packets and conditions.
ڧEdit send packets
Touch “ Edit send table” from PG
setting. Select enable/disable of 16
send tables. Touch selected table or
press [ENTER] to edit the contents
of the table.
・Edit table
Input the send packets in HEX.
Maximum 32000 bytes of packets
for total 16 tables can be input.
Input the packets without FCS.
Set the frame gap as well.
While typing the data, press
[ENTER] or touch the screen
longer to cut/copy/paste data.
Touch “Protocol” and select protocol type etc.
PORT A

15
ڦPing Function
Touch “Mode” at top menu and select “Ping”.
ڧConnection
Connect the target device and analyzer using the LAN cable.
PORT A
・Edit protocol
Select the protocol type from
Ethernet, IPv4, ARP, ICMP, TCP,
UDP and set the appropriate
header following the specication
of each protocol.
Touch “Apply” to apply the
setting and return to the data send
table.
For more information of each
protocol, refer to the specication
of each protocol.
ڧStart and Stop Measurement
Press [RUN]. If the linking toward the selected transmission port is ready, “Transmit
C Port” or “Transmit D Port” is displayed. Touch the button or [C]/[D] key to send the
enabled transmission tables. When the transmission reaches to the selected times or
press [STOP], the measurement stops.
ڧTest Result
The result of packet transmission is
displayed on the screen.

16
ڧPing Setup
Touch “ Ping Opt.”. Set the send address and interval.
ڧStart and end measuring
Press [RUN] to start the ping test from selected port.
It ends the test when it reaches to the 30000 times or press [STOP].
ڧTest Result
Display the results on the screen.
If it cannot send the ping command,
it displays the reason on the upper
right on the screen.
ڦPort Blink Function
Touch “Mode” at top menu and select “Blink”
ڧConnection
Plug the LAN cable connected to the HUB into the Port A.
ڧStart and end measuring
Press [RUN] to repeat linking/unlinking from the PORT A to the port of the hub to
which PORT A is connected.
The blinking cycle can be changed between 2 and 16 seconds by pressing [▲] [▼].
It will help you nding the connected cable by blinking the link LED of HUB.
Port A
Hub

17
Useful Functions
ڦFilter function
Filter function captures specic frames measured by on-line monitor function.
It is able set 2 lters.
Touch “Filter” from on-line monitor function.
［MENU］,[0]
ڧMode
If selecting “Common”, the setting
on Tx is applied on Rx as well. If
selectin “Separate” it is able to set
Tx and Rx separately.
ڧTy p e
Select from Layer 2 or IPv4.
ڧFilter
Select valid/invalid of lter function. Select valid and set the details of lter setting.
ڧExample of lter setting
Shortcut key
device A
IP 192.168.1.5
device B
IP 192.168.1.6
device C
IP 192.168.1.7
device D
IP 192.168.1.8
device Y
IP 192.168.2.9
device X
IP 192.168.2.10
PORT B PORT A

18
・Monitoring example of TCP/IP frames between Device A and D by ltering.
The lter 0 is congured to monitor TCP frames sent from the device D to device A
and the lter 1 is congured to monitor TCP frames sent from the device A to device
D. Congures this setting between port A-B.
・An example of the conguration to monitor only the UDP protocol communication
between the devices X and Y which belong to the network address “192.168.1”
