1000 SERIES DIGIFLEX
LINK ELECTRONICS, INC.
ANALOG AUDIO TO DIGITAL AUDIO AES/EBU
DIGIFLEX 1660
FEATURES
Fault LED
Analog to AES\EBU
Transformer Coupled Digital I/O
External Reference Input
BNC or Terminal Connections
TheDigiFlex1660acceptsoneanalogstereoinput
and provides one output of digital audio to AES3-
1992 or AES3-ID specification. Up to eleven
1660's may be mounted in a 2RU space with
LINK'sDigiFlexframe.Transformercoupleddigital
inputs and outputs are standard to eliminate the
possibility of ground loops.

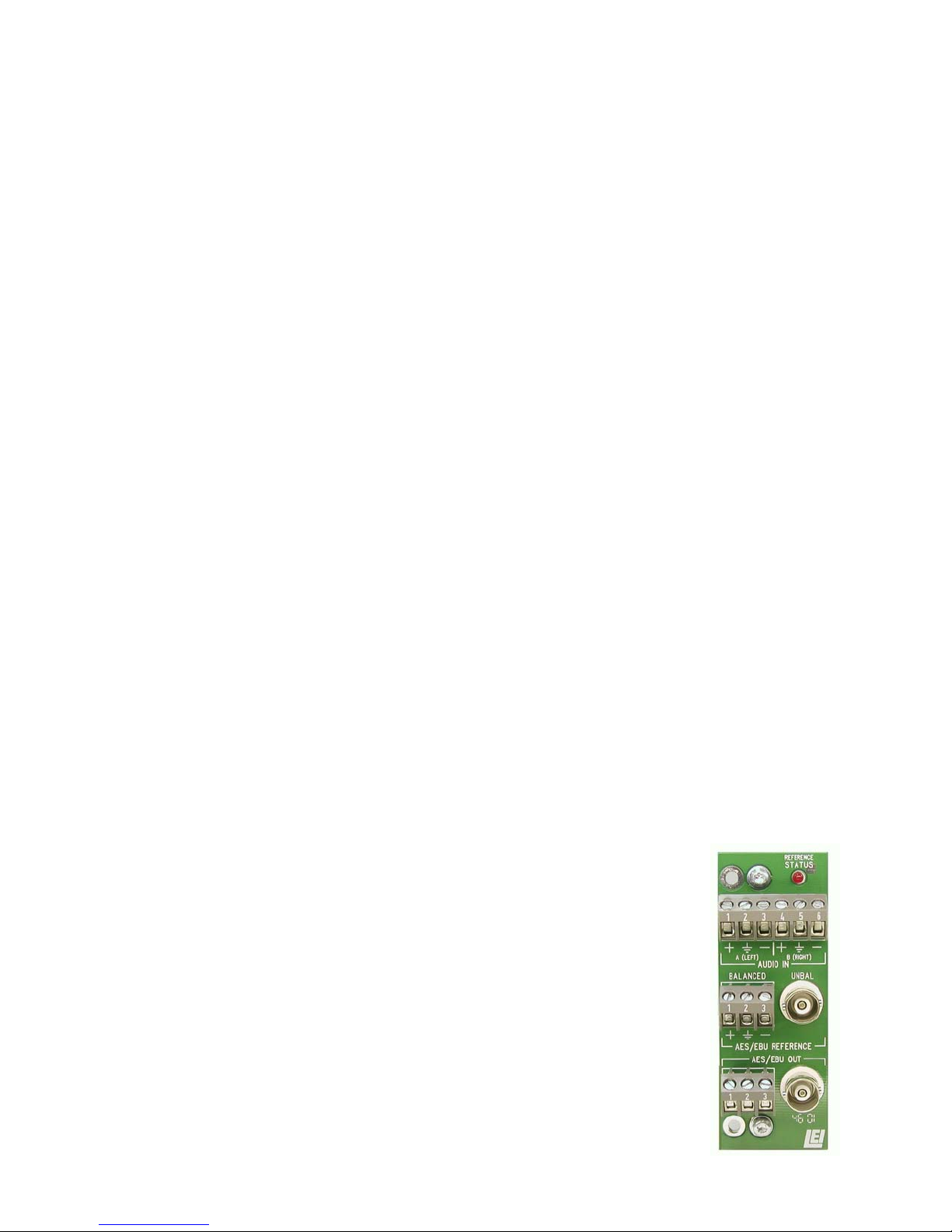

The 1660 companion rear cell, model 1020,
allows the user to select terminal or BNC connec-
tors for digital output. Captive screw terminal
blocksareusedforthebalancedanaloginput.The
DigiFlex mounting frame with rear cell selection
providesforfuturegrowthinto thedigitalor analog
video/audio system requirements.
Selectable Full Scale +10dBu to +28dBu
20/24 Bit Conversion, Selectable
48 Khz Internal Reference
Automatic External Reference Detection
External Reference Presence LED
Control of Channel Status Bits
The digital signal path uses state-of-the-art inte-
gratedcircuits.Referencesamplerateisautomati-
cally detected and indicated by front panel LEDs.
External reference errors are also detected and
reported by red LEDs on both the front and rear
panels. A "Frame Fault" output can also be en-
abled for centralized error reporting.
The digital conversion is accomplished using a 2-
bit Delta-Sigma converter with 24-bit resolution.
Designed with the professional in mind, the
DigiFlex 1660 will provide years of error free
performance. BackedbyLINK'sstandard10-year
warranty, the 1660 combines high-performance,
reliability and economy.
LINKELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone [phone] FAX [phone]
Mounting Frame Options
1000 - Single Power Supply, Holds 11 Modules
1000/2 - Dual Power Supply, Holds 10 Modules
7200 - Mounting Frame, Holds 1 Module
MADE IN THE USA

1660/083002 1020 REARCELL
DIGIFLEX 1660 ANALOG TO AES/EBU CONVERSION
SPECIFICATIONS
REFERENCE INPUT:
Number: ...................................................................... One
Interface: ..................................... AES3-1992 (Twisted-pair) or AES3-ID (BNC)
Format:........................................................ Bi-phase Mark Encoded
Impedance: ............................................................. 110Ωor 75Ω
Sampling Frequency Range: ............................................. 30KHzto50KHz
Level: ...............................................................200mV Minimum
Connectors: ..........................................................BNCorTerminal
DIGITAL OUTPUTS:
Number: ................................................ One75Ωor One 110Ωbalanced
Interface: ...................................................... AES3-1992 or AES3-ID
Format:........................................................ Bi-phase Mark Encoded
Impedance: ............................................................. 110Ωor 75Ω
Level: ........................................ 1voltp-pAES53-ID/3.2 Volts p-p AES3-1992
Connectors: ..................................................... TerminalBlockorBNC
ANALOG TO DIGITAL CONVERSION:
Method: ............................................................ 2-bit,Delta-sigma
Resolution:................................................. 24-BIT\20BITJumperSelect
Over-samplingRatio: ............................................................ 128X
Modulator Order: .................................................................. 3
DefaultSamplingRate: .........................................................48KHz
Optional Sampling Rate: ...................................................... 44.1KHz
ANALOG INPUTS:
Number: .................................................... OneStereoPair,2Channel
Impedance: ............................................................ 10KBalanced
CMR: ........................................................................ 80dB
Configuration:...............................................................Balanced
Dynamic Range: .......................................................... >105 dBFS
Frequency Response: ............................................ ±0.1dB,20Hzto20KHz
TotalHarmonicDistortion: ...................................................... <.004%
TotalHarmonicDistortion+N:....................................................<.0.02%
Crosstalk:...................................................... <-85dB, 20Hz to 20KHz
Separation: ...................................................... >90dB, 20Hz to 20KHz
INTERNAL ADJUSTMENTS:
Common Mode Rejection: ................................................. ResistiveTrim
AttentuationPad: .............................................. ResistiveGainAdjustment
StatusDIPSwitches: ............................................... Changes Status Data
MECHANICAL:
Height: ........................................................3.2"
Width:.........................................................1.0"
Length: .......................................................10.0"
Weight:.......................................................8.0oz
Power: ................................................... 2.5Watts
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703-7668
Phone: [phone]
FAX: [phone]
PROFESSIONAL SERIES--
modular system products--by LINK
