Linksys USBBT100 User manual

A Division of Cisco Systems, Inc.
®
Model No.
USB Adapter
Bluetooth
USBBT100
User Guide
WIRELESS

Bluetooth USB Adapter
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
How to Use this User Guide
This User Guide to the Bluetooth USB Adapter has been designed to make understanding using the Adapter easier
than ever. Look for the following items when reading this Guide:
In addition to these symbols, there are definitions for technical terms that are presented like this:
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”.
This exclamation point means there is a Caution or
warning and is something that could damage your
property or the Adapter.
word: definition.
This checkmark means there is a Note of interest and
is something you should pay special attention to while
using the Adapter.
This question mark provides you with a reminder about
something you might need to do while using the Adapter.
Figure 0-1: Sample Figure Description
USBBT100-UG-50227 KL
WARNING: This product contains chemicals, including lead, known to the State of California to
cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Bluetooth USB Adapter
Chapter 1: Introduction 1
Welcome 1
What’s in this Guide? 2
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter 3
Installing the Bluetooth Software 3
Connecting the Adapter 6
Chapter 3: Using the Bluetooth USB Adapter 7
Navigating from Your Desktop 7
The Bluetooth System Tray Icon 8
Explore My Bluetooth Places 8
The Bluetooth Setup Wizard 9
Advanced Cofiguration 13
Quick Connection 18
Appendix A: Troubleshooting 19
Common Problems and Solutions 19
Frequently Asked Questions 20
Appendix B: Bluetooth Applications and Services 21
Bluetooth Client Applications 21
Services 22
Appendix C: Specifications 23
Appendix D: Warranty Information 25
Appendix E: Regulatory Information 26
Appendix F: Contact Information 29

Dual-Band Wireless Access Point
Figure 1-1: The Bluetooth USB Adapter 1
Figure 2-1: The Setup Wizard’s Welcome Screen 3
Figure 2-2: The InstallShield Wizard’s Welcome Screen 3
Figure 2-3: The License Agreement Screen 4
Figure 2-4: The Destination Folder Screen 4
Figure 2-5: The Install Screen 4
Figure 2-6: The Driver Signature Notice 5
Figure 2-7: The Adapter’s Connection Screen 5
Figure 2-8: The Wizard Completed Screen 5
Figure 2-9: The Bluetooth Icon 6
Figure 2-10: Connecting the Adapter 6
Figure 3-1: The Bluetooth Icon 7
Figure 3-2: The Bluetooth System Tray Icon’s Menu 8
Figure 3-3: My Bluetooth Places 8
Figure 3-4: The Bluetooth Setup Wizard 9
Figure 3-5: The Bluetooth Service Selection Screen 10
Figure 3-6: The Bluetooth Device Selection Screen 10
Figure 3-7: The Setup Wizard Completion Screen 10
Figure 3-8: The Bluetooth Device Selection Screen 11
Figure 3-9: The Bluetooth Security Setup Screen 11
Figure 3-10: The Bluetooth Service Selection Screen 11
Figure 3-11: The Bluetooth Service Selection Screen 12
Figure 3-12: Change the Computer Name and Type 12
Figure 3-13: Bluetooth Configuration - General tab 13
Figure 3-14: Bluetooth Configuration - Accessibility tab 14
Figure 3-15: PIN code notification 14
Figure 3-16: Bluetooth Configuration - Discovery tab 15
Figure 3-17: Bluetooth Configuration - Local Services tab 16
Figure 3-18: Local Services Properties 16
Figure 3-19: Bluetooth Configuration - Client Applications tab 17
Figure 3-20: Client Applications Properties 17
Figure 3-21: Bluetooth Configuration - Hardware 18
Figure 3-22: Quick Connection 18

1
Chapter 1: Introduction
Welcome
Bluetooth USB Adapter
Chapter 1: Introduction
Welcome
Thank you for choosing the Bluetooth USB Adapter. This Adapter brings all the uses of Bluetooth directly to your
PC.
As you probably already know, Bluetooth technology provides consumer device connectivity, interfacing with your
cellular phone, allowing PDA synchronization, and so much more. With every new Bluetooth device, your PC will
now grant you access.
But what does all of this mean?
Bluetooth technology is always functioning, and can connect to other Bluetooth devices with Quick Connect.
Consider your Bluetooth cell-phone. When brought within range of the USB Adapter, connected to your PC, you
can upload phone directories onto your phone, dial out on your dial-up Internet connection on your cell-phone, or
grab photos if your phone has an integrated camera. Imagine synchronizing your PDA without cables, using a
Bluetooth mouse without line-of-sight Infrared lights, or printing to a Bluetooth printer.
PCs equipped with the Adapter can communicate without cumbersome cables and, since it’s USB, there’s no
need to open your PC or engage in complex configuration.
Use the instructions in this User Guide to help you connect the Adapter, set it up, and configure it to function with
your Bluetooth devices. These instructions should be all you need to get the most out of the Adapter.
Figure 1-1: The Bluetooth USB Adapter
Bluetooth: short-range wireless technology
used for replacing cables in many
consumer-electronics devices.

2
Chapter 1: Introduction
What’s in this Guide?
Bluetooth USB Adapter
What’s in this Guide?
This user guide covers the steps for setting up and using the Bluetooth USB Adapter.
• Chapter 1: Introduction
This chapter describes the Adapter’s applications and this User Guide.
• Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
This chapter describes the Adapter’s basic setup and connection.
• Chapter 3: Using the Bluetooth USB Adapter
This chapter instructs you on the Adapter’s various tools and functions.
• Appendix A: Troubleshooting
This appendix describes some problems and solutions, as well as frequently asked questions, regarding
installation and use of the Adapter.
• Appendix B: Bluetooth Applications and Services
This appendix provides information on all the applications and services you may use with the Adapter
• Appendix C: Specifications
This appendix provides the technical specifications for the Adapter.
• Appendix D: Warranty Information
This appendix supplies the warranty information for the Adapter.
• Appendix E: Regulatory Information
This appendix supplies the regulatory information regarding the Adapter.
• Appendix F: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.

3
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Installing the Bluetooth Software
Bluetooth USB Adapter
Chapter 2: Installing the Bluetooth Software and Connecting
the Adapter
Installing the Bluetooth Software
Before connecting the Adapter to your PC’s USB port, you must install the Bluetooth Software, which will install
everything your system needs to use the Adapter. Once the Bluetooth Software is installed, you will be able to
connect the Adapter to your PC.
1. Insert the Adapter’s Setup Wizard CD into your PC’s CD-ROM. It should start up automatically. If it does not,
click Start and choose Run. In the field that appears, enter D:\setup.exe (if “D” is the letter of your CD-ROM
drive). Once the CD starts, the Wizard’s Welcome screen should appear.
Click the Install button to install the Bluetooth Software. Clicking the User Guide button brought up this User
Guide. Clicking the Exit button will exit the Setup Wizard.
2. After clicking the Install button, the InstallShield Wizard’s Welcome screen will appear. Click the Next button
to continue.
IMPORTANT: You must install the Bluetooth
Software from the CD included with the Adapter
before connecting the Adapter to your PC.

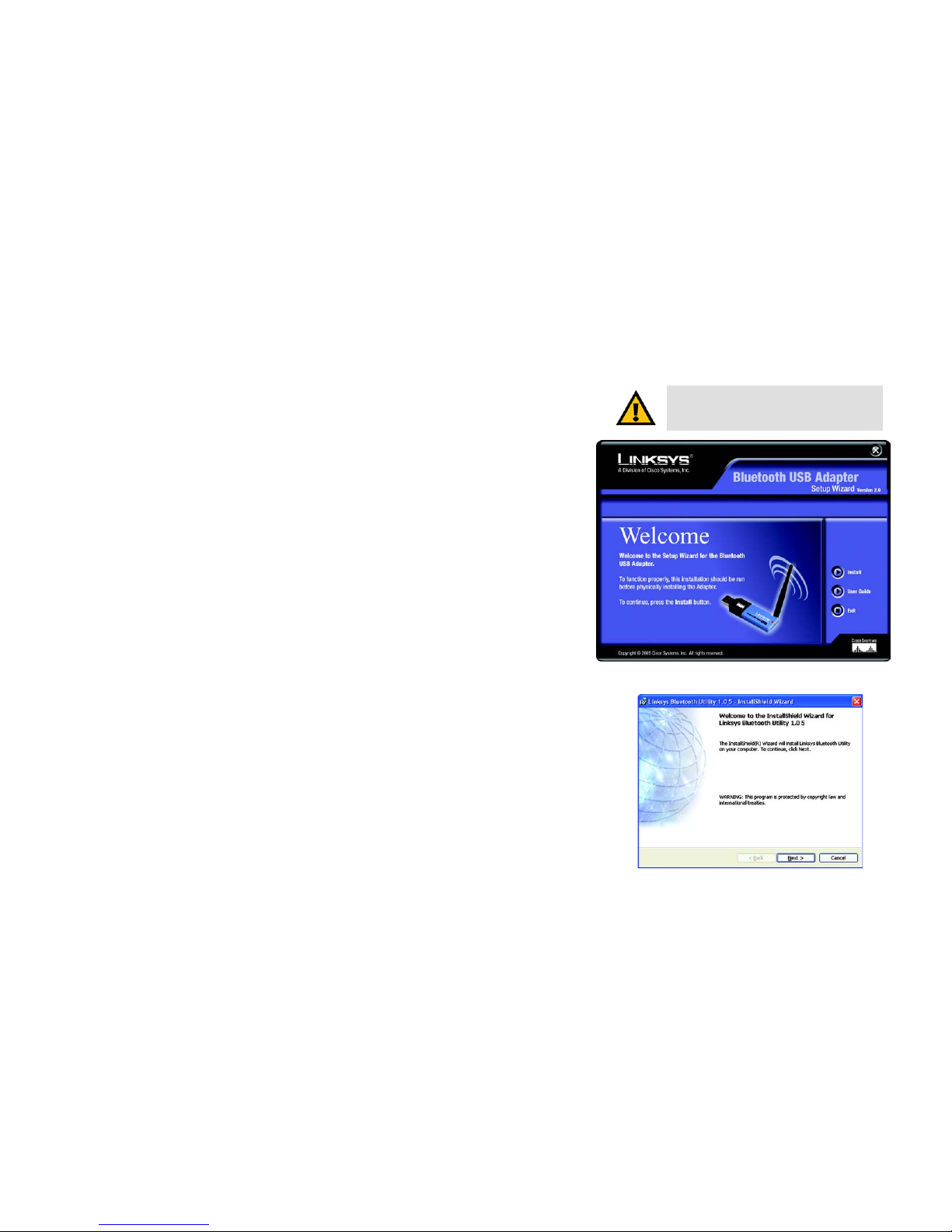

Figure 2-1: The Setup Wizard’s Welcome Screen
Figure 2-2: The InstallShield Wizard’s Welcome Screen

4
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Installing the Bluetooth Software
Bluetooth USB Adapter
3. The next screen is the License Agreement screen. Read the License Agreement and click the radio button for
I accept the terms in the license agreement. Then, click the Next button. You may not click the Next
button unless you click the button showing that you accept the terms.
If you wish to move back through the Wizard, click the Back button. If you wish to close the Wizard, click
Cancel.
4. You will next be asked for a Destination folder. This is where the Bluetooth Software will be installed. A
default directory will be displayed but, if you wish to change that, you can click the Change button and select
a different folder. Then, click the Next button.
If you wish to move back through the Wizard, click the Back button. If you wish to close the Wizard, click
Cancel.
5. Now, the Bluetooth Software will be ready to begin installing all of the necessary files. Click the Install button
to begin.
If you wish to move back through the Wizard, click the Back button. If you wish to close the Wizard, click
Cancel.
The files will proceed to install.
Figure 2-3: The License Agreement Screen
Figure 2-4: The Destination Folder Screen
Figure 2-5: The Install Screen

5
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Installing the Bluetooth Software
Bluetooth USB Adapter
6. During installation, you may see a Driver Signature Notice. This product has been tested for use with
Windows. Click the OK button to continue.
7. At this point, you should connect the Adapter to your PC’s USB port. (See the description on the next page for
details.) After connecting it, click the OK button. If you do now wish to connect it at this time, click the Cancel
button. The Adapter may be connected after the Bluetooth Software is installed.
8. The Wizard, along with all you need to install the Adapter, has been successfully installed. Click the Finish
button to close the final window.
9. If requested by Windows, restart your PC at this time.
Figure 2-6: The Driver Signature Notice
Figure 2-7: The Adapter’s Connection Screen
Figure 2-8: The Wizard Completed Screen

6
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Connecting the Adapter
Bluetooth USB Adapter
Connecting the Adapter
After a moment, Windows will automatically detect the Adapter and a Bluetooth icon will appear in your system
tray.
To connect the Adapter to your PC, simply plug it into any unused USB port.
Figure 2-9: The Bluetooth Icon
Figure 2-10: Connecting the Adapter
NOTE: Before you can start using the Adapter, you must run the Bluetooth
Setup Wizard by right-clicking the Bluetooth icon and selecting the Wizard,
as described in Chapter 3: Using the Bluetooth USB Adapter.

7
Chapter 3: Using the Bluetooth USB Adapter
Navigating from Your Desktop
Bluetooth USB Adapter
Chapter 3: Using the Bluetooth USB Adapter
Navigating from Your Desktop
Once you’ve installed the Bluetooth software and connected the Adapter, you will find some changes on your PC’s
desktop.
There will be a Bluetooth Icon on your desktop, from which you’ll be able to access the “My Bluetooth Places”
folder. In this folder, you will see all of the Bluetooth devices with which the Adapter may communicate.
But how do those devices get in that folder? How do you configure the Adapter to work with these devices?
These, and the most important interactions with the Adapter, will be handled through the most important change
to your desktop: The Bluetooth System Tray Icon. The Bluetooth System Tray icon allows you to access all of the
functions of the Adapter with a right click of your mouse. It also tells you how the Adapter is functioning. A red
icon means the Adapter is Disabled.
Figure 3-1: The Bluetooth Icon

8
Chapter 3: Using the Bluetooth USB Adapter
The Bluetooth System Tray Icon
Bluetooth USB Adapter
The Bluetooth System Tray Icon
Let’s review some of the things you’ll be able to do by right-clicking the Bluetooth Icon in the System Tray. Right-
clicking your mouse over the icon will bring up the Bluetooth Menu, with several options:
Explore My Bluetooth Places
Clicking this option will open the “My Bluetooth Places” folder, displaying the Bluetooth devices with which the
Adapter has been configured.
Bluetooth Setup Wizard
Run this Wizard when you first connect your Adapter, or when there are new devices with which you want the
Adapter to communicate.
Advanced Configuration
While the advanced configuration is not required, it will allow you to optimize and personalize many of the
Adapter’s options.
Quick Connect
Select the devices and services to which the Adapter will automatically connect.
Stop the Bluetooth Device
This is a convenient way of turning off the Adapter without having to disconnect it.
Explore My Bluetooth Places
In this folder, you’ll find the devices with which you’ve configured the Adapter to function.
Figure 3-3: My Bluetooth Places
Figure 3-2: The Bluetooth System Tray Icon’s Menu
NOTE: The Adapter must be configured through the Setup Wizard before it can detect
any Bluetooth devices. Run the Setup Wizard before you want to start using the Adapter.

9
Chapter 3: Using the Bluetooth USB Adapter
The Bluetooth Setup Wizard
Bluetooth USB Adapter
The Bluetooth Setup Wizard
Before you can begin using the Adapter, you must run the Bluetooth Setup Wizard. Right-click the Bluetooth
System Tray Icon and select Bluetooth Setup Wizard from the menu that appears. This will open the Bluetooth
Setup Wizard.
The Wizard gives you four choices:
I know the service I want to use and I want to find a Bluetooth device that provides that service.
Bluetooth devices provide many services. Select this option when you wish to find a device for a specific service.
I want to find a specific Bluetooth device and configure how this computer will use its services.
Already know the device you wish to select? Chose this option when you wish to find a service for a specific
device. This option is recommended for users who are not familiar with Bluetooth devices.
I want to configure the Bluetooth services that this computer will provide to remote devices.
As the Adapter communicates with other Bluetooth devices, so are they communicating with the Adapter. Select
this option to configure the services the Adapter provides for other devices.
For information on Applications and Services, see Appendix B: Bluetooth Applications and Services.
I want to change the name and/or device type that this computer displays to other Bluetooth devices.
Personalize how the Adapter appears to other Bluetooth devices.
From this screen, you can click the Next button to proceed with the Wizard or the Cancel button to exit the
Wizard.
Use the Wizard to configure those options you must. Not all options must be configured. These options are
provided in detail on the following pages.
Figure 3-4: The Bluetooth Setup Wizard

10
Chapter 3: Using the Bluetooth USB Adapter
The Bluetooth Setup Wizard
Bluetooth USB Adapter
I know the service I want to use and I want to find a Bluetooth device that provides that service.
After you select this option from the Wizard’s menu and click the Next button, the Bluetooth Service Selection
screen will appear. Select the service that you need and click the Next button.
Next, the Bluetooth Device Selection screen will appear. This screen will list those devices that provide the
service you’ve requested. Chose the device to which you wish to connect and click the Next button to continue.
The Setup Wizard Completion Screen will appear next. The name of the service will appear at the top of the
screen and you can personalize this if you wish. If you wish to further configure the service you’ve selected, click
the Configure button. In most cases, further configuration is not required. To start the connection upon
completing the Wizard, select the Start the Connection option. A shortcut to this device will be placed in the My
Bluetooth Places folder. To create more shortcuts in addition to the one created by default and restart the Wizard,
select the Create a shortcut and then restart this wizard so that I can create additional shortcuts option.
Click the Back button if you with to go back a step, the Cancel button if you wish to leave the Wizard without
saving your changes, or the Finish button to complete the Wizard.
The Adapter will then try to connect to that device. If a PIN code is required for security, you will be notified. At
this point, you will be asked for your PIN code as well as the PIN code for the other Bluetooth device before the
connection can be completed.
Figure 3-5: The Bluetooth Service Selection Screen
NOTE: For descriptions of services provided by Bluetooth devices, see that device’s documentation.
Figure 3-6: The Bluetooth Device Selection Screen
Figure 3-7: The Setup Wizard Completion Screen

11
Chapter 3: Using the Bluetooth USB Adapter
The Bluetooth Setup Wizard
Bluetooth USB Adapter
I want to find a specific Bluetooth device and configure how this computer will use its services.
After you select this option from the Wizard’s menu and click the Next button, the Bluetooth Device Selection
screen will appear. This screen will list those devices that provide the service you’ve requested. Chose the device
to which you wish to connect and click the Next button to continue.
The Bluetooth Security Setup screen will appear next. Select the pairing options for that device, including the PIN
code if required, and click the Next button. If the PIN code is required, you will be asked for your PIN code as well
as the PIN code for the other Bluetooth device before the connection can be completed.
Last, the Bluetooth Service Selection screen will appear. Select the service you wish to use for the device you
selected. If you wish to further configure the service you’ve selected, click the Configure button. In most cases,
further configuration is not required. Click the Back button if you with to go back a step, the Cancel button if you
wish to leave the Wizard without saving your changes, or the Finish button to complete the Wizard.
Figure 3-8: The Bluetooth Device Selection Screen
Figure 3-9: The Bluetooth Security Setup Screen
Figure 3-10: The Bluetooth Service Selection Screen

12
Chapter 3: Using the Bluetooth USB Adapter
The Bluetooth Setup Wizard
Bluetooth USB Adapter
I want to configure the Bluetooth services that this computer will provide to remote devices.
What services do you wish the Adapter to provide to your other Bluetooth devices? Select these from the screen
that appears, he Bluetooth Service Selection screen. If you wish to further configure the service you’ve selected,
click the Configure button. In most cases, further configuration is not required. Click the Back button if you with
to go back a step, the Cancel button if you wish to leave the Wizard without saving your changes, or the Finish
button to complete the Wizard.
I want to change the name and/or device type that this computer displays to other Bluetooth
devices.
If you wish to personalize the Computer name as shown on other Bluetooth devices or change the type of
computer, select this option. Type in a new Computer name and select the type of computer on which the Adapter
is connected. Then, click the Back button if you with to go back a step, the Cancel button if you wish to leave the
Wizard without saving your changes, or the Finish button to complete the Wizard.
Figure 3-11: The Bluetooth Service Selection Screen
Figure 3-12: Change the Computer Name and Type

13
Chapter 3: Using the Bluetooth USB Adapter
Advanced Cofiguration
Bluetooth USB Adapter
Advanced Cofiguration
While the advanced configuration is not required, it will allow you to optimize and personalize many of the
Adapter’s options.
When selecting the Advanced Configuration option from the menu brought up by right-clicking the Bluetooth Icon
in the System Tray, you will open the Bluetooth Configuration screen. This screen is composed of six tabs:
General. From this tab, you can personalize general information about the computer as shown on other Bluetooth
devices.
Accessibility. From this tab, you can manage the access of other Bluetooth devices to your computer. It also
allows you to set an Audio warning when a PIN code is requested.
Discovery. From this tab, you can specify the types of Bluetooth devices the Adapter will discover.
Local Services. From this tab, you can determine which services the Adapter will provide to other Bluetooth
devices.
Client Applications. From this tab, you can configure which services the Adapter will access from other
Bluetooth devices.
Hardware. This tab displays general hardware information about the Adapter.
These tabs are explained on the following pages, starting with the General tab.
The General tab.
If you wish to personalize the Computer name as shown on other Bluetooth devices or change the type of
computer, select this option. Type in a new Computer name and select the type of computer on which the Adapter
is connected. Then, click the Cancel button if you wish to leave the Wizard without saving your changes, the
Apply button to save the settings, leaving the Bluetooth Configuration screen open, or the OK button to save
these settings and close the Bluetooth Configuration screen. You can also press the Help button for more
information.
Figure 3-13: Bluetooth Configuration - General tab

14
Chapter 3: Using the Bluetooth USB Adapter
Advanced Cofiguration
Bluetooth USB Adapter
The Accessibility tab.
From this tab, you can manage access the Adapter has to other Bluetooth devices.
To allow Bluetooth devices to discover the Adapter, select the box beside Let other Bluetooth devices discover
this computer.
If you do not want any Bluetooth device to access the Adapter, select No devices from the Allow pull-down
menu. If you want any Bluetooth device to access the Adapter, select All devices from the Allow pull-down
menu. If you want to limit those Bluetooth devices that access the Adapter, select Only devices listed below
from the Allow pull-down menu. Then, in the box below that, you can add Bluetooth devices (by clicking the Add
Device button) or delete Bluetooth devices (by clicking the Delete button) that you will allow access.
When a PIN code is required, you can assign an audio signal with the Select audio file button. This will open the
Notifications screen, from which you can select how and when you’ll be notified and browse for the audio file you
wish to play.
Then, click the Cancel button if you wish to leave the Wizard without saving your changes, the Apply button to
save the settings, leaving the Bluetooth Configuration screen open, or the OK button to save these settings and
close the Bluetooth Configuration screen. You can also press the Help button for more information. Figure 3-14: Bluetooth Configuration - Accessibility tab
Figure 3-15: PIN code notification

15
Chapter 3: Using the Bluetooth USB Adapter
Advanced Cofiguration
Bluetooth USB Adapter
The Discovery tab.
From this tab, you can specify the types of Bluetooth devices the Adapter will access.
The Adapter automatically searches for new Bluetooth devices every ten minutes. You can select how often the
Adapter will discover new Bluetooth devices by clicking the box beside Look for other Bluetooth devices and
filling in how often this search will be done.
If you want all Bluetooth devices to be reported, select Report all Bluetooth devices from the pull-down menu.
If you want to limit those Bluetooth devices that the Adapter reports, select Report only selected Bluetooth
devices from the pull-down menu. Then, in the box below that, you can add Bluetooth devices (by clicking the
Add Device button) or delete Bluetooth devices (by clicking the Delete button) that will be reported.
Then, click the Cancel button if you wish to leave the Wizard without saving your changes, the Apply button to
save the settings, leaving the Bluetooth Configuration screen open, or the OK button to save these settings and
close the Bluetooth Configuration screen. You can also press the Help button for more information.
Figure 3-16: Bluetooth Configuration - Discovery tab

16
Chapter 3: Using the Bluetooth USB Adapter
Advanced Cofiguration
Bluetooth USB Adapter
The Local Services tab.
From this tab, you can determine which services the Adapter will provide to other Bluetooth devices.
The Add Serial Service button allows you to connect one Bluetooth USB Adapter on a PC to another Bluetooth
USB Adapter on a PC through a serial connection. If you wish to break this connection, click the Delete button.
These services can be configured for security and other options by double-clicking the service or selecting the
service and clicking the Properties button. The screen that appears will show you all the options you can
configure for that service. This screen is different for each service. The one shown below is for PIM
Synchronization.
Then, click the Cancel button if you wish to leave the Wizard without saving your changes, the Apply button to
save the settings, leaving the Bluetooth Configuration screen open, or the OK button to save these settings and
close the Bluetooth Configuration screen. You can also press the Help button for more information.
For information on Applications and Services, see Appendix B: Bluetooth Applications and Services.
Figure 3-17: Bluetooth Configuration - Local Services tab
Figure 3-18: Local Services Properties
