Linksys WMP55AG User manual

A Division of Cisco Systems, Inc.
®
Model No.
Model No.
Wireless Quick Installation Guide Wireless
1
Model No.
Quick Installation Guide
WMP55AG (EU/LA/UK)
PCI Adapter
Wireless A+G
Package Contents
• Dual-Band Wireless A+G PCI Adapter
• Setup Wizard CD-ROM
• User Guide (English only) on CD-ROM
• Quick Installation
Dual-Band
802.11a
5+
802.11g
Dual-Band
GHz
2GHz
,4

2
1
AInsert the Setup Wizard CD-ROM
into your CD-ROM drive. The Setup
Wizard should run automatically,
and the Welcome screen should
appear. If it does not, click the
Start button and choose Run. In
the field that appears, enter
D:\setup.exe (if “D” is the letter of
your CD-ROM drive).
BTo install the Adapter, click the
Install button on the Welcome
screen.
CAfter reading the License
Agreement, click Next.
DNow, choose a network type.
Click the 5GHz or 2.4GHz radio
button if you will connect to
802.11a, 802.11g and/or 802.11b
networks. Click the 5GHz only
radio button if you will connect
only to 802.11a networks. Click
the 2.4GHz only radio button if
you will connect only to 802.11g
and/or 802.11b networks. Then,
click Next.
EChoose a wireless network mode.
Click the Infrastructure Mode
radio button if you want your
wireless computers to network with
computers on your wired network
using a wireless access point.
Click the Ad-Hoc Mode radio
button if you want multiple wireless
computers to network directly with
each other.
E
C
D
Set up the Dual-Band Wireless A+G
PCI Adapter
B
IMPORTANT: You must run the
Setup Wizard before inserting the
Adapter into your desktop PC.

3
In the SSID field, enter the SSID or
name for your wireless network.
The SSID must be identical for all
devices in the network. Click Next.
FIf you chose Infrastructure Mode,
go to Step G now.
Select the correct operating
channel for your wireless network,
which must match the channel
set on the other devices in your
wireless network. If you are unsure
about which channel to use, keep
the default setting, Auto. Then,
click Next.
GSelect the security method you
want to use: WEP, WPA-Personal,
WPA-Enterprise, RADIUS, or LEAP.
WEP stands for Wired Equivalent
Privacy, and WPA stands for Wi-Fi
Protected Access. WPA is a
stronger security method than
WEP. RADIUS stands for Remote
Authentication Dial-In User Service,
and LEAP stands for Lightweight
Extensible Authentication Protocol.
If your network doesn’t use any
security method, select Disabled
and click Next. Proceed to Step I.
F
G

4
HProceed to the appropriate
instructions for your security
method.
1WEP
aSelect 64-bit,128-bit, or 152-bit
from the drop-down menu.
(Select 152-bit encryption when
using ONLY a 5GHz/802.11a
network.)
bEnter your Passphrase in the
Passphrase field, and the WEP key
will be automatically generated.
To manually enter the WEP key,
leave the Passphrase field blank
and enter the WEP key in the WEP
Key field.
cClick Next, and go to Step I.
2WPA-Personal
aSelect the encryption method
you want to use, TKIP or AES, from
the drop-down menu.
bEnter your Passphrase or Pre-
Shared Key in the Passphrase field.
cThen click Next and proceed to
Step I.
WEP
WPA - Personal

5
3 WPA - Enterprise
Select the authentication method
you want to use, EAP-TLS or PEAP.
EAP-TLS
aEnter the login name in the Login
Name field.
bEnter the name of the
authentication server in the Server
Name field. (optional)
cFrom the Certificate drop-down
menu, select the authentication
certificate.
dSelect the encryption method
you want to use, TKIP or AES.
eClick Next, and go to Step I.
PEAP
aEnter the login name in the Login
Name field.
bEnter the password in the
Password field.
cEnter the name of the
authentication server in the Server
Name field. (optional)
dFrom the Certificate drop-down
menu, select the authentication
certificate.
eSelect the authentication method
used inside the PEAP tunnel, EAP-
MSCHAP v2 or Generic Token
Card.
WPA - Enterprise
WPA - Enterprise
EAP-TLS
PEAP

6
fSelect the encryption method
you want to use, TKIP or AES.
gClick Next, and go to Step I.

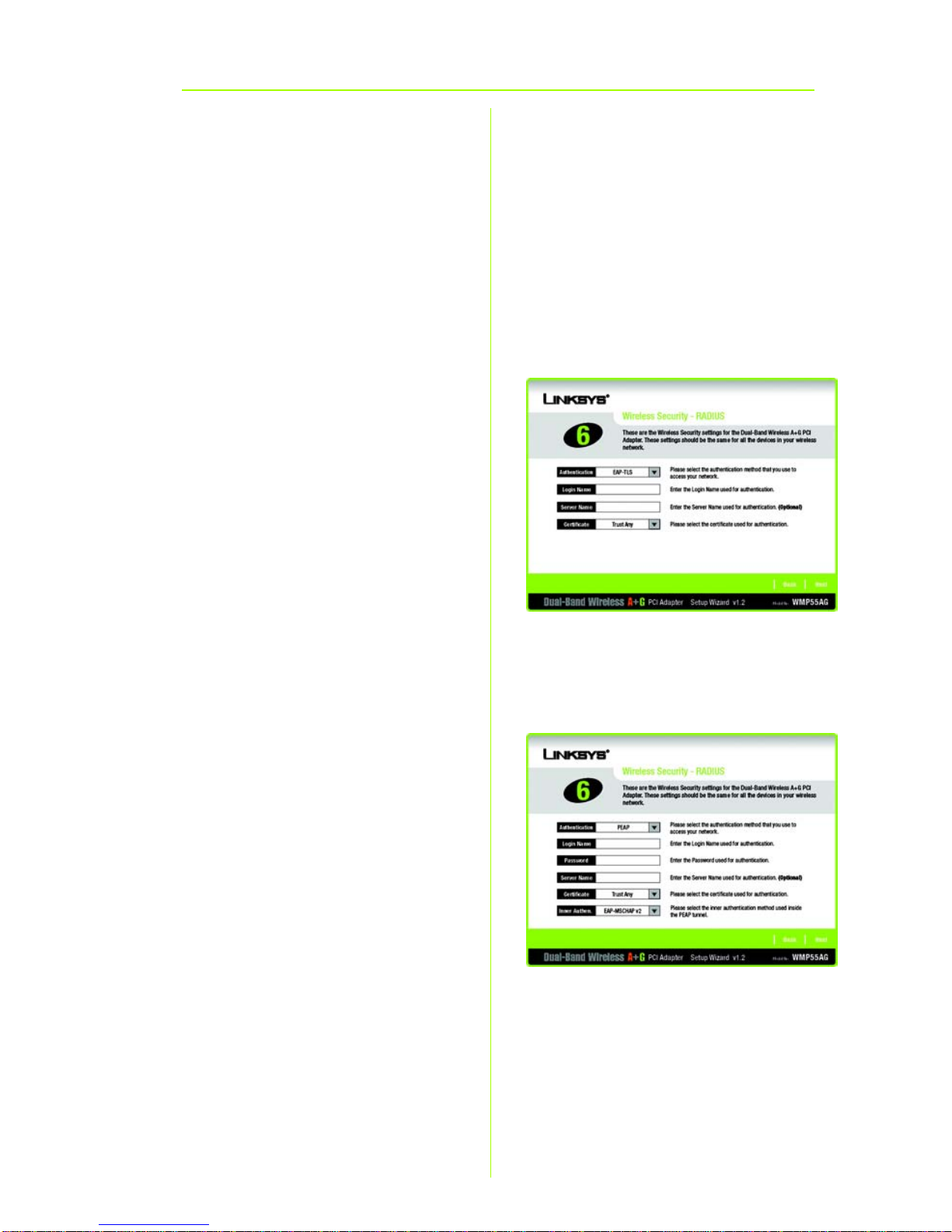

4 RADIUS
Select the authentication method
you want to use, EAP-TLS or PEAP.
EAP-TLS
aEnter the login name in the Login
Name field.
bEnter the name of the
authentication server in the Server
Name field. (optional)
cFrom the Certificate drop-down
menu, select the authentication
certificate.
dClick Next, and go to Step I.
PEAP
aEnter the login name in the Login
Name field.
bEnter the password in the
Password field.
cEnter the name of the
authentication server in the Server
Name field. (optional)
dFrom the Certificate drop-down
menu, select the authentication
certificate.
RADIUS
RADIUS
EAP-TLS
PEAP

7
eSelect the authentication method
used inside the PEAP tunnel, EAP-
MSCHAP v2 or Generic Token
Card.
fClick Next, and go to Step I.
5LEAP
aEnter the user name in the User
Name field.
bEnter your password in the
Password field.
cEnter your password again in the
Confirm field.
dClick Next, and go to Step I.
IThe Setup Wizard will ask you to
review your settings before it starts
to copy files. Click Next to save
these settings, or click Back to
change any settings.
JAfter the software has been
successfully installed, the
Congratulations screen will
appear. Click Exit.
I
J
LEAP

8
2
ATurn off your desktop PC.
BOpen your PC’s case, and locate
an available PCI slot on the
motherboard.
CSlide the Adapter into the PCI slot.
Make sure that all of its pins are
touching the slot’s contacts.
DAfter the Adapter is set firmly in
place, secure its fastening tab to
your PC’s chassis with a mounting
screw. Then close your PC’s case.
ERotate the antenna so that it is
positioned straight up and
perpendicular to the horizon.
FPower on your desktop PC.
GWindows will detect the new
hardware and begin installing the
driver files in your operating
system.
HAfter the Adapter is installed, the
Wireless Network Monitor icon will
appear in the system tray at the
bottom right-hand corner of your
screen.
Double-click the icon if you want
to check the link information,
search for available wireless
networks, or make additional
configuration changes.
Congratulations! The installation of the
Dual-Band Wireless A+G PCI Adapter is
complete.
WMP55AG-EU-LA-UK_V1.2-QIG-50107NC JL
For additional information or troubleshooting
help, refer to the User Guide on the CD-ROM
or the Technical Support Insert. You can also
e-mail for further support.
Website
http://www.linksys.com/international
Linksys is a registered trademark or trademark of
Cisco Systems, Inc. and/or its affiliates in the U.S.
and certain other countries. Copyright © 2005
Cisco Systems, Inc. All rights reserved.
Connect the Dual-Band Wireless A+G
PCI Adapter
C
H

A Division of Cisco Systems, Inc.
®
Modelnr.
Modelnr.
Trådløs Installationsvejledning Trådløs
1
Modelnr.
Installationsvejledning
WMP55AG (DK)
PCI-netværkskort
Trådløs-A+G
Pakkens indhold
• Trådløst dual band-A+G-PCI-netværkskort
• Cd-rom med guidet konfiguration
• Brugervejledning (kun på engelsk) på
cd-rom
• Installationsvejledning
Dual band
802.11a
5+
802.11g
Dual band
GHz
2GHz
,
4

2
1
APlacer cd-rom'en med guidet
konfiguration i cd-rom-drevet. Den
guidede konfiguration køres
automatisk, og skærmbilledet
Welcome (Velkommen) vises. Hvis
det ikke er tilfældet, skal du klikke
på knappen Start og vælge Kør.
Indtast D:\setup.exe i det felt, der
vises (hvis "D" er bogstavet for cd-
rom-drevet).
BInstaller kortet ved at klikke på
knappen Install (Installer) i
skærmbilledet Welcome
(Velkommen).
CKlik på Next (Næste), når du har
læst License Agreement
(Licensaftale).
DVælg derefter en netværkstype.
Klik på alternativknappen 5GHz or
2.4GHz (5 GHz eller 2,4 GHz) for at
tilslutte 802.11a-, 802.11g- og/
eller 802.11b-netværk. Klik på
alternativknappen 5GHz only (Kun
5 GHz) for kun at tilslutte 802.11
a-netværk. Klik på
alternativknappen 2.4GHz only
(Kun 2,4 GHz) for kun at tilslutte
802.11g- og/eller 802.11
b-netværk. Klik derefter på Next
(Næste).
EVælg en tilstand for det trådløse
netværk. Klik på alternativ-
knappen Infrastructure Mode,
(Infrastrukturtilstand), hvis dine
trådløse computere, skal oprette
netværksforbindelse til computere
i det kabelbaserede netværk ved
hjælp af et trådløst access point. E
C
D
Konfiguration af det trådløs dual
band-A+G-PCI-netværkskort
B
VIGTIGT: Du skal køre den
guidede konfiguration, inden du
sætter netværkskortet i din pc.
