Linn MAJIK 112 User manual

MAJIK 112
CENTRE CHANNEL LOUDSPEAKER
OWNER’S MANUAL

Explanation of symbols used in this manual or on the rear/underside of the
apparatus:
This symbol is intended to alert the user to the presence of uninsulated
dangerous voltages within the enclosure of sufficient magnitude to
cause electric shock.
This symbol is intended to alert the user to the presence of important
operation, maintenance and servicing information in the instruction
and service manuals.
For apparatus connected to the mains electricity supply
CAUTION
• To reduce the risk of electric shock do not remove the cover.
• No user serviceable parts inside.
• Refer servicing to qualified service personnel.
• Replace the mains fuse in the plug with one of the same type
and rating.
• Disconnect supply cord before changing fuse.
WARNING
To reduce the risk of fire or electric shock do not expose this apparatus to
rain or moisture. Shock hazard - do not open.
IMPORTANT SAFETY INSTRUCTIONS
i
Majik 112

General Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the apparatus near water, for example near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, near a swimming pool etc.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. Site the apparatus so that its location or position
does not interfere with its proper ventilation. For example, the apparatus should
not be situated on a bed, sofa, rug, or similar surface that may block the ventilation
openings, or placed in a built in installation such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarised or grounding type plug.
A polarised plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third prong
is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and at the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug has
been damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15. Wall or ceiling mounting. Mount the apparatus to a wall or ceiling
only as recommended by the manufacturer.
16. Power sources. Connect the apparatus to a power supply only of the type
described in the operating instructions or marked on the apparatus.
17. Mains plug. Use the mains plug to disconnect the apparatus from the mains
supply. The mains plug must be accessible at all times. Use the mains switch (if
applicable) when the apparatus is not in use.
18. Power lines. An outdoor antenna should be located away from power lines.
19. Outdoor antenna grounding. If an outdoor antenna is connected to the
apparatus, ensure that the antenna system is grounded to provide some protection
against voltage surges and static build up. In the USA see article 810 of the National
Electrical Code ANSI/NFPA 70 concerning installation requirements.
20. Telephone line. Do not connect the apparatus to a telephone line except where
specifically instructed to do so.
21. Objects and liquid entry. Do not let objects or liquids fall into the apparatus. Do
not expose the apparatus to dripping or splashing.
Do not place a vessel containing liquid on top of the apparatus.
22. No naked flame sources, such as lighted candles, should be placed on the
apparatus.
23. The apparatus has been designed for use in moderate and tropical climates.
ii
Majik 112

Linn Products Ltd declare that this product is in conformance with the Low Voltage
Directive 73/23/EEC and Electromagnetic Compatibility 89/336/EEC as amended
by 92/31/EEC and 93/68/EEC.
The conformity of the designated product with the provisions of Directive number
73/23/EEC (LVD) is proved by full compliance with the following standards:
Standard number Date of issue Test type
EN60065 2002 General requirements
Marking
Hazardous radiation
Heating under normal conditions
Shock hazards under normal
operating conditions
Insulation requirements
Fault conditions
Mechanical strength
Parts connected to the mains
supply
Components
Terminal devices
External flexible cords
Electrical connections and
mechanical fixings
Protection against electric shock
Stability and mechanical hazards
Resistance to fire
The conformity of the designated product with the provisions of Directive number
89/336/EEC (EMC) is proved by full compliance with the following standards:
Standard number Date of issue Test type
EN55013 2001 Conducted emissions
EN55013 2001 Absorbed emissions
EN55020 2002 Immunity
CE Declaration of Conformity
iii
Majik 112
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC notice

iv
Majik 112
Waste Electrical and Electronic Equipment Directive Directive 2002/96/EC
of the European Parliament and of the Council
The symbol (right) is shown on this product. It indicates that the product
should not be disposed of with regular household waste, but should be
disposed of separately.
Electrical and electronic equipment can contain materials that are hazardous
to the environment and human health and therefore should be disposed of at a
designated waste facility or returned to your retailer for the appropriate recycling to
take place (see www.linn.co.uk for further information).
If you wish to dispose of this product and the product still functions, please
consider recycling/reusing it by donating it to a charity shop, selling it or part-
exchanging it with your retailer.
Waste Electrical and Electronic Equipment
(WEEE) Directive
Copyright © 2009 Linn Products Ltd. First edition July 2009.
Linn Products Limited, Glasgow Road, Waterfoot, Eaglesham, Glasgow,
G76 OEQ, Scotland, United Kingdom
All rights reserved. No part of this publication may be reproduced, stored in
a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the prior written
permission of the publisher.
The content of this manual is furnished for information use only, is subject to
change without notice, and should not be construed as a commitment by Linn
Products Limited. Linn Products Limited assumes no responsibility or liability for
any errors or inaccuracies that may appear in this manual.
Trade marks used in this publication: Linn and the Linn logo are registered
trade marks of Linn Products Limited. Majik and Aktiv are trade marks
of Linn Products Limited.
The information in this manual is furnished for informational use only, is subject to
change without notice, and should not be construed as a commitment by Linn
Products Limited. Linn Products Limited assumes no responsibility or liability for
any errors or inaccuracies that may appear in this manual.
UK Registered Design No: 4008705
Printed in the United Kingdom.
Pack 1520
Copyright and Acknowledgements

v
INTRODUCTION 1
INSTALLATION 2
Unpacking 2
Cleaning 2
Accessories 2
Positioning and levelling 3
Positioning 3
Levelling 3
Connecting 4
General 4
Terminals 4
Configuration options 5
Wiring and amping configurations 7
TECHNICAL SPECIFICATIONS 9
GUARANTEE AND SERVICE 10
CONTENTS
Majik 112

The Linn Majik 112 full-range centre channel loudspeaker is a unique and
innovative design that builds on thirty years’ experience of loudspeaker
design and manufacture. Majik 112 features Linn’s patented driver array
technology found in our highest performing loudspeakers and a single
bass driver system with matching front-firing bass reflex. This combination
delivers complete clarity in high frequency reproduction and a clean and
even dispersion across all frequencies, ideal qualities for a centre channel
loudspeaker.
Majik 112 is the perfect centre channel solution for surround sound
home cinema or multi-channel audio, and completes the Linn Majik
range of loudspeakers. Match Majik loudspeakers with the Majik range of
componenents for an investment in genuine specialist performance.
INTRODUCTION
1
Majik 112

Unpacking
The Majik 112 loudspeaker comes carefully packaged; take care when removing it
from the packaging to avoid damage to the cabinet. Do not lay the loudspeaker on
its face as this will damage the 2K driver array.

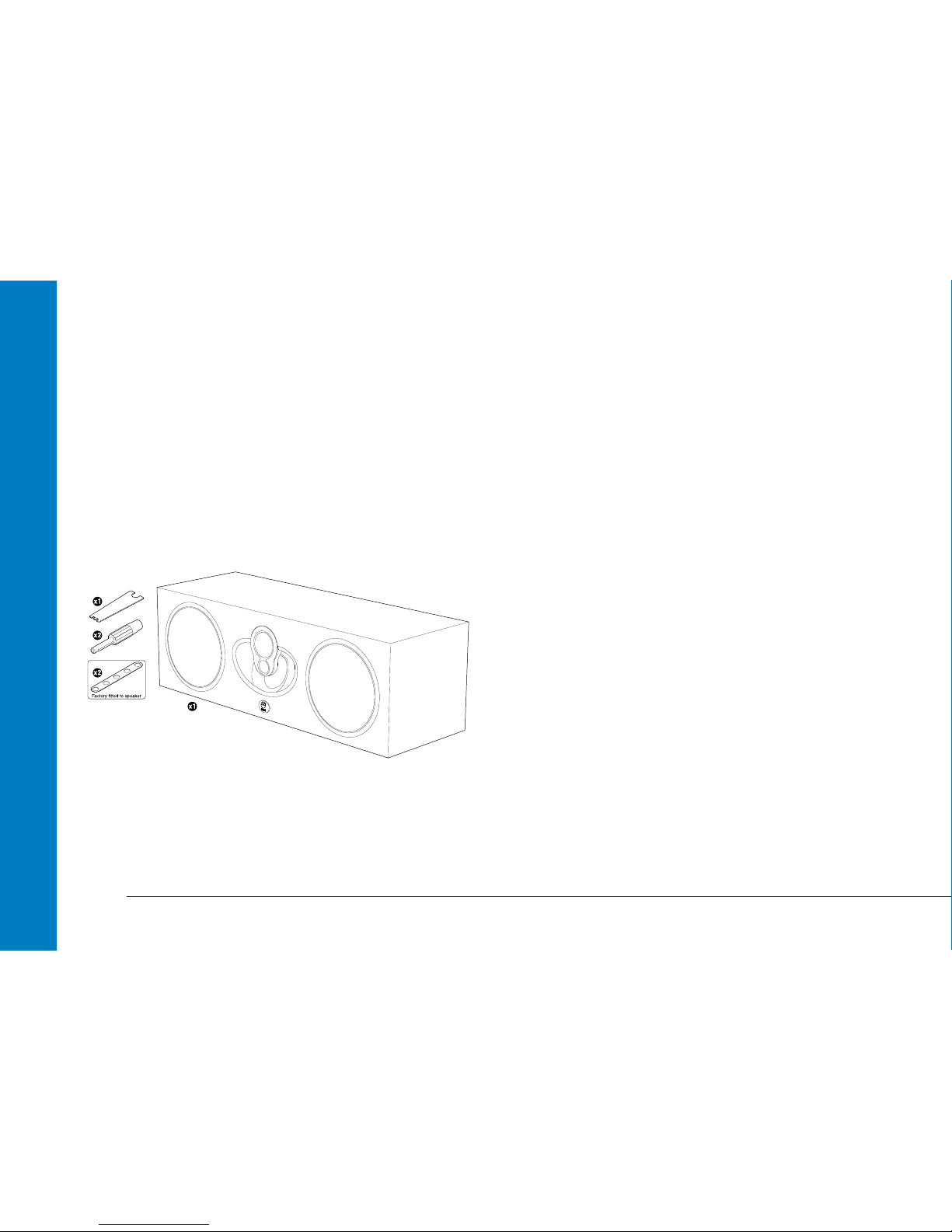

The Majik 112 loudspeaker is supplied with the following:
• Two input terminal link strips (factory fitted to the loudspeaker)
• Two ‘banana’ 4mm plugs (one red, one black)
• An input terminal spanner
We recommend that you retain the packaging in case you need to transport your
loudspeaker at a later date.
INSTALLATION
Cleaning
Remove dust and fingerprints from the cabinet with a soft, dry, lint-free cloth.
Avoid using domestic cleaning products as they may damage the veneer.
2
Majik 112

3
Majik 112
Positioning and levelling
To get the best from your Linn Majik 112 loudspeaker, it is important it’s positioned
and levelled correctly. The acoustics of a room are dependent on many factors,
including volume, shape and furnishings. The information below will assist in
helping you find the best position in your room for your loudspeaker and will tell
you how to level it correctly.
Positioning
It pays dividends to experiment with loudspeaker positioning. However, the very
nature of the 2K driver array, with the super-tweeter and tweeter in close proximity,
ensures uniform dispersion characteristics.
As the Majik 112 loudspeaker employs a front firing reflex port, the loudspeaker
may be positioned with its back close to a wall, allowing greater flexibility in
placement. However, for optimum performance and musicality, the loudspeaker
may benefit from being brought into the listening space.
Levelling
To further optimise playback performance the speaker should be mounted on
top of a level surface. A properly levelled loudspeaker will always perform more
effectively than an unstable one. The loudspeaker cabinet should remain fixed
whilst the drive units are allowed to move as precisely determined by the playback
signal from the amplifier(s).

4
Majik 112
Connecting
General
IMPORTANT:
Before making any connections, switch off your power amplifier(s).
Ensure the positive (+) or red coloured connectors from your amplifier(s) connect
to the positive (+) connectors on your loudspeaker, and that the negative (-)
or black coloured connectors from your amplifier(s) connect to the negative (-)
connectors on your loudspeaker.
Terminals
The Majik 112 loudspeaker is fitted with 4mm socket terminals. These terminals
can be used as sockets for the connection of 4mm banana plugs or appropriate
spade terminated cables. To connect spade-terminated cables, loosen the gold
collar with the provided spanner, insert the spade behind the gold collar, and firmly
re-tighten the collar to ensure a good electrical connection.
47%%4%2"!33 350%247%%4%2
47%%4%2
"!33 350%247%%4%2

5
Majik 112
Configuration options
The Majik 112 loudspeaker offers an array of configuration options, as described
below. Connections for each of the methods are shown in the Wiring and amping
configurations section, page 7.
The options are listed in order of increasing sonic performance. Multi-wiring and
multi-amping options offer improvements in sound quality over single-wiring. The
greater the separation of the frequency bands in the power amplifiers, crossover
and cables, the more precise the quality of the playback performance, with Aktiv
operation representing the ultimate configuration (see Aktiv operation, across).
Passive single-wiring:
A single amplifier channel connects to the loudspeaker using a single cable.
Passive multi-wiring (bi-wire or tri-wire):
A single amplifier channel connects to the loudspeaker using two or three cables.
Passive multi-amping (bi-amp or tri-amp):
Two or three amplifier channels connect to the loudspeaker.
Note:
Multi-amping can be combined with multi-wiring, e.g. bi-amping could be
employed with bi-wiring.
Aktiv operation
The term ‘Aktiv’ refers to the proprietary Linn active crossover and loudspeaker
configuration, whereby a loudspeaker’s internal passive crossover is replaced with
external crossovers.
In a passive system the output from the power amplifier is passed through the
crossover inside the loudspeaker. A portion of the signal’s energy is dissipated in
the crossover circuitry and is therefore lost. Also, the behaviour of the crossover
and the drive units will differ depending on the listening level.
In an Aktiv system one channel of amplification is required for each drive unit in a
loudspeaker, and the crossover circuitry is located before the amplifier circuitry.
After the audio signal is filtered by the crossovers the amplifier then supplies power
to the loudspeaker drive unit in the frequency band required by that particular
driver (e.g. midrange frequencies for the midrange driver), allowing each amplifier
channel to provide a greater degree of control over the loudspeaker.
So, in Aktiv mode the crossovers provide a more precise means of filtering the
signal into the required frequency bands, while allowing the amplifiers to exert
more control over the drive units. This results in significantly improved sonic
performance compared with passive operation.
Important note:
Aktiv operation requires a modification to your loudspeaker and your Linn
amplifiers, which must be carried out by an authorised Linn retailer.

Link strip information
To remove / fit the link strips:
Using the spanner provided, loosen and remove the gold collars from the•
input terminals of the loudspeaker.
Remove the link strips.•
When re-fitting the link strips, ensure that they are correctly located for the•
appropriate wiring and amping configuration
Replace the gold collars using the provided spanner; ensure the collars are•
well tightened to ensure good electrical contact with the link strip.
Important notes on using link strips
Never use the strips to link positive (+) and negative (-) terminals together.•
When multi-amping, ensure that the link plates do not short-circuit amplifier•
channels together. Shorting the outputs of separate amplifier channels
together can damage the amplifier(s) and the loudspeaker drive units.
Do not connect more than one strip per terminal.•
6
Majik 112

7
Majik 112
Tri-wiring or tri-amping
Illustration shows removal of link strips for tri-wiring (i.e. using three speaker cables
from one power amplifier channel) or tri-amping (i.e. using three power amplifier
channels).
For optimum sound quality, connect the cables from the power amplifier(s) to the
terminals shown.
Wiring and amping configurations
Single-wiring
Illustration shows position of link strips if single-wiring (i.e. using a single speaker
cable from one power amplifier channel). No link strip adjustments are required.
Bi-wiring or bi-amping
Illustration shows position of link strips if bi-wiring (i.e. using two speaker cables
from one power amplifier channel) or bi-amping (i.e. using two power amplifier
channels).
For optimum sound quality, connect the cable from the power amplifier to the
terminals shown.
For optimum sound quality, connect the cables from the power amplifier(s) to the
terminals shown.
47%%4%2"!33 350%247%%4%2
47%%4%2"!33 350%247%%4%2
47%%4%2"!33 350%247%%4%2

8
Majik 112

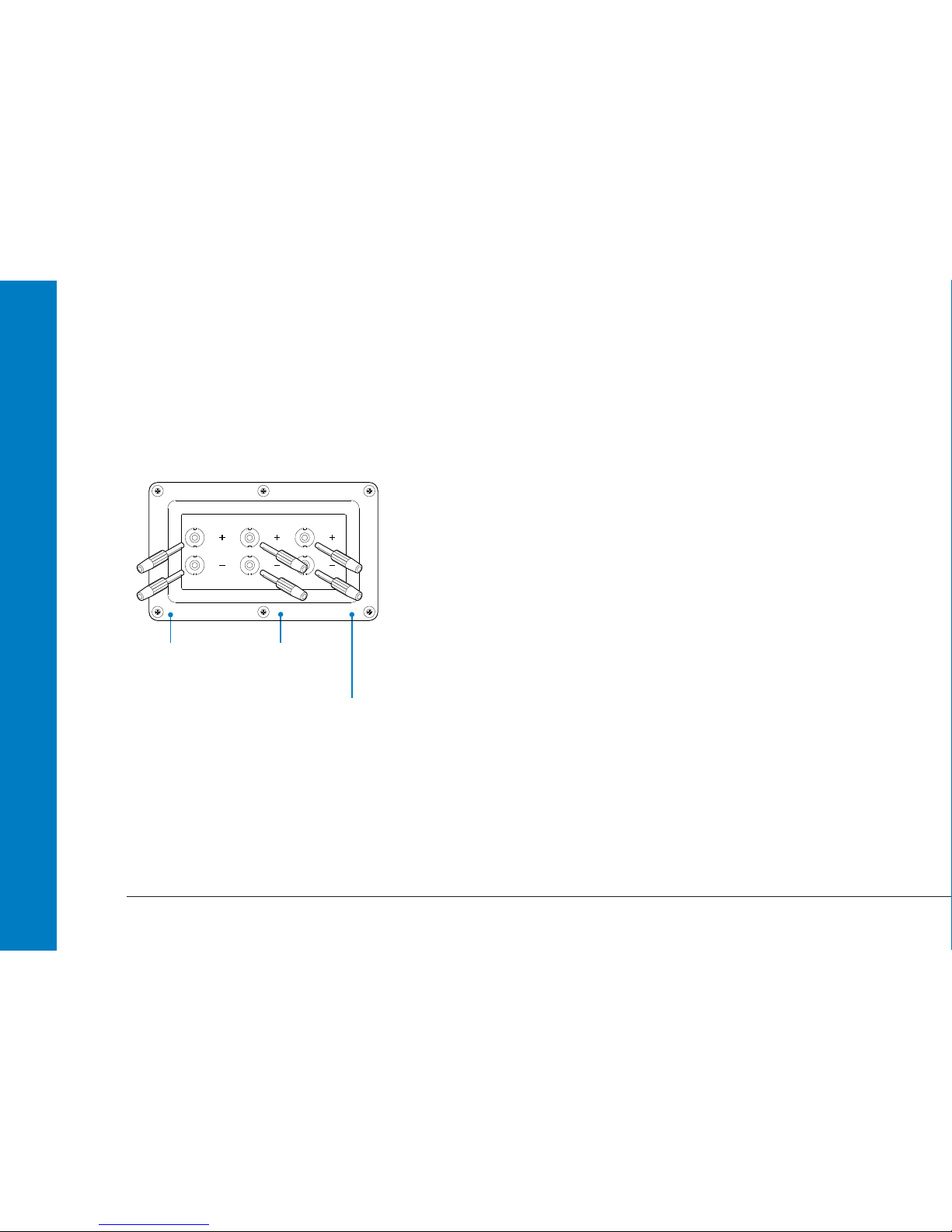

Aktiv configuration
Aktiv operation requires a modification to your Majik 112 loudspeaker and your
Linn amplifier(s), which must be carried out by an authorised Linn retailer.
In Aktiv mode, please be very careful to connect all speaker cables from the
amplifier(s) to the correct sockets on the loudspeaker. Wrong connection could
result in damage to your loudspeaker drive units and amplifier(s).
FROM “BASS”
POWER AMPLIFIER
FROM “TWEETER”
POWER AMPLIFIER
IMPORTANT NOTES ON AKTIV SYSTEMS
Do not use your amplifiers with any other loudspeakers –
you may damage the loudspeakers.
Do not use your loudspeakers with any other amplifiers –
their internal crossovers will be bypassed and the drivers could be severely
damaged.
Do not use the terminal link strips –
they can only be used in a passive system.
FROM “SUPER-TWEETER”
POWER AMPLIFIER
47%%4%2"!33 350%247%%4%2

9
Majik 112
TECHNICAL SPECIFICATIONS
Full-range, bass reflex centre channel loudspeaker incorporating the Linn 2K
Array and a 5” bass driver.
Cabinet volume 9 litres
Impedance (passive) 4 Ω
Impedance (Aktiv bass/mid) 7 Ω
Impedance (Aktiv tweeter) 7 Ω
Impedance (Aktiv super-tweeter) 7 Ω
Efficiency 88 dB for 1 watt at 1 metre (1 kHz)
Frequency response (passive) 72 Hz - 20 kHz +
Frequency response (Aktiv) 65 Hz - 20 kHz +
Magnetic shielding No
Crossover options Fully passive or fully Aktiv
Connection options Up to three-way multi-wire/amp passive;
three-way Aktiv
Overall sizes 169 mm (H) x 510 mm (W) x 176 mm (D)
6.65” (H) x 20.08” (W) x 6.93” (D)
Weight 6.51 kg
14.341 lbs

This product is guaranteed under the conditions which apply in the country of
purchase and your statutory rights are not limited. In addition to any statutory
rights you may have, Linn undertake to replace any parts which have failed due
to faulty manufacture. To help us, please ask your Linn retailer about the Linn
warranty scheme in operation in your country.
In parts of Europe, the United States of America and some other markets,
extended warranty may be available to customers who register their purchase with
Linn. You can register your warranty online at www.linn.co.uk.
WARNING
Unauthorised servicing or dismantling of the product invalidates the
manufacturer’s warranty. There are no user serviceable parts inside the product
and all enquiries relating to product servicing should be referred to authorised
retailers only.
Technical support and information
For technical support, product queries and information, please contact either your
local retailer or Linn Products directly.
Full details of your local retailer/distributor can be found on the Linn web site:
www.linn.co.uk.
Important
Please keep a copy of the sales receipt to verify the purchase date of the product.
Please ensure that your equipment is insured by you during any transit or
shipment for repair.
Linn Products Limited
Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK
Phone: [phone]
Fax: [phone]
Helpline: 0500 888 909
Email: [email protected]
www.linn.co.uk
10
Majik 112
GUARANTEE AND SERVICE

Pack 1520
