LION AlcoBlow Instruction Manual

AlcoBlow®
User Handbook
RM42053 Revision 2.3 June 2013

User Handbook GB
2

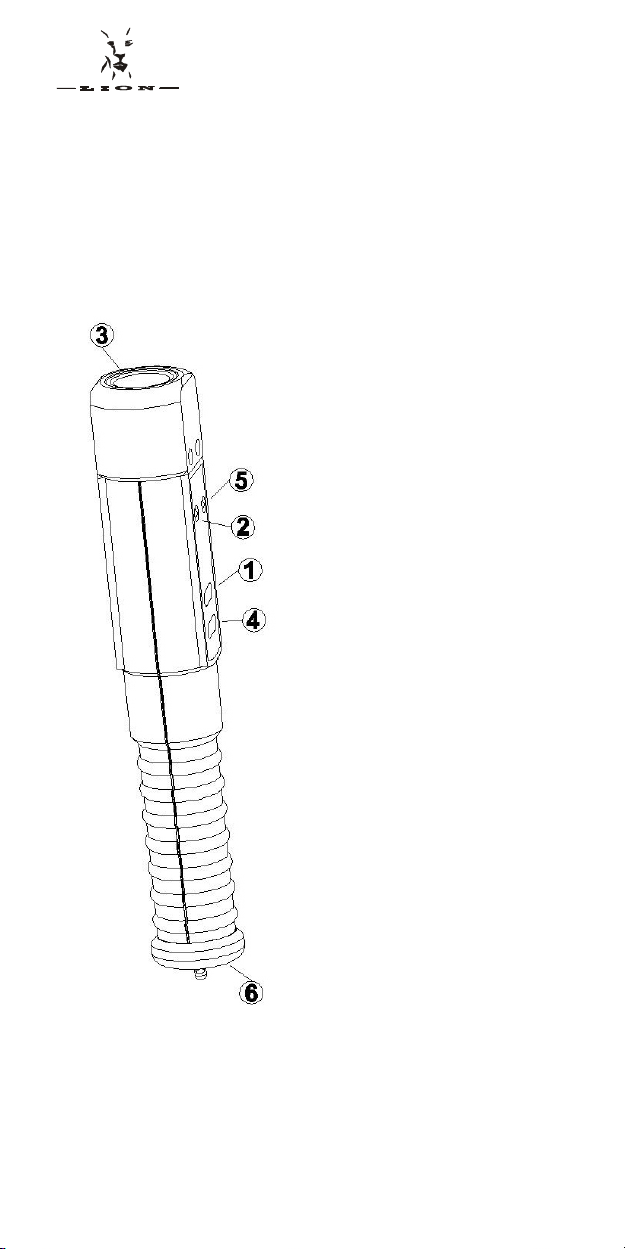

Unit and Controls
ON/OFF Switch
STATUS Light
Sample Cone
PASSIVE Switch
DISPLAY Light
Battery Cap

User Handbook GB
3
Contents
1 SAFETY INFORMATION 5
2 USEFUL INFORMATION 6
2.1 Items supplied and packaging 6
2.2 Useful information on taking a breath
sample with the AlcoBlow®7
2.3 Taking a breath sample reading -
quickly and accurately 7
3 OPERATION 7
3.1 Getting started 7
3.2 Switching On and Off 9
3.3 Mode of Operation 9
3.4 Active Mode Testing 10
3.5 Passive Mode Testing 11
3.6 Checking a Container 12
3.7 Display Light Indications 13
4 MISCELLANEOUS 14
4.1 Cleaning and Maintenance 14
4.2 Disposal 14
4.3 Technical Specification 15
5 WARRANTY 16

User Handbook GB
4
IMPORTANT INFORMATION!
RETAIN FOR FUTURE USE!
Explanation of symbols
This instruction manual belongs to this
device. It contains important information
about starting up and operation. Read the
instruction manual thoroughly. Non-
observance of these instructions can result
in serious injury or damage to the device.
WARNING
These warning notes must be observed to
prevent any injury to the user.
CAUTION
These notes must be observed to prevent
any damage to the device.
NOTE
These notes give you useful additional
information on the installation or operation.
Manufacturer
Date of manufacture
Symbol indicating separate collection of EEE.
Read the instruction manual carefully before
using this device, especially the safety
instructions, and keep the instruction manual for
future use.
Should you give this device to another person, it
is vital that you also pass on these instructions
for use

User Handbook GB
5
1 SAFETY INFORMATION
•Only use the device for the specific purpose
described in the user manual. Any misuse
will void the warranty.
•The device is not designed to be used by
persons (including children) with limited
physical, sensory or mental abilities, or by
persons with insufficient experience and/or
knowledge, unless under observation by a
person responsible for their safety, or unless
they have been instructed in the use of the
device.
•If a fault occurs or the device is damaged, do
not attempt to repair the device yourself, as
this will void the warranty. Contact your
dealer and only have repairs carried out by
authorised service partners.
•Do not move the device away from in front of
the subject until the sample is taken or else
fresh air may be mixed with the sample taken
and reduce the reading.
•Do not let the subject blow smoke into the
device.
•Do not hold the device at an angle to the
subject, hold it straight on.
•Do not let the subject blow very hard into the
device; this could damage the flow sensor.
•Do not use the device if it is damaged.
•Do not open up the device, it contains parts
which might be harmful if handled incorrectly.
•Do not use the device in damp environments.
•Do not immerse the device in water or other
liquids. It is not watertight.
•For cleaning, follow the instructions in 4.1
Cleaning and maintenance.
•Do not shake or tap the device. Do not drop
it.

User Handbook GB
6
•Protect the device from direct sunlight,
extremely high or low temperatures, dirt and
dust.
•If the device is not going to be used for a long
period, remove the batteries.
2 USEFUL INFORMATION
Thank you very much
Thank you for your confidence in us and
congratulations!
By purchasing the AlcoBlow®, you have acquired a
high quality product by Lion Laboratories Ltd.
To ensure the best results and long term satisfaction
with your Lion AlcoBlow®we recommend that you
read the following operating and maintenance
instructions carefully.
2.1 Items supplied and packaging
Please check first of all that the device is complete
and is not damaged in any way. If in doubt, do not
use it. Send it to a service point.
The following parts are included:
•1 Lion AlcoBlow®
•4 Batteries (AA type, LR06) 1.5V
•1 Packing box
•1 User manual
The packaging can be reused or recycled. Please
dispose properly of any packaging material no longer
required.
If you notice any transport damage during unpacking,
please contact your dealer without delay.
WARNING
Please ensure that polythene packing is
kept away from the reach of children!
Risk of suffocation!

User Handbook GB
7
2.2 Useful information on taking a breath sample
with the AlcoBlow®
When the subject blows into the sample cone, the flow
rate is monitored against time. Once the minimum
conditions of flow and time are satisfied a small
sample of breath is taken from the sample cone and
passed to the sensor.
2.3 Taking a breath sample reading - quickly and
accurately
The Lion AlcoBlow®allows contact-free indication of
alcohol in a breath sample. The sample is taken from
a distance of 2.5cm, the person blowing straight into
the sample cone hard enough to trigger the audible
flow alarm and long enough for the Status indicator to
go RED. The alcohol in the sample is analysed and
the presence of alcohol indicated on the display LED
within 5 seconds. This allows for its use where many
people have to be tested quickly for the presence of
alcohol.
Additional function
Apart from indicating whether alcohol is present in a
person’s breath the AlcoBlow®can also be used to
check containers, such as bottles, cans or glasses for
the presence of alcohol.
3 OPERATION
3.1 Getting started
Removing / Inserting batteries
The AlcoBlow®requires the batteries provided to be
fitted prior to first use. After a period of use, if the
Battery Low Indication appears, (flashing Status and
Display Lights) you must replace them with four new
1.5V batteries (LR06, AA).
Removal
Turn the battery cap 90°anticlockwise and take the
cap off. Take out the batteries.

User Handbook GB
8
Insertion
Put in four new 1.5V batteries (LR06, AA). Make sure
the batteries are the right way around (see the
diagram on the rear label). Put the battery cap 
back on lining the lugs on the case up with the gaps in
the cap and turning the cap 90°clockwise.
WARNING
BATTERY SAFETY INFORMATION
•
Do not disassemble batteries!
•Clean the battery and device contacts if
necessary before putting in the batteries!
•Remove discharged batteries from the
device immediately!
•Increased risk of leakage, avoid contact
with skin, eyes and mucous membranes! If
battery acid comes in contact with any of
these parts, rinse the affected area with
copious amounts of fresh water and seek
medical attention immediately!
•If a battery has been swallowed seek
medical attention immediately!
•Replace all of the batteries simultaneously!
•Only replace with batteries of the same
type, never use different types of batteries
together or used batteries with new ones!
•Insert the batteries correctly, observing the
polarity!
•Keep the battery compartment well sealed!
•Remove the batteries from the device if it is
not going to be used for an extended
period!
•Keep batteries out of children’s reach!
•Do not attempt to recharge these batteries!
There is a danger of explosion!

User Handbook GB
9
WARNING
BATTERY SAFETY INFORMATION
(Continued)
3.2 Switching On and Off
Switch On
Press the ON / OFF button down for 1 second.
NOTE
During Switch On the device will run
diagnostic checks assuring functions
operate correctly.
Switch Off
Press the ON / OFF button down for 1 second at
any point during the operation of the device.
Automatic Switch Off
The device switches off automatically 2 minutes after
the last operation. Both indicator lights flash and the
alarm sounds to indicate the shutdown process is
taking place.
3.3 Mode of Operation
Active Mode
The subject blows into the sample cone and a
sample is taken automatically for analysis.
•
Keep unused batteries in their packaging
away from metal objects in order to prevent
short circuiting!
•Do not throw used batteries into the
household refuse; put them in a hazardous
waste container or take them to a battery
collection point, at the shop where they were
purchased!

User Handbook GB
10
Passive Mode
For use when the subject is unable to provide a
sufficient sample for automatic sampling, e.g. an
unconscious patient, or for testing the contents of a
container.
NOTE
During the sample process do not move
the device away from the subject until the
sample has been taken. This avoids
allowing fresh air diluting the sample.
3.4 Active Mode Testing
This mode requires the subject to blow Actively into
the device. It is the most accurate method of
operation.
•Switch on the device using the ON/OFF
button . Once diagnostics are complete the
STATUS light will turn GREEN.
•Hold the device with the sample cone 
2.5cm (1in) directly in front of the subject’s
mouth.
•Tell the subject to blow directly into the
sample cone moderately hard and
continuously. The STATUS light will turn
AMBER if the subject is blowing hard enough.
•Once a correct sample is taken the STATUS
light will turn RED and an audible alarm
(double beep) will indicate the subject can
stop blowing.
•Within 5 seconds the result will be displayed
on the DISPLAY light , the colour of the
light indicating the level of alcohol in the
breath sample. The displayed result is
accompanied by an audible alarm giving an
audible indication of the result. (See 3.7)

User Handbook GB
11
•The device will reset the DISPLAY light 
after 2 seconds.
•A further test can be performed once the
STATUS light turns GREEN.
NOTE
When the device is in regular use,
particularly at low ambient temperatures, it
is advisable to use a paper tissue to clean
any breath condensates from the sample
cone.
3.5 Passive Mode Testing
This mode of operation is used where the subject is
unable or unwilling to blow into the device. This
method of sampling will not always produce as
reliable a reading as that given by Active testing.
•Switch on the device using the ON/OFF
button . Once diagnostics are complete the
STATUS light will turn GREEN.
•Hold the device with the sample cone 
2.5cm (1in) directly in front of the subject’s
mouth or nose.
•While the subject is breathing out, or perhaps
talking, press the PASSIVE button , wait for
the device to take a sample before removing
the device from in front of the subject.
•Read the result from the DISPLAY light . If
the light was GREEN, you may wish to repeat
the procedure in case a useful sample was
not taken.
•A further test can be performed once the
STATUS light turns GREEN.

User Handbook GB
12
3.6 Checking a Container
The device can be used as an 'electronic nose' to
check a container to see if it contains alcohol.
CAUTION
It is very important that the device only samples
the vapours from the test liquid inside the
container. The device must not contact any fluids
directly, this could damage the device.
•Hold the device with the sample cone fairly
close to the liquid to be tested, and preferably
in a relatively sealed environment.
•Press the PASSIVE button , wait for the
device to take a sample before removing the
device from the container.
•Note the indicated alcohol reading on the
DISPLAY light .
•A further test can be performed once the
STATUS light turns GREEN.
NOTES
If the DISPLAY light 

shows AMBER or
RED then the liquid contains alcohol to
some degree. If the reading is GREEN
then repeat the test at least twice to be
sure the sample was correctly taken from
the liquid vapours.
If the alcohol level in the sample was very
high then it may take a minute or even
longer for the sensor to clear and the
STATUS light 

turns GREEN.

User Handbook GB
13
3.7 Display Light Indications
Status light
•GREEN - the device is ready to take a sample
•AMBER - the subject is blowing at a
satisfactory flow rate
•RED - the instrument has taken a sample,
further samples are inhibited.
•Flashing RED/AMBER - the breath sample is
insufficient wait for a GREEN light before
asking the subject to blow again
•Flashing RED - low battery
Display light
ALCOHOL DISPLAY LIGHT
COLOUR
Indication GREEN AMBER RED
Alcohol
Level
ZERO
-
LOW MEDIUM HIGH
Approx
.
BrAC
(mg/l)
0.00 –
0.04 0.05 – 0.09 0.10+
%BAC
0.000
–
0.010
0.011
–
0.020 0.021+
Both lights together
•RED/AMBER/GREEN Sequence - functional
test at switch on
•Ten Red Flashes - automatic switch off
warning

User Handbook GB
14
4 MISCELLANEOUS
4.1 Cleaning and Maintenance
•Do not immerse the device in water or other
liquids. It is not watertight.
•To clean the device use a soft cloth slightly
dampened with water.
•Never use aggressive cleaning agents,
thinners, benzene, isopropyl alcohol or tough
brushes.
•Do not use or store the device in an
environment where the ambient temperature
or humidity is too high or too low (see
operating conditions in the 'Technical
Specification' section) in direct sunshine, in
the vicinity of static electricity or in a dusty
environment.
•Remove the batteries if you do not wish to
use the device for an extended period of time.
Otherwise there is the danger that the
batteries may leak.
•If the device is used as described in these
instructions, an annual service is
recommended, to ensure accuracy is
maintained.
4.2 Disposal
Do not throw away or dispose of in a landfill
site. Return to the local dealer or
manufacturer.
Please remove the batteries before disposing of the
device. Dispose of old batteries at a battery collection
station, a recycling site, or in a shop. Consult your
municipal authority or your dealer for information
about disposal.

User Handbook GB
15
4.3 Technical Specification
Name and model: Lion AlcoBlow®
Software: SW42010
Display system: 2 Tri-colour LEDs
Power supply: 4 batteries 1.5 V
(type LR06, AA)
Measuring range: Low - 0.00 to 0.04 mg/l BrAC
0.000 to 0.010 %BAC
Medium - 0.05 to 0.09 mg/l
BrAC
0.011 to 0.020 %BAC
High - 0.10+ mg/l BrAC
0.021+ %BAC
Response time: approx. 5 seconds at 0.00
mg/l BrAC
Display hold time: 2 seconds
Audible alarm: Advises of change in display
status
Automatic switch off: 2 minutes after the last
operation
Operating
temperature range: -5°C to +40°C
Storage
temperature range: -15°C to +55°C
Dimensions: approx. 265 x 48 x 48 mm.
Weight: approx. 300 g including
batteries
The CE mark of this device refers to the EC directive
93/42/EEC MDD.
This device is designed for domestic use, law
enforcement, industrial/safety applications and
medical applications. For commercial use, a
metrological inspection and service must be carried
out once a year. This calibration will be charged for
and carried out by your local dealer or the
manufacturer.

User Handbook GB
16
Electromagnetic Compatibility
The device complies with EN 60601-1-2 standard for
electromagnetic compatibility. Inquire at Lion
Laboratories Ltd for details.
In accordance with our policy of continual product
development, we reserve the right to make technical
changes without notice.
5 WARRANTY
Please contact your dealer in case of a claim under
the warranty. If you have to return the device, please
enclose a copy of your invoice and state what the
defect is.
Lion Laboratories Limited
Ty Verlon Industrial Estate
Barry
Vale of Glamorgan
CF63 2BE, Wales UK
Tel: +44 [0] 1446 724500
Fax: +44 [0] 1446 724501
E-mail: [e-mail]
[e-mail]
Web: www.lionlaboratories.com
Please visit the link below for details of your local
dealer:-
www.lionlaboratories.com/international-distributors/
