Solera® Power Awning
OWNER'S MANUAL

System Information
The Solera® Power Awning features an internal motor to steadily operate the awning. Additionally, the
friction joint allows for rain dump and adjustable pitch features, and there is no rafter arm to lock in place.
The friction joint also provides added stability.
This manual provides operational procedures for Solera® Power Awning. Operating the Solera® Power
Awning in any other manner than described may result in personal injury, damage to the recreational
vehicle or the awning assembly as well as voiding the Lippert Components Limited Warranty.

Operation
NOTE: Some coaches may not use the LCI switch (Fig. 3).

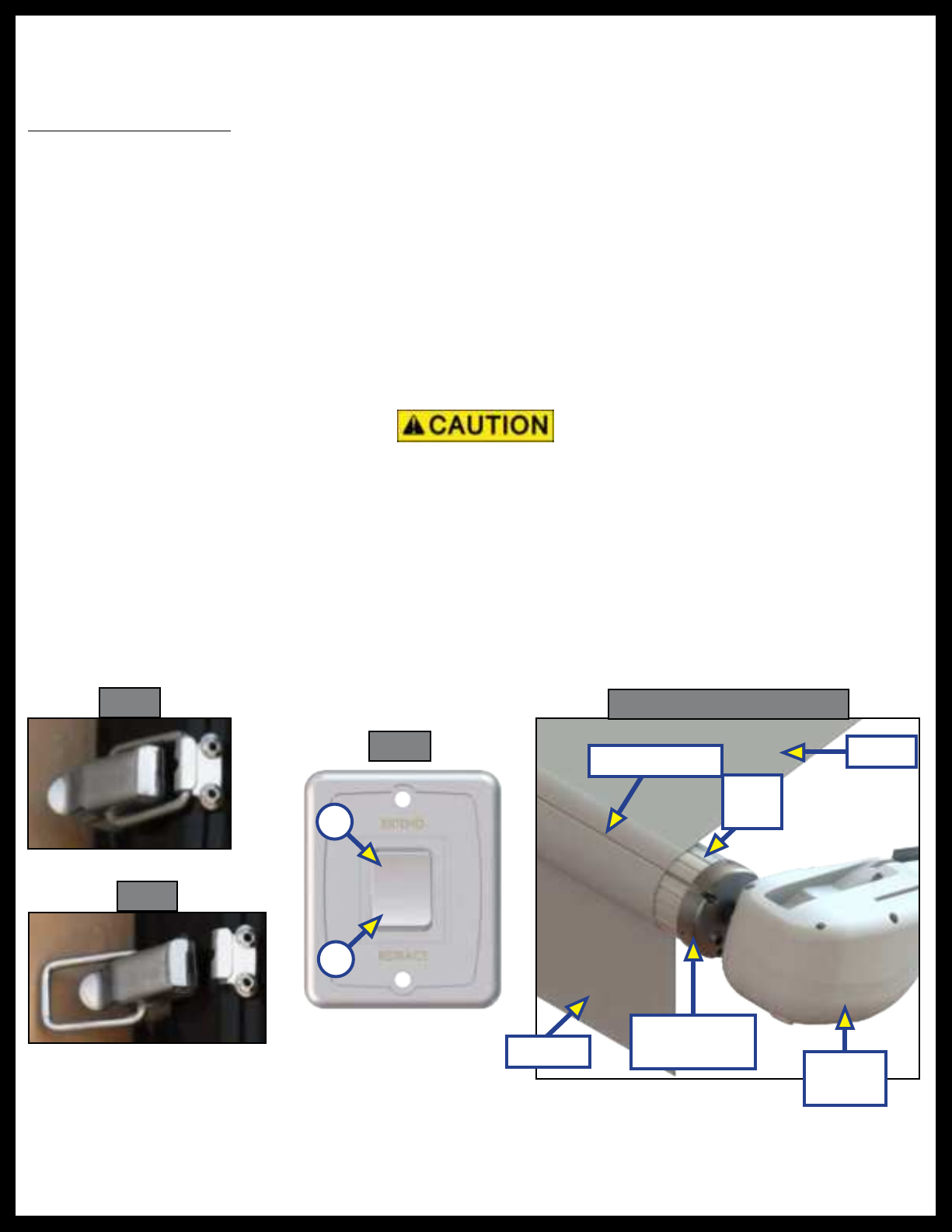

Extending the Awning
1. Verify the RV battery is fully charged and connected to the electrical system.
2. Locate the locking latch (Fig. 1), if equipped, and unlock the latch (Fig. 2).
NOTE: This latch is optional and may or may not be installed on one or both support arms.
3. Press and hold EXTEND (Fig. 3A) until the awning is extended completely.
NOTE: Extension is considered complete when the fabric is completely unrolled, the valance seam is visible
and a section of the roll tube is exposed (Fig. 4).
NOTE: The awning fabric should always be above the roll tube. However, if the extend switch is engaged
too long or extend is hit inadvertently instead of retract, the awning will roll up backward. This is not
a defect. To correct the fabric orientation, press the RETRACT button. The awning will then extend
to its correct orientation and normal operation can resume.
Fig. 1
Fig. 2
Fig. 3
Fig. 4 - Complete Extension
Valance Seam
Exposed Roll
Tube Section
Retracting the Awning
1. Verify the coach battery is fully charged and connected to the electrical system.
NOTE: The awning can be retracted without resetting the pitch.
2. Press and hold RETRACT (Fig. 3B) until the awning is retracted completely.
3. Locate the locking latch (Fig. 2), if equipped, and lock the latch (Fig. 1).
NOTE: This latch is optional and may or may not be installed on one or both support arms.
Tying down the roll tube once the awning is extended will not allow the free-floating support arms to
work as designed and may cause damage to the awning or RV.
A
B
Fabric
Roll
Tube
Valance Awning
Head

Adjusting Pitch - All Solera Awnings
NOTE: The awning will pitch itself to purge the pooling of excess water and may dump a significant
amount of water without notice.
1. Pitch can be set by adjusting the articulating arm to tip one side of the awning to allow water runoff.
2. Extend the awning to desired position.
3. Choose the side of the awning for optimum shade or convenient water runoff. Pull downward on the
joint of the articulating arm until desired pitch is set (Fig. 5) to allow for water runoff. Do not push the
joints of the articulating arms up. This will put tension on the gas strut, which can cause the strut to
break. Belleville washers and bolt (Fig. 6A) allow the joint to remain in the position set by the operator.
NOTE: The awning can be retracted without resetting the pitch.
NOTE: If the articulating arm does not hold position, it can be tightened by adjusting the bolt (Fig. 6A) in
the center of the articulating arm.
Fig. 5 Fig. 6
Pitch
Maintenance - All Solera Awnings
Fabric Care
If the awning is rolled up while wet, roll it out and let it dry as soon as conditions allow before rolling it up
again. This will help prevent the formation of mildew and add greatly to the life of the awning. Mildew does
not form on the fabric itself, but on the accumulated dust, dirt and grime.
NOTE: Periodically clean vinyl or woven acrylic fabric using a mixture of ¼cup of dish soap and 5 gallons
of warm water. Liberally slosh the mixture on the top of the fabric and roll up the awning for 5
minutes. This will apply the mixture to the bottom of the fabric as well. Roll the awning back out and
hose off with fresh water. Repeat if necessary. Allow to dry before rolling up.
A

Fig. 7 Fig. 8
Troubleshooting
Manual Override
In the event of power loss or motor failure, the awning can be extended and retracted manually. Perform
the following procedure to manually retract the awning.
NOTE: This procedure may also be performed to extend or retract the awning in the event of dry camping
or camping without a battery.
1. Remove the rubber grommet (Fig. 7A) from the drive head assembly, exposing the manual override
nut on the motor.
NOTE: The drive head assembly is always located on the right side of the awning as it is viewed from
outside of the coach.
2. Using a 7/16" socket and cordless/power drill, spin the manual override nut counterclockwise to retract
the awning (Fig. 8).
NOTE: A ratchet may also be used to turn the manual override nut. Using a ratchet will take a significant
amount of time and should only be used if no cordless/power drill is available.
NOTE: Use caution when retracting the awning manually. The use of a step stool or ladder may be required
to completely retract the awning.
3. When the awning is completely retracted, remove socket or drive device and replace the rubber
grommet in the drive head assembly.
NOTE: The motor’s internal drive system prevents the awning from moving (extend or retract) on its own.
If the motor is damaged or disabled, be sure to secure the awning in the retracted position with a
strap around both the outer support arm and the mounted support arm before the manual override
nut is released.
A
During incidents of high wind, heavy rain or extended time away from the unit, it is advisable to retract
the awning completely to prevent damage to the awning and the RV.

SOLERA POWER AWNING ASSEMBLY
AWNINGS
Fabric
Awning Rail
Drive Head
Assembly
Idler Head
Assembly
Roll Tube
Support Arm
Assembly
End Cap

SOLERA POWER AWNING COMPONENTS
AWNINGS
A

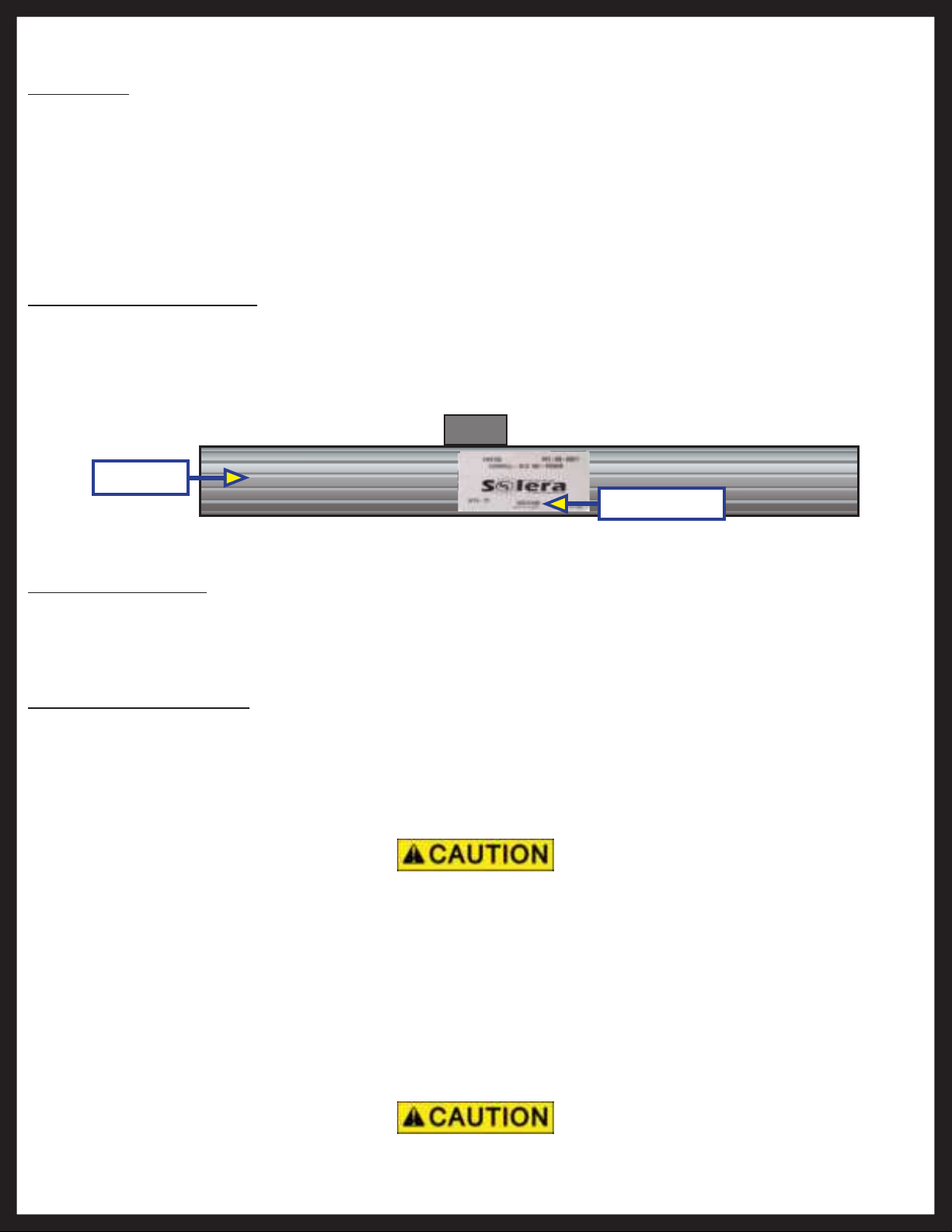

Variant Code Information
The variant code on Lippert products can assist LCI customers in obtaining additional information about the
product and its components. For replacement part information, locate the variant code on the awning roll tube
and call LCI customer service.
Variant Code
Callout White Part # Black Part # Description
A 281928 281929 Awning Rail (144")

E
CDB
FG
Callout White Part # Black Part # Description
B266147 273479 Idler Head Assembly
C289563 289566 Idler Head Front Cover
D289564 289567 Idler Head Rear Cover
E266146 273478 Drive Head Assembly
F289557 289560 Drive Head Front Cover
G289558 289561 Drive Head Rear Cover
SOLERA POWER AWNING COMPONENTS
AWNINGS

SOLERA POWER AWNING COMPONENTS
AWNINGS
H
Drive Head Gear Kit Qty. Part # Description
H
353964 (Only
available as a
kit)
1 266133 .873" 20 PA 16 DP, D SLOT GEAR
1 266134 .873" 20 PA 16 DP, D SLOT GEAR
1 266136 .500" 20 PA 16 DP, CLR ZN GEAR
2 266142 Bushing
1 266143 Bushing
1 281828 Bushing
2 266137 E-Clip ½"
2 276160 E-Clip ⁄"

SOLERA POWER AWNING COMPONENTS
AWNINGS
IJK
L
N
M
O
PQR
ST
Callout Part # Description
I 299419 Screw, PNH, SQ DR, SLFTPG, Zn (#8 - 15 UNC x 0.500”) (End Cap-to-Roll Tube)
J 266156 Screw, PNH, Zn (#6 - 15 UNF x 0.500”) (Head Cover fastener – 6/Cover)
K 299630 Screw, Waxed, PNH, SQ DR, Zn (#8 - 32 UNC x 0.500”) (Head-to-Roll Tube)
L118043 Nut, Nylon Lock, Zn (⁄” - 18 UNC) (Head-to-Arm)
M 266155 Screw, Machine, PNH, PHH (#8 - 32 UNC x 0.500”) (Back Cover-to-Mount)
N 281079 Screw, Hex Washer, SLFDR, Zn (#6 - 20 UNC x 0.500”)
O 266148 Screw, PNH, PHH, Zn (⁄” - 18 UNC x 2.25”) (Head-to-Arm)
P 237315 Rivet, Aluminum (⁄”x 1.300”) (Klamp-Tite, BAPKTR-06-12)
Q 429284 Screw 8 x 1 ¼" PNH ZN CD AB ST HBK
R 384905 Screw #10 32 x ½" PHN Plain PH FT SST
S 384906 Nut #10 - 32 Nylon Lock Plain SST
T 320695 Screw #8 - 18 x ½" PNH SMS ZN SQ AB ST, BLK HD

SOLERA POWER AWNING COMPONENTS
AWNINGS
Y
X
W
V
U

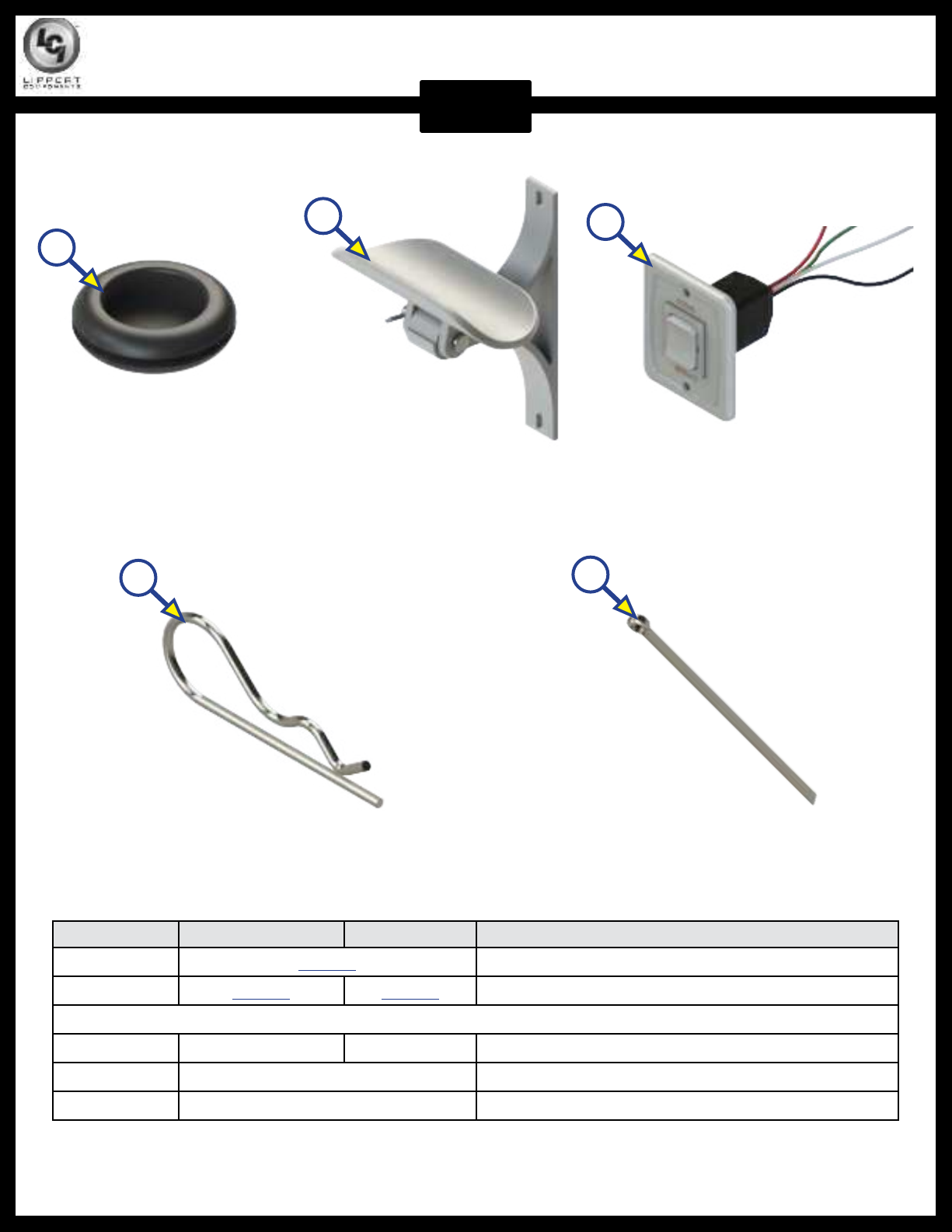

Callout White Part # Black Part # Description
U275071 Rubber Grommet (for Manual Override Opening)
V289373 289374 Awning Center Support Assembly
NOTE: Only required for Solera Awnings greater than 21' in length.
W 293659 293658 Switch Kit 12GA Wire Harness
X 298760 Cotter Hairpin
Y 347119 Cotter Pin

SOLERA POWER AWNING COMPONENTS
AWNINGS
A
AC
A
AB
AA
Mount
Arm
Z
Support Arm
Assembly
Measurement
Based on
Mount Arm
Callout White Part # Black Part # Description
Z
295742 295743 Support Arm Assembly (Short, 61")
260294 266169 Support Arm Assembly (Pitched, 66 ⁄")
362132 362133 Support Arm Assembly (Short Standard Fixed
Pitch, 60 ½")
281152 281154 Support Arm Assembly (Flat, 69")
AA
280343 Gas Strut; 26"; 124 lbs (for Short and Flat Arm
Assemblies)
260282 Gas Strut; 124 - 144 lbs (for Pitched Arm
Assemblies)
AB 348108 Screw (#14 - 10 x 1 ¼" (Arms-to-Coach)
AC 282484 Star Washer (for Gas Strut)

SOLERA POWER AWNING COMPONENTS
AWNINGS
AD
AE
AF
AG
AJ
AH AI

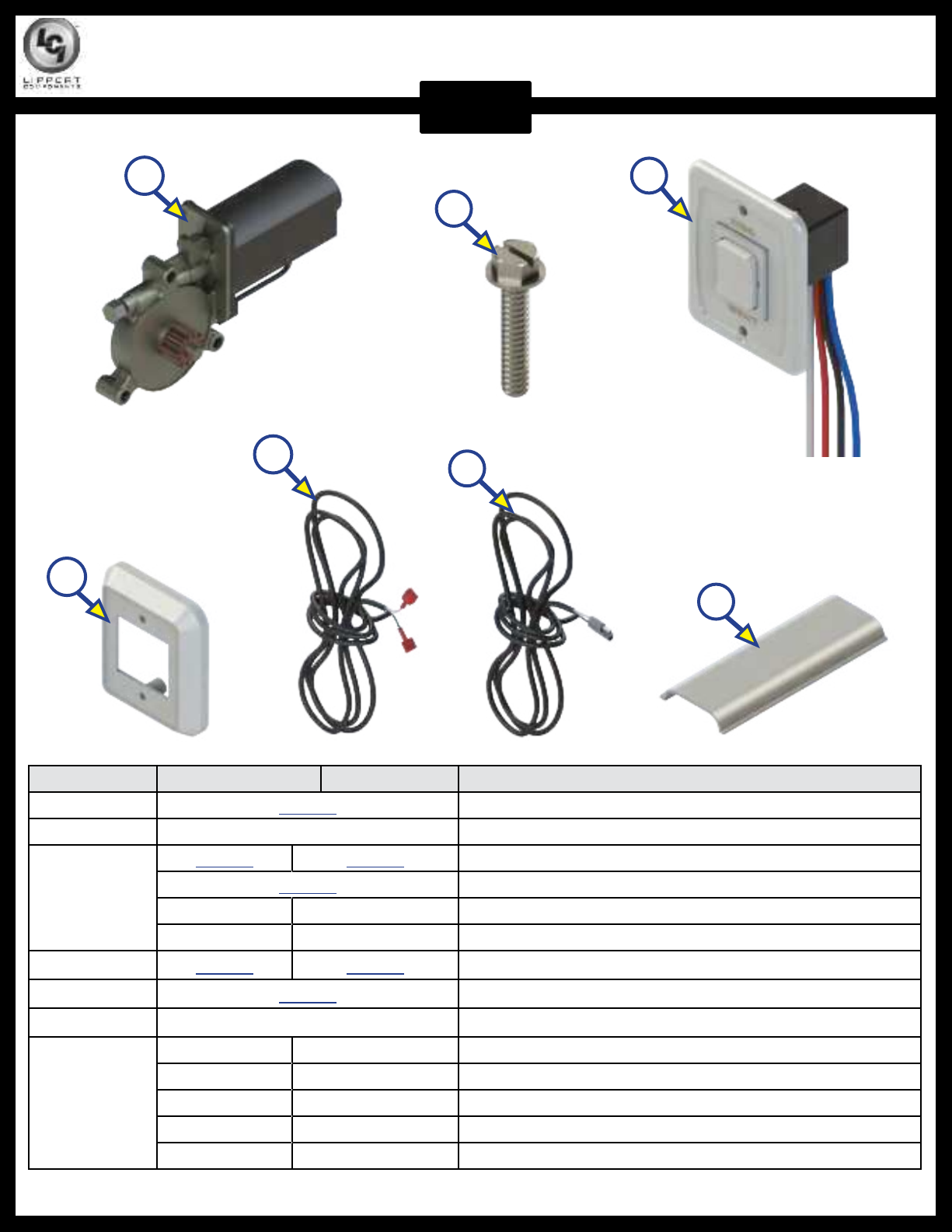

Callout White Part # Black Part # Description
AD 266149 Motor
AE 266132 Screw IHWH 2N SLF ST (¼- 20 x ¼") (motor-to-mount)
AF
285499 285500 Switch Kit (Switch, Plate, and Harness)
280570 Wire Harness Only
280565 280567 Switch Plate Only
280564 280566 Switch Only
AG 285079 285077 Bezel Spacer
AH 273007 Power Feed Wires
AI 373008 Power Feed, 2 Way
AJ
275070157 2750701692 Wire Cover; 9.75"; Narrow
275070353 2750701888 Wire Cover; 22"; Narrow
266138481 2661382017 Wire Cover; 30"; Narrow
266139337 2661391872 Wire Cover; 21"; Wide
266139429 2661391964 Wire Cover; 26.75"; Wide

The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI
prohibits the copying or dissemination of portions of this manual unless prior written consent from an
authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty.
The information contained in this manual is subject to change without notice and at the sole discretion of LCI.
Please recycle all obsolete materials.

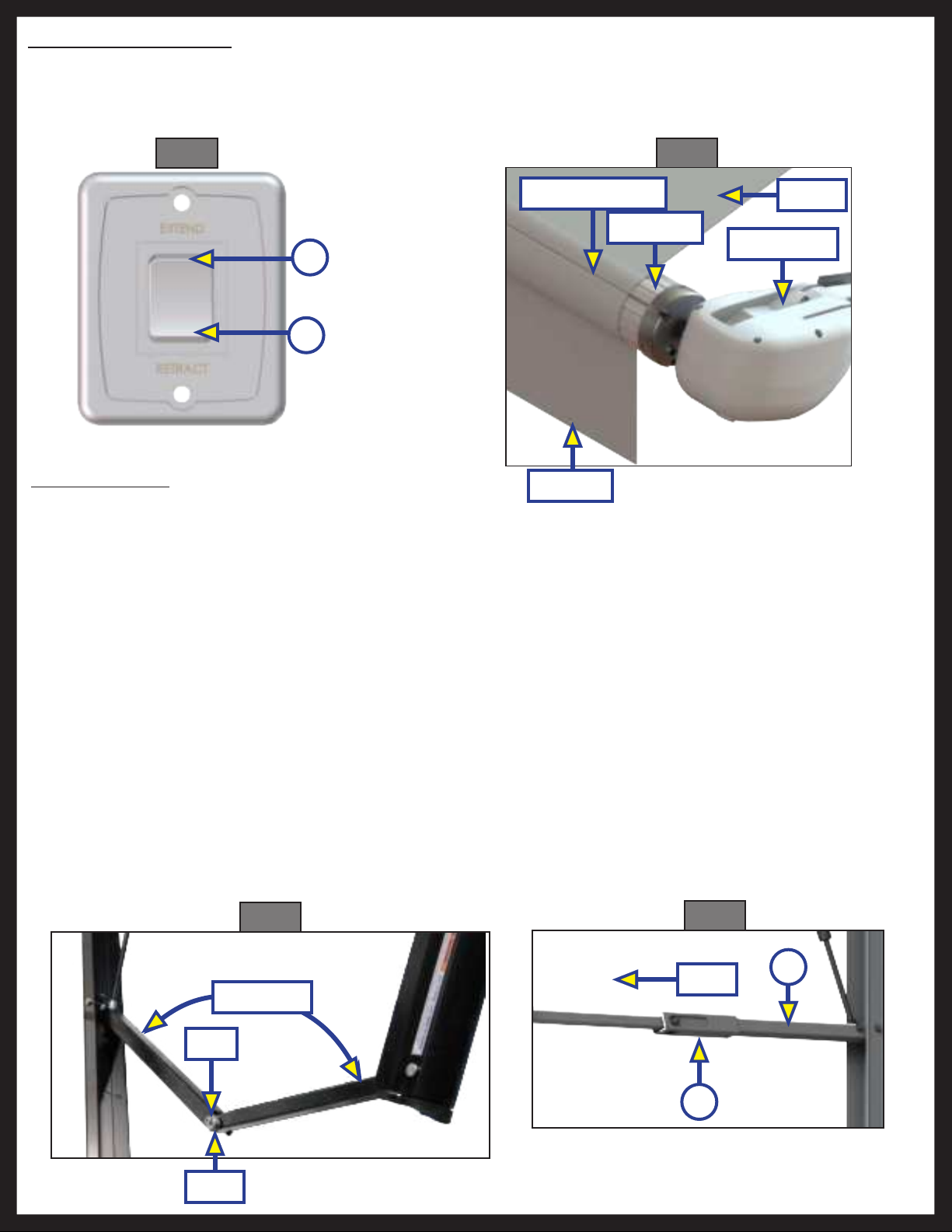

Operation
NOTE: If the unit is equipped with a locking latch, be sure to unlock prior to extending the awning. After
retraction and before travel, be sure to lock the support arms back into place.
NOTE: Some units may not use the LCI switch (Fig. 1).
Extending the Awning
1. Verify the unit's battery is fully charged and connected to the electrical system.
2. Press and hold "EXTEND" (Fig. 1A) until the awning is extended completely.
NOTE: Extension is considered complete when the fabric is completely unrolled, the valance polycord is
visible and a section of the roll tube is exposed (Fig. 2).
NOTE: The awning fabric should always be above the roll tube. However, if the "EXTEND" switch is engaged
too long or "EXTEND" is hit inadvertently instead of "RETRACT", the awning will roll up backward.
This is not a defect. To correct the fabric orientation, press the "RETRACT" button. The awning will
then extend to its correct orientation and normal operation can resume.
System Information
The Solera® Power Awning features an internal motor to steadily operate the awning. Additionally, the pitch arm
allows for rain dump and adjustable pitch features. The pitch arm also provides added stability.
Tying down the roll tube once the awning is extended will not allow the free-floating support arms to work
as designed and may cause damage to the awning or unit.
This manual provides operational procedures for Solera Power Awning. Operating the Solera Power
Awning in any other manner than described may result in personal injury, damage to the unit or the awning
assembly as well as voiding the Lippert Components Limited Warranty.

Retracting the Awning
1. Verify the unit's battery is fully charged and connected to the electrical system.
2. Press and hold "RETRACT" (Fig. 1B) until the awning is retracted completely.
NOTE: The awning can be retracted without resetting the pitch.
Adjusting Pitch
NOTE: The awning will pitch itself to purge the pooling of excess water and may dump a significant amount of
water without notice.
1. Pitch can be set by adjusting the pitch arm to tip one side of the awning to allow water runoff.
2. Extend the awning to desired position.
3. Choose the side of the awning for optimum shade or convenient water runoff. Pull downward on the joint of the
pitch arm until desired pitch is set (Fig. 3) to allow for water runoff. Belleville washers and bolt (Fig. 3) allow for the
joint to remain in the position set by the operator.
4. If the pitch arm does not hold position, it can be tightened by adjusting the bolt (Fig. 3) in the center of
the joint.
NOTE: Some awnings are equipped with a 2-position pitch arm (Fig.4). The 2-position arm can be set in the pitch
position or snapped into a straight position by pushing the release button (Fig.4A) and sliding the sleeve
(Fig.4B).
NOTE: Do not push the joint of the pitch arm up past the point where the two sections are in line. This will put
tension on the gas strut, which can cause the strut to break.
NOTE: The awning can be retracted without resetting the pitch.
Fig. 1
B
A
Fig. 3 Fig. 4
Fig. 2
Drive Head
Fabric
Fabric Polycord
Roll Tube
Valance
Pitch Arm
Joint
Bolt
B
A
Slide

Make sure to adequately support the roll tube during this process. Failure to support the roll tube
may result in personal injury or property damage.
4. Roll the fabric up around the roll tube by turning the roll tube by hand.
NOTE: Roll the fabric as tight to the unit as possible while leaving enough slack in the fabric to be able to
slide the drive head back onto the end cap.
5. Slide drive head shaft into the end cap and reinstall the #8 wax screw to secure.
6. Tighten zip ties around the support arms until the support arms are as tight against the unit as
possible.
Procedure #1 (Preferred)
1. Push both support arm assemblies closed until they are approximately one foot from fully retracted.
Secure both support arm assemblies by securing a zip tie around the outer arm and around the pin on
the top of the mount arm where the mount arm and inner arm connect (Fig. 6).
2. Remove the #8 wax screw that secures the end cap to the drive head shaft.
3. Pull the roll tube and end cap off of the drive head shaft.
Manual Retraction of The Awning
Resources Required
• 2 or 3 People
• Cordless or Electric Drill or Screw Gun
• Appropriate Drive Bits
• Razor Knife
• Zip Ties
• Ladders
Fig. 5
Variant Code
Maintenance
Fabric Care
If the awning is retracted while wet, extend the awning and let it dry as soon as conditions allow before
retracting. This will help prevent the formation of mildew and add greatly to the life of the awning. Mildew
does not form on the fabric itself, but on the accumulated dust, dirt and grime.
NOTE: Periodically clean vinyl or woven acrylic fabric using a mixture of ¼ cup of dish soap and 5 gallons
of warm water. Liberally apply the mixture on the top of the fabric and retract the awning for 5
minutes. This will apply the mixture to the bottom of the fabric as well. Extend the awning and hose
off with fresh water. Repeat if necessary. Allow to dry before retracting.
Variant Code Information
Solera® Awnings have a sticker located on the roll tube with a variant code that is specific to that awning assembly
(Fig. 5). The sticker on newer units will be located near the motor head on the roll tube. There will also be a sticker
on the awning fabric. The variant code will determine which variation of the product is being used. When ordering
replacement parts, it is imperative to use the variant code to receive the most compatible part.
Roll Tube
Ensure the awning assembly is secure against the side of the unit prior to travel. Failure to do so may
result in personal injury or property damage.

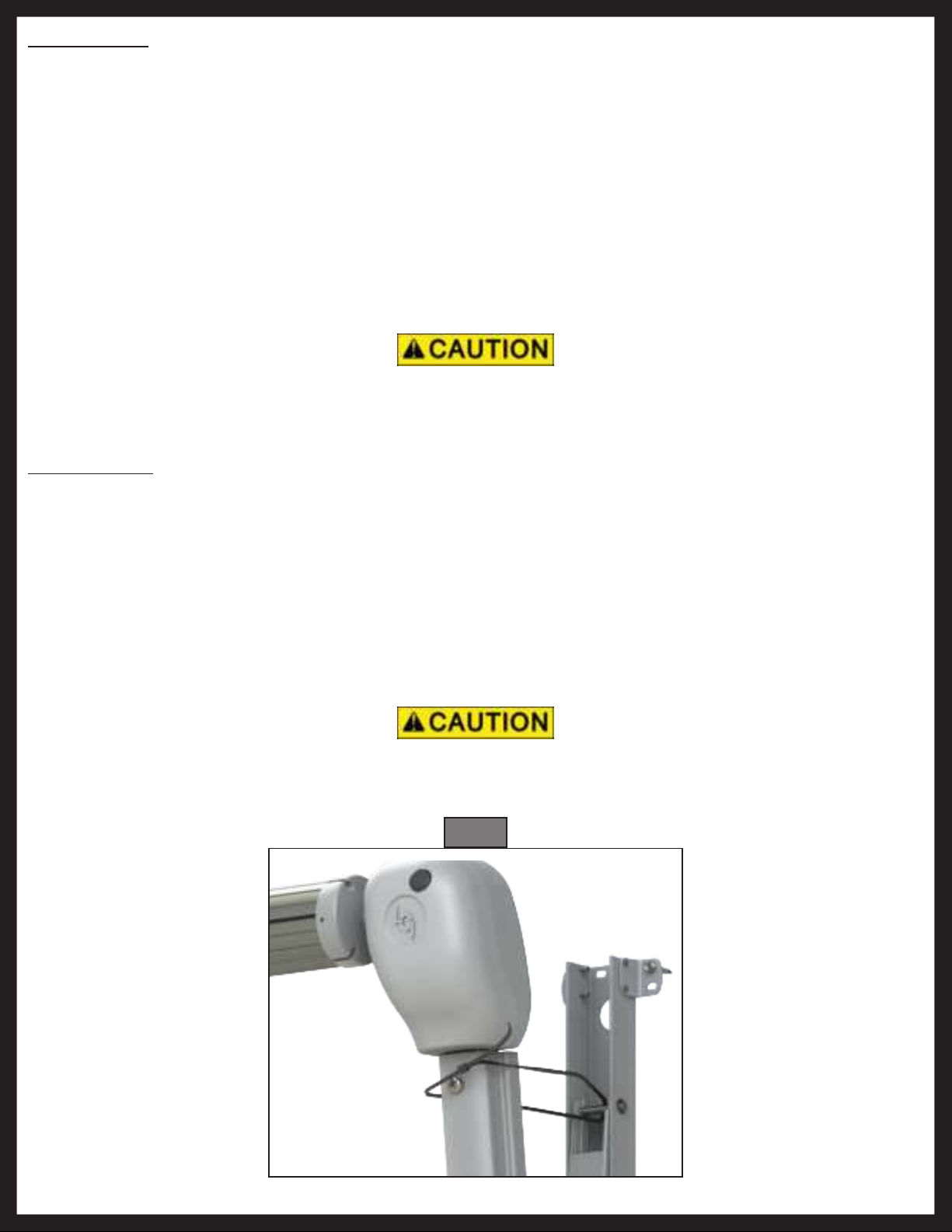

Fig. 6
Procedure #2
1. Push both support arm assemblies closed until they are approximately 1 foot from fully retracted.
Secure both support arm assemblies by securing a zip tie around the outer arm and around the pin on
the top of the mount arm where the mount arm and inner arm connect (Fig. 6).
2. Remove the #6 x ½" hex head screw at each end of the fabric, where it is secured to the awning rail.
3. Remove the drip cap at one end of the awning rail (if equipped).
4. Remove the #8 wax screws that secure the end caps to the drive and idler head shafts.
5. With one person at each end of the awning and one in the middle to support the roll tube, slide the roll
tube and end cap assembly off the shaft from each head assembly.
6. Slide the fabric down the awning rail to the desired end to remove it from the unit.
7. Roll the fabric around the roll tube and store securely inside the unit for travel.
8. Tighten zip ties around the support arms until the support arms are as tight against the unit as
possible.
Ensure the awning assembly is secure against the side of the unit prior to travel. Failure to do so may
result in personal injury or property damage.
Procedure #3
NOTE: Performing this procedure will require the replacement of the fabric in addition to any other
components that may need to be repaired or replaced.
1. Push both support arm assemblies closed until they are approximately 1 foot from fully retracted.
Secure both support arm assemblies by securing a zip tie around the outer arm and around the pin on
the top of the mount arm where the mount arm and inner arm connect (Fig. 6).
2. Cut the awning fabric along the roll tube and along the awning rail to remove from the awning
assembly.
3. Tighten zip ties around the support arms until the support arms are as tight against the unit as
possible.
Ensure the awning assembly is secure against the side of the unit prior to travel. Failure to do so may
result in personal injury or property damage.


The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”).
LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an
authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty.
The information contained in this manual is subject to change without notice and at the sole discretion of LCI.
Please recycle all obsolete materials.
Rev: 03.27.2017 Solera®PowerAwningwithNoManualOverrideOwner'sManual

System Information
The Solera® Power Awning features an internal motor to steadily operate the awning. Additionally, the pitch
arm assembly allows for rain dump and adjustable pitch features. The pitch arm assembly also provides
added stability. Additional information about this product can be obtained or by downloading the free
myLCIapp. The app is available on iTunes® for iPhone® and iPad® and also on Google Play™ for Android™
users.
iTunes®, iPhone® and iPad® are registered trademarks of Apple Inc.
Google Play™ and Android™ are trademarks of Google Inc.
Resources Required
• Three People
• Cordless or Electric Drill or Screw Gun
• Appropriate Drive Bits
• Rivet Gun (If Needed)
• Screwdriver
• Wire Cutters/Strippers
• Non-Permanent Method of Marking
• Silicone Sealant or Butyl Tape
• Silicone Lubricant
This manual provides operational procedures for Solera Power Awning. Operating the Solera Power
Awning in any other manner than described may result in personal injury, damage to the recreational
vehicle unit or the awning assembly as well as voiding the Lippert Components Limited Warranty.
NOTE: This manual will refer to the “drive side” and “idler side” throughout for various instructions. The
“drive side” is the right hand side of the awning when facing the awning from the exterior of the
unit. The “idler side” is the left hand side of the awning when facing the awning from the exterior of
the unit.
Prior To Installation
NOTE: All screws supporting the awning assembly must have a backer within the structure of the wall of the unit.
Refer to the unit manufacturer for proper location.
