Solera® Awning
Smart Arm
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1.com 574-537-8900 Page 1 Rev: 10.30.18
Table of Contents
Introduction �������������������������������������������� 2
Safety ��������������������������������������������������� 2
Prior to Installation ������������������������������������� 2
Resources Required ����������������������������������� 2
Installing The Awning Rail
(If Necessary) ������������������������������������������� 3
Installation ���������������������������������������������� 4
Installation of Smart Arm™ Touch Pad ��������������� 6
Installing the LED Light - Optional �������������������� 7
Installing The Wind
Sensor - Optional ��������������������������������������� 7
Installation of the Wind Sensor ������������������������ 7
Installing The Infrared
(IR) Sensor - Optional ���������������������������������� 8
Prior to Installation ������������������������������������� 8
Installation of the IR Sensor ��������������������������� 8
Solera®Awning
Smart Arm™
Installation and
Owner’s Manual
(For Aftermarket Applications)
Operation ����������������������������������������������� 8
Extending the Awning ��������������������������������� 8
Retracting the Awning ��������������������������������� 9
LED Lights - Optional ���������������������������������� 9
IR Sensor - Optional ����������������������������������� 9
Wind Sensor - Optional ������������������������������ 10
One Touch Feature ���������������������������������� 10
Adjusting Pitch ��������������������������������������� 10
Troubleshooting �������������������������������������� 11
Manual Override ������������������������������������� 11
Troubleshooting Chart ������������������������������� 12
Error Codes for Assemblies Produced
After May 2018
������������������������������������������������������ 13
Smart Arm Wiring Diagram �������������������������� 14
Maintenance ������������������������������������������ 15
Fabric Care ������������������������������������������ 15
Notes ����������������������������������������������� 15-16

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 2 Rev: 11�15�18
CCD-0001253
Introduction
The Solera®Smart Arm™ 12V DC Power Awning features
a touch pad that is nested in the awning arm, so the
awning can be extended and retracted without going inside
the unit�
It also features an optional infrared sensor that will activate
the awning’s security lights if a moving heat source is
detected� It also has an optional wind sensor that will
automatically retract the awning in case of severe winds�
The awning light has a new low voltage alert system� If the
voltage gets below 10�5V the awning light will automatically
start ashing when in use. Also, the awning light has three
stages of brightness: low, medium and high�
Additional information about this product can be obtained
from lci1�com/support or by downloading the free myLCI
app� The app is available on iTunes® for iPhone® and
iPad® and also on Google Play™ for Android™ users�
iTunes®, iPhone®, and iPad® are registered trademarks
of Apple Inc�
Google Play™ and Android™ are trademarks of Google Inc�
THIS MANUAL PROVIDES OPERATIONAL
PROCEDURES FOR THE SOLERA SMART ARM
AWNING. OPERATING THE SOLERA SMART ARM
AWNING IN ANY OTHER MANNER THAN DESCRIBED
MAY RESULT IN PERSONAL INJURY, DAMAGE
TO THE RECREATIONAL VEHICLE UNIT OR THE
AWNING ASSEMBLY AS WELL AS VOIDING THE
LIPPERT COMPONENTS LIMITED WARRANTY.
Safety
THE “WARNING” SYMBOL ABOVE IS A SIGN THAT
AN INSTALLATION PROCEDURE HAS A SAFETY
RISK INVOLVED AND MAY CAUSE DEATH OR
SERIOUS INJURY IF NOT PERFORMED SAFELY AND
WITHIN THE PARAMETERS SET FORTH IN THIS
MANUAL. ALWAYS WEAR EYE PROTECTION WHEN
PERFORMING THIS INSTALLATION PROCEDURE.
OTHER SAFETY EQUIPMENT TO CONSIDER
WOULD BE HEARING PROTECTION, GLOVES, AND
POSSIBLY A FULL FACE SHIELD, DEPENDING ON
THE NATURE OF THE INSTALLATION PROCEDURE.
MOVING PARTS CAN PINCH, CRUSH OR CUT. KEEP
CLEAR AND USE CAUTION.
Resources Required
• 1-3 people, depending
on task
• Cordless or Electric Drill
or Screw Gun
• Appropriate Drive Bits
• ⁄” Socket
• #14 x 1 ¼” Screws
• Rivet Gun (if needed)
• Screwdriver
• Wire Cutters/Strippers
• Non-Permanent Method
of Marking
• Scissors/Utility Knife
• Silicone Sealant or
Putty Tape
• Silicone Lubricant
Prior to Installation
All fasteners supporting the awning assembly must have a
backer within the structure of the wall of the unit� Refer to
the unit manufacturer for proper location�
This manual will refer to the “drive side” and “idler side”
throughout for various instructions� The “drive side” is the
right hand side of the awning when facing the awning from
the exterior of the unit� The “idler side” is the left hand side
of the awning when facing the awning from the exterior of
the unit�
NOTE: If replacing a power awning with the Smart Arm,
please verify that the wiring meets all requirements as
stated in section, Smart Arm Wiring Diagram, in this
document� If replacing a manual awning or adding a new
awning to the unit please install new wiring to meet the
requirements as stated�

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 3 Rev: 11�15�18
CCD-0001253
Installing The Awning Rail
(If Necessary)
NOTE: Awning rail not included�
1. Position the awning rail along the line where roof and
wall meet or:
A. For pitched awnings: A minimum of 6” above doors or
windows
B. For at awnings: A minimum of 4” above doors or windows

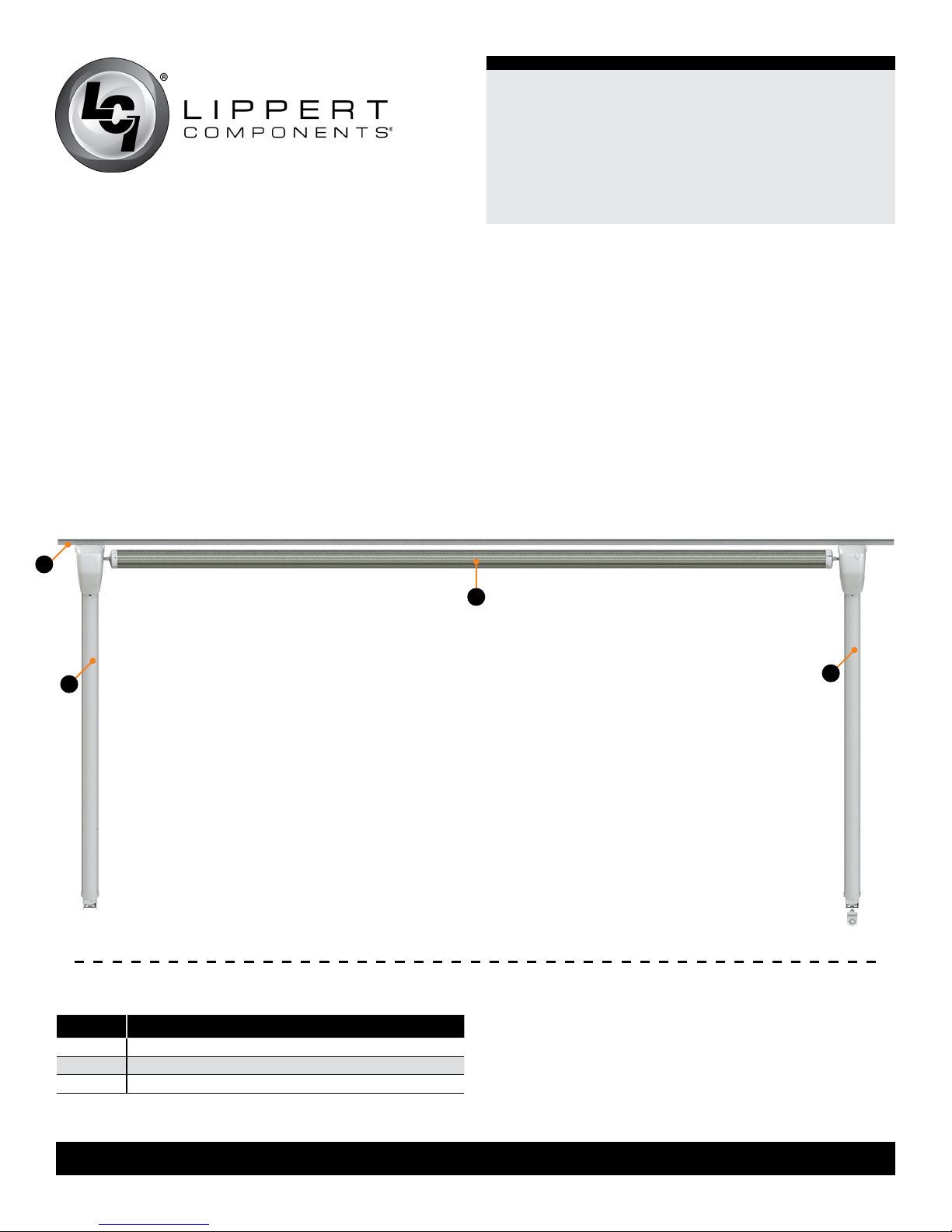

front facing view
Fig.1
B B
C
Letter Description
AAwning Rail
BSupport Arm Assembly
C Roll Tube Assembly
floor line
NOTE: The awning rail must be level and parallel with the
oor line of the unit (Fig.1)�
2. After determining the awning rail’s proper location,
mark its position with a non-permanent method of
marking�
3. Seal the back of the awning rail�
4. Align the awning rail on the wall and secure with
#10 x ¾” screws, using all fastener holes�
A

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 4 Rev: 11�15�18
CCD-0001253
Installation
1. On the awning rail, mark the position of the centerlines
of the support arm assemblies� Make sure that the support
arm assemblies will not interfere with any lights, vents or
other obstructions�
2. Using a non-permanent method of marking, mark a
perpendicular line from the awning rail down to the oor
line� This is the centerline of the support arm assembly
(Fig.2)�
3. Insert the drive head assembly shaft into the end cap
(Fig.3)� Align the holes and secure with waxed screw�
Repeat process for idler head assembly at opposite end�
NOTE: Keep the head of the wax screw ⁄” from fastened
to avoid compromising the structural integrity of the wax
screw�

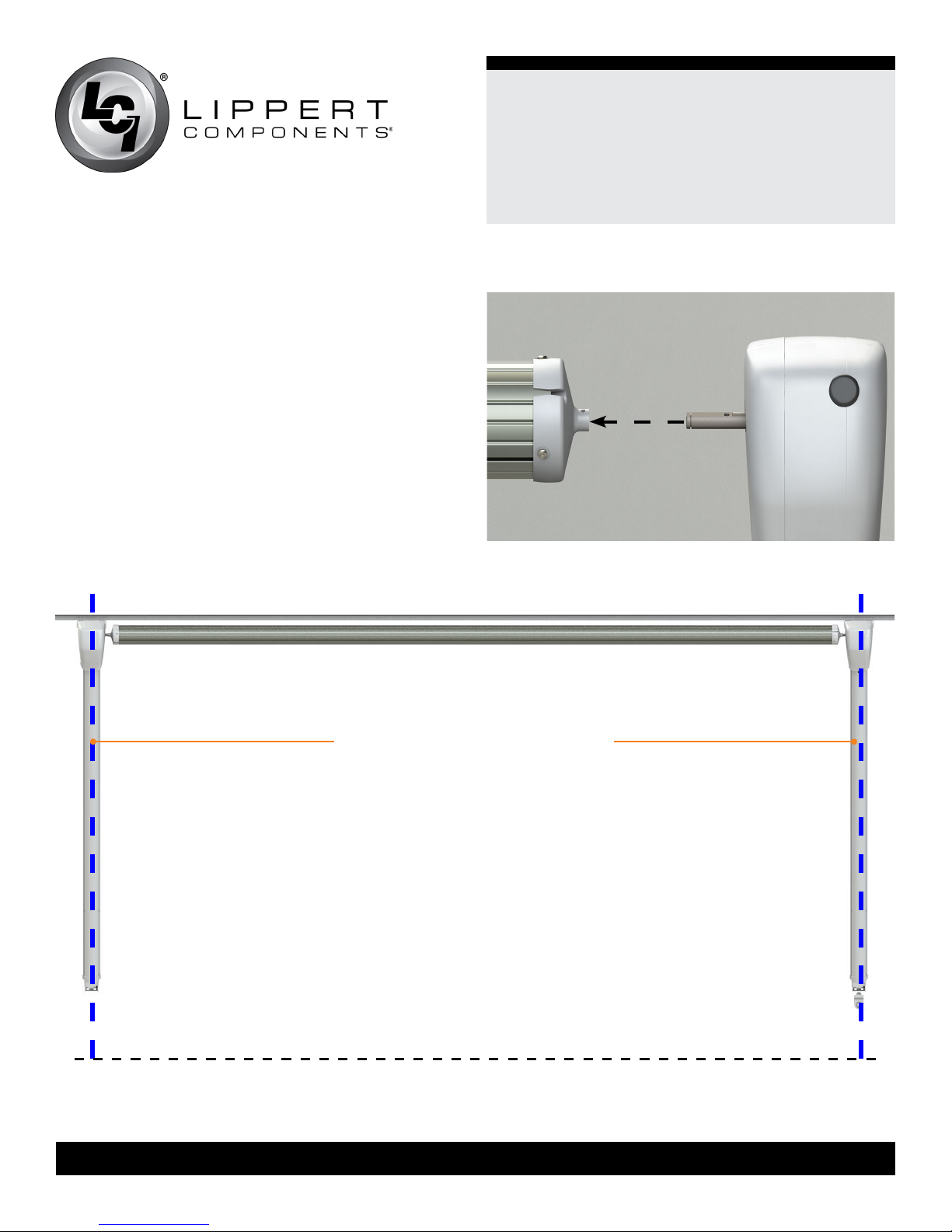

floor line
awning width is from centerline to
centerline of support arm assemblies
Fig.2
Fig.3

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 5 Rev: 11�15�18
CCD-0001253

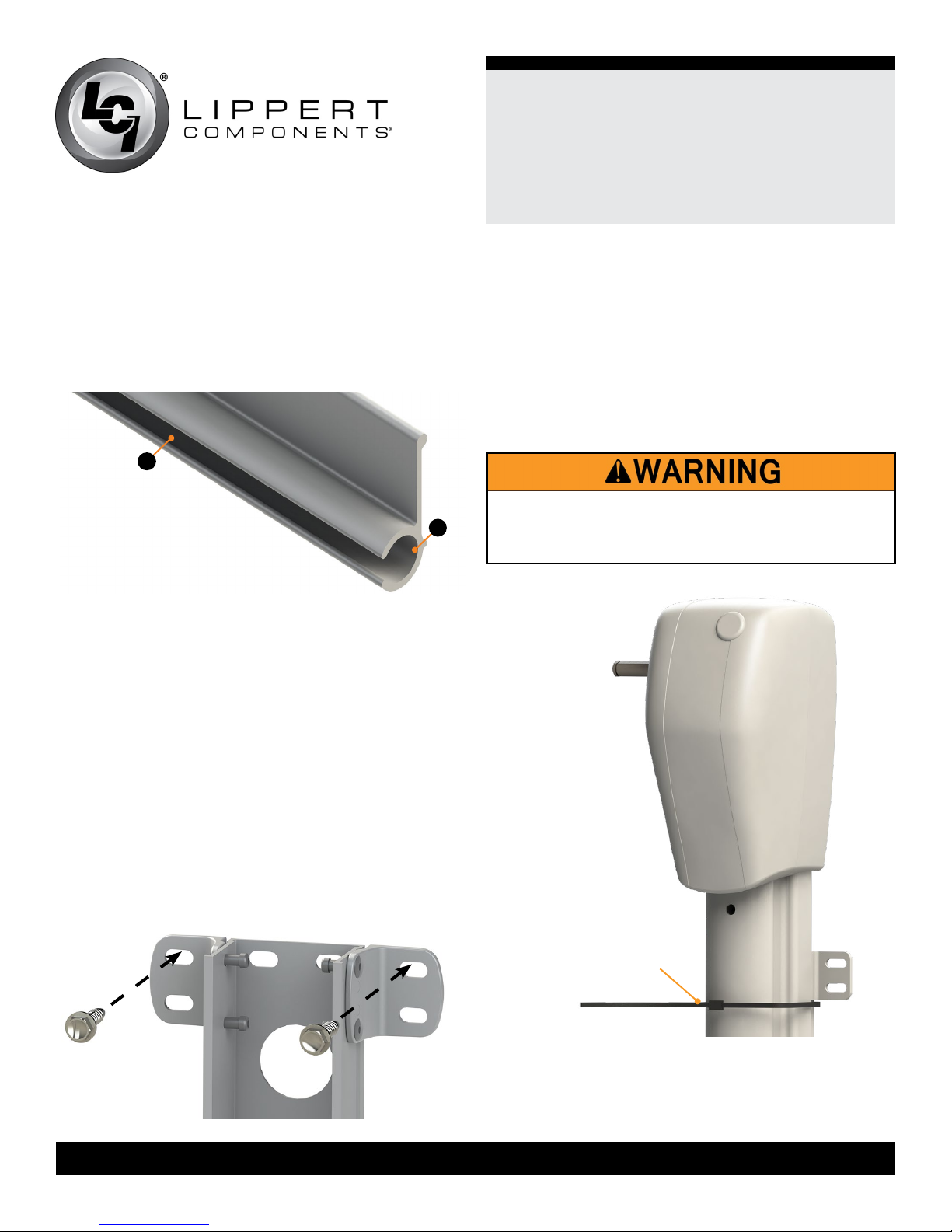

4. Use a screwdriver to spread open either end of the
awning rail channel on the installation end (Fig.4A)�
5. To protect the fabric from damage during installation, le
any sharp edges or burrs from the awning rail channel�
6. Use silicone lubricant and spray the inside of the awning
rail channel (Fig.4B)�
7. Remove the tape from the fabric� Unroll a small portion
of fabric�
NOTE: The next steps will require three people: One to
feed the polycord into the awning rail channel, two to walk
the support arm assemblies along the awning rail while the
fabric slides into position�
8. Slide the polycord into the awning rail channel and walk
the support arm assemblies and fabric down the awning
rail channel until the support arm assemblies are in line
with the previously made centerline marks�
9. Lift the support arm assembly up and secure by setting
the awning assembly to the desired height and attaching
the top of the drive side arm to the side of the unit with two
#14 x 1 ¼” screws (Fig.5)� Repeat this procedure for the
idler side support arm�
NOTE: Best practice for setting the awning height is to
push the top of the support arm assemblies up to be ush
with the bottom of the awning rail� The awning height
can be adjusted lower if desired, but make sure that the
distance from the awning rail to the top of the support arm
assemblies is consistent at both ends of the awning�
10. Using scissors or a utility knife, cut the zip ties used to
secure both the support arm assembly and the top of the
mount arm (Fig.6)�
Fig.5
FAILURE TO MAINTAIN CONTROL OF THE OUTER ARM
WHILE CUTTING THE ZIP TIE MAY RESULT IN SERIOUS
INJURY OR PROPERTY DAMAGE.
zip tie
Fig.6
Fig.4
B
A

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 6 Rev: 11�15�18
CCD-0001253

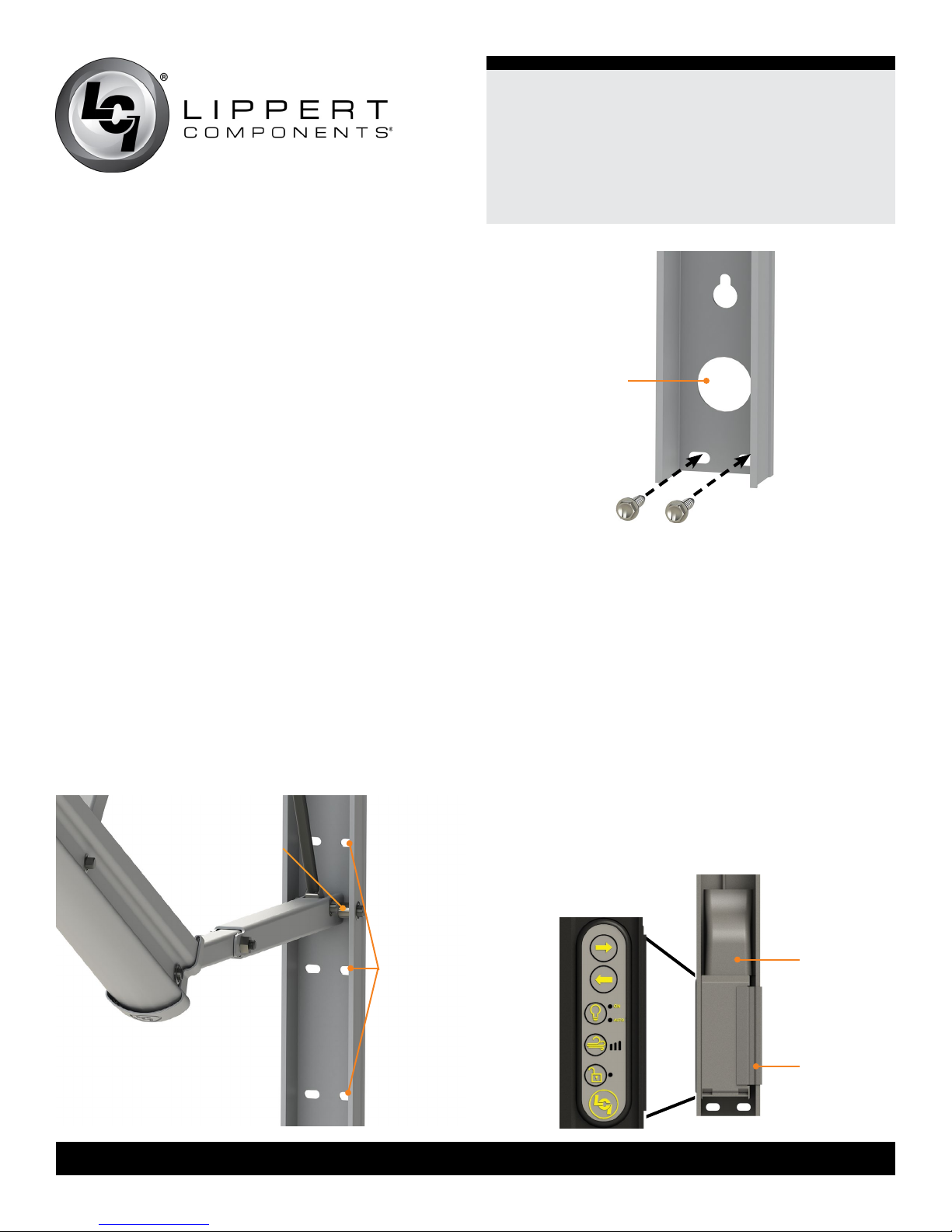

Fig.8
mount arm
access hole
snap clip
Fig.9
wire cover
side view
of arm - touch pad
possible
fastener
locations
Fig.7
all wires must
remain on the
outside of the pin
Installation of Smart Arm™
Touch Pad
1. At the top of the drive side mount arm, locate the red power
wire and the black ground wire from the controller� Place
the red wire on battery power and the black wire on battery
ground� Wait 5 seconds and then place the red “EXT IN” wire
from the controller on the battery power�
2. Touch the loose end of the red wires in step 1 to the positive
post on the battery� Touch the loose end of the black wires in
step 1 to the negative post on the battery�
NOTE: It is also possible to use the manual override to extend
the awing�
3. Fully extend the awning�
4. Wires can be separated at this time�
5. Finish the task of securing the mount arms� Make sure the
awning assembly is square on the unit prior to completion�
Use two #14 x 1 ¼” screws in one of the provided locations
in the middle of the arm (Fig.7), and two #14 x 1 ¼” screws
(Fig. 8) in the bottom of the arm�
NOTE: Four rivets with ⁄” grip range can be used in place of
the two middle and two lower screws on laminated walls�
6. At this point, determine whether this is a top or bottom
wire installation� Remove the wire covers from the wall mount
on the drive side, including the small wire cover at the lower
portion of the wall mount if installing a bottom wire connection�
7. If it is a bottom wire installation, pull the power wire [red
(POWER)/black (GROUND)] and the switch wire [red (EXT
IN)/black (RET IN)/green (LGT IN)] down from the top of the
arm to the bottom�

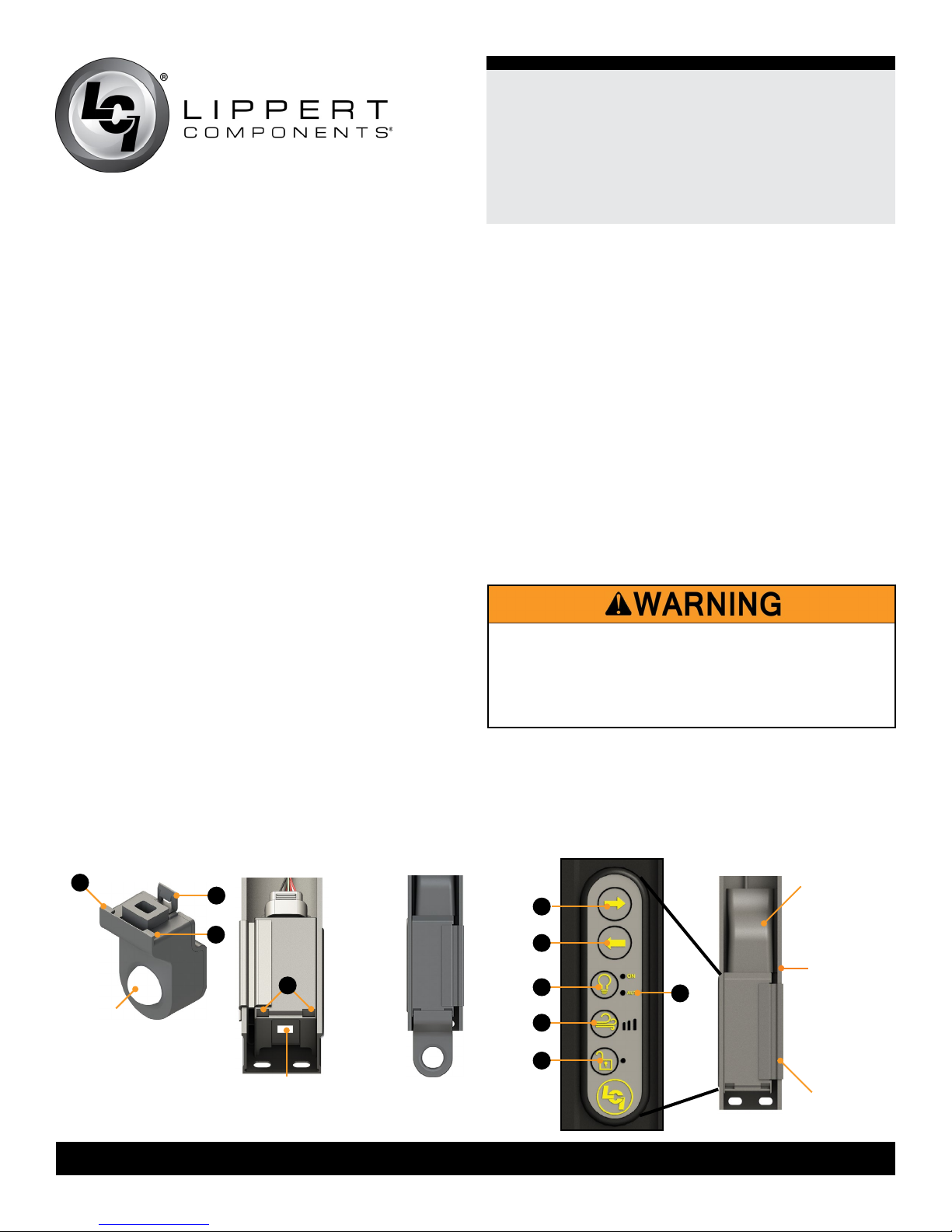

8. Remove the Smart Arm Touch Pad from the wall mount
by removing the snap clip on the right side of the touch pad
(Fig.9)� This will allow the touch pad to be removed from
the arm (Fig.9)�
9. Run the wires from the unit through the provided access
hole in the mount arm (Fig.8)�
NOTE: If top install, make sure all wires are always on the outside
of the pin that secures the pitch arm to the mount arm� (Fig.7)�

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 7 Rev: 11�15�18
CCD-0001253

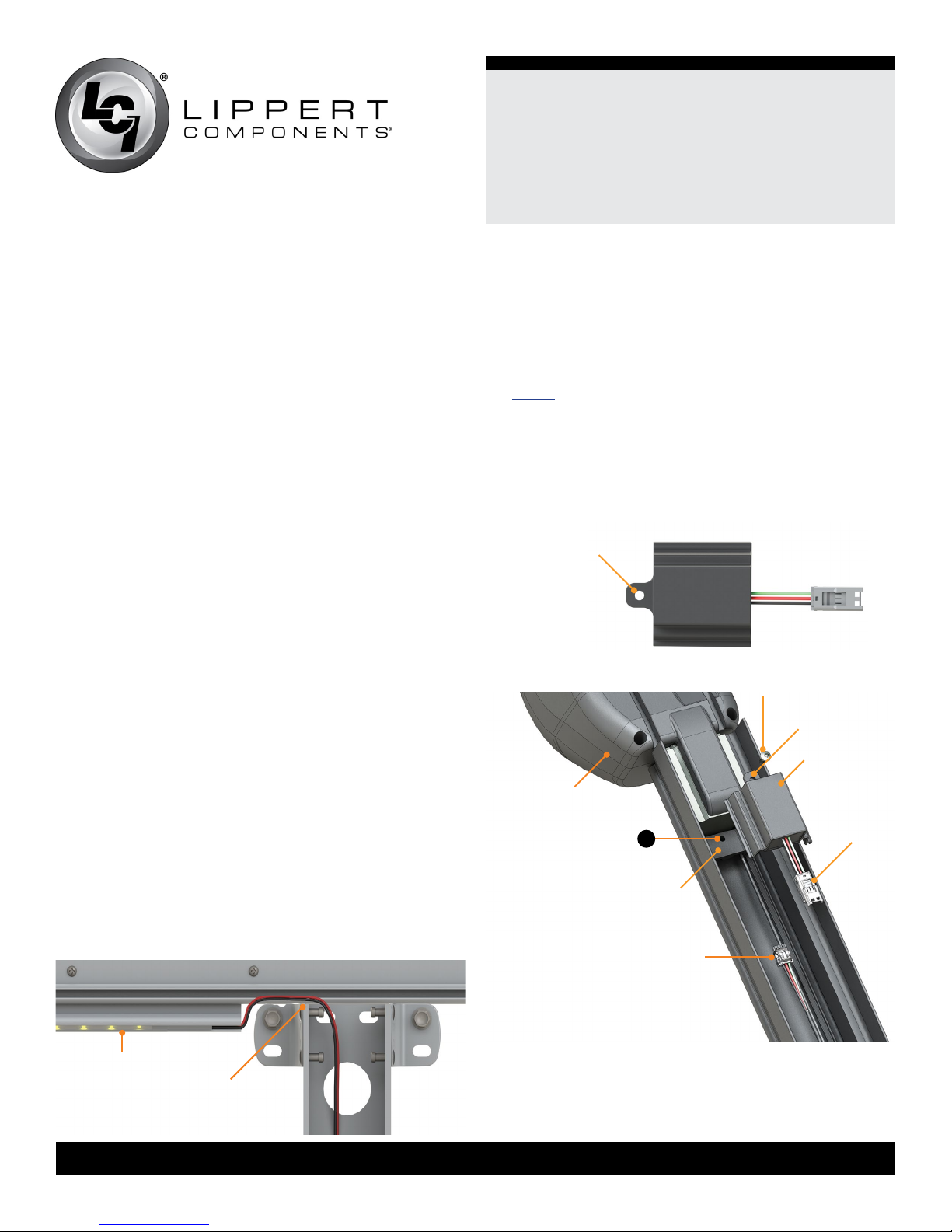

LED light
top of
mounting arm
Fig.10
drive head
top of
outer arm
wire connector
to power
drive arm
wind sensor
wire
connector
wind sensor
A
wind sensor
mounting block
wind sensor
mounting hole
screw
Fig.11
Fig.12
wind sensor
mounting hole
Installing The Wind
Sensor - Optional
Installation of the Wind Sensor
NOTE: When ordered for installation the Wind Sensor will be already
installed by Lippert Components� If installation instruction is needed
see TI-277 or visit the Lippert Components website: https://www�
lci1�com/support-solerareg-smart-arm and select Solera®Smart Arm
Wind Sensor Installation Guide�
NOTE: For identication of Wind Sensor components refer to
gures 11 and 12.
10. Connect the red 12 AWG power wire from the unit to
the power wire on the Smart Arm Touch Pad� The black
wire is ground�
11. Connect the extend “EXT IN” and retract “RET IN”
wires to the switch inside the unit�
12. If the LED Light option has been chosen complete the
instructions in that section before moving to step 13�
13. Tuck loose wiring into the hole in wall of the unit and
seal with silicone sealant or butyl tape�
14. Reinstall the Smart Arm Touch Pad and snap clip
(Fig.9)�
15. Reinstall the wire covers�
16. Power to the Smart Arm Touch Pad will time out after
ve minutes of being idle.
Installing the LED Light - Optional
1. The light wire is under the 4-inch wire cover at the top of
the arm (Fig.10)� Remove the wire cover�
2. Connect the red power wire from the light to the red 20
AWG light wire in the arm�
3. Connect the black ground wire from the light to the black
20 AWG wire in the arm�
4. The light wire must be routed over the top of the
mounting arm (Fig.10)�
5. Connect green wire marked “LGT IN” to the light power
wire from the unit�
NOTE: The ground wire from the light switch inside the
unit will be capped off�
NOTE: The controller for the LED light is equipped with a
low voltage alert system which causes the light to ash in
low voltage situations� If the voltage gets below 11V DC,
the awning light will automatically start ashing when in use.

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 8 Rev: 11�15�18
CCD-0001253
Fig.15
Fig.14
Fig.13
IR sensor
MOVING PARTS CAN PINCH, CRUSH OR CUT.
HOLDING THE TOUCH PAD FROM BOTH SIDES CAN
CAUSE SERIOUS BODILY INJURY IF THE AWNING IS
RETRACTED COMPLETELY. PRESS THE BUTTONS
FROM THE TOUCH PAD SIDE ONLY.
Fig.16
protective tape
mount arm
A
B
C
D
E
F
Operation
Extending the Awning
1. Verify the unit’s battery is fully charged and connected to
the electrical system�
Installing The Infrared
(IR) Sensor - Optional
Prior to Installation
1. Verify the unit’s battery is fully charged and connected to
the electrical system�
2. To turn the awning on, press and hold the lock button
(Fig.16A) for three seconds� The button’s green LED
indicator light will illuminate when the awning is on�
3. Press and hold the extend arrow button (Fig.16B) until
the awning is fully extended�
NOTE: IR Sensor (Fig.13) will be shipped “loose” (unattached)
to the Smart Arm Touch Pad�
Installation of the IR Sensor
1. Locate the Smart Arm Touch Pad at the bottom of the
mount arm on the drive head side (Fig.16)�
2. Locate the lower wire cover of the mount arm on the
drive side and slide it up to access the small wire cover�
Remove the small wire cover from the mount arm (Fig.16)�
3. Remove the Smart Arm Touch Pad from the mount arm
by removing the snap clip on the right side of the touch pad
(Fig.16)� Lift touch pad from the mount arm to install the IR
sensor�
4. Remove the protective tape covering the connection pins at
the bottom of the Smart Arm Touch Pad (Fig.14)
5. Insert the IR Sensor (Fig.13) into the bottom of the
Smart Arm Touch Pad (Fig.15), with the white sensor
facing out� Line up notches on the front of the touch pad
(Fig.14A) and tabs of the IR sensor (Fig.13A), then push
the IR sensor up and back to lock into place�
NOTE: The tab on the back of the IR sensor (Fig.13B)
will snap onto a tab at the bottom of the touch pad� No
additional wiring is required�
6. Reinstall the Smart Arm Touch Pad and snap clip
(Fig.16)�
7. Reinstall the small wire cover�
8. Locate the lower wire cover of the mount arm on the
drive side and slide it down to the small wire cover�
A
A
A
B
small wire
cover
snap clip

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 9 Rev: 11�15�18
CCD-0001253
Retracting the Awning
1. Verify the unit’s battery is fully charged and connected
to the electrical system�
2. To turn the system on, press and hold the LOCK/
UNLOCK button (Fig.16A) for three seconds� The green
LED will illuminate when the system is on�
3. Press and hold the retract arrow button (Fig.16C) until
the awning is fully retracted�
DO NOT TIE DOWN THE ROLL TUBE, SCREEN
ROOM OR LIVING ROOM AFTER AWNING HAS BEEN
EXTENDED. TYING DOWN THE ROLL TUBE ONCE THE
AWNING IS EXTENDED WILL NOT ALLOW THE FREE-
FLOATING SUPPORT ARMS TO WORK AS DESIGNED
AND MAY CAUSE DAMAGE TO THE AWNING OR UNIT. IR Sensor - Optional
For additional safety and security, the optional IR Sensor
will automatically turn on the LED lights if a moving heat
source is detected during “no-light” conditions� The IR
Sensor range reaches out approximately 8 feet in a
180-degree radius from where it is mounted on the unit�
1. Press and hold the light button for 3-5 seconds and the
red LED auto light (Fig.16F) will turn on� The IR sensor is
now operational�
2. To discontinue IR sensor function, press and hold the
light button (Fig.16D) 3-5 seconds, and the red auto light
will turn off� The IR sensor is no longer operational�
NOTE: When the light is activated it defaults to full light�
NOTE: The light will deactivate if no movement is detected
after three minutes�
LED Lights - Optional
The awning can be ordered with or without the LED light
strip installed on the awning fabric�
For units shipped prior to 7/26/17.
1. Press and hold the LOCK/UNLOCK button (Fig.16A) for
three seconds to turn on the awning controller� The green
LED will illuminate when the system is on�
2. Then press the light button (Fig.16D) to turn on the LED
light strip�
3. The lights will stay on until the light button (Fig.16D) is
pressed again�
For units shipped after 7/26/17.
1. Press the light button (Fig.16D) to turn on the LED light
strip�
2. There are three light levels available:
A. Press light button (Fig.16D) once for the low setting or
10% illumination�
B. Press light button (Fig.16D) twice for the medium
setting or 30% illumination�
C. Press the light button (Fig.16D) three times for the high
setting or 100% illumination�
D. Press the light button (Fig.16D) four times to turn off
the LED light strip�
NOTE: The light goes to 100% illumination if it is off and
then is turned on by an external light input, by CAN bus
or if motion is detected by the optional IR sensor with the
AUTO mode on�
2. To turn the awning on, press and hold the
LOCK/UNLOCK button (Fig.16A) for three seconds�
The green LED will illuminate when the awning is on�
3. Press and hold extend arrow button (Fig.16B) until the
awning is extended completely�
NOTE: The wind sensor must be installed in order for the
Auto Extend feature to function�
NOTE: Auto Extend ONLY: in order to use the “Auto
Extend” feature, press the extend arrow button (Fig.16B)
twice within two seconds�
NOTE: The awning fabric should always be above the roll
tube� However, if the extend button is engaged too long
or extend is hit inadvertently instead of retract, the awning
will roll up backward� This is not a defect� To correct the
fabric orientation, press the retract arrow button (Fig.16C)�
The awning will then extend to its correct orientation and
normal operation can resume�

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 10 Rev: 11�15�18
CCD-0001253
Wind Sensor - Optional
The optional Wind Sensor will automatically retract the
awning if severe wind is detected, based on the wind
setting level programmed by the operator�
1. Press and hold the LOCK/UNLOCK button (Fig. 16A) for
three seconds to unlock the controller� The green LED light
will illuminate�
2. Press the wind button (Fig.16E) from 1 - 3 times,
depending on the amount of wind sensitivity desired�
3. The amount of wind sensitivity will be displayed via the
three LED lights next to the button�
NOTE: The levels of wind sensitivity range from 1 - 3�
Level 1 requires more wind (least sensitive) to trigger the
feature� Level 3 requires less wind (most sensitive) to
trigger the feature�
NOTE: When the awning is activated by the Wind Sensor,
the awning light will ash as a notication it is preparing to
close�
NOTE: Any time the awning is retracted for any reason
(by the operator or due to strong wind) the desired level of
wind sensitivity will need to be set (see Operation - Step
1 to set sensitivity)� The awning can also be extended
without activating the wind sensor�
Fig.17
B
A
DO NOT STAKE OR OTHERWISE AFFIX SCREEN
ROOM OR LIVING ROOM AFTER AWNING HAS BEEN
EXTENDED. SECURING THESE OPTIONS ONCE THE
AWNING IS EXTENDED WILL NOT ALLOW THE FREE-
FLOATING SUPPORT ARMS TO WORK AS DESIGNED
AND MAY CAUSE DAMAGE TO THE AWNING OR UNIT.
Adjusting Pitch
NOTE: The awning will pitch itself to purge the pooling of
excess water and may dump a signicant amount of water
without notice�
NOTE: Pitch can be set by adjusting the pitch arm to tip
one side of the awning to allow water runoff�
1. Extend the awning to the fully open position�
2. Choose the side of the awning for optimum shade or
convenient water runoff�
3. Pull downward on the joint of the pitch arm until desired
pitch is set (Fig.17A)� Belleville washers and bolt (Fig.17B)
allow for the joint to remain in the position set by the
operator�
NOTE: The awning can be retracted without resetting the
pitch�
NOTE: If the pitch arm does not hold position, it can be
tightened by adjusting the bolt (Fig.17B) in the center
of the joint�
Some awnings are equipped with a two-position pitch arm
(Fig.18)� The two-position pitch arm can be set in the pitch
position or snapped into a straight position by pushing the
release button (Fig.18A) and sliding the sleeve (Fig.18B)�
NOTE: Do not push the joint of any pitch arm up past the
point where the two sections are in a straight line� This will
put tension on the gas strut, which can cause the strut to
break�
DURING INCIDENTS OF HIGH WIND, HEAVY RAIN
OR EXTENDED TIME AWAY FROM THE UNIT,
IT IS ADVISABLE TO RETRACT THE AWNING
COMPLETELY TO PREVENT DAMAGE TO THE
AWNING AND THE UNIT.
One Touch Feature
For the auto-extend feature to function, the wind sensor
must be installed� To use the “One Touch” feature, press
the extend arrow button (Fig. 16B) twice within two
seconds�

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 11 Rev: 11�15�18
CCD-0001253
Troubleshooting
Manual Override
In the event of power loss or motor failure, the awning can
be extended and retracted manually� Perform the following
procedure to manually retract the awning�
1. Remove the rubber grommet (Fig.19A) from the drive
head assembly, exposing the manual override nut on the
motor�
Fig.19
Fig.20
NOTE: The motor’s internal drive system prevents the
awning from moving (extend or retract) on its own� If the
motor is damaged or disabled, secure the awning in the
retracted position with a strap around both the outer arm
and the mount arm (Fig.21) before the manual override nut
is released�
B
A
slide
Fig.18
Fig.21
2. Using a ⁄” socket and cordless or electric drill
or screw gun (Fig.20), spin the manual override nut
counterclockwise to retract the awning�
NOTE: Use caution when retracting the awning manually�
The use of a step stool or ladder may be required to
completely retract the awning�
3. When the awning is completely retracted, replace the
rubber grommet in the drive head assembly (Fig.19)�
A

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 12 Rev: 11�15�18
CCD-0001253
Troubleshooting Chart
What is Happening? What Should Be Done?
Awning won’t open or close�
If optional travel locks are installed, make sure that they have been
unlocked�
Verify the fuse is good�
Motor overheated, thermal breaker has tripped, auto resets once cooled�
Check for power at the motor when the switch is in the extended or
retracted position�
Awning pitch won’t stay in the at position.
Check for bad gas strut�
Check pitch arm bolt for proper tension� High winds can cause the pitch
arm to deviate from the at position due to the built-in safety feature of
the awning�
Make sure all three washers are in the proper location of the pitch arm�
Awning doesn’t close all the way�
The awning is considered completely closed as long as the outer arm is
overlapping the mount arm� This overlap can vary�
Motor overheated, thermal breaker has tripped, auto resets once cooled�
Verify the fabric is square from the unit to roll tube and is rolling up
straight on the roll tube�
Lights won’t work�
There is a resettable fuse that can take up to 30 seconds to reset�
Make sure to have 12V DC to the red wire on the light�
Double check power coming out of the touch pad�
Awning seems to wobble when extending or
retracting�
Make sure the bolts that hold the head to the support arm assemblies
are tight�
Make sure the end caps are seated properly on the roll tube�
Make sure the shaft coming out of the head going to the end cap
isn’t bent�
Make sure the mount arms are properly secured to the wall�
Make sure no part of the support arm assemblies is bent�
Make sure the wear collar spacers are all properly located in the
support arm assemblies�
Awning works in the opposite direction of
what switch shows�
Wires going to awning have been reversed or switched� Reverse the
wires�
Awning rolls up backward�
This is not a defect� To correct the fabric orientation, simply operate
the awning in the retract direction and the awning will then extend to its
correct orientation and normal operation can resume�

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 13 Rev: 11�15�18
CCD-0001253
Error Codes for Assemblies Produced
After May 2018
Level 1 Fault
If moisture is detected in the main, 12-pin connector
(Level 1 fault) the interior extend switch will be locked out,
as well as the interior awning light control�
NOTE: There will be NO lock-out of the retract function�
If a Level 1 fault is detected, the touchpad lock LED
(Fig.16A) will blink continuously (same as a low voltage
fault) to alert moisture is detected� While the interior extend
switch and light will be locked out, the exterior touchpad
will remain functional (unless a Level 2 fault is also found)�
On equipped units, OneControl functionality will not be
actively locked out, however water in the connector can
prevent operation�
If a Level 1 Fault has not been detected in the previous 100
seconds, pressing any touchpad button will clear the fault,
as will a power cycle on the Smart Arm controller�
Level 2 Fault
If moisture is detected in the touchpad or controller board
(Level 2 fault), the touchpad lock LED will also blink
continuously� The exterior touchpad extend and light
buttons will be locked out until a special touchpad button
sequence is performed by the user, which allows for
a limited-time operation� The interior switches remain
functional on a Level 2 fault, as does OneControl� A power
cycle will not clear a Level 2 fault� The following sequence
must be per-formed:
1. Press touchpad extend button
2. Press touchpad retract button
3. Press touchpad light button
4. Press touchpad wind button
5. Hold touchpad unlock button for 10 seconds�
Once this unlock procedure is done, the unlock LED
will remain on solid� The touchpad buttons function until
the mode times out or the user locks the touchpad by
depressing the lock button�
If no buttons are pressed, the controller will re-lock
automatically after 3 seconds� If a button is pressed before
3 seconds has passed, the timeout will be extended by
another 3 seconds�
Awning Actively Extending: If a Level 1 or Level 2 fault is
detected while the awning is extending or auto-extending,
the awning will take special action to stop extending, and
auto-retract to the fully retracted state� The appropriate
fault will be set in the controller’s memory�
Awning Actively Retracting: If a Level 1 or Level 2 fault
is detected while the awning is retracting, the awning will
not take any special action� The appropriate fault will be set
in the controller’s memory�

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 14 Rev: 11�15�18
CCD-0001253

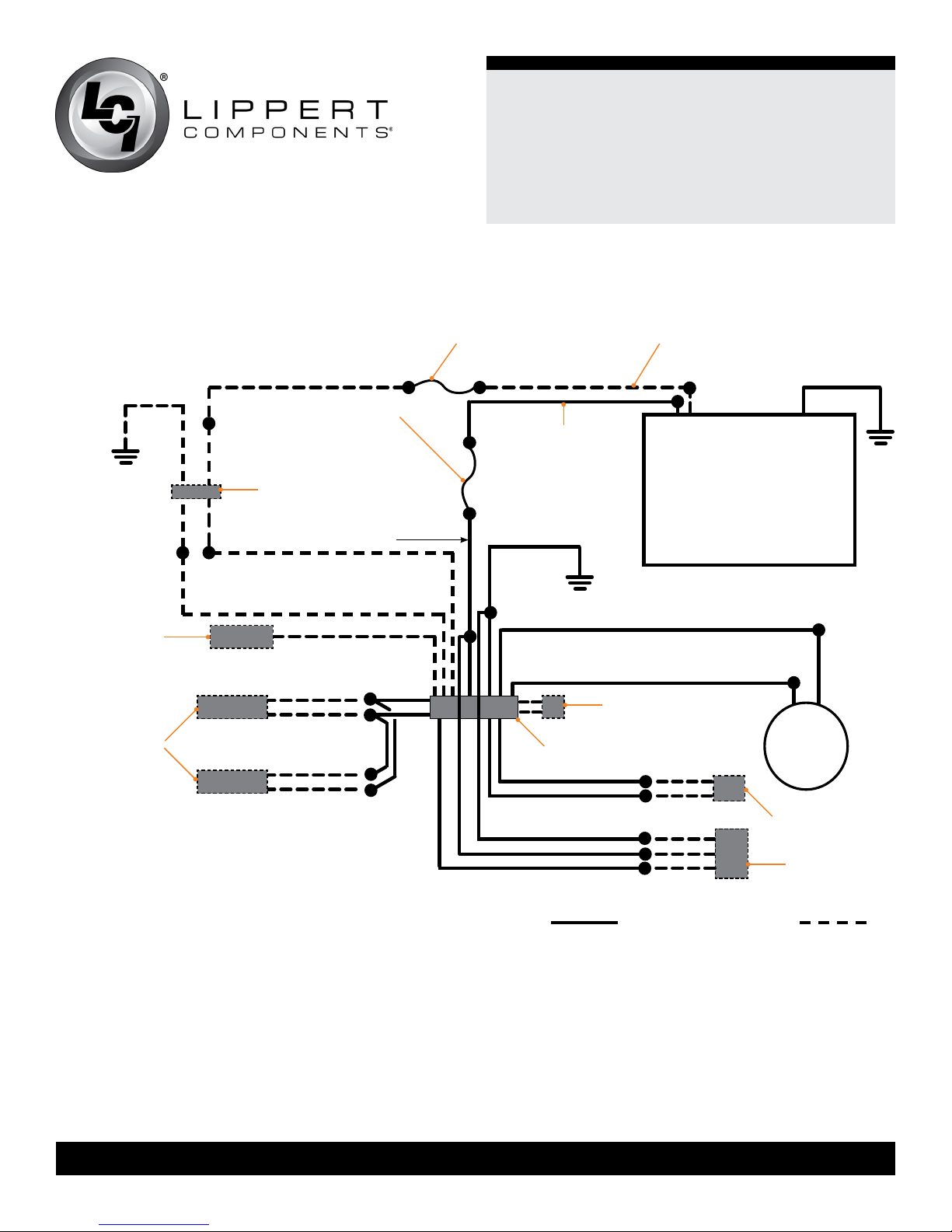

Smart Arm Wiring Diagram
*
black red
ground
power
red
black
blue white
red
awning
drive motor
red (POWER)
green (lgt)
black (ret)
red (ext)
red (LIGHT)
white (LIGHT)
red
EXT IN
black
RET IN
white
battery, power
source or converter
red
black
green
LGT IN
black
red
black (GROUND)
*
red
white
*Customer has the option of installing either the OneControl®
(formerly MyRV) Control or the Manual Awning Rocker switch.
Diagram shows installation of both.
(Optional)
Manual Awning
Rocker Switch
(Optional)
Light Switch
Inside Unit
(ground wire is capped)
15A Circuit Protection
Per RVIA Code
(Optional)
Wind Sensor
Smart Arm Control
(Optional)
IR Sensor
C
(Optional)
OneControl®
System
red
red
black
black
* The OneControl® System will require two CAN bus harnesses
to be connected, or if at the end of the system, one CAN bus
harness and one resistor. Not all harnesses will have the The
OneControl® wires included, depending on OEM use.
red
white
(Optional)
LED Light
black
red
green
15A Circuit Protection Per RVIA Code 14 AWG or Larger
Existing Wires Optional Components
12 AWG
From Power
Source to Touch
Pad; 11.5V min.

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 15 Rev: 11�15�18
CCD-0001253
Maintenance
Fabric Care
If the awning is retracted while wet, extend the awning and
let it dry as soon as conditions allow before retracting� This
will help prevent the formation of mildew and add greatly to
the life of the awning�
NOTE: Mildew does not form on the fabric itself, but on the
accumulated dust, dirt and grime�
Periodically clean vinyl or woven acrylic fabric using a
mixture of 1/4 cup of dish soap and ve gallons of warm
water�
1. Liberally apply the mixture on the top of the fabric and
retract the awning for ve minutes. This will apply the
mixture to the bottom of the fabric as well�
2. Extend the awning and hose off with fresh water�
3. Repeat if necessary�
4. Allow to dry before retracting�
Notes

Solera®Awning
Smart Arm™
Installation and Owner’s Manual
(For Aftermarket Applications)
lci1�com 574-537-8900 Page 16 Rev: 11�15�18
CCD-0001253
Manual information may be distributed as a complete
document only, unless Lippert Components provides
explicit consent to distribute individual parts�
All manual information is subject to change without
notice� Revised editions will be available for free
download at lci1�com� Manual information is considered
factual until made obsolete by a revised version�
Please recycle all obsolete materials and contact
Lippert Components with concerns or questions�
Notes
