Little Tikes Adventure Rover User manual

ASSEMBLY INSTRUCTIONS
Adventure Rover™
XIM638961-R1 - 11/23
Adult assembly required. Approx. assembly time: 50 min.
11
/2-5
#638961M8
years
1

WARNINGS!
• Adult Assembly Required
• Keep these instructions for future reference.
• Prior to assembly, this package contains small parts: hardware which is a choking hazard and may contain sharp
edges and sharp points. Keep away from children until assembled.
• Ride-on toys should not be used near swimming pools, on or near steps, hills, roadways, or inclines.
• Shoes must be worn at all times.
• Only one rider at a time.
• Maximum weight limit: 50 lbs. (23 kg)
• This product is intended for use by children ages over 1 1/2 - 5 years.
• Adult supervision required. Do not leave children unattended.
• This product is intended for outdoor domestic family use only.
• Protect your eyes. Always wear safety glasses when using a hammer.
• When temperatures fall below 0°F/-18°C, outdoor use of this product is not recommended. In extreme cold,
plastic materials lose resilience and may become brittle and crack upon impact. Store product in a warmer,
protected place.
DISPOSAL
Disassemble and dispose of equipment in such a manner that no hazardous conditions such as, but not limited to,
small parts and sharp edges exist at the time equipment is discarded.
WARNINGS!
• This product contains a Button or Coin Cell Battery. A swallowed Button or Coin Cell Battery can cause
internal chemical burns in as little as two hours and lead to death. Dispose of used batteries immediately.
Keep new and used batteries away from children. If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical attention.
BATTERY SAFETY INFORMATION:
• Keep these instructions for future reference.
• Replace with 2 “LR44” button cell batteries (not included).
• The voltage of a fully-charged, rechargeable battery is often lower than that of a fresh alkaline battery.
Therefore, it is recommended that alkaline batteries be used instead of rechargeable batteries for best
performance and longer play time.
Thank you for choosing the Little Tikes©Adventure Rover™. We strive to
provide a durable, easy-to-assemble toy thats made to last, giving your child
years of imaginative, engaging fun!
Really important information you should know!
• Read through all the instructions rst.
• Clear a at surface to lay out all the materials so everything is close at hand.
• You will need a Phillips head screwdriver (power driver, recommended, not included) hammer and safety glasses
(not included) to assemble the Adventure Rover™.
- When installing screws, be sure screws are tightened snugly, but do NOT OVERTIGHTEN.
• Be sure to locate your decals and set aside. Decals are easier to apply when the part is laying at, so you may want
to apply the decals before assembly.
• The parts are listed below - each part is identied with a letter in RED for easy reference.
• Illustrations are for reference only. Styles may vary from actual contents.
• If you have any questions, we’re here to help. Give our customer service team a call at 1-800- 321-0183.
2

3
©The LittleTikes Company, an MGA Entertainment company. LITTLE TIKES® is a trademark of LittleTikes in the U.S. and other countries. All logos, names, characters, likenesses, images, slogans, and packaging appearance are the
property of Little Tikes. Please keep this address and packaging for reference since it contains important information. Contents, including specications and colors, may vary from photos depicted on package. Instructions included.
Please remove all packaging including tags, ties & tacking stitches before giving this product to a child.
LIMITED WARRANTY
The LittleTikes Company makes fun, high quality toys. We warrant to the original purchaser that this product is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is required
for proof of purchase). At the sole election of The LittleTikes Company, the only remedies available under this warranty will be the replacement of the defective part or replacement of the product.This warranty is valid only if the
product has been assembled and maintained per the instructions.This warranty does not cover abuse, accident, cosmetic issues such as fading or scratches from normal wear, or any other cause not arising from defects in material
and workmanship. *The warranty period is three (3) months for daycare or commercial purchasers.
U.S.A and Canada: For warranty service or replacement part information, please visit our website at www.littletikes.com, call 1-800-321-0183 or write to: Consumer Service, The Little Tikes Company, 2180 Barlow Road, Hudson
OH 44236, U.S.A. Some replacement parts may be available for purchase after warranty expires—contact us for details.
Outside U.S.A and Canada: Contact place of purchase for warranty service. This warranty gives you specic legal rights, and you may also have other rights, which vary from country/state to country/state. Some countries/states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
United States:
www.littletikes.com
1-800-321-0183 Monday - Friday
The Little Tikes Company
2180 Barlow Road, Hudson, OH 44236
Printed in U.S.A. D.R.©2023 The Little Tikes Company
United Kingdom:
www.littletikes.co.uk
MGA Consumer Services
P.O. Box 2040 Hockley, Essex, SS5 4BF
Phone: [phone]
E-mail: [e-mail]
Australia
www.littletikes.com.au
MGA Entertainment Australia PTY LTD.
Suite 2.02, 32 Delhi Road, Macquarie Park NSW 2113, AU.
Phone: [phone]
Email: [email protected]om
CUSTOMER SERVICE:
Ciascun componente è
contrassegnato dal simbolo
del materiale. Raccolta
dierenziata. Verica le
disposizioni del tuo Comune.
• Install batteries with the correct polarity (+ and -).
• To avoid battery leakage:
1. Follow the toy and battery manufacturer’s installation instructions.
2. Do not mix old and new batteries.
3. Do not mix standard (carbon-zinc), alkaline or rechargeable batteries. Do not mix dierent brands of batteries.
Only batteries of the same or equivalent type as recommended are to be used.
4. When toy is not used for an extended period of time, remove batteries to prevent
possible leakage and damage to the unit.
5. Remove dead or exhausted batteries from product.
6. Dispose of dead batteries properly; do not bury. Do not dispose of batteries in re
as they may leak or explode.
• Make sure cover is properly installed on unit at all times.
• Do not attempt to recharge non-rechargeable batteries.
• Rechargeable batteries are to be removed from the toy before recharging.
• Charging of rechargeable batteries should be done only by an adult.
• The supply terminals are not to be short circuited.
NOTE: If the unit stops working or doesn’t work as it should, remove the batteries for a few minutes and then re-
insert them. If there is still a problem, install new batteries.
FCC COMPLIANCE
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Caution: Modications not authorized by the manufacturer may void users authority to operate this device.This Class B digital apparatus complies with Canadian ICES-003.
‘Let’s care for the environment!’
The wheelie bin symbol indicates that the product must not be disposed of with other household waste. Please use
designated collection points or recycling facilities when disposing of the item. Do not treat old batteries as household
waste. Take them to a designated recycling facility.

4

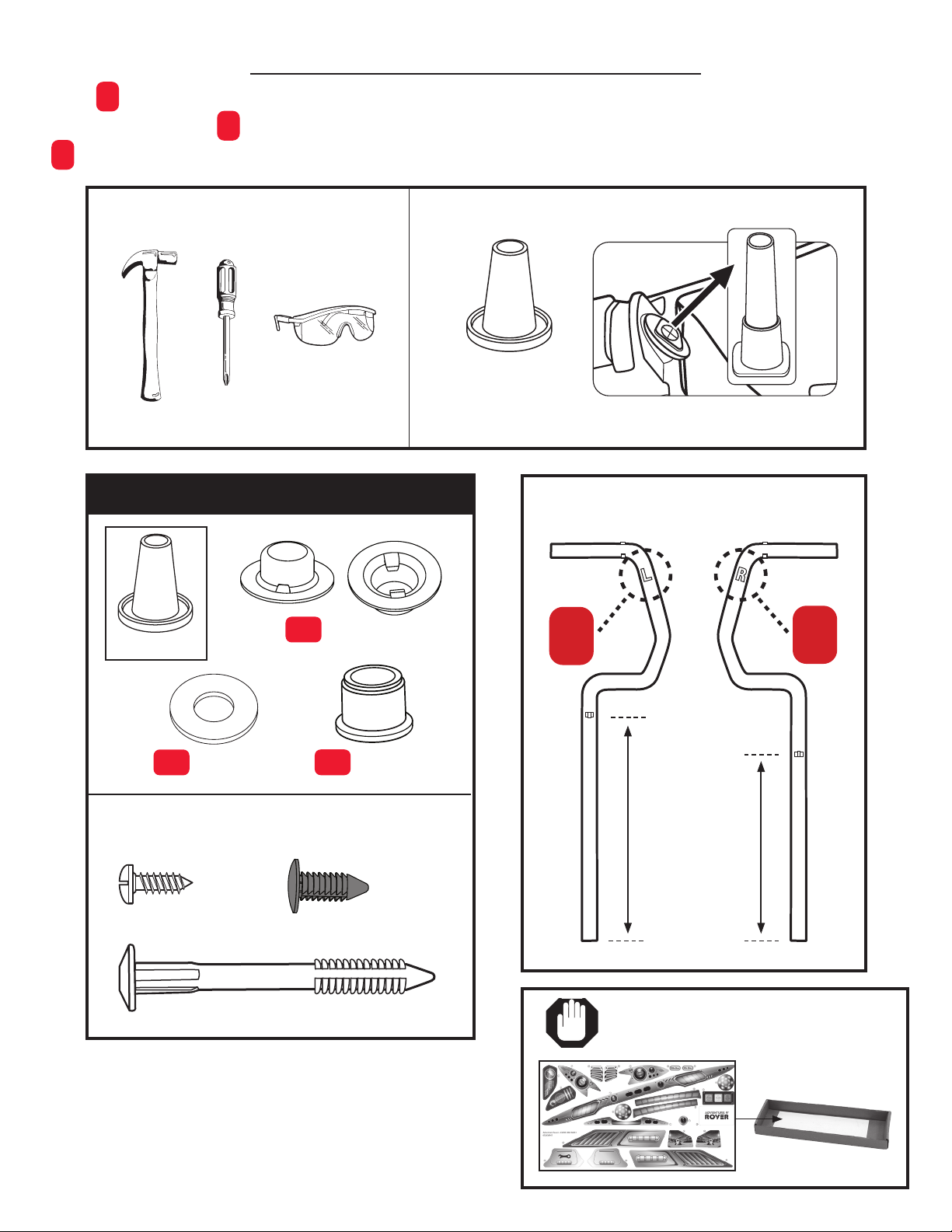

Hardware Guide
Shown actual size
Top hat (6)
Washer (6) Bushing (6)
BB CC
Top hat tool
AA
(3) 1/2" (1,27cm)
(4) large fastener
(9) short plastic fastener
Tools required (not included)
Included in hardware pack (1). Discard after use.
Tool color may vary.
Top hat tool (1)
Remove and set aside. You
will need for assembly.
A Few Things Before You Start!
BEFORE you begin assembly, make sure you have all the parts listed below.
Some packages of hardware may have extra pieces.
Questions? We’re here to help. Little Tikes customer service team at 1-800- 321-0183.
!
!
!
Front Wheel
Axles
Right
R
Left
L
LR
NOTE: Distance
from end to the
notch on the“Left”
axle is less than
the notch on the
“Right” axle.
(1) Decal sheet is located in the
bottom of the cardboard box.

Floorboard buttons (2)
S
5
Floorboard (1)
T
Body (1) Door (2)
Door latch (2)
Roof (1)
Roof Pillars - FRONT
Roof pillars -
front left (1)
AB
C
D
G1
Roof Pillars - REAR
Roof pillars -
front right (1)
G2
Roof pillars -
rear right (1)
H1
Roof pillars -
rear left (1)
H2
Right (1)
Left (1)
Radar dish (1)
U1
U2 U3
Radar dish
support (1)
Radar dish
nut (1)
Rear axle (1)
K
Center caps (4)
N
Hubcaps (4)
Steering O ring (1)
F
Steering clip (1)
I
Steering wheel (1)
E
Horn (1)
J
Wheels (4)
Windshield (1)
M
OP
Roof panel (1)
Q

Remove battery cover
from horn.
Install (2) “LR44” button
cell batteries.
Re-attach battery cover.
To replace
batteries
6
Before installing
steering wheel,
apply decals 4 - 7
to dashboard.

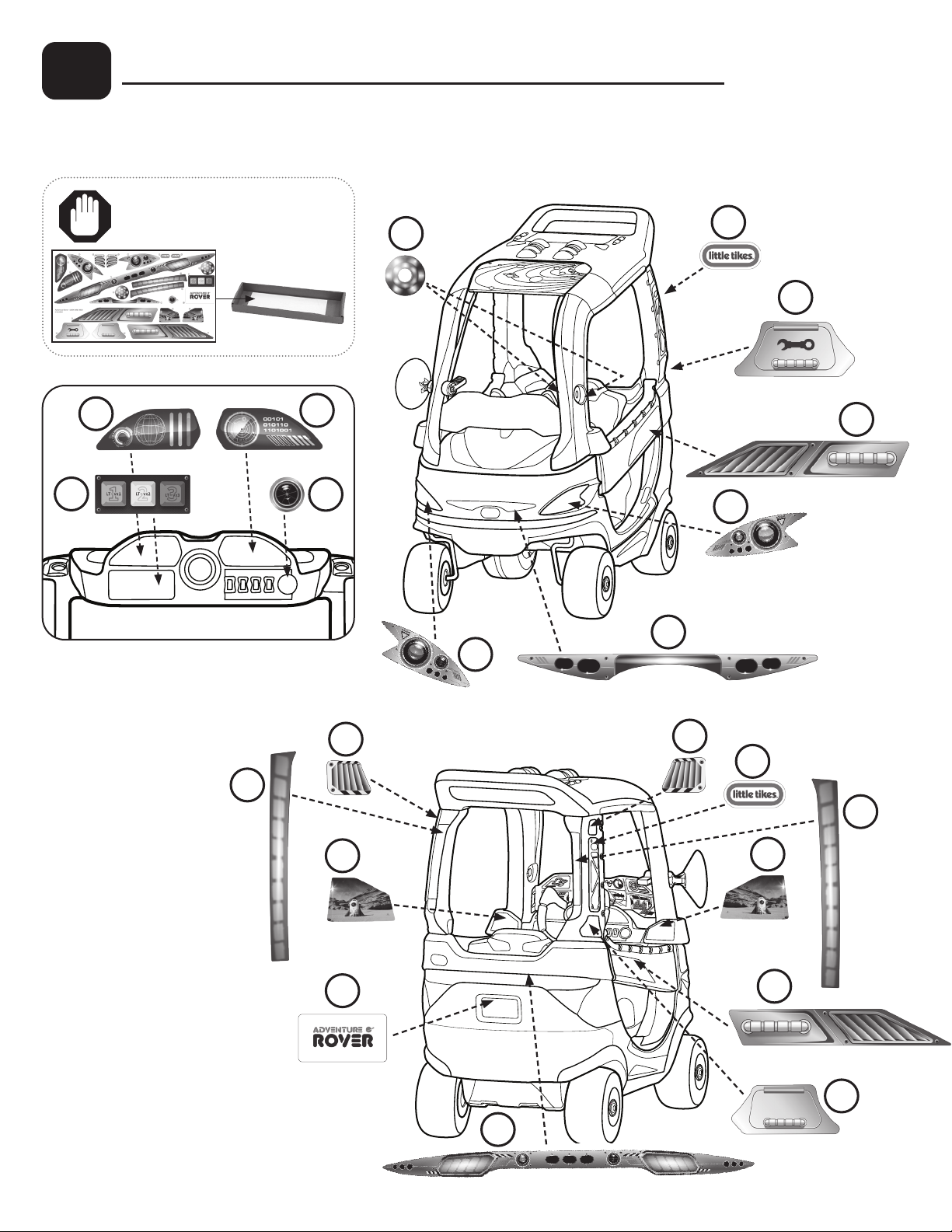

4
1

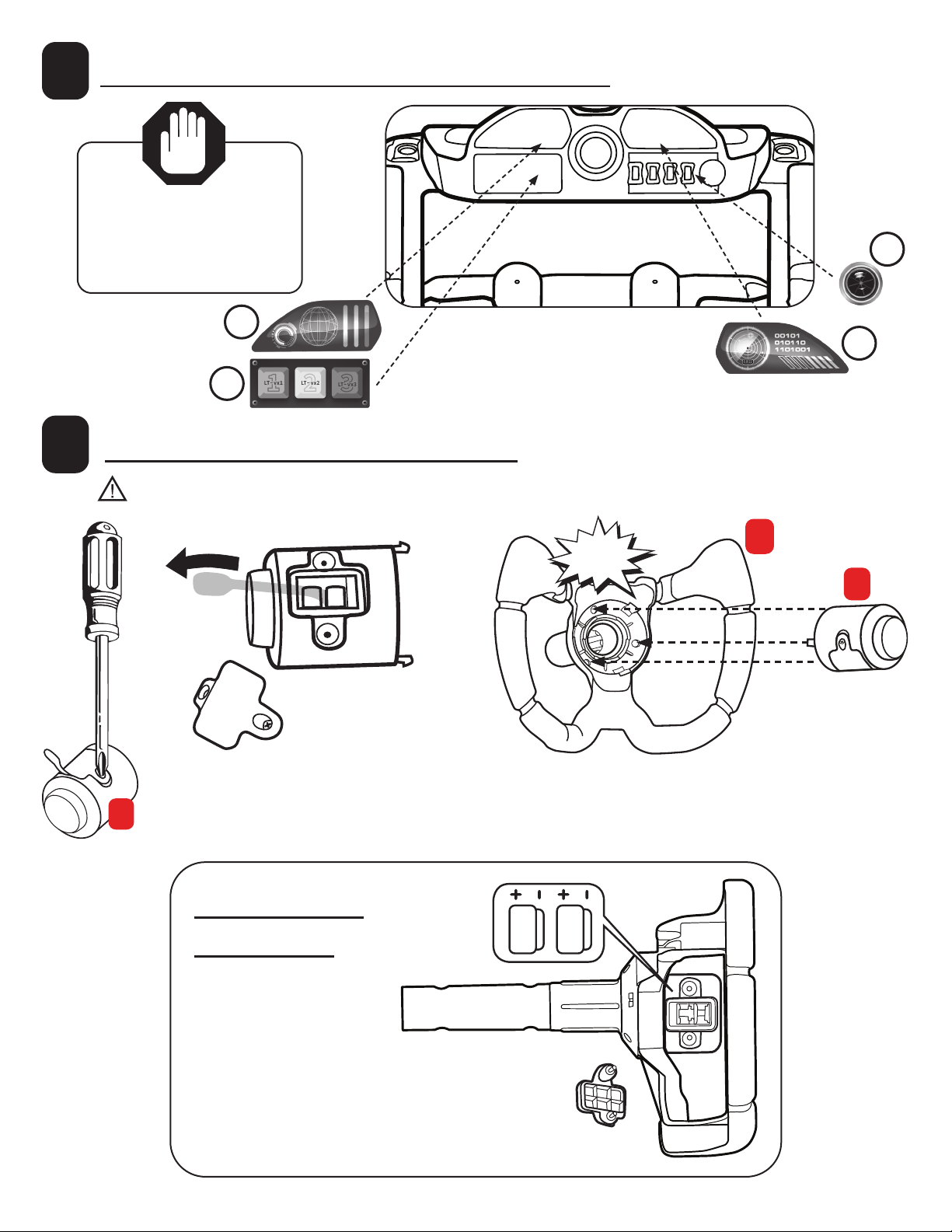

Start with the dashboard decals!
Let’s get the horn working
2
WARNING: Remove battery cover before pulling tab.
J
Remove battery cover on horn (part J)
Pull clear tab from horn unit to
activate. Re-attach battery cover.
Snap horn (part J) into center of
steering wheel (part E)
J
Snap!
E
6
7
5

Steering wheel...in a Click!
Steering clip should snap into MIDDLE
hole on each side of the steering column.
Click
Make sure the steering clip
snaps past the O ring.
Squeeze steering clip (part I)
into steering wheel (part E).
I
12
4
Insert steering wheel through hole in dashboard
AND through the steering O ring (part F).
3
F
3
If your steering wheel is loose or not staying in place; check to be sure
the steering clip has completely snapped past the O-ring.
7
E

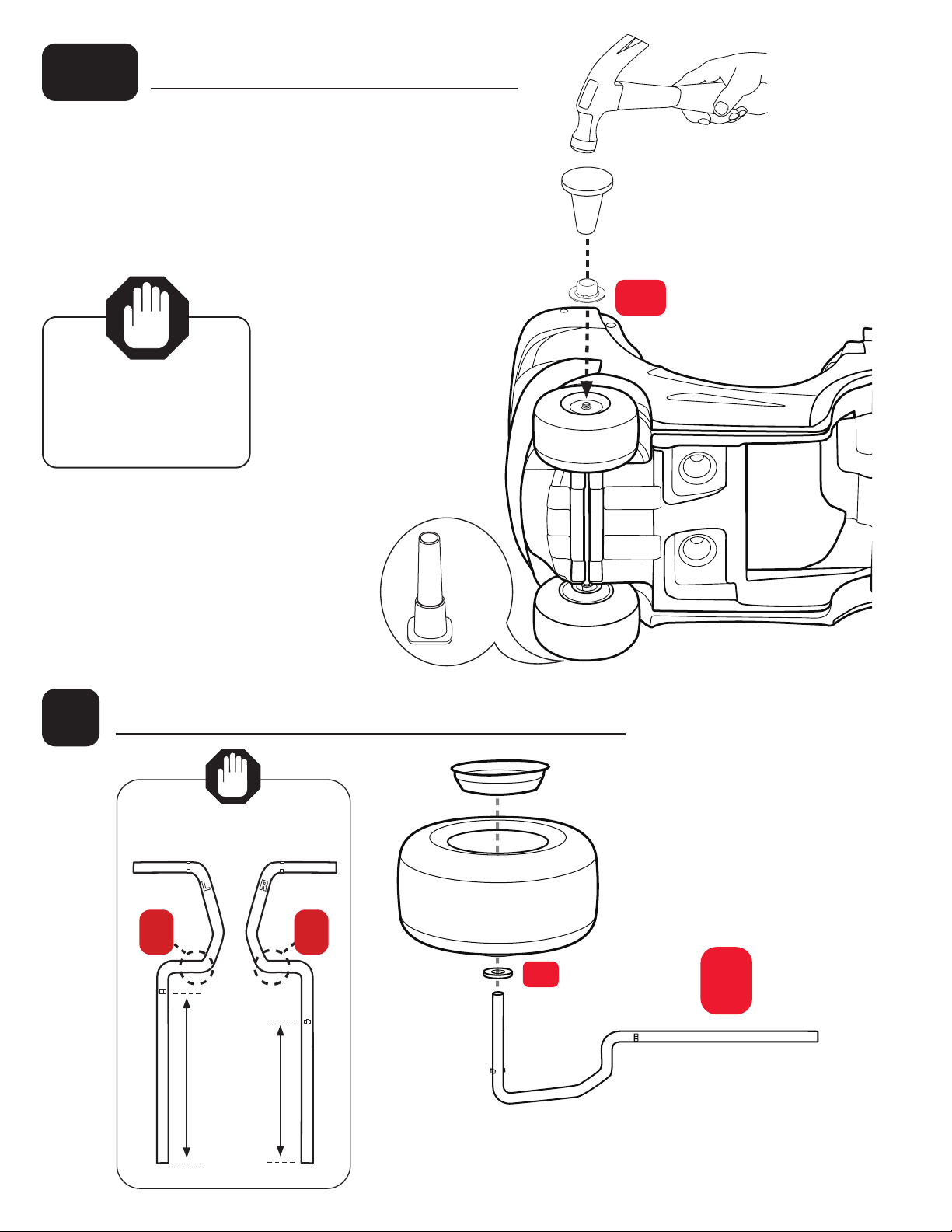

REAR wheels...give it a good hit!
4
Do not hammer on
surfaces or items
you don’t want to
break, mark or dent.
Place (1) top hat (part AA)
into top hat tool.
Top hat tool
AA
top hat
Insert the rear axle (part K)
into the top hat.
Hammer the axle into the top hat.
Rear axle
Really give it
a good hit!
K

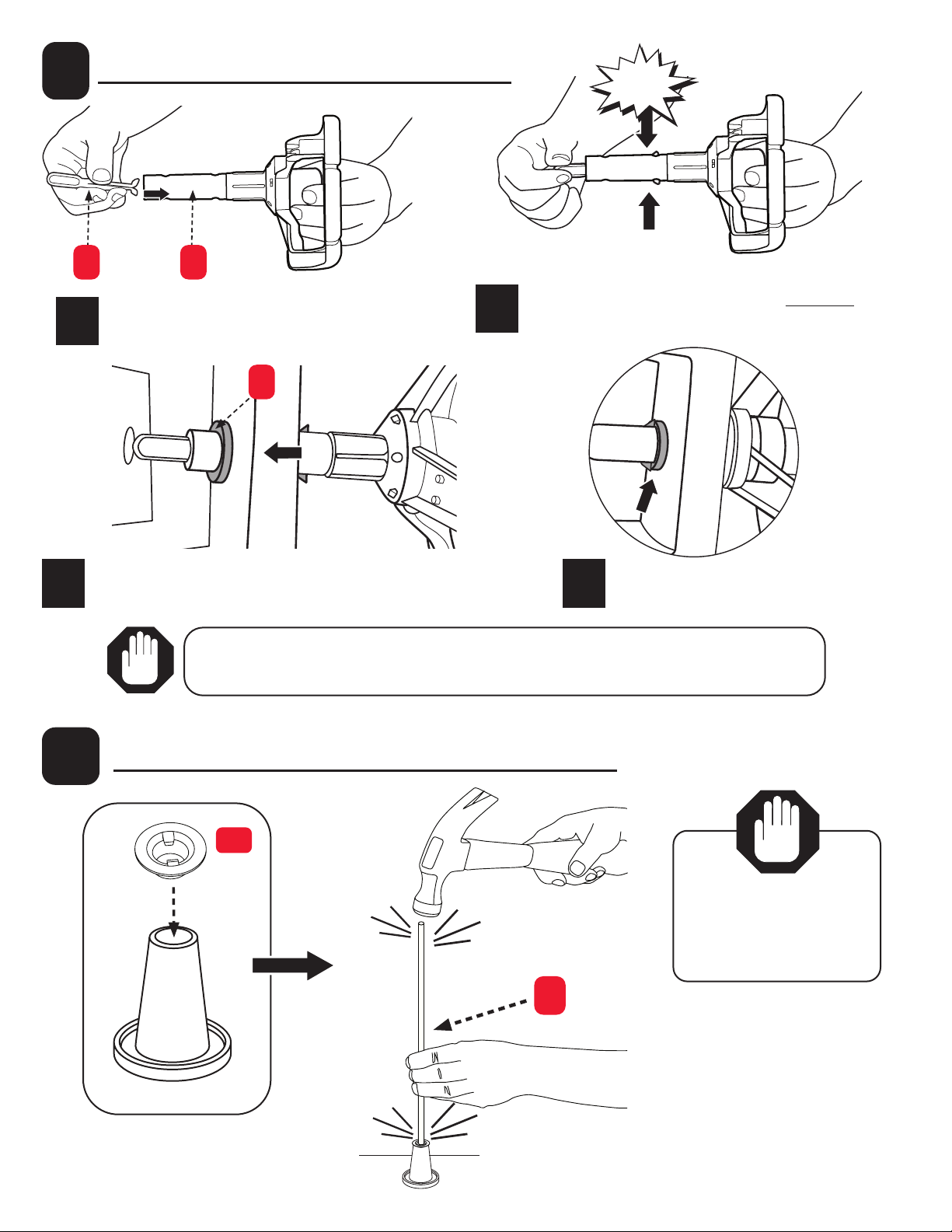

8
Slide onto rear axle (1) hubcap (O), (1) wheel (P),
(1) bushing (CC) and (1) washer (BB).
OCCP
hubcap wheel bushing
BB
washer
REAR wheels...get in the groove.
4a
Slide assembled axle through rear axle guides. Slide (1) washer (BB) then (1) bushing (CC).
12
3
Slide wheel (P), then
hubcap (O) onto axle.
hubcap
O
wheel
P
bushing
CC
washer
BB

9
Axle cap
tool
AA Top hat
Top hat tool
Flip the coupe on its side.
Place a (1) top hat (AA) and the top hat tool
over the OPEN end of the axle.
Hammer the top hat onto axle.
REAR wheels...last step.
Use the tall axle cap tool to
SUPPORT the bottom of axle.
4b
Do not hammer on
surfaces or items
you don’t want to
break, mark or dent.
FRONT wheels...check your axles
5
Slide onto LEFT front axle (L)
(1) washer (BB), (1) wheel (P) and (1) hubcap (O).
BB washer L
Right
R
Left
L
L R
NOTE: Distance
from end to the
notch on the“Left”
axle is less than
the notch on the
“Right” axle.
Axles are
NOT IDENTICAL.

10
FRONT wheels...cont.
Place the top hat,
then the top hat tool
onto open end of axle.
Hammer top hat onto
the axle.
REPEAT these steps for
RIGHT front axle
First, slide washer (BB), then bushing (CC) onto
assembled right axle. REPEAT on left side.
Then, attach FRONT wheels and axles.
FRONT wheels...rolling along!
6a
Top hat tool
AA
top hat
5
CC
bushing
BB
washer
RL
Insert axle“R”
(for right) into body.
Insert axle“L”
(for left) into body.
12

11
FRONT wheels...cont.
6b

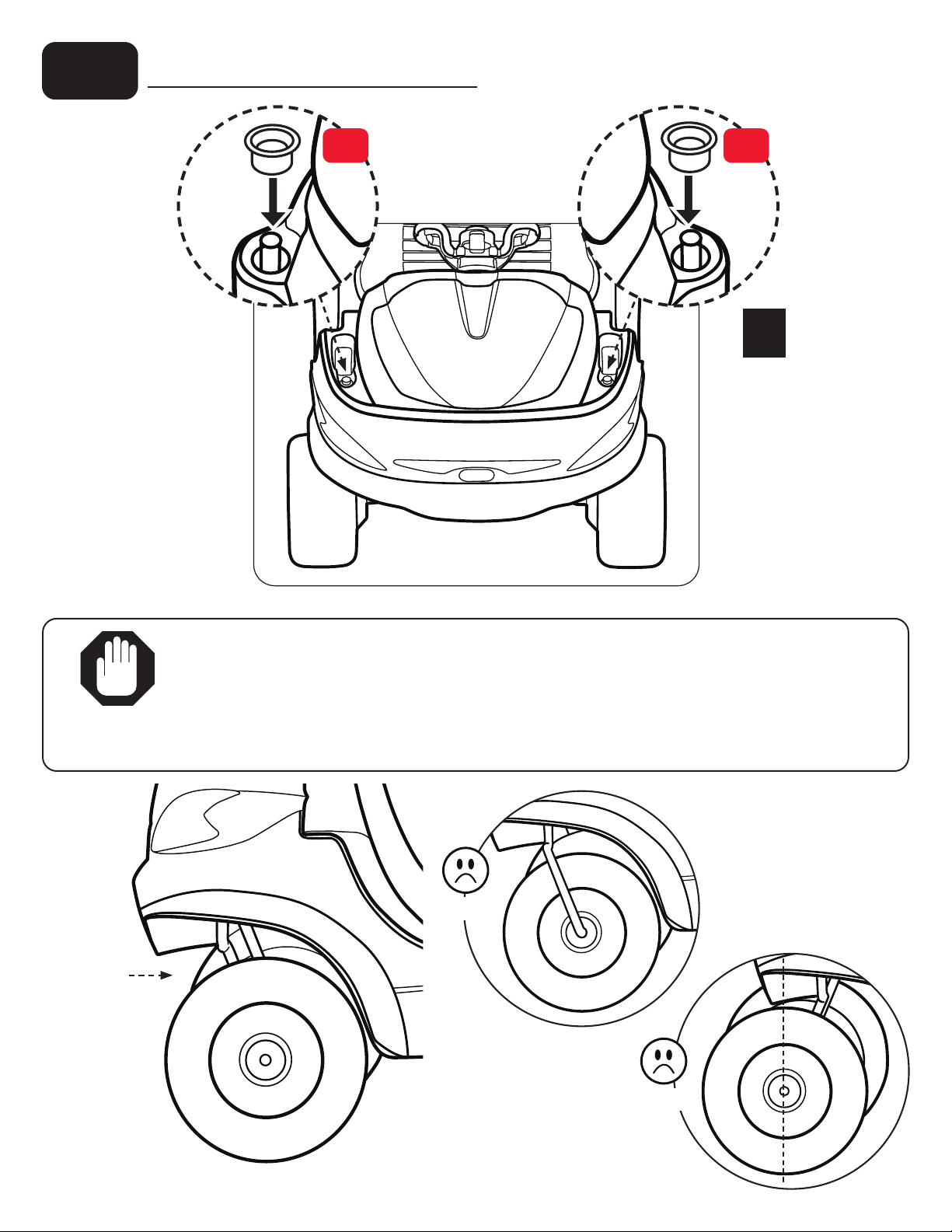

IMPORTANT! Check axle positions - roll
the Adventure Rover forward - HUBCAPS
SHOULD BE FACING OUTWARD.
STOP
CORRECT
WRONG
Insert bushing (CC)
onto each axle and
push in place
CC
bushing
3
CC
bushing
WRONG

12
6c
Caps and snaps!
Insert top hat (AA) onto the top of
each axle and hammer into place.
1
Align slots and snap on
(4) center caps (part N).
2
7
1/2" (1.27cm)

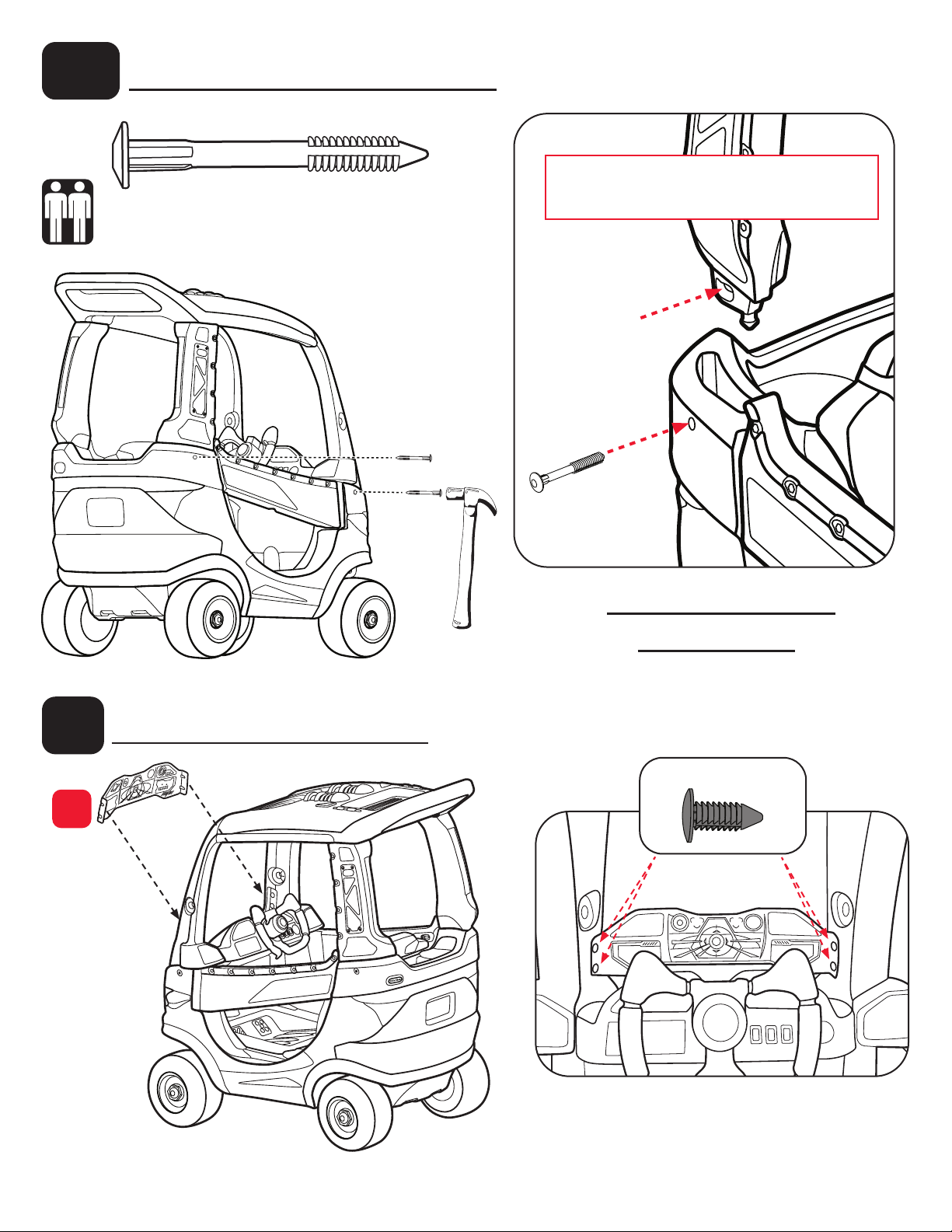

DOOR LOCKS AND
UNLOCKS
First, install door latch (part C) into door (part B) Attach
using (1) 1/2" (1.27cm) screw. Repeat on other door.
Choose your lock!
Top hat tool
AA
top hat
AA
Top hat tool
Top hat
Nx4
B
Left
C
• When installing screw, DO NOT
OVERTIGHTEN. Be sure door latch
can freely move back and forth.

8a
B
Next, insert Right and Left doors (part B) into body.
7
Choose your lock! - cont.
Front pillars pop right in
13
G1
G2
R
L
Insert FRONT right
(part G2) and left
(part G1) pillars into
roof.
Roof Pillars - FRONT
For Ease of
Assembly: apply
1 tbsp. of liquid
soap to surface.

PUSH DOWN
D
H1
14
REAR pillars... insert, pull back, turn!
8b
Pull the REAR roof pillar
toward you to fully insert the
pillar into the roof.
PULL
2
Hook the ROUNDED END of
the REAR roof pillar (part
H1) into the roof (part D) and
push down.
1
BEFORE YOU START: match
roof pillars marked “L & R” to
the correct side of roof also
marked “L & R”.
RL
D
Roof Pillars - REAR
R L
H1 H2

For Ease of Assembly:
apply 1 tbsp. of liquid
soap to surface.
15
Repeat steps for
the roof pillar -
rear LEFT
(part H2).
4
Turn the roof pillar around. The Little
Tikes logo should be facing outward.
TURN
3
2b 9a
Let's put it all together!
Insert FRONT and REAR pillars into body. IMPORTANT: Make sure
front pillars t over door pins.
REAR pillars... insert, pull back, turn!
8b

16
Person 1: hold down roof assembly.
Person 2: install (2) fasteners (2 each side)
(4) large fastener
Line up holes in body with holes in
rear roof supports to install fasteners
Need a windshield...
Insert visor (part M) between front pillars.
Repeat on the
other side
Install using (4) short plastic fasteners.
(4) short plastic fasteners
M
2b 9b
Let's put it all together!
10

17
2b 11

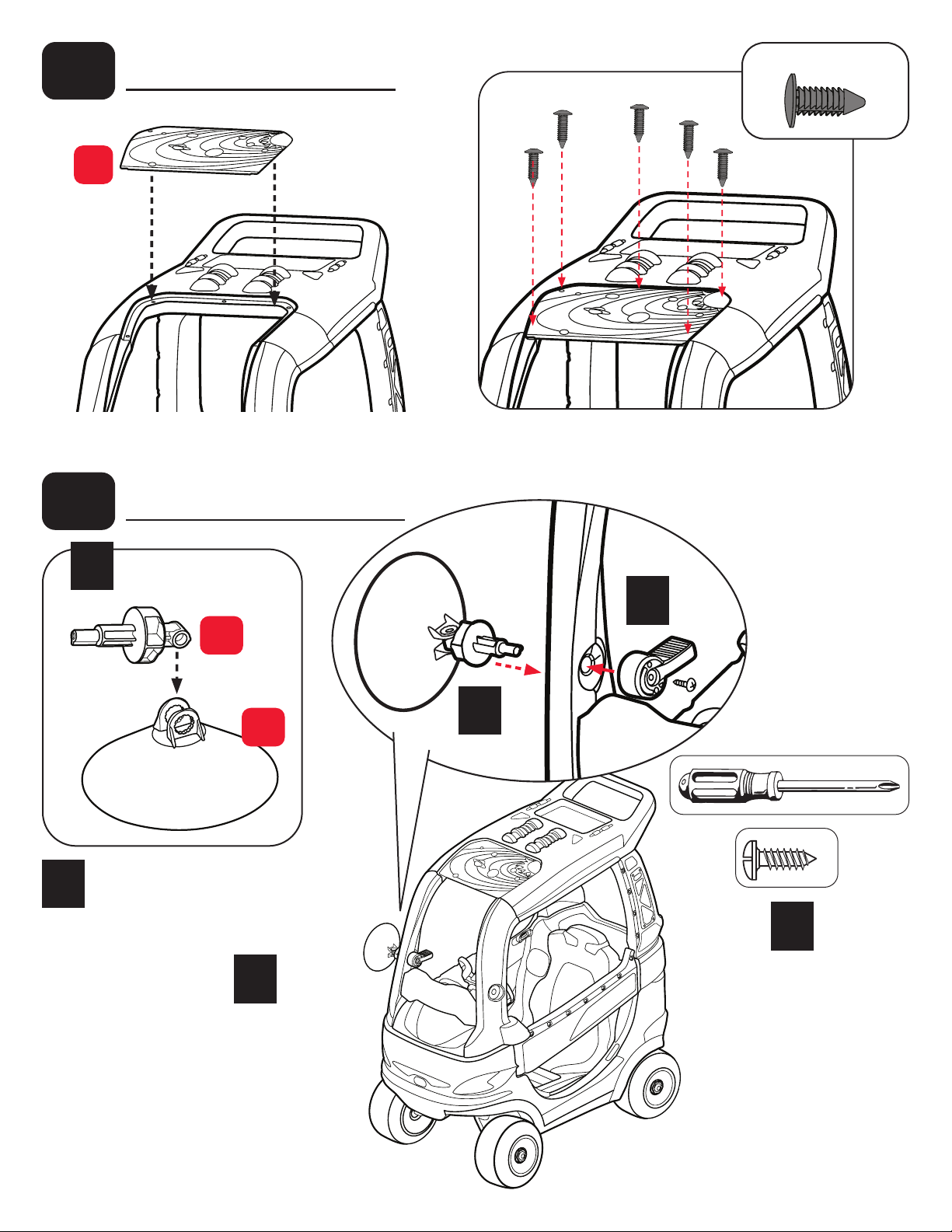

View of the stars!
Insert roof panel (part Q) 0nto the roof. Install using (5) short plastic fasteners.
Q
2b 12
Radar detection...
Insert radar dish
support (U2) into the
radar dish (U1).
U1
U2
2
1
Assemble the radar dish
nut (U3) onto the other
end of the support.
Secure the nut using (1)
1/2" (1.27cm) screw.
3
1/2" (1.27cm)
Choose a side to install
the radar dish. Insert
assembled Radar dish
support through the
front pillar (dish should
be facing outward).
2
3
1
(5) short plastic fasteners

18
LAST STEP...let’s finish with the decals!
Decals must be applied to a clean, dry surface. Wipe clean with a dry rag before application.
Remove air from under decals by applying pressure to the decals starting from the center,
and work towards edges. NOTE: If decals bubble, prick with a pin to remove the air.
13
Decals are located
in the bottom of
the cardboard box.
4
6
5
7
17
3
1
2
15
13
20
21
14
16
10
11
19
9
12
18
13
8
x2

19
Sx2

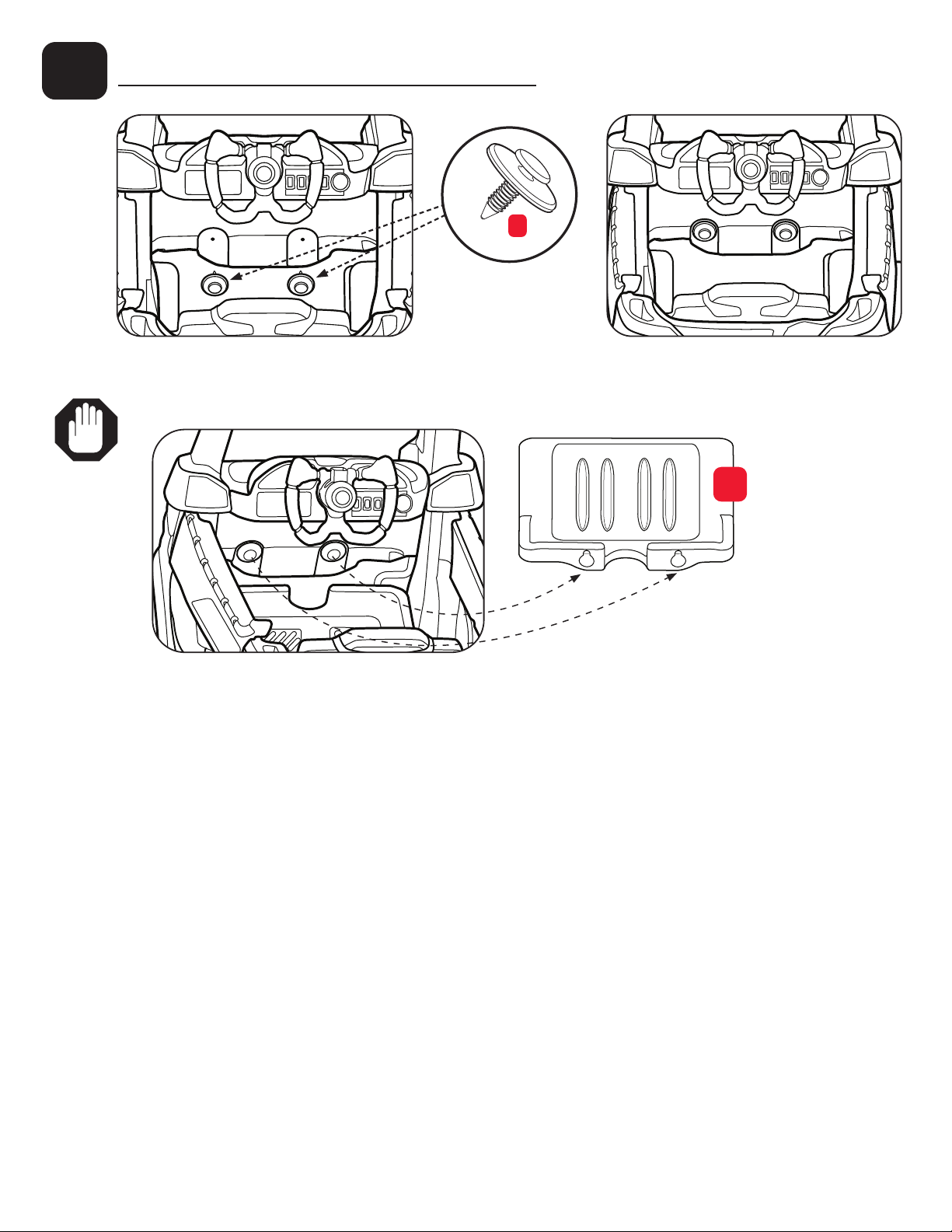

For parent controlled push rides, install the oorboard.
STOP T
14
Floorboard needs buttons!
Insert (2) oorboard buttons (part S).
Line up openings in oorboard (part T) to
oorboard buttons.
Once buttons are inserted into
oorboard, push down to secure in place.

20
