MODEL:LGS808NS
INSTRUCTION BOOK
MULTIFUNCTION GARMENT STEAMER
Dear Customer
Congratulations on being the proud owner of Lloyd
Garment Steamer. Your Garment Steamer comes with a
Lloyd Guarantee of Quality.
Lloyd takes great pride in providing its customers with
perfect products that adheres to international quality
standards.
Lloyd is committed to provide the ultimate customer
satisfaction as nothing brings us greater joy than having
satisfied customers of Lloyd.
At Lloyd, feedback and suggestions based on your
product usage experience are greatly appreciated.
Please feel free to contact us at
NIPUN SINGHAL
DIRECTOR
2
2
3
7
8
9
1 0
CATALOG
1. Product profile
2.Product features
3.Operating instructions
4.Clean and storage
5.Safety instructions
6.Technical standards
7.Trouble shooting
PRODUCT PROFILE
With the lifestyle of the people changing rapidly, the importance of appearance of people and
hence, of clothes has increased. However, with lifestyle of the people, especially in the cities
has become so fast. This in turn, has made a daily household chore like ironing a very
tedious and time consuming job. This consumer need to make ironing clothes an easier job
gave rise to the idea of the garment steamer.
o
The principle of the garment steamer is very simple. Hot steam at 98 C is released on the
cloth to be ironed thus softening the fibrous tissues in the cloth. The “pull and press”
movement of the garment steamer then helps make the clot flat and smooth. The garment
steamer does need an iron board thus making it more convenient to use. Not only
convenience, but the hot steam has the unique function of cleaning as well as disinfection
that makes it a preferred choice over the conventional iron.
All types of cloths like clothing, curtains, carpets, etc can be cleaned, ironed and disinfected
with the garment steamer. This makes it an ideal product for families, clothing stores and
hotels.
PRODUCT FEATURES
1.Advantage
The high temperature steam provides several advantages like dry cleaning of clothes,
removal of harmful bacteria and good temperature control for better ironing.
2.Safety
The product comes with inbuilt protection as it has a high sensitivity temperature control and
limiting thermostat. This makes sure that the temperature is strictly controled. Incase of the
thermostat failure, the power to the machine is completely cut off from the mains thus giving
the consumer double protection against hazards.
The steam hose pipe is also a double insulated pipe, thus making sure that the temperature
o
outside the hose does not exceed 76 F.
3.Convenience
The product comes with an aluminium pole stand with 3 adjustable heights, making it easy
for storage and convenient to use as per the user's height. State of the art induction welding
technology has been used to link the water tank to the hose giving it a very beautiful
appearance. The product also comes with a detachable water tank of 1.6L due to which the
garment steamer can be used for 60 min without requiring a refill. Within a short period of just
45 seconds, it can emit hot steam ready to use for ironing clothes.
4.Double Discharge Design
The product has a double water discharge design. Water can be drained out of the water
tank by opening the boiler cleaning knob. This feature has been given so as to drain out
water to avoid prolonged storage which may result in internal deterioration of water, breeding
of bacteria and other microorganisms. The boiler cleaning knob should be regularly cleaned
to avoid scale formation and ultimately reducing steam formation.
3.OPERATING INSTRUCTIONS
1)Parts name
Steam nozzle and clothes hook
Brush head
Magic hanger
Telescopic aluminum pole
Steam hoses
Steam hoses fixed twist Telescopic pole lock button
Switch with lamp
Water tanks
Steam main outlet
Water wheel
Water tanks
Boiler cleaning knob.
How to assemble the hanger
1
2
B.Installation Step
Insert the telescopic rod to as figure (1) telescopic aluminium pole retaining frame.
As shown in figure (1) rotate clockwise telescopic aluminium rod fixing knob.
The steam nozzle and the clothes hanger hook and magic installed according to
Figure (2)
3
Figure(1)
Figure(2)
1 1 1 1 1 1 1
2)Installation method
A.inspect product and all parts
Open the box, check all the parts and accessories, make sure there are no
missing parts in the box.
Name
Steam hoses
Telescopic alum pole
Brush head
Hook
Water tank
Instruction book
Quantity
Magic hanger
1
Steam host
4Open the lock button (see Figure (3)), pull up retractable lever, adjust to the
appropriate place and then, press the button to lock it.(see Figure (4))
5
6
Insert the steam hose to the host as Figure (5) and rotate clockwise
Tighten the hose fixing button.
Fix the brush head as. (Figure (6))
Figure(3) Figure(4)
Figure(5)
Figure(6)
7
8
Figure(7)
Turn in water tank cover and put the water tank into the water channel as figure(7).
Turn on the power ,turn the switch clockwisely to the position of silk ,the indicator
is to be on and emerge the steam .With different material of cloth ,adjust the knob.
When the ironing is finished ,turn off the switch and pull off the power plug.
9
Figure(8)
Figure(9)
Put the power cord into the right position as the figure(9)
4.CLEAN AND STORAGE
1)Turn off the power switch and unplug the power cord.
2)Once the machine is completely cooled (at least 30 minutes).
3) Remove the water tank, open the water tank knob, pour out water from the water tank,
wash it and place the water tank to it's position.
4) Please open the self-cleaning button, pour out the water from host, and then tighten
the self-cleaning button.
5) The machine should be placed in a dry place.
The cleaning of boiler-hose
1)Turn off the power switch and unplug the power cord.
2)After the machine completely cooled (at least 30 minutes).
3)Take out the steam hose and telescopic pole from host.
4)Remove the water tank.
5)Turn the host, open the cleaning knob at the bottom of boiler.
6)Using the, small round brush with water into the boiler-hose, wipe back and forth for
Cleaning, tighten the boiler cleaning knob at the bottom of boiler.
7)Assemble all spare parts together, you can use the machine again.

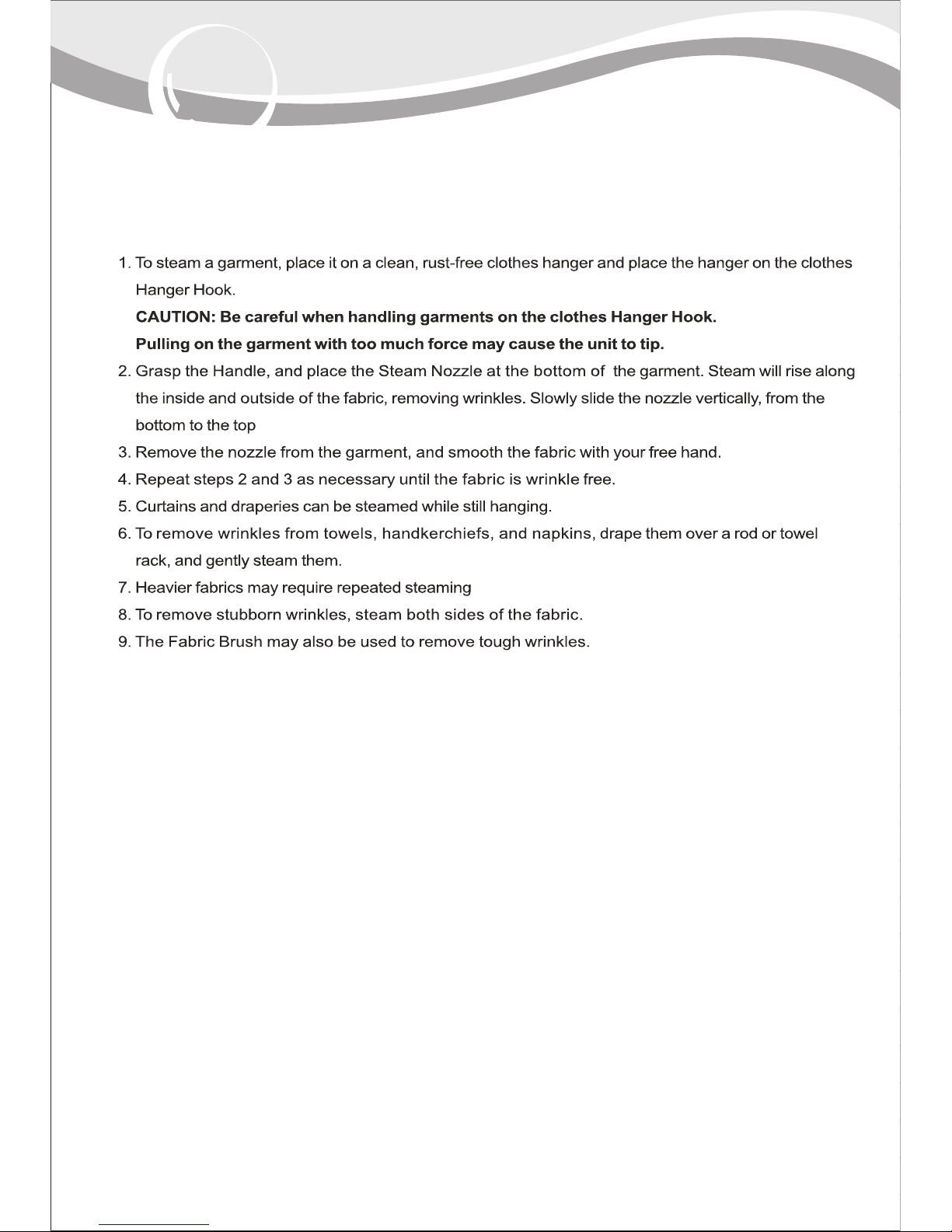

3.IRONING METHOD
of the garment. DO NOT allow kinks to form in the hose at any time.
5.SAFETY INSTRUCTIONS
Use the correct power supply voltage and frequency 220-240v~50Hz
Do not share with other high-power electrical home appliance.
Do not immerse the machine, power cord and plug in the water.
Before using the machine, first pour the cold water, never add hot water
level when you use.
Do not put the steam hose on the ground or bend it while in use.
When in use do not touch hot parts or steam nozzle, to burn.
For storage of machine, let the machine cool at least 30 minutes and empty
the water tank.
Before cleaning or moving the machine or when not in use, must turn off the
power and unplug the machine.
Do not place product nearby combustible material.
In case of any problem observed unplug the machine and contact to our
service center.
Do not pull out of steam hose while using.
Do not mix any cleaning material in water , it will damage the machine.
It is recommend to use cold or distilled water without minerals.
Do not use the iron when wearing clothes directly, it may cause burns.
If the soft supply cord is damaged, it must be replaced by the manufacturer
or its service agent in order to avoid a hazard.
otherwise water tank would be deformed, always pay attention for it’s water
L
N
6.TECHNIQUE SPECIFICATIONS
switches
thermostats
heating pipes
thermal protection switch 240¡
Rated voltage:220V-240V
Rated power:1800W
O
Nozzle steam temperature:98 F
Continuous outlet time:45 minutes
Rated frequency:50Hz
Capacity:1.6L
Out of steam:36g/min
CIRCUIT DIAGRAM
7.TROUBLE SHOOTING
Usual problem
Steam hose has a great
sound, steam is small
Reason
Flat operation
Knob connection loose
Treatment
With out steam(The
indicate lamp is off)
With out steam(The
indicate lamp is on)
Nozzle drip water
seriously
Leakage of steam hose
and host junction parts
Water Tank deformation
Botton of the Host leakgae
Leakage in the warer tank
Whe ther the power plug
is inserted or not
Thermal cut-off damaged
or not
Whether the internal wires
Are off or not
No water in the water tank
Sediment block the boiler
inlet
Steam hose bend or
lower than the host
The spray nozzle is damaged
Seal Ring is aging
Water tank is damaged
Add the hot water or
chemical reagents in
the water tank
The knob is not tight enough
Insert the power plug
Ask professional personnel
for check and maintenance
Ask professional personnel
for check and maintenance
Put water into the water tank
Clean the inside body of
the boiler
Straight the steam hose,
raise the position of steam
needle
Replace the spray nozzle
Nozzle vertically move up
and down operation
Replace the seal ring
Tight the hose connecting
of the steam knob
Replace the water tank
Does not affect the use
Tight the knob
