logika Bern WL-W20 User manual

© 2019 Logika Limited
Smart Bern IoT Lock
WL-W20, WL-W2NS
Product Manual
Version 1.0

1
Logika Limited
E
-Centre, Massey University, Gate 5, Oaklands Road
Albany, Auckland 0632, New Zealand
www.logika.nz
·[e-mail]
Introduction
Thank you for choosing Logika. Please take a moment to carefully read through the manual to
ensure safe and proper installation and use.
•Before use, the product must be properly installed as described in this manual by a qualified
technician.
•The product should be used with the supplied accessories.
•Do not disassemble or modify the product.
•Logika is not responsible for any loss due to improper installation or use of this product.
•Please visit our official website at www.logika.nz for more information.
•You can also contact us at the following email address: [e-mail].

2
Packing List
No. Item Name Quantity
1 Front Plate 1
2 Back Plate 1
3 Lock Body 1
4 Accessories Package 1
5 User Manual 1
6 Hole Drilling Template 1
7 Pencil 1
8 Warranty Card 1
9 Key 3
10 Magnetic Card (not included in non-NFC version) 3
11 Door Frame Box 1
12 Strike Plate 1

3

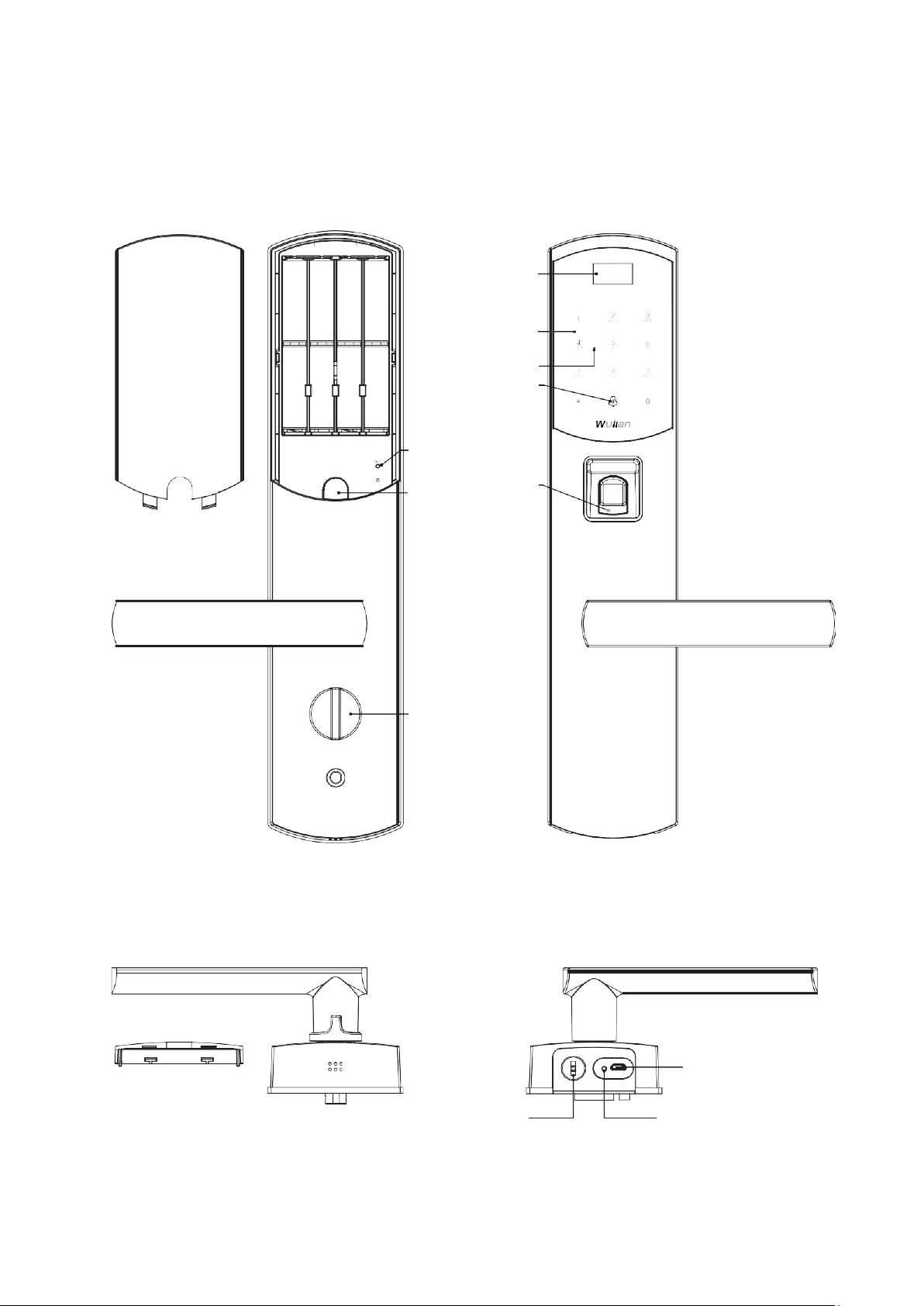

Device Layout
Back Plate Front Plate
Keyhole
Reset Button
Emergency Power
Micro USB Port
LCD Screen
Touch Screen
Doorbell
NFC Sensor
Factory Reset Button
Fingerprint
Sensor
Leave
Home
Button
Double Lock Knob
Top Profile Bottom Profile

4
12
14
13
10
11
2
3
1
4
2
7
8
9
6
5
1. Front (outside facing) unit (1pc)
2. φ8 Connecting bolt (2pcs)
3. Cable interconnect (1pc)
4. Large square spindle (1pc)
5. Lock body screw (4pcs)
6. Lock body (1pc)
7. Square spindle spring (1pc)
8. Small square spindle (1pc)
9. Back (inside facing) unit (1pc)
10. Bottom fixing screw (1pc)
11. Screw cover (1pc)
12. Top fixing screw (1pc)
13. AA battery (8pcs)
14. Battery cover (1pc)

5

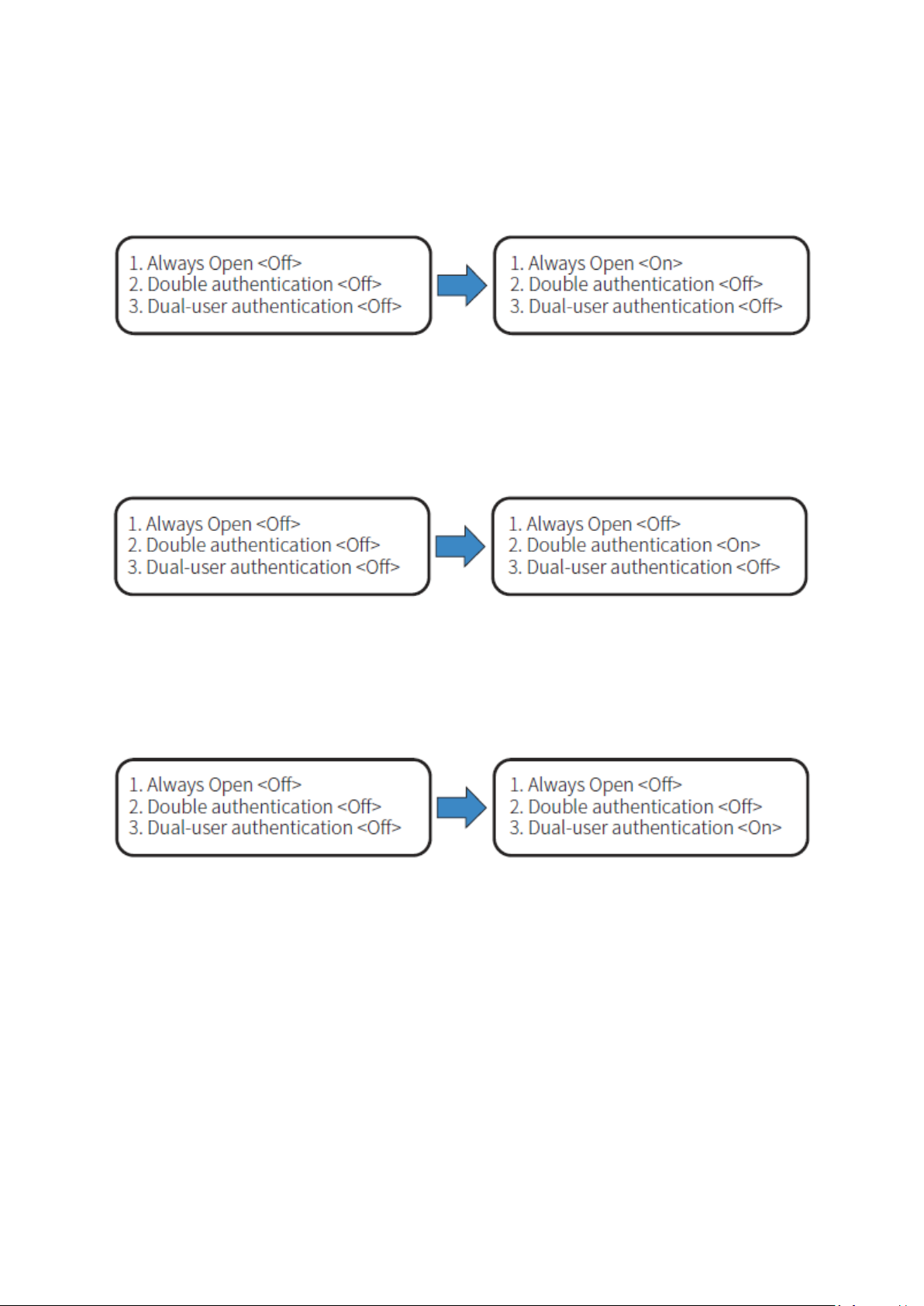

Features

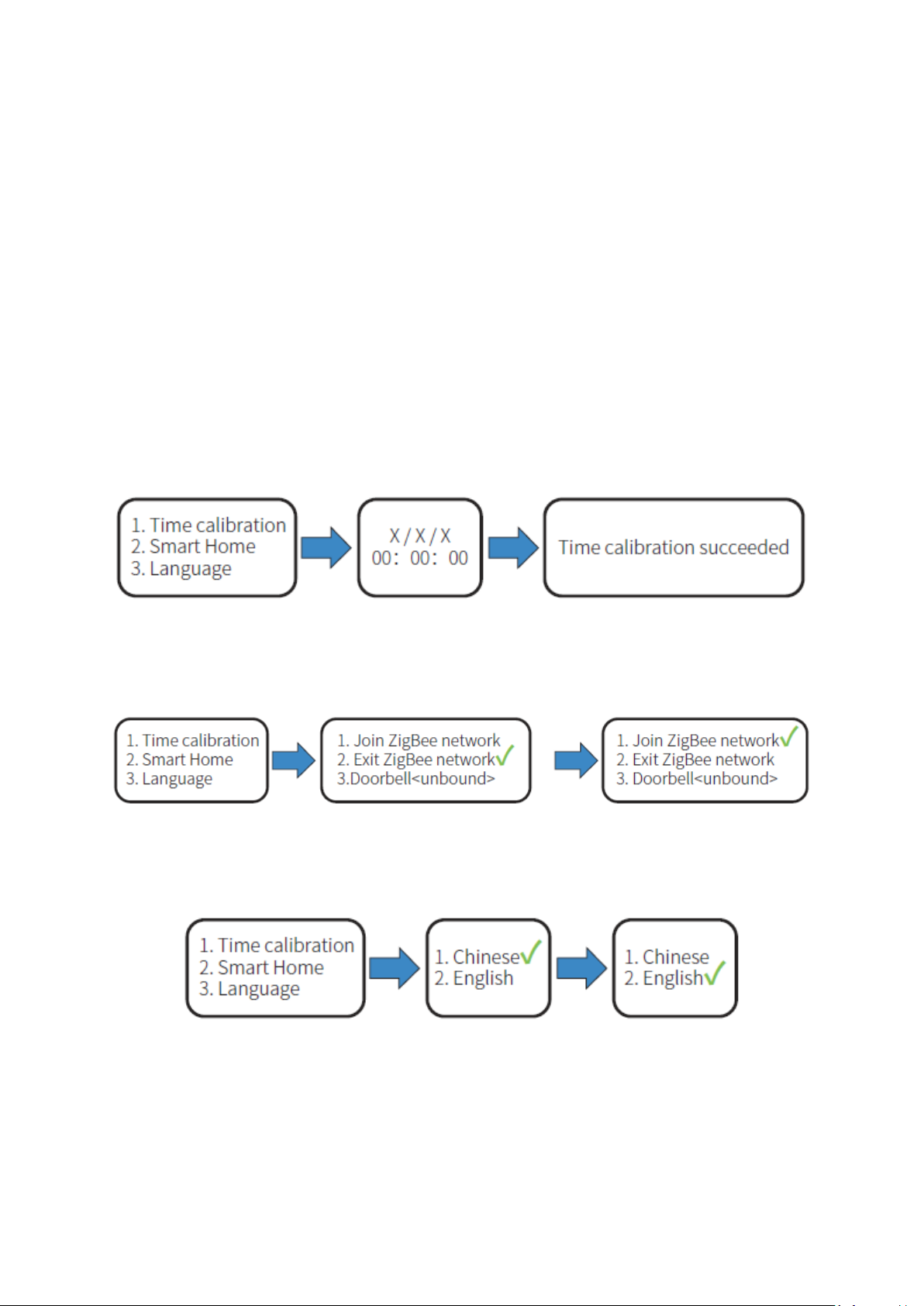

•Communication Mode: IEEE 802.15.4 Zigbee.
•Supports multiple unlocking methods: Smart phone, pin code and fingerprint identification
(and NFC in selected versions).
•Supports linkage control: Allowing scenes to be set up to cater for different needs.
•Monitors access and reports to mobile app.
•Super lock cylinder; AN2 stainless steel lock bolt.
•Backup - normal mechanical key operation.
Specifications
Product Name Smart IoT Door Lock
Colour Silver/RoseGold
Unlock Method Fingerprint/Passcode/Mobile App/Key
Fingerprint Identification Semiconductor capacitor scanning
False Rejection Rate < 0.1%
False Acceptance Rate < 0.001%
User Capacity 60
Each User 6 fingerprints, 1 passcode
Battery 8x AA – life expectancy 12 months (avg 10 access per day)
Emergency Power Micro USB
Standby Current < 40 μA
Working Current < 400 mA
Operating Temperature -20 ℃ ~50 ℃
Operating Humidity 15~90%RH
Plate Material Zinc Alloy
Plate Craft Electric plating/Baking varnish
Body Material 304 Stainless steel
Body Craft Die-cast/Electric plating

6

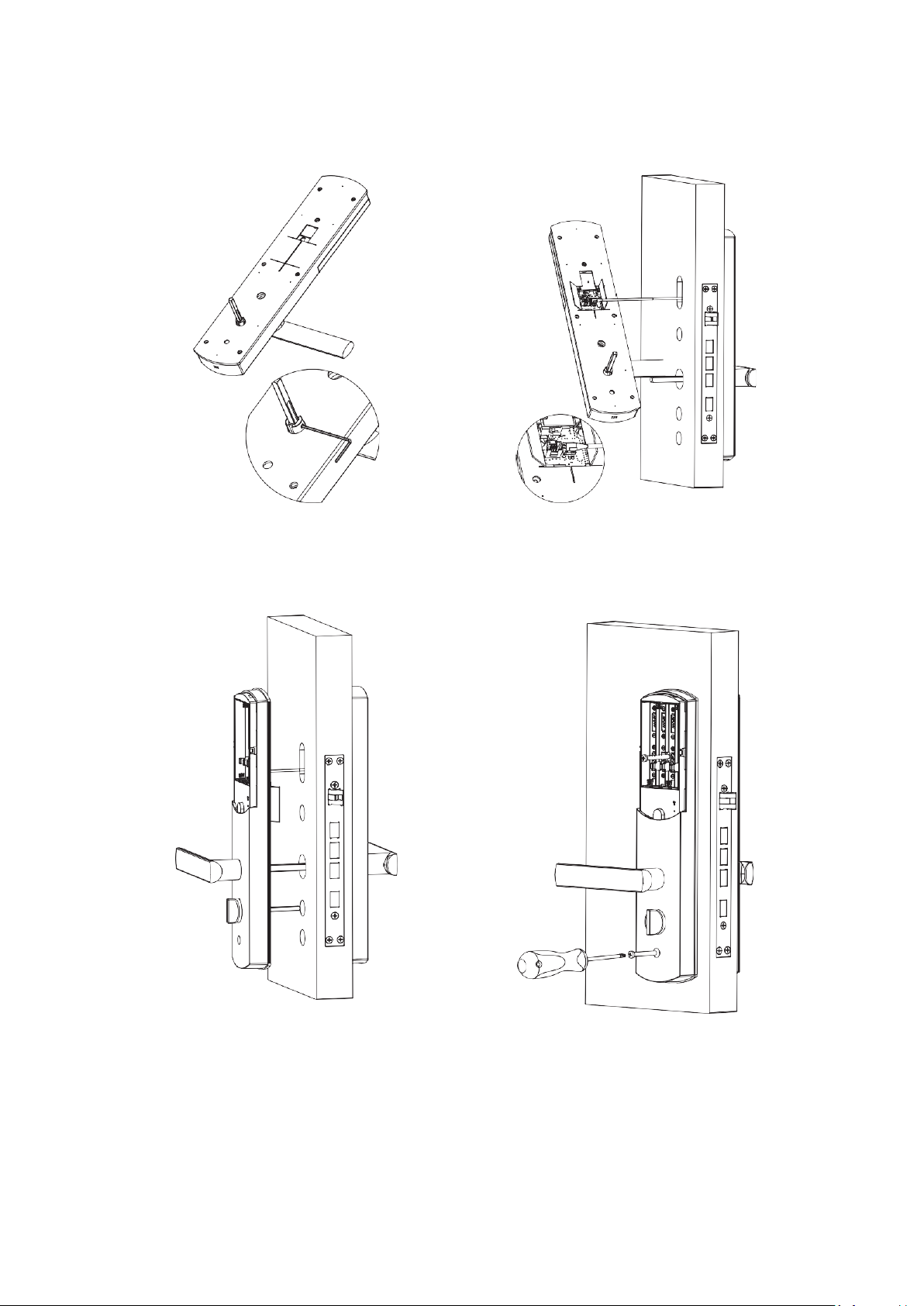

Preparation Before Installation
Prior to installing the door lock, you need to determine the opening direction of the door, as there
are some adjustments that may need to be made to the lock body, door handle orientation and the
spindle rotation direction. Don’t worry if you get it wrong, as it’s easy enough to remove the lock
from the door and re-adjust, if necessary.
Determine Door Opening Direction
There are four possible opening directions of a door. In our case, we want to view the door from the
outside, looking in, and use this as our reference point for determining the opening direction.
The first two diagrams, then, are with the door with the hinge on the RIGHT side as we look inwards.
The opening directions are Right Outward and Right Inward, respectively.
RIGHT OUTWARD
RIGHT INWARD
The next two diagrams have the hinge on the LEFT side. The opening directions are Left Outward and
Left Inward, respectively.
LEFT OUTWARD
LEFT INWARD
Once you’ve determined which direction your door is opening, proceed to make adjustments to the
door mechanisms.

7
Lock Body Adjustment
Having determined the door opening direction, we first need to adjust the direction of the door latch
on the lock body, so that it will engage correctly when the door closes.
The rule of thumb here is quite simple. Simply rotate the door latch so that its bevel (curved bit)
points in the direction of the door frame, once it is fitted into the door. The following procedure
outlines how to do this:
1) Pull up the Rotate Switch, which will
release the door latch, enabling you to
rotate it.
2) Pull the door latch out and rotate it 180
degrees, as shown, making sure the bevel
(curved bit) points towards the door
frame.
3) Push the door latch back in and release
the Rotate Switch.

8

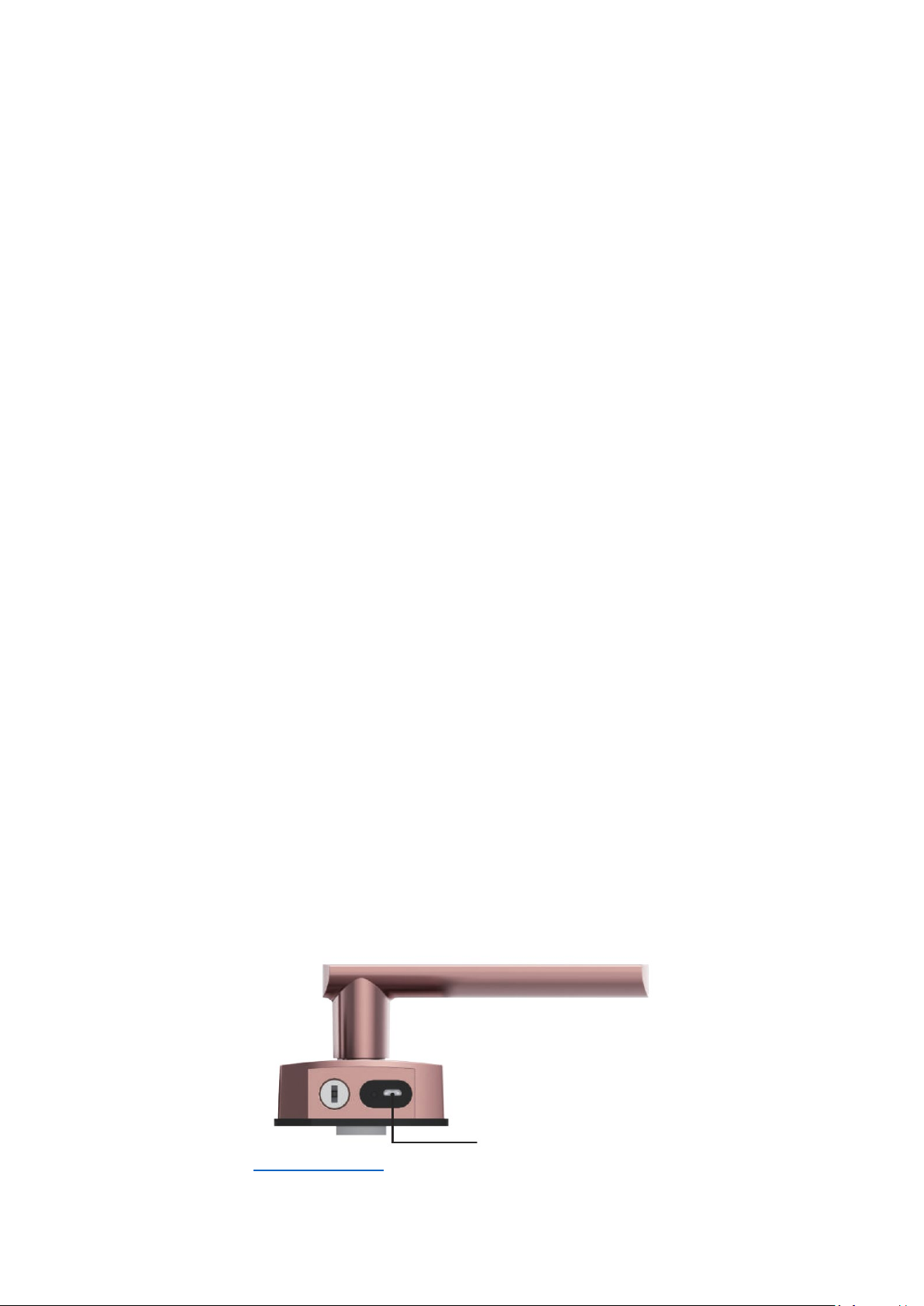

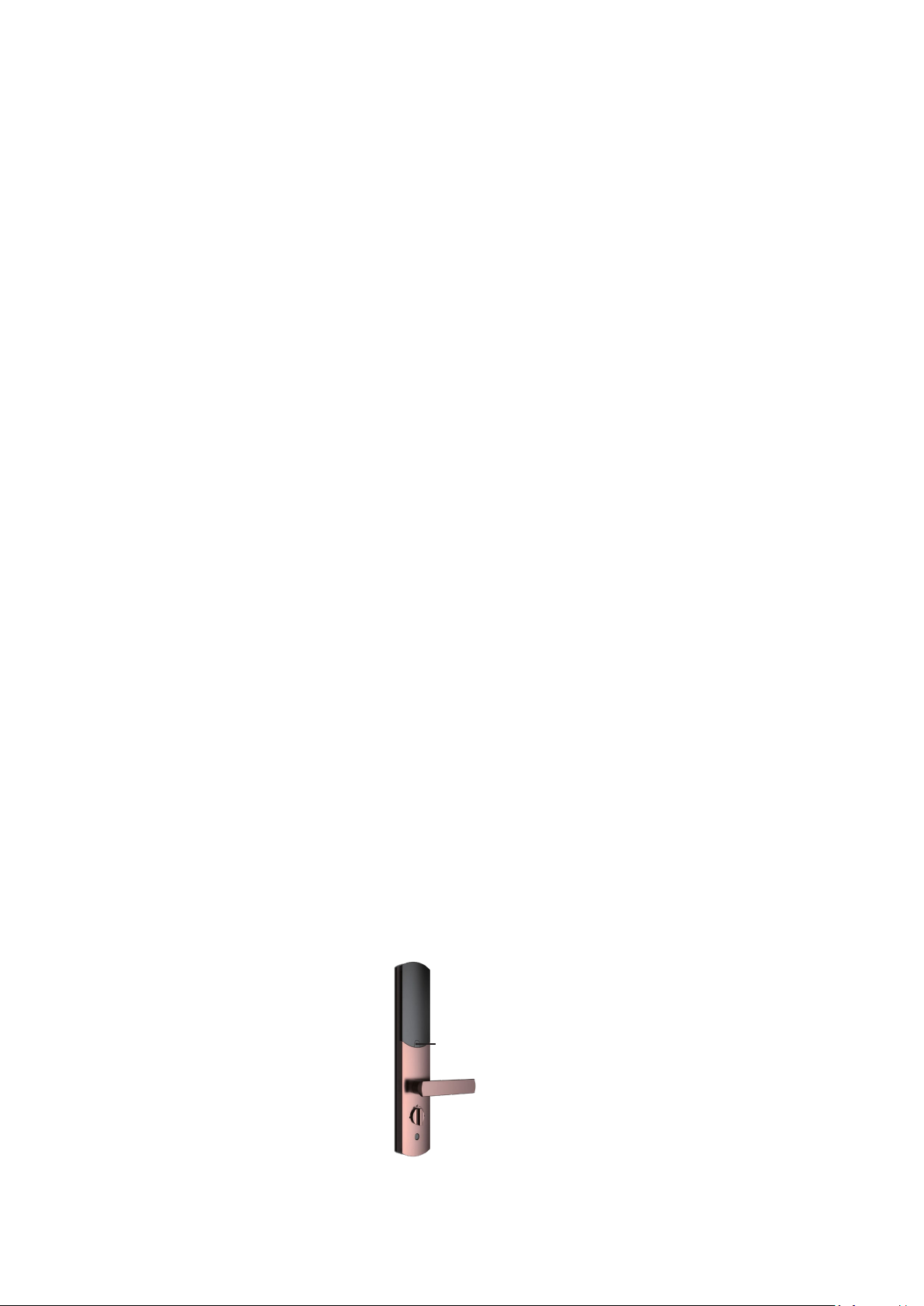

Door Handle Orientation
Depending on the door opening direction, you may need to rotate the handles on the front and rear
plates of the door unit. The procedure below explains how to do this.
1) Using a Philips screwdriver, remove the
screw holding the handle in place, as
shown.
2) Rotate the handle 180 degrees clockwise
and tighten the screw again.
3) Rotate the handle to check it works
normally.
4) Repeat the above for the other side (inside
door unit).

9

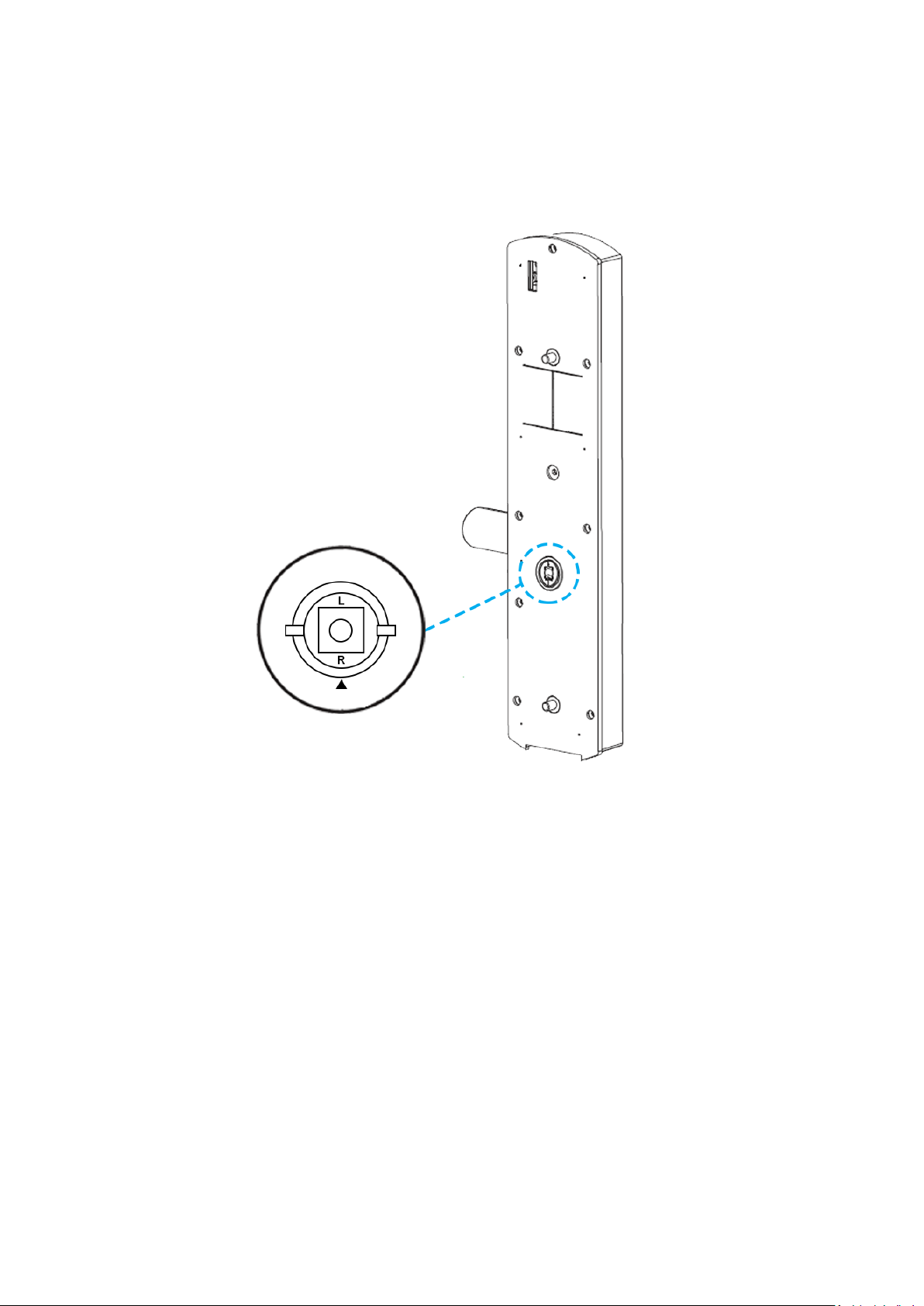

Adjust Spindle Clutch
Finally, we need to adjust the spindle clutch on the Front Panel, according to the door opening
direction.
Marked on this clutch are the letters L(for Left) and R(for Right). These letters correspond with a
Left Inward/Outward opening door and a Right Inward/Outward opening door respectively.
At the bottom of the clutch is a triangle marker which the letters need to be lined up with to apply
the correct setting.
Rotate this clutch, using a pair of pliers, until the correct letter lines up with this marker. This will
ensure that when you rotate the handle, the locking mechanism will move the bolts as expected
when engaged.
Note: If, after you have fitted the door unit, the bolts do not engage when locking, then this clutch
has not been set correctly and needs to be adjusted again.
