logika Smart Crown Lock User manual

© 2019 Logika Limited
Smart Crown Lock (Plus)
Product Manual
Version 1.0

1
Logika Limited
E
-Centre, Massey University, Gate 5, Oaklands Road
Albany, Auckland 0632, New Zealand
www.logika.nz
·[e-mail]
Introduction
Thank you for choosing Logika. Please take a moment to carefully read through the manual to
ensure safe and proper installation and use.
•Before use, the product must be properly installed as described in this manual by a qualified
technician.
•The product should be used with the supplied accessories.
•Do not disassemble or modify the product.
•Logika is not responsible for any loss due to improper installation or use of this product.
•Please visit our official website at www.logika.nz for more information.
•You can also contact us at the following email address: [e-mail].

2
Packing List
No. Item Name Quantity
1 Front Plate 1
2 Back Plate 1
3 Lock Body 1
4 Keys 2
5 NFC Card (Crown Lock Plus model only) 2
6 Installation Kit 1
7 Door Frame Box 1
8 Strike Plate 1
9 Hole Drilling Template 1
10 Warranty Card 1
11 Marking Pencil 1

3
Device Layout
Note: NFC scanning is only available on the Crown Lock Plus model.
Camera
LCD screen
Keypad
NFC Area
Auxiliary Lock
Knob
Reset
Doorbell
Leave
Home
Button
Fingerprint
Scanner
Manual keyhole
Emergency power
USB input

4

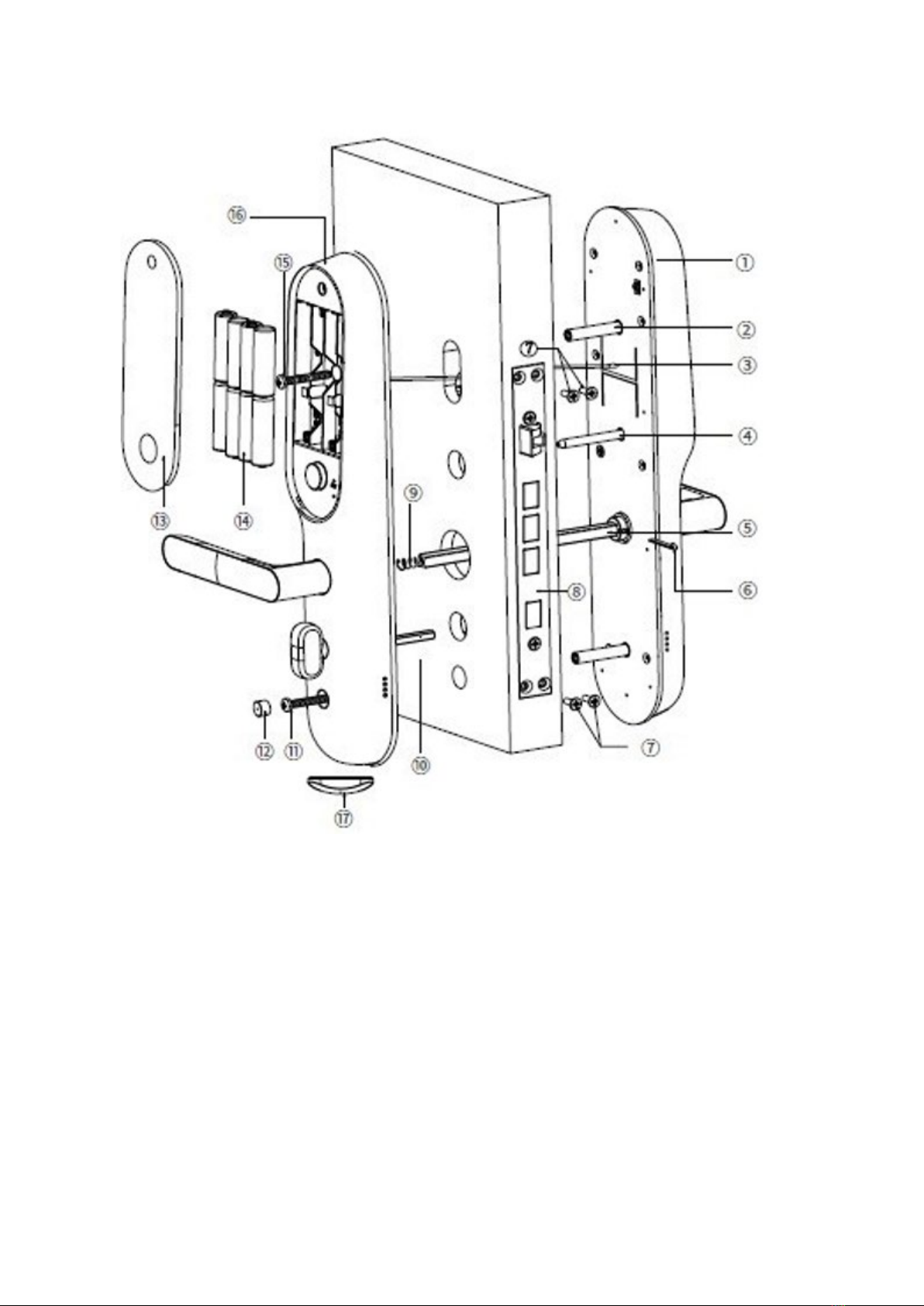

①Front panel (x1)
②Connecting cylinder (x2)
③Key Link Strip (x1)
④Connecting cylinder (x1)
⑤Square spindle (x1)
⑥Plug for square spindle (x1)
⑦Screws for the lock (x4)
⑧Lock (x1)
⑨Spring for square spindle (x1)
⑩Square spindle (x1)
⑪Screws (x1)
⑫Plugs for screws (x1)
⑬Battery cover (x1)
⑭Battery (x8)
⑮Screws (x1)
⑯Back Panel (x1)
⑰Plug for keyhole (x1)

5
Features
•Communication Mode: IEEE 802.15.4 Zigbee.
•Supports multiple unlocking methods: Smart phone, pin code and fingerprint identification
(and NFC in Crown Lock Plus version).
•Supports linkage control: Allowing scenes to be set up to cater for different needs.
•Monitors access and reports to mobile app.
•Super lock cylinder; AN2 stainless steel lock bolt.
•Backup - normal mechanical key operation.
Specifications
Product Name Crown Lock & Crown Lock Plus
Colour Silver/RoseGold
Unlock Method Fingerprint/Passcode/NFC/Mobile App/Key
Fingerprint Identification Semiconductor capacitor scanning
False Rejection Rate < 0.1%
False Acceptance Rate < 0.001%
User Capacity 60
Each User 6 fingerprints, 1 passcode
Battery 8x AA – life expectancy 12 months (avg 10 access per day)
Emergency Power Micro USB
Standby Current < 40 μA
Working Current < 400 mA
Operating Temperature -20 ℃ ~50 ℃
Operating Humidity 15~90%RH
Plate Material Zinc Alloy
Plate Craft Electric plating/Baking varnish
Body Material 304 Stainless steel
Body Craft Die-cast/Electric plating

6
Preparation Before Installation
Prior to installing the door lock, you need to determine the opening direction of the door, as there
are some adjustments that may need to be made to the lock body, door handle orientation and the
spindle rotation direction. Don’t worry if you get it wrong, as it’s easy enough to remove the lock
from the door and re-adjust, if necessary.
Determine Door Opening Direction
There are four possible opening directions of a door. In our case, we want to view the door from the
outside, looking in, and use this as our reference point for determining the opening direction.
The first two diagrams, then, are with the door with the hinge on the RIGHT side as we look inwards.
The opening directions are Right Outward and Right Inward, respectively.
RIGHT OUTWARD
RIGHT INWARD
The next two diagrams have the hinge on the LEFT side. The opening directions are Left Outward and
Left Inward, respectively.
LEFT OUTWARD
LEFT INWARD
Once you’ve determined which direction your door is opening, proceed to make adjustments to the
door mechanisms.

7
Lock Body Adjustment
Having determined the door opening direction, we first need to adjust the direction of the door latch
on the lock body, so that it will engage correctly when the door closes.
The rule of thumb here is quite simple. Simply rotate the door latch so that its bevel (curved bit)
points in the direction of the door frame, once it is fitted into the door. The following procedure
outlines how to do this:
1) Pull up the Rotate Switch, which will
release the door latch, enabling you to
rotate it.
2) Pull the door latch out and rotate it 180
degrees, as shown, making sure the bevel
(curved bit) points towards the door
frame.
3) Push the door latch back in and release
the Rotate Switch.

8
Door Handle Orientation
Depending on the door opening direction, you may need to rotate the handles on the front and rear
plates of the door unit. The procedure below explains how to do this.
1) Using a Philips screwdriver, remove the
screw holding the handle in place, as
shown.
2) Rotate the handle 180 degrees clockwise
and tighten the screw again.
3) Rotate the handle to check it works
normally.
4) Repeat the above for the other side (inside
door unit).

9
Adjust Spindle Clutch
Finally, we need to adjust the spindle clutch on the Front Panel, to properly align with the door
handle according to the door opening direction.
Marked on this spindle clutch is an arrow. This arrow must point in the same direction as the handle
(i.e. point away from the door edge).
Rotate this clutch, using a pair of pliers, until the arrow points in the correct direction. This will
ensure that when you rotate the handle, the locking mechanism will move the bolts as expected
when engaged.
Note: If, after you have fitted the door unit, the bolts do not engage when locking, then this clutch
has not been set correctly and needs to be adjusted again.
Spindle Clutch

10
Installing the Door Lock
Installing the Lock Body
1) Measure the point where you wish to
place the lock template – Typically,
1000mm to 1200mm from the bottom
and 60mm from the edge of the door.
2) Mark this point.
3) Place the supplied template to line up
the marker with the reference mark on
the template.
4) Mark out all the holes according to the
template. This is where you will be
drilling.
5) Remove the template, once everything
has been marked.
6) Drill the holes accordingly.

11

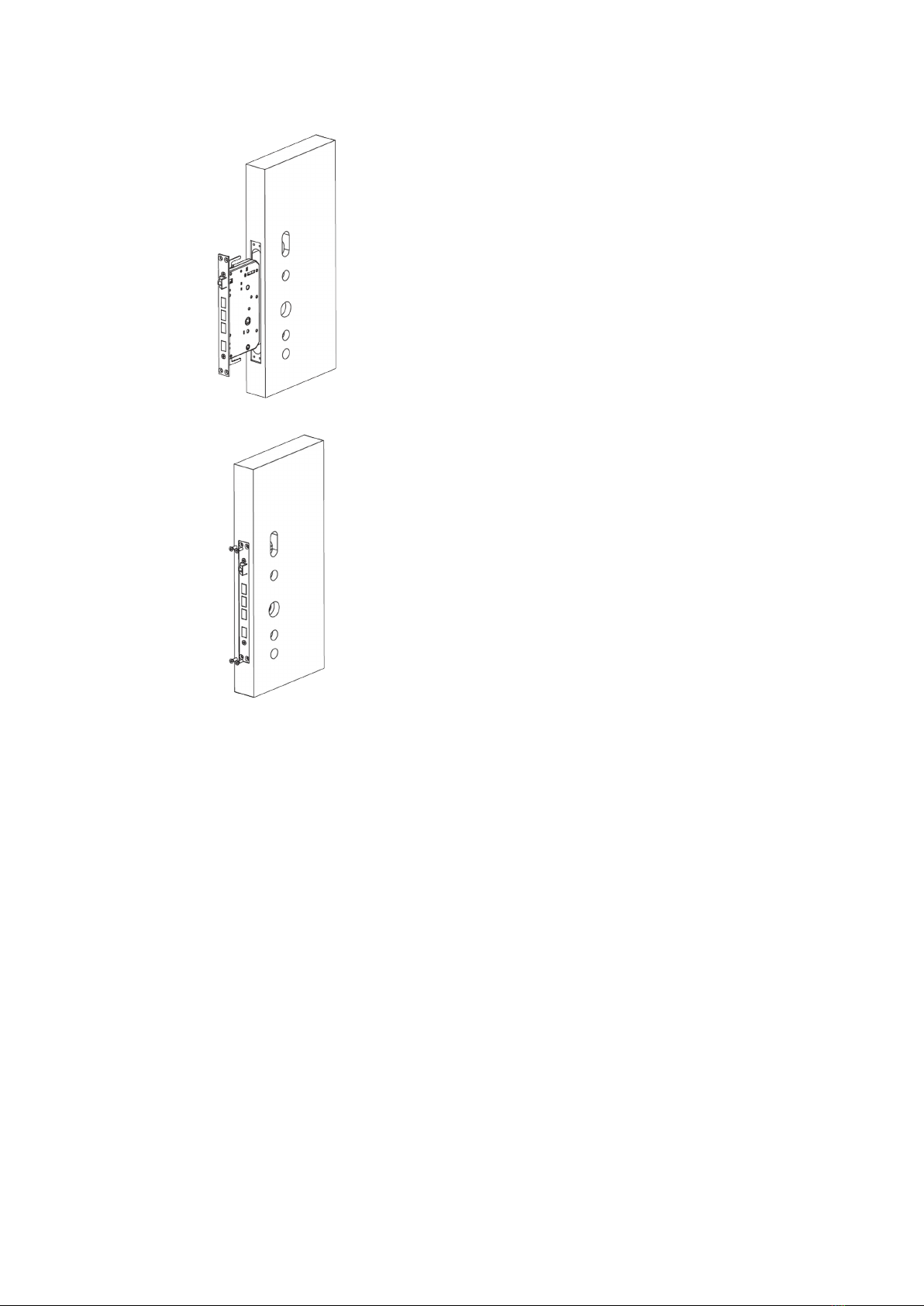

7) Insert the Lock Body and make sure all
the holes line up.
8) Screw the Lock Body in place. It’s now
ready for the attachment of the front
and rear door lock plates.

12
Installing the Front Plate
1) Install the two connecting bolts.
2) Connect the cable interconnects (x2) and
Large Square Spindle, lining up the holes on
the spindle with the clutch. Insert the
included pin and twist its ends to make sure
the spindle cannot be pulled out.
3) Affix the front plate to the door.
4) Turn the handle to make sure the door
latch works as expected.

13
Installing the Back Plate
1) Attach the small square spindle.
2) Connect the cable interconnects (x2) to
the connector on the back plate.
3) Affix the back plate to the door, making
sure the Lock Knob is in a vertical
orientation.
4) Screw the back plate in place and insert
the batteries.
5) Rotate the handle to make sure the door latch works as expected and rotate the Lock Knob
to check if the double lock engages.

14
Adding the Device to the Smart Home Network
Use the Logika Smart Home app to add the device to the Smart Home system. Please refer to the
Logika Smart Mobile App user guide which will take you through the process of adding smart
devices to the system.
Refer to the information below to locate the device in the Device Add screen. Once selected, the app
will walk you through how to add the device to the system.
Device Category:
Smart Lock
Device Name:
Wu-Lock Crown (or Wu-Lock Crown Plus for the Plus model)
Note: The default admin passcode is 123456. Enter this on the keypad when requested, followed by
the #key.
If this code does not work, you may need to perform a factory reset. This can be done by pressing
the Factory Reset button, the hole for which is located below the battery compartment. You will
need a small pin or paperclip to reach the button and keep it pressed it for 10 seconds.

15
User Administration and Security
Entering Admin Mode
1) Tap the touchpad screen to wake it up.
2) Tap the *key twice in quick succession.
3) Enter the admin code (Default is 123456) followed by the #key.
4) The display will now show you some admin options that you can use.
Note: Don’t forget to change the Admin passcode from the default for complete security!

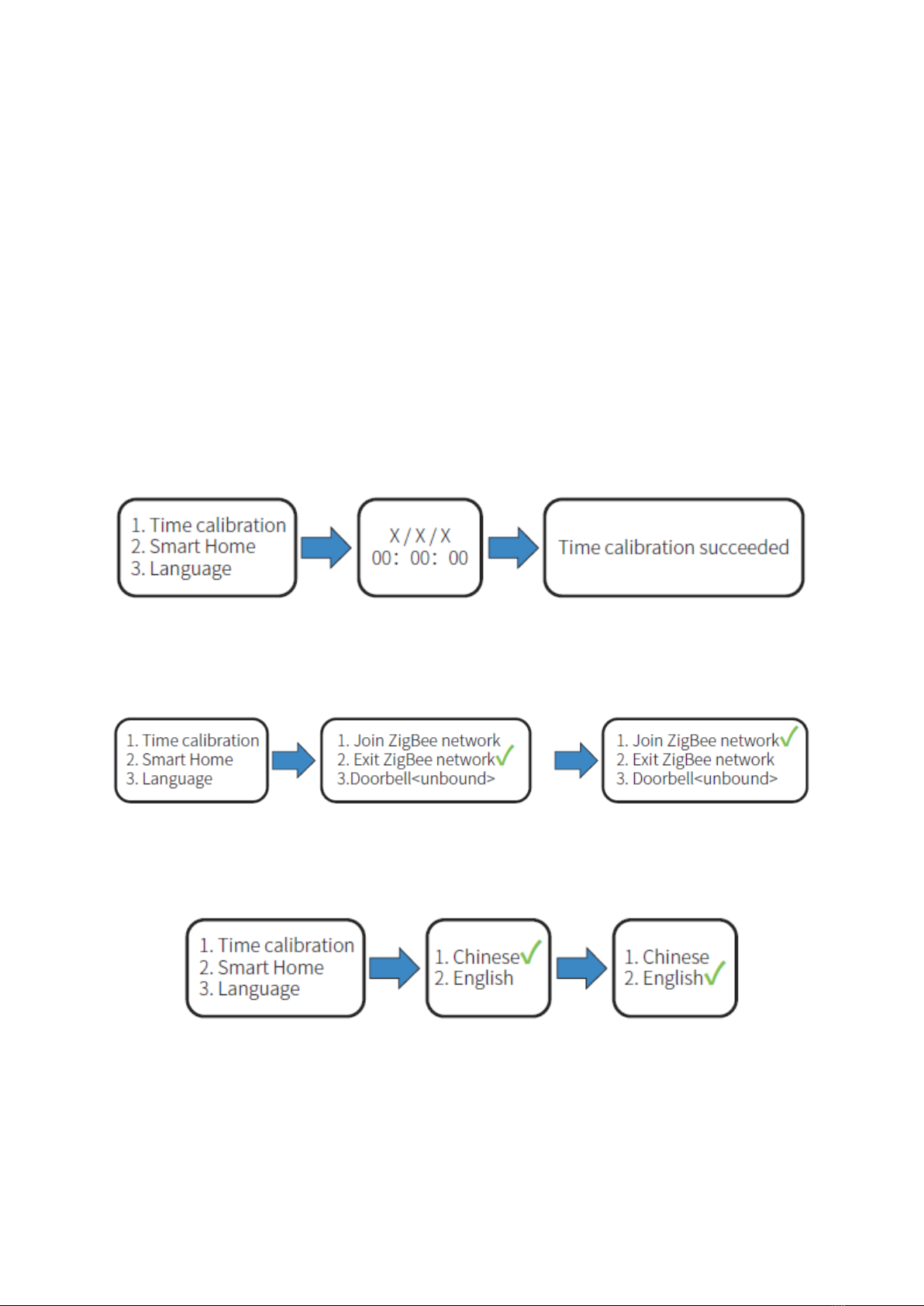

Set Time
Once the door lock is connected to the Smart Home system (as described previously), the time will
be synchronised with the Gateway automatically. However, you can adjust the time manually by
following the prompts below.
Smart Home Settings
The prompts below illustrate the options for adding to and removing from the Smart Home system.
Change Language

16
User Guide
Unlocking the Door
You can unlock the door using various methods. Each user must have at least one or more methods
of authentication.
Passcode Unlock
1) Touch the touch screen to wake it up.
2) Enter your passcode, followed by the # key.
3) The lock will disengage, and you can turn the handle to release the bolts.
Fingerprint Unlock
1) Place you finger on the fingerprint scanner.
2) The lock will disengage, and you can turn the handle to release the bolts.
NFC Unlock (For compatible models only)
1) Hold your NFC card or NFC enabled phone near the touch screen.
2) The lock will disengage, and you can turn the handle to release the bolts.
Mobile App Unlock
1) Select the Crown Lock from the Devices section in the app.
2) Enter the passcode from the device screen.
3) You can also setup Touch ID to do the same, by setting it in the device’s settings screen
in the app.
Ring the Doorbell
Press the doorbell button and an audible ring will sound internally. At the same time, a notification
will be sent to the owner’s mobile phone. It can also be programmed to execute a Scene.
The Leave Home Button
The Leave Home button can be located on the back plate of the door lock unit. This can be
programmed to perform custom tasks by linking it to a pre-programmed Scene. For instance, you
could engage the security cameras, turn off all the lights and heating, etc when you leave the house.
Refer to the Logika Smart Mobile App user guide for information on how to set up a Scene.

17
Troubleshooting
You are unable to log in using the default admin passcode after first install, or you have
forgotten the password.
You need to perform a Factory Reset on the device to restore the factory settings. Note that you will
also lose all user codes/fingerprints as a result, so make sure you really want to do this.
The Factory Reset button can be located below the battery compartment (You will need to remove
the battery cover to reveal the hole which houses the button). Using a pin or paperclip, insert it into
the hole and press the button for 10 seconds. An audible notification will be heard when the reset
has completed.
The default passcode now is 123456.
The door fails to respond to user interaction.
In this case, you may need to perform a soft reset of the system. All settings will be retained. All that
is happening here is that the door lock firmware is rebooted.
To do this, press the Reset button located near the Factory Reset button.
The door fails to lock on turning the handle or fails to engage the bolts.
The spindle clutch may have been set incorrectly. You will need to remove the lock from the door
and rotate the spindle clutch on the Front Plate, as explained in Adjust Spindle Clutch on page 9.
The battery voltage is too low, and you can’t get access as a result.
During normal operation, if the batteries begin to run low on power (below 4.8v) you will hear a
voice stating “Low battery. Replace battery.” each time you interact with the door.
If the power is too low, the lock will stop functioning. In this case, you can either:
a) Supply emergency power via the micro-USB socket on the bottom of the front door lock unit
(A USB battery charger, for instance), or
b) Use one of the supplied keys and insert this into the keyhole on the bottom of the lock. Turn
and hold this key in the unlock position and turn the handle at the same time to unlock.
The issue you are experiencing is not mentioned here.
Please contact us at [e-mail] with your issue and we will do our utmost to help!
