Logitech G923 User manual

G923 RACING WHEEL AND PEDALS FOR PLAYSTATION®4
1 2 @
.
(9)
y @
~
@
3
PS4™
~ ,,.b=====cC -Q 0
~~ USB V ~
~
II II II ~ logitechG.com/support/g923-ps4
(.,
looitech
-
620-008913 .002

G923
Racing Wheel and Pedals For PlayStation®4
Volant de course et pédales pour PlayStation®4
SETUP GUIDE |GUIDE D’INSTALLATION

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . .3
FRANÇAIS . . . . . . . . . . . . . . . . . . . . . . . 14
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . .25
PORTUGUÊS . . . . . . . . . . . . . . . . . . . . . . 36

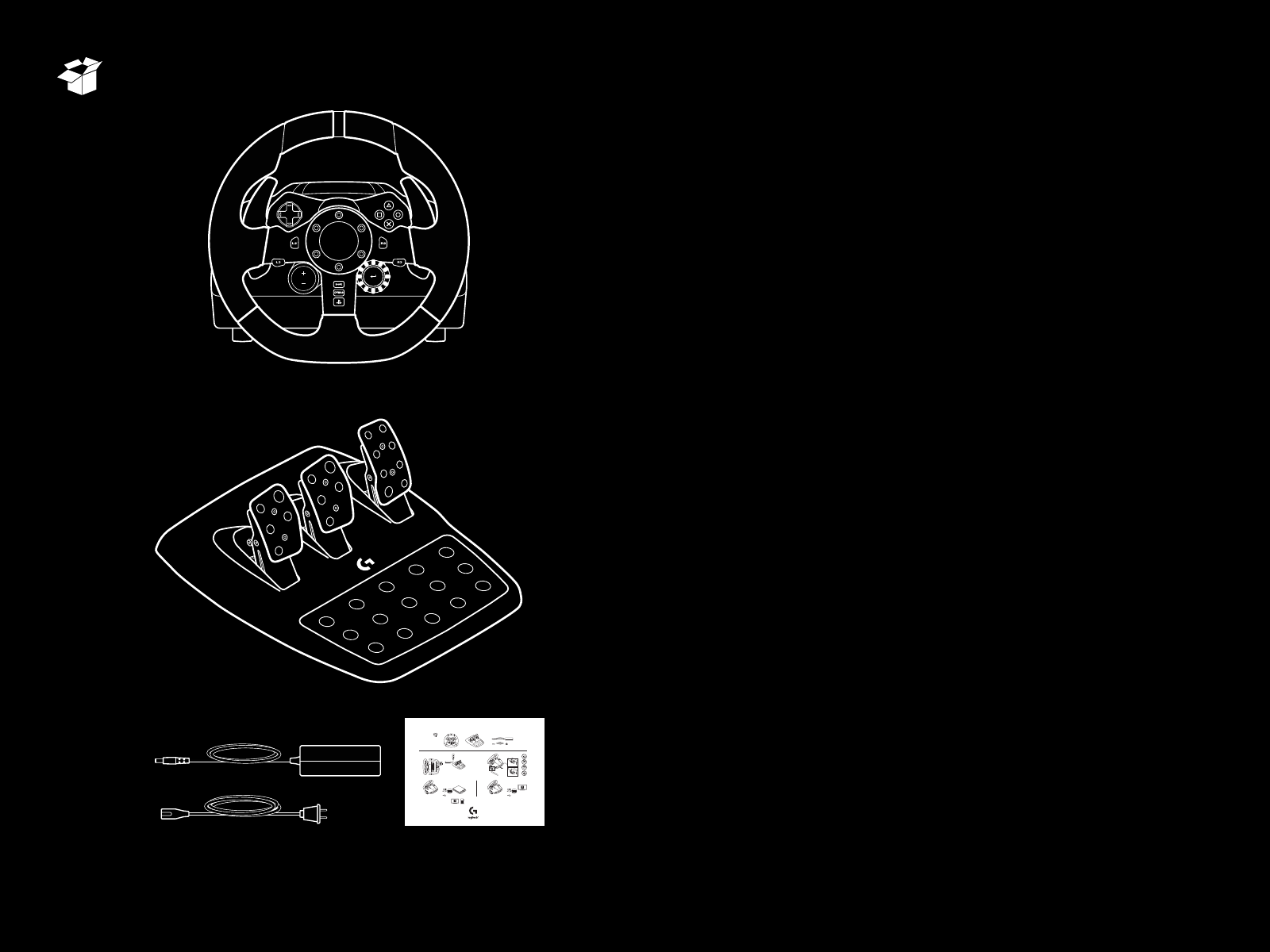

G923 RACING WHEEL AND PEDALS FOR PLAYSTATION®4
620-008913.002
USB
1
3PS4™
logitechG.com/support/g923-ps4
2
USB
PC

3ENGLISH
CONNECTIONS AND MOUNT POINTS
1 Mounting clamps
2 Cable management cleat
3 Optional shifter connection (DB-9 male)
4 USB cable
5 Pedal unit connection (DB-9 female)
6 Power connection
7 Bolt mounting points (uses M6X1 bolts)
OPTIMAL CABLE ROUTING
USB and pedal cables (1, 2) should be routed
throughinnerchannels.
Power and optional shifter cables (3, 4) should be routed
throughouter channels.
Cables may be wrapped multiple times around cable
management cleat to take in slack.
2
3
4
1
5
6
7
14 2 3
4
3
21

4ENGLISH
USB
PS4
USB
PC
INSTALLATION — PS4™
— PC
Attach power adapter and USB cables as shown.

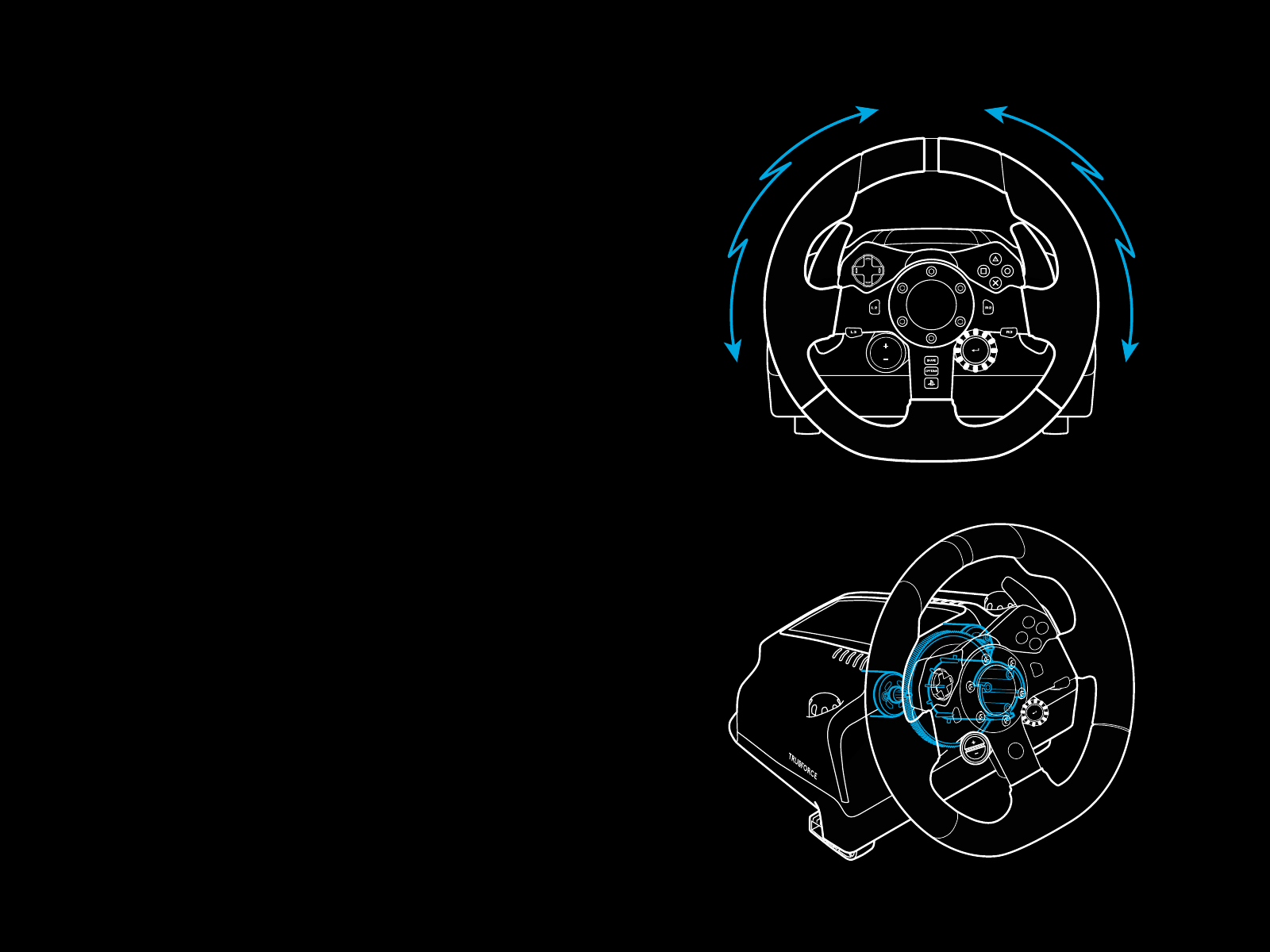

Every time your racing wheel connects with your system,
itwillrotate fully to each side and then to the center to calibrate.
Your wheel will be ready once this calibration is completed.
For PC to enable the force feedback and RPM LED features
onyour G923 Wheel and Pedals you must install the Logitech
G HUB software. This can be found at logitechG.com/
support/g923-ps4.
TRUEFORCE and advanced features require game integration.
Visit logitechG.com/support/G923-ps4 for a complete list
ofsupported games.

5ENGLISH
MOUNTING CLAMPS
G923 Racing Wheel is equipped with
a built in clamping system for mounting to a table.
Push down and rotate clamp knobs to lock or unlock.
Rotate clamp knobs to tighten or loosen clamps.
Note:
Clamp extenders should be removed for attachment
tothickertables.

6ENGLISH
BUTTONS
1 Left bumper
2 Directional pad
3 View button
4 L3 button*
5 +/- Setting Adjustment buttons*
6 Right bumper
7 X, ¡, o, rbuttons
8 OPTIONS button
9 R3 button*
10 Setting Selection Dial and Select button*
11 PS button
2
3
5
4
1 6
7
8
10
11
9
* Requires supported games on PS4. Assignable in any game on PC using either
in game assignment or Logitech G HUB software.

7ENGLISH
FORCE FEEDBACK
Your Racing Wheel contains dual motors that will provide
forcefeedback with supported games and systems.
In supported titles you will also experience our next generation
approach to force feedback: TRUEFORCE.
TRUEFORCE integrates directly with game physics and audio
to unlock high-denition, real-time force feedback. Tire grip,
suspension, weight, horsepower—even unique engine sound
resonance—are immediately and accurately felt through
thewheel.
Supported titles on PlayStation®4 and PC may implement
TRUEFORCE high-denition force feedback. For a list of
supported titles visit logitechG.com/support/g923-ps4
Note:
Your Racing Wheel has an overheat protection circuit safeguard
to protect it under high-temperature operating conditions.
Inrare instances, force feedback features may shut down
duringuse while controls continue to operate.
If this occurs, allow the wheel to cool down and power
itdownbyunplugging it. If this occurs frequently,
contactproduct support.

8ENGLISH
FEATURES

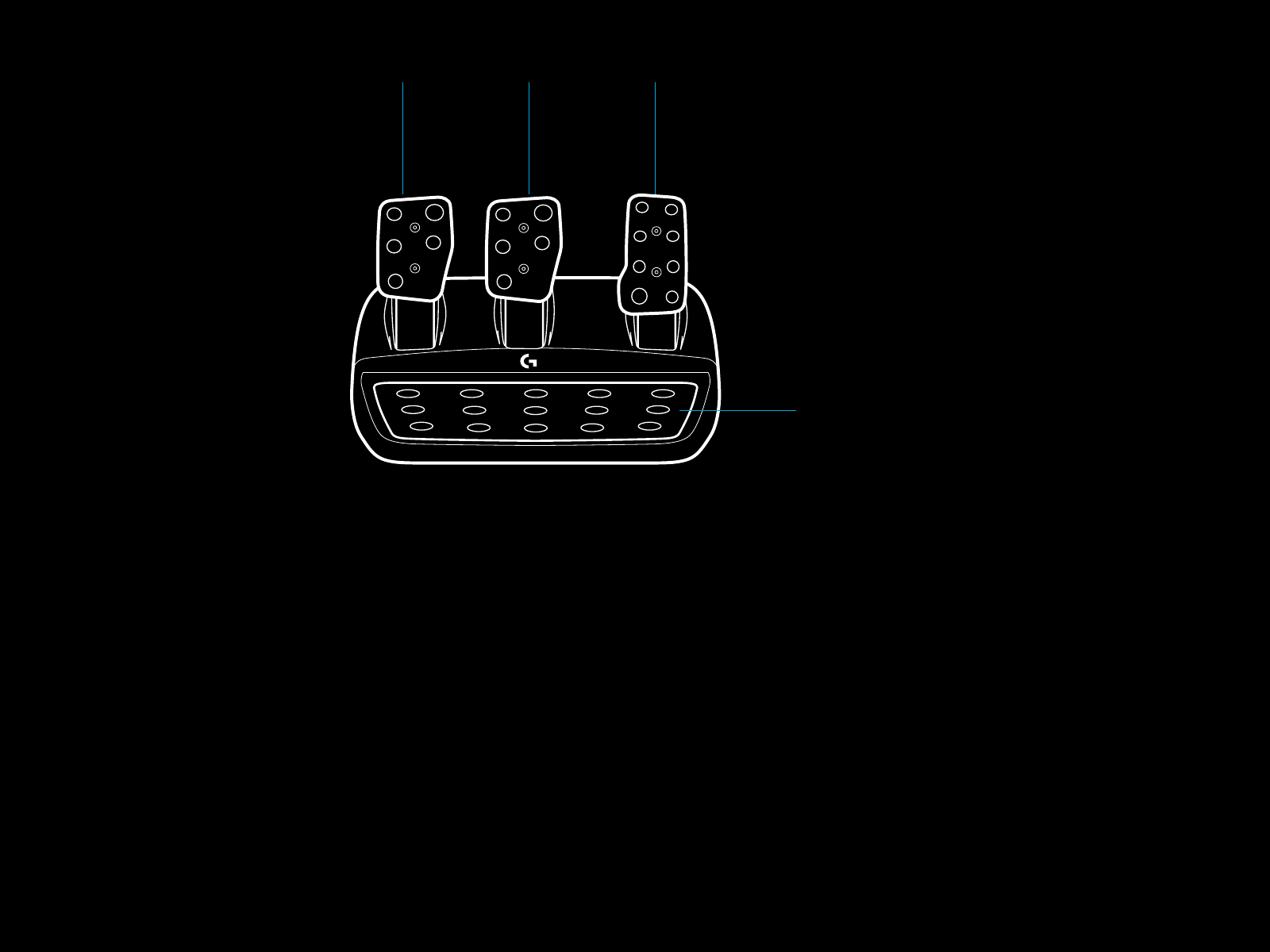

1 Clutch pedal
2 Brake pedal
3 Throttle pedal
4 Textured heel rest
1 2 3
4

9ENGLISH
5 Bolt mounting points (uses M6X1 bolts)
6 Patented carpet grip system
7 Carpet grip release clip
Push towards rear of pedal unit to release
8 Change pedal face position (requires 2.5mm hex key)
5
6
7
8

10 ENGLISH
USING THE DUAL CLUTCH IN-GAME
Using a dual clutch system from a grid start in a race enables
you to achieve maximum traction without the need to nd the
bite point of your clutch pedal - this can give you a signicant
advantage at the start of a race.
To use the dual clutch system in-game:
1 At race start, fully depress the clutch pedal and the button
assigned to the dual clutch function (see next section
forsetting instructions).
2 Select rst gear using the Gear Up Paddle and fully depress
the gas pedal.
3 As soon as you get the green light for race start, immediately
release the Dual Clutch button. The car should start moving
as the bite point of the clutch is engaged.
4 Smoothly release your foot from the clutch pedal in order
toachieve maximum traction. It’s worth practicing this last
step and modifying the bite point setting several times
to nd amethod that works for you. Once you have it
perfected, thisfeature can help make up several places on
the grid.
Note:
Support for the dual clutch function is not possible in some
games. A list of games that support the dual clutch feature
canbe found at logitechG.com/support/g923-ps4
Note:
Whilst in the Dual Clutch setting mode the RPM LEDs will not
respond to the game/SDK
SETTING UP THE DUAL CLUTCH SYSTEM
1 Press and hold the left and right gear paddle L3
andR3buttons together for two seconds to enter
dualclutchsettingmode. The RPM LEDs will illuminate blue
and ashslowly:

11 ENGLISH
2 Press the button you want to set as the dual clutch button.
The only valid buttons for this are the L3 and R3 buttons.
TheRPM LEDs will ash red to show that you’re in clutch
position setting mode.
3 While in your chosen simulation or game with the car
still ona track, fully depress the clutch and gas pedals.
Engagerst gear and keep pressing the minus button
down until the car begins to move in-game. You can adjust
theprecise bite point of the clutch by using the plus and
minus buttons until youare happy with the setting.
4 At this point you may test the dual clutch without leaving the
setting mode. It is recommended you attempt a race start,
stop the car and adjust the bite point and then try again until
you are satised with the performance of the dual clutch.
5 Press the Select button in the middle of the dial on the wheel
to exit dual clutch setting mode. The RPM LEDs will ash
ina sequence from green to blue to show that the setting
issaved. The RPM LEDs will then go out and begin responding
again to RPM output from supported games.

12 ENGLISH
RESETTING DUAL CLUTCH SYSTEM
Press and hold the left gear shift, right gear shift, and square
button for two seconds.
The RPM LEDs will all ash four times and then extinguish
toindicate that the Dual Clutch system has been reset.
The button assigned to the Dual Clutch system (L3 or R3)
willrevert to its normal function.
USING LOGITECH G HUB
Logitech G HUB enables the following features on the G923:
• Button programming with proles that can be linked to
games.
• Adjustment of wheel settings, such as Rotation Angle and
TRUEFORCE strength.
• Testing of the various buttons, wheel and pedal functions.
G HUB WHEEL SETTINGS
Sensitivity
Alters the output response of the wheel to be more or less
sensitive. Leaving this slider at 50% will provide a linear 1:1
output. Between 51% and 100% will make the wheel increasingly
more sensitive around the centre movement of the wheel.
Between 0% and 49% will make the wheel decreasingly sensitive
around the centre movement of the wheel.
Operating Range
The G923 is capable of up to 900 degrees of rotation.
Reducingthis setting will change the point at which
thewheelwill reach full steering lock. This is especially useful
if you’re driving a car with a smaller actual steering lock angle,
suchasaFormula 1 orGT3 car.
Centering Spring (for games without force feedback)
Most games that support force feedback already model
thecorrect return to center function of the G923 based on
thevirtual car. It is recommended that the Centering Spring
option be turned o for these games.
Enabling the Centering Spring option will allow you to override
the game features and adjust the strength of the return
tocenter force using the provided slider.
Torque
Only available for TRUEFORCE supported games. Torque controls
the overall force feedback strength for your G923.

13 ENGLISH
Audio Eects
Only available for TRUEFORCE supported games.
Controlstheoverall strength of the audio-related eects
(enginenote, rumble strips etc.) when using TrueForce-
compatible titles.
If you are using your G923 in older titles that do not support
TRUEFORCE then adjustment of the force feedback can be
performed from the settings menus of the game title.
G HUB PEDALS SETTINGS
Sensitivity
Alters the output response of the pedals to be more or
lesssensitive. Leaving this slider at 50% will provide a linear
1:1output. Between 51% and 100% will make the pedal
increasingly more sensitive around the initial movement
of thepedal. Between 0% and 49% will make the pedal
decreasingly sensitive around the initial movement of the Pedal.
Combined Pedals
If checked, this will set the gas and brake pedals to become
twohalves of a single axis. This will help the pedals operate
correctly in older racing titles that do not support separate axes
for pedals.
Note: if left checked then the pedals will not behave correctly
in modern racing titles. If you nd that just one of your pedals
is functioning by accelerating when pressed and braking
whenreleased then you should make sure that this option is
notchecked.
QUESTIONS?
Please visit logitechG.com/support/g923-ps4 for more
information or to get in touch with a customer representative.
TESTING YOUR WHEEL AND PEDALS
On the wheel and pedals screens in G HUB you can check
everybutton and axis on your G923 in order to ensure everything
is functioning correctly. For the wheel you can also see the eect
of altering the Operating range.
