Loos & Co Locoloc SL-7NDK-SB User manual
Locoloc
®
Swaging Tools
SL-7NDK-SB
Battery-Powered Hand Swager
Operator’s Manual
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
SPECIFICATIONS
Swages aluminum and copper oval sleeves for 3/32, 1/8, 3/16, and 1/4 sizes wire rope.
Output: 6 ton
Weight: 5.9 lbs. w/ battery
Size: 15.8”L x 3.3”W x 4.5”H
Battery Type: Lithium Ion
Voltage: 18V DC
Rated current: 5 Ah
Charge time: 1.5 hour
Dimensions: 4.9”L x 2.5”W x 2.25”H
Weight: 1.5lbs.
Input Voltage: 120V AC
Charging Capacity: 24VA
Dimensions: 6.25”L x 5.3”W x 3”H
Weight: 2 lbs.
• Battery Cartridge: BP-185
• Battery Charger: CH-285
• Carrying Case: SL-NDCASE
BATTERY CARTRIDGE (BP-185)
BATTERY-POWERED COMPRESSION TOOL
BATTERY CHARGER (CH-285)
STANDARD ACCESSORIES
CRIMPING TOOL
•
• 6 Ton Output
• Accepts “W” Type Dies
• One Hand Operation
• Fully-Enclosed, Weather-Resistant Housing
• LED Work Lights
• 180°Rotational Head
1
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
STANDARD ACCESSORIES
BATTERY CARTRIDGE
CARRYING CASE
BATTERY CHARGER
2
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
OPERATING INSTRUCTIONS
CHARGING THE BATTERY
ATTACHING THE BATTERY CARDTRIDGE
TRIGGER AND RELEASE BUTTON

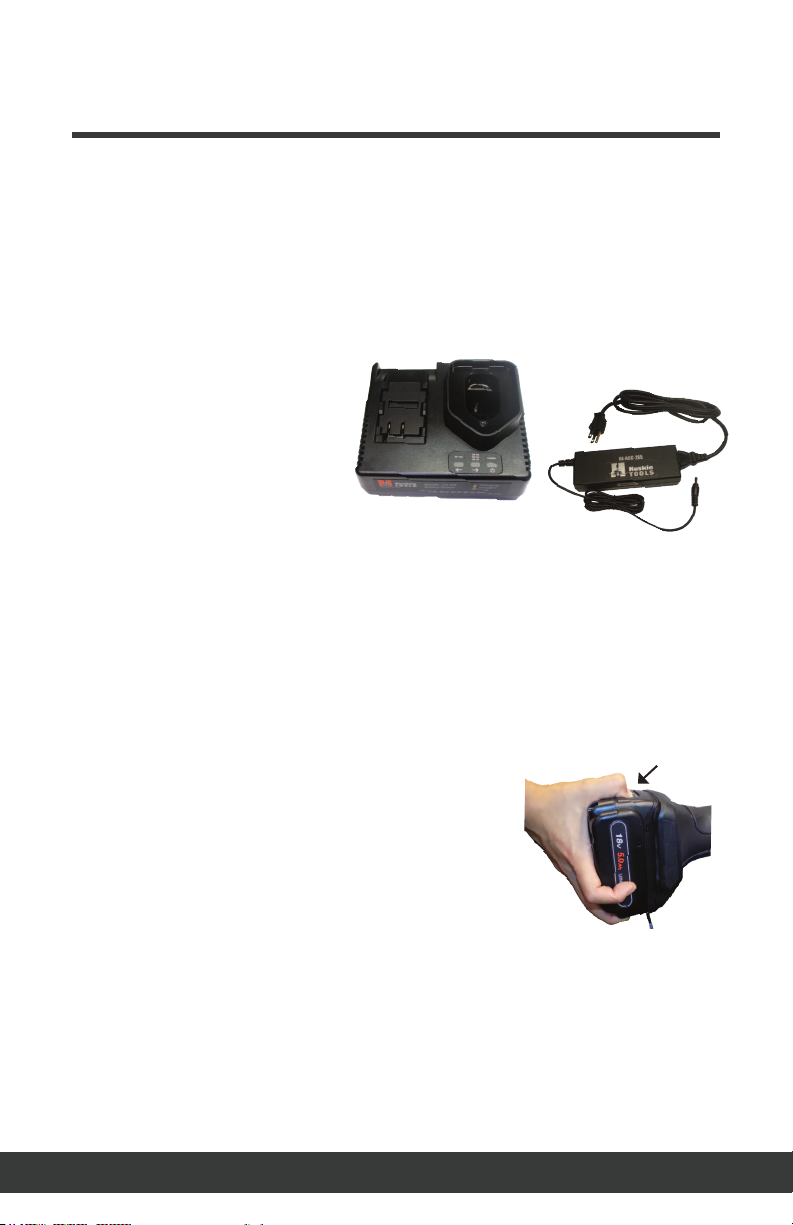

1. Insert the plug end into 120V power source. The LED indicator will be
steady green indicating the charger is now in “stand-by” mode and ready
to charge the battery.
Do not plug the charger into a generator as this
will likely cause the fuse in the charger to short, and will not operate.
2. To charge a drained battery, insert the battery into the charger until
the LED indicator shows a steady amber. This indicates the battery is
being charged and will be
completed in approximately
50-70 minutes. The LED
indicator will show a -
Steady Green (100%).
3. If the indicator shows a
battery is inserted, the battery is too hot to be charged and must be
cooled to room temperature before charging.
4.
possible short in the battery circuit, or a problem with the charger itself.
It is best to consult the factory for service if such a condition occurs.
1. While pressing the latch, pull up and out
the battery cartridge. To replace the battery
place.
2. After inserting a battery cartridge, check
that it is securely in place by pulling gently.
1. The ram advances when the trigger is pressed and stops when the
trigger is released.
2. To retract the ram, push the release button. The ram continues to
retract while the release button is pressed.
Latch Securely
3
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
Ensure that you have read and understand the safety instructions included
in this manual before you operate the tool.
Check whether the tool is damaged. Before using the tool, always carefully
check that parts are functioning correctly.
Check that moving parts do not become stuck and are not damaged.
use the tool if damaged or defective parts are detected. Damaged
Slide the battery into the handle until you hear a click.
Before using the tool, check that the moveable piston is in its rest position
(fully retracted, by actuating the retract trigger).
Loos’ battery-driven, handheld, open jaw swaging tool has a powerful
6-ton output which will crimp the 3/32, 1/8, 3/16, and 1/4 inch copper and
aluminum oval sleeves onto the corresponding sizes of wire rope.
The tool utilizes interchangeable dies that are manufactured by Loos & Co.
dies are sold in pairs, one pair for each size sleeve. The 3/32 and 1/8
OPERATING INSTRUCTIONS
Insert Screw
Retract Trigger Battery
Crimping Jaws
Forward Trigger
4
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
OPERATING INSTRUCTIONS
1/43/16
1/8
3/32
INSERT DIE SET
Activate the retract trigger (4) to open jaws of tool.
Select proper die to be used and slide both pieces of the die set into jaws of the
tool by unscrewing the insert screw (5) on slide of jaw, then slide die into place
and retighten.
Place the cable sleeve to be crimped between the 2 dies. Press on the
forward trigger to crimp the sleeve onto the cable. An audible click advises
when the swage (crimp) is completed.
Open the jaws of the tool by pressing the retract trigger (4) you may now
crimp another sleeve or you may start another crimp cycle of the tool (for
the larger #GR6 and #BL8 sleeves).
#BL8#GR6
#OR4
#G03
5
IMPORTANT:
the way in, otherwise it will break
the aligning ears on corners.
Insert Screw
(5)
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
↑↑
#GO3-CBL #GR6-CBL

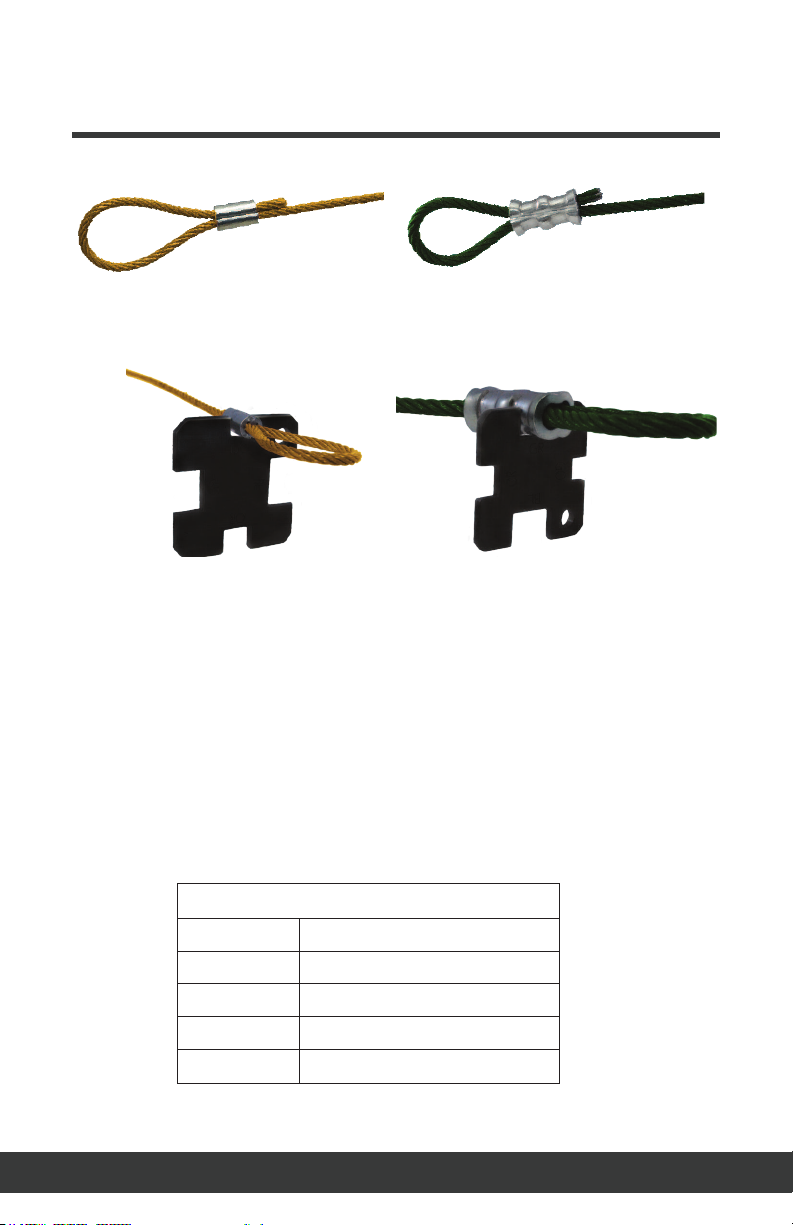

Finished sleeve should look like this. Be sure sleeves have been
compressed the proper number of times. (See
Figure 1)
diameter of sleeve. Compressed sleeve should slide into size slot in gauge.
Sleeves elongate after compression. To assure maximum holding, allow the
end of the cable to extend beyond the sleeve after it is compressed.
The following chart indicates to number of compressions for each size sleeve
one compression for the #GO3 and #OR4 size sleeves.
sleeves with #GO3 die (DI2-3), #OR4 sleeve with #OR4 die (DI2-4) and so
on. For lap splices at least two oval sleeves should be used.
1
1
2
#BL8
Figure 1
6
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
1. Select appropriate dies for the connector to be compressed. Incorrect
combinations result in inferior connections of the conductors. Consult your
connector manufacturer for the recommended die/connector combinations.
2. Always point the tool away from other people.
3. If the tool is stored for an extended period at a temperature of less than 25°F
(-5°C), the tool should be allowed to return to room temperature to ensure
1 hour.
4. Do not drop the tool. Dropping the tool may damage the hydraulic circuit and
result in the tool not functioning correctly.
5. Keep the head and ram clean and free of debris. Solvents can be used to
water to clean the body.
IMPORTANT OPERATING PRECAUTIONS
PRECAUTIONS FOR THE TOOL
PRECAUTIONS FOR THE BATTERY CARTRIDGE
1. Do not short circuit the contacts or expose the cartridge to water, oil or
solvents.
2. Do not disassemble or attempt to repair the battery cartridge or dispose of in
3. Do not drop or otherwise abuse the battery cartridge.
4. Do not leave the cartridge in locations where it will be exposed to a temperature
greater than 140°F (60°C) for an extended period.
5. The battery has a limited life. When the crimping capacity becomes about 1/2
that of the original capacity, the battery should be replaced.
6. If the battery cartridge is stored without being charged, natural drainage
will cause the power to be reduced. The battery should be charged every 3
months if not in use.
7
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
WARRANTY
Huskie Tools products carry a warranty that makes us a leader in the tool
industry. No other manufacturer dares to back its tools as we do.
PRODUCT WARRANTY
REC-Series battery-operated products 5 Years
IL-7ND 3 Years
ECO-Series products 1 Year
Power Tools 3 Years
Batteries (BP-185) 3 Years
Chargers (CH-185, CH-285) 3 Years
The warranty does not cover any damages incurred from a Huskie tool
including damages to property, bodily injuries, and lost wages resulting
from such injuries. This warranty solely covers the repair or replacement
of tools supplied by Huskie. These remedies are exclusive, and the total
liability of Huskie Tools, Inc. whether based on contract, warranty, neg-
purchase price of the tool. In no event shall Huskie Tools, Inc. be liable for
8
www.LoosSeismicBracing.com Toll Free: 800-321-LOOS (5667)
9
WARRANTY
Huskie reserves the right to determine all warranty claims. Huskie will not
waranty tools containing parts or batteries not originally supplied by Hus-
kie. Failure due to misuse, improper maintenance, misapplication, not fol-
lowing instructions or warnings, abuse or repairs attempted by anyone
other than Huskie Tools, Inc. or an authorized service center renders this
warranty null and void.
Repair and Warranty Claims
All claims must be sent to Huskie for inspection and authorization. A
Huskie. Secure the authorization by telephoning or writing to Huskie’s
using the same procedure. Repairs exceeding 50 percent of the cost of a
new tool will be advised before repairs are made.
Payment Terms
Freight
All Huskie Tools are FOB, Glendale Heights, Illinois. Goods will be shipped
$17,000 are pre-paid.
Quotations
Toll Free: 800-321-LOOS (5667)
www.LoosSeismicBracing.com 10
WARRANTY
Complete Support Services
Our customers have direct access to us for training, service, and
and a large stock of parts. This contrasts with many tool suppliers who
reasons why our customers love to do business with us:
• Quick delivery
•
• Training and troubleshooting services
• Fast repair service
• Design and engineering service for special tools
HOW TO GET SERVICE UNDER THE TERMS OF THE
LIMITED WARRANTY
Return your product directly to Huskie Tools, Inc. as our
representative network is not prepared to service the product under
the terms of this warranty.
1. Write, call, or fax Huskie stating the tool’s purchase date and problem.
You will be given an RGA # to assure that your merchandise will be prop-
erly handled upon its receipt.
prevent damage or loss during transit. The shipment must be prepaid and
we recommend that it be insured. A cover letter indicating the reason for
the return should be included in order to facilitate repairs.
198 N. Brandon Drive, Glendale Heights, IL 60139
Phone: (800) 860-6170 Fax: (800) 345-3767
HuskieTools.com
901 Industrial Blvd • Naples, FL 34104
Tel: (239) 643-LOOS • Fax (239) 643-4558
