Lopi heritage User manual

Featuring the Burner
• Direct Vent Freestanding Stove
• Natural Gas or Propane
• Vent Horizontally or Vertically
• Standard Residential
• Mobile Home Approved
Tested and Listed by
Omni-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028 – S – 19 - 1
ANSIZ21.88
WARNING: If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service mustbe performed by a qualified installer,service agency or the gas
supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and
must be installed in accordance with the manufacturer’s instructions and the manufactured
home construction and safety standard, Title 24 CFR, Part 3280 or Standard for Installation in
Mobile Homes, CAN/CSA Z240 MH.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
Heritage Owner’s Manual
Installer: After installation give this manual to the home-owner
and explain operation of this heater.
Copyright 2007, T.I. $10.00 100-01135 4050926 4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2Introduction
Travis Industries 100-01135 4020726
Introduction
We welcome you as a new owner of a Heritage Stove. In purchasing this heater you have joined the
growing ranks of concerned individuals whose selection of an energy system reflects both a concern
for the environment and aesthetics. The Heritage is one of the finest home heaters the world over.
This manual will explain the installation, operation, and maintenance of this gas-burning heater.
Please familiarize yourself with the Owner’s Manual before operating your heater and save the manual
for future reference. Included are helpful hints and suggestions which will make the installation and
operation of your new heater an easier and more enjoyable experience. We offer our continual
support and guidance to help you achieve the maximum benefit and enjoyment from your heater.
Important Information
No other Heritage 2002 has the same serial number as
yours. It can be found inside the right side panel.
This serial number will be needed in case you require
service of any type.
Model: Heritage EF III
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
heater. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.

Table of Contents 3
Travis Industries 100-01135 4020726
Introduction
Introduction......................................................2
Important Information .........................................2
Safety Precautions
Safety Precautions............................................4
Specifications
Installation Options............................................6
Features ..........................................................6
Heating Specifications........................................6
Dimensions.......................................................6
Electrical Specifications......................................6
Fuel.................................................................6
Installation
Installation Warnings..........................................7
Packing List......................................................7
Installation Preparation.......................................7
Stove Clearances ..............................................7
Mobile Home Requirements..................................7
Heater Placement Requirements...........................8
Floor Protection Requirements..............................8
Gas Line Installation...........................................8
Gas Inlet Pressure ........................................8
Vent Requirements.............................................9
Altitude Considerations ..................................9
Approved Vent Configurations..............................10

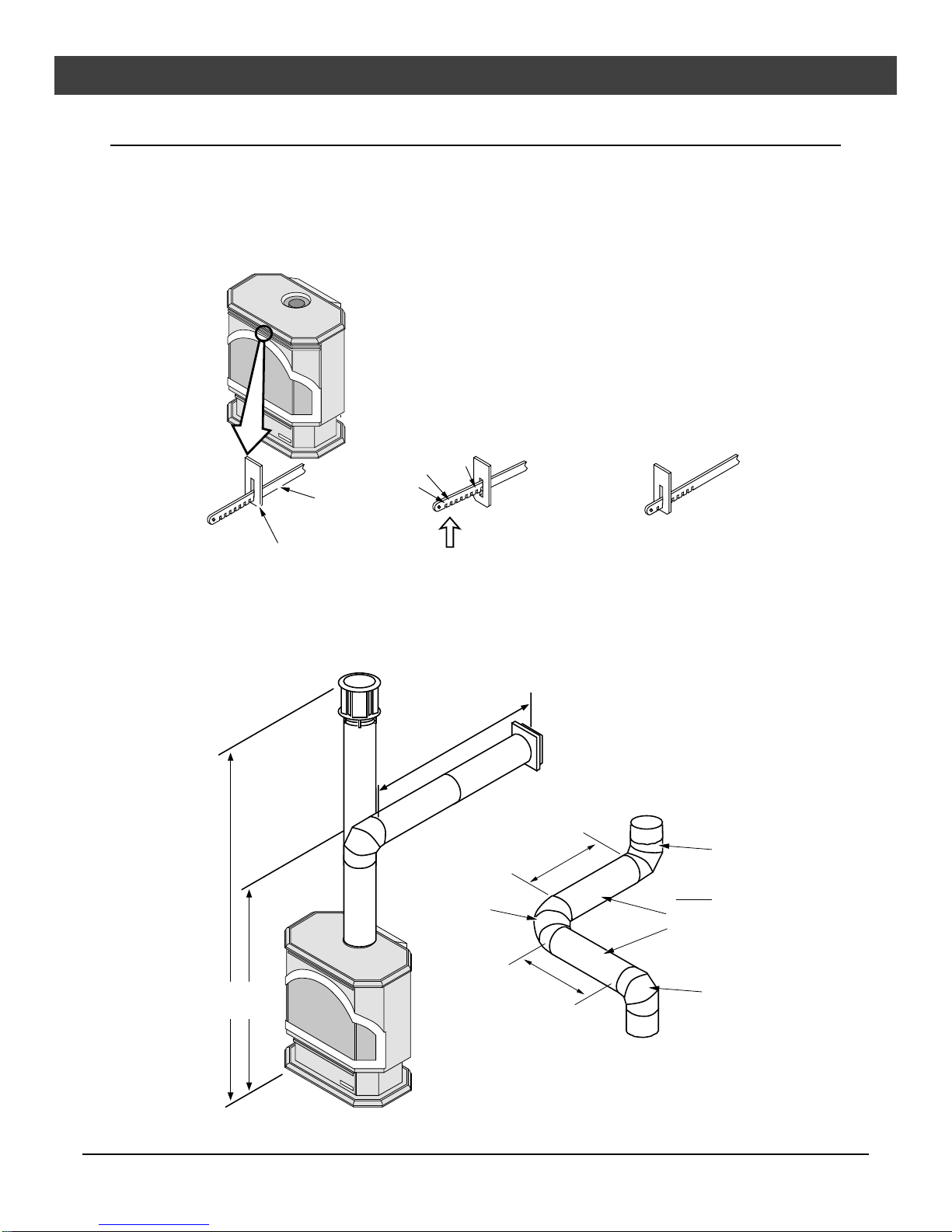

Restrictor Position.........................................10
Elbows........................................................10
Measuring Vent Lengths.................................10

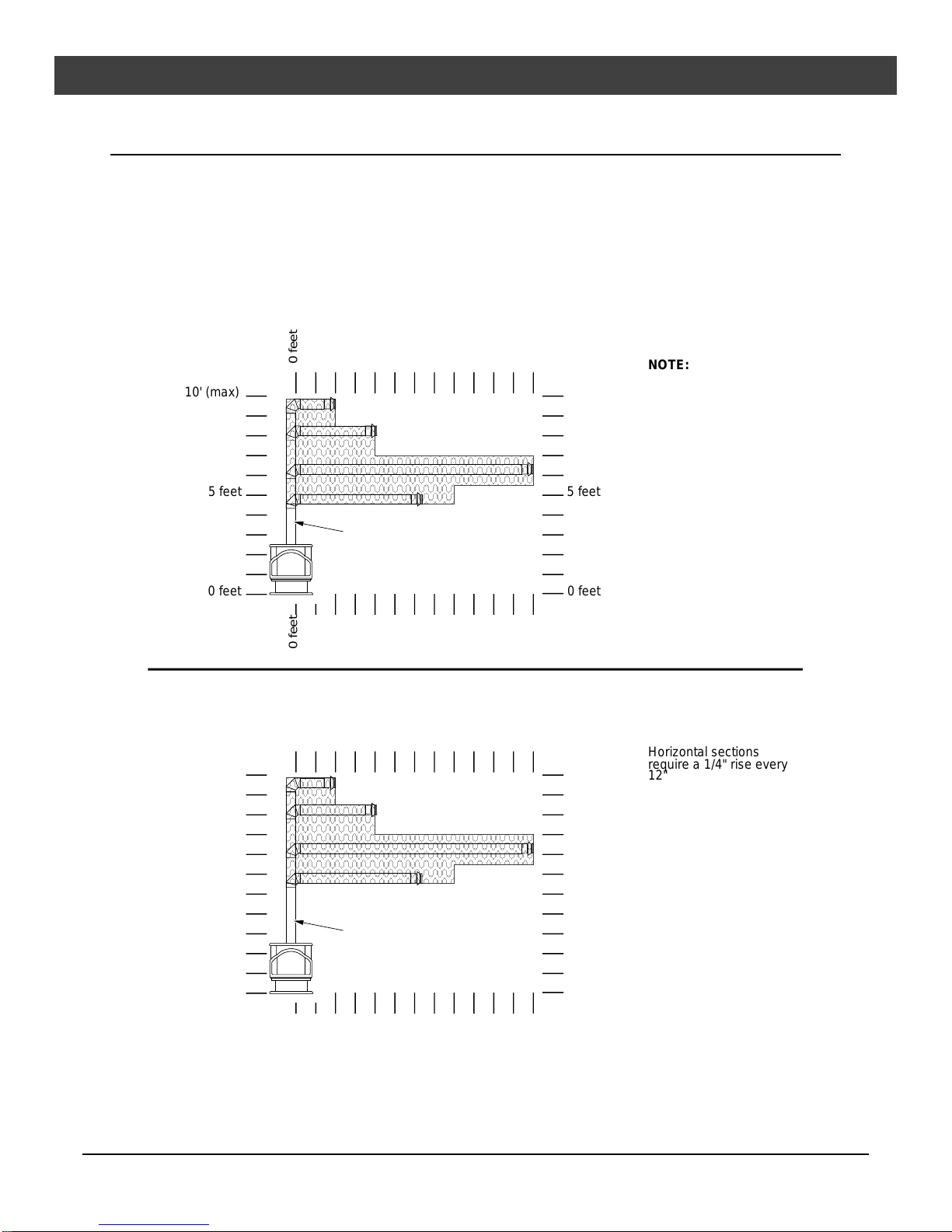

Vertical Term’s with (or without) 2 45° Elbows ......11
Horizontal Terminations..................................12

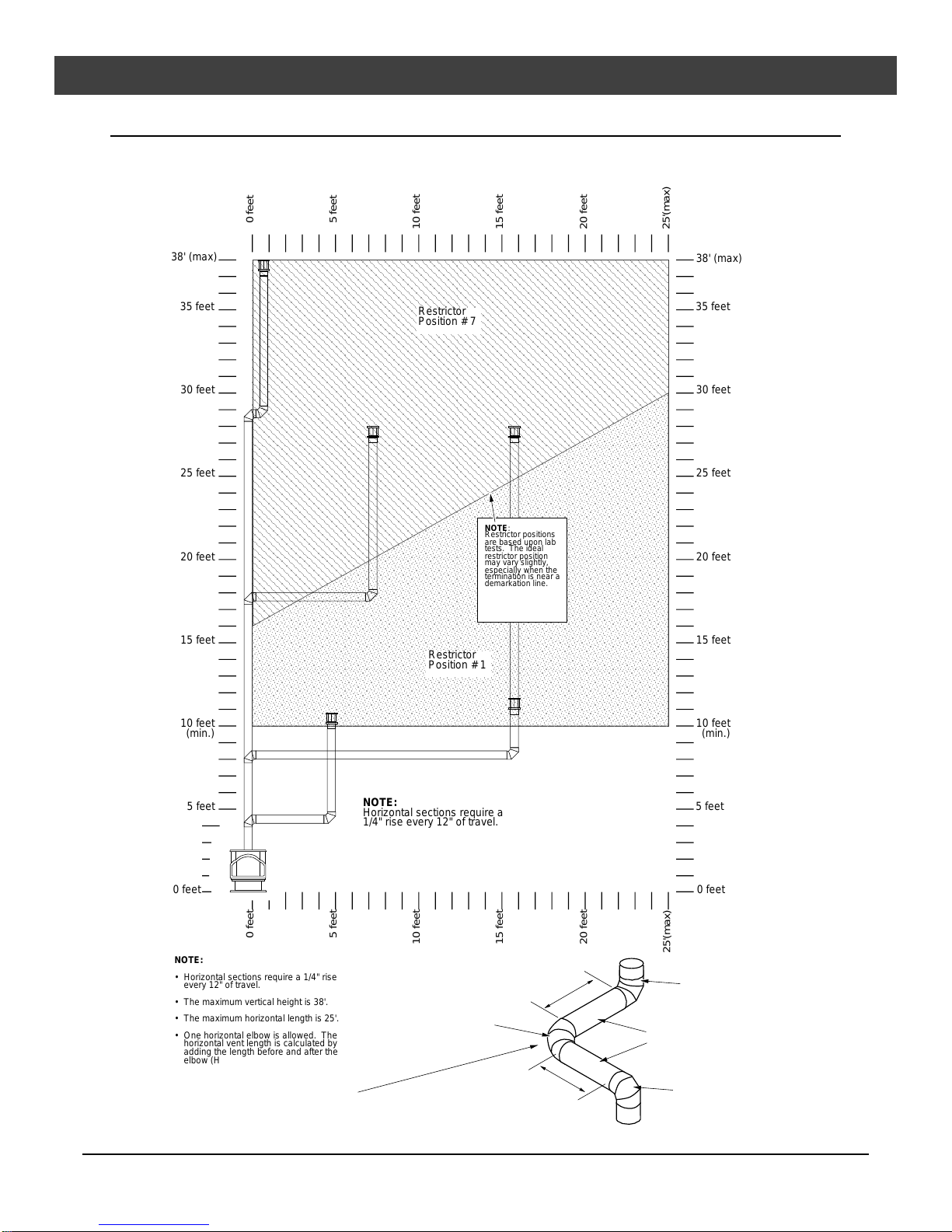

Vertical Term’s with Two 90° Elbows ..................13

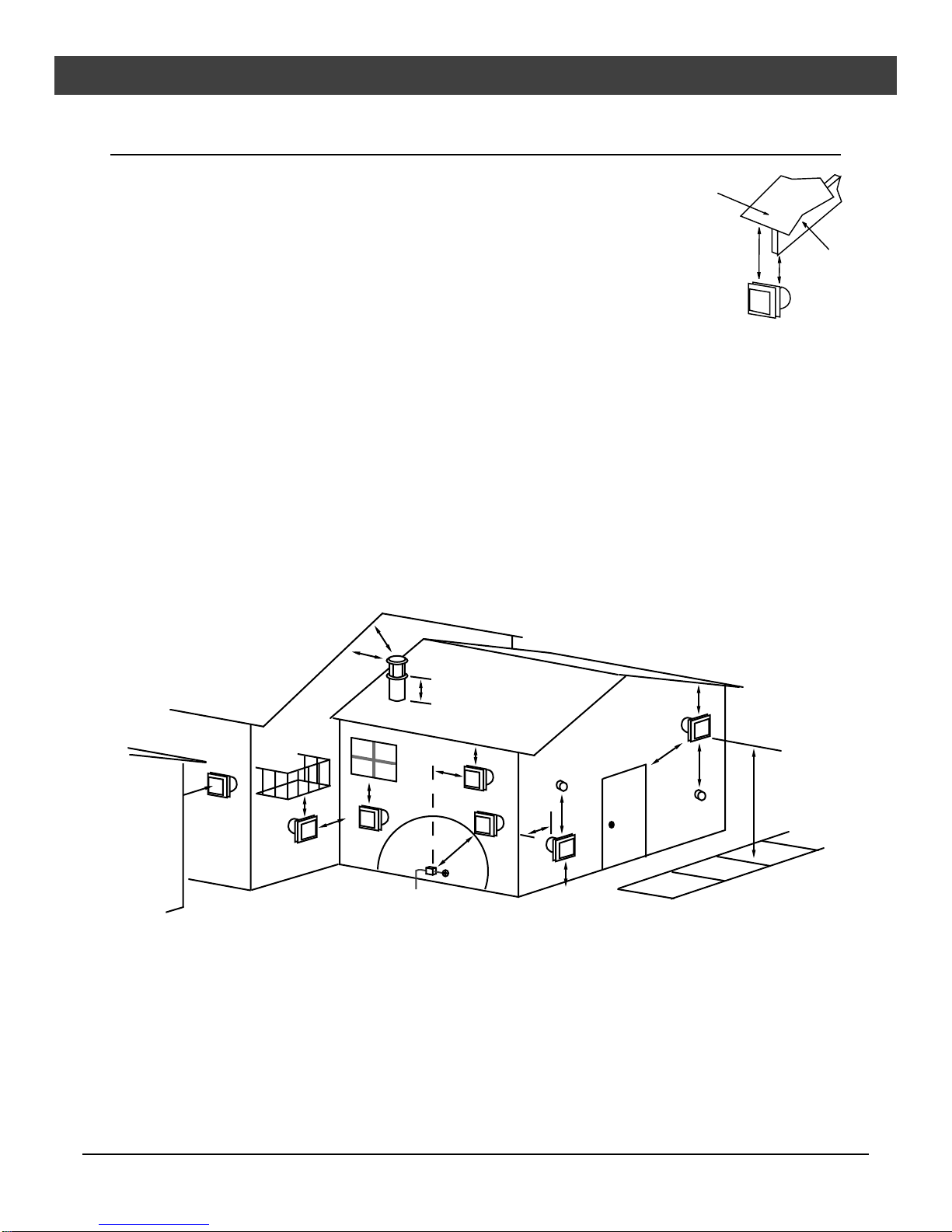

Termination Requirements ...................................14
Finalizing the Installation.....................................15
Opening the Door...............................................17

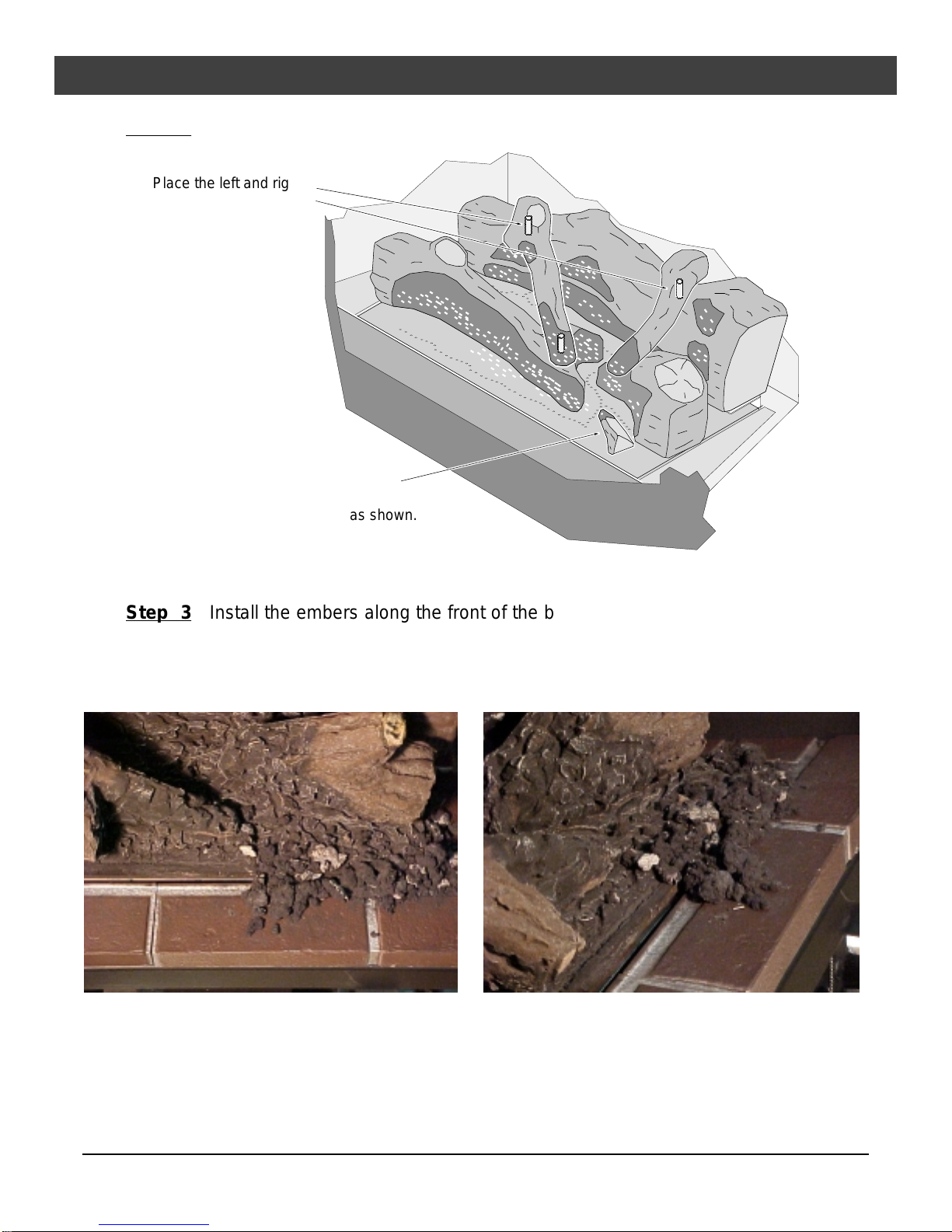

Log Set and Coal Installation................................18
Operation
Safety Notice....................................................20

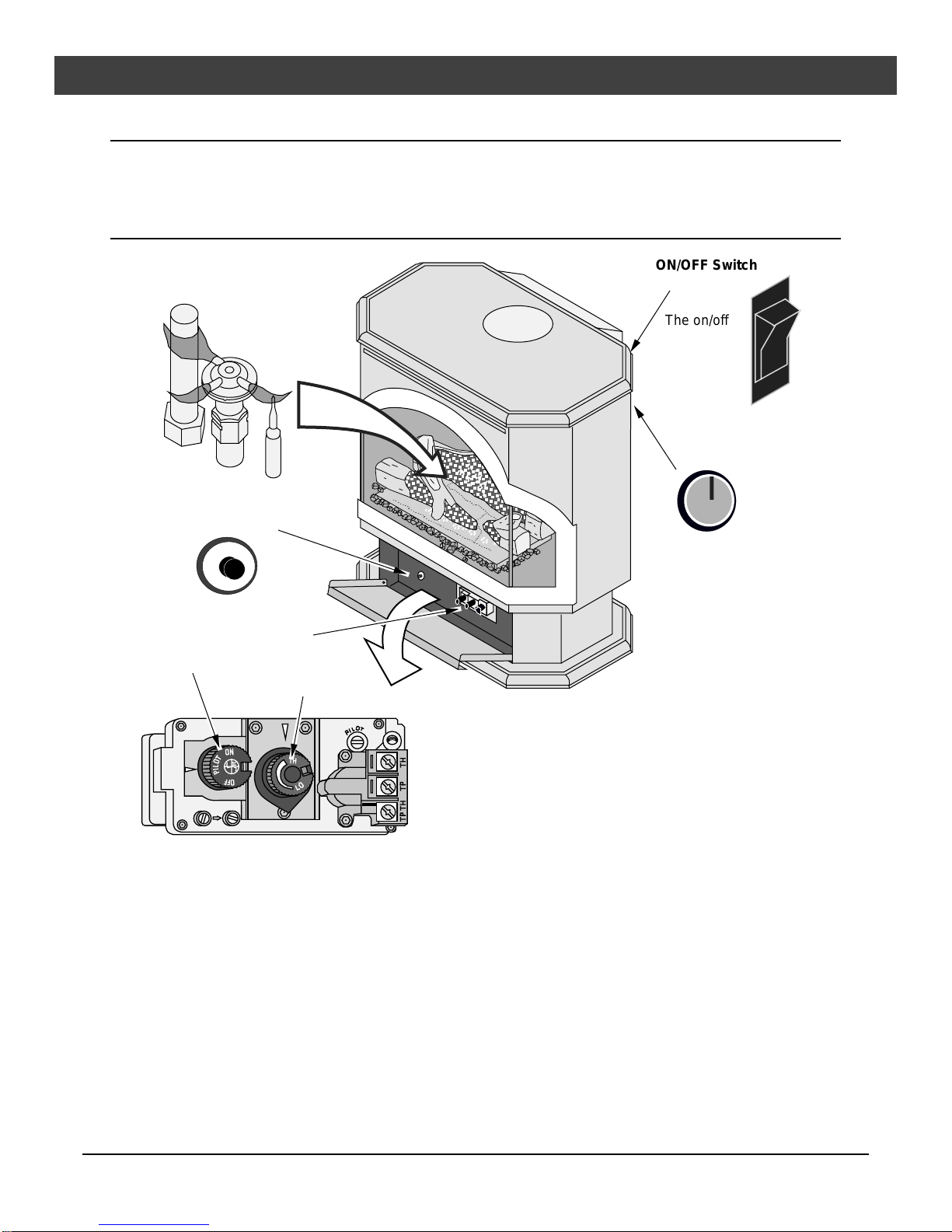

Location of Controls ...........................................20
Starting the Pilot Flame .......................................21
Starting the Heater for the First Time......................22
Turning the Heater On and Off ..............................22
Adjusting the Flame Height...................................22
Adjusting the Blower Speed..................................23
Normal Operating Sounds....................................23
Normal Operating Odors......................................23
Maintenance
Cleaning Your Heater..........................................24
Yearly Service Procedure....................................24
Troubleshooting Steps........................................25
How this Heater Works........................................26
Wiring Diagram ..................................................27
Replacement Parts.............................................27
Safety Label
Safety Label .....................................................28
Warranty
Warranty..........................................................29
Optional Equipment & Addenda
LP Conversion Instructions..................................30
Fireback...........................................................33
Gold Door.........................................................34
Gold Grill..........................................................34
Installation Addenda
Class A Chimney Conversion Kit ...........................35
Interior Masonry Chimney Conversions ..................35
Index
Index...............................................................36

4Safety Precautions
Travis Industries 100-01135 4040809
• IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor’s house, if not reached, call fire department
• This unit must be installed by a qualified installer to prevent the possibility of an
explosion. Your dealer will know the requirements in your area and can inform you of
those people considered qualified. The room heater should be inspected before use
and at least annually by a qualified service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift
methods or compromise in the installation. Improper installation will void the warranty
and safety listing.
For LPG only | Pout 11” W.C.
Look for this label:
If the label is present, the
heater is equipped for LP
(propane). If the label is
absent, the heater is equipped
for NG (natural gas).
•This heater is either approved for
natural gas (NG) or propane (LP).
Burning the incorrect fuel will void the
warranty and safety listing and may
cause an extreme safety hazard.
Check the label above the gas control
valve to make sure it matches the fuel
being used. Direct questions about
the type of fuel used to your dealer.
Ok
•Contact your local building
officials to obtain a permit
and information on any
installation restrictions or
inspection requirements in
your area. Notify your
insurance company of this
heater as well.
•If the flame becomes sooty,
dark orange in color, or
extremely tall, do not
operate the heater. Call
your dealer and arrange for
proper servicing.
•It is imperative that control
compartments, screens, or
circulating air passageways
of the heater be kept clean
and free of obstructions.
These areas provide the air
necessary for safe
operation. ?•Do not operate the heater if
it is not operating properly in
any fashion or if you are
uncertain. Call your dealer
for a full explanation of your
heater and what to expect.
Gas
•Do not store or use gasoline
or other flammable liquids in
the vicinity of this heater.
•Keep all furniture or other
combustible items at least
36”away from the front of
the heater.
AAAAA
AAAAA
AAAAA
AAAAA
AA
AA
•Do not operate if any portion
of the heater was
submerged in water or if any
corrosion occurs.

Safety Precautions 5
Travis Industries 100-01135 4040809
•Do not place clothing or
other flammable items on or
near the heater. Because
this heater can be controlled
by a thermostat there is a
possibility of the heater
turning on and igniting any
items placed on or near it.
AA
AA
AA
AA
A
•Light the heater using the
built-in piezo igniter. Do not
use matches or any other
external device to light your
heater.
•Never remove, replace,
modify or substitute any part
of the heater unless
instructions are given in this
•The door (glass) should only
be opened while lighting the
pilot or conducting service.
Damaged glass must be
replaced.
•Any safety screen or guard
removed for servicing must
be replaced prior to
operating the heater.
manual. All other work must
be done by a trained
technician. Don’t modify or
replace orifices.
•Allow the heater to cool
before carrying out any
maintenance or cleaning.
•Operate the heater
according to the instructions
included in this manual.
•If the main burners do not
start correctly turn the gas
off at the gas control valve
and call your dealer for
service.
•The pilot flame must contact
the thermopile and
thermocouple (see the
illustration to the left). If it
does not, turn the gas
control valve to “OFF”and
call your dealer.
AA
AA
AA
AA
•This unit is not for use with
solid fuel
•Do not place anything inside
the firebox (except the
included fiber logs).
•If the fiber logs become
damaged, replace with
Travis Industries log set.
This
Manual
•Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
•Do not touch the hot
surfaces of the heater.
Educate all children of the
danger of a high-
temperature heater. Young
children should be
supervised when they are in
the same room as the
heater.
•Plug the heater into a 120V
grounded electrical outlet.
Do not remove the
grounding plug.
•Don’t route the electrical
cord in front of, over, or
under the heater
•Instruct everyone in the
house how to shut gas off to
the appliance and at the gas
main shutoff valve. The gas
main shutoff valve is usually
next to the gas meter or
propane tank and requires a
wrench to shut off.
•Travis Industries, Inc.
grants no warranty,
implied or stated, for
the installation or
maintenance of your
heater, and assumes
no responsibility of any
consequential
damage(s).

6Specifications
Travis Industries 100-01135 4040809
Installation Options:
• Freestanding Stove
• Residential or Mobile Home
• Horizontal or Vertical Vent
Features:
• Ember Fyre ™ Burner for "Wood Fire" Look
• Works During Power Outages
• Optional Thermostat or Remote Control
• Variable-Rate Heat Output
• Blower Standard
Heating Specifications:
Approximate Heating Capacity (in square feet)*......1,200 to 2,000 With Blower, 800 to 1,600 Without
Maximum BTU Input Per Hour...............................43,000 (NG & LP)
Minimum BTU Output on Low (with blowers on).....23,384 (NG) 20,800 (LP)
Steady State Efficiency........................................up to 78% (NG), 81% (LP)
AFUE..................................................................71% (NG), 73.7% (LP)
* Heating capacity will vary depending on the home’s floor plan, degree of insulation, and the outside
temperature.
** Efficiency rating is a product of thermal efficiency rating determined under continuous operation independent
of installed system. To measure the net BTU’s, multiply the BTU input by the efficiency percentage.
Dimensions:
Fuel:
This heater is shipped in
natural gas (NG)
configuration but may be
converted to propane (LP)
using the included LP
conversion kit. The sticker
on top of the gas control
valve will verify the correct
fuel.
6-1/4”
Weight: 275
Lbs
32”
20-3/8"
Measure
Clearances
from the
Stove Top
The 6-5/8”diameter
starter section is 1-1/4"
above the top.
27-3/8"
Electrical Specifications
Electrical Rating.........................................................115 Volts, 0.8 Amps, 60 Hz (92 watts on high)

Installation (for qualified installers only) 7
Travis Industries 100-01135 4040809
Installation Warnings
!Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
!This heater must be installed by a qualified installer who has gone through a training program for the
installation of direct vent gas appliances.
!This appliance must be installed in accordance with all local codes, if any; if not, follow current ANSI
Z223.1 or NFPA 54.
!In Manufactured or Mobile Homes this appliance must be installed to the applicable Mobile Home
Standards: Title 24 CFR, Criteria for Manufactured Home Installations, Sites and Communities, and/or
ANSI/NFPA 501A. This appliance may be installed in Manufactured Housing only after the home is site
located.
!This appliance is designed for natural gas or propane (LP). Check the sticker on top of the gas control
valve.
!All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn from
outside the living-area structure.
!Notify your insurance company before hooking up this appliance.
!The requirements below are divided into sections - all requirements must be met simultaneously.
Packing List
•Log Set with Coals •Propane Conversion Kit •Latch Tool
Installation Preparation
HINT: If converting to LP, convert the appliance prior to installation.
HINT: Install the logs last - they are fragile.
HINT: When determining the location of the stove, locate the wall studs (for horizontal penetrations)
and ceiling trusses (for vertical penetrations). You may wish to adjust the stove position
slightly to ensure the vent does not intersect with a framing member.
HINT: Fumes and smoke from the paint curing and oil burning off the steel may occur the first time
you start this heater. This is normal. We recommend you open windows to vent the room.
Stove
Clearances
Mobile Home
Requirements
10" Min.
4" Min.
Straight Installations Corner Installations
With this clearance, the vent is
centered 15-1/8" from the wall.
45°
4" Min.
With this clearance, the vent is
centered 10-1/4”from the back
wall, 23-3/4”from the side wall.
•When the stove is installed in a mobile home, it must be bolted to the floor and the appliance
grounded (use the blower with a grounded circuit or other suitable grounding method - current
ANSI/NFPA 70).

8Installation (for qualified installers only)
Travis Industries 100-01135 4040809
Heater Placement Requirements
•Heater must be installed on a level surface capable of supporting the heater and vent
•Due to the high temperature, the heater should be located out of traffic and away from furniture
and draperies.
?When placed in a location where the floor to ceiling height is under 7 feet, the installation is
considered an alcove and must meet the following requirements:
•The alcove floor to ceiling height must be at least 60”tall
•The alcove must not be more than 48”deep before the ceiling returns to 7’
•The alcove must be at least 47-3/8”wide
•The heater must not be placed so the vents below or above the door, along the sides of heater, or
along the back of the heater can become blocked.
•This heater may be placed in a bedroom. Please be aware of the large amount of heat this
appliance produces when determining a location.
Floor Protection Requirements
•When the stove is installed directly on carpeting, vinyl or other combustible material other than
wood flooring or a high pressure laminate wood floor, the stove must be installed on a metal or
wood protection panel extending the full width and depth of the heater (Minimum 27-3/8”wide by
20-3/8”deep).
Gas Line Installation
!The gas line must be installed in accordance with all local codes, if any; if not, follow current ANSI
Z223.1 or NFPA 54.
!The heater and gas control valve must be disconnected from the gas supply piping during any
pressure testing of that system at test pressures in excess of 1/2 psig (3.45 kPA). For pressures
under 1/2 psig (3.45 kPA), isolate the gas supply piping by closing the manual shutoff valve.
•This heater is designed for natural gas but can be converted to
propane. Check the sticker on the top of the gas control valve
to make sure the correct fuel is used.
•Leak test all gas line joints and the gas control valve prior to and
after starting the heater.
•The gas inlet accepts a 3/8”F.P.T. Fitting
•The location of the gas inlet is shown below
•A manual shutoff valve is required for installation (it must be
located within 3’of the heater). T-Handle gas cocks are required
in Massachusetts in compliance with code 248CMR.
•Installation must be performed by a qualified installer, service
agency or the gas supplier (In Massachusetts a licensed
plumber/gasfitter).
Gas Inlet Pressure
A
A
17-1/2"
6-1/4”
Center
of
Heater From
Front of
Heater
3”
•With the heater off, the inlet pressure must meet the requirements listed in the table below
?If the pressure is not sufficient, make sure the piping used is large enough and the total gas load
for the residence does not exceed the amount supplied.
?The supply regulator (the regulator that attaches directly to the residence inlet or to the propane
tank) should supply gas at the suggested input pressure listed below. Contact the local gas
supplier if the regulator is at an improper pressure.
Standard Input Pressure
Natural Gas 7”W.C. (1.74 Kpa)
Propane 13”W.C. (3.23 Kpa)

Installation (for qualified installers only) 9
Travis Industries 100-01135 4040809

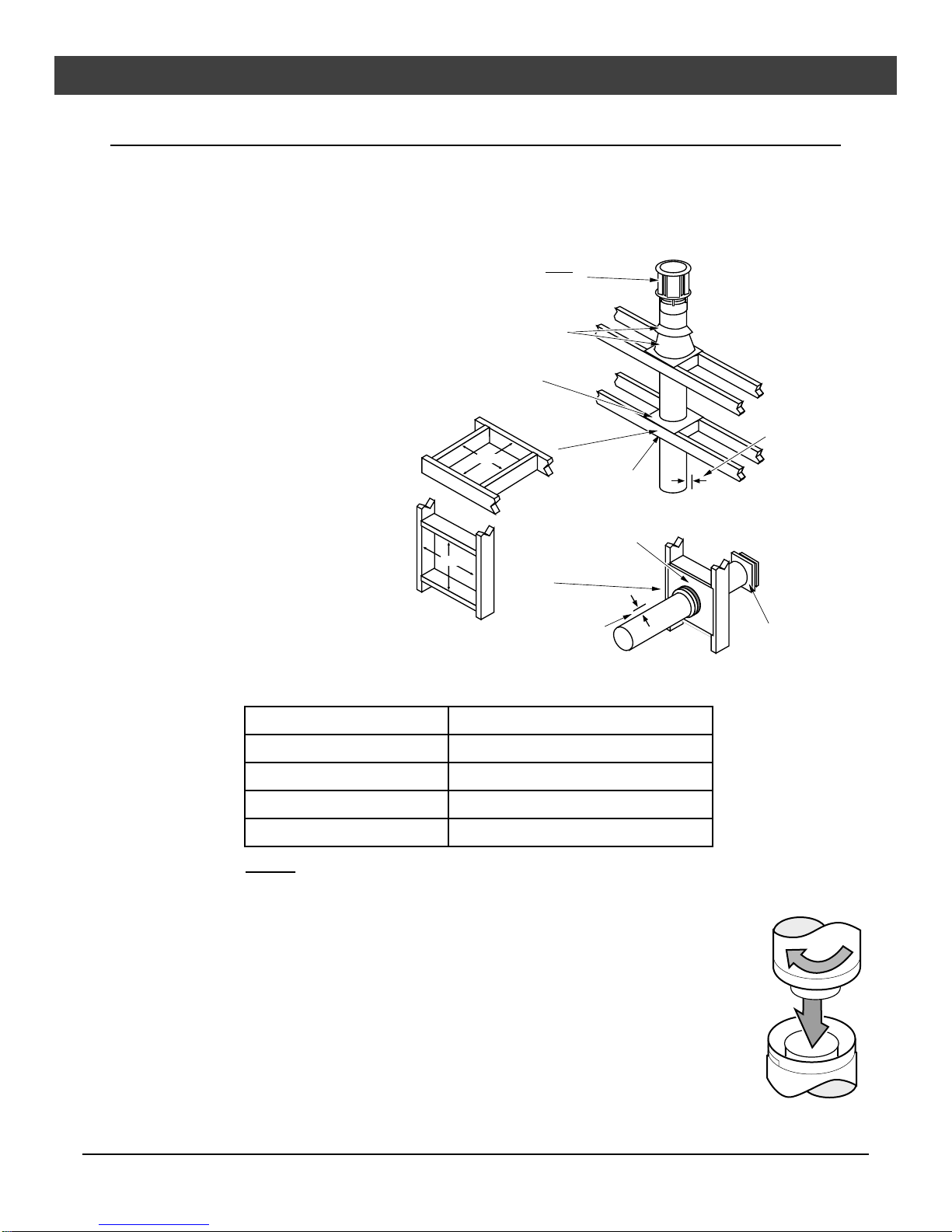

Vent Requirements
!Always maintain the required 1” clearance (air space) to combustible materials to prevent a fire hazard.
Do not fill air spaces with insulation.
!The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas
appliance must use it’s own separate vent system.
• This appliance is equipped only for
altitudes 0-2000 feet. However, our
in-house testing has shown that the
unit operated at altitudes to 8000 ft.
!Failure to adjust the air shutter
properly may lead to improper
combustion which can create a safety
hazard. Consult your dealer or
installer if you suspect an improperly
adjusted air shutter.
• When the vent passes through a wall,
a wall thimble is required. When the
vent passes through a ceiling, a
support box or firestop is required.
When the vent passes through the
roof, a roof flashing and storm collar
are required. Follow the instructions
provided with the vent (from
Duravent®) for installing these items.
Use a firestop spacer whenever
passing through a ceiling
Vertical Termination NOTE:
always use the "high-wind"
version (if applicable)
Use a roof flashing and storm collar
whenever passing through the roof
Use a support box
on exposed vent
Vertical Vent
Requirements
Use a firestop whenever
passing through a wall
Horizontal Termination
Maintain a minimum 1"
clearance from vent to any
combustible.
Minimum
Framing for
wall thimble
Horizontal Vent
Requirements
Minimum framing
for fire stop Maintain a minimum 1"
clearance from vent to
any combustible
8-5/8"
8-5/8"
•Use of of the following 6-5/8" diameter co-axial gas direct vent systems:
Manuafacturer Series
Simpson Dura-Vent Model GS
Selkirk Hearth Products Direct-Temp
American Metal Products Ameri-Vent
Metal-Fab Inc. Direct-Vent with 4DHT or 4DVT Cap
NOTE: Always use the high-wind cap for the type of vent you are using (if applicable)
•Slide the vent sections together and turn 1/4 turn until the sections lock in place.
•Screws are not required to secure the vent. However, three screws may be used to
secure vent sections together if desired.
•High temperature sealant is recommended at the appliance starter section connection
(use high-temperature silicone or Mill-Pac®).
•If disassembly is required, at time of re-assembly check to see if the vent creates a tight
fit. If it does not, apply high temperature sealant to the joints of the affected sections.
•Horizontal sections require a 1/4" rise every 12" of travel
•Horizontal sections require non-combustible support every three feet (e.g.: plumbing
tape)

10 Installation (for qualified installers only)
Travis Industries 100-01135 4040809
Approved Vent Configurations
Restrictor Position
•A vent restrictor is built into the appliance to control the flow rate of exhaust gases. This ensures
proper flames for the wide variety of vent configurations. Depending upon the vent configuration, you
may be required to adjust the restrictor position. The charts for approved vent configurations describe
which position the vent restrictor must be in.
The restrictor is located
directly above the door,
behind the grill.
To Adjust the Restrictor:
To Access the Restrictor:
1
2
Determine the correct restrictor position (see the charts under
"Approved Vent Configurations" - the factory position is #1).
Lift up the adjustment plate and move it so the correct notch
falls into the slot on the adjustment bracket.
This restrictor is in position 1
(factory setting).
This restrictor is in position 7.
Adjustment
Bracket To adjust, lift up on the
adjustment plate and
push it back.
WARNING: Use a glove to protect
your hand from burns.
Adjustment
Plate
# 8
# 7 # 2
etc.
Measuring Vent Lengths
Vent
Horizontal
Run
Vent Horizontal Run is
measured from the start of
the horizontal section to the
end of the termination.
Vent Height is calculated to
the top of the vent on
horizontal terminations and
to the top of the termination
on vertical terminations.
Vent
Height Vertical Elbow
NOTE:
When a horizontal elbow (90°or 45°) is
used, horizontal length is the sum of the
two lengths (H1 + H2).
H1
H2
Horizontal
Elbow
Vertical Elbow

Installation (for qualified installers only) 11
Travis Industries 100-01135 4040809
Vertical Terminations with 0, 2, or 4 45° Offsets
Offset Length Hor. Offset Vert. Rise
None 5" 1'
1' Section 1' 1' 7"
2' Section 1' 9" 2' 4"
3' Section 2' 5" 3'
4' Section 3' 2" 3' 8"
•The termination must fall within the shaded area shown in the
chart. Use the indicated restrictor position.
Offset
Length
Horizontal
Offset
Vertical
Rise
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
Restrictor
Position # 1
5 feet
10 feet
(min.)
15 feet
20 feet
25 feet
30 feet
0 feet
0 feet
5 feet
12' 8"
(max)
5 feet
0 feet
0 feet
5 feet
12' 8"
(max)
10 feet
(min.)
15 feet
20 feet
25 feet
30 feet
NOTE:
Restrictor positions are based upon
lab tests. The ideal restrictor position
may vary slightly, especially when the
termination is near the demarkation
line.
Four 45°Offsets
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
5 feet
10 feet
(min.)
15 feet
20 feet
25 feet
30 feet
0 feet
38' (max)
0 feet
5 feet
12' 8"
(max)
5 feet
0 feet
0 feet
Restrictor
Position # 1
Restrictor
Position # 7
10 feet
(min.)
15 feet
20 feet
30 feet
38' (max)
Zero or Two 45°Offsets
5 feet
NOTE:
The maximum offset
lengths, combined, is
four 4' sections.
NOTE:
Restrictor positions are based upon lab tests. The
ideal restrictor position may vary slightly, especially
when the termination is near the demarkation line.
25 feet
10 feet
10 feet
12' 8"
(max)
10 feet
NOTE:
The maximum offset lengths,
combined, is four 4' sections.
10 feet
35 feet35 feet
38' (max) 38' (max)
Restrictor
Position # 7
35 feet35 feet

12 Installation (for qualified installers only)
Travis Industries 100-01135 4040809
Approved Venting Configurations with a Horizontal Termination
•If using a Snorkel Termination (14”or 36”) add the snorkel height to the vertical height (snorkel
terminations are used primarily for basement installations).
•The termination must fall within the shaded area shown in the chart. Use restrictor position #1.
Natural Gas (NG)
Installations
Propane (LP)
Installations
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
5 feet
0 feet
10' (max)
0 feet
5 feet
0 feet
0 feet
NOTE:
Horizontal sections
require a 1/4" rise every
12" of travel.
12 feet
(max)
NOTE:
A minimum 2 foot rise is required
directly off of the stove.
12 feet
(max)
5 feet
10' (max)
5 feet
Use Restrictor Position # 1
(all shaded areas)
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
5 feet
0 feet
11' (max)
0 feet
5 feet
0 feet
0 feet
NOTE:
Horizontal sections
require a 1/4" rise every
12" of travel.
NOTE:
A minimum 3 foot rise is required
directly off of the stove.
12 feet
(max)
11' (max)
5 feet
Use Restrictor Position # 1
(all shaded areas)
12 feet
(max)
5 feet

Installation (for qualified installers only) 13
Travis Industries 100-01135 4040809
Vertical Terminations with Two or Three 90° Elbows
•The termination must fall within the shaded area shown in the chart. Use the indicated restrictor
position.
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
5 feet
10 feet
(min.)
15 feet
20 feet
25 feet
30 feet
0 feet
38' (max)
5 feet
10 feet
15 feet
0 feet
5 feet
10 feet
15 feet
25'(max)
15 feet
20 feet
25 feet
30 feet
0 feet
0 feet
NOTE:
Horizontal sections require a
1/4" rise every 12" of travel.
10 feet
(min.)
38' (max)
25'(max)
Restrictor
Position # 7
NOTE:
Restrictor positions
are based upon lab
tests. The ideal
restrictor position
may vary slightly,
especially when the
termination is near a
demarkation line.
5 feet
Restrictor
Position # 1
35 feet 35 feet
20 feet
20 feet
NOTE:
•Horizontal sections require a 1/4" rise
every 12" of travel.
•The maximum vertical height is 38'.
•The maximum horizontal length is 25'.
•One horizontal elbow is allowed. The
horizontal vent length is calculated by
adding the length before and after the
elbow (H1 + H2 = horizontal vent length).
H1
H2
This is considered a horizontal
elbow (it does not matter
whether it turns right or left).
It may be a 45°or 90°elbow.
This is considered a
vertical elbow
Horizontal length is calculated by adding
both lengths of horizontal run
(Horizontal Length = H1 + H2).
H1
H2 This is considered a
vertical elbow

14 Installation (for qualified installers only)
Travis Industries 100-01135 4040809
Termination Requirements (see the illustration below)
A Minimum 9" clearance from any door or window
B Minimum 12" above any grade, veranda, porch, deck or balcony
C Minimum 12" from outside corner walls
D Minimum 12" from inside corner walls
E Minimum 11" clearance below unventilated soffits or roof surfaces
Minimum 18" clearance below ventilated soffits
Minimum 6" clearance from roof eaves
NOTE: Vinyl surfaces require 24"
11”Min.
6”Min.
Roof
Surface
Roof
Eaves
F Minimum 18" clearance below a veranda, porch, deck or balcony (must have two open sides)
G Minimum 48" clearance from any adjacent building
H Minimum 84" clearance above any grade when adjacent to public walkways or driveways
NOTE: may not be used over a walkway or driveway shared by an adjacent building
I Minimum 48" clearance from any mechanical air supply inlet
J Minimum 36" clearance above and 48”below and to the sides of non-mechanical air supply inlet
K Minimum 36" from the area above the meter/regulator (vent outlet)
L Minimum 36" from the meter/regulator (vent outlet)
M Minimum 12”above the roof line (for vertical terminations)
N Minimum 24”horizontal clearance to any surface (such as an exterior wall) –for vertical terminations
C
B
H
E
GA
D
F
L
KJ
I
NOTE: Measure clearances to the nearest edge of the exhaust hood.
A
E
E
M
N
•Use the vinyl siding standoff (#950) when installing on an exterior with vinyl siding.
•Vent termination must not be located where it will become plugged by snow or other material
•These clearances meet UMC-1994 standards.

Installation (for qualified installers only) 15
Travis Industries 100-01135 4040809
Finalizing the Installation
!Turn the gas control valve to “OFF”prior to conducting any service.
1Open the door (see page 17).
2Install the log set and coals (see page 18).
!We recommend you purge the gas line at this time (with the door open). This allows gas to be
detected once it enters the firebox, ensuring gas does not build up.
3Close and secure the door (see page 17).
4Turn on gas to the heater. Leak test all gas joints prior to starting the appliance. Start the pilot. Start
the main burner. Leak test all gas joints again.
5Check the pilot flame to make sure it looks like the illustration below. Adjust the pilot flame if
necessary.
Standard
Screwdriver
The pilot flame must contact the thermocouple and
thermopile (see the illustration below). Adjust the pilot up or
down as necessary.
To adjust the pilot flame, turn this screw (NOTE: if totally
unscrewed gas will come out of this port). Clockwise
lowers the flame while counter-clockwise raises it.
6Let the heater burn
for fifteen minutes.
Adjust the air
shutters, if
necessary, to
achieve the correct
looking flame (see
the illustration
below).
•The air shutter
adjusts the amount
of air that mixes with
the gas before it
exits the burner
holes.
A
A
A
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
NOTE: If the air control is all the way open, yet the flames
remain sooty, shut off gas to the fireplace and contact a
qualified gas service technician.
NOTE: The logs must be installed correctly to monitor the
flame while adjusting the air shutter.
Correct
Flames should be blue at the
base, yellow-orange on the top. If the flames are over 12" tall or sooty
on the ends, push the air control in. If the flames are all blue and short, pull the air control out.
Not Enough Air Too Much Air
Open the access panel - the air shutters are above the gas control
valve.
Follow the directions below to adjust the front and rear air shutter
independently.
a
b
Rear Air Shutter
Left = Less Air (closed)
Right = More Air (open)
Front Air Shutter
Left = Less Air (closed)
Right = More Air (open)

16 Installation (for qualified installers only)
Travis Industries 100-01135 4040809
FINE TUNING THE EMBER-FYRE™BURNER
Each installation is affected by altitude, vent configuration, and fuel quality. Because of this, the restrictor and air
shutter may need to be fine tuned to each installation. Follow the hints below to fine-tune the burner for
optimum performance and aesthetics.
Restrictor Hints:
Set the restrictor to the position suggested in the vent configuration table (pages 10-13). Turn the heater on
and allow it to reach full temperature (15 min.). If the flames indicate there is excessive draft due to altitude or
climate, you may wish to adjust the restrictor to a more restrictive position (higher number). Active, flickering
short flames are an indication of excessive draft. If the flames lift off of the burner holes, this indicates not
enough draft (restrictor is set too high). After adjustments are made the unit must be cooled down to room
temperature and restarted to make sure that the restriction is not so severe that the pilot will drop out when it is
restarted. If the pilot does drop out reduce the restriction until it will operate continuously.
Air Shutter Hints:
• For more glow, open the air shutter, however, this will make the flames more blue.
• For yellow flames, close the air shutter, however, this may create less glow.
The flames should burn right
off the top of the burner ports
(if they are too blue, adjust
the air control).
Lifting flames indicate
insufficient draft (restrictor
is set too high).
Burner Burner Ports
(holes)
Ghosting flames indicate
insufficient air (restrictor set too
high, air shutter shut down, or
other venting error).
Lifting FlamesCorrect Flames
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
A
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
Ghosting Flames Flickering Flames
Flickering, short flames
indicate excessive draft
(move air shutter to a higher
position).
Warning: If the vent configuration is installed incorrectly the vent may cause the flames inside the heater to lift or
“ghost”–a dangerous situation. Inspect the flames after installation to insure proper performance. If the
vent configuration is correct, yet the flames are lifting or ghosting, shut off gas to the heater and contact
the dealer for information on remedying the problem.
7Turn the flame adjust knob to its highest position - the flames should be a maximum 10”to 12”tall.
Check the flame on low position. The flames should burn off of each burner hole. If the heater does
not work correctly, contact your dealer for a remedy.
8 Give this manual to the home owner and fully explain the operation of this heater.

Installation (for qualified installers only) 17
Travis Industries 100-01135 4040809
Opening the Door
Open both the top
and bottom latch.
With the pawl free of the
strike, the door may be
swung open.
Swing the left
panel back.
When securing the
door, make sure the
pawl fits over the strike
before tightening.
Strike
Pawl Door
Frame
NOTE: Do not overtighten the pawl by screwing
it in. This will permanently damage the latch.

18 Installation (for qualified installers only)
Travis Industries 100-01135 4040809
Log Set and Coal Installation
Step 1 Install the logs (see the illustration below).
1” to 1-1/2”
space
Note how the front left log is
spaced 1/4” to 3/8” off of the
burner holes.
Do not place
logs over
burner holes.
Top View
A
A
A
A
AA
AA
AA
A
A
Place the front logs
on top of the burner.
These bolts insert into the
holes in the logs.
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
AA
AA
A
A
Place the rear log on
the two platforms at
the rear of the firebox.
These pins insert
into the holes in
the log.
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A

Installation (for qualified installers only) 19
Travis Industries 100-01135 4040809
Step 2 Install the twigs and ember chunk (see the illustration below).
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
Place the left and right
twigs as shown.
AA
AA
AA
AA
A
A
AA
AA
AA
AA
AA
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
Place the ember
chunk as shown.
Step 3 Install the embers along the front of the burner (see the illustrations below).
Do not place the embers over the burner holes.
Front View Side View

20 Operation
Travis Industries 100-01135 4040809
Safety Notice
Read this entire manual (especially the “Safety Precautions”on pages 4 and 5)
before using this stove. Failure to follow the instructions may result in property
damage, bodily injury, or even death.
Location of Controls
PILOT
IGNITER
Blower
Control
Gas Control Valve
Gas Control Knob
Flame Adjust Knob
The pilot flame is located
below the rear log.
A
A
A
AAAA
AAAA
AAAA
A
AA
AA
AA
AA
ON/OFF Switch
The on/off
switch is
located on
the back of
the heater.
O
F
O
N
F
On/Off Switch This control is used to turn the main burner on and off.
Gas Control Knob This knob is used to control gas to the heater and for starting the pilot.
There are three positions, ON, OFF, & PILOT. The pointer to the left of
the knob indicates the position this knob is in.
Flame Adjust Knob This knob controls the flame height from low (“LO”) to high (“HI”). The
pointer above the knob points to the position this knob is in.
Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an
electrical charge to the pilot assembly. This creates a blue spark directly
next to the pilot, igniting the pilot flame.
Blower Control This knob controls the speed of the internal convection blower that
pushes the heated air into the room.
?If using a remote control or thermostat, the On/Off Switch must be left “ON”. Turning the On/Off
Switch “OFF”will keep the heater off always.
