LOWE'S 1227VA-60-326-926 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
60-IN VANITY WITH TOP
welcoming • sophisticated • inspiring
ITEM #4767922; 4767923; 4767920; 4767921; 4767918; 4767919; 4767916; 4767917; 4767914;
4767915; 4767912; 4767913; 4767910; 4767911; 4767908; 4767909; 4767906; 4767907;
4767904; 4767905; 1028419; 864278; 864276; 3839332; 864277; 3839331; 4767902; 4767903;
4767900; 4767901; 1028420; 864282; 864279; 3839330; 864281; 3839329
MODEL #1227VA-60-326-926; 1227VA-60-326-926-SR; 1227VA-60-326-925; 1227VA-60-326-925-SR;
1227VA-60-326-901; 1227VA-60-326-901-SR; 1227VA-60-326-900; 1227VA-60-326-900-SR;
1227VA-60-287-926; 1227VA-60-287-926-SR; 1227VA-60-287-925; 1227VA-60-287-925-SR;
1227VA-60-287-901; 1227VA-60-287-901-SR; 1227VA-60-287-900; 1227VA-60-287-900-SR;
1227VA-60-242-926; 1227VA-60-242-926-SR; 1227VA-60-242-925; 1227VA-60-242-925-SR;
1227VA-60-242-905; 1227VA-60-242-903; 1227VA-60-242-901; 1227VA-60-242-901-SR;
1227VA-60-242-900; 1227VA-60-242-900-SR;
1227VA-60-201-926; 1227VA-60-201-926-SR;
1227VA-60-201-925; 1227VA-60-201-925-SR; 1227VA-60-201-905; 1227VA-60-201-903;
1227VA-60-201-901; 1227VA-60-201-901-SR; 1227VA-60-201-900; 1227VA-60-201-900-SR
OR
OPTION 1
(Semi-Recessed Sink)
OPTION 2
(Undermount Sink)

2
1227VA-60-242-905 CNTRBRY 60-IN VTY LT GRY TZO TOP
1227VA-60-242-925-SR CNTRBRY 60-IN VTY LT GRY EC SR
1227VA-60-242-925 CNTRBRY 60-IN VTY LT GRY EC TOP
1227VA-60-242-926-SR CNTRBRY 60-IN VTY LT GRY ECLT SR
1227VA-60-242-926 CNTRBRY 60-IN VTY LT GRY ECLT TOP
1227VA-60-287-900-SR CNTRBRY 60-IN VTY LT BLUE CAR SR
1227VA-60-287-900 CNTRBRY 60-IN VTY LT BLUE CAR TOP
1227VA-60-287-901-SR CNTRBRY 60-IN VTY LT BLUE WH SR
1227VA-60-287-901 CNTRBRY 60-IN VTY LT BLUE WH TOP
1227VA-60-287-925-SR CNTRBRY 60-IN VTY LT BLUE EC SR
1227VA-60-287-925 CNTRBRY 60-IN VTY LT BLUE EC TOP
1227VA-60-287-926-SR CNTRBRY 60-IN VTY LT BLUE ECLT SR
1227VA-60-287-926 CNTRBRY 60-IN VTY LT BLUE ECLT TOP
1227VA-60-326-900-SR CNTRBRY 60-IN VTY SEA GRN CAR SR
1227VA-60-326-900 CNTRBRY 60-IN VTY SEA GRN CAR TOP
1227VA-60-326-901-SR CNTRBRY 60-IN VTY SEA GRN WH SR
1227VA-60-326-901 CNTRBRY 60-IN VTY SEA GRN WH TOP
1227VA-60-326-925-SR CNTRBRY 60-IN VTY SEA GRN EC SR
1227VA-60-326-925 CNTRBRY 60-IN VTY SEA GRN EC TOP
1227VA-60-326-926-SR CNTRBRY 60-IN VTY SEA GRN ECLT SR
1227VA-60-326-926 CNTRBRY 60-IN VTY SEA GRN ECLT TOP
1227VA-60-242-903 CNTRBRY 60-IN VTY LT GRY ENG TOP
1227VA-60-242-901 CNTRBRY 60-IN VTY LT GRY WH TOP
1227VA-60-242-901-SR CNTRBRY 60-IN VTY LT GRY WH SR
1227VA-60-242-900 CNTRBRY 60-IN VTY LT GRY CAR TOP
1227VA-60-242-900-SR CNTRBRY 60-IN VTY LT GRY CAR SR
1227VA-60-201-901 CNTRBRY 60-IN VTY WHT WH TOP
1227VA-60-201-901-SR CNTRBRY 60-IN VTY WHT WH SR
1227VA-60-201-903 CNTRBRY 60-IN VTY WHT ENG TOP
1227VA-60-201-905 CNTRBRY 60-IN VTY WHT TZO TOP
1227VA-60-201-925-SR CNTRBRY 60-IN VTY WHT EC SR
1227VA-60-201-925 CNTRBRY 60-IN VTY WHT EC TOP
1227VA-60-201-926-SR CNTRBRY 60-IN VTY WHT ECLT SR
1227VA-60-201-926 CNTRBRY 60-IN VTY WHT ECLT TOP
1227VA-60-201-900 CNTRBRY 60-IN VTY WHT CAR TOP
1227VA-60-201-900-SR CNTRBRY 60-IN VTY WHT CAR SR
MODEL NUMBER DESCRIPTION

3
TABLE OF CONTENTS FOR OPTION 1 (Semi-Recessed Sink)
Package Contents...........................................................................................................................4
Hardware Contents..........................................................................................................................4
Safety Information............................................................................................................................4
Preparation......................................................................................................................................5
Assembly or Installation Instructions...............................................................................................5
Care and Maintenance...................................................................................................................10
Warranty........................................................................................................................................10
Replacement Parts List..................................................................................................................11
TABLE OF CONTENTS FOR OPTION 2 (Undermount Sink)
Package Contents.........................................................................................................................15
Hardware Contents........................................................................................................................15
Safety Information..........................................................................................................................15
Preparation....................................................................................................................................16
Assembly or Installation Instructions.............................................................................................16
Care and Maintenance...................................................................................................................21
Warranty........................................................................................................................................21
Replacement Parts List..................................................................................................................22

4

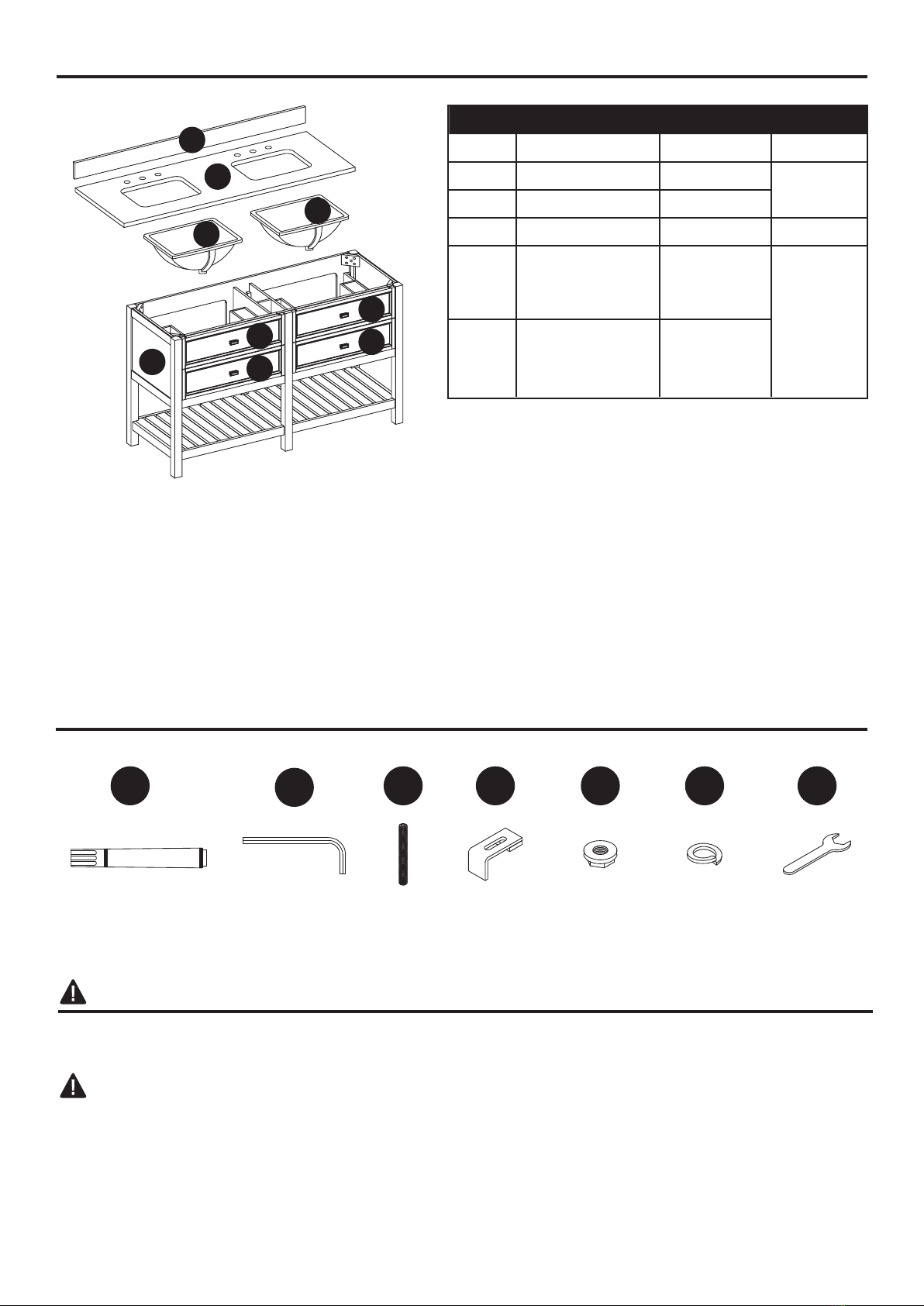

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)

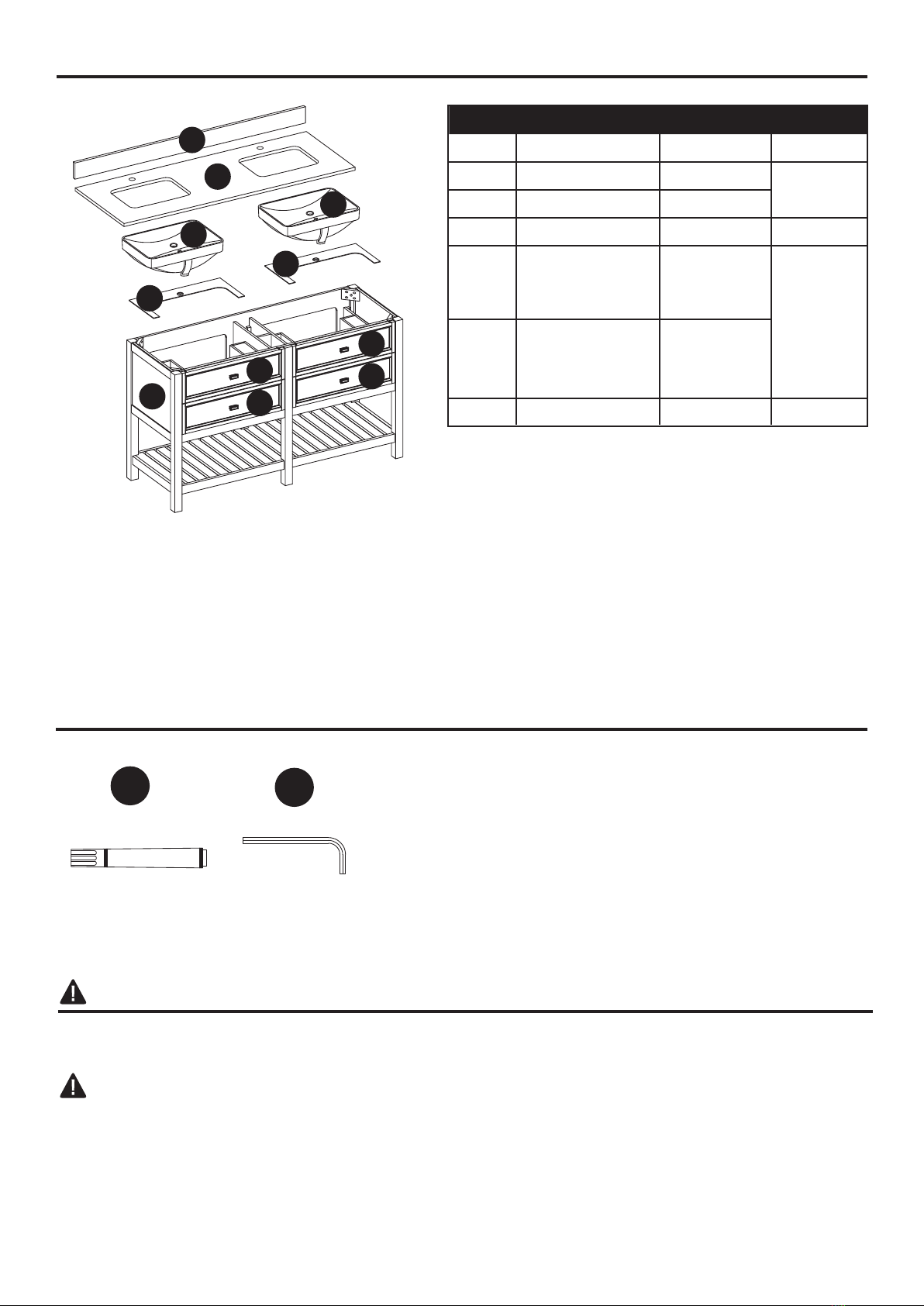

PACKAGE CONTENTS (Semi-Recessed Sink)
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• Some steps are more easily handled with 2 adults.
CAUTION
• Use care when assembling the vanity; take your time and follow the assembly instructions closely.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CC
Touch Up Pen
Qty. 1
Allen Wrench
Qty. 1
JJ
PART DESCRIPTION QUANTITY
A Vanity 1
B Top 1
C Backsplash 1
D Sink 2
E
Top Drawer
(preassembled
to vanity(A))
2
F
Bottom Drawer
(preassembled
to vanity(A))
2
CARTON
Box 2 of 3
Box 2 of 3
Box 1 of 3
Box 3 of 3
L Sink Template 2 Box 1 of 3
L
A
E
F
E
F
Sink Template
L
D
D
B
C
Sink Template

5
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
1. To remove drawers (E,F) from vanity base
(A), fully extend drawers and locate the plastic
levers on left and right sides of the metal glide
tracks. Push the plastic levers, on both sides,
at the same time, This will disengage the
drawer box from the glides. Gently lift up on
the drawer to remove it from the glide tracks.
Set aside as these will be re-installed.
2. Clean area where the vanity (A) will be
permanently located prior to beginning
installation, ensuring the vanity (A) will not
interfere with any water supply and drain lines
once mounted.
Locate wall studs and mark locations. With the
help of another adult, place completed Vanity
Cabinet Assembly in its final location. Adjust
the height of the Vanity Cabinet (A) by
twisting the adjustable leveler foot pins on the
bottom of each leg. Twist clockwise to
decrease height or twist counter-clockwise to
increase vanity height.
Note: The vanity (A) is preassembled for easy
installation purpose. But the assembly might
become loss and unstable after transportation.
Please use the allen wrench (JJ) (Included in the
hardware bag) to tighten all the bolts on the
inside of the legs and shelf before mounting it to
the wall.
2
A
1
E
F
E
F
12

6
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

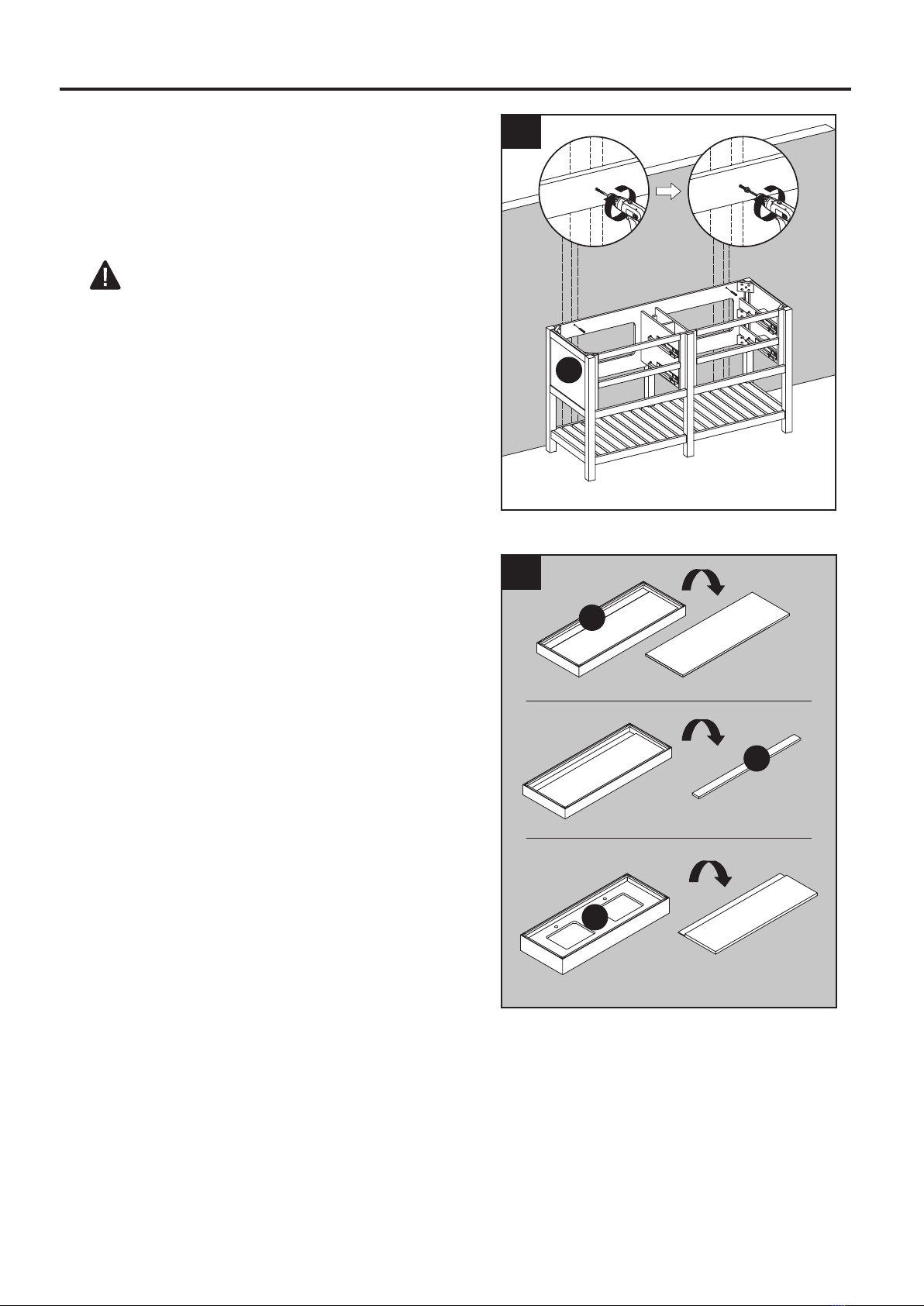

4. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
up onto a scratch free surface such as a
foam sheet that came in the packaging.
4
Remove the top foam sheet
C
Foam sheet
C
Remove the backsplash and place
it on a scratch free surface
Remove the foam sheet
B
12
3
Mounting Plate
Mounting Plate
A
3. Using hardware appropriate for your wall type
(not included), secure Vanity Cabinet (A) to
two wall studs anywhere through the Vanity
Mounting Plates. Be careful not to disturb
any electrical or water lines that may be
concealed in the wall.
WARNING
Vanity (A) MUST be secured to the wall.

7
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
Note: A
t this stage it may be easier to install
the faucet and drain kit (not included) to top (B)
per the manufacturer’s instructions, before
moving on to Step 5.
5.
Apply stain free silicone caulk (not included) to
the top edge of vanity (A). With the help of
another adult, gently lower top (B) onto the
vanity (A). Wipe away any excess caulk with a
soft cloth, and wait approximately 24 hours for
it to dry.

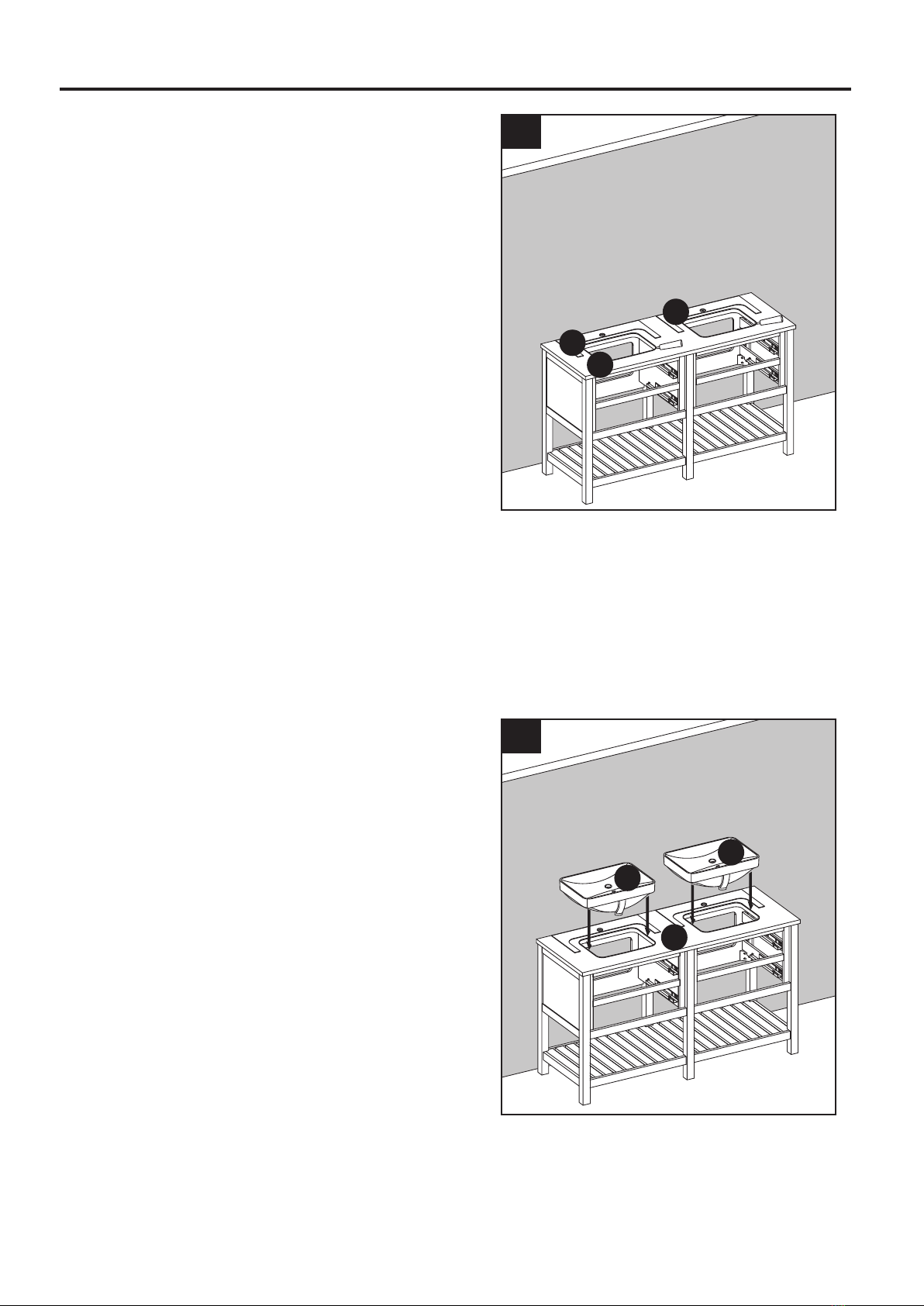

6. Put the sink template (L) on the top (B).
The holes in the cardboard needs to be
aligned with the hole in the stone top.
Make sure the sink template and stone top are
flush along the back edge.
Repeat for the remaining sink template.
5
1
2
2
A
B
6
Sink Template
L
Sink Template
L
B

8
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
7. Apply a thin bead of silicone caulk (not included)
onto the stone top close to the edge of the sink
cut out as pictured.
Repeat for the remaining stone top.
8. With the help of another adult, Gently lower
the sink onto the stone top using even
pressure to set the sink properly.
Make sure the sink over-flow hole is at the
front of wood cabinet.
If some silicone caulk has over-flowed please
clean it up at that time with water.
Repeat for the remaining sink.
7
L
Sink Template
L
Sink Template
B
8
B
D
D
Sink Template Sink Template

9
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

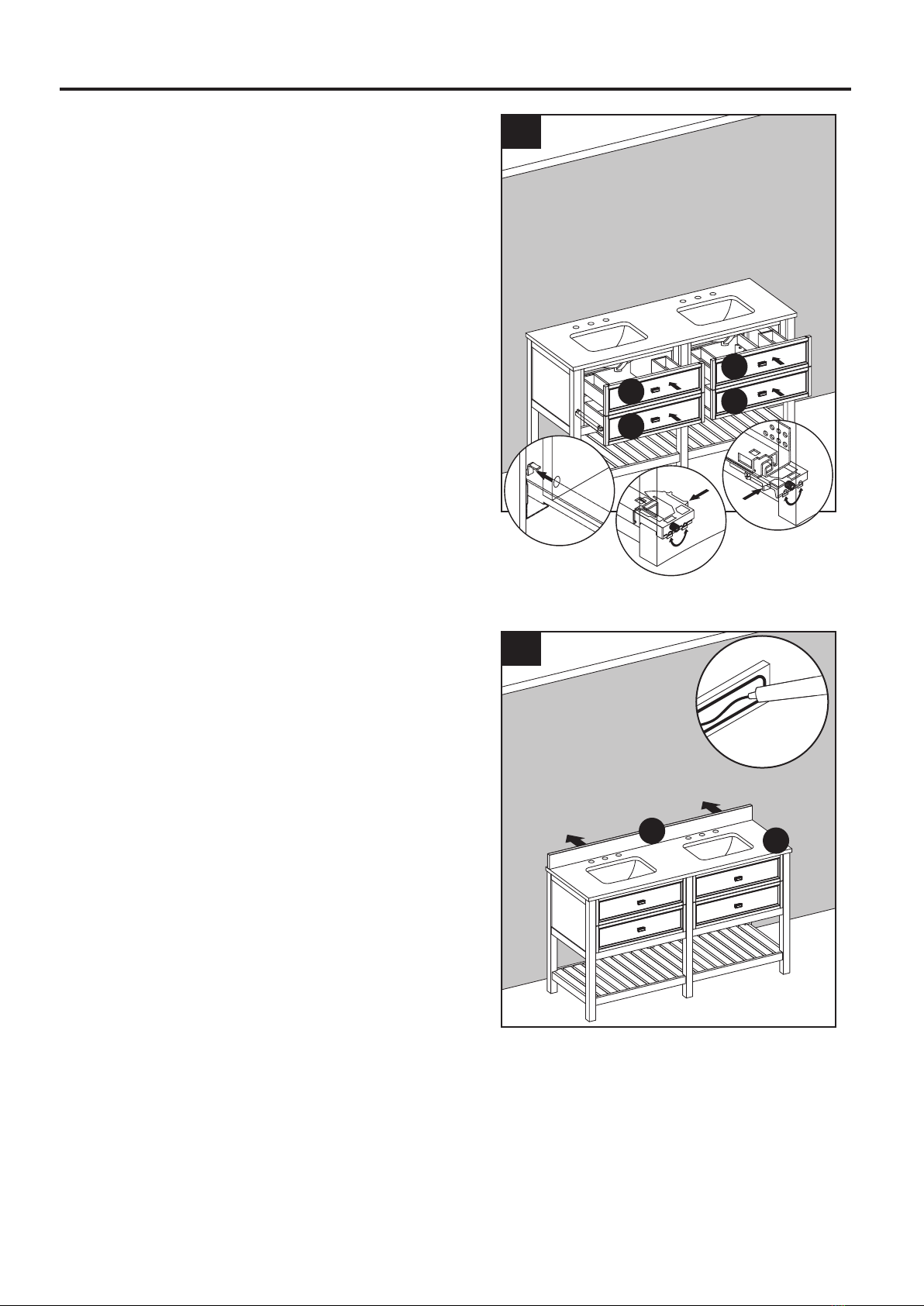

9. To re-install top drawers (E)and bottom drawers
(F). Fully extend lower drawer glide tracks. With
the help of another adult, hold the extended glide
in one hand and the drawer in the other. Gently
place the back of the drawer box into the
metal hook located on the back of the drawer
track. Once the glide hook has been slide into
the hole in the back of the drawer box, gently
lower the drawer box down onto the extended
glide tracks. At the same time depress both of
the glide handles and allow the drawer box to
fully rest on the glide tracks. Test to see if the
drawer box is fully engaged. If the drawer box
can still be lifted off the glide track then start
again from the beginning. Never force
anything or else damage to the drawer or
glide hardware could result. Repeat for
remaining drawers. The drawers location can
be adjusted slightly up or down by twisting the
adjuster knob next to the glide handles.
10. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
9
E
F
E
F
3
2
1
10
1
22
CB

10
CARE AND MAINTENANCE
WARRANTY
IMPORTANT
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The ceramic sink can be cleaned using standard ceramic cleaning agents available at your local
supplier.
• Tips for using touch-up pen (CC): For scratches, stroke in direction of scratch; for worn areas,
stroke in direction of wood grain. Rub off excess colorant promptly with a soft cloth.
• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,
engineered stone). Stone tops will vary from product to product. Use caution placing items
such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or
similar item to protect the surface if placing any soap or fragranced products on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use
restrictions before using on any stone. Damage to the stone may result. Vanity Manufacturer not
responsible for damage caused by improper cleaning agents or soaps used. Warranty will not
cover damage caused by the use of improper soaps or cleaning agents.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other
acids as these may cause damage to the stone surface.
• Periodically reseal the stone top using an appropriate stone sealer available from your local
home store. Follow the manufacturer’s directions on how to apply.
The manufacturer warrants this item against defects in materials and workmanship for a period of
one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer will not be held liable for damages caused from cleaners or soaps that etch or stain
the stone top. The manufacturer is not accountable whatsoever for product installation during the
warranty period. There is no further expressed warranty. The manufacturer shall not be legally
responsible for incidental, consequential or special damages arising at or in connection with
product use or performance except as may otherwise be accorded by law. The manufacturer
disclaims any and all implied warranties.

11

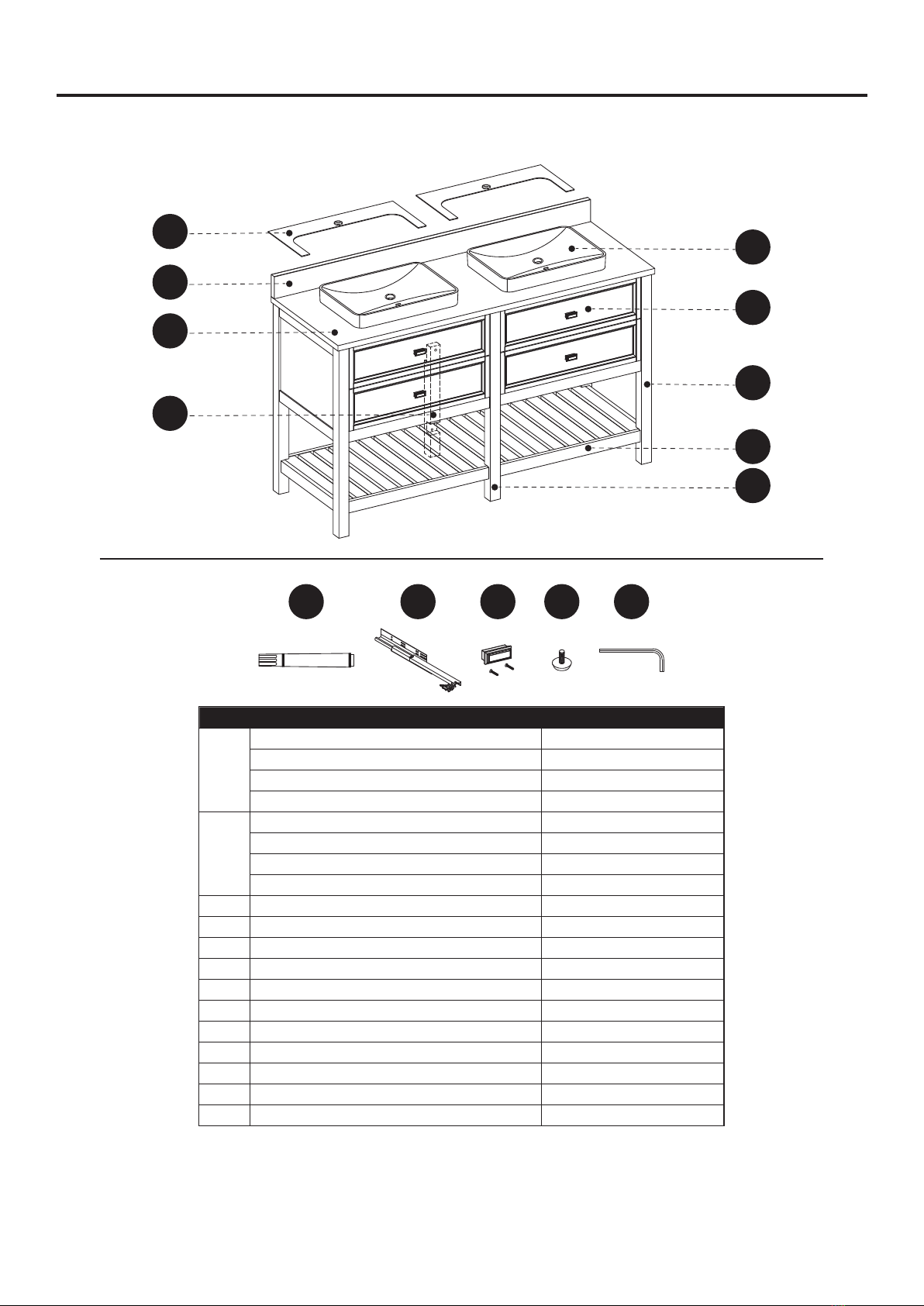

REPLACEMENT PARTS LIST FOR 1227VA-60-201-SR (Semi-Recessed Sink)
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART #
G Drawer Front 1227VB-60-201-001
D Sink SN047B
C60" Engineered White Backsplash PUBS-25-901-60
60" Carrara Marble Backsplash PUBS-25-900-60
BComplete Set 60" Engineered White Top 3550VT-60-901
60" Engineered Carrara Backsplash PUBS-25-925-60
Complete Set 60" Engineered Carrara Top 3550VT-60-925
60" Engineered Calacatta Backsplash PUBS-25-926-60
Complete Set 60" Engineered Calacatta Top 3550VT-60-926
Complete Set 60" Carrara Marble Top 3550VT-60-900
H Leg PU17-1227-201-LEG
I Shelf 1227VB-60-201-002
J Mid-Center Leg 1227VB-201-003
K Mid-Back Leg 1227VB-201-004
CC Touch Up Pen OF-0010
FF Drawer Glide PUDTC-14X3-HANDLE
GG Drawer Handle CF-32-003-BN
HH Leveler T-1007
JJ Allen Wrench PU16-5-AW
CC FF GG HH JJ
K
B
C
L
G
D
I
J
H
Sink Template Sink Template

12
REPLACEMENT PARTS LIST FOR 1227VA-60-242-SR (Semi-Recessed Sink)
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART #
G Drawer Front 1227VB-60-242-001
D Sink SN047B
C60" Engineered White Backsplash PUBS-25-901-60
60" Carrara Marble Backsplash PUBS-25-900-60
BComplete Set 60" Engineered White Top 3550VT-60-901
60" Engineered Carrara Backsplash PUBS-25-925-60
Complete Set 60" Engineered Carrara Top 3550VT-60-925
60" Engineered Calacatta Backsplash PUBS-25-926-60
Complete Set 60" Engineered Calacatta Top 3550VT-60-926
Complete Set 60" Carrara Marble Top 3550VT-60-900
H Leg PU17-1227-242-LEG
I Shelf 1227VB-60-242-002
J Mid-Center Leg 1227VB-242-003
K Mid-Back Leg 1227VB-242-004
CC Touch Up Pen OF-0120R
FF Drawer Glide PUDTC-14X3-HANDLE
GG Drawer Handle CF-32-003-BN
HH Leveler T-1007
JJ Allen Wrench PU16-5-AW
CC FF GG HH JJ
K
B
C
L
G
D
I
J
H
Sink Template Sink Template

13
REPLACEMENT PARTS LIST FOR 1227VA-60-287-SR (Semi-Recessed Sink)
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART #
G Drawer Front 1227VB-60-287-001
D Sink SN047B
60" Engineered Carrara Backsplash PUBS-25-925-60
C60" Engineered White Backsplash PUBS-25-901-60
60" Carrara Marble Backsplash PUBS-25-900-60
BComplete Set 60" Engineered Carrara Top 3550VT-60-925
60" Engineered Calacatta Backsplash PUBS-25-926-60
Complete Set 60" Engineered Calacatta Top 3550VT-60-926
Complete Set 60" Engineered White Top 3550VT-60-901
Complete Set 60" Carrara Marble Top 3550VT-60-900
H Leg PU17-1227-287-LEG
I Shelf 1227VB-60-287-002
J Mid-Center Leg 1227VB-287-003
K Mid-Back Leg 1227VB-287-004
CC Touch Up Pen P-0065
FF Drawer Glide PUDTC-14X3-HANDLE
GG Drawer Handle CF-32-003-BN
HH Leveler T-1007
JJ Allen Wrench PU16-5-AW
CC FF GG HH JJ
K
B
C
L
G
D
I
J
H
Sink Template Sink Template

14
REPLACEMENT PARTS LIST FOR 1227VA-60-326-SR (Semi-Recessed Sink)
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
PART DESCRIPTION PART #
G Drawer Front 1227VB-60-326-001
D Sink SN047B
60" Engineered Carrara Backsplash PUBS-25-925-60
C60" Engineered White Backsplash PUBS-25-901-60
60" Carrara Marble Backsplash PUBS-25-900-60
BComplete Set 60" Engineered Carrara Top 3550VT-60-925
60" Engineered Calacatta Backsplash PUBS-25-926-60
Complete Set 60" Engineered Calacatta Top 3550VT-60-926
Complete Set 60" Engineered White Top 3550VT-60-901
Complete Set 60" Carrara Marble Top 3550VT-60-900
H Leg PU17-1227-326-LEG
I Shelf 1227VB-60-326-002
J Mid-Center Leg 1227VB-326-003
K Mid-Back Leg 1227VB-326-004
CC Touch Up Pen P-0062
FF Drawer Glide PUDTC-14X3-HANDLE
GG Drawer Handle CF-32-003-BN
HH Leveler T-1007
JJ Allen Wrench PU16-5-AW
CC FF GG HH JJ
K
B
C
L
G
D
I
J
H
Sink Template Sink Template

15
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS (Undermount Sink)
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• Some steps are more easily handled with 2 adults.
CAUTION
• Use care when assembling the vanity; take your time and follow the assembly instructions closely.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PART DESCRIPTION QUANTITY
A Vanity 1
B Top 1
C Backsplash 1
D Sink 2
E
Top Drawer
(preassembled
to vanity(A))
2
F
Bottom Drawer
(preassembled
to vanity(A))
2
CARTON
Box 2 of 3
Box 2 of 3
Box 1 of 3
Box 3 of 3
CC
Touch Up Pen
Qty. 1
Allen Wrench
Qty. 1
JJ KK LL MM NN OO
Lock Washer
Qty. 8
Nut
Qty. 8
Wrench
Qty. 1
Bolt
Qty. 8
Sink Bracket
Qty. 8
A
E
F
E
F
D
D
B
C

16
INSTALLATION INSTRUCTIONS (Undermount Sink)
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
1. To remove drawers (E,F) from vanity base
(A), fully extend drawers and locate the plastic
levers on left and right sides of the metal glide
tracks. Push the plastic levers, on both sides,
at the same time, This will disengage the
drawer box from the glides. Gently lift up on
the drawer to remove it from the glide tracks.
Set aside as these will be re-installed.
2. Clean area where the vanity (A) will be
permanently located prior to beginning
installation, ensuring the vanity (A) will not
interfere with any water supply and drain lines
once mounted.
Locate wall studs and mark locations. With the
help of another adult, place completed Vanity
Cabinet Assembly in its final location. Adjust
the height of the Vanity Cabinet (A) by
twisting the adjustable leveler foot pins on the
bottom of each leg. Twist clockwise to
decrease height or twist counter-clockwise to
increase vanity height.
Note: The vanity (A) is preassembled for easy
installation purpose. But the assembly might
become loss and unstable after transportation.
Please use the allen wrench (JJ) (Included in the
hardware bag) to tighten all the bolts on the
inside of the legs and shelf before mounting it to
the wall.
2
A
1
E
F
E
F
12

17
INSTALLATION INSTRUCTIONS (Undermount Sink)
3. Using hardware appropriate for your wall type
(not included), secure Vanity Cabinet (A) to
two wall studs anywhere through the Vanity
Mounting Plates. Be careful not to disturb
any electrical or water lines that may be
concealed in the wall.
WARNING
Vanity (A) MUST be secured to the wall.
4. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
down onto a scratch free surface such as a
foam sheet that came in the packaging.
4
Remove the top foam sheet
Remove the foam sheet
Remove the cutout foam
sheet & hardware
Remove the top and place it
on a scratch free surface
Remove the backsplash and place
it on a scratch free surface
C
Foam sheet
C
Foam sheet
B
BACK
FRONT
BACK
FRONT
B
BACK
FRONT
BACK
FRONT
1
2
1
2
B
BACK
FRONT
BACK
FRONT
Hardware
Pack
Hardware
Pack
12
3
Mounting Plate
Mounting Plate
A

18
5. Apply silicone caulk (not included) to
the top edge of sink (D). With the help of
another adult, lower the sink onto the back
side of the stone top.
Make sure the sink over-flow hole is facing
the front of stone top.
Be sure to align the sink well with the stone top
cut out allowing for equal stone overhang on the
front, back and sides of the ceramic sink (D).
Repeat for the remaining sink.
Note: To install the sink onto the top correctly,
ensure that the two "BACK" stamps on the sink
and the top are aligned on the same sides.
Use the guide lines marked on the sink and
bottom side of stone top to assist with sink
location.
5
BACK
1
2
2
2
2
BACK
BACK
BACK
BACK
D
D
B
Sink Lip
Top
BACK
BACK
Hardware Used
Bolt x 8
6. Screw bolts (KK) into the threaded holes of
stone top (B).
KK
6
KK
D
D
B
BACK
BACK
BACK
BACK
INSTALLATION INSTRUCTIONS (Undermount Sink)

19
8. To install the Top (B) to the vanity (A).
Apply silicone caulk to the top edge of the
wood cabinet. With the help of another adult,
gently lower the stone top with assembled sink
onto the cabinet. Make sure the stone top is flush
with the back side of the wood cabinet and the
stone overhang is equal on both sides over the
wood cabinet left and right side walls. Remove
any excess caulk before allowing to dry.
Helpful tip: it may be easier to install your
choice of faucet (not included) before securing
the vanity top (B) to vanity base (A).
Hardware Used
Sink bracket x 8
Nut x 8
x 8Lock Washer
7. Lower the sink brackets (LL) over the bolts
(KK) and allow to rest on the sink lip. Adjust
location of bracket to firmly grasp sink lip.
Lower lock washers (NN) over bolts (KK) and
secure with nuts (MM). Hand tighten nuts (MM)
with included wrench (OO).
DO NOT OVER TIGHTEN!
Repeat for the remaining sink.
Tip: Check that the sink placement is well
centered front to back and side to side of the
stone top cut out before allowing the silicone
caulk to dry. If the sink is not centered well
unscrew sink clamps, re-adjust the sink position
and re-tighten the sink brackets.
LL
MM
NN
Wrench x 1
OO
7
3
MM
NN
KK
OO
2
LL
1
D
D
B
BACK
BACK
BACK
BACK
INSTALLATION INSTRUCTIONS (Undermount Sink)
8
1
2
2
A
B

20
INSTALLATION INSTRUCTIONS (Undermount Sink)
9. To re-install top drawers (E)and bottom drawers
(F). Fully extend lower drawer glide tracks. With
the help of another adult, hold the extended glide
in one hand and the drawer in the other. Gently
place the back of the drawer box into the
metal hook located on the back of the drawer
track. Once the glide hook has been slide into
the hole in the back of the drawer box, gently
lower the drawer box down onto the extended
glide tracks. At the same time depress both of
the glide handles and allow the drawer box to
fully rest on the glide tracks. Test to see if the
drawer box is fully engaged. If the drawer box
can still be lifted off the glide track then start
again from the beginning. Never force
anything or else damage to the drawer or
glide hardware could result. Repeat for
remaining drawers. The drawers location can
be adjusted slightly up or down by twisting the
adjuster knob next to the glide handles.
10. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
9
E
F
E
F
3
2
1
10
1
22
CB
