LP Cleverfit Pro GEN II LED Exit Maintenance and service guide

1943969
V1.6
11 April 2022
Instruction Sheet Template - V1.3 –Updated 20/01/2022
Clevertest and Clevertest Plus
Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.
4HR: CTP will only test for the 2 hours (first test) and 90 minutes duration. 4 hours testing would only be
facilitated as a Manual Discharge Test.
Zoneworks, HIVE (HV/HVG) and DATA Monitored Options
Fittings with part numbers -ZW, -HV, -HVG, -DATA are fitted with Zoneworks communications modules
(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power
cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated
data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also
be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,
coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a
single push of thetest switch or by scanning thesupplied barcode. The LED Test Switch indicator provides
a multifunction indication of the status of the fitting during testing and normal operation:
Option
State
LED Operation
ZW, HV, HVG,
DATA
Commissioned
LED on Solid (Green)
ZW, DATA
Un-commissioned
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
HV, HVG
Un-commissioned
With network connectivity
Batt plugged-in: yellow 1s, green 1s
Batt unplugged: red 1s, off 1s
HV, HVG
Un-commissioned
Without network connectivity
Batt plugged-in: yellow 250mS, green
250mS, yellow 250mS, green 250mS,
green 1s
Batt unplugged: red 250mS, off
250mS, red 250mS,off 250mS, off 1s
ZW, DATA
Emergency Light Test In Progress
LED flashes at yellow 5s , 0ff 1s
HV, HVG
Emergency Light Test In Progress
LED flashes at yellow 1s , 0ff 1s
In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to
the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of
a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)
DALI EM Option
Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection
and integration to 3rd Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm
that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI
fitting will be addressed and configured into the control system by the Lighting Control System
Commissioning Technicians and not Clevertronics.
State
LED Operation
Commissioned/ Un-commissioned
LED on Solid (Green)
Emergency Light Test in progress
LED flashes at 1s On (Yellow) & 1s Off
“IDENTIFY COMMAND”
Lamp and Status LED Flash for 30 seconds
A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network. DALI
connections are marked as Da Da.
LP™ Cleverfit Pro GEN II LED Exit
Installation & Maintenance Instruction Leaflet
Victoria (Head Office & Manufacturing)
Website: www.clevertronics.com.au
Email: info@clevertronics.com.au
Phone: +61 3 9559 2700
Fax: +61 3 9559 2799
New South Wales
Phone: +61 2 8805 6400
Fax: +61 2 8805 6444
Queensland
Phone: +61 7 3442 9700
Fax: +61 7 3442 9777
South Australia/Northern Territory
Phone: +61 8 8301 8800
Fax: +61 8 8351 8286
Western Australia
Phone: +61 8 9207 0000
Fax: +61 8 9207 0088
New Zealand
Phone: +64 800 548 448
Designed in Australia to comply with the
requirements of AS2293.3: 2005 and AS/NZS
CISPR15: 2017
NOTE: Standard product codes with this symbol are
enabled with Clevertest Plus capability. Please refer to
the operation guide supplied with the product for details.
Models:
CCFPRO-uu-xx-yy-zz-vv
Testing:
Options:
Manual Test
xx = Blank
4 Hour Emergency
yy=4HR
Zoneworks
xx = ZW
Black
zz=BLK
Z/W DATA
xx = DATA
Special Purpose Sign
yy=SP
Zoneworks HIVE
xx = HV/HVG
Double Sided Vertical Running Man
Away from the Wall
uu=DS-VRA-OUT
DALI Registered.
xx = DALI
Switched Active
uu=SA
Clevertest
xx = CT
(NOTE: -CT Products supplied with the Clevertest Plus Symbol are activated with Clevertest
PLUS capability. Please refer to the operation guide supplied with the product for details).
Spare Parts:
1550105
Replacement Battery
1550030
Replacement Battery (used on -4HR option)
8002710
Replacement Emergency LED Board
8003090
Replacement Emergency Driver
8003152
Replacement Emergency Driver (-HV & -DALI only)
8003163
Replacement Emergency Driver (For -SA DALI/HV options)
Important:
It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,
ensure that the electricity supply has been switched off and isolated. Installation must be carried out in
accordance with the relevant Australian and International Standards.

1943969
V1.6
11 April 2022
Instruction Sheet Template - V1.3 –Updated 20/01/2022
Installation:
The LP Cleverfit Pro can be installed either Ceiling or Wall Mounted. The LP Cleverfit Pro uses a “slide
connect bracket base” that is mounted and wired into position first. The main body can be installed once
the base is wired or later to avoid damage during the construction phase. Please follow the steps below
to install the LP Cleverfit Pro Exit:
•Disengage the slide connect bracket from the exit body. Position the base in the mounting position.
•Using the bracket as a guide, mark 2 holes for mounting and one for mains access. Then install the
bracket using appropriate fixings (not supplied).
•Configure all the mounting parts and cable entry points as below (if required) and engage the body
into the slide connect bracket. Connect mains and check that the LP Cleverfit Pro Exit is
Operational.
•If the CTP capabilities are activated, please affix the CTP Status Label to a visible surface.
Dimensions: Assembly:
Testing:
Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24
hours. Conduct the following tests:
•For the first test, the emergency lamp must remain illuminated for at least 2 hours after
disconnection from the mains supply.
•Subsequent tests require the unit to illuminate for at least 90 minutes. The results of all tests are
required to be recorded in a service logbook, which is to be kept on-site at all times. If the unit fails
to remain illuminated for the requisite time, remedial action must be taken to repair the situation
and once completed, the unit must pass a subsequent test. For more specific information, please
refer to the current edition of the AS 2293.3 Standard.
Trouble Shooting:
Below are a list of common problems and their possible causes.
Fault: The Green LED Test Switch indicator is not illuminated.
Check: A.C. is connected and is turned on.
Battery is connected
Test Switch for damage.
Fault: Lamp does not illuminate in emergency mode.
Check: A.C. is connected.
Lamp is correctly inserted.
Battery is connected
Fault: Lamp illuminates in emergency mode, but only stays on for a short period.
Check: Battery has been allowed to charge for at least 24 hours.
Battery for damage.
Rated Emergency Lumen Output in accordance with AS2293.1, not applicable
for –TH (theatre) version (refer to spacing tables for installation positions):
Refer to the Technical Label for classification information.
Caution:
On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during
construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries
discharged or “cycled”. The battery in this fitting has been selected to give excellent long-life
performance in a controlled AS2293 testing environment. Excessive battery cycling will reduce through-
life performance and may lead to premature battery failure. Battery warranty claims, as a result of such
abuse, are specifically EXCLUDED from Clevertronics warranty terms.
Warranty:
For Product Warranty information and Terms and Conditions of Sales please refer to our website
http://clevertronics.com.au/terms-conditions-sale-australia-nz/
Mounting Bracket - Top View
Ceiling Mount screw fixing points
Mounting Bracket - Front
View
Wall Mount screw
fixing points
Mounting Bracket - Bottom
View
Terminal Block
Cover
Terminal Block
Cable Entry Point –Inside of bracket for ceiling
mount, 20mm diameter, located in centre of
bracket. Bracket shown with the terminal block
cover removed.
Wall Mount Access
Holes with Cover
Plug
Cable Entry Point –Rear of bracket for wall
mount, 20mm diameter, located in centre of
bracket.
Cable Entry Point –Top of
bracket for ceiling mount,
20mm diameter, located
in centre of bracket
This manual suits for next models
1
Other LP Lighting Equipment manuals
Popular Lighting Equipment manuals by other brands

Robus
Robus RXZ255-PSU instruction manual

MJ LED LIGHTNING
MJ LED LIGHTNING MJ-2002 user manual

LUG
LUG URBANO LED Installation instruction

Commercial Electric
Commercial Electric VICTORIA Series Use and care guide

Thrive Energy Technologies

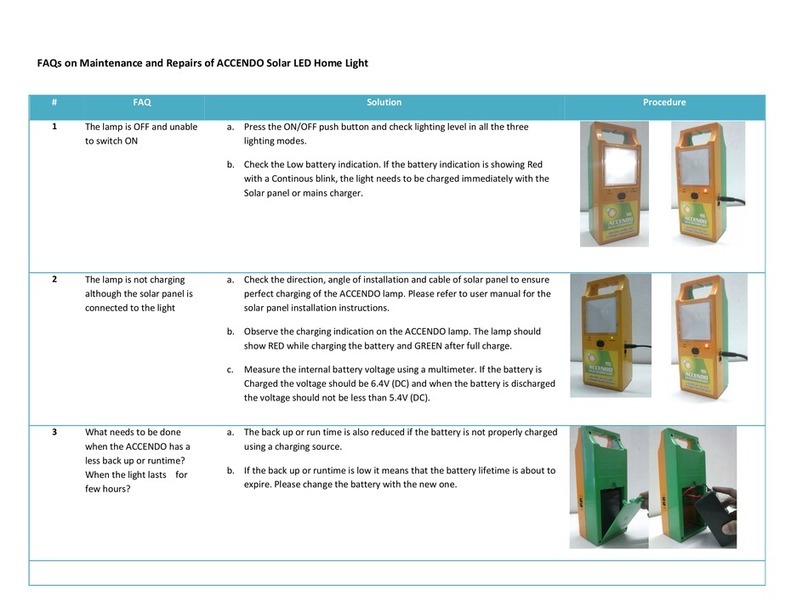

Thrive Energy Technologies ACCENDO FAQs on Maintenance and Repairs
