LS Industrial Systems iS7 RAPIEnet User manual

iS7 Ethernet Option Manual
1
Before using the product, thank you for using our SV-iS7 Ethernet option
module.
Safety Instruction
 To prevent injury and danger in advance for safe and correct use of the
product, be sure to follow the Safety Instructions.
 The instructions are divided as ‘WARNIN ’ and ‘CAUTION’ which mean as
follow.
WARNIN
CAUTION
 The meaning of each symbol in this manual and on your e uipment is as
follows.
This is the safety alert symbol.
This is the dangerous voltage alert symbol.
 After reading the manual, keep it in the place that the user always can
Contact easily.
 Before you proceed, be sure to read and become familiar with the safety
precautions at the beginning of this manual. If you have any uestions,
seek expert advice before you proceed. Do not proceed if you are unsure of
the safety precautions or any procedure.
WARNIN
 Be cautious about dealing with CMOS elements of option board.
It can cause malfunction by static electricity.
 Connection changing like communication wire change must be done
with power off.
It can cause communication faulty or malfunction.
 Be sure to connect exactly between Inverter and option board.
It can cause communication faulty or malfunction.
 Check parameter unit when setting parameter.
It can cause communication faulty.
This symbol indicates the possibility of death
or serious injury.
This symbol indicates the possibility of
injury or damage to property.

iS7 Ethernet Option Manual
2
1. Introduction
Ethernet communication option module connects the iS7 inverter to the
Ethernet network. It supports 2 kinds of protocol, Modbus/TCP and
Ethernet/IP.
Controlling and monitoring of inverter can be done by PLC se uence program
or any Master Module. Since Ethernet which constitutes Internet has been
used and IPv4 has been supported, wherever Internet can be done, controlling
and monitoring is possible. But, Ethernet network of the factory has to be
connected to Internet through Gateway.
With simple wiring, installation time can be reduced and maintenance
becomes easier.
2. Ethernet Technical Features
3. Product Constituents
This product is consisting of the Ethernet communication module, a screw and
User Manual.
Transmission Speed 10Mbps, 100Mbps
Transmission Method Baseband (Half, Full Duplex)
Max. Extended Distance between
Nodes 100m (Node - Hub)
Max. Node Number Hub connection
Auto Negotiation Supported
Max. Frame size 1500 Bytes
Communication Zone Access Method CSMA/CD
Frame Error Checking Method CRC32
Recommended Connecting Socket 3 Socket
Recommended Cable UTP, FTP, STP
(Refer to page 6 for details.)

iS7 Ethernet Option Manual
3
4. The External and Mounting of Ethernet Option Module
(1) The External of Ethernet option module
<Modbus TCP LED Composition>
LINK, SPEED and CPU LED have a green color. ERROR LED has a red
color.
<Ethernet IP LED Composition>
LINK and SPEED LED are a green color.
MS and NS LED have two colors. (Green and Red)

iS7 Ethernet Option Manual
4
(2) Mounting the communication option module on iS7 inverter

iS7 Ethernet Option Manual
5

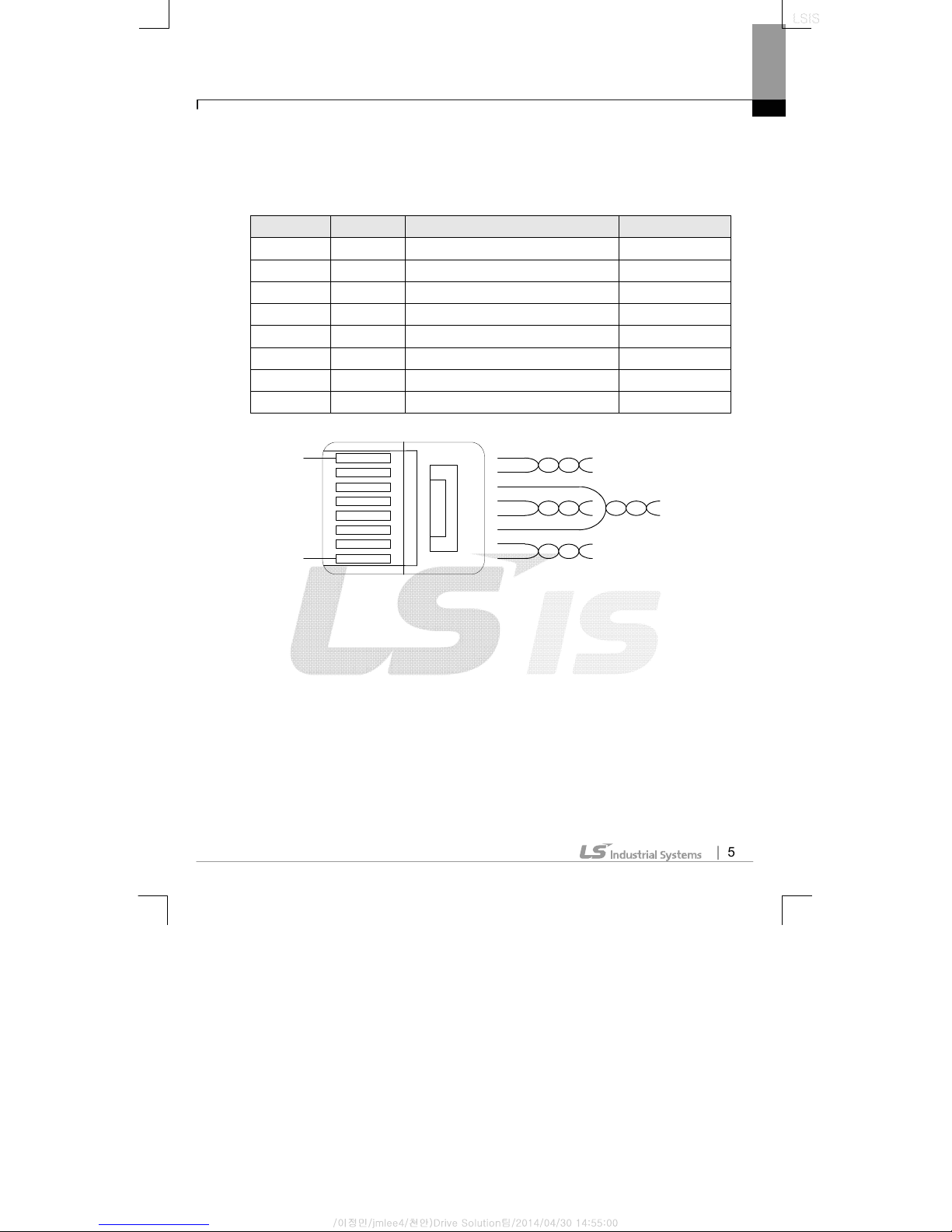

5. Network Connection
Terminal block for communication cable
※ Make sure that cables connected to Pin1 and 2 are twisted together.
※ Make sure that cables connected to Pin3 and 6 are twisted together.
Pin No. Signal Description Cable Color
1 TX+ Transmitting data plus (+) White/Yellow
2 TX- Transmitting data minus (-) Yellow
3 RX+ Receiving data plus (+) White/Green
4 NONE Not used Blue
5 NONE Not used White/Blue
6 RX- Receiving data minus (-) Green
7 NONE Not used White/Brown
8 NONE Not used Brown
1
11
1
8
88
8
1
11
1
2
22
2
3
33
3
4
44
4
5
55
5
6
66
6
7
77
7
8
88
8

iS7 Ethernet Option Manual
6

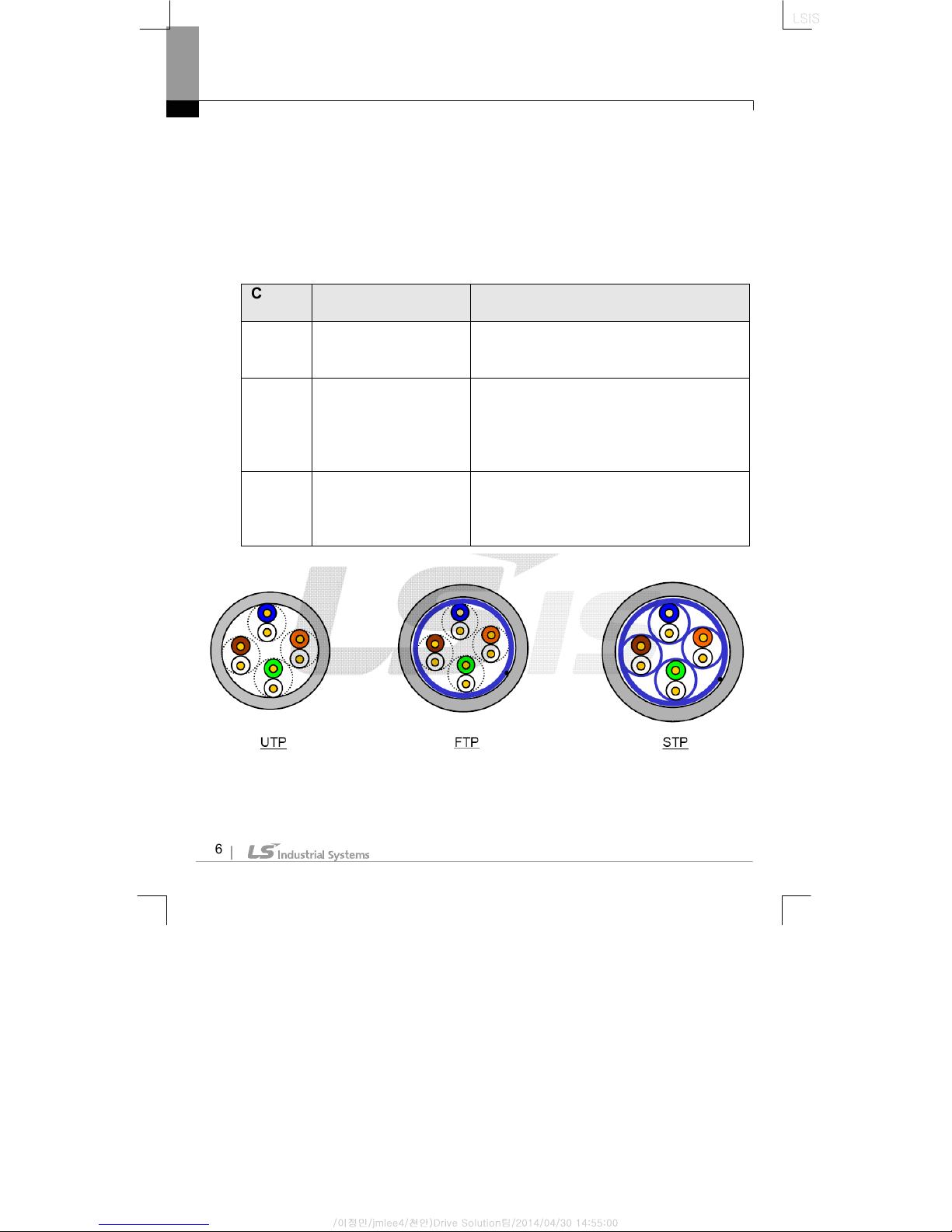

6. Network Cable Standard
(1) Used frequency band
Category 5 is used. The fre uency band is up to 100 MHz, Channel
performance is up to 60MHz and Transmission speed is up to 100Mbps.
(2) Cable type of twisted pair cable
Classi-
fication
Details Purpose of cable
UTP
(U.UTP)
Unshielded Twisted
Pair cable for high-
speed signal
Maximum 200MHz
Voice + Information (Data)+Low video
signal
FTP
(S.UTP)
Foil screened
Twisted Pair cable
Maximum 100MHz
Electromagnetic interruption (EMI) or
electric stability considered Voice +
Information (Data)
+ Low Video signal
STP
(S.STP)
Shielded Twisted
Pair cable
Maximum 500MHz
Voice +Information(Data)+ Video
signal
75Ω coaxial cable replacement

iS7 Ethernet Option Manual
7
7. Selecting Protocol
For using the iS7 Ethernet option module, there are 2 kinds of protocol,
Modbus TCP and Ethernet IP. You can select one of the protocols by
selecting the No.1 switch. The switch is placed next to the RJ45 connector
for Ethernet cable. No. 2, 3 and 4 of switch are not available.
Switch State Protocol
OFF (Switch at the upper position) Modbus TCP
ON (Switch at the lower position Ethernet IP
If the option module is operating, protocol will be not changed even if
switch selection is changed. Protocol is determined by the state of switch
when the option module is turned On or the inverter is initialized by ‘Yes’
execution of COM-94 Comm Update.
<Front side of Ethernet Option module>
Protocol Selecting Switch
RJ 45
1 2 3 4

iS7 Ethernet Option Manual
8
8. Ethernet Option and Related Keypad Parameters
The functions below are the inverter parameters which shows the
information related with the Modbus TCP and Ethernet IP. In the parameter
column, the “M” stands for the parameters used for Modbus TCP, and “E”
stands for the parameters used for Ethernet IP.
Related keypad parameter with iS7 Ethernet
Code
Number
Parameter Name Default
Set
value Description
Pro
-
tocol
CNF-30
Option-1 Type - -
Indicates name of the
communication card installed in
the inverter (Ethernet).
M/E
COM-06
FBus S/W Ver - -
Indicates version of the
communication card installed in
the inverter.
M/E
COM-09
FBus Led - -
Shows the ON/OFF data of the
LED on the Ethernet
communication card.
M/E
COM-10
Opt Parameter1 0x0000
0x0000
~0xFFFF
Sets up the IP Address.
M/E
COM-11
Opt Parameter2 0x0000
0x0000
~0xFFFF
COM-12
Opt Parameter3 0x0000
0x0000
~0xFFFF
Sets up the Subnet Mask.
M/E
COM-13
Opt Parameter4 0x0000
0x0000
~0xFFFF
COM-14
Opt Parameter5 0x0000
0x0000
~0xFFFF
Sets up the Gateway Address.
M/E
COM-15
Opt Parameter6 0x0000
0x0000
~0xFFFF
COM-16
Opt Parameter7 0
0~2
Sets up the Ethernet
communication rate.
M/E
COM-17
Opt Parameter8
(
Note
1)
0
0~11
CIP Input Instance
E
COM-18
Opt Parameter9
(Note
1)
0
0~11
CIP Output Instance
E
COM-30
ParaStatus Num 3
0~8
Automatically set up according to
the CIP Input Instance.
E
COM-31
Para Status-1 0x000A
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E
COM-32
Para Status-2 0x000D
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E

iS7 Ethernet Option Manual
9
Related keypad parameter with iS7 Ethernet
Code
Number
Parameter Name Default
Set
value Description Pro- tocol
COM-33
Para Status-3 0x000F
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E
COM-34
Para Status-4 0x0000
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E
COM-35
Para Status-5 0x0000
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E
COM-36
Para Status-6 0x0000
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E
COM-37
Para Status-7 0x0000
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E
COM-38
Para Status-8 0x0000
0x0000
~0xFFFF
Sets up the inverter data address
which will be read by the client.
E
COM-50
Para Ctrl Num 2
0~8
Automatically set up according to
the CIP Output Instance.
E
COM-51
Para Control-1 0x0005
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-52
Para Control-2 0x0006
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-53
Para Control-3 0x0000
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-54
Para Control-4 0x0000
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-55
Para Control-5 0x0000
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-56
Para Control-6 0x0000
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-57
Para Control-7 0x0000
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-58
Para Control-8 0x0000
0x0000
~0xFFFF
The Client sets up the reference
Inverter Data Address.
E
COM-94
Comm Update - -
Updates communication related
keypad parameters.
M/E
* (Note1) Since this is an optional parameter exclusively for Ethernet IP, it is not displayed on the
Loader in case of Modbus TCP.

iS7 Ethernet Option Manual
10
(1) Option Type (Option card information, CF -30)
Automatically indicates the type of the communication card presently
installed in the iS7. When the iS7 Ethernet communication card is
installed, “Ethernet” is displayed.
(2) Option Version (Option version information, COM-06)
Automatically indicates the version of the communication card
presently installed in the iS7.
(3) FBus Led (COM-09) – Indication of LED information
①
①①
① In case of Modbus/TCP
Displays the ON/OFF statuses of the 4 LEDs on the communication
card on the keypad parameter COM-09. Looking up the COM-9 FBus
LED with keypad, 4 bits can be seen. In the order of the LED of the
COM-09 (right to left), information is displayed in the said order of CPU,
ERR, SPEED, and LINK LED.
If the LED is ON, the bit is 1, and of it is OFF, the bit is 0.
COM-09 LED status example)
Bit LED Indication
0
1
2
3
CPU LED
ERROR LED
SPEED LED
LINK LED
LINK LED SPEED LED ERR LED CPU LED
OFF ON ON ON

iS7 Ethernet Option Manual
11
②
②②
② In case of Ethernet IP
Displays the ON/OFF statuses of the 2 two-colored LEDs on the right
side of the 4 LEDs on the communication card on the keypad
parameter COM-09.
Looking up the COM-9 FBus LED with keypad, 4 bits can be seen. The
information respective to the Bit of the COM-09 is presented in the
table below.
If the LED is ON, the bit is 1, and of it is OFF, the bit is 0.
COM-09 LED status example)
(4) Ethernet Option의
의의
의 IP Address, Subnet Mask, ateway Address
(COM-10~15) Setting
The IP version supported by Ethernet option is v4. All the addresses
and masks are expressed with (decimal).(decimal).(decimal).(decimal)
and each decimal number is 0~255.
In the Ethernet option, decimal numbers are entered with hexadecimals.
In particular, (hexadecimal) . (hexadecimal) . (hexadecimal) .
(hexadecimal) and each hexadecimal is 00~FF. The hexadecimals are
entered by being divided into two upper scale hexadecimals and two
lower scale hexadecimals. The higher code number represents the
lower hexadecimals.
Bit LED Indication
0
1
2
3
NS GREEN LED
NS RED LED
MS GREEN LED
MS RED LED
MS Red LED
MS reen LED
NS Red LED
NS reen LED
OFF ON OFF ON

iS7 Ethernet Option Manual
12
E.g.) To set up IP Address 196.168.10.131;
Convert 196.168.10.131 into hexadecimal: C4.A8.0A.83
Into the COM-10 Opt Parameter1, enter 0xC4A8, and
Into the COM-11 Opt Parameter2, enter 0x0A83.
(5) Ethernet Speed (COM-16)
Ethernet speed can be set up within the range of 0~2.
`
Automatic speed setting function automatically sets up the highest
speed in the network.
If the Link LED does not light up when connected to the hub in
automatic speed setting mode (Auto Negotiation), the connection will
be made at changed speed.
(6) CIP Input Instance(COM-17)
This parameter is shown only when the protocol has been set up with
the Ethernet IP sets up the format of the inverter state data which are
sent by the inverter to the Client (Originator) during the I/O
communication of CIP (Common Industrial Protocol). See the Assembly
Object section of the Ethernet IP.
Set
Value
Input Instance
Data Size
The number
or Parameter
0 70 4 X
1 71 4 X
2 110 4 X
3 111 4 X
4 141 2 1
5 142 4 2
6 143 6 3
7 144 8 4
8 145 10 5
Set Value
Speed
0
1
2
Set the speed
automatically
100Mbps
10Mbps

iS7 Ethernet Option Manual
13
Set
Value
Input Instance
Data Size
The number
or Parameter
9 146 12 6
10 147 14 7
11 148 16 8
(7) CIP Output Instance(COM-17)
This parameter is shown only when the protocol has been set up with
the Ethernet IP sets up the format of the inverter reference data which
are sent by the Client (Originator) to the inverter for inverter control
during the I/O communication of CIP (Common Industrial Protocol). See
the Assembly Object section of the Ethernet IP.
(8) Para Status (COM-30~38)
This parameter is not used in case of Modbus TCP.
This parameter appears only when the set value of the Input Instance
(COM-17) in the Ethernet IP is 4 or above.
COM-30 Para Status Num cannot be set up but the number of the set
up parameters of the instance is shown. Enter the address of the
inverter data at the same number as that of the said parameters in the
COM-31~38.
Set
Value
Input
Instance
Data
Size
The number
of Parameter
0 20 4 X
1 21 4 X
2 100 4 X
3 101 4 X
4 121 2 1
5 122 4 2
6 123 6 3
7 124 8 4
8 125 10 5
9 126 12 6
10 127 14 7
11 128 16 8

iS7 Ethernet Option Manual
14
(9) Para Control (COM-50~58)
This parameter is not used in case of Modbus TCP.
This parameter appears only when the set value of the Output Instance
(COM-18) in the Ethernet IP is 4 or above.
COM-50 Para Ctrl Num cannot be set up but the number of the set up
parameters of the instance is shown. Enter the address of the inverter
data, which will make use of the reference data of the Client (Originator),
at the same number as that of the said parameters in the COM-51~58.
(10) Comm UpDate (COM-94)
At power on, the Option Parameters are expressed by the values set up
in the Option, however, not reflected immediately when set up.
If the Comm Update is set to ‘Yes,’ this value is reflected on the
Modbus/TCP communication card and only this card will be restarted.
9. Inverter Communication Address
See Chapter 11. Communication Function, Inverter IS-7 Manual.
10. Modbus/TCP Frame
(1) Modbus/TCP Frame Composition
Generally, Ethernet uses Ethernet II Frame.
MODBUS Application Protocol Header (MBAP Header)
MBAP Header constitution is presented below.
MBAP Header( 7 bytes) PDU (5 bytes ~)
Section Length
Description
Transaction
Identifier 2 Bytes
Un
i ue transmission number, which is
increased by 1 each time the Client sends
Data Frame to the Server.
Protocol Identifier 2 Bytes
Fixed at 0.
Length 2 Bytes
The
Data Frame
length of the Modbus,
representing the length (in byte unit) from
the
Unit Identi
fier
in the
MBAP Header.
Unit Identifier 1 Bytes
When the
Modbus TCP
and
Modbus RTU
are connected via gate, Slave number is
indicated. If Modbus TCP only is used, this
is fixed to
0xFF.

iS7 Ethernet Option Manual
15
Protocol Data Unit (PDU)
This is the practical data of the Modbus TCP consists of Function Code
and Data.
Details will be described in the “(2) description on the Function Code”
below.
(2) Function Code Description
Modbus TCP is divided into Client and Server. The Client gives
command and the Server responses to the command. Generally,
Clients can be PLC, HMI, or PC and the Server is the inverter.
①
①①
① Read Holding Registers
The function used to read the data in the Inverter (Server).
Constitution of the frame re uested from Client to Server;
Constitution of the frame sent from Server to Master in response;
Requested Frame
Length Value
Function code 1 Bytes 0x03
Comm. address 2 Bytes 0x0000 ~ 0xFFFF
The number of
data re uested 2 Bytes 1~16 (LSIS Inverter standard)
Response Frame
Length Value
Function code 1 Bytes 0x03
Comm. address 1 Bytes 2 x The re uested
number of data
The number of
data re uested
The re uested
number of data x 2
Bytes
Value of the data of the
given number from the
communication address

iS7 Ethernet Option Manual
16
②
②②
② Read Input Registers
The function used to read the data in the Inverter (Server).
Constitution of the frame re uested from Client to Server;
Constitution of the frame sent from Server to Master in response;
③
③③
③ Write Single Register
The function used to change one of the data in the Inverter (Server).
Constitution of the frame re uested from Client to Server;
Requested Frame
Length Value
Function code 1 Bytes 0x04
Comm. address 2 Bytes 0x0000 ~ 0xFFFF
The number of
data re uested 2 Bytes 1~16 (LSIS Inverter standard)
Response Frame Length Value
Function code 1 Bytes 0x03
Comm. address 1 Bytes 2 x The re uested
number of data
The number of
data re uested
The re uested
number of data x 2
Bytes
Value of the data of the
given number from the
communication address
Requested Frame
Length Value
Function code 1 Bytes 0x06
Comm. address 2 Bytes 0x0000 ~ 0xFFFF
Data value 2 Bytes 0x0000 ~ 0xFFFF

iS7 Ethernet Option Manual
17
Constitution of the frame sent from Server to Master in response;
④
④④
④ Write Multiple Register
The function used to change from 1 to 16 of the Inverter (Server) data
consecutively.
Constitution of the frame re uested from Client to Server;
Constitution of the frame sent from Server to Master in response;
Response Frame
Length Value
Function code 1 Bytes 0x06
Comm. address 2 Bytes 0x0000 ~ 0xFFFF
Data Value 2 Bytes 0x0000 ~ 0xFFFF
Requested Frame
Length Value
Function code 1bytes 0x10
Comm. address 2bytes 0x0000 ~ 0xFFFF
The number of
data to revise 2byte 1~16 (LSIS Inverter standard)
Byte Count 1byte 2 X The number of data
Data value to
revise
The number
of data
x 2 bytes
Data to revise
Response Frame Length Value
Function Code 1 Bytes 0x10
Comm. address 2 Bytes 0x0000 ~ 0xFFFF
The number of
data to revise 2 Bytes 1~16 (LSIS Inverter standard)

iS7 Ethernet Option Manual
18
(3) Except Frame
Except Frame is for the response of the Server in case of an error
occurred in the execution of the frame re uested by a Client.
Exception Frame Composition
Exception Code Type
Error Frame Length Value
Error Code 1bytes 0x80 + Re uested
function code from client
Exception Code
1bytes 0x0000 ~ 0xFFFF
Exception Code Type Code
Description
ILLEGAL FUNCTION 0x01 When unsupported function is
re uested
ILLEGAL DATA
ADDRESS 0x02 Re uest or modification of the data in unused address
ILLEGAL DATA VALUE 0x03
When trying to modify data to
a value out of the allowable
range
SLAVE DEVICE
FAILURE 0x04
Server has an error (Error in
CAN communication with
Inverter, error in Option
initialization, failure in data
communication with Inverter)
SLAVE DEVICE BUSY 0x06
Server is unable to respond
because it is executing
another process (Inverter
parameter initializing, initial
setting of Option, etc.)
WRITE PERMITION
ERROR 0x20
When trying to change a
parameter which is prohibited
from changing.
(A uni ue code of LS
Inverters)

iS7 Ethernet Option Manual
19
11. Ethernet IP
(1) Basic Constitution of Protocol
The Ethernet IP is a protocol which is implemented with the CIP
(Common Industrial Protocol), specified by the ODVA, using TCP and
UDP.
Originator: the device which is re uesting connection. Also called
client. The device can be PLC or Scanner.
Target: the device which responds to the re uest for connection. Also
called server. The device here is Inverter.

iS7 Ethernet Option Manual
20
(2) Implicit Message
An Implicit Message is also called an I/O Message. This is the data
communicated between the Client (Originator) and Server (Target) with
Input Instance and Output Instance, at preset period. Class 1
connection will be implemented.
①
①①
① Supported range
Transport Type
Originator->Target: Point to Point
Target->Originator: Multicast
Transport Trigger: Cyclic
Configuration Connection: 1
Connection Tag: Not available
Priority
Originator->Target: Scheduled
Target->Originator: Scheduled
Configuration Data: Not available
