M ini cablereel ±32 ft.(10 m)
GS110
!
C raneBoom-Length-and-AngleWireless Measurement Sensor
!
Features
Cable reel with 32 ft. (10 m) of wire rope to measure
length
Length resolution: 0.1 ft. (30 mm)
Length accuracy: 0.1 ft. (30 mm)
Angle resolution: 0.1°
Angle accuracy: typical: 0.2°
Angle range (GS110): -90° to +130°
Angle range (GS110-02): 0° to 360°
Measurement is optimized for crane movements; both
the boom angle and the boom length are measured four
times per second.
The GS110 can be installed on either side of the main
boom; the sensor automatically rights itself.
Radio range with line of sight: 4000 ft. (1300 m)
Operates with one 'D' cell battery lithium 3.6V or
alkaline 1.5V.
1 to 2 years battery life for typical applications
ISM license free radio; wavelength and modulation
optimized for radio communication in industrial
environments.
Temperature range: -35°C to 65°C (-35°F to 150°F)
Temperature compensated
Potted electronics for increased water proof protection
Applications
Measurement of crane boom length and of crane boom
angle to horizontal. The wire rope can be fixed at the
boom tip for the complete boom length measurement.
For boom lengths longer than 32 ft., the wire rope can
be attached to the end of the first extending boom
section, with the condition that all boom sections must
always extend proportionally and at the same time.
General Description
The cable reel has more than 32 ft. (10 m) of extendable,
spring loaded, wire rope. The extremity of the wire rope
should be fixed to the extremity of the length to be
measured. The cable reel ships with an anchor and cable
guides.
The transmitter box on top of the cable reel houses the
battery, the radio transmitter and the solid state
accelerometer-based angle sensor.

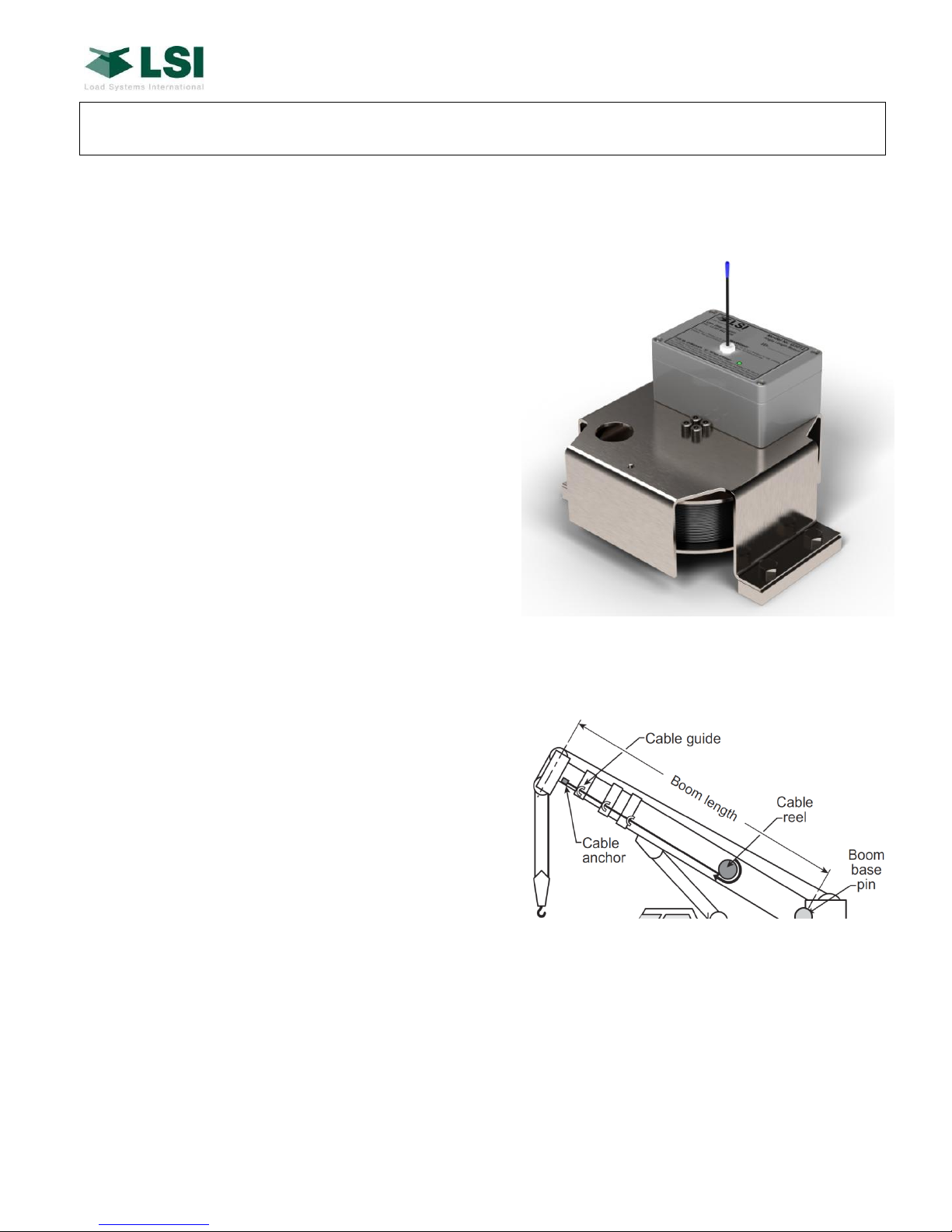

Mini cablereel p/n G S 110
Figure: cablereel installation on the m ain boo m for the
m easure m entofcraneboo m length

L S I R ev.1.0 P a g e2 o f 4
M ini cablereel ±32 ft.(10 m)
GS110
Tableof Contents
Features ................................................................................................................................................ 1
Applications ......................................................................................................................................... 1
General Description ............................................................................................................................. 1
Table of Contents ................................................................................................................................. 2
Ordering Information ........................................................................................................................... 2
Specifications ....................................................................................................................................... 3
Absolute Maximum Ratings ................................................................................................................ 3
Certifications........................................................................................................................................ 3
Application Notes ................................................................................................................................ 4
Dimensions and Installation................................................................................................................. 4
!
O rdering Information
Model
Description
GS110
Cable reel with transmitter for length (32 ft.) and angle
GS110-02
Cable reel with transmitter for length (32 ft.) and 360° angle. Side of boom for
installation must be specified when ordering (default: left). Typically used on
knuckle booms.
TA011
Replacement sensor antenna
PA111
Replacement rod cable guide
PA113
Anchor for wire rope end
Other related part numbers:
GS101: cable reel for length up to 140 ft.
QC024: cable reel wire rope clamp (McMaster ʋ5513T11 )

L S I R ev.1.0 P a g e3 o f 4
M ini cablereel ±32 ft.(10 m)
GS110
Specifications
Parameter
Test Condition
M in
Typ
Max
Unit
Angle
Resolution
0.1
Degree
Accuracy
0.3
Degree
Length
Resolution
0.1
(30)
ft.
(mm)
Accuracy
0.1
ft.
(30)
(mm)
Radio Power
GS110
0.013
0.016
0.020
W
11
12
13
dBm
Radio F requency
North American version
GS110
902
916
928
MHz
Battery life
µ'¶FHOOEDWWHU\life
depends on usage
12
24
28
Month
Other
Weight
GS110
15
(6,8)
lb
(kg)
AbsoluteMaximum Ratings
Parameter
Test Condition
M in
Typ
Max
Unit
Temperature range
Operating
-35*
-31*
+65
+150
ºC
ºF
*The GS110 will work below -35°C (-31°F), but the cable may rewind slowly when the boom is retracted.
Certifications
FCC/IC

L S I R ev.1.0 P a g e4 o f 4
M ini cablereel ±32 ft.(10 m)
GS110
Application Notes
The angle sensor in the GS110 automatically detects on which side of the boom it is installed when the boom angle is less than
45° to horizontal. For knuckle booms and other applications where the boom angle may go beyond the -90° to +130° range of the
GS110, the GS110-02 with 360° angle sensor should be used. Left or right side installation must be specified when ordering the
GS110-02.
Dimensionsand Installation
Cablereel (notto scale)
Weld padsfootprint(notto scale)
Units arein inches[ m illi m eters]
Cable reel placement: find a clear mounting position on the cab side of the first (lower) section of the main boom. The mounting
position should be close to the base of the boom; at least 5 ft. (1.5 m) from the tip of the first section and where the cable reel
ZRQ¶WREVWUXFWIUHHERRPPRYHPHQWDWDOOERRPDQJOHVDQGVOHZSRVLWLRQV)XUWKHUPRUHWKHUHHOPXVWEHSOaced such that the
cable has a clear straight line to the end of the last section at all boom lengths.
0RXQWWKHZHOGLQJWDEV7KH\PXVWEHSODFHGSDUDOOHOWRHDFKRWKHUǩLQDSDUW,QVWDOOWKHWDEVVXFKWKDWWKH\FUHDWHDOHvel
mounting position in line with the boom when horizontal (0°). Correct alignment of the first guide is important to ensure orderly
winding of the cable on the reel. Install the other guides at the end of each of the intermediate sections and the anchor at the end
of the last section. All guides must be aligned so as to permit unobstructed movement of the cable. Proceed with length
calibration.
The angle sensor is pre-calibrated and temperature compensated; see the installation section in the user manual for details.
