Ltech LT-855-12A User manual

LT-855-12A
DMX-PWM CV DECODER
1
1. Product Parameter:
LT-855-12A DMX decoder works to convert universal DMX512 digital signal to PWM signal, realize 0-100%
brightness, can control single color LED lights. 0 10V signal output socket also available. -
Input Signal:
Input Voltage:
Max :
Max Output Power:
DMX512 Socket:
Load Current
DMX512
12~24Vdc
12A×1CH+0-10V×1CH
144W/288W(12V/24V)
RJ45
Working Temperature:
Dimensions:
Package Size:
Weight(G.W.):
-30℃-65℃
L175×W42×H33mm
L183×W48×H41mm
310g
LT-855-12A
2. Product Size:
LT-855-12A DMX-PWM Decoder LT-855-12A DMX-PWM Decoder
2
Dip Switch Operation:
3.
When Dip switch 1-9 are OFF, the defaulted .initial DMX address is 1
E.g.1: Set Initial Address To 32. E.g.2: Set Initial Address To 37. E.g.3: Set Initial Address To 178.
001+004+032=37 002+016+032+128=178
*
FUN=ON (the 10th ) dip switch=ON Self-testing Mode
FUN=ON (the 10th ) dip switch=ON Self-testing Mode
FUN=OFF (the 10th ) Modedip switch=OFF DMX
FUN=OFF (the 10th ) Modedip switch=OFF DMX
Value
3.1 How to set DMX address via dip switch:
DMX address value=the total value of (1-9), to get the place value when in “on” position,
otherwise will be 0.
3.2 Self-testing Mode:
1=ON 4=ON 7=ON 8=ON 9=ON2=ON 5=ON
3=ON 6=ON
Brightness
1-9=OFF
Dip Switch
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
[Attn] When several dip switches are ON, subjected to the highest switch value.
As the figure above shows, the br ightness will be 90%.
DMX Mode: The running light flashed fast when input DMX signal, the flashed frequency depends
on the frames of DMX master, if there is no DMX signal, the running light flashed normally.
*
www.ltech-led.com
3

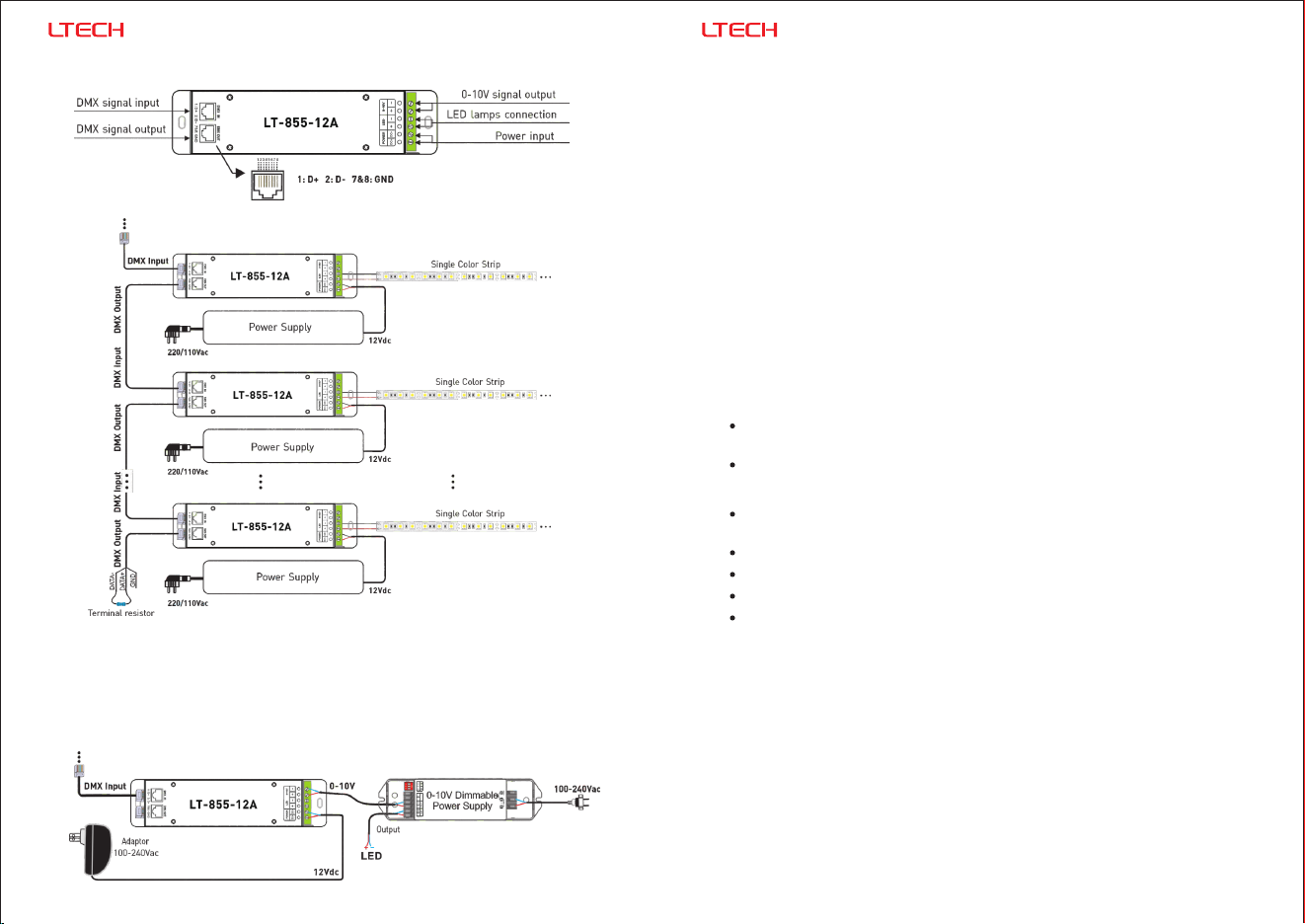

4. Wiring Diagram:
4.2 DMX to 0-10V signal:
4.1 Connected to LEDs:
4Update Time: 2016.09.26
5. Attention:
6. Warranty Agreement:
5.1 The product shall be installed and serviced by the qualified person.
5.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure
it is mounted in a water proof enclosure.
5.3 Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
5.4 Please check if the output voltage of the LED power supply used comply with the working voltage of
the product.
5.5 Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
5.6 Ensure all wire connections and polarities are correct before applying power to avoid any damages to
the LED lights.
5.7 If a fault occurs, please return the product to your supplier. Do not attempt to fix this product by yourself.
6.1 We provide lifelong technical assistance with this product:
A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement
and cover manufacturing faults only.
For faults beyond the 5-year warranty, we reserve the right to charge for time and parts.
6.2 Warranty exclusions below:
Any man-made damages caused from improper operation, or connecting to excess voltage and
overloading.
The product appears to have excessive physical damage.
Damage due to natural disasters and force majeure.
Warranty label, fragile label and unique barcode label have been damaged.
The product has been replaced by a brand new product.
6.3
6.4 Any amendment or adjustment to this warranty must be approved in writing by our company only.
★ This manual only applies to this model. reserve the right to make changes without
We prior notice.
Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
We shall not be liable for any incidental or consequential damages for breach of any stipulation
in this warranty.
LT-855-12A DMX-PWM Decoder LT-855-12A DMX-PWM Decoder
12V lamp connected, loads 0~144W(12V),
24V lamp connected, loads 0~288W(24V), can load 4 rolls of strips (72W, 5m)
can load 2 rolls of strips (72W, 5m)
*
90-120Ω terminal resistor at the end of each line.
If the recoil effect occurs because of longer signal line or bad line quality, please try to connect 0.25W
*
An amplifier is needed when more than 32 decoders are connected, signal amplification should not be
more than 5 times continuously.
www.ltech-led.com
