Ltech LT-830 User manual

1. Product Parameter:
Input Signal:
Input Voltage:
Max Current Load:
Max Output Power:
DMX512 Socket:
Dimming Range:
DMX512, RDM
5~24Vdc
8A×3CH Max 24A
(0~40W...192W)×3CH Max. 576W
3-pin XLR, RJ45, Green Terminal
0~100%
1
LT-830-8A
2. Product Size:
DC+
DC- CH1 CH2 CH3 NC
V+
LT-830-8A
DMX/RDM 3CH CV DECODER
LT-830 8A DMX/RDM 3CH CV Decoder-
LT-830-8A w
bi-directional communication, achieves remote management of reading and writing DMX address (DMX
master controller must recognize the RDM protocol). Equipped with DMX standard 3-pin XLR, RJ45, green
terminal interface. Realize 0-100% dimming or different lighting effect; workable with single color, bi-color
or RGB LED lamps.
ith the standard RDM remote device management protocol, supports DMX512 signal
Power Input Socket
Address
Dip Switch
Green Terminal
(with amplifier function) 3-pin XLR RJ45
A B N N N N G G
LED Lamps
Connection Socket
3. Configuration Diagram:
2
LT-830 8A DMX/RDM 3CH CV Decoder-
4.3 DMX Dimming Instruction:
CH1 0-255
CH2 0-255
CH3 0-255
Each LT-830 8A DMX decoder occupied 3 DMX
addresses when connecting the DMX console.
-
PWM 0-100% (LED R)
PWM LED G)0-100% (
PWM LED B)0-100% (
CH1
CH2
CH3
DMX Console DMX Decoder
Dip Switch Operation:
4.
RDM Mode: The dip switch 1-10 are OFF.
FUN=ON (the 10th dip switch=ON)
Self-testing Mode:
FUN=OFF (the 10th dip switch = OFF)
DMX Mode:
Setting DMX addresses with dip switch 1-9
FUN=OFF (the 10th dip switch ) Mode=OFF DMX
4.1 How to set DMX address via dip switch:
E.g.1: Set Initial Address To 32. E.g.2: Set Initial Address To 37. E.g.3: Set Initial Address To 178.
001+004+032=37 002+016+032+128=178
4
4
4
1
1
1
111
2
2
2
222
3
3
3
333
4
4
4
444
5
5
5
555
6
6
6
666
7
7
7
777
8
8
8
888
9
9
9
999
ON
ON
ON
DIP
DIP
DIP
0
1
0
1
0
1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
10
10
10
10 10 10
ONDIP ON ON
DIP DIP
FUN=ON (the 10th dip switch = ON) Self-testing Mode
4.2 Self-testing Mode:
1=on 4=on 7=on 8=on 9=on2=on 5=on 3=on 6=on
Self-test
Function
1-9=off
Dip Switch
Static
Black Static Red
Static
Red
Static
Green
Static
Green
Static
Blue
Static
Blue
Static
Yellow
Static
Yellow
Static
Purple
Static
Purple
Static
Cyan
Static
Cyan
Static
White
Static
White
7 Colors
Jumping
7 Colors
Jumping
7 Colors
Smooth
7 Colors
Smooth
[Attn] When several dip switches are on, subjected to the highest switch value.
As the figure above shows, the effect will be 7 colors smooth at 7 speed level.
For changing effects (Dip Switch 8 9=on): /
DIP switch 1-7 is used to realize 7 speed
levels. (7=on, the fastest level)
DMX address value = the total value of (1-9), to get the place value when in “on” position,
otherwise will be 0.
OFF
ON
12345678910
e.g., the defaulted initial address is 1, please find
their corresponding relationships in the form.
www.ltech-led.com
warranty
5 years
Working Temp.:
Dimensions:
Package Size:
Weight (G.W.):
-30℃~65℃
L156×W78×H40(mm)
L180×W82×H48(mm)
430g
Short circuit / Over current
auto recovers.
Protection:
12345678910
ON
DIP
40mm
78mm
156mm
146mm

3

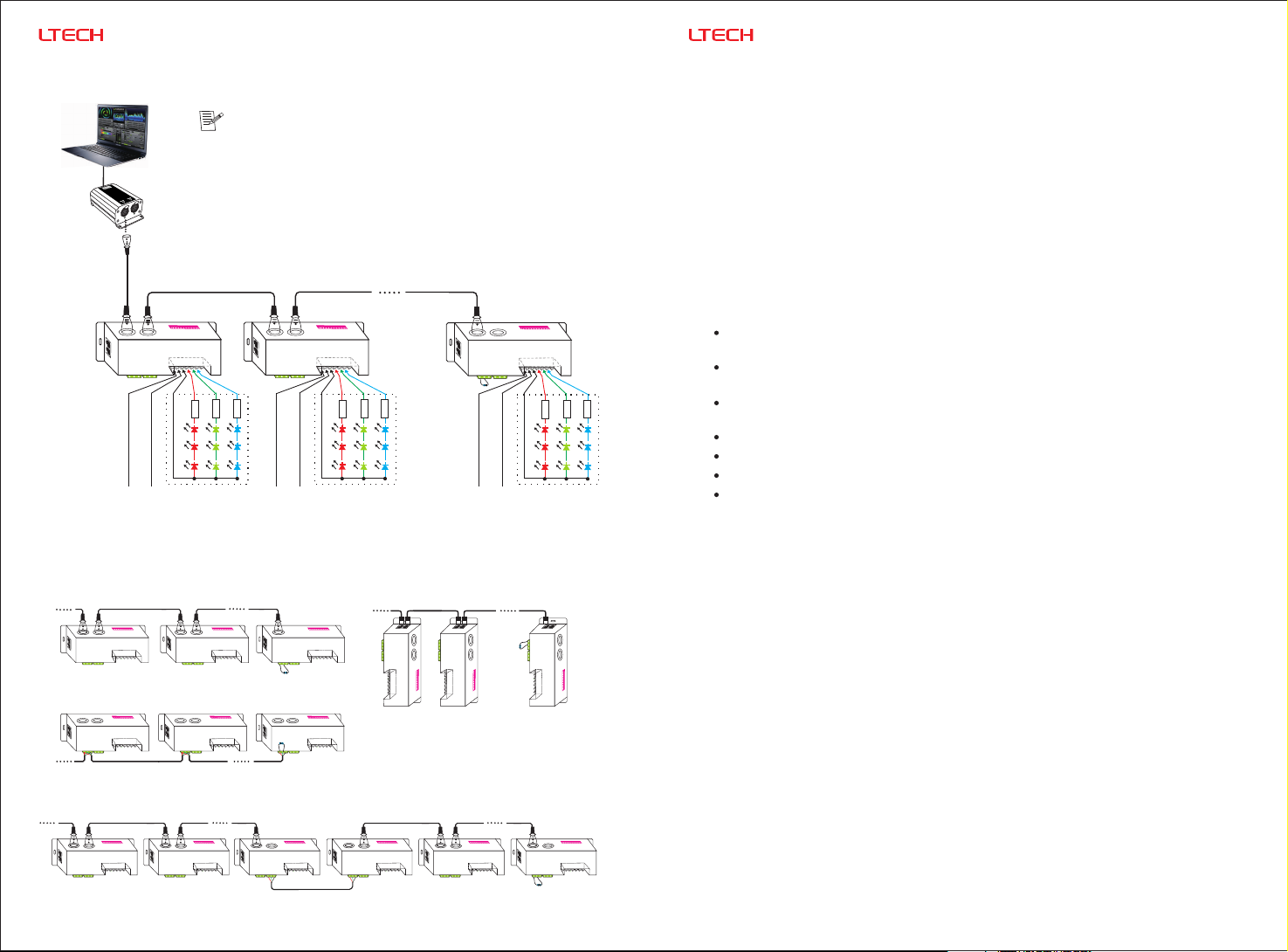

5. Wiring Diagram:
LT-830 8A DMX/RDM 3CH CV Decoder-
5.1 Decoder can be connected to a variety of standard DMX512 devices:
*
at the end of each line.
If the recoil effect occurs because of longer signal line or bad line quality, please try to connect 0.25W 90-120Ω terminal resistor
*
An amplifier is needed when more than 32 decoders are connected, signal amplification should not be more than 5 times
continuously.
5.2 The connection diagram of three DMX terminals:
5.3 The connection diagram of :AMP signal amplifier terminal
3-pin XLR Connected in Parallel
Green Terminal Connected in Parallel
RJ45 Connected in Parallel
These 3 terminals can be connected
in a mixed way.
Terminal resistor
Terminal resistor
Terminal
resistor
Terminal
resistor
Terminal
resistor
DMX signal input
*
signal amplification
should be no more than 5 times continuously.
Amplified the signal by AMP interface which connecting too many decoder and in overlong signal line,
LT-830 8A DMX/RDM 3CH CV Decoder-
4
6. Attention:
7. Warranty Agreement:
6.1 The product shall be installed and serviced by the qualified person.
6.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure
it is mounted in a water proof enclosure.
6.3 Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
6.4 Please check if the output voltage of the LED power supply used comply with the working voltage of
the product.
6.5 Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector.
6.6 Ensure all wire connections and polarities are correct before applying power to avoid any damages to
the LED lights.
6.7 If a fault occurs, please return the product to your supplier. Do not attempt to fix this product by yourself.
7.1 We provide lifelong technical assistance with this product:
A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement
if cover manufacturing faults only.
For faults beyond the 5-year warranty, we reserve the right to charge for time and parts.
7.2 Warranty exclusions below:
Any man-made damages caused from improper operation, or connecting to excess voltage and
overloading.
The product appears to have excessive physical damage.
Damage due to natural disasters and force majeure.
Warranty label, fragile label and unique barcode label have been damaged.
The product has been replaced by a brand new product.
7.3
7.4 Any amendment or adjustment to this warranty must be approved in writing by our company only.
★ This manual only applies to this model. reserve the right to make changes without We prior notice.
Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
We shall not be liable for any incidental or consequential damages for breach of any stipulation
in this warranty.
Update Time: 2018.07.06_A5
www.ltech-led.com
