INTRODUCTION
Thank you for purchasing LED PIXEL 30W RGBW 4in1 COB SPOT. For safety reasons and to ensure the trouble-
free operation, carefully read the instructions.
SAFETY INFORMATION
1. Installation should be done by qualied personnel in order to minimize the risk of accidental electric shock
2.Disconnect the power supply before installation.
3.Before connecting the unit to the mains, make sure it is not damaged mechanically. If you notice any signs
of damage you should contact your dealer immediately. Do not connect the device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
6. Always use steel security cable to attach the device to a stable structure
7. Do not connect power supply to more than 30 devices in series.
PRODUCT INFORMATION
Specication
• Power consumption: 30W
• Power supply voltage: 100 - 245V
• Voltage frequency: 50/60Hz
• Diode type: COB 4in1
• Number of diodes: 1
• Diode power: 30W
• Display: No display (Auto-DMX)
• Color: RGBW
• ZOOM:Yes
• Beam angle (min): 15°
• Beam angle (max): 120°
• Dimming: Linear: 0 - 100%
• Flash frequency (min): 1Hz
• Flash frequency (max): 20Hz
• Number of DMX channels: 6
• DMX standard: DMX 512
• Control interface: Auto-DMX / control via DMX
• Operating modes: DMX512
• Features: Auto-DMX; DMX signal regeneration, Electronic protection against overheating
• Additional information: FasLOCK system, Optional wireless DMX interface
• AC IN: powerCON

Manual | LED PIXEL 30W RGBW 4in1 COB SPOT
• AC OUT: powerCON
• DMX IN: XLR - 3 pin
• DMX OUT: XLR - 3 pin
• IP Rating: IP20
• Housing made: Aluminium
• Cooling: Active
• Height [cm]: 10
• Width [cm]: 10
• Depth [cm]: 23
• Weight [kg]: 1,3
INSTALLATION
After removing the packaging, check if the device was not damaged during transport. Before connecting
to the mains, make sure that the device is securely mounted. The manufacturer is not responsible for
damage caused by unstable mounting.
CAUTION! Always use steel security cable to attach the device to a stable structure.
Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters
are consistent with device requirements. All activities, including connecting the device to the mains
must be performed by qualied personnel.
CONNECTIONS
The device is equipped with the following interfaces:
1. DMX (in/out): XLR 3-pin socket
2. Power (in/out): powerCON socket
a) Connecting DMX signal

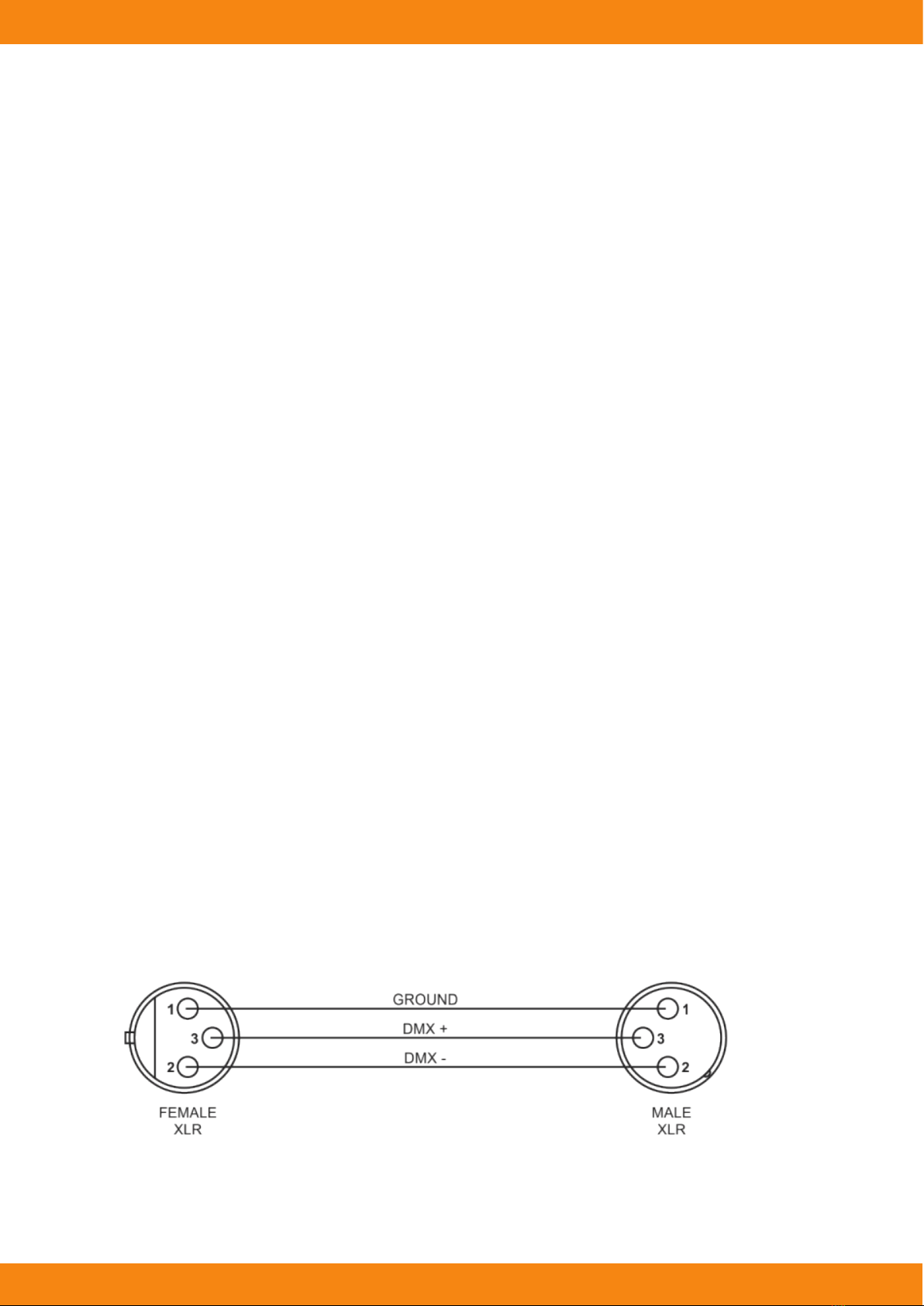

The connection is performed using cable with XLR-female -> XLR-Male plugs.

Manual | LED PIXEL 30W RGBW 4in1 COB SPOT
b) Voltage specication
Input Voltage Total Power Frequency
100~245V 30W 50/60Hz
c) Connecting power supply
The connection is performed using power cable with PowerCon connector (included). The device
must be operated by qualied personnel. Make sure that the power grid supply parameters are
consistent with device parameters and limitations are not exceeded.
CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be
made only on the manufacturer or by a person with appropriate permissions.
Maximum number of devices connected in series: 30

Manual | LED PIXEL 30W RGBW 4in1 COB SPOT
OPERATION MANUAL - AUTO DMX
a) Introduction
Devices with automatic DMX address assignment allow you to easily congure a lighting system
consisting of multiple independently controlled lamps, without the need to give them an individual
DMX address with a standard display menu.
DMX address for each subsequent device is assigned automatically based on the information sent
from the lamp to which it was connected by XLR cable.
For example, when 3 devices (each with 6 DMX channels) are connected in series and AUTO-DMX
mode is turned on, they will be assigned to channels:
• Device 1: channel 1-6
• Device 2: channel 7-12
• Device 3: channel 13-18
b) Connecting devices – order
To achieve the desired eect after making changes in Manual settings,
Demo or Sound mode, you should:
1. Disconnect DMX signal
2. Set the appropriate device response in Menu -> DMX o
3. Set and save the parameters in the selected mode (Manual settings, Demo, Sound)
4.Wait about 1s in order to the device detected the DMX signal status

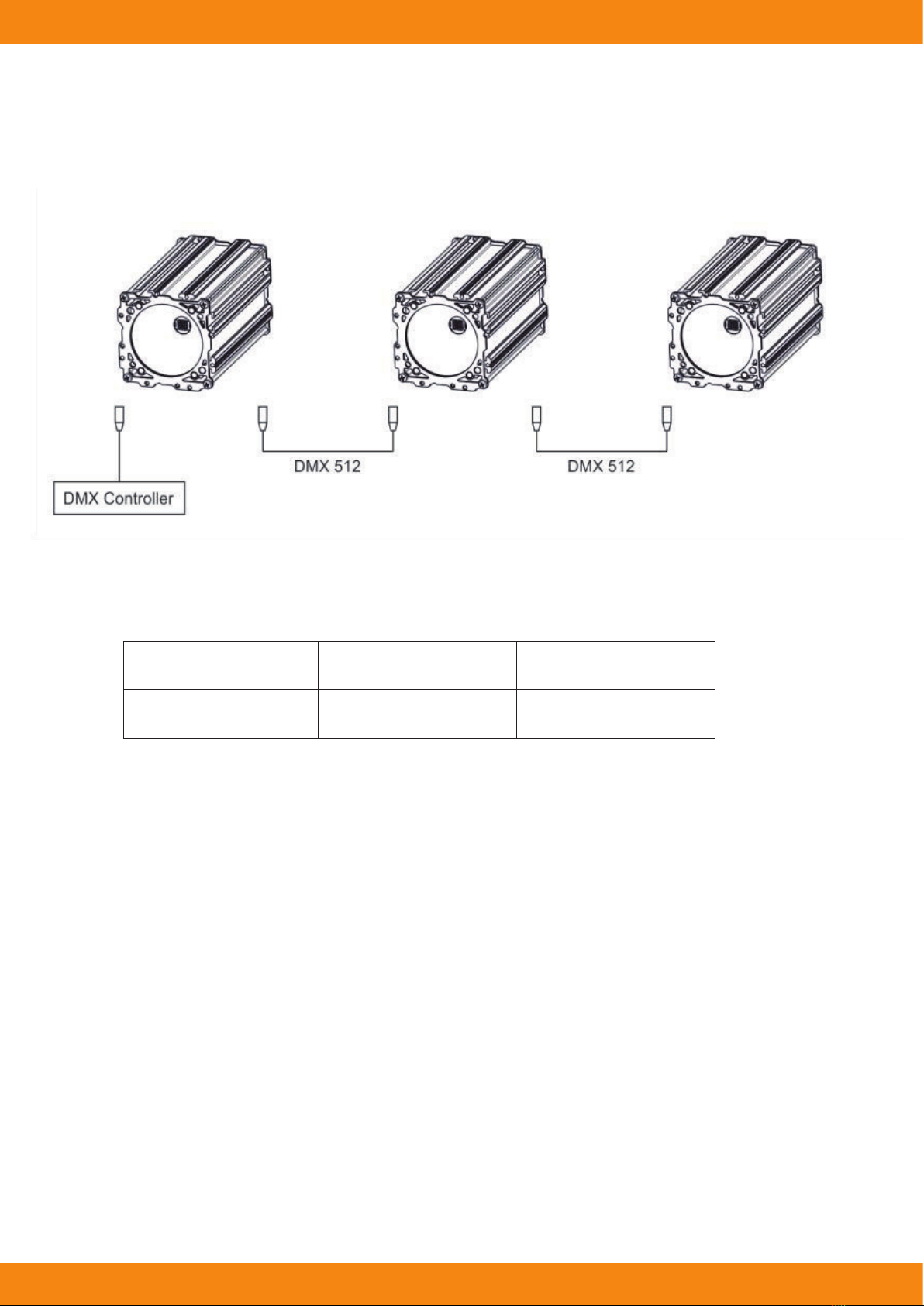

To use automatic address assignment of DMX connect the devices with DMX cable (3-pin XLR) in
series (Daisy-chain) in the order in which they are to be set as a virtual devices on the DMX controller.
The device located in the chain as the rst, is congured always to work from the channel 1. For
example, a device with six control channels is arranged to operate on channels 1-6.
In AUTO-DMX mode, the next device connected in series will be congured to operate on channels
7-12.mEach additional device is congured to operate according to the scheme: the rst„free“ chan-
nel + the amountnof this device channels.

Manual | LED PIXEL 30W RGBW 4in1 COB SPOT
c) DMX channel list
In this way it is possible to connect multiple devices and have independent control of each of them
immediately, after turning the power on (without setting the individual DMX addresses using display).
b) Conguration - mode change
The devices can operate in two dierent modes:
AUTO-DMX: devices automatically congure themselves to work on the following DMX channels, having
regard to number of channels assigned to the previous device connected in series.

Manual | LED PIXEL 30W RGBW 4in1 COB SPOT
Changing mode is done using a standard DMX controller. Changes can be made by setting the appropri-
ate value in the FUNCTION channel (see DMX channels table). Changing mode is done by setting the
appropriate value and waiting 10 seconds.
The changes are applied to all devices connected in series, regardless of the current operation mode.
When changing from AUTO-DMX to STANDARD mode it is necessary to wait an additional 2 seconds to
apply the changes for each subsequent device.
DMX CHANNEL LIST
6CH mode
Channel Function Eect
CH 1 Dimmer 0-255: 0-100%
CH 2 Red 0-255: 0-100%
CH 3 Green 0-255: 0-100%
CH 4 Blue 0-255: 0-100%
CH 5 White 0-255: 0-100%
CH 6 Strobo / function
0-10: No function
11-120: Strobo wolno-szybko
122-199: No function
200-204: Auto DMX incr. ON (AUTO-DMX MODE)
205-209: Auto DMX incr. OFF (STANDARD MODE)
210-255: No function

Manual | LED PIXEL 30W RGBW 4in1 COB SPOT
