LTS PTZH773X23IR User manual

HD-TVI Speed Dome
Installation Manual

Installation Manual of HD-TVI Speed Dome
1
Thank you for purchasing our product. If there is any question or request, please do not hesitate to
contact the dealer.
This manual is applicable to HD-TVI Speed Domes.
This manual may contain several technically inaccurate points or printing errors, and the content is
subject to change without notice. The updates will be added into the new version of this manual.
We will readily improve or update the products or procedures described in the manual.

Installation Manual of HD-TVI Speed Dome
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For
more information see: www.recyclethis.info.

Installation Manual of HD-TVI Speed Dome
3
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or
property loss. The precaution measure is divided into Warnings and Cautions:
Warnings: Neglecting any of the warnings may cause serious injury or death.
Cautions: Neglecting any of the cautions may cause injury or equipment damage.
Warnings:
Follow these safeguards to prevent
serious injury or death.
Cautions:
Follow these precautions to
prevent potential injury or
material damage.
Warnings
In the use of the product, you must be strict compliance with the electrical safety regulations of
the nation and region.
Please use the power adapter, which is provided by normal company. Refer to the specification
manual for the standard of power adapter and the power consumption cannot be less than the
required value.
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or fire hazard.
Please make sure that the plug is firmly connected on the power socket.
When the product is installed on wall or ceiling, the device shall be firmly fixed.
If smoke, odors or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
If the product does not work properly, please contact your dealer or the nearest service center.
Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Cautions
Do not drop the dome or subject it to physical shock, and do not expose it to high
electromagnetism radiation. Avoid the equipment installation on vibrations surface or places
subject to shock (ignorance can cause equipment damage).
Do not place the dome in extremely hot, cold, dusty or damp locations, otherwise fire or
electrical shock will occur. For operating temperature, please refer to the specification manual
for details.
The dome cover for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or
radiator is forbidden (ignorance can cause fire danger).
Do not aim the camera at the sun or extra bright places. A blooming or smear may occur

Installation Manual of HD-TVI Speed Dome
4
otherwise (which is not a malfunction however), and affecting the endurance of sensor at the
same time.
Please use the provided glove when open up the dome cover, avoid direct contact with the
dome cover, because the acidic sweat of the fingers may erode the surface coating of the dome
cover.
Please use a soft and dry cloth when clean inside and outside surfaces of the dome cover, do not
use alkaline detergents.

Installation Manual of HD-TVI Speed Dome
5
Table of Contents
Chapter 1 Preparation................................................................................................................................................ 6
Chapter 2 Installation................................................................................................................................................. 7
2.1 Cable Descriptions .................................................................................................................................................. 7
2.2 DIP Switch Settings ................................................................................................................................................. 8
2.3 Wiring and Installation ......................................................................................................................................... 10
2.3.1 Wiring ............................................................................................................................................................ 10
2.3.2 Installing the Bracket...................................................................................................................................... 10
2.3.3 Set the DIP Switch .......................................................................................................................................... 12
2.3.4 Installing the Speed Dome ............................................................................................................................. 12
Appendix .................................................................................................................................................................14
Appendix 1 Lightning & Surge Protection ....................................................................................................................... 14
Appendix 2 RS485 Bus Connection................................................................................................................................. 15
Appendix 3 24VAC Wire Gauge & Transmission Distance .............................................................................................. 18
Appendix 4 Wire Gauge Standards................................................................................................................................. 19

Installation Manual of HD-TVI Speed Dome
6
Chapter 1 Preparation
Basic Requirement
All the electronic operation should be strictly compliance with the electrical safety
regulations, fire prevention regulations and other related regulations in your local region.
Check the package contents and make sure that the device in the package is in good
condition and all the assembly parts are included.
Checking Installing Environment
Be sure that there is enough space to install the speed dome and accessories.
Make sure that the wall is strong enough to withstand at least 8 times the weight of the
dome and the mount.
Preparing Cables
Choose the video cable according to the transmission distance, the minimum requirement for
the coaxial video cable are shown as follows:
75Ω impedance;
100% copper core conducting wire;
95% weaving copper shield;
RS485 communication cable, please refer to Appendix 2.
24V AC power cable, please refer to Appendix 3
Preparing Tools
Before installation, please prepare the tools needed, such as the expansion screws, electric
hammer, electric drill, wrench, screwdriver, electroprobe and network cable.
Original Packaging
When you unpack the dome, please keep the original package properly, in case of returning or
repairing the camera, you can pack the dome with the package.
The user should be responsible for any damage caused when transporting with unoriginal
package.

Installation Manual of HD-TVI Speed Dome
7
Chapter 2 Installation
Before you start:
Check the package contents and make sure that the device in the package is in good condition and
all the assembly parts are included.
Confirm the
wiring is right.
Start
Installation
Preparation
Wiring
Installing Bracket
Setting DIP Switch
Installing Speed Dome
& Connecting Cables
Power-on &
Self-test
End
Succeeded
Failed
No
Yes

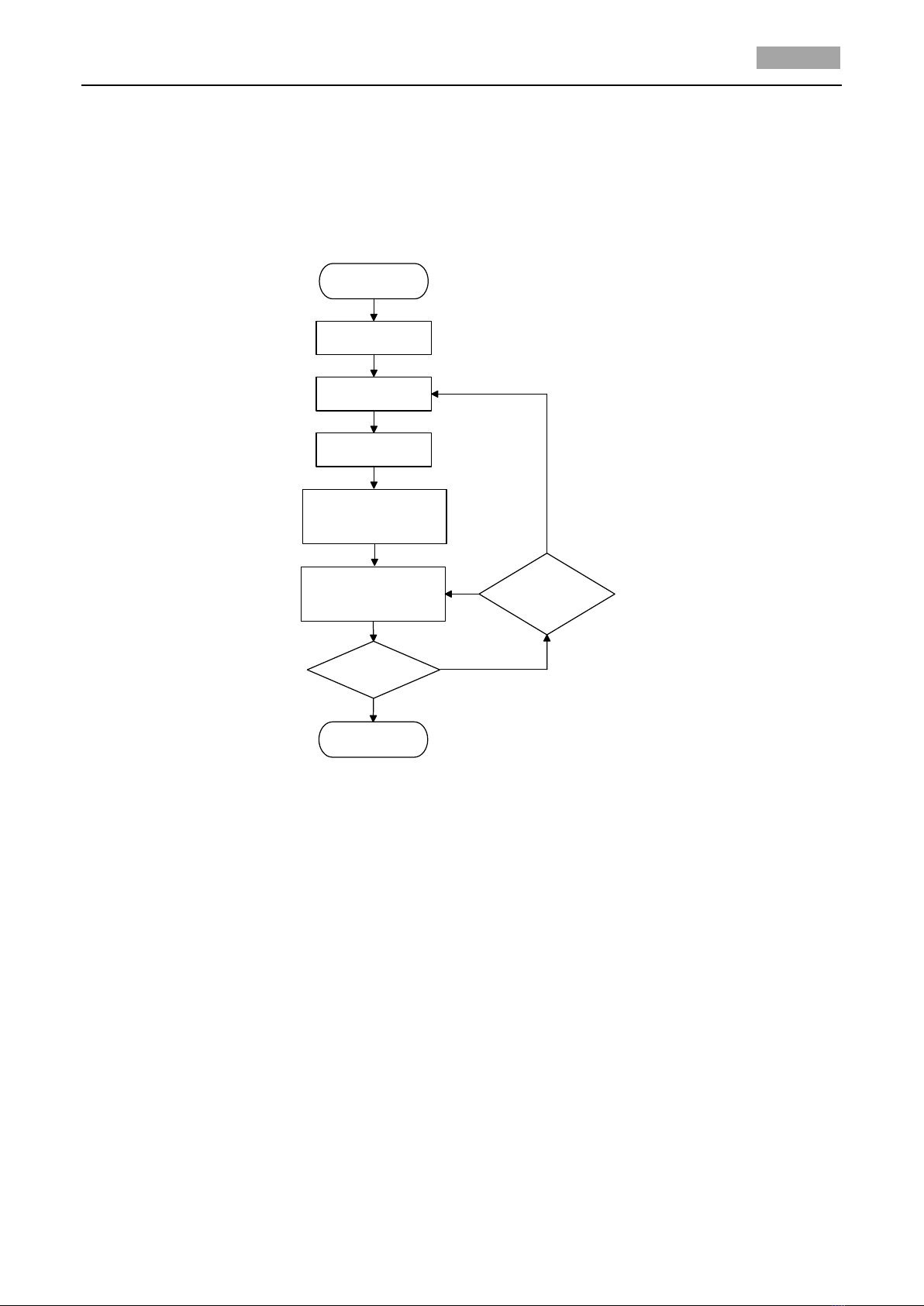

Figure 2-1 Installation Flow Diagram
2.1 Cable Descriptions
Please turn the power off before connect the cables.
The cable interfaces of HD-TVI speed dome are shown in Figure 2-2. The cables of RS-485, power
supply, etc. are distinguished by different colors. Please refer to the labels attached on the cables for
identification.

Installation Manual of HD-TVI Speed Dome
8
RED AC24V
YELLOW/GREEN GND
BLACK AC24V
①
YELLOW R485-
ORANGE R485+
②
Video Output
Yellow&Green
Yellow
Orange
Black
Red
①
②

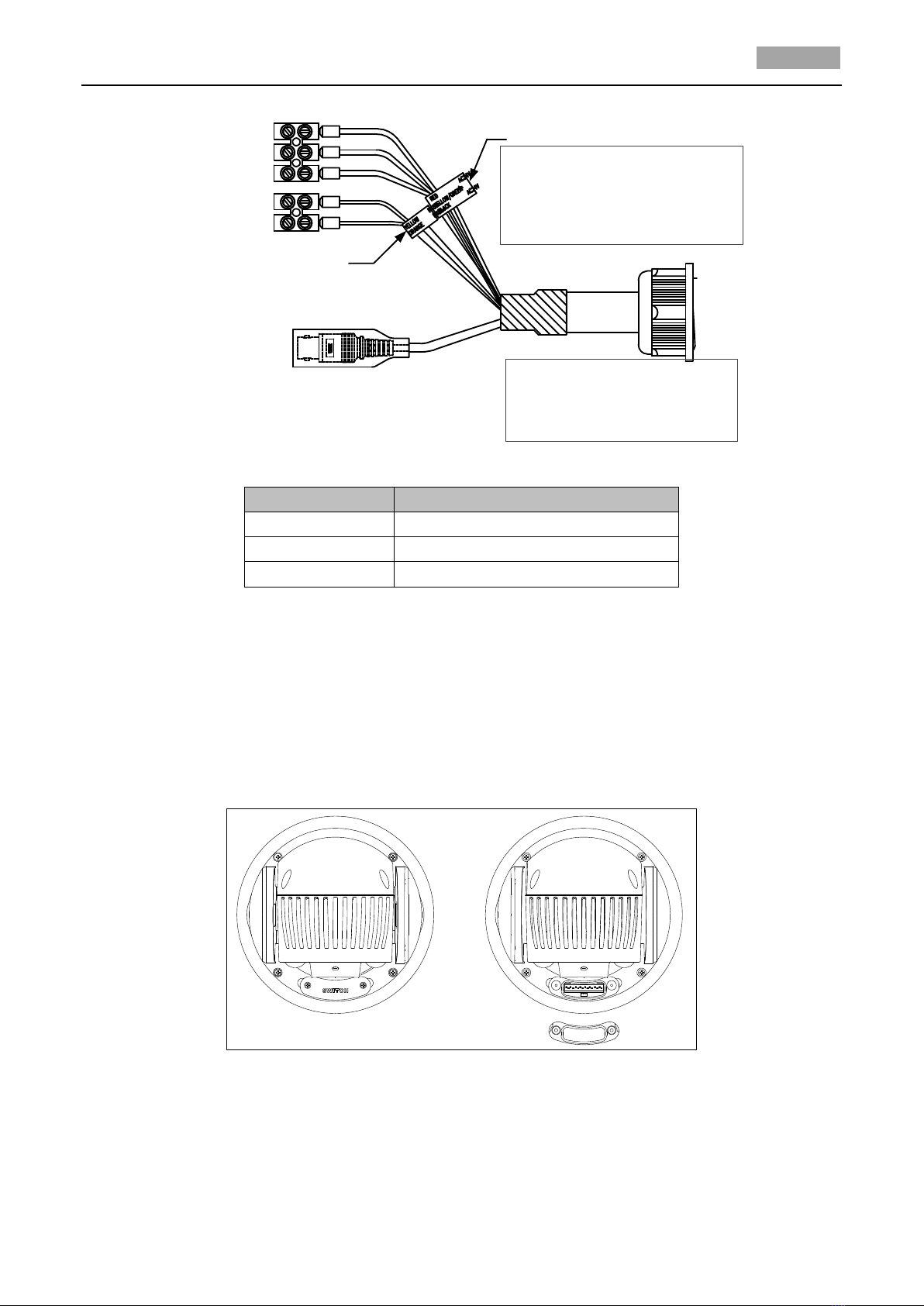

Figure 2-2 Cables of Speed Dome
Name
Description
AC24V
Power supply
RS485+/-
485 control
VIDEO
Coaxial and analog video output
2.2 DIP Switch Settings
Two DIP switches SW1 and SW2 are for setting the speed dome address, baudrate, protocol, etc.,
with value ON=1 and OFF=0. The switch label is on the back of the SWITCH cover as shown in Figure
2-3.
Each number of the switch represents a DIP value, ranging from 1 to 8 for the lowest to highest.
SW1 SW2
Figure 2-3 Label of DIP Switch for IR Speed Dome

Installation Manual of HD-TVI Speed Dome
9
ON
12345678
SW2
ON
12345678
SW1
Figure 2-4 Enlarged View of DIP Switch
The default dome address is 0; the default baudrate is 2400; and the default value of the 120Ω
terminator is OFF.
Address Settings
The SW1 switch is used for setting the address of speed dome. You can refer to Table 2-1 for details
of setting the speed dome address to a specific number.
Table 2-1 Set the Dome Address
Dome
Address
1
2
3
4
5
6
7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
-
-
-
-
-
-
-
-
-
255
ON
ON
ON
ON
ON
ON
ON
ON
Baudrate Settings
The No. 1, 2 and 3 of SW2 switch are for setting the baudrate of the speed dome, standing for
2400bps, 4800bps and 9600bps respectively. The baudrate will be set as 2400bps by default if it is
out of this range. Refer to the following table:
Table 2-2 Set the Baudrate of the Dome
DIP Switch SW2-Baudrate Settings
Baudrate
1
2
3
2400
ON
OFF
OFF
4800
OFF
ON
OFF
9600
ON
ON
OFF
19200
OFF
OFF
ON
Protocol Settings
The speed dome is self-adaptive to PELCO-D, PELCO-P and private protocol which cannot set by the
DIP switches.
Communication Mode Settings
The No. 7 of SW2 switch is for setting the RS485 communication mode of the dome to simplex or

Installation Manual of HD-TVI Speed Dome
10
half-duplex.
Table 2-3 Set Communication Mode of the Dome
DIP Switch SW2-Simplex/Half-duplex Settings
Description
7
Simplex
OFF
Half-duplex
ON
Terminal Resistor Settings
The No. 8 of SW2 switch is used for turning on/off the 120Ωterminal resistor.
Table 2-4 Set Terminal Resistor
Switch Number
Description
8
Turn on the resistor
OFF
Turn off the resistor
ON
The o-ring in the groove of the switch cover is for waterproof.
2.3 Wiring and Installation
There are several ways to install the speed dome. The wall mounting is taken as an example below.
2.3.1 Wiring
The survey of the actual installation environment and planning the wiring is highly recommended
before the accurate deployment of the wire is implemented in order to provide a safe and steady
power supply and a reasonable wiring route.
Get familiar with the installation environment before deploying the wire, including the wiring
distance, surrounding, and electromagnetic interference and so on.
Please choose the cable with nominal voltage higher than the actual voltage, to ensure a
normal running in case of unsteady voltage.
To protect the power cable and the signal transmitting cable from human tampering, you
should pay attention to the protection and reinforcement of the cables.
When deploying the wire, please do not tighten the wire or make the wire loose.
The wiring of the speed dome should be performed by professionals.
2.3.2 Installing the Bracket
Before you start:

Installation Manual of HD-TVI Speed Dome
11
Wall mounting is applicable to the indoor/outdoor solid wall construction. The followings are the
mandatory precondition for wall mounting:
The wall must be thick enough to install the expansion screws.
Please make sure that the wall is strong enough to withstand more than 8 times the weight of
the dome and the mount.
Steps:
1. Check whether the type of the bracket and the number of accessories are right, as shown in the
figure below.
Figure 2-5 Wall Mount Bracket, Nuts and Flat Washers
2. Drill 4 screw holes in the wall according to the holes of the mount, and then insert M8
expansion screws (not supplied) into the mounting holes.
Figure 2-6 Drill Mounting Holes
3. Attach the wall mount to the wall by aligning the 4 screw holes of the mount with expansion
screws on the wall.
4. Secure the wall mount with 4 hex nuts and washers.
Figure 2-7 Secure the Mount
5. Install the speed dome to the mount. Please refer to Section 2.3.4 Installing the Speed Dome for
installation details.
Follow the same instructions described above for the short-arm wall mounting. For outdoor

Installation Manual of HD-TVI Speed Dome
12
applications, please adopt the water-proof measures. The short-arm wall mount is not
recommended for outdoor applications.
2.3.3 Set the DIP Switch
Set the DIP Set the address and baudrate for the analog speed dome. The default value of DIP
switch is shown below:
Address: 0
Baudrate:2400
Terminal Resistor: OFF
Please refer to the Section 2.2 DIP Switch Settings for DIP switch settings.
2.3.4 Installing the Speed Dome
The sketched of installing the speed dome are for reference only.
Steps:
1. Hang the safety rope to the speed dome and then hook to the mount as shown in Figure 2-8.
③
②
①
Figure 2-8 Mount the Dome
2. Route the cables of the speed dome through the wall mount.
3. Connect the corresponding video/power/RS-485 cables.
4. Install the speed dome to the mount, and secure the speed dome by rotating the speed dome
clockwise.
5. Fasten the two lock screws with the Allen wrench.

Installation Manual of HD-TVI Speed Dome
13
Figure 2-9 Tighten the Lock Screws

Installation Manual of HD-TVI Speed Dome
14
Appendix
Appendix 1 Lightning & Surge Protection
This product adopts TVS plate lightning protection technology to avoid damage caused by pulse
signal that is below 3000W, like instantaneous lighting stroke, surging, etc. According to the actual
outdoor situation, necessary protection measures must be taken, besides ensuring the electrical
safety.
The distance between signal transmission wires and High-voltage equipment or high-voltage
cable is at least 50m.
Outdoor wiring should better be routed under eaves as much as possible.
In the open field, wiring should be buried underground in sealed steel pipe, and the steel-pipe
should be one-point grounding. Overhead routing method is forbidden.
In strong thunderstorm area or high induction voltage areas (such as high-voltage transformer
substation), high power lightning protection apparatus and lightning conductor are necessary to
be added.
The design of lightning protection and grounding of the outdoor devices and cables should be
considered together with the lightning protection demand of buildings. It also must conform to
the related national standards and industrial standards.
The system should be equipotential grounded. The grounding equipment must conform to the
demands of system anti-jamming and electrical safety both and it must not appear short circuit
or mixed circuit with the zero conductor of strong grid. When the system is grounded alone, the
resistance should be no more than 4Ω. The sectional area of the grounding cable should be no
less than 25mm2. For grounding instructions, please refer to the Installation Manual of Speed
Dome.
Lightening Rod
45°
The speed dome must be
installed in the 45°protection
area of the lightening rod.
The impedance of the grounding
wire can be no more than 4Ω.
Steel Protection Tube
Video Arrester
Communication
Arrester
Power Arrester
Figure A-1 Lightning & Surge Protection

Installation Manual of HD-TVI Speed Dome
15

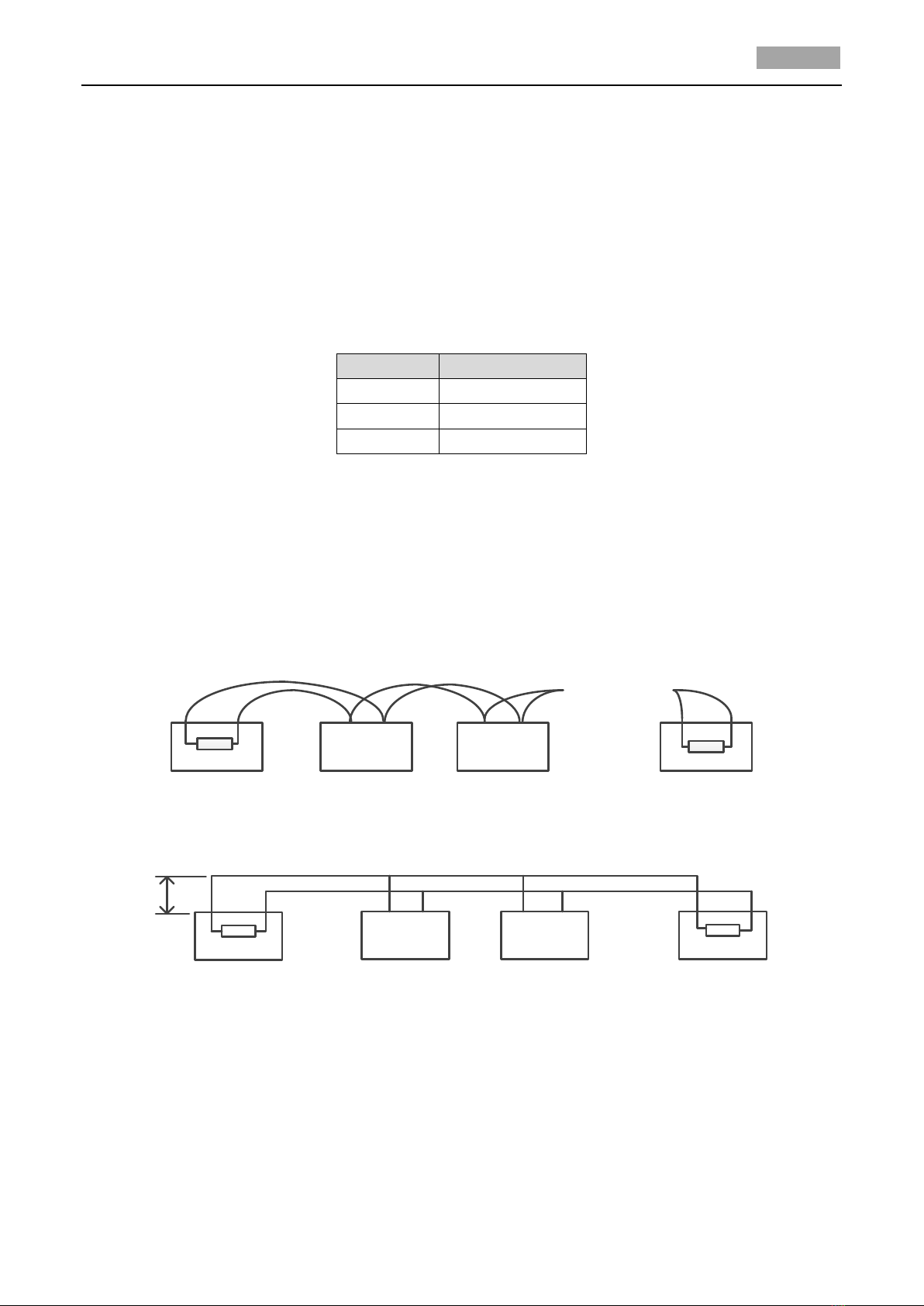

Appendix 2 RS485 Bus Connection
General Property of RS485 Bus
According to RS485 industry bus standard, RS485 is a half-duplex communication bus which has
120Ω characteristic impendence, the maximum load ability is 32 payloads (including controller
device and controlled device).
RS485 Bus Transmission Distance
When using 0.56mm (24AWG) twisted-pair line, according to different baudrate, the maximum
transmission distance theory table is shown as below:
Table A-1 Max. Distance of RS485 Transmission
Baudrate
Max Distance
2400BPS
1800m
4800BPS
1200m
9600BPS
800m
The transmission distance will be decreased if we use the thinner cable, or use this product under
the strong electromagnetic interference situation, or there are lots of devices are added to the bus;
on the contrary, the transmission distance will be increased.
Connection Methods
RS485 industry bus standard require daisy-chain connection method between any devices, both
sides have to connect a 120Ω terminal resistance (show as Diagram 1), the simplified connection
method is shown as diagram 2, but the distance of “D”should not be too long.
1# 2# 3# 32#
…
120Ω120Ω
Figure A-2 RS485 Connection 1
…
Controller
A+
B-
1# 2# 31#
A+ B-
0
Figure A-3 RS485 Connection 2
Problems in the Practical Application
Normally, users adopt star-shape connection method in construction, under this situation, the
terminal resistors must be connected between two farthest devices (as Figure 4, 1# and 15#), but
this connection method is not satisfy the requirement of the RS485 industry standard so that it will
lead to some problems such as signal reflection, anti-jamming ability decline when the devices are

Installation Manual of HD-TVI Speed Dome
16

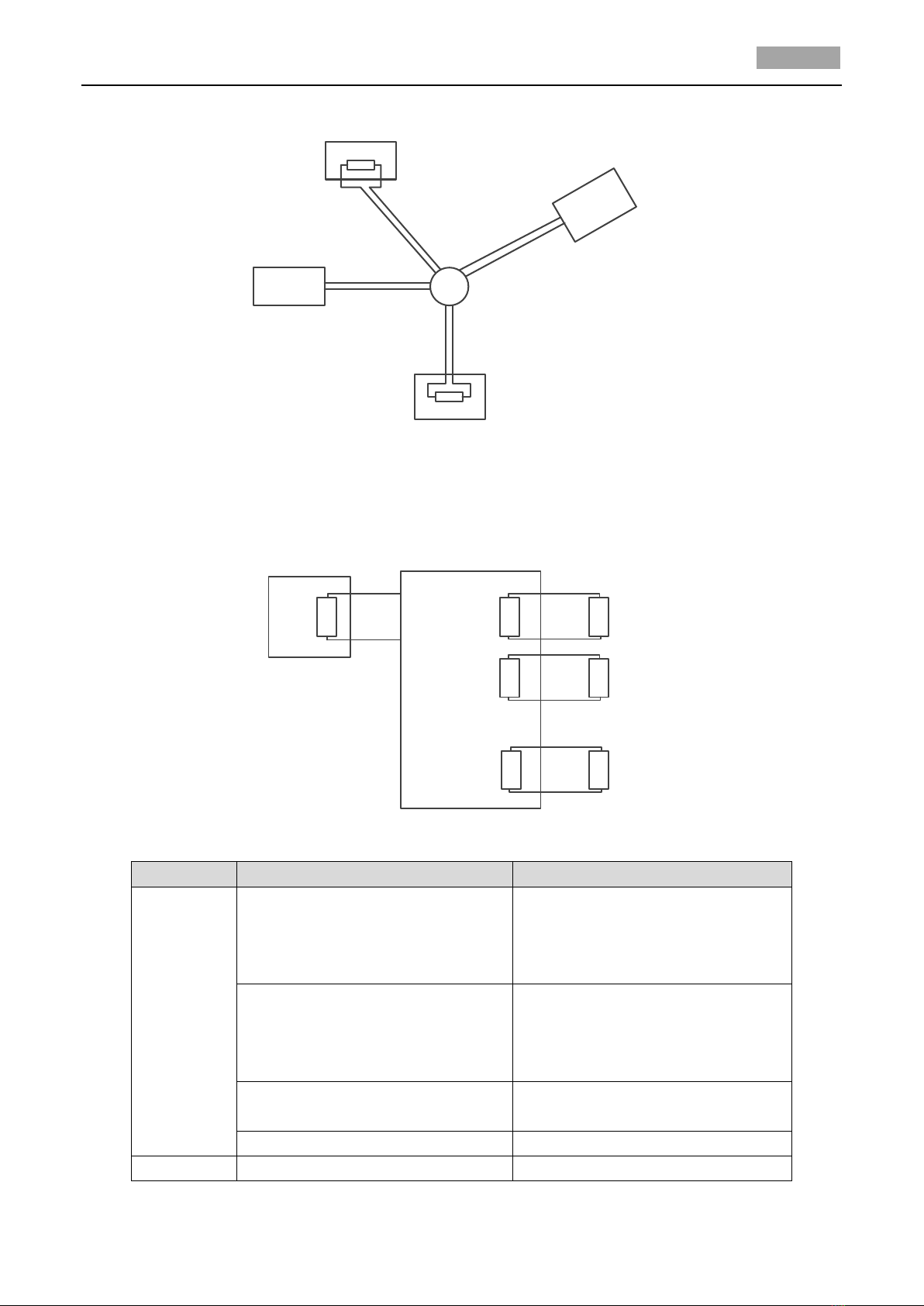

faraway. At this time, the dome will be uncontrollable, or self-running, etc.
1#
6#
15#
32#
Controller
Figure A-4 Star Shape Connection
For such case, the best way is adding a RS485 distributor. This product can effectively change the
star-shape connection to which satisfies the requirement of RS485 industry standard, in order to
avoid those problems and improve the communication reliability. Show as figure 5.
A+
B-
485 Distributor
120Ω1#
2#
16#
120Ω
120Ω
Figure A-5 RS485 Distributor
Troubleshooting of RS485 communication
Problem
Possible Reasons
To Solve the Problem
The speed
dome does
the
self-test
action but
cannot be
controlled
remotely.
1. The address or baudrate of the
speed dome does not match with
those of remote control device.
1. Adjust the address and
baudrate of the remote control
device to match with those of the
speed dome.
2. The wire RS485+ connects to
the interface RS485- and wire
RS485- connects to the interface
RS485+.
2. Connect the wire RS485+ to the
interface RS485+ and wire RS485-
to the interface RS485-.
3. The RS485 wire is
disconnected.
3. Reconnect the RS485 wire
tightly.
4. RS485 wire is broken.
4. Change a RS485 wire.
The speed
1. The connection is loose.
1. Reconnect the RS485 wire

Installation Manual of HD-TVI Speed Dome
17
Problem
Possible Reasons
To Solve the Problem
dome can
be
controlled
but not
smoothly.
tightly.
2. RS485+ or RS485-wire is
broken.
2. Change a RS485 wire.
3. The speed dome is too far away
from the remote control device.
3. Add a terminal resistor.
4. Too many speed domes are
connected.
4. Add a RS485 distributor.

Installation Manual of HD-TVI Speed Dome
18
Appendix 3 24VAC Wire Gauge & Transmission Distance
The following table describes the recommended Max. distance adopted for the certain wire gauge
when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum
voltage loss rate is 10% allowable. For example, for a device with the rating power of 80VA which is
installed at a distance of 35 feet (10m) away from the transformer, then 0.8000mm is required as
the minimum wire gauge.
0.8000
1.000
1.250
2.000
10
283(86)
451(137)
716(218)
1811(551)
20
141(42)
225(68)
358(109)
905(275)
30
94(28)
150(45)
238(72)
603(183)
40
70(21)
112(34)
179(54)
452(137)
50
56(17)
90(27)
143(43)
362(110)
60
47(14)
75(22)
119(36)
301(91)
70
40(12)
64(19)
102(31)
258(78)
80
35(10)
56(17)
89(27)
226(68)
90
31(9)
50(15)
79(24)
201(61)
100
28(8)
45(13)
71(21)
181(55)
110
25(7)
41(12)
65(19)
164(49)
120
23(7)
37(11)
59(17)
150(45)
130
21(6)
34(10)
55(16)
139(42)
140
20(6)
32(9)
51(15)
129(39)
150
18(5)
30(9)
47(14)
120(36)
160
17(5)
28(8)
44(13)
113(34)
170
16(4)
26(7)
42(12)
106(32)
180
15(4)
25(7)
39(11)
100(30)
190
14(4)
23(7)
37(11)
95(28)
200
14(4)
22(6)
35(10)
90(27)
Distance
(feet)
Power (va)
Wire Gauge
(mm)

Appendix 4 Wire Gauge Standards
Bare Wire
Gauge(mm)
American
Wire Gauge
AWG
British Wire
Gauge SWG
Cross-sectional
Area of Bare
Wire(mm2)
0.750
21
0.4417
0.800
20
21
0.5027
0.900
19
20
0.6362
1.000
18
19
0.7854
1.250
16
18
1.2266
1.500
15
17
1.7663
2.000
12
14
3.1420
2.500
4.9080
3.000
7.0683
