Pneumatic Lubrication Pump
PM-8S-18LP(Code No.102660)
INSTRUCTION
MANUAL
LUBE CORPORATION
・ For your safety, read and understand this
Manual thoroughly before handling the
pump.
・ Keep this Manual at a designated place for
easy access at all times.

1
Introduction
■System Application
This Pneumatic Lubrication Pump “PM-8S-18LP ” is
designed to lubricate each point on a machine by delivering
relatively small amount of grease through a metering valve.
Do not use this system for any other purposes.
■Marks used in Manual
In this Manual, safety precautions are provided using the
marks below in order to prevent accidents which might cause
injuries to human bodies. Be sure to carefully read these
safety precautions to understand the contents thoroughly
before handling the pump.
In addition to the above, the marks below will also appear in
this Manual. Please read the following explanation in order
to handle the pump correctly.
Indicates referential information or points to
which special attention should be paid while
handling the pump. If ignored, the pump and/or
the machine could be damaged.
Indicates referential information or points
which are helpful for handling the pump.
Indicates a reference clause.
Indicates a potentially hazardous
situation which, if ignored, could result
in death or serious injury.
Indicates a potentially hazardous
situation which, if ignored, may result
In minor or moderate injury.
ＷＡＲＮＩＮＧ
ＣＡＵＴＩＯＮ

2
■Questions/Contacts
If any question or doubt arises concerning the contents of
this Manual, please contact the following.
■Changes in Specifications
Details of all illustrations and specifications in this Manual
are subject to change without prior notice for improvement
and development of the pump.
■Resale or Leasing
At the time of resale, leasing out or lending out the pump to
the third party, make sure to include with the pump all the
manuals and any other documents supplied with the pump.
■Disposal of Pump/Oil
Make sure to dispose pump or oil as designated by National
laws and/or local regulations.
■ Japan
LUBE Corporation Head Office
3-30-16 (Horizon 1), Nishi-Waseda, Shinjuku-ku, Tokyo,
169-0051 Japan
TEL: [phone] FAX: [phone]
URL: http://www.lube.co.jp
■ China
LUBE LUBRICATING SYSTEM(SHANG HAI)CO.,LTD
C, 3F, 88 Taigu Road, Waigaoqiao Free Trade Zone,
Shanghai
TEL: [phone] FAX: [phone]
■ U.S.A
LUBE USA , Inc.
781 Congaree Road, Greenville, S.C.29607
TEL: [phone] FAX: [phone]

3
Table of Contents
Introduction ・・・・・・・・・・・・・・・・・・・・・・・・・・・・
1
Table of Contents・・・・・・・・・・・・・・・・・・・・・・・・・・
3
1. Safety Precautions ・・・・・・・・・・・・・・・・・・・・・・・・
4
1-1 Basic Safety Precautions ･･･････････････････････････････････ 4
1-2 Labels･･････････････････････････････････････････････････････ 4
1-2-1 Types of Labels･･････････････････････････････････････････ 5
1-2-2 Location of Labels ･･･････････････････････････････････････ 5
2. Specifications and General Information ・・・・・・・・・・・・・・・
6
2-1 Specifications････････････････････････････････････････････････ 6
2-2 Description of each part･･････････････････････････････････････ 6
3. Installation ・・・・・・・・・・・・・・・・・・・・・・・・・・・
7
3-1 Environmental Requirement ･････････････････････････････････ 7
3-2 Mounting Unit･･･････････････････････････････････････････････ 7
3-3 Wiring･･････････････････････････････････････････････････････ 8
3-4 How to connect pipes ････････････････････････････････････････ 9
4. Controlling the pump・・・・・・・・・・・・・・・・・・・・・・・
10
5. Lubricating oil and refilling・・・・・・・・・・・・・・・・・・・・
11
5-1 Lubricating oil to be used････････････････････････････････････ 11
5-2 Refilling lubricating oil ････････････････････････････････････ 11
6. Maintenance・・・・・・・・・・・・・・・・・・・・・・・・・・・
12
6-1 Suction filter･･･････････････････････････････････････････････ 12
6-2 Troubleshooting ･･･････････････････････････････････････････ 13
Appendix．Oil Contamination : Causes and Measures・・・・・・・・・
16

4
1. Safety Precautions
1-1 Basic Safety Precautions
1-2 Labels
The following labels are affixed on the pump.
If any label gets damaged or becomes illegible,
contact LUBE immediately. A new one will be
supplied at your own cost.
・Carefully read this Manual to understand the
contents before handling the pump.
・Keep this Manual at a designated place for easy
access at all times.
・This pump is handled by only personnel who
have the knowledge and skill of its installation
and adjustment.
・Never modify or change this pump without prior
permission of LUBE.
ＷＡＲＮＩＮＧ
ＣＡＵＴＩＯＮ

5

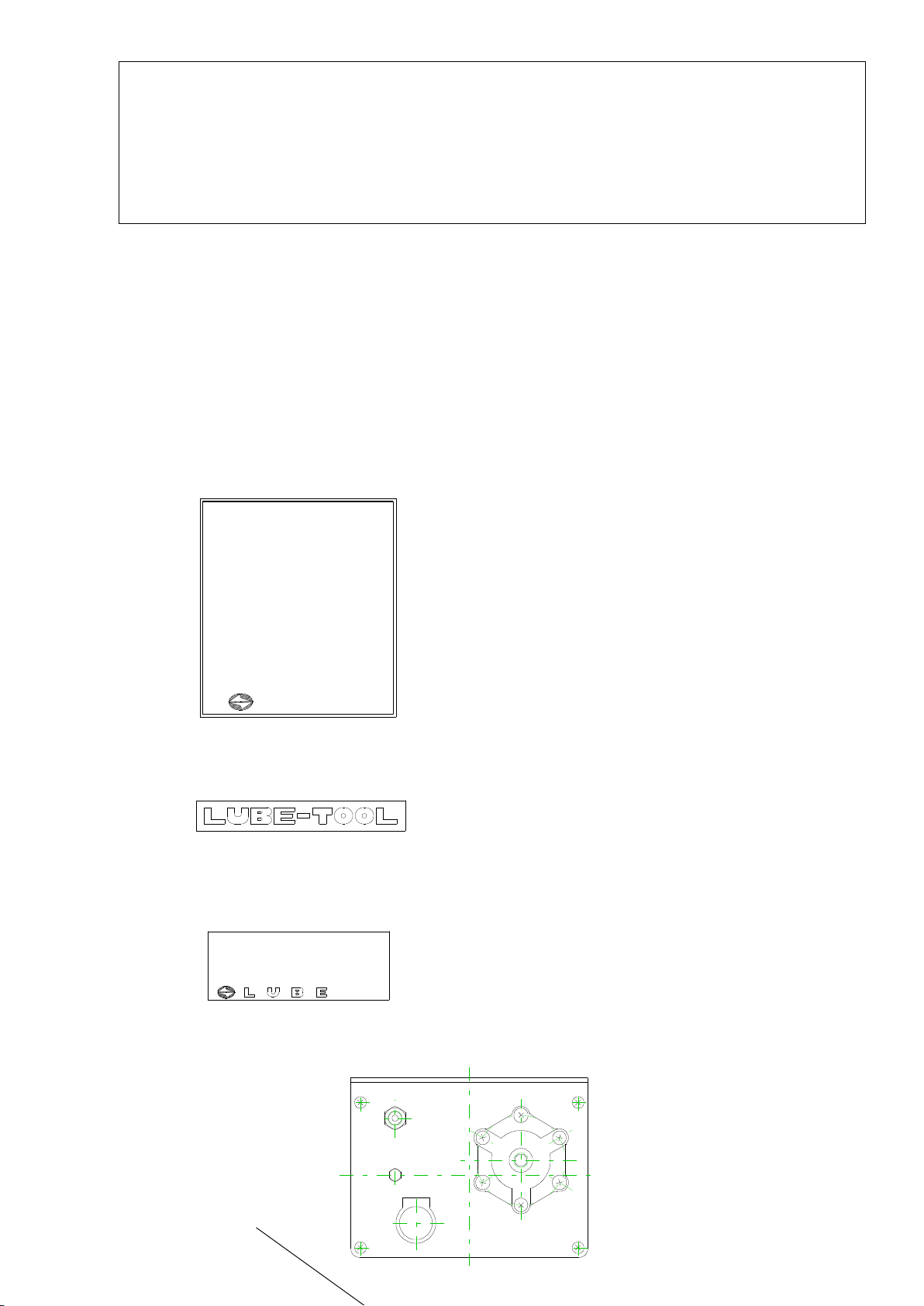

1-2-1 Types of Labels
①
②
③
1-2-2 Location of Labels
・ Strictly observe the instructions on the labels
affixed to the pump.
・ Never remove from nor disfigure any labels on
the pump.
③
ＬＵＢＥ－ＴＯＯＬ
取扱注意事項
リューベツール
１） 使用油は１０～１００ｍ㎡／ｓ（４０℃）の新油を使用してください。
２）１年に一度はポンプ下部のサクションフィルターを交換
してください。
３） １年に一度はタンク内を洗浄してください。
※機能不良の原因と処置
Ａ）ポンプから油が出ない時
・エアー源が切れている―エアー源の確認・修理。
・給油タンクの油面が低い―規定値まで推奨油を追加する。
・サクションフィルターの目づまり―フィルターの洗浄または交換。
・配管にもれがある――すみやかに配管を修理する。
・その他の原因――――ポンプの交換または修理。
また完了後管路のエアー抜きを行う。
また完了後管路のエアー抜きを行う。
また完了後管路のエアー抜きを行う。
Ｂ）ノズルから油が吐出されない
・ノズルの目づまり―――ノズルを洗浄する。
・計量バルブの不良―――バルブを交換する。
・配管内へのエアー混入―管路よりエアーを完全にぬく。
・エアー源の圧力が低い―０．４ＭＰａ以上に上げる。
リューベ
株式会社
ＴＹＰＥ Ｐ Ｍ
ＣＯＤＥ ．ＮＯ． １０２６６０
ＣＯＲＰ．

6
Ｒｃ１／８
吐 出 口
Ｍ１０Ｘ１
空気入口
１２０
６５
１６０
（φ６配管）
2. Specifications and General Information
2-1 Specifications

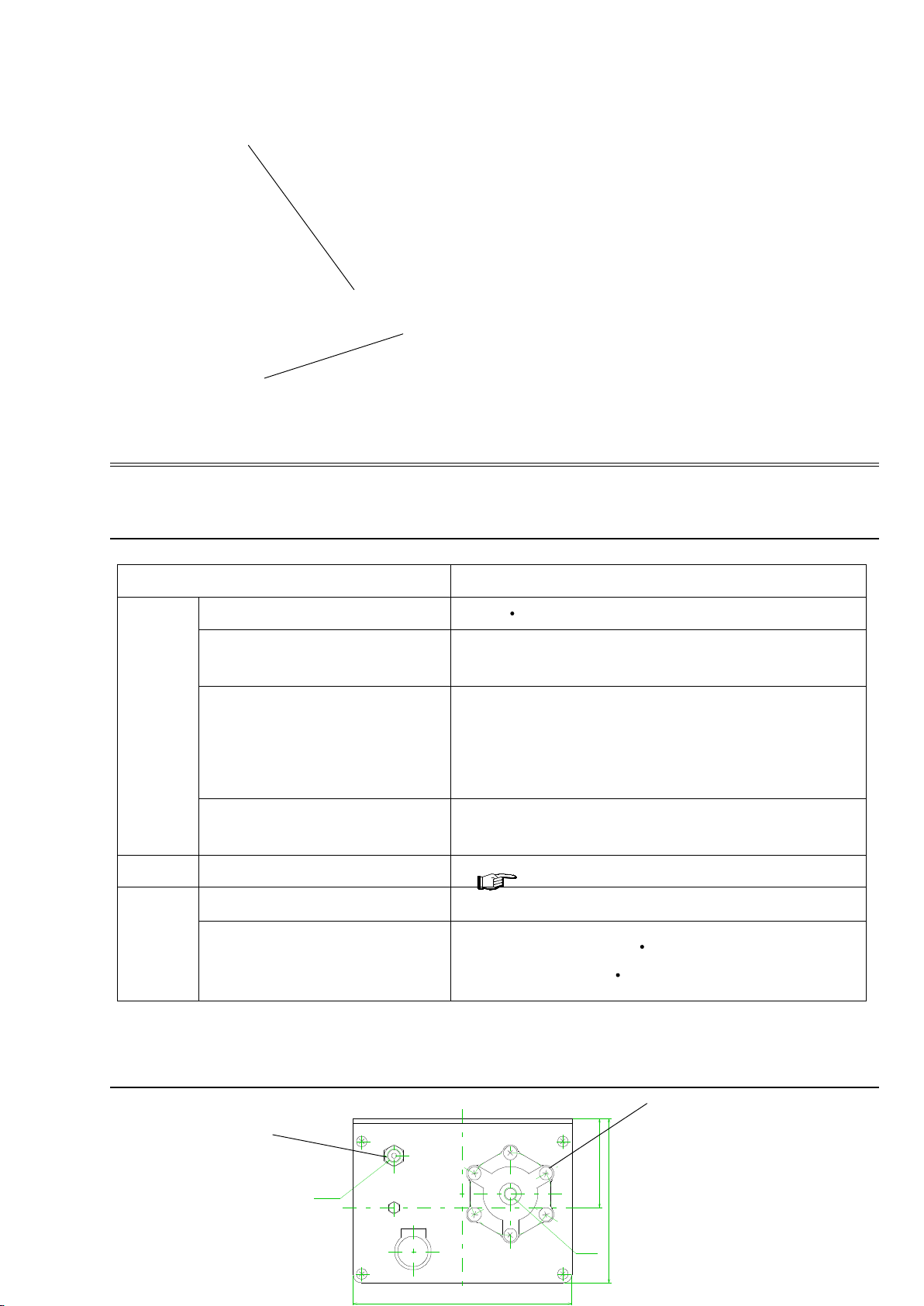

2-2 Description of each part
Pump
Discharge port
Specifications
Pump
Discharge volume 8 m /shot
Discharge pressure
ratio
5:1 (ratio of internal pump pressure to
supplied air pressure)
Discharge pressure
1.75 to 2.5 MPa
See “3-4 Discharge pressure and air
supply pressure.”
Pressure relief
mechanism Internal pressure relief mechanism
Tank Effective capacity 1.8 liters
Air
Range of air pressure 0.35 to 0.5 MPa
Air consumption 0.35 MPa: 0.25N /shot
0.5 MPa: 0.3N /shot
②
①
Discharge
port
M10X1
(6 mm diam.
pipe)

7
Refill port Mounting plate
Tank
3．Installation
3-1 Environmental Requirement
Be sure to this pump in the following environment.
・Ambient temperature : 0 ~ +40℃
・Humidity :35 ~ 85% RH
3-2 Mounting Unit
Make sure to fix the pump firmly.
Insufficient mounting of the pump could
fall itself and cause injury.
Be sure to fix the pump against the vertical and
flat surface, which can sustain its weight
sufficiently.
Mount and fix the pump firmly using two (2 )
M6 bolts.
3-6.5
mm
diam.
Mounting
hole
Air inlet
Rc
1/8
ＣＡＵＴＩＯＮ

8

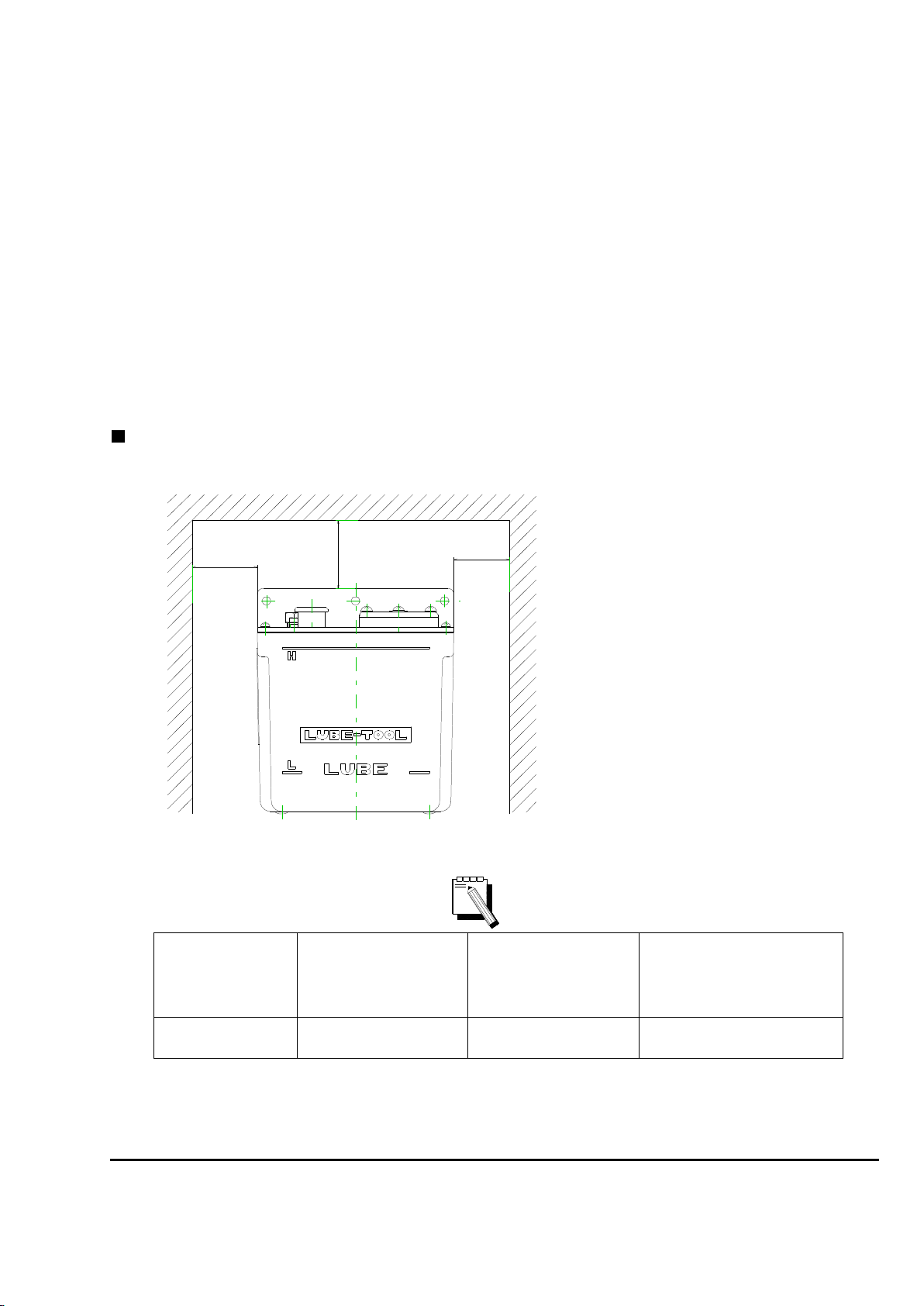

Weight of the pump and required space
Note: The weight of oil is not included.
3-3 Wiring
Pump model Code number Weight (kg)
(see note
below)
Required space
(mm)
PM-8S-18LP 102660 1.1 A: 150 B: 200
Ｂ
Ｂ
Ａ

9
This pump has no electric wiring.
In installing electric wiring for the air supply controller,
follow the instructions given in its operation manual.
Wiring work must be done by a qualified electrical
engineer only.
ＷＡＲＮＩＮＧ

10
3-4 How to connect pipes
Connect the main line pipe from the machine to be
lubricated to the pump discharge port (M10X1).
Connect the controlled air for driving the pump to the
pump air port (Rc 1/8).
As the main line pipe, use a high-strength pipe
that can withstand the operating pressure of more
than 3.0 MPa.
First tighten the pipe by hand until it does not turn any
further. Then set a wrench on the pipe and turn the
wrench two to three full revolutions to further tighten
the pipe.
For information on proper tightening torque, refer
to “Pipe tightening torque.”
After piping work is complete, make sure that there is no
leakage of oil from joints.

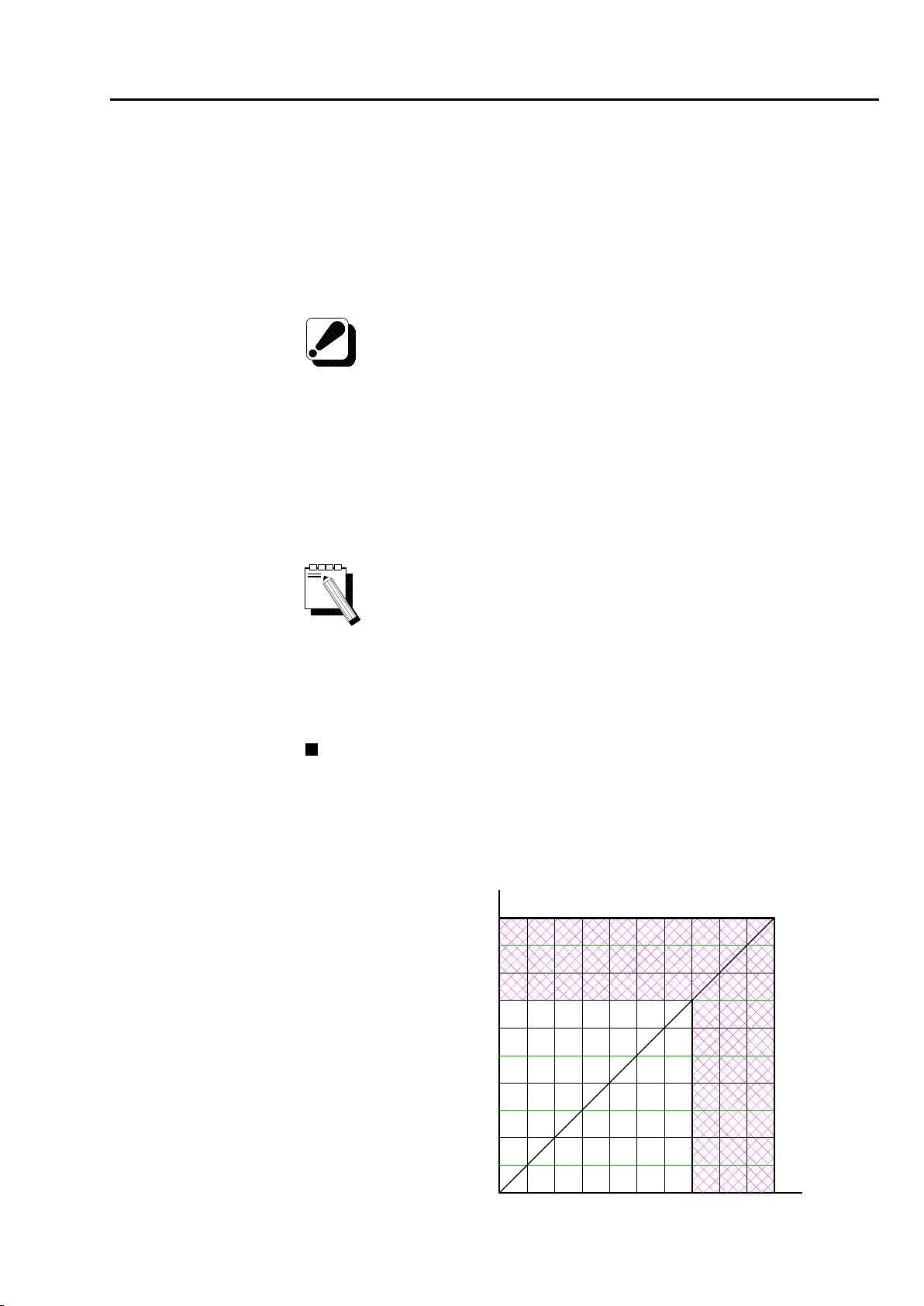

Discharge pressure and air supply pressure
Adjust the air supply pressure in the range from 0.35
MPa to 0.5 MPa (indicated by the diagonally shaded
area).
０．５
１．０
１．５
２．０
２．５
０．１
０．２
０．３
０．４
０．５
０
空気圧力 ＭＰａ
ポンプ吐出圧力 ＭＰａ
Pump discharge pressure MPa
Air pressure MPa

11
4. Controlling the pump
Install a timer on a machine to be lubricated, and make
the operation and pause cycle settings of the three-way
solenoid valve for driving the pump.
Make sure that you make this setting in the
operation/pause cycle. In continuous operation
(when the power is turned on), oil is discharged
through the valve only once. After that, no oil is
discharged, so that points of lubrication will be in
an unlubricated condition.
The solenoid valve for air supply must be a
three-way solenoid valve. Air in the pump is
discharged through the three-way solenoid valve
during a pause.
The pump on the machine side is powered on.
The solenoid-valve timer for driving the pump on the machine
side is on.
The solenoid-valve timer for putting the pump on the machine
side into pause mode is on.

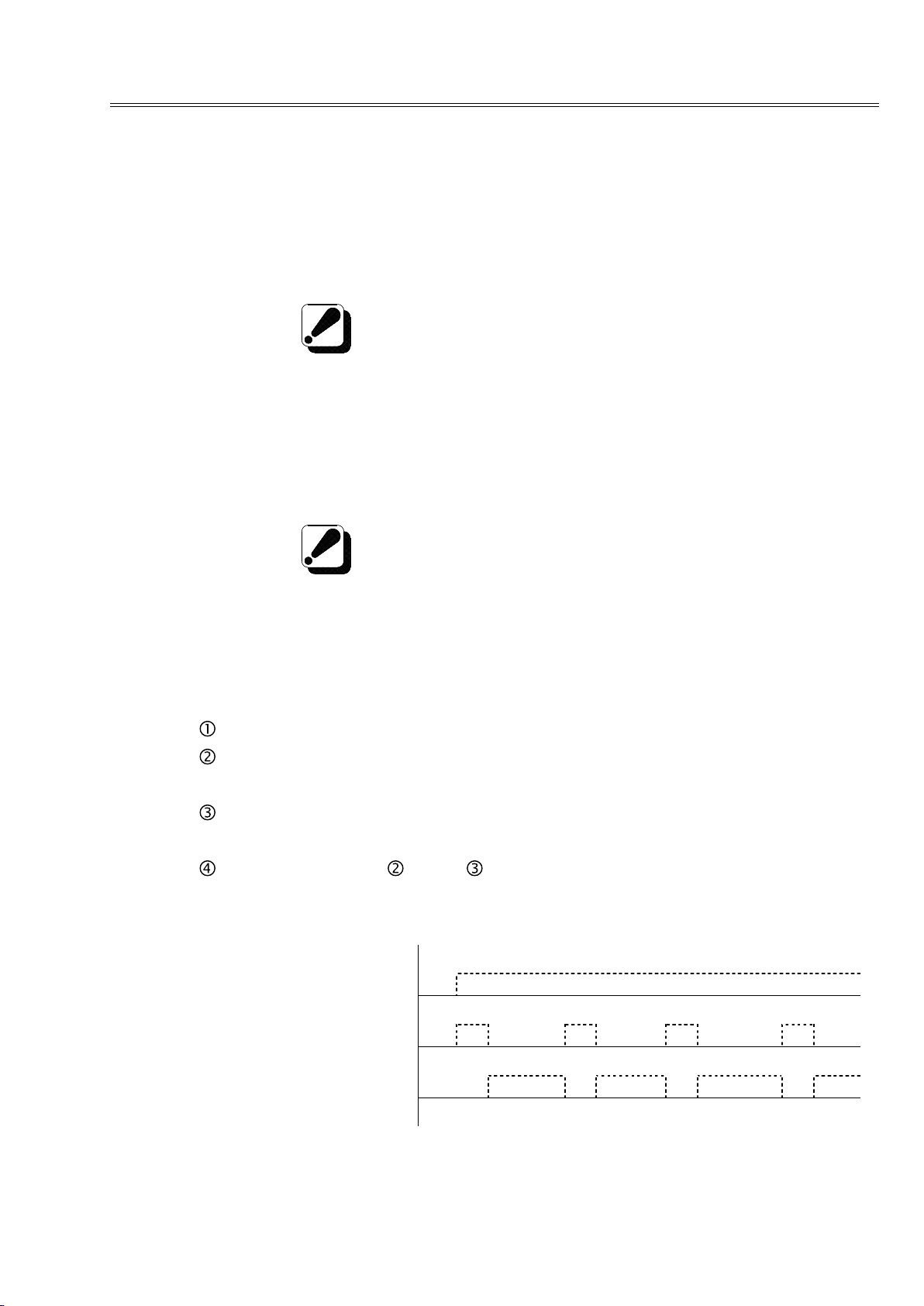

The timers in and above turn on and off repeatedly as
illustrated below.
Pump power
Solenoid-valve timer for
driving the pump
Solenoid-valve timer for
putting the pump into
pause mode
ON
ON
ON

12
5. Lubricating oil and refilling
5-1 Lubricating oil to be used
Use industrial lubricating oil in the range from 10 to 100
mm2/s of ISO viscosity.
Do not use any lubricating oil other than that
which has been recommended.
Use lubricating oil of the same grade made by the
same manufacturer.
5-2 Refilling lubricating oil
Refill lubricating oil when the level gauge on the tank
shows “L.”
Refill it through the refill port that you find above the
pump flange.
Use new lubricating oil. If lubricating oil contains
any foreign substances, clogging may occur,
causing the pump to stop discharging oil.
If lubricating oil overflows or leaks, wipe off the
overflowing or leaking oil.
“L” level

13
6. Maintenance
6-1 Suction filter
Replace the suction filter once a year or clean it
periodically.
If the suction filter is clogged or contaminated, the
oil suction performance will deteriorate and
lubricating oil will not be able to reach points of
lubrication.
Replacing or cleaning the suction filter Mounting plate
1) Remove the pump from the oil feeding
tank.
Remove it with the mounting plate
attached.
2) Remove the suction filter.
Use a wrench to hold the nipple on the
suction side so that the nipple does not
turn together with the suction filter.
3) Replace the suction filter with a new
one or clean the suction filter.
4) Assemble a new suction filter or a
cleaned suction filter to the pump.
Make sure that the o-ring is set on the
thread part.
5) Mount the pump on the oil feeding
tank.
Before conducting maintenance on the pump, turn
off the power and make sure that the pump is not
operating. Conducting maintenance with the
power turned on will increase the risk of the
operator getting an electric shock or the fingers
being pinched in moving parts of the pump drive
unit. Also make sure that the supply of air is cut at
the air supply source.
Nipple on
the suction
side
Suction filter
ＷＡＲＮＩＮＧ

14
6-2 Troubleshooting
When troubles occur, take the measures as defined in the chart below.
Trouble Cause Measures to take
No oil discharged
from pump
Low oil level Refill the same oil in use
Refer to“5. Lubricating
oil and refilling”
Clogged suction filter Clean or replace filter, or
change oil to new oil
Refer to“6-1 Suction
filter”
Damage in the tubing in-
side the pump(Twisted,
crashed, or disconnected)
Tighten or replace the conn-
ecting parts
Viscosity is too high, so
that oil can not be sucked
Recheck oil in use and repl-
ace it to proper oil
Refer to“5. Lubricating
oil and refilling”
Pressure in main
tubing is not built
up
No oil discharged from
pump due to any of above
causes
Refer to above measures
Air in the tubing Operate pump and bleed air
in tubing
Oil leaking from pump di-
scharge port or pipe conn-
ection parts on machine
(Due to looseness or exce-
ssive tightness)
Tighten them with proper
torque or re-pipe them
For proper torque refer
to ”Tightening Level for
Connecting Sections” of
the next page
Damaged tubing Replace damaged tubing

15
Trouble Cause Measures to take
Air in the system Air in the system due to
above reasons
Refer to above measures for
“Air in the pump” and “Air
in the tubing”
Due to low level of oil in
tank, air is introduced
into pump
Refill tank with same or eq-
uivalent oil and then bleed
air
No oil discharged
from valve(S)
Pressure does not increase Refer to above measures for
“Pressure in main tubing is
not built up”
Viscosity is too high, so
the reaming pressure are
not relieved completely
Check oil and change oil to
proper oil
Refer to“5. Lubricating
oil and refilling”

16
■ Tightening Level for Connecting Section
Tightening level Reference torque
(N・m)
OD 4mm nylon pipe
(Valve discharge port)
Turn compression bushing
with hands until it stops and
then tighten it 2/3 turn with a
spanner ,etc
3.4
OD 6mm copper tubing
& steel tubing
(Valve discharge port)
Turn compression bushing
with hands until it stops and
then tighten it 2/3 turn with a
spanner ,etc
4.1
OD 6mm copper tubing
& steel tubing
(Undercut joint)
Turn the nut part with hands
until it stops and then tighten
it 1/4 turn with a spanner ,etc
21
OD 8mm copper tubing
& steel tubing
(Undercut joint)
Turn the nut part with hands
until it stops and then tighten
it 1/4 turn with a spanner ,etc
25
Taper screw for tubing
Rc1/8
(Pump discharge port
& junction)
Turn the undercut joint with
hands until it stops and then
tighten it two and a half to
three turns with a spanner ,
etc
7.1
Ceiling Washer
(Brass & Aluminum)
Nipple on the suction side
with hands until it stops and
then tighten it 1/5 turn with a
spanner ,etc
20.4

17
Appendix. Oil Contamination
Causes and Measures
■Causes
Causes for contamination can be divided into two categories.
○Before the completion of installation
Foreign particles in the tubing or pump tank.
(Manufacturing defects of the assembly parts or connecting
parts and unconformity during construction.)
○During operation
Foreign particles from outside or generated inside of the
system.
(Condensation of the moisture in the air due to change in
temperature or sludge by oxidation of lubrication oil itself.)
■ Measures
1. Clean the tank and remove the remove the foreign particles.
2. Keep the oil for refilling in the proper place.
If the system is installed and/or oil is stored outdoors, proper
care must be taken since introduction of dust or rain into
the oil would lead to system malfunction.
