Lumantek ez-Converter User manual

ez-Converter ez-hs+ (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual
1
Manual
ez-Converter
ez-hs+ (HDMI/VGA To 3G/HD/SD-SDI Converter with Scaler)
Model : ez-hs+

ez-Converter ez-hs+ (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual
2
ez-hs+ Manual
Revision Number: 1.0.1
Distribution Date: January. 2016
2
Copy Rights
Copyright © 2006~2015 LUMANTEK Co., Ltd.
All Rights Reserved
This document contains information that is proprietary to LUMANTEK.CO., LTD. The information in this document is
believed to be accurate and reliable; however, LUMANTEK assumes no responsibility or liability for any errors or
inaccuracies that may appear in this document, nor for any infringements of patents or other rights to third parties
resulting from its use.
This publication may contain technical issues, inaccurate information or typos. These will be revised in revised
edition, if there is any. No part of this publication is subject to be reproduced, stored in retrieval system, or
transmitted in any forms, or any means without the prior consent by Lumantek.
Trademarks
HD ENCODULATOR TM, SD ENCODULATOR TM LUMANTEK Logo, Mega CruiserTM, ORIXTM, X-CruiserTM, DTA-PlusTM,
Media BlasterTM, are Trademarks of Lumantek. Co., Ltd.
Any other trademarks than stated above in this document belongs to its pertinent corporation.
Warranty Period
Lumantek’s products comes with One(1) year limited warranty. Please contact below if you need more information.
LUMANTEK CUSTOMER SERVICES
[e-mail] / TEL:[phone] / FAX:[phone]

ez-Converter ez-hs+ (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual
3
Contents
1. Introduction -------------------------------------
2. ez-hs+ interface --------------------------------
2.1 system information
2.2 Package contents
2.3 DIP Switch configuration
2.4 System specification
3. System flow diagram ---------------------------
4
5
5
5
6
7
7

ez-Converter ez-hs+ (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual
4
ez-hs+ (HDMI/VGA To 3G/HD/SD-SDI Converter With Scaler)
HDMI and VGA to 3G/HD/SD-SDI signal conversion
Features
①Selectable input between HDMI x1 and VGAx1 input
②External Audio embedder (3.5mm Stereo Input)
③Selectable aspect ratio (Please see Dip Switch configuration on page 6)
④HD –SDI x2 (same output) supporting long distance transmission
⑤Selectable Resolutions (up/down scaler function)
⑥PC Input signal compatible ( VESA Standard )
1. Introduction
ez-hs+ is one of Lumantek’s ezConverter series featuring HDMI,VGA to 3G/HD/SD-SDI signal conversion.
Selectable system resolution allows designing a new broadcasting system with a specific resolution standard
for HDMI and VGA Signals. User can use embedded audio for HDMI. For VGA, the external 3.5mm stereo
audio port is used as a sound embedder. Aspect ratio is configurable at user’s preference as well.

ez-Converter ez-hs+ (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual
5
2. ez-hs+ Interface
2.1 System Information
2.2 Package contents
< ez-hs+ Front > < ez-hs+ Rear>
Audio input
3.5mm Stereo
VGA input HDMI input SDI input
(Same Signal)
LED Input
indicator
(Power input)
DIP Switch
ez-hs+
ez-hs+
Mounting Brackets
ez-as+ (US/Japan)
Power Adaptor (DC 12V /1A)
ez-as+ (Europe/South East Asia)
Power Adaptor (DC 12V /1A)

ez-Converter ez-hs+ (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual
6

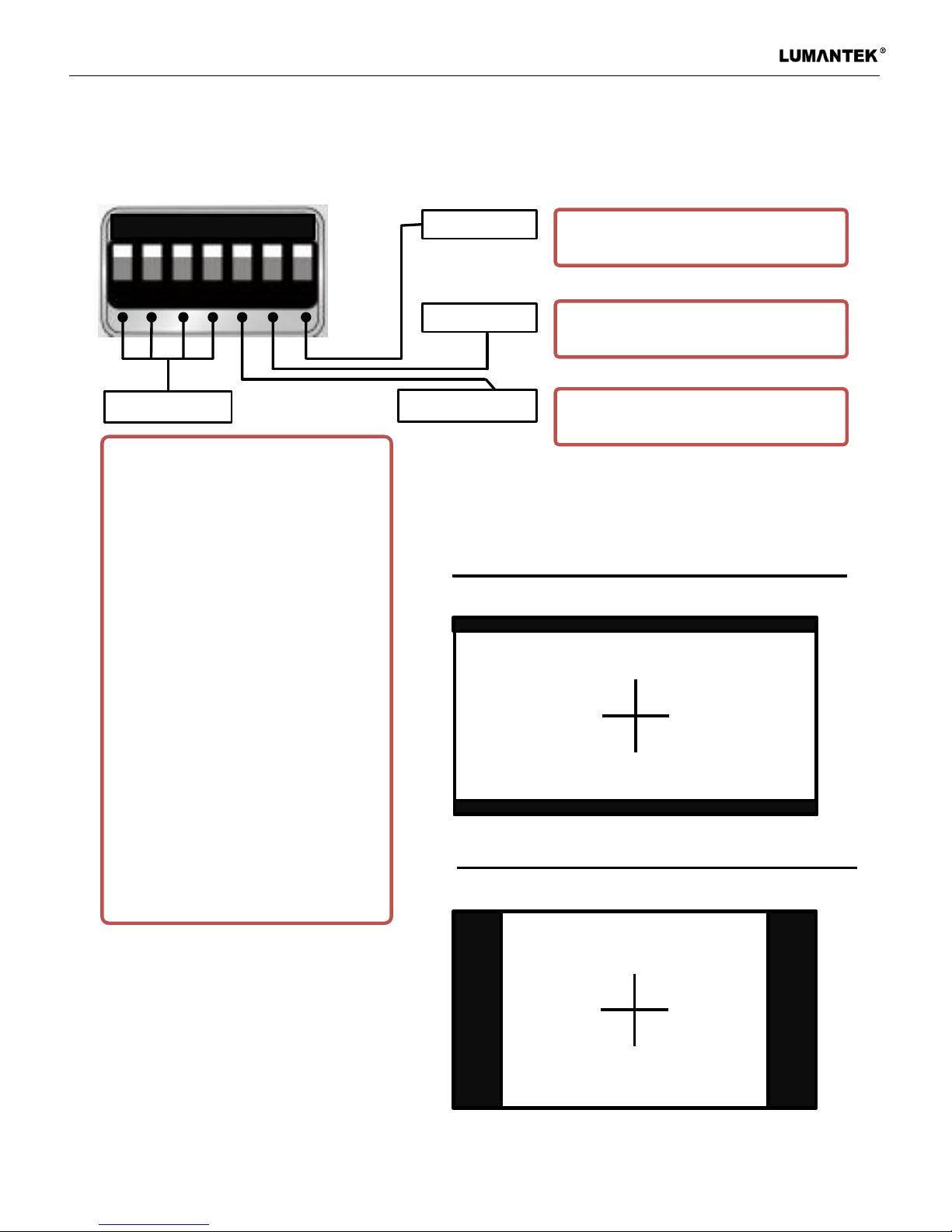

2.3 DIP Switch configuration
1 2 3 4 5 6 7
Output resolution
•0000 //720x480i59.94
•1000 //720x576i50
•0100 //1280x720p50
•1100 //1280x720p59.94
•0010 //1280x720p60
•1010 //1920x1080i50
•0110 //1920x1080i59.94
•1110 //1920x1080i60
•0001 //1920x1080p23.98
•1001 //1920x1080p24
•0101 //1920x1080p25
•1101 //1920x1080p29.97
•0011 //1920x1080p30
•1011 //1920x1080p50
•0111 //1920x1080p59.94
•1111 //1920x1080p60
Aspect Ratio
Span Scan
16:9 selected for SD (4:3) out
16:9 Full Screen
4:3 selected for HD(16:9) out
4:3 Screen
Audio
0 // 1:1 Aspect ratio ( Full Screen )
1 // Span Scan ratio ( Span Scan)
0 // Embedded audio (When HDMI selected)
1 // External audio (3.5mm Stereo)
Input signal 0 // HDMI
1 // VGA
0 : Up
1 : Down

ez-Converter ez-hs+ (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual
7
2.4 System Specification(ez-hs+ (HDMI/VGA to 3G/HS/SD-SDI Converter with Scaler)
Video Input Format
VGA
HDMI
640x480
720x480i @59.94, 720x576i @50
800x600
1280x720p @50/59.94/60
1024x768
1920x1080i @50/59.94/60
1280x1024
1920x1080p @23.98/24/25
1600x1200
1920x1080p @29.97/30
1920x1080
1920x1080p @50/59.94/60
Video Output Format
720x480i @59.94, 720x576i @50
1280x720p @50/59.94/60
1920x1080i @50/59.94/60
1920x1080p @23.98/24/25/29.97/30
1920x1080p @50/59.94/60
Video Aspect Ratio
Full / Letter Box
Audio Input Connector : 3.5mm stereo Jack x1
Video Input Connector : HDMI(Type A) x1, VGA x1
Video Output Connector : BNC x2 (3G/HD/SD-SDI)
DC Input Power : 5V~18V
Power Consumption : < 3W
Dimensions : 131 x 98.8 x 28.4 mm

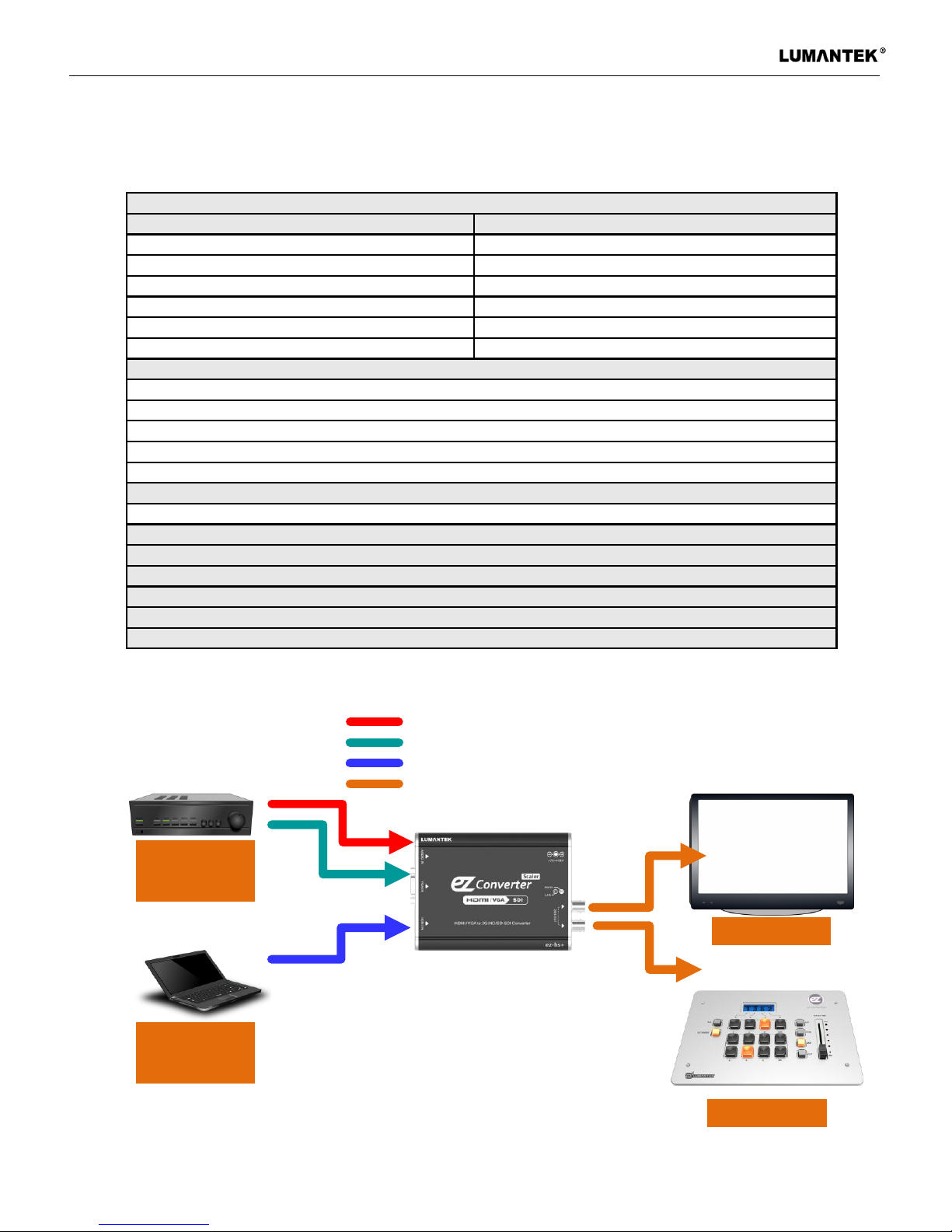

3 . System flow diagram
Video Source
(HDMI)
Video Source
(VGA)
Monitoring
Video Switcher
Analog Audio (3.5mm Stereo)
HDMI
VGA( PC Source)
3G/HD/SD-SDI

ez-Converter / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual
1
Manual
ez-as+ (CVBS to 3G/HD/SD-SDI Converter with Scaler)

ez-Converter / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual
2
ez-as+ Manual
Revision Number: 1.0.1
Distribution Date: January. 2016
2
Copy Rights
Copyright © 2006~2015 LUMANTEK Co., Ltd.
All Rights Reserved
This document contains information that is proprietary to LUMANTEK.CO., LTD. The information in this document is
believed to be accurate and reliable; however, LUMANTEK assumes no responsibility or liability for any errors or
inaccuracies that may appear in this document, nor for any infringements of patents or other rights to third parties
resulting from its use.
This publication may contain technical issues, inaccurate information or typos. These will be revised in revised
edition, if there is any. No part of this publication is subject to be reproduced, stored in retrieval system, or
transmitted in any forms, or any means without the prior consent by Lumantek.
Trademarks
HD ENCODULATOR TM, SD ENCODULATOR TM LUMANTEK Logo, Mega CruiserTM, ORIXTM, X-CruiserTM, DTA-PlusTM,
Media BlasterTM, are Trademarks of Lumantek. Co., Ltd.
Any other trademarks than stated above in this document belongs to its pertinent corporation.
Warranty Period
Lumantek’s products comes with One(1) year limited warranty. Please contact below if you need more information.
LUMANTEK CUSTOMER SERVICE
[e-mail] / TEL:[phone] / FAX:[phone]
[email protected] / TEL:[phone]

ez-Converter / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual
3
Contents
1. Introduction -----------------------------------
2. ez-as+ interface ------------------------------
2.1 system information
2.2 Package contents
2.3 DIP Switch configuration
2.4 System specification
3. System flow diagram ----------------------
4
5
5
5
6
7
7

ez-Converter / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual
4

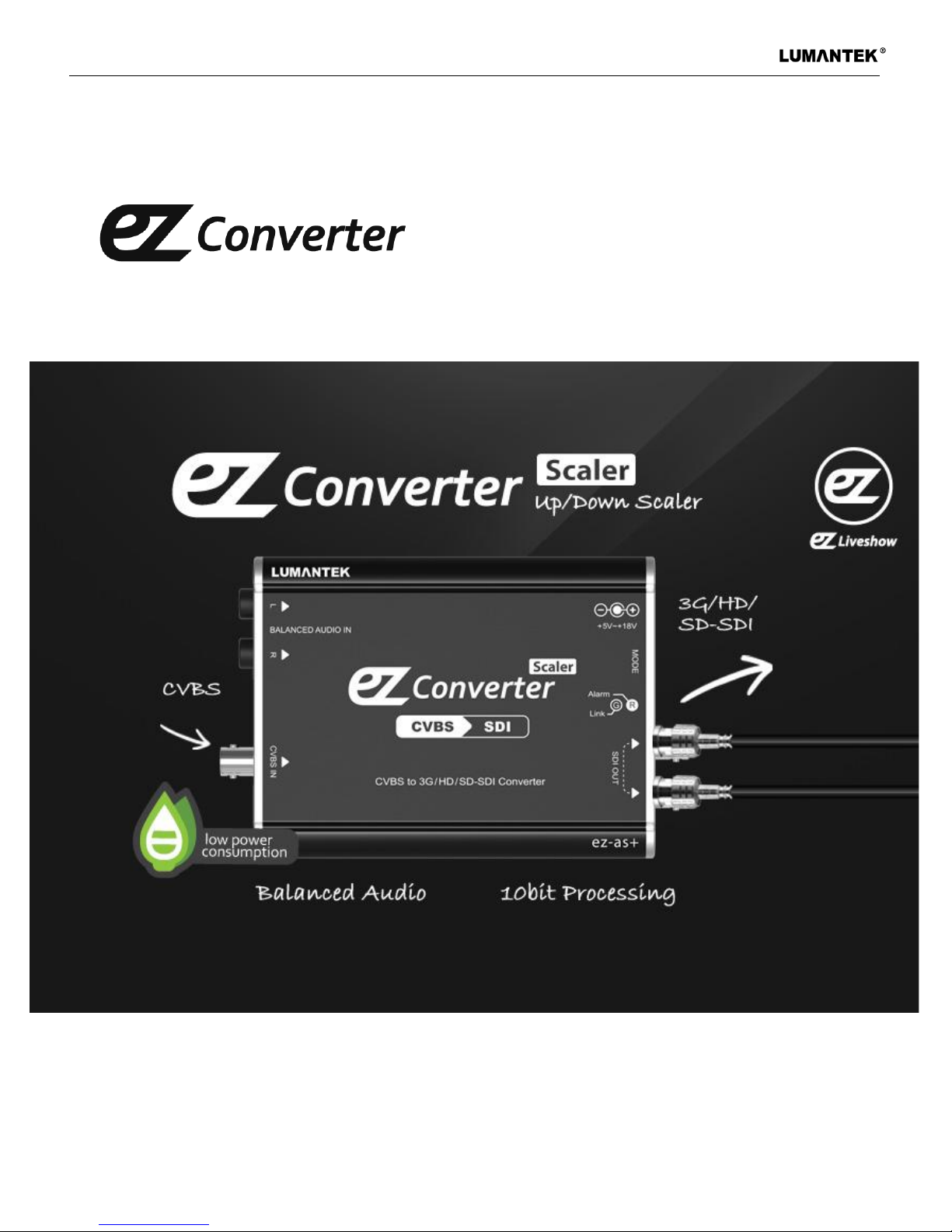

ez-as+ (CVBS To 3G/HD/SD-SDI Converter With Scaler)
CVBS to 3G/HD/SD-SDI signal conversion
Features
①Converting from CVBS to 3G/HD/SD-SDI
②External Audio embedder (6.35mm Phone Jack balanced audio Input)
③Selectable aspect ratio (Please see Dip Switch configuration on page 6)
④HD –SDI x2 (same output) supporting long distance transmission
⑤Selectable Resolutions (up/down scaler function)
1. Introduction
ez-as+ is one of Lumantek’s ezConverter series featuring CVBS/Analog to 3G/HD/SD-SDI signal
conversion. Selectable system resolution allows designing a new broadcasting system with a specific
resolution standard for HDMI and VGA Signals. User can use CVBS with the external 6.5mm (1/4’’)
stereo audio port for a sound embedder. Aspect ratio is configurable at user’s preference as well.

ez-Converter / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual
5

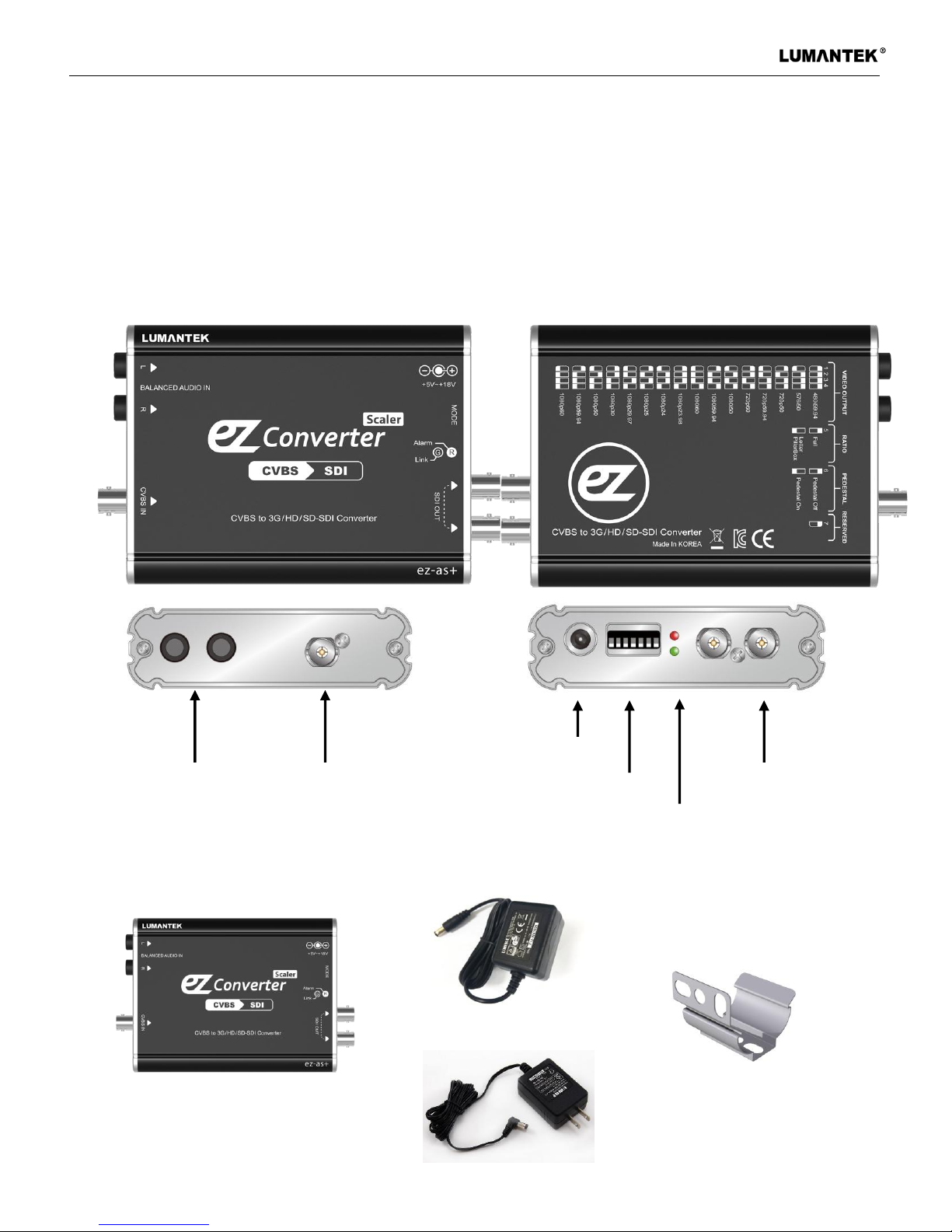

2. ez-as+ Interface
2.1 System Information
2.2 Package contents
< ez-as+ Front > < ez-as+ Rear>
Audio input 3.5mm Stereo CVBS input SDI output
LED Input indicator
Power
DIP Switch
ez-as+ main unit
ez-as+ (Europe/South East Asia)
Power Adaptor (DC 12V /1A)
ez-as+
Mounting Brackets
ez-as+ (US/Japan)
Power Adaptor (DC 12V /1A)

ez-Converter / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual
6
2.3 DIP Switch configuration
1 2 3 4 5 6 7
Output resolution
•0000 //720x480i59.94
•1000 //720x576i50
•0100 //1280x720p50
•1100 //1280x720p59.94
•0010 //1280x720p60
•1010 //1920x1080i50
•0110 //1920x1080i59.94
•1110 //1920x1080i60
•0001 //1920x1080p23.98
•1001 //1920x1080p24
•0101 //1920x1080p25
•1101 //1920x1080p29.97
•0011 //1920x1080p30
•1011 //1920x1080p50
•0111 //1920x1080p59.94
•1111 //1920x1080p60
Aspect Ratio
Span Scan
16:9 selected for SD (4:3) out
4:3 selected for HD(16:9) out
Audio
0 // 1:1 Aspect ratio ( Full Screen )
1 // Span Scan ratio ( Span Scan)
0 // Pedestal is not present
1 // 7.5 IRE pedestal is present
4:3 Screen
Input Signal 0 // N/A
1 // N/A
16:9 Full Screen
0 : Up
1 : Down

ez-Converter / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual
7
2.4 System Specification
3 . System flow diagram
Video Source
(CVBS)
Monitoring
Video Switcher
Balanced audio 6.35mm(1/4")
HDMI
3G/HD/SD-SDI
ez-as+ (CVBS to 3G/HS/SD-SDI Converter with Scaler)
Video Input Format
CVBS
NTSC
720x480i @59.94, 720x576i @50
PAL
720x576i @50
Video Output Format
720x480i @59.94, 720x576i @50
1280x720p @50/59.94/60
1920x1080i @50/59.94/60
1920x1080p @23.98/24/25/29.97/30
1920x1080p @50/59.94/60
Video Aspect Ratio
Full / Letter Box
Audio Input Connector : 6.35mm (1/4") Balanced audio Left and Right x1 each
Video Input Connector : CVBS x1,
Video Output Connector : BNC x2 (3G/HD/SD-SDI)
DC Input Power : 5V~18V
Power Consumption : < 3W
Dimensions : 131 x 98.8 x 28.4 mm
