Lumberjack BS305 User manual

BS305/BS340
305mm/340mm Band Saw with Stand
BS305/BS340
ORIGINAL INSTRUCTIONS

BS305/BS340
TABLE OF CONTENTS
Welcome to Lumber
j
ack!
Dear customer, Congratulations on your purchase. Before using the
product for the first time please be sure to read these instructions for use.
They provide you with all information necessary for using the product safely and to
ensure its long service life.
Closely observe all safety information in these instructions!
General Power Tool Safety Warnings………………………………….…......01
Symbols & Cable Rating Chart ……….…………………………………….………05
Machine Details and Product Features……….…………………………….….06
Assembly……………………………………………………………………………………..08
Operation……………………………………….…………………………………………..12
Maintenance and Service………………..…………………………………………..14
Lumberjack Guarantee………….…………………………………………………….16
Declaration of Conformity……………………………………………………………18
Parts List…………..………………………………………………………………………...19
Parts Diagram………………………………………………………………………………23
Accessory for Circular Cutting (Option) ………………..………..……………24

BS305/BS340 01
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and
all instructions.
Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference.
The term "power tool" in
the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators . There is an increased risk of
electric shock if your body is grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

BS305/BS340 02
GENERAL POWER TOOL SAFETY WARNINGS
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.
6. Battery Tool Use and Care
a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury or fire.

BS305/BS340 03
GENERAL POWER TOOL SAFETY WARNINGS
c) When Battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal object
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
d) User abusive conditions, liquid may be
ejected from the battery; Avoid contact. If
contact accidentally occurs, flush with copious
amounts of water. If liquid contacts eyes, seek
medical help immediately. Liquid ejected from
the batter may cause irritation or burns.
7 Additional Safety and Working
Instructions
a) Dusts from materials such as lead-containing
coatings, some wood types, minerals and
metals can be harmful to one’s health and
cause allergic reactions, leading to respiratory
infections and/or cancer. Materials containing
asbestos may only be worked by specialists.
Observe the relevant regulations in your country
for the materials to be worked.
b) Prevent dust accumulation at the workplace.
Dusts can easily ignite.
8 Additional Safety Warning for Band
Saws
a) Never stand on the power tool. Serious
injuries can occur when the power tool tips over
or when inadvertently coming into contact with
the saw blade.
b) Never remove cutting remainders, wood
chips, etc. from the sawing area while the
machine is running.
c) Keep handles dry, clean, and free from oil and
grease. Greasy, oily handles are slippery causing
loss of control.
d) Operate the power tool only when the work
area to the work piece is clear of any adjusting
tools, wood chips, etc. Small pieces of wood or
other objects that come in contact with the
rotating saw blade can strike the operator with
high speed.
e) Keep the floor free of wood chips and material
remainders. You could slip or trip.
f) Use the machine only for cutting the materials
listed under Intended Use. Otherwise, the
machine can be subject to overload.
g) Do not touch the saw blade after working
before it has cooled. The saw blade becomes very
hot while working.
h) Check the cable regularly and have a damaged
cable repaired only through an authorised
customer service agent. Replace damaged
extension cables. This will ensure that the safety
of the power tool is maintained.
i) Store the machine in a safe manner when not
being used. The storage location must be dry and
lockable. This prevents the machine from storage
damage, and from being operated by untrained
persons.
j) Never leave the machine before it has come to
a complete stop. Cutting tools that are still
running can cause injuries.
k) Never use the machine with a damaged cable.
Do not touch the damaged cable and pull the
mains plug when the cable is damaged while
working. Damaged cables increase the risk of an
electric shock.

BS305/BS340 04
GENERAL POWER TOOL SAFETY WARNINGS
10. Using an Extension Cable .
a) If an extension cable is required, use an
approved triple core extension cable suitable for
the power input of the tool.
b) Grounded tools always require a three wire
extension cable.
c) As the distance from the supply outlet
increases you must use a heavier gauge
extension cable. Using extension cables with
inadequately sized wire causes a serious drop in
voltage, resulting in loss of power and possible
tool damage.
d) The smaller the gauge number of the wire the
greater the capacity of the cord.
e) When using a cable reel, always unwind the
cable completely.

BS305/BS340 05

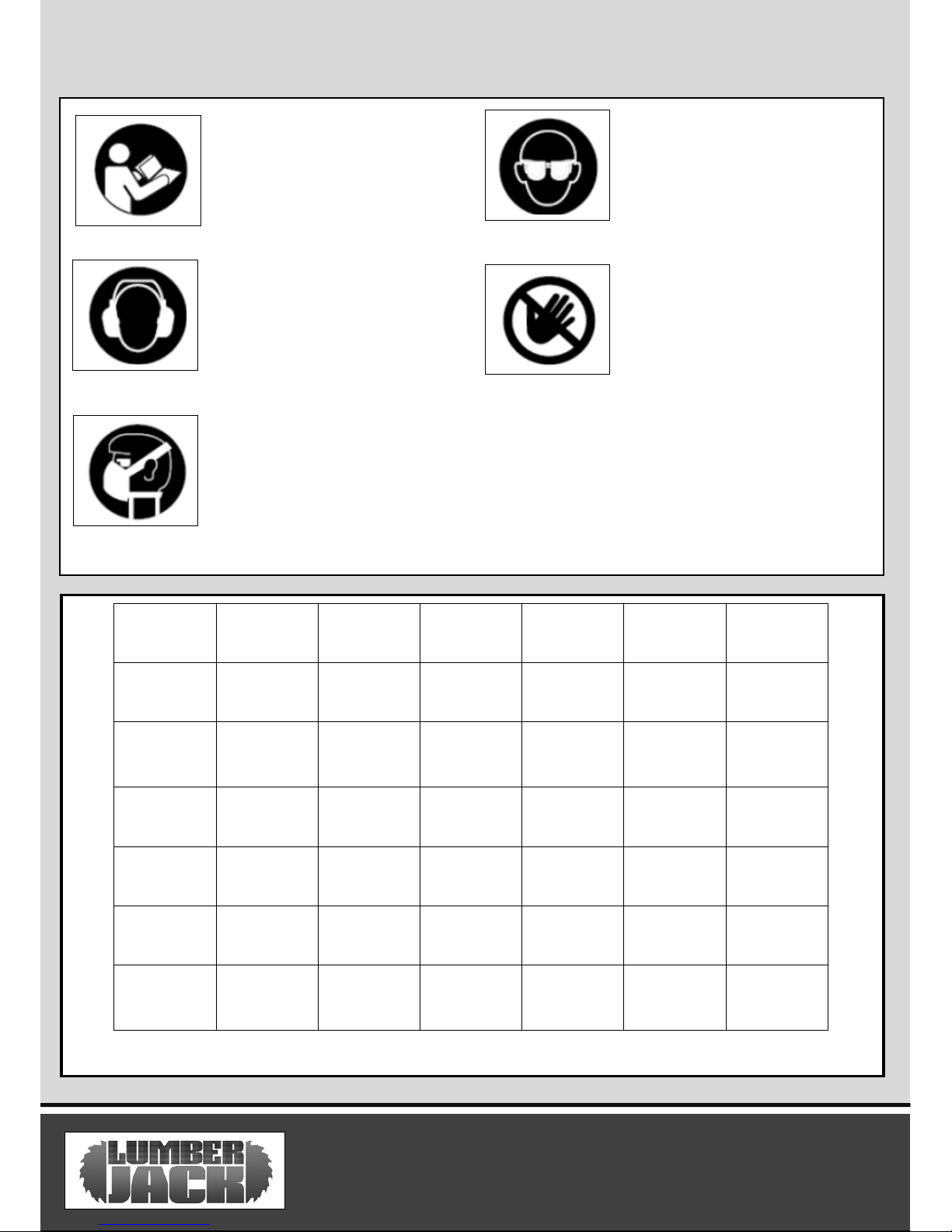

SYMBOLS AND POWER RATING CHART
Danger!
–
Read the operating
instructions to reduce the risk of
injury.
Caution! Wear safety goggles.
Caution! Wear ear defenders. The
impact of noise can cause damage
to hearing.
Amperes 7.5M 15M 25M 30M 45M 60M
0 – 2.0 6 6 6 6 6 6
2.1 – 3.4 6 6 6 6 6 6
3.5 - 5.0 6 6 6 6 10 15
5.1 – 7.1 10 10 10 10 15 15
7.1 – 12.0 15 15 15 15 20 20
12.1 – 20.0 20 20 20 20 25 -
Caution! Risk of Injury! Do
not reach into the running
saw blade .
Caution! Wear a dust mask.

AIR6V 01AIR6V 01AIR6V 01AIR6V 01
BS305/BS340 06
MACHINE DETAILS AND PRODUCT FEATURES
Machine Details
Specifications:
Specifications: BS305 BS340
Mains Voltage - 230V / 50Hz
Power Consumption - 750W 1100W
Blade Spec
–
2240mm X 3-20mm 2560mm X 3-25mm
Cutting Capacity - 165mm 225mm
Throat Width - 305mm 340mm
Cutting Speed - 370/800 m/min
Gross Weight - 65kg 78kg
Nett Weight - 62kg 73kg
Package Contents:
Band Saw Mitre Gauge Stand Push Stick Rip Fence
Intended Use
The power tool is intended as a stationary machine for making straight lengthways and
crossways cuts in wood.
The capacity of the power tool is designed for sawing hardwood and softwood.
The power tool is not suitable for cutting aluminium or other non-ferrous metals or alloys.

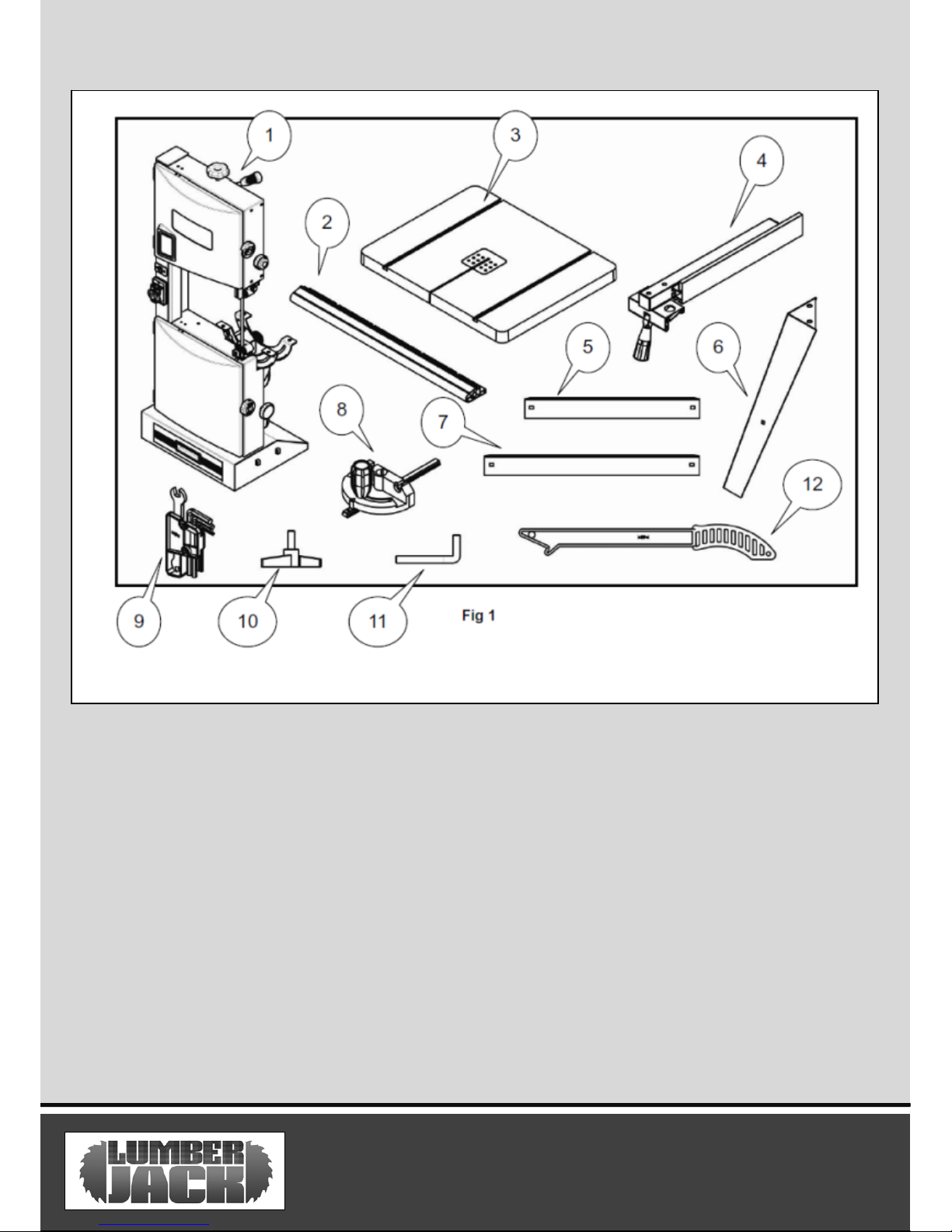

Product Features
1. Band Saw 2. Guide Rail
3. Table With Insert 4. Rip Fence
5. Short Brace 6. Leg
7. Long Brace 8. Mitre Gauge
9. Tool Kit 10. Knob
11. Hook with Hex Nut 12.Push Stick

AIR6V 01AIR6V 01AIR6V 01AIR6V 01
BS305/BS340 07
MACHINE DETAILS AND PRODUCT FEATURES

BS305/BS340 08
Assembly Instructions
Assembly
Avoid unintentional starting of the machine.
During assembly and for all work on the
machine, the power plug must not be
connected to the mains supply.
Carefully remove all parts included in the
delivery from their packaging.
Remove all packaging material from the machine
and the accessories provided.
Before starting the operation of the machine for
the first time, check if all parts listed in the box
content section have been supplied
Note: Check the power tool for possible damage.
Before further use of the machine, check that all
protective devices are fully functional. Any
lightly damaged parts must be carefully checked
to ensure flawless operation of the tool. All parts
must be properly mounted and all conditions
fulfilled that ensure faultless operation.
Damaged protective devices and parts must be
immediately replaced by an authorised service
centre.

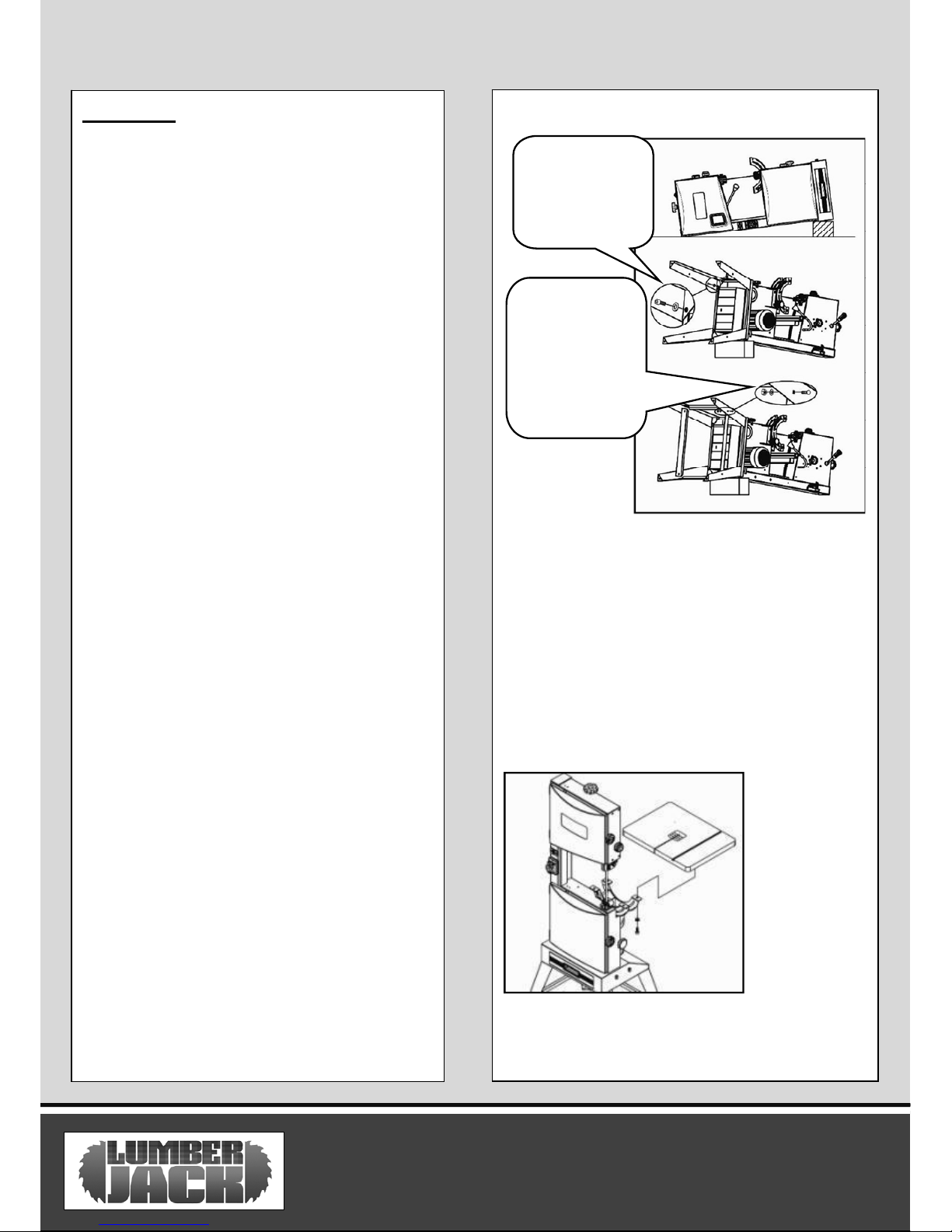

Attaching the Legs
– Lie the band saw on its back with a piece of
timber propping up the base to allow access to
the bottom of the machine.
– First attach the legs to the base using the
M6hex headed bolts and the 6mm flat washers.
– Next fix the long and short horizontal braces
but do not fully tighten them.
– Stand the band saw up on to its stand and then
tighten the nuts fully on the braces.
Assembling the Table
– Place the table onto the band saw and loosely
tighten the nuts.
– Align the table so that the blade sits in the centre
of the table throat and tighten the nuts to secure
the table in this position.
M8X10 socket
head bolts and
8mm flat
M6 X 12 carriage
blots, 6mm flat
washers and M6
hex nut

BS305/BS340 09
Assembly Instructions
–
Next attach the guide rail on to the table using
four wing bolts supplied.
Guide rail
Guide rail
locking knob
– Install the hook and the tool kit as shown.
– Hang the push stick on the hook, and slide on
the rip fence to the guide rail.
Tool kit
Hook
Push stick
Mitre gauge
Rip fence
Adjusting the Table Tilt
– The table is tilted by loosening the locking
handle, turn the table tilting knob to adjust the
table to the desire angle. Use the angle indicator
scale to find the desired angle. Retighten the
locking handle to secure the table.

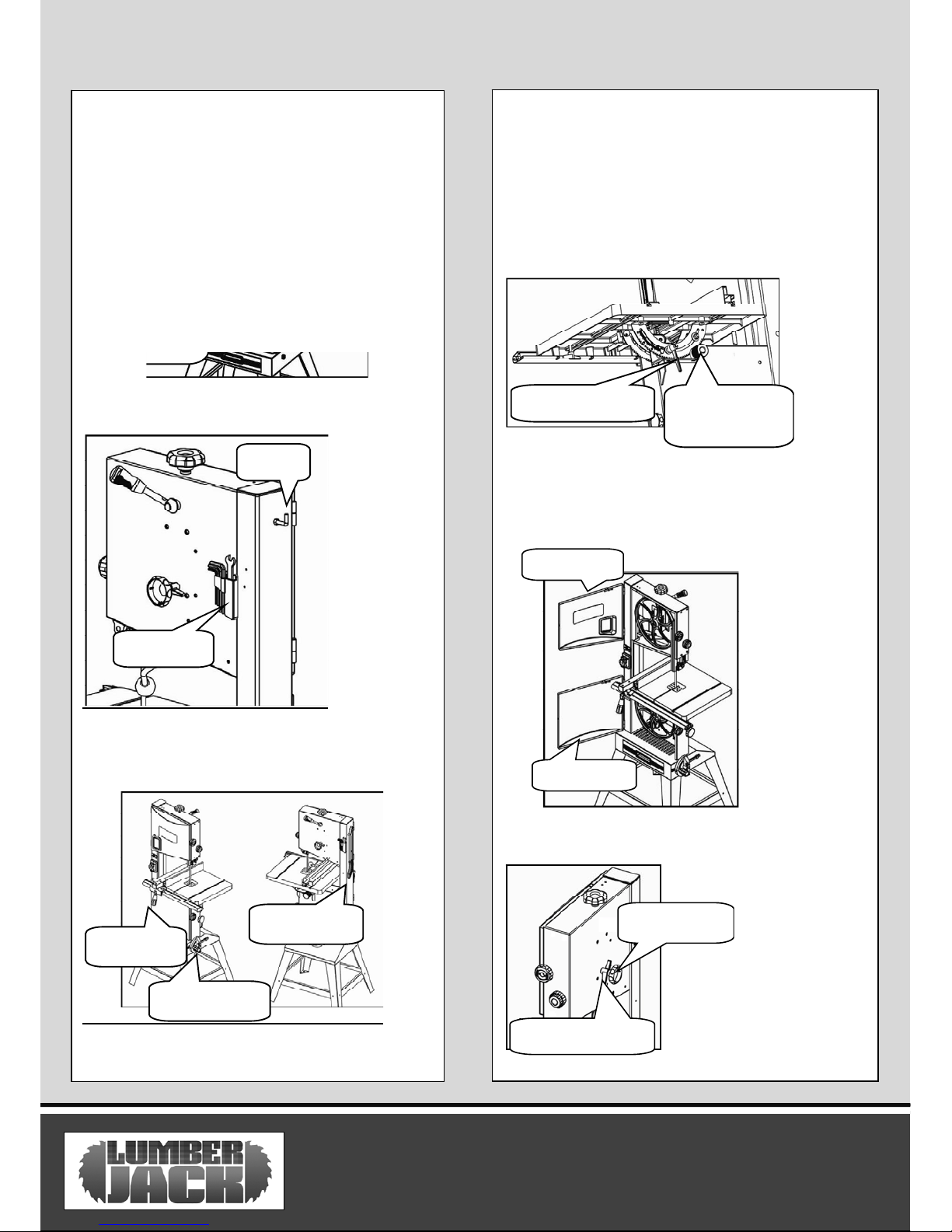

Adjusting the Blade
– Open the top and lower covers.
– Loosen the tracking lock knob.
Locking handle Table tilting
knob
Upper cover
Lower cover
Tracking knob
Tracking lock knob

BS305/BS340 10
Assembly Instructions
–
Whilst rotating the upper wheel by hand, turn
the tracking knob until the blade tracks through
the centre of the table throat. Then close upper
and lower covers.
– Raise the upper blade guide.
– Adjust the blade tension by turning the saw
blade tension knob clockwise to increase the
tension and anti-clockwise to decrease it
The blade tension is checked by pushing a
finger on the blade half way between the table
and upper guide, it should move no more than
2mm. If the blade is too tight it will break. If the
blade is too loose it will slip off the drive wheel
and become lodged in the machine
Blade tension indicator adjustment
The blade tension indiator can be adjusted for
blades known to be cut over/under length by
different manufacturers. With moderate tension
on the blade, loosen the set screw and adjust
the blade indicator up or down as needed.
Retighten the set screw.
Saw blade
tension knob
Adjusting the Upper Guide
The height of the upper guide should be set before
each cut to be approx. 3mm above the height of
the work piece.
– Loosen the locking knob and adjust the height as
required, and then re tighten the locking knob to
hold the height in place.
– Loosen knob A and adjust the bearing holder so
that the guide bearing so positioned 1 – 2mm from
the cutting edge of the blade. And then tighten
knob A.
– Loosen knob B and adjust the thrust bearing so
that it sits 0.5mm from the back of the blade, and
then tighten knob B.

BS305/BS340 11
Assembly Instructions
– Loosen bolt C and adjust the guide bearing to
site 0.5mm away from the blade on either side,
and then tighten bolt C.
Adjusting the Lower Blade guide
This needs to be done after every blade change
and every tracking adjustment.
– Loosen Bolt D and position the guide bearing
so that it sits 1 – 2mm away for the cutting edge
of the blade, and then tighten bolt D.
–Loosen the socket head bolt E, and adjust trust
bearing to a position of 0.5mm from rear of
blade. Retighten the bolt E.
– Loosen bolt F and adjust the guide bearing to a
position 0.5mm away from blade. Retighten the
bolt F.
Dust Extraction
This machine has the option of attaching a dust
extractor or using the integrated dust collection
draw. The integrated dust draw will only collect
the debris which naturally filters down through the
machine and does not “suck” any dust away.
– Lift up dust port cover then insert firmly the
extractor hose into the port.
The dust draw collects any debris that falls down
through the machine and needs periodic cleaning
even when a separate dust extractor is used.

BS305/BS340 12
OPERATION
Operation
Before any work on the machine itself, remove
the mains plug from outlet.
– Set the upper guide as describe previously
approx. 3mm above the height of your work
piece.
– Position the rip fence/mitre gauge as
needed/required. Please note the rip fence can
be positioned on either side of the blade.
– Turn on the LED light if required and start the
machine.
– Wait for the motor to reach full speed then
push through your work piece, using the push
stick to stop accidental touching of the blade.
– Turn of machine and LED light.
Main switch
LED light switch

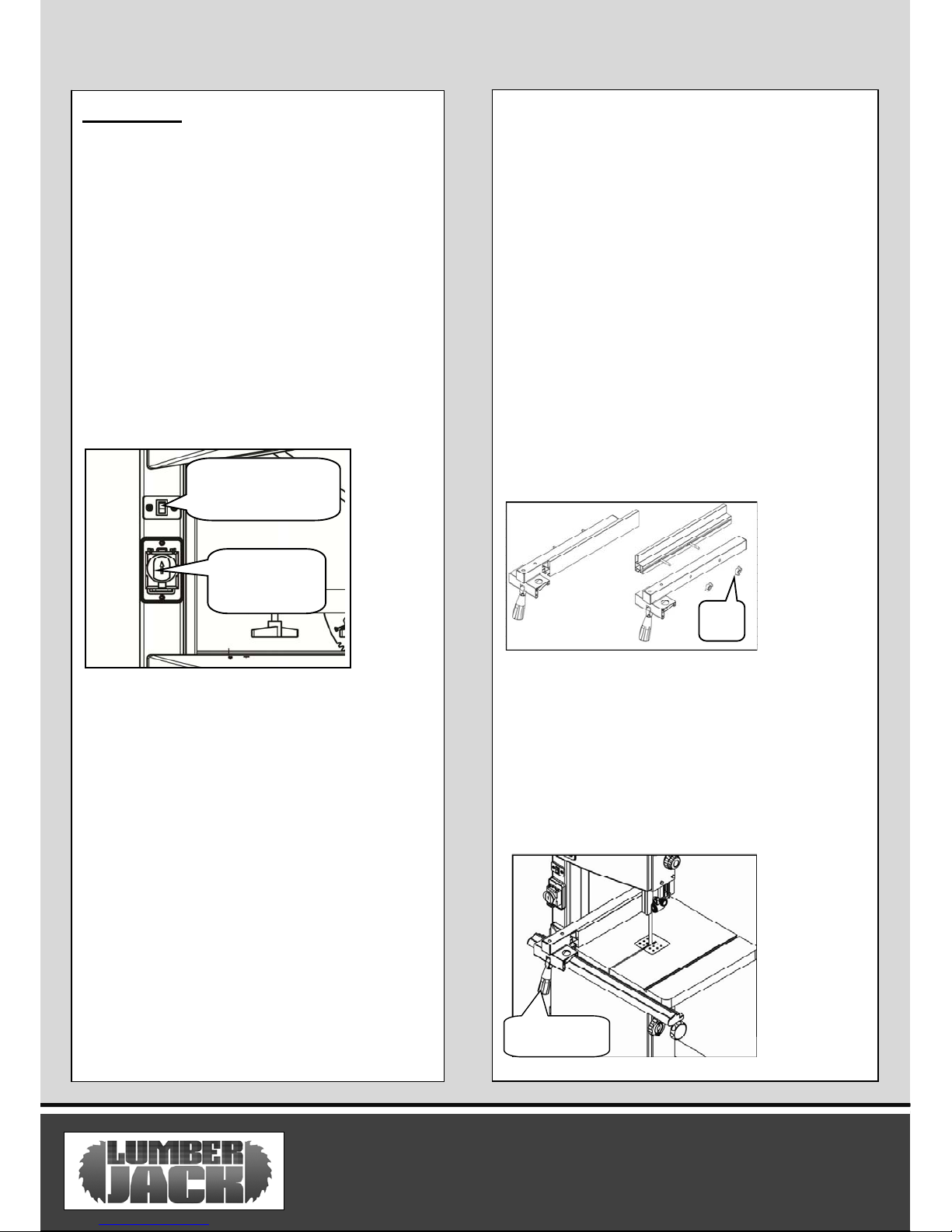

Using rip fence
The rip fence can be used on both side of the
blade. When the rip fence is moved from one side
of the saw blade to other the fence needs to
reverse.
Reversing the fence
– Loosen and remove the two knobs G.
– Take off the fence with bolts from the fence
support.
– Assemble the fence with bolts to other side of
the fence support.
– Replace the two knobs G.
Clamping the rip fence
– Place rip fence on the guide rail.
– Move the fence to a needed position, the scale
indicates distance form saw blade to the fence.
– Tighten the lock lever to champ the rip fence.
G
Lock lever

BS305/BS340 13
OPERATION
Fence height can be lowered when
cutting thin materials
– Loosen the two knobs G.
– Slide the fence out from fence support.
–Rotate fence 90°.
–Insert the lock screw into other groove of the
fence.
–Retighten the two knobs G.

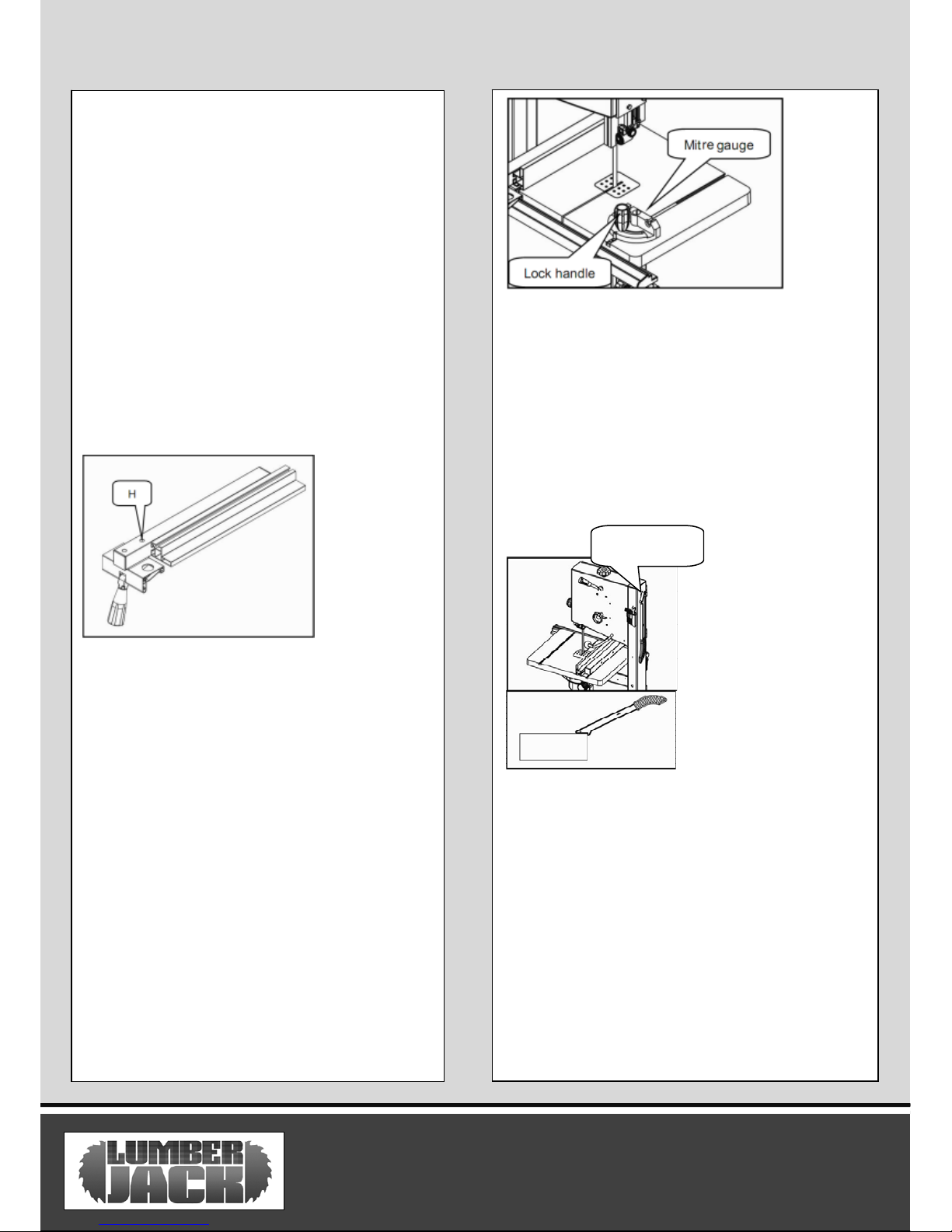

Fence can be adjusted paralleling with the side
of blade by loosening the two socket bolts H.
Using mitre gauge
The mitre gauge is inserting into the table slot
from the table front edge.
For mitre cuts, the mitre gauge can be turned to
60°in both directions.
To set a mitre angle:loosen lock handle by
turning it counter-clockwise.
Warning:When cutting with mitre gauge, the
lock handle must be firmly tightened.
Using push stick
The push stick serves as an extension of the hand
and protects against accidental contact with saw
blade. The push stick must be used if the distance
between band saw blade and a rip fence is less
than 150mm. When the push stick is not used, it
can be stored on the hook provided at the band
saw frame. Replace push stick if damaged.
Sawing
–Set upper blade guide 3mm above the workpiece.
–Place workpiece on the table.
–plug in.
–Start saw.
–Cut workpiece in a single pass.
–Switch off no further cutting is to be done
immediately afterwards.
Push stick

BS305/BS340 14
MAINTENANCE AND SERVICE
Maintenance and Service
Be aware that the machine should always have
the on/off switch set to the off position and be
unplugged from any outlet before any
inspection, adjustments, maintenance or
cleaning is performed.
–Before each use inspect the general condition
of the machine. Check for loose screws,
misalignment or binding of moving parts,
cracked or broken parts, damaged electrical
wiring, or any other condition that may affect its
safe operation. If abnormal noise or vibration
occurs, have the problem corrected before
further use.
–Each day remove all sawdust and debris from
the router table with a soft brush, cloth or
vacuum. Also lubricate all moving parts with a
premium lightweight machine oil. Do not use
solvents or caustic agents to clean the band
saw.

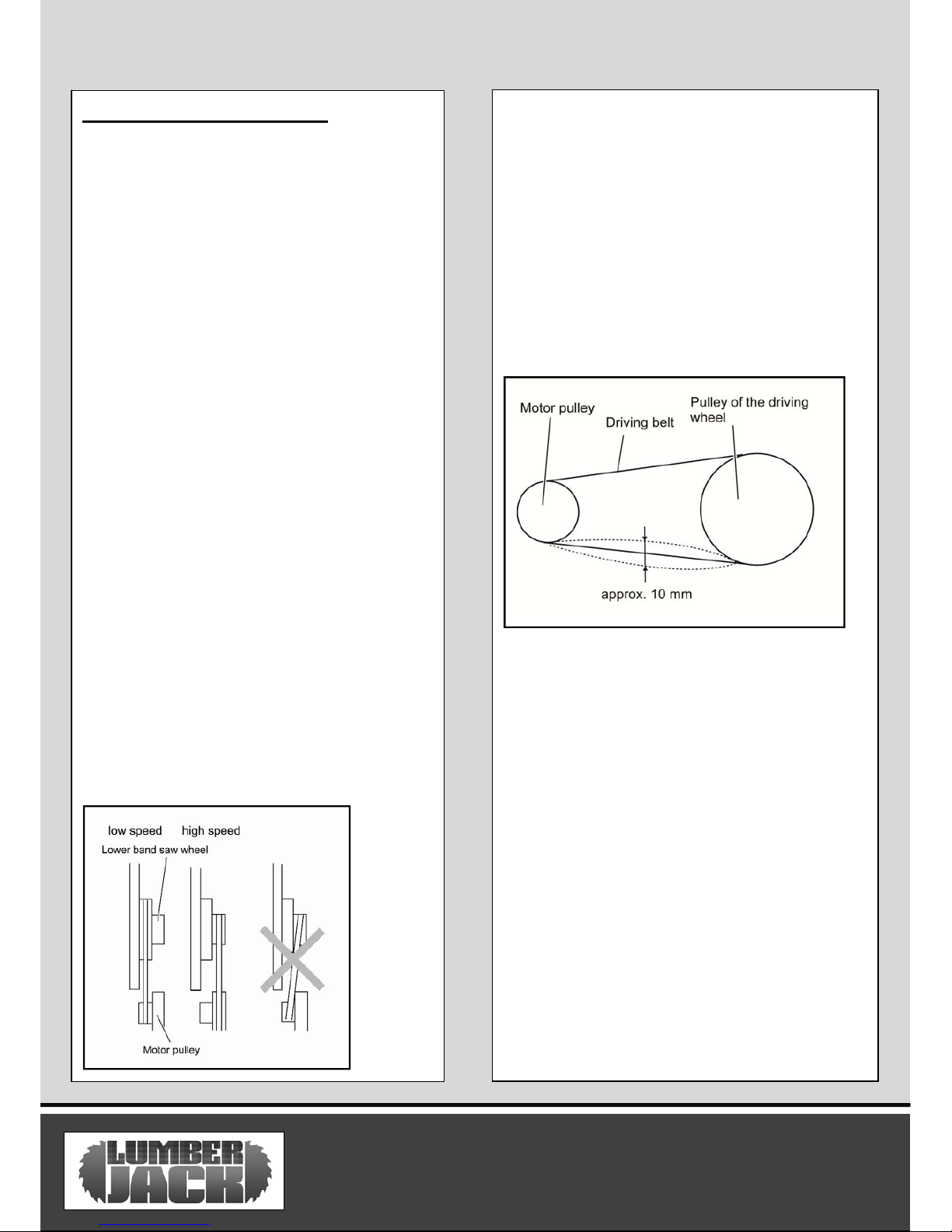

Changing the Cutting Speed
– Open the lower cover.
– Slacken the drive belt by turning the knob
clockwise.
– Put the drive belt on the correct drive wheels
as required.
–
Now tighten the drive belt knob.
– Now check the belt is tensioned correctly, do this
by pulling the belt half way between the pulleys
and it should approx. 10mm.
– If it needs adjusting loosen the motor locking
bolt and turn the motor anti-clockwise to loosen
the belt and clockwise to tighten the belt.
– When the correct tension is achieved tighten the
motor locking bolt.
Changing the Blade
– Remove the guide rail from the table.
– Open the upper and lower covers.
– Set the upper blade guide to its lowest position.
– Loosen the saw blade tension knob until the
blade has slackened so that the blade can be
removed.
– Remove the blade and clean both top and
bottom pulleys before installing the new blade.
– Tighten the saw blade tension knob, and replace
the guide rail and close the top and bottom
covers.

BS305/BS340 15
MAINTENANCE AND SERVICE
–
Now align and tension the blade then adjust
the upper and lower blade guides as described
earlier in this manual.
Quick release
lever

BS305/BS340 16
LUMBERJACK GUARANTEE
1. Guarantee
1.1 Lumberjack guarantees that for a period of
12 months from the date of purchase the
components of qualifying products (see clauses
1.2.1 to 1.2.8) will be free from defects caused
by faulty construction or manufacture.
1.2. During this period Lumberjack, will repair or
replace free of charge any parts which are
proved to be faulty in accordance with
paragraph 1.1 providing that:
1.2.1 You follow the claims procedure set out in
clause 2
1.2.2 Lumberjack and its authorised dealers are
given reasonable opportunity after receiving
notice of the claim to examine the product
1.2.3 If asked to do so by Lumberjack or its
Authorised dealer, you return the product at
your own cost to Lumberjack’s or supplying
Authorised Dealer’s premises, for the
examination to take place clearly stating the
Returns Material Authorisation number given by
Lumberjack or an Authorised Dealer.
1.2.4 The fault in question is not caused by
industrial use, accidental damage, fair wear and
tear, wilful damage, neglect, incorrect electrical
connection, misuse, or alteration or repair of the
product without approval.
1.2.5 The product has been used in a domestic
environment only
1.2.6 The fault does not relate to consumable
items such as blades, bearings, drive belts, or
other wearing parts which can reasonably be
expected to wear at different rates depending
on usage.
1.2.7 The product has not been used for hire
purposes.
1.2.8 The product has been purchased by you as
the guarantee is not transferable from a private
sale.
2. Claims Procedure
2.1 In the first instance please contact the
Authorised Dealer who supplied the product to
you. In our experience many initial problems with
machines that are thought to be faulty due to
faulty parts are actually solved by correct setting
up or adjustment of the machine. A good
Authorised Dealer should be able to resolve the
majority of these issues much more quickly than
processing a claim under the guarantee. If a
return is requested by the Authorised Dealer or
Lumberjack, you will be provided with a Returns
Material Authorisation number which must be
clearly stated on the returned package, and any
accompanying correspondence. Failure to provide
a Returns Material Authorisation number may
result in item being refused delivery at Authorised
Dealer.
2.2 Any issues with the product resulting in a
potential claim under the guarantee must be
reported to the Authorised Dealer from which it
was purchased within 48 hours of Receipt.
2.3 If the Authorised Dealer who supplied the
product to you has been unable to satisfy your
query, any claims made under this Guarantee
should be made directly to Lumberjack. The Claim
itself should be made in a letter setting out the
date and place of purchase, giving a brief
explanation of the problem which has led to the
claim. This letter should be then sent with proof

BS305/BS340 17
LUMBERJACK GUARANTEE
of purchase to Lumberjack. If you include a
contact number with this it will speed your claim
up.
2.4 Please note that it is essential that the letter
of claim reaches Lumberjack on the last day of
this Guarantee at the latest. Late claims will not
be considered.
3. Limitation of Liability
3.1 We only supply products for domestic and
private use. You agree not to use the product for
any commercial, business or resale purposes and
we have no liability to you for any loss of profit,
loss of business, business interruption or loss of
business opportunity.
3.2 This Guarantee does not confer any rights
other than these expressly set out above and
does not cover any claims for consequential loss
or damage. This Guarantee is offered as an extra
benefit and does not affect your statutory rights
as a consumer.
4. Notice
This Guarantee applies to all product purchased
from an Authorised Dealer of Lumberjack within
the United Kingdom. Terms of Guarantee may
vary in other countries.

BS305/BS340 18
CE DECLARATION OF CONFORMITY
TOOLSAVE
Unit C, Manders Ind. Est.,
Old Heath Road, Wolverhampton,
WV1 2RP.
Tel: [phone]
Declares that the BAND SAW (BSS305/BS340)
Is in compliance with the regulations included in the Directives:2006/95/EC
EC DECLARATION OF CONFORMITY
Certificate for EC-type examination delivered by TÜV Süd Product Service GmbH-80339
München GERMANY(Registration No.:N8M 15 04 28954 042 )
Person who declares: Bill Evans
01.03.2017
The Director
