SAFETY AND OPERATING MANUAL
SCROLL SAW / FRET SAW
SS406
ORIGINAL INSTRUCTIONS
SS406

TABLE OF CONTENTS
Welcome to Lumberjack!
Dear customer, Congratulations on your purchase. Before using the
Product for the first time please be sure to read these instructions for use.
They provide you with all information necessary for using the product safely and to
ensure its long service life.
Closely observe all safety information in these instructions!
General Power Tool Safety Warnings………………………………….…......01
Symbols & Cable Rating Chart ……….……………………………………………04
Machine Details and Product features……….…………………………….….05
Assembly……………………………………………………………………………………..06
Operation…………………………………………………………………………………….07
Maintenance and Service…………………………………………………………….08
Troubleshooting…………………………………………………………………………..10
Lumberjack Guarantee…………………………………………………………………11
Declaration of conformity……………………………………………………………13
Parts list……………………………………………………………………………………...14

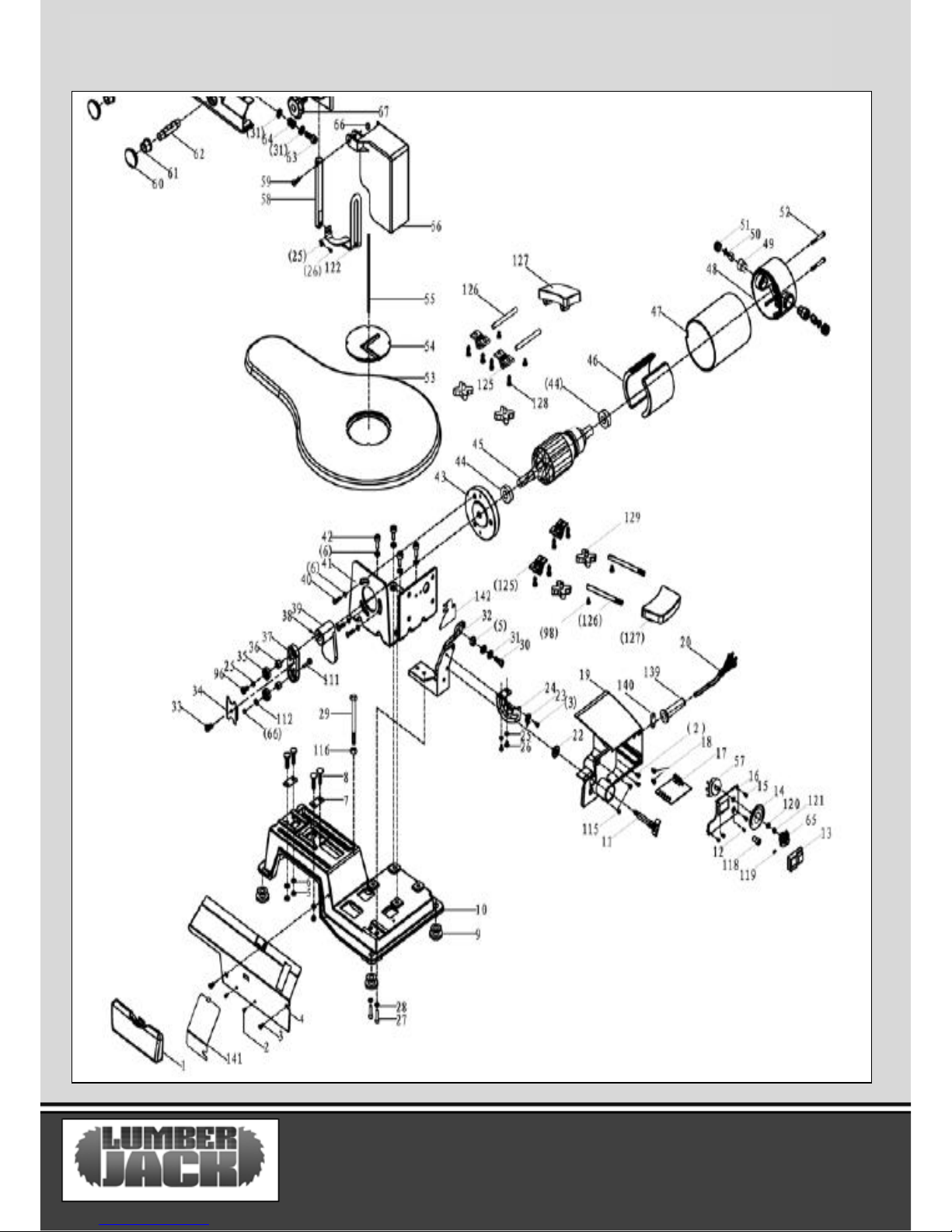

Parts Diagram………………………………………………………………………………17
SS406

SS406 01
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference. The term "power tool" in
the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators.There is an increased risk of
electric shock if your body is grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

SS406 02
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.
6. Battery Tool Use and Care
a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury or fire.
GENERAL POWER TOOL SAFETY WARNINGS

SS406 03
GENERAL POWER TOOL SAFETY WARNINGS
c) When Battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal object
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
D) User abusive conditions, liquid may be
ejected from the battery; Avoid contact. If
contact accidentally occurs, flush with copious
amounts of water. If liquid contacts eyes, seek
medical help immediately. Liquid ejected from
the batter may cause irritation or burns.
7. Additional Safety and working
Instructions
7.1. Dust from materials such as lead-containing
coatings, some wood types, minerals and
metals can be harmful to one’s health and
cause allergic reactions, leading to respiratory
infections and/or cancer. Materials containing
asbestos may only be worked by specialists.
Observe the relevant regulations in your country
for the materials to be worked.
7.2. Prevent dust accumulation at the
workplace. Dust can easily ignite.
8 Additional Warnings for Scroll
Saws
8.1 This scroll saw is intended for use in
dry conditions, and indoor use only.
8.2 Do not cut pieces of material too
small to hold by hand outside the blade
guard.
8.3 Avoid awkward hand positions
where a sudden slip could cause a hand
to move into the blade.
8.4 Always use the blade guard to avoid
possible injury due to blade breakages.
8.5 Never leave the scroll saw work area
with the power on, or before the machine
has come to a complete stop.
8.6 Do not perform layout, assembly or
set up work on the table whilst the
cutting tool is in operation.
8.7 Never turn the scroll saw on before
clearing the table of all objects.
9. Using an Extension Cable.
9.1. If an extension cable is required, use an
approved triple core extension cable suitable for
the power input of the tool.
9.2. Grounded tools always require a three wire
extension cable.
9.3. As the distance from the supply outlet
increases you must use a heavier gauge extension
cable. Using extension cables with inadequately
sized wire causes a serious drop in voltage,
resulting in loss of power and possible tool
damage.
9.4. The smaller the gauge number of the wire
the greater the capacity of the cord.
9.5. When using a cable reel, always unwind the
cable completely.

SYMBOLS AND POWER RATING CHART
Danger! –Read the operating
instructions to reduce the risk of
injury.
Caution! Wear safety goggles.
Caution! Wear ear defenders. The
impact of noise can cause
damage to hearing.
Amperes
7.5M
15M
25M
30M
45M
60M
0 –2.0
6
6
6
6
6
6
2.1 –3.4
6
6
6
6
6
6
3.5 - 5.0
6
6
6
6
10
15
5.1 –7.1
10
10
10
10
15
15
7.1 –12.0
15
15
15
15
20
20
12.1 –20.0
20
20
20
20
25
-
Caution! Risk of Injury! Do
not reach into the running
saw blade.
Caution! Wear a dust mask.
SS406 06
SS406 04

SS406 08
SS406 05
MACHINE DETAILS AND PRODUCT FEATURES
Machine Details
Specifications:
Mains Voltage ‐ 230V (50Hz)
Power Consumption ‐ 120W
Speed Range ‐ 500 – 1,700min‐1
Bench Size ‐ 255 x 415mm
Saw Blade Length ‐ 127mm
Working Depth ‐ 406mm
Lifting Movement ‐ 21mm
Weight ‐ 13kg
Package Contents:
Scroll Saw
Light
Blower
Blade
Product Features
1. Clamping Lever
2. Blade Guard
3. Work Piece Holder
4. Shavings Blower
5. Speed Switch
6. on/Off Switch
7. Angle Scale
8. Light
9. on/Off Light Switch
10. Table Insert
11. Toolbox
Intended Use
The machine is intended for curved cutting
in wood and wood like materials. Not
intended for any metal materials.

SS406 06
ASSEMBLY
Avoid unintentional starting of the
machine. During assembly and for all
work on the machine, the power plug
must not be connected to the mains
supply.
Carefully remove all parts included in the
delivery from their packaging.
Remove all packaging material from the
machine and the accessories provided.
Before starting the operation of the machine
for the first time, check if all parts listed in the
box content section have been supplied.
Note: Check the power tool for possible
damage. Before further use the machine,
check that all protective devices are fully
function. Any lightly damaged parts must be
carefully checked to ensure flawless operation
of the tool. All parts must be properly
mounted and all conditions fulfilled that
ensure faultless operation.
Damaged protective devices and parts must be
immediately replaced by an authorised service
centre.
Setting the Angle Scale.
‐ Loosen the tilt lock, and bring the table
perpendicular to the saw blade using a set
square (B).
‐ Tighten the tilt lock to hold the table in this
position.
‐ Set gauge (C) to zero.
Note –the bench should not be on the
motor block as this causes excessive
noise.
Blade Guard and Clamp Assembly.
‐ Insert the work piece holder (A) into the clamp
(B), then tighten bolt (C).
‐ On to the top of Clamp (B) assemble the blade
guard as in the image above.

Dust Blower Assembly
‐ Screw the flexi‐hose on to the opening as
above.
Fixing to a Workbench.
‐ The best way to fix this scroll saw to a work
bench is as above. Please note these fixings are
not supplied.
1. Saw Body
2. Foam Rubber Base
3. Work Bench
4. Flat Seal
5. 7mm Washer
6. 6 mm Hex Nuts
7. 6mm Lock Nut
8. 6 mm Hex Screws
Operation
A scroll saw is fundamentally a “curve cutting
tool “but which can also carry out straight and
angled edge-cuts. Familiarise yourself with the
following important points prior to
commissioning the saw.
‐ The saw does not automatically cut wood.
You must feed the wood against the saw blade
manually.
‐ The cutting process occurs only while the blade
is moving downwards.
‐ Feed the wood slowly against the saw blade as
the saw blade teeth are small and cut only while
moving downwards.
‐ All persons carrying out work with the saw
require training. The saw blade may break easily
during this training time while the operator is
still unfamiliar with the saw.
‐ The saw is best suited for sheets of wood less
than 2.5 cm thick.
‐ Feed the wood especially slowly against the
blade and avoid abrupt curves to prevent the
saw blade from breaking, if you wish to cut
wood sheets thicker than 2.5 cm.
‐ Saw blade teeth become blunt over time, saw
blades must be replaced. The saw blades are
sufficient for 1/2 to 2 operating time depending
upon the type of wood.
‐ Try and make sure that the saw blade follows
the grain of the wood in order to obtain a clean
cut.
SS406 07
ASSEMBLY & OPERATION

SS406 08
OPERATION & MAINTENANCE AND SERVICE
Inside Cuts
Warning: Switch off the saw and remove the
mains supply plug before installing saw blades
in order to avoid injuries caused by
unintentional activation of the saw.
This saw is suited also to inside cuts, which are
cuts not starting at the edge of the work piece.
Proceed as follows:
‐ Drill a 6 mm hole in the work piece.
‐ Loosen the blade tensioner and release the
tension in the blade, then remove the blade.
‐ Place the bore hole over the saw blade slot in
the work bench.
‐ Install the saw blade through the hole in the
workpiece and through the work blade slot,
and fasten the blade to the holders.
‐ When you have completed the inside cut,
remove the saw blade and then remove the
workpiece from the bench.
Please note see maintenance section for
instructions on removing the blade.
Maintenance and Service
Changing the Blade
‐ Remove the table insert (10).
‐ Lift up Clamping Lever (1).
‐ Press down slightly on the saw’s upper arm to
release the top of the blade and then the
bottom from its mountings.
‐ Insert the new blade in to the bottom
mounting first, ensuring that the teeth of the
blade point downwards.
‐ Press down on the upper arm again to mount
the blade in to its upper mountings.
‐ Check the position of the blade pins at the
supports.
‐ Retighten the lever clamp (1), and then replace
the table insert (10).

SS406 09
MAINTENANCE AND SERVICE
Saw arm bearings
Lubricate the saw arm bearings every 50
Hours. Proceed as follows.
‐ Turn the saw to the side
‐ Apply a generous amount of SAE 20 oil to the
shaft end and bronze bearings.
‐ Let the lubricant oil work in overnight.
‐ Repeat the procedure the next day on the
other side of the saw.

SS406 10
TROUBLESHOOTING

SS406 11
LUMBERJACK GUARANTEE
1. Guarantee
1.1 Lumberjack guarantees that for a
period of 12 months from the date of
purchase the components of
qualifying products (see clauses 1.2.1
to 1.2.8) will be free from defects
caused by faulty construction or
manufacture
1.2 During this period, Lumberjack, will
repair or replace free of charge any
parts which are proved to be faulty
in accordance with paragraph 1.1
providing that:
1.2.1 You follow the claims procedure
set out in clause 2.
1.2.2 Lumberjack and its Authorised
Dealers are given reasonable
opportunity after receiving notice
of the claim to examine the
product.
1.2.3 If asked to do so by lumberjack or
its Authorised Dealer, you return
the product at your own cost to
Lumberjack’s or the supplying
Authorised Dealer’s Premises -
For the examination to take place clearly
stating the Returns Material Authorisation
Number given.
1.2.4 The fault in question is not caused by
industrial use, accidental damage, fair wear
and tear, wilful damage, neglect, incorrect
electrical connection, misuse, alteration or
repair of the product without approval.
1.2.5 The product has been used in a
domestic environment only.
1.2.6 The fault does not relate to
consumable items such as blades, bearings,
drive belts or other wearing parts which
can reasonably be expected to wear at
different rates depending on usage.
1.2.7 The product has not been used for
hire purposes.
1.2.8 The product has been purchased by
you, as the guarantee is not transferable
from a private sale.

SS406 12
LUMBERJACK GUARANTEE
2. Claims Procedure
2.1 In the first instance please contact the
Authorised Dealer who supplied the product to
you. In our experience many initial problems
with machines that are thought to be fault due
to faulty parts are actually solved by correct
setting up or adjustment of the machine. A good
Authorised Dealer should be able to resolve the
majority of these issues much more quickly than
processing a claim under the guarantee. If a
return is requested by the Authorised Dealer or
Lumberjack, you will be provided with a Returns
Material Authorisation Number which must be
clearly stated on the returned package, and any
accompanying correspondence. Failure to
provide a Returns Material Authorisation
Number may result in item being refused
delivery.
2.2 Any issues with the product resulting in a
potential claim under the guarantee must be
reported to the Authorised Dealer from which it
was purchased within 48 hours of receipt.
2.3 If the authorised Dealer who supplied the
product to you has been unable to satisfy your
query, any claims made under this guarantee
should be made directly to Lumberjack. The
claim itself should be made in a letter setting out
the date and place of purchase, giving a brief
explanation of the problem which has led to the
claim.
2.4 Please note that it is essential that the letter of
claim reaches Lumberjack on the last day of this
guarantee at the latest. Late claims will not be
considered.
3. Limitation of Liability.
3.1 We only supply products for domestic and
private use. You agree not to use the product for
any commercial, business or resale purposes and
we have no liability to you for any loss of profit,
loss of business, business interruption or loss of
business opportunity.
3.2 This guarantee does not confer any rights
other than these expressly set out above and does
not cover any claims for consequential loss or
damage. This guarantee is offered as an extra
benefit and does not affect your statutory rights
as a consumer.
4. Notice
This guarantee applies to all product purchased
from an Authorised Dealer of Lumberjack within
the United Kingdom. Terms of guarantee may vary
in other countries.

SS406 13

SS406 14
PARTS LIST

SS406 15
PARTS LIST

SS406 16
PARTS LIST

SS406 17
PARTS DIAGRAM PART 1

SS406 18
PARTS DIAGRAM PART 2
