Lumen Dynamics Group OmniCure LX400+ User manual

LX400+ UV LED Spot Curing System
OmniCure® LX400+
UV LED Spot Curing System
User Guide
Lumen Dynamics
2260 Argentia Road
Mississauga (ON)
L5N 6H7 Canada
+1 905.821.2600
www.LDGI.com
035-00413R Rev. 3

LX400+ UV LED Spot Curing System
© 2009, 2011. Lumen Dynamics Group Inc. OmniCure, and
StepCure, are trademarks or registered trademarks of Lumen
Dynamics Group Inc. All other product and company names are
trademarks or registered trademarks of their respective holders.
Any product or software photos shown are for reference only and
are subject to change without notice.
Printed in Canada. Doc. No. 035-00413R
No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system or translated into any
language in any form by any means without the prior written
consent of Lumen Dynamics Group Inc. Every effort has been
made to ensure information in this manual is accurate; however,
information in this manual is subject to change without notice
and does not represent a commitment on the part of the authors.

- i -
LX400+ UV LED Spot Curing System
Table of Contents:
1. Introduction......................................................................... 1
2. Safety................................................................................... 2
2.1 Glossary of Symbols................................................................2
2.2 Safety Precautions...................................................................4
2.3 Optical Safety Specifications....................................................8
3. Getting Started..................................................................13
3.1 System Components..............................................................13
3.2 Front Panel ............................................................................14
3.3 Rear Panel.............................................................................15
4. Installation Procedures....................................................16
4.1 General Installation................................................................16
4.2 LED Head Cap Assembly/Removal Procedure......................17
4.3 Clamp Installation and Removal ............................................18
4.4 Changing lenses....................................................................18
5. Operation........................................................................... 22
5.1 Powering Up/Powering Down ................................................22
5.2 Mode Control .........................................................................24
5.3 Timer Control.........................................................................24
5.4 Output Emission Level Control...............................................25
5.5 „OFF‟ Indication Awareness ...................................................25
5.6 Trigger Control.......................................................................26
5.7 LED Emission, Manual Control..............................................27
5.8 LED Emission Automatic Control...........................................27
5.9 Head Hours-On Display.........................................................29
5.10 LED Display Mode S/C ..........................................................30
5.11 Temperature Display..............................................................30
6. Alarms ............................................................................... 33
6.1 Alarm Situations.....................................................................33
7. External Control................................................................ 34
7.1 Foot Pedal (FP)......................................................................34

- ii -
LX400+ UV LED Spot Curing System
7.2 PLC Connector ......................................................................36
7.3 PLC Signal Descriptions ........................................................37
7.4 Output Signals Requirements................................................41
7.5 Input Signals Requirements...................................................43
7.6 Remote Safety Interlock Connector.......................................43
8. Routine Care and Maintenance.......................................44
8.2 Cleaning Procedure for Head and Lens Assembly ................45
8.3 Lens Cleaning Procedure:......................................................46
8.4 Controller Cleaning Procedure:..............................................47
9. Troubleshooting............................................................... 48
9.2 Error Codes (System Specific)...............................................48
9.3 Error Codes (LED Head)........................................................49
9.4 Troubleshooting Symptom/Possible Cause ...........................50
10. Technical Specifications............................................. 52
10.1 Controller Specification..........................................................52
10.2 LED Head Specification.........................................................53
10.3 Environmental Conditions......................................................53
10.4 Regulatory Compliance..........................................................54
10.5 China RoHS...........................................................................55
10.6 WEEE Directive (2002/96/EU)...............................................56
10.7 FCC PART 15, SUBPART B, CLASS A.................................57
11. Warranty ....................................................................... 58
12. Component Number Table.......................................... 59
13. Contact Information..................................................... 60

- iii -
LX400+ UV LED Spot Curing System
Figures:
Figure 1 Front Panel................................................................ 14
Figure 2 Rear Panel Image...................................................... 15
Figure 3 Lens and Housing Subassembly............................ 19
Figure 4 Clamp......................................................................... 19
Figure 5 Recommended Clamp Position .............................. 20
Figure 6 Typical Installation Applications ............................ 21
Figure 7 Extension Rod Application...................................... 21
Figure 8 Active Low Signal Circuit Configuration................42
Figure 9 Active High Signal Circuit Configuration............... 42
Tables:
Table 1 Front Panel Button Functions Summary.................31
Table 2 Controller LED Indicators Summary........................ 32
Table 3 Display Format Reference......................................... 32
Table 4 Foot Pedal Channel Control......................................35
Table 5 PLC Connector Pin-Outs........................................... 36
Table 6 Controller Specifications...........................................52
Table 7 China RoHS................................................................. 55
Table 8 Component Part Numbers.........................................59

- 1 -
LX400+ UV LED Spot Curing System
1. Introduction
The LX400+ UV LED SPOT CURING SYSTEM represents a
new standard in UV LED Curing. It gives you the power,
control, and reliability never before available in such a form
factor. The OmniCure LX400+ joins the Lumen Dynamics
family of light systems offering the same high level of
innovation, quality and reliability that our customers have
come to expect. Since 1982, Lumen Dynamics (formerly
EXFO LSI) has combined next generation optical
engineering, state-of-the art electronics and fibre-optics to
produce sophisticated technologies that employ light.
Today, Lumen Dynamics is a leading developer of light
based systems for sectors ranging from manufacturing to
bio-medicine and we are unmatched in our commitment to
quality and service.
The heart of the OmniCure LX400+ is the UV LED
Module with an amazing 20,000-hour lifetime. This
extended lifetime is made possible by the innovative
technology incorporated into the design of the system. The
UV LED‟s are enclosed within the UV LED head which
provides excellent spectral and power output.
The output power emission of the available UV LED
head is adjustable in 1% increments from 15% to 100% to
provide light for your application. In order to set your
OmniCure LX400+ at specific irradiance levels (W/cm2),
we suggest running trials to optimize the results for the UV
cured glues and adhesives used.
We recommend reading this manual to discover all the
features available of the OmniCure LX400+.
Note: Refer to OmniCure® LED Head Assembly
Specification Guide 035-00433R for LED Head
specifications.

- 2 -
LX400+ UV LED Spot Curing System
2. Safety
2.1 Glossary of Symbols
Caution risk of danger –consult accompanying
documents
Possible hazardous optical radiation/ UV emitted
from this product.
Use appropriate shielding.
Input/Output Signals
Input Signal
Caution, Hot Surface
DC (Direct Current)

- 3 -
LX400+ UV LED Spot Curing System
RISK GROUP 2 Caution Label: IEC 62471-2: 2009
(Located on top cover of LX controller chassis)
Notice: UV radiation emitted from this product/ Hot Surface
(Located on 365/ 385 nm LED head assemblies)
Caution: Possibly hazardous optical radiation emitted from this
product/ Hot Surface (Located on 400 nm LED head assembly)

- 4 -
LX400+ UV LED Spot Curing System
2.2 Safety Precautions
This series of cautions and warnings relate to the
installation, operation and maintenance of the
OmniCure LX400+. They are also presented
throughout this User‟s Guide as applicable.
WARNING
The protective eyewear provided is designed only for
viewing of indirect UV light on an intermittent basis.
Consistent with this intended use, this eyewear meets
the exposure limits as defined by HSM-73-11009 from
the U.S. Department of Health, National Institute for
Occupational Safety and Health. Additional protective
UV shielding is recommended for any process that
requires direct viewing or visual monitoring of UV light
for extended periods of time. It is the responsibility of
the end user to ensure that adequate safeguards are
implemented to prevent any potential hazardous UV
exposure.
CAUTION
The LED's available for this system provide optical
output power classified as RISK GROUP 2 as per IEC/
EN 62471-2. The user related risk of this system is
dependant on the final installation and use of this
product as detailed within this manual.
Always follow the installation guidelines as detailed in
Section 4.0 of this manual. Use of this system in any
manner not specified by Lumen Dynamics may expose
the user to potentially hazardous optical radiation and
UV.

- 5 -
LX400+ UV LED Spot Curing System
RISK GROUP 2
CAUTION UV/ Hazardous visible radiation is emitted
from this product. Eye or skin irriatation may result from
exposure. Use appropriate shielding.
WARNING
When available LED Heads are installed, do not stare
directly at the LED aperture(s). This may be harmful,
resulting in eye injury. Always use the protective
eyewear provided with this device. Additionally, protect
any exposed skin with appropriate clothing or shielding
as required.
WARNING
To prevent accidental exposure to hazardous optical/ UV
radiation, always ensure that the available LED heads
are properly secured in a mounting fixture as described
in Section 4.0 of this manual.
Hand held use of the LED heads is not recommended
and may expose the user to dangerous optical radiation.
Additionally, to prevent unintentional exposure, use of
the on/ off key switch is recommended.
Ensure that the OmniCure LX400+ external power
supply cord is connected to a grounded (earthed mains
socket) 3-pin outlet only! Use only the external power
supply module and power supply cord set provided with
the system. Any substitution of these components will
invalidate regulatory certification of this device and may
impair operating safety.

- 6 -
LX400+ UV LED Spot Curing System
Danger
This system contains hazardous voltages, do not
attempt to remove access covers. No user serviceable
parts are located within the controller chassis or the UV
LED head. It is recommended that ONLY QUALIFIED
TECHNICAL PERSONNEL perform any testing or
repairs.
Warning
The Level of UV energy supplied by OmniCure LX400+
is sufficient to ignite flammable substances. In the
manual operating mode, DO NOT leave the unit
unattended. During installation in an automated
environment, the appropriate measures including
integrated alarms, etc. must be included to detect the
failure of any associated equipment.
Warning
Do not attempt to connect any other type of equipment
to the qty. 4 connectors labelled “CH1-4” located on the
rear panel of the OmniCure LX400+. These connectors
are provided only for connection of the various LED
heads available from Lumen Dynamics.
Warning
Should the OmniCure LX400+ be used in a manner not
specified by Lumen Dynamics, the protection provided
by the equipment may be impaired.
Caution, Hot Surface
Due to elevated operating temperatures; avoid contact of
the LED head(s) when energized (front panel "LED ON"
emission indicator is illuminated Red). The LED heads
are designed to be mounted in a suitable fixture prior to
use. User clamp type heat sink assemblies are provided

- 7 -
LX400+ UV LED Spot Curing System
with each LED head to provide user safety and optimum
thermal management.
Prior to handling of the UV LED head(s), allow a cool
down for a period of approximately 5 minutes after
system power has been removed.
Caution –Use of controls or adjustments or
performance of procedures other than those specified
herein my result in exposure to hazardous optical/ UV
radiation.
Cleaning
Clean exterior of the controller unit with a water
dampened cloth and simple detergent only. DO NOT
allow the ingress of any liquids into the controller
chassis.
Prior to attempting to clean the lens assembly, always
disconnect the external power supply cord from the
controller chassis. Additionally, allow approximately 5
minutes for the heads to cool down to room temperature
to prevent contact with any components at excessive
temperatures.
Use only a cloth slightly dampened with an appropriate
optical cleaning solution to clean the lens cover
assembly of the UV LED head. Applying a cleaning
solution to a hot lens assembly may result in
contamination or undesirable residue, resulting in
decreased optical performance.
The UV LED head‟s operation can be affected if handled
incorrectly. Never touch the protective lens cover
assembly of the UV LED head. The presence of skin oils
may result in a decrease in system performance.
Always ensure the system controller power is turned off,
prior to disconnecting or re-connecting any of the UV
LED heads.

- 8 -
LX400+ UV LED Spot Curing System
2.3 Optical Safety Specifications
User Safety Data (IEC 62471: 2006)
2.3.1 Hazardous Distance Determinations (HD):
Head Model 365nm
Blue Light Hazard Radiance
(determined from table 5.5 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
122
0
107
15
87
20
52
26
22
30
Head Model 365nm
Weighted Actinic UV Skin and Eye Irradiance
(determined from table 5.4 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
167
0
163
12
128
23
87
30
51
35
22
38
Head Model 365nm
Un-weighted UVA Irradiance
(determined from table 5.4 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
163
0
128
21
87
28
52
33
23
36

- 9 -
LX400+ UV LED Spot Curing System
Head Model 385nm
Blue Light Hazard Radiance
(determined from table 5.5 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
430
0
314
62
252
76
195
77
107
53
42
27
Head Model 385nm
Weighted Skin Thermal Hazard Irradiance
(determined from table 5.4 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
271
0
254
24
197
43
107
50
42
27
Head Model 385nm
Un-Weighted UVA Irradiance
(determined from table 5.4 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
261
0
254
13
197
36
107
47
42
27

- 10 -
LX400+ UV LED Spot Curing System
Head Model 400nm
Blue Light Hazard Radiance
(determined from table 5.5 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
449
0
383
68
257
91
199
101
126
85
Head Model 400nm
Blue Light Hazard Radiance
(determined from table 5.4 of IEC 62471)
Distance Away From Head
Along Plane of Beam Axis (mm)
Distance Away From Head
Normal to Beam Axis (mm)
273
0
257
30
201
57
126
58
2.3.2 Exposure Hazard Values (EHVs)
Test Results –Radiance Summations (watt/srm²)
(IEC62471)
Test
Results:
365nm Head
Test
Results:
385nm Head
Test
Results:
400nm Head
Exempt
Group
Specified
Max*
Blue Light
Hazard (table
5.5)
177
watt/sr-m² #
637
watt/sr-m² #
1257
watt/sr-m² #
100
watt/sr-m²
Weighted
Retina Visible
and Infrared
Thermal
Radiance
(table 5.5)
415
watt/sr-m²
6327
watt/sr-m²
12584
watt/sr-m²
622222
watt/sr-m²

- 11 -
LX400+ UV LED Spot Curing System
Test Results –Irradiance Summations (watt/m²)
# = complied with Risk Group 1
## = complied with Risk Group 2
(IEC62471)
Test
Results:
365nm Head
Test
Results:
385nm Head
Test
Results:
400nm Head
Exempt
Group
Specified
Max*
Weighted
Actinic UV
Skin & Eye
Irradiance
(table 5.4)
0.00241
watt/m² #
0.00092
watt/m²
0.00031
watt/m²
0.001
watt/m²
Un-weighted
UVA
Irradiance
(table 5.4)
23.44
watt/m² #
18.68
watt/m² #
3.49 watt/m²
10 watt/m²
Blue Light
Hazard
Irradiance
(table 5.4)
0.281
watt/m²
1.01
watt/m²
2.00
watt/m² ##
1.0 watt/m²
Un-weighted
Eye IR
Hazard
Irradiance
(table 5.4)
0.00016
watt/m²
0.00001
watt/m²
0.00037
watt/m²
100 watt/m²
Un-weighted
Skin Thermal
Hazard
Irradiance
(table 5.4)
2.28 watt/m²
19.14 watt/m²
#
7.56 watt/m²
8.77 watt/m²
Weighted
Retinal
Visible &
Infrared
Irradiance
Weak
Stimulus
(table 5.5)
0.0494
watt/m²
0.0043
watt/m²
0.131 watt/m²
1333333
watt/m²

- 12 -
LX400+ UV LED Spot Curing System
Risk Group Test Results –Radiance Summations (watt/sr-m²)
Irradiance Summations (watt/sr-m²)
(IEC62471)
Risk Group:
365nm Head
Risk Group:
385nm Head
Risk Group:
400nm Head
Specified
Maximum
Blue Light Hazard
Radiance
Risk Group 1
Risk Group 1
Risk Group 1
1000 watt/sr-m²
(Risk Group 1)
Weighted Retina
Visible & Infrared
Thermal
Radiance
Exempt
Exempt
Exempt
622222 watt/sr-m²
(Risk Group 1)
Weighted Actinic
Eye Irradiance
Risk Group 1
Exempt
Exempt
0.003 watt/m²
(Risk Group 1)
Un-weighted UVA
Irradiance
Risk Group 1
Risk Group 1
Exempt
33 watt/m²
(Risk Group 1)
Blue Light Hazard
Irradiance
Exempt
Marginal
Exempt
Risk Group 2
400 watt/m²
(Risk Group 2)
Un-weighted Eye
IR
Exempt
Exempt
Exempt
570 watt/m²
(Risk Group 1)
Un-weighted Skin
Thermal Hazard
Irradiance
Exempt
Risk Group 1
Exempt
820 watt/m²
(Risk Group 1)
Weighted Retinal
Visible & Infrared
Irradiance Weak
Stimulus
Exempt
Exempt
Exempt
1333333 watt/m²
(Risk Group 2)

- 13 -
LX400+ UV LED Spot Curing System
3. Getting Started
3.1 System Components
Carefully unpack the system and accessories. As you remove
each item from the box place a check mark next to each item to
ensure that all ordered components are present. Store the
packaging and packing materials for future use.
Check List
Main Controller with 2 keys.....…………………………………….……..
LED UV Head/Cable (qty. 0-4)……………………………….…..………
Optional Extension Cables (qty. 1-4) ……………………….…..………
AC Adaptor/Cord ………………………………………………………….
Foot Pedal Switch Assembly ……….……………………………………
UV Protective Eye Wear…………………………………………………..
CD User Guide/Quick Start Guide……………………………………….
PLC Connector……………………………………………………………..
Remote Safety Interlock Connector……………………………..
Refer to Table 8 for individual part numbers.
If your packaged system is missing any of the ordered
components, call Lumen Dynamics at [phone] or Toll
Free 1-800-668-8752.

- 14 -
LX400+ UV LED Spot Curing System
3.2 Front Panel
Figure 1 Front Panel
KEY SWITCH “O/I”
(POWER ON/OFF)
CHANNEL SELECT
BUTTONS 1/2/3/4
LED ON
SYSTEM READY
INDICATOR
“UP/DOWN”SELECT
BUTTONS
DISPLAY WINDOW
MODE SELECT BUTTON
MODE INDICATORS
“START/STOP”
BUTTON FOR UV
OUTPUT
+

- 15 -
LX400+ UV LED Spot Curing System

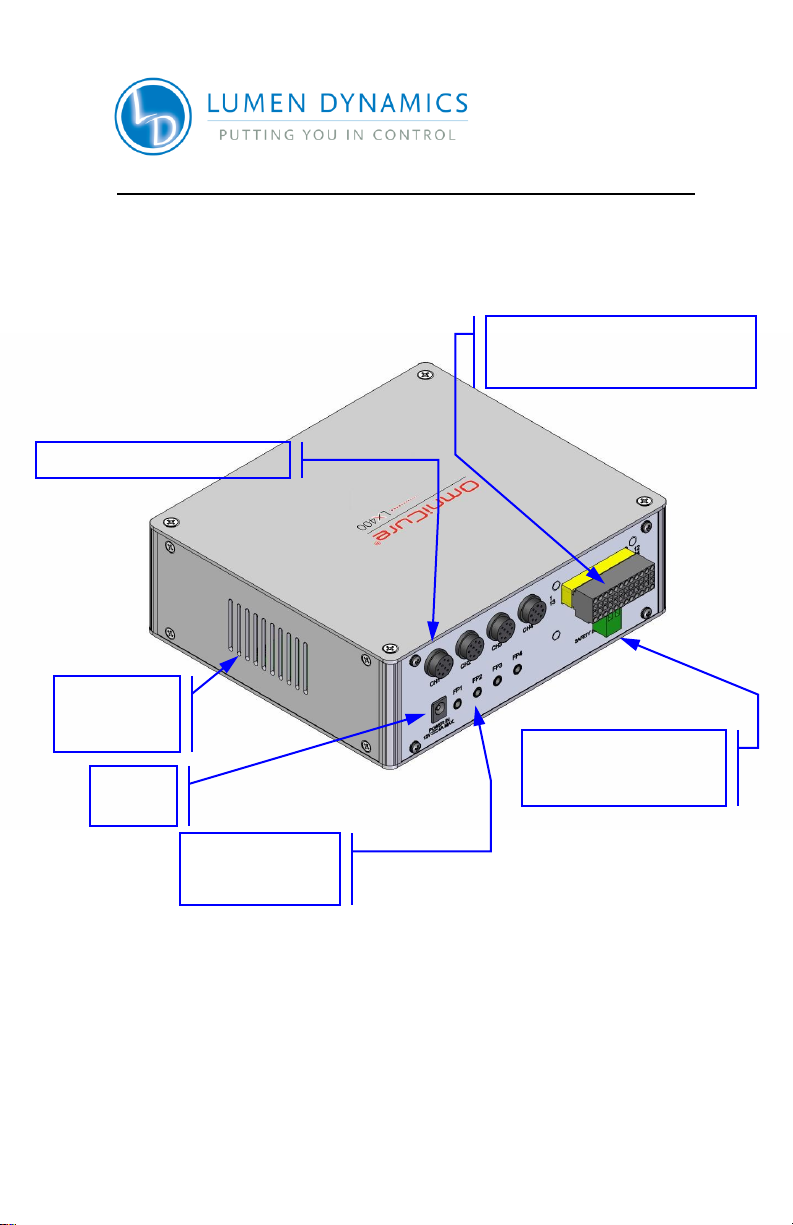

3.3 Rear Panel
Figure 2 Rear Panel Image
VENTILATION
SLOTS (BOTH
SIDES)
REMOTE SAFETY
INTERLOCK CONNECTION
PIN-OUTS 1&2
FOOT PEDAL
INPUTS 1
THROUGH 4
LED HEAD INPUTS 1THROUGH 4
DC
INPUT
1
12
13
24
1
2
1
2
3
4
PLC CONNECTIONS (24 PIN-OUTS)
TOP ROW 1-12
BOTTOM ROW 13-24
