2800A, 2800GA VERSA-HELPER TRAPEZE:
ASSEMBLY AND OPERATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE
2800-INS-LAB-RevC16 1
Info: The most current version of these instructions can be found online at
www.grahamfield.com.
SAFETY GUIDELINES — PLEASE READ BEFORE USE
WARNING: Important: Read and understand these instructions before installing or
using the 2800A/2800GA Versa-Helper Trapeze. Ensure the Trapeze is installed as
described in the following paragraphs before use. If you do not understand any part
of these warnings, cautions or instructions, contact a healthcare professional for
direction in the use of this product. If the Trapeze is not properly installed, personal
injury and/or property damage could result.
WARNING: The trapeze, when used in conjunction with a bed, can assist an
individual with a maximum weight of 250 lb.
WARNING: If components are damaged or missing, contact your GF authorized
distributor immediately. DO NOT use substitute parts.
WARNING: Notice for California Customers- California Proposition 65 WARNING:
This product contains a chemical known to the State of California to cause cancer
and reproductive or developmental harm.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or
injury caused by improper installation, assembly or use of this product.
INTENDED USE
The 2800A/2800GA Versa-Helper Trapeze is intended to assist in repositioning oneself in
bed.
WARNING: The Trapeze is intended to be used ONLY as an assistive device — that is,
to enable patients to more easily and safely reposition themselves. It is not intended
to bear entire body weight.
ASSEMBLY
Trapeze Assembly — Refer to Picture on Next Page
Tools needed: M14 wrench, Phillips screwdriver, Pliers

2800-INS-LAB-RevC16 2
1. Use screwdriver to remove the screw,
labeled in picture at right, at top end of
trapeze arm.
2. Slide bracket onto trapeze arm with
chains downward as shown.
3. Adjust bracket to desired position; use
the T-screw on top of the bracket to
tighten it.
4. Reinstall screw at top end of trapeze
arm; use screwdriver to tighten.
5. Slide bottom of trapeze arm over top of
trapeze post as shown.
6. Install washers on bolts. Install four
bolts through trapeze arm into
connecting rod at top of trapeze post.
Tighten securely.
Info: The trapeze is now ready to
be installed on either the trapeze
base (instructions follow) or on bed
headboard clamps (instructions on
following page).
Trapeze-Base Assembly — Refer to Picture at Above Right
1. Place the two base legs on the oor parallel to each other with leveling glides on the
oor, as shown at above right.
2. Attach the A-frame to the base legs: Slide the A-frame legs down over the upright posts
that project upward from the base legs. Slide the locking pins through both base legs
and A-frame legs. Slide loops over ends of locking pins.
3. Install clamps on A-frame as shown at above right; use the thumbscrews on both sides of
the clamps to tighten them. Ensure that clamps are secure on A-frame.
4. Install trapeze post in both clamp center tubes; adjust trapeze to desired height, ensuring
that it passes completely through both center clamps. Use the wing nuts on clamp
center tubes to tighten clamps. Ensure that trapeze post is secure in clamps.

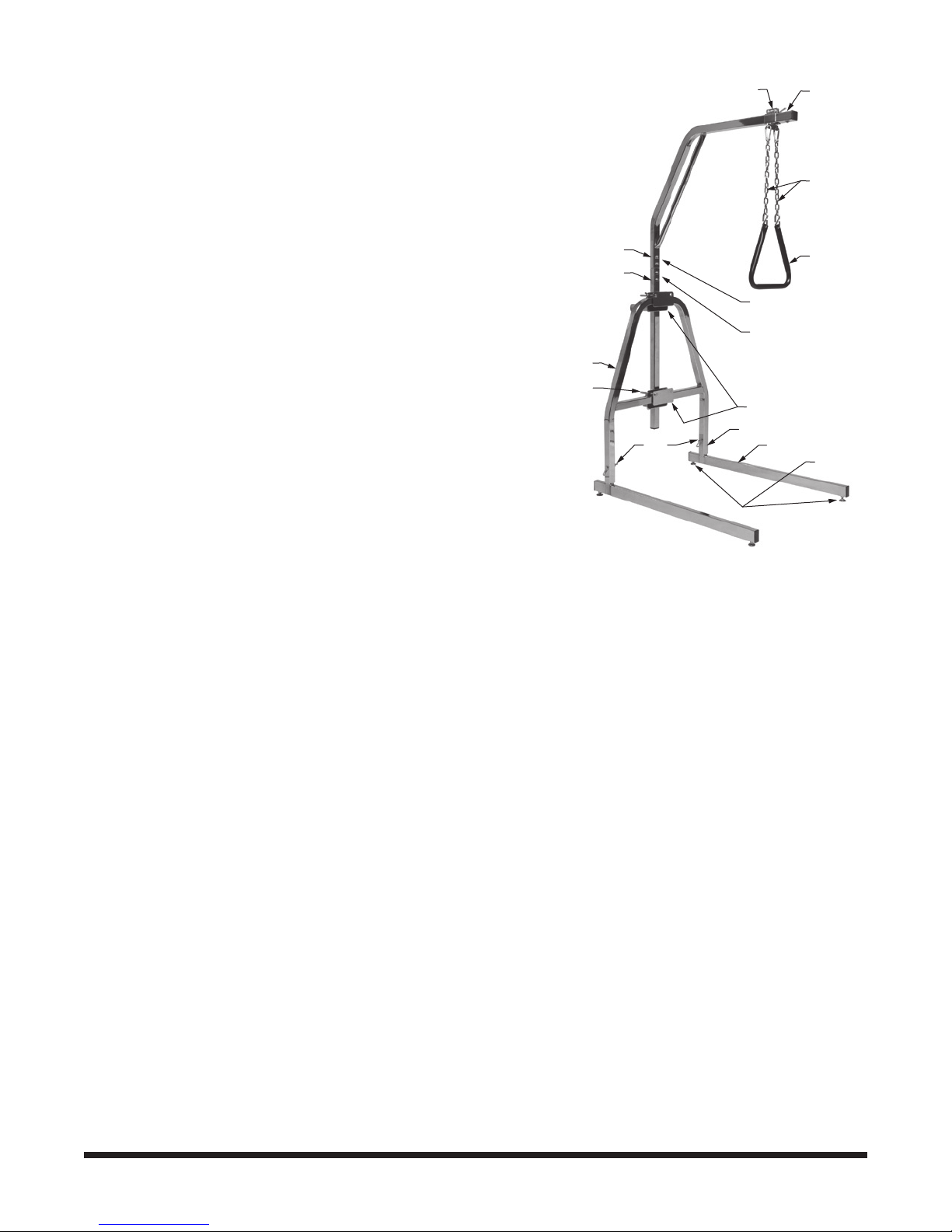

A-frame
thumbscrew
pin
clamp
A-frame leg
base leg
glide
Trapeze Base
2800A / 2800GA
Versa-Helper Trapeze
trapeze arm
trapeze post
bolts, trapeze arm
bolts, trapeze post
screw
bracket
chain
triangle

2800-INS-LAB-RevC16 3

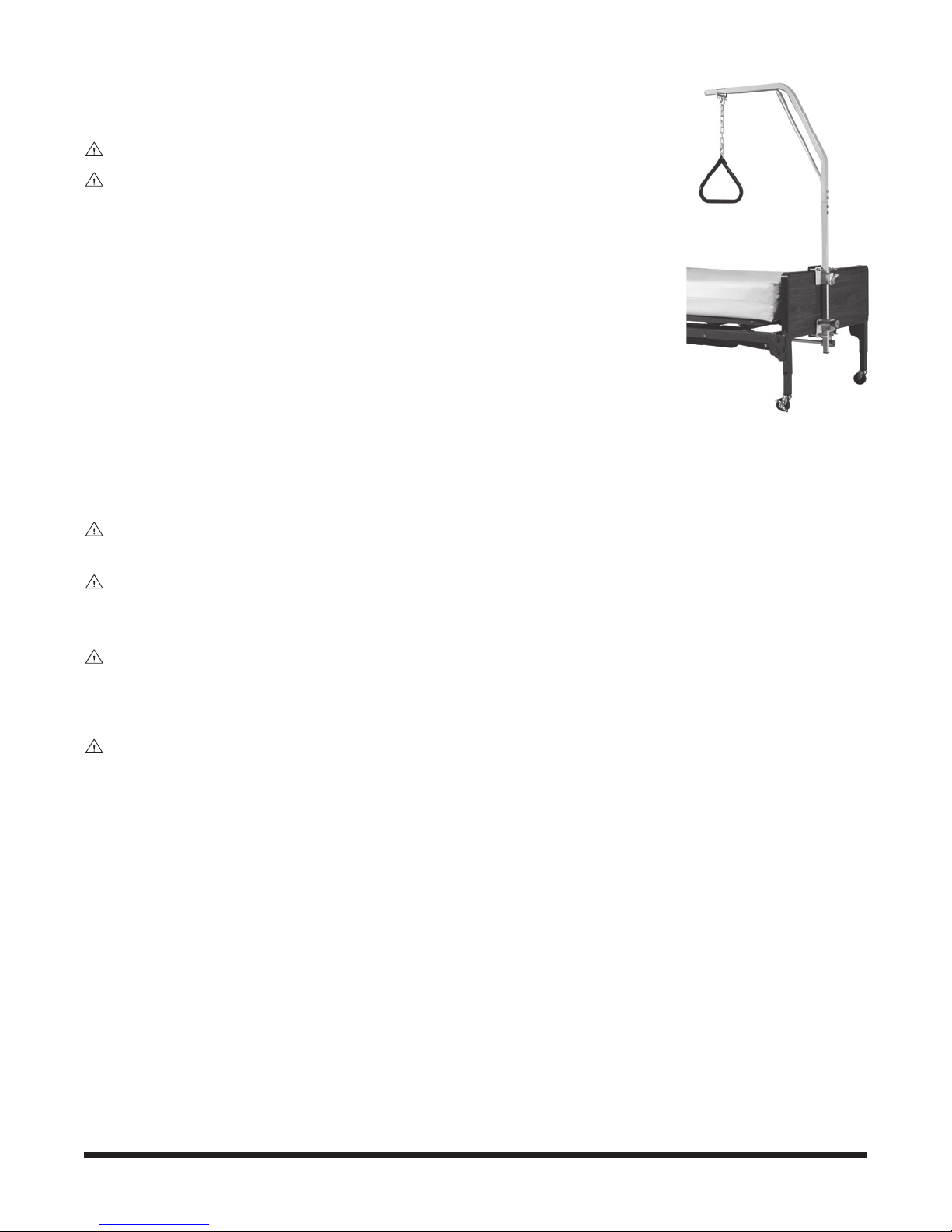

Trapeze mounted on
bed headboard
Trapeze-Bed Headboard Assembly - Refer to Picture at
Right
WARNING: Perform this assembly while bed is unoccupied.
WARNING: Attach trapeze and clamps to metal-frame
headboard ONLY.
1. Slide upper clamp onto bottom of trapeze post so that it is
oriented as shown at right.
2. Slide lower clamp onto bottom of trapeze post so that it is
oriented as shown at right.
3. Assemble both clamps onto bed headboard as shown; use the
thumbscrews on both sides of the clamps to tighten them.
Ensure clamps are secure on headboard.
4. Adjust trapeze to desired height, ensuring that it passes
completely through both center clamps. Use the wing nuts on
clamp center tubes to tighten clamps. Ensure trapeze post is
secure in clamps.
TRAPEZE OPERATION
WARNING: Before use, ensure trapeze is correctly and securely assembled, and all
clamps and fasteners are tight.
WARNING: The Trapeze is intended to be used ONLY as an assistive device — that is,
to enable patients to more easily and safely reposition themselves. It is not intended
to bear entire body weight.
WARNING: When using trapeze assembled to bed headboard, ensure bed casters are
locked during trapeze use, to prevent unintended bed movement.
MAINTENANCE AND CLEANING
WARNING: During use, ensure trapeze components are securely fastened at all times.
Cleaning
Use a soft cloth, dampened with water and a mild NON-ABRASIVE detergent (household
cleaner, soapy water, or hospital grade disinfectant), to clean the trapeze.
LIMITED WARRANTY
SCOPE OF WARRANTY
GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair
components, at GF’s sole discretion, that are defective in material or workmanship under normal use and
service. All warranties are conditioned upon the proper use of the products strictly in accordance with good
commercial practice and applicable GF instructions and manuals, including proper use and maintenance. To
the extent that a component is warranted by a third party, GF conveys all of its rights under that warranty
to the original purchaser, to the extent permitted. This limited warranty shall only apply to defects that are
reported to GF’s customer service team within the applicable warranty period and which, upon examination
by GF or its authorized representative, prove to be a warranty item. This limited warranty is not transferable.
Within the guidelines set forth in this document, this product is warranted for three (3) years. The applicable
warranty period shall commence from date of shipment to the original customer, unless there is an expiration
date on the component in which case the warranty shall expire on the earlier of warranty period or the
expiration date.

2800-INS-LAB-RevC16 4
1.770.368.4700
Information contained herein is subject to change.
The most current and complete product information can be found on our website.
www.grahameld.com
© 2007, GF Health Products, Inc. All Rights Reserved.
Lumex and Graham-Field are trademarks of GF Health Products, Inc.
GF Health Products, Inc. is an ISO 13485 Certied Company.
Manufactured for GF Health Products, Inc.
Made in Taiwan
